Proven Engineering Worldwide

Case Studies & Turnkey Storage Projects

Discover real-world warehouse transformations engineered by Guangzhou Heda Shelves Co., Ltd. for logistics hubs, manufacturing facilities, and distributors across Africa and global markets.

  • Home
  • Case Studies
Featured Installations

Warehouse Storage Solutions Built for Heavy Demands

Every facility presents unique footprint, load and handling challenges. Review how our engineers design, manufacture, and deliver high-density racking to overcome tight operational constraints.

Rack-Supported Mezzanine Floor for Manual Picking Warehouse in Kenya Kenya · Picking Mezzanine
September 2026

Rack-Supported Mezzanine Floor for Manual Picking in Kenya

Configured for an FMCG and hardware distribution center in Nairobi. Integrated heavy pallet loads on the ground tier with multi-aisle manual bin picking on the upper deck to double floor area without structural building extensions.

  • Floor Level: 2-Tier Rack Supported
  • Load Capacity: 800 kg/pallet lower, 500 kg/m² upper
  • Finish: High-durability anti-corrosion powder coating

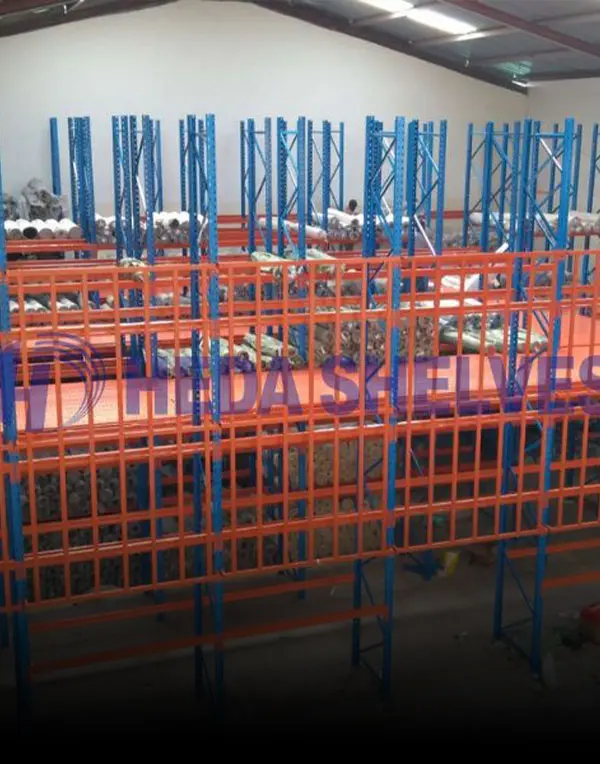

Mezzanine Racking for Fabric Roller Warehouse Storage Textile · Heavy Storage
August 2026

Heavy Mezzanine Racking for Fabric Roller Storage

Custom structural racking engineered to accommodate long, dense fabric rolls. The framework eliminates roll deformation, incorporates integrated safety staircases and pallet drop gates for rapid replenishment by forklift.

  • System: Customized Longspan & Mezzanine Hybrid
  • Clearance: 3,200 mm under mezzanine beam
  • Loading Access: Pallet safety gate & handrails

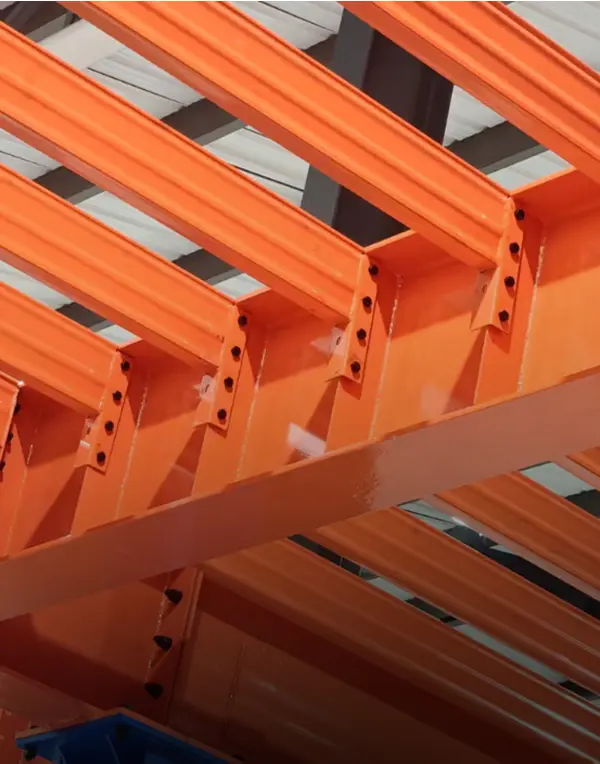

300sqm Mezzanine Floor Storage Platform in Malaysia Industrial · Steel Platform
July 2026

300 m² Structural Steel Mezzanine Storage Platform

A wide-span structural steel platform installed to accommodate heavy machinery components and carton consolidation. Delivers an unobstructed lower workspace with high structural rigidity and modular expandability.

  • Platform Size: 300 m² continuous deck
  • Decking: Galvanized steel grating + anti-slip plate
  • Capacity: 1,000 kg/m² uniformly distributed load
Engineering Accountability

Guaranteed Standards for International Buyers

Why procurement officers, general contractors, and logistics directors trust Guangzhou Heda Shelves Co., Ltd.

Certified Raw Materials

Manufactured using premium Q235B cold-rolled steel, verified with mill test certificates to ensure tensile strength and deflection limits conform to FEM & RMI standards.

In-House Precision Lines

Automated column continuous punching, profile roll forming, and robotic welding ensure pitch accuracy of 50mm / 75mm for seamless on-site assembly.

Tropical Pretreatment

Complete 9-stage pickling, phosphating, and electrostatic powder coating prevents underfilm oxidation in hot, humid African coastal environments.

Sea-Freight Bundling

Components are tagged, bundled, and container-indexed for damage-free maritime transit and smooth customs deconsolidation at destination ports.

Client Feedback & Verification

Site Installations & Delivery Verification

Browse through real project installation records, warehouse handovers, and packing inspections delivered to buyers across multiple continents.

Client project review and on-site warehouse racking installation verification 1
Drive-In Racking Quality Audit

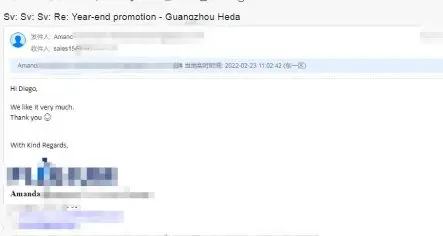

Client project review and on-site warehouse racking installation verification 5
Pallet Rack Upright Alignment Check

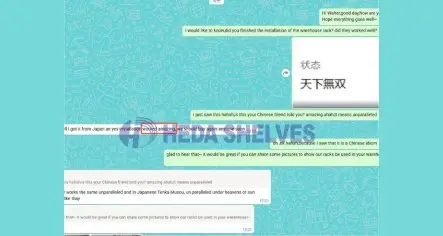

Client project review and on-site warehouse racking installation verification 11
High-Bay Storage Final Acceptance

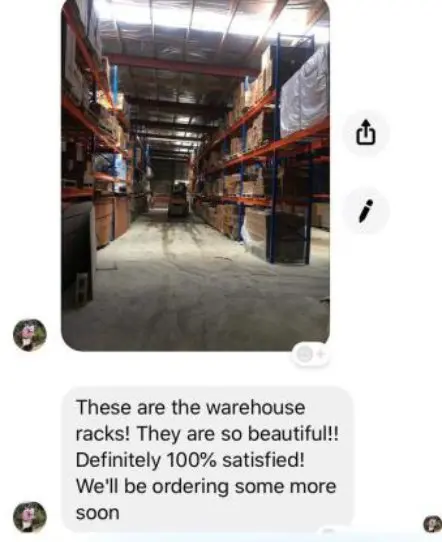

Client project review and on-site warehouse racking installation verification 2
Beam Connector Safety Pin Lock Inspection

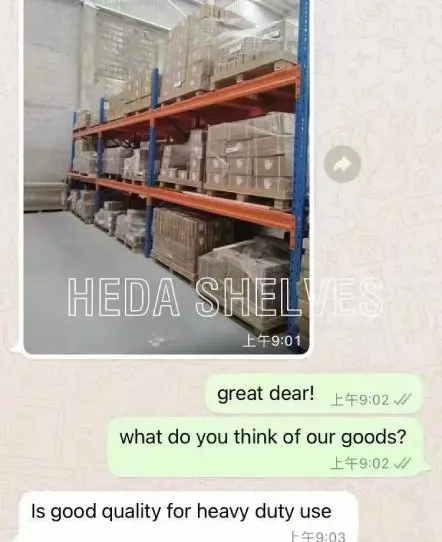

Client project review 4
Drive-In Pallet Support Rail Load Check

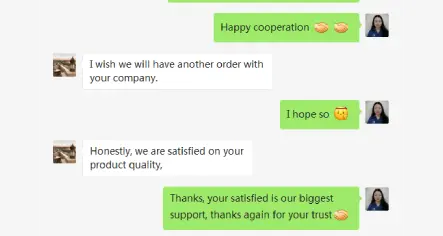

Client project review 12
Warehouse Aisle Spacing Verification

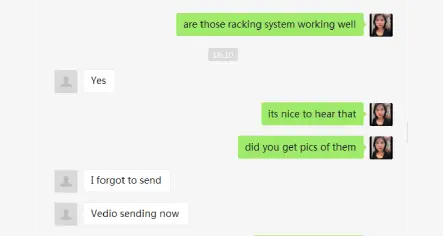

Client project review 13
Base Plate Anchoring Review
Client project review 3
Multi-Level Storage Bay Commissioning

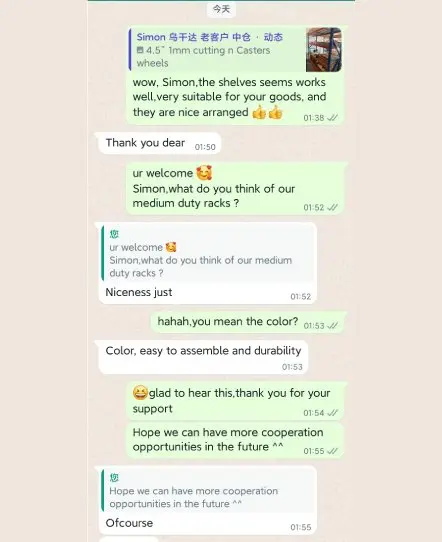

Client project review 7
Selective Rack Row Spacer Assembly

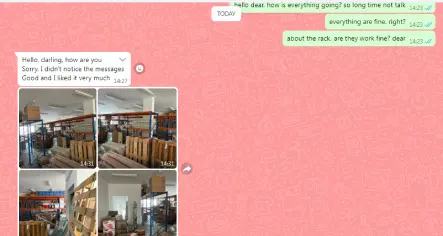

Client project review 14
Mezzanine Platform Floor Decking Review

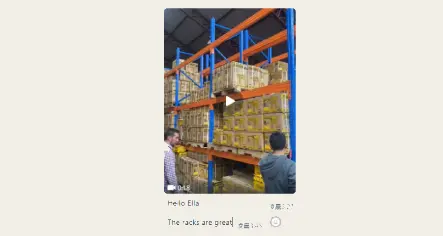

Client project review 16
Forklift Entry Guide Rails Quality Check

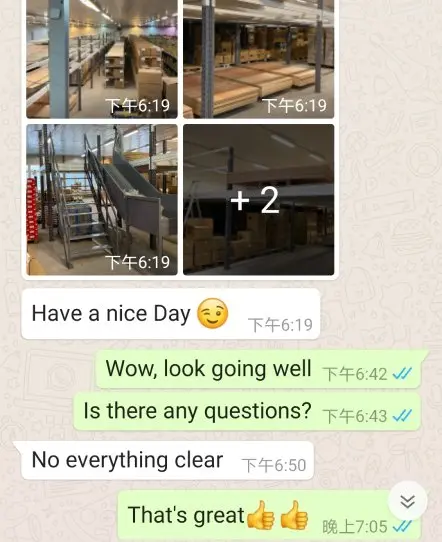

Client project review 6
Full Warehouse Handover Inspection

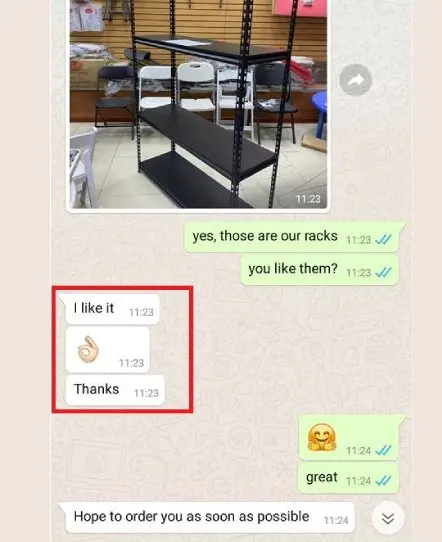

Client project review 9
Heavy-Duty Frame Bracing Inspection

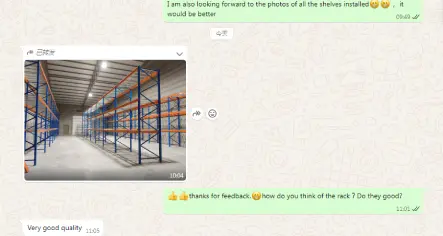

Client project review 18
Column Guard Impact Barrier Check

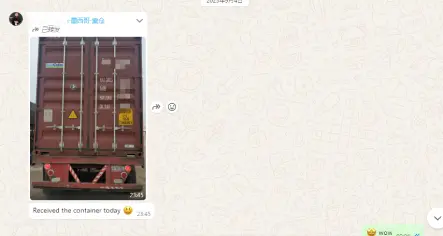

Client project review 17
Container Export Packing Verification

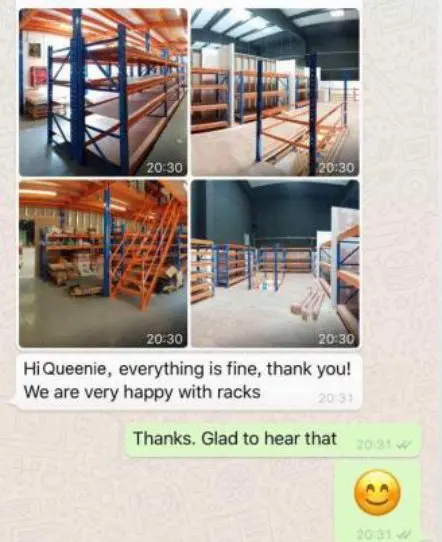

Client project review 8
Pallet Shuttle Track Alignment Test

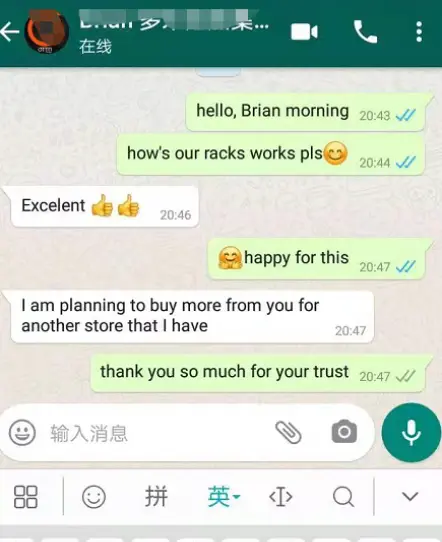

Client project review 15
Cantilever Arm Weldment & Tolerance Test

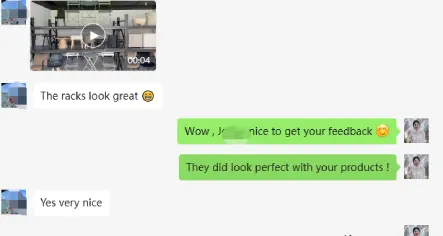

Client project review 19
Cold Storage Galvanized Racking Check

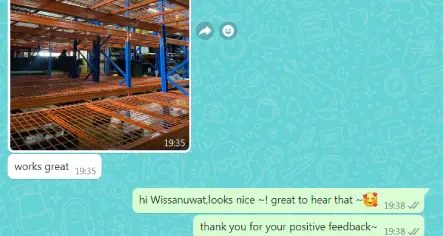

Client project review 20
Safety Signage & Load Notice Plates

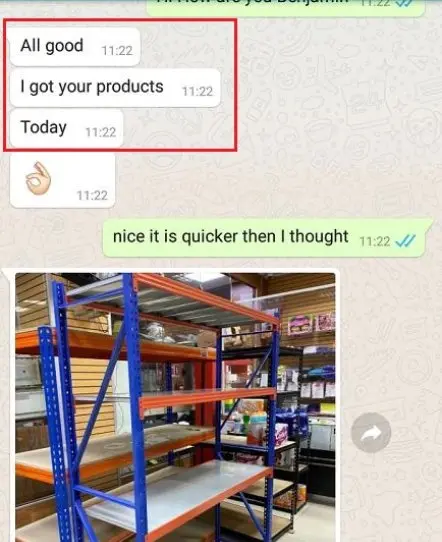

Client project review 10
Client Operations Sign-off & Go-Live

Ready to Plan Your Warehouse Racking Project?

Whether you need a custom-engineered mezzanine, heavy selective pallet racking, or high-density drive-in systems, Guangzhou Heda Shelves Co., Ltd. provides factory-direct pricing, complimentary 3D CAD design, and full sea-freight optimization for your destination port.
