Industrial Shelving System

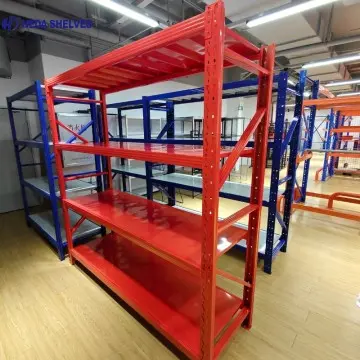

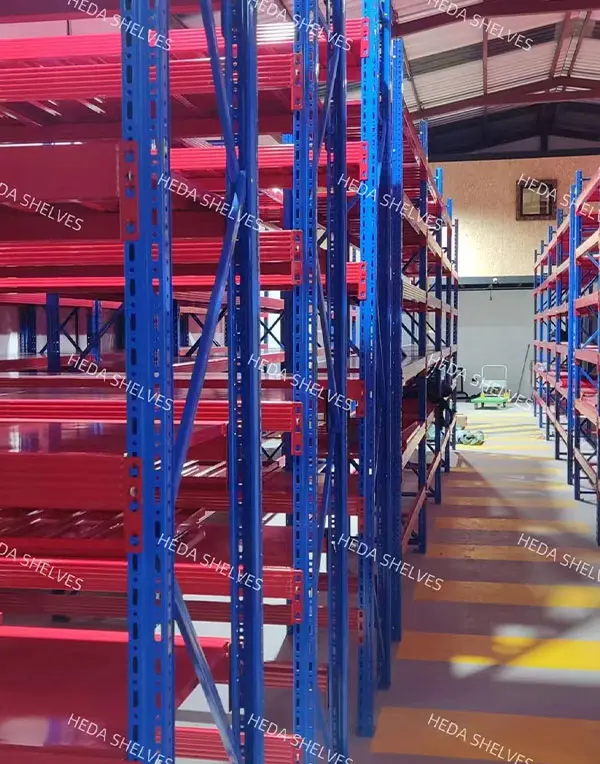

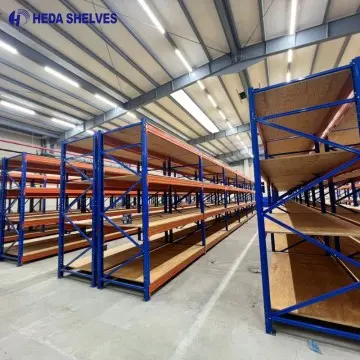

Our light and medium duty boltless shelving supports 200 kg to 800 kg per level, while heavy-duty longspan shelving carries from 500 kg up to 1,000 kg per beam level with uniformly distributed loads (UDL). Every project is designed with safety factors compliant with international warehouse storage codes.

Yes. Upright posts feature precision punch holes along their entire vertical height at 50mm increments. Cross beams attach via heavy-duty welded connector claws and spring safety clips, allowing your staff to reconfigure shelf beam spacing without unbolting frame structures or using special tools.

Depending on your goods and budget, we provide: (1) Galvanized or powder-coated flush steel shelf panels for hygiene and fire resistance; (2) Drop-in wire mesh decking for sprinkler water penetration and ventilation; and (3) Heavy-duty melamine or high-density chipboard decking for general dry carton storage.

All steel components undergo a thorough 9-stage surface treatment including chemical degreasing, acid pickling, rust removal and phosphating before receiving an electrostatically applied epoxy-polyester powder coating cured at 180°C. For extreme humidity, cold rooms or coastal environments, hot-dip galvanized (HDG) steel components are available.

Uprights and beams are strapped in high-density nested bundles with protective plastic wrap, cardboard edge protectors and heavy steel bands. Small hardware, clips and footplates are boxed in seaworthy wooden crates. Loading diagrams are pre-engineered to maximize 20GP or 40HQ container space, lowering landed freight cost per shelf unit.

Please share: (1) Available room or warehouse dimensions (length, width, clear height); (2) Desired shelving dimensions (width, depth, height, number of shelf tiers); (3) Required load capacity per shelf level (kg); (4) Type of inventory stored (boxes, bulk loose items, totes); and (5) Destination seaport or city for freight quotation.
