Heavy-Duty Pallet Racking Engineered by Guangzhou Heda Shelves Co., Ltd.

Since 2001, Guangzhou Heda Shelves Co., Ltd. has delivered factory-direct warehouse storage racking to 3PL logistics, cold chain operations, FMCG distributors, agro-processing facilities, and automotive parts depots worldwide. Every structural component is manufactured from certified high-tensile steel, shot-blasted, phosphated, and finished with electrostatic powder coating to withstand heavy mechanical handling and tropical humidity across Africa.

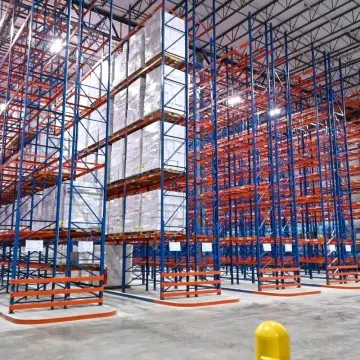

Very Narrow Aisle VNA Racking System 01 · High Density

VNA (Very Narrow Aisle) Racking System

Built to tight structural tolerances for aisles as narrow as 1.5m–1.8m. Paired with guided turret trucks, it preserves 100% direct pallet selectivity while expanding vertical capacity up to 18 meters.

100% Selectivity Up to 18m Height Save 40% Floor Space
Inquire Specification

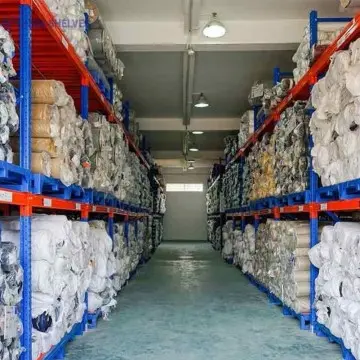

Roll Material Cylindrical Pallet Racking 02 · Specialized Cargo

Roll Material Pallet Racking

Engineered cradle and saddle beams designed specifically for paper reels, carpet rolls, textiles, and cylindrical packaging materials, preventing structural deformation and rolling hazards.

Heavy Steel Saddles Anti-Rolling Design OEM & ODM Profiles
Inquire Specification
Selective Pallet Racking 03 · Most Popular

Selective Pallet Racking System

The global benchmark for multi-SKU warehousing. Provides unhindered 100% access to every single pallet with adjustable horizontal levels, compatible with standard counterbalance and reach trucks.

100% Direct Access 1,000–5,000 kg/Level Fully Adjustable Pitch
Inquire Specification
Drive-In Pallet Racking 04 · Lane Storage

Drive-In Racking System

Removes working aisles so forklifts drive straight into storage lanes. Ideal for high-volume homogenous SKUs, cold storage, beverage bottling, and seasonal agricultural harvests operating on LIFO.

Eliminates Aisles LIFO Management Cold Store Optimized
Inquire Specification
Gravity Flow Pallet Racking 05 · Strict FIFO

Gravity Flow Pallet Racking

Pallets load on inclined wheel tracks and roll smoothly from replenishment end to picking face by gravity. Zero electrical dependency ensures nonstop stock rotation even during power outages.

Automatic FIFO Zero Electricity Needed Speed Controller Rollers
Inquire Specification
Radio Shuttle Pallet Racking 06 · Semi-Automated

Radio Shuttle Racking System

Autonomous wireless shuttle carts convey pallet loads down high-depth storage channels. Forklifts never enter the racking channels, dramatically speeding turnaround and eliminating rack impact.

FIFO & LIFO Flexible No Forklift Entry Sub-Zero Compatible
Inquire Specification
Push Back Pallet Rack 07 · Gravity Nested Carts

Push Back Pallet Rack

Stores pallets 2 to 6 deep on nested wheeled carts running on sloped rails. When a pallet is picked, the behind unit advances automatically to the front face without mechanical motors.

2–6 Pallets Deep High SKU Selectivity Mechanical Reliability
Inquire Specification
Double Deep Pallet Rack 08 · Double Depth

Double Deep Pallet Racking

Configured with back-to-back rows to hold two pallets deep from one aisle using deep-reach pantograph trucks. Increases storage density by up to 40% over standard single selective formats.

+40% Density Boost Fewer Aisle Cuts Cost-Effective Capacity
Inquire Specification

Need Engineering Support for an African Project?

Send your warehouse dimensions or inventory specs to Guangzhou Heda Shelves Co., Ltd. for a verified CAD layout and load assessment within 24 hours.

Send an Inquiry
Technical Capabilities

Complimentary Engineering & Warehouse Planning

Guangzhou Heda Shelves Co., Ltd. eliminates layout risks for international buyers through end-to-end structural modeling before steel enters production.

Fast CAD Design

Precision CAD Layouts

Provide building dimensions, door openings, and pillar coordinates; our engineering team produces comprehensive 2D CAD architectural plans within 3 business days.

3D Rendering

3D Spatial Renderings

Detailed three-dimensional structural visuals to verify overhead clearance, forklift turning circles, beam elevations, and fire protection sprinkler integration.

Full Warehouse Layout Plan

Turnkey Logistics Planning

From floor racking zones and high-throughput automated shuttle lanes to integrated multi-tier mezzanine floors, we supply complete turnkey configurations.

Manufacturing Authority

Why International Procurement Teams Trust HEDA Shelves

Over two decades of structural steel fabrication, global compliance, and ocean-freight container packing.

2001

25+ Years Experience

Specialized fabrication of heavy-duty industrial racking and structural mezzanine platforms serving projects across 120+ countries worldwide.

30,000t

Monthly Output Capacity

Continuous automated roll-forming, laser cutting, and robotic welding ensure rapid container turnaround and strict batch dimensional consistency.

100%

One-Stop Turnkey Support

Single-source accountability from load-bearing finite element analysis to containerized freight nesting and remote installation assistance.

10,000+

Verified Installations

Proven track record engineering solutions for seismic conditions, sub-zero cold rooms, coastal humidity zones, and heavy industrial yards.

Compliance Standards

International Certifications & Structural Codes

All pallet racking systems engineered by Guangzhou Heda Shelves Co., Ltd. comply with global structural integrity regulations.

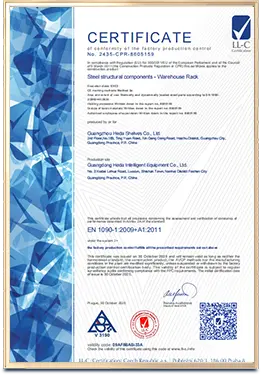

CE-CPR Certificate
CE-CPR Certified
No. 2435-CPR-8605159

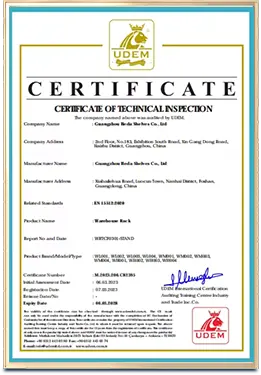

ISO 9001:2015
ISO 9001:2015
Certified Quality System

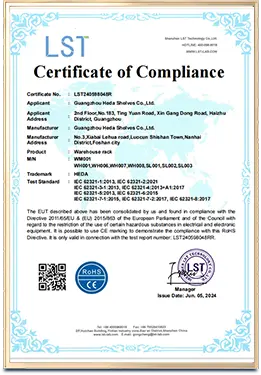

CE & RoHS
RoHS & CE Compliant
Material Safety Standards
Project Showcase

Global Racking Case Studies

Real-world warehouse installations engineered and delivered by Guangzhou Heda Shelves Co., Ltd.

Chemical Storage Racking in Ghana
Ghana · Chemical Logistics

Heavy-Duty Pallet Racking for Chemical Drums

Reinforced upright frames and wire mesh decking engineered for stable drum and IBC bulk liquid storage in Accra.

Mezzanine Floor Racking in Kenya
Kenya · Distribution Center

Rack-Supported Mezzanine Floor for Picking Hub

Combining heavy pallet racking below with multi-tier manual pick decks overhead for an automotive logistics warehouse in Nairobi.

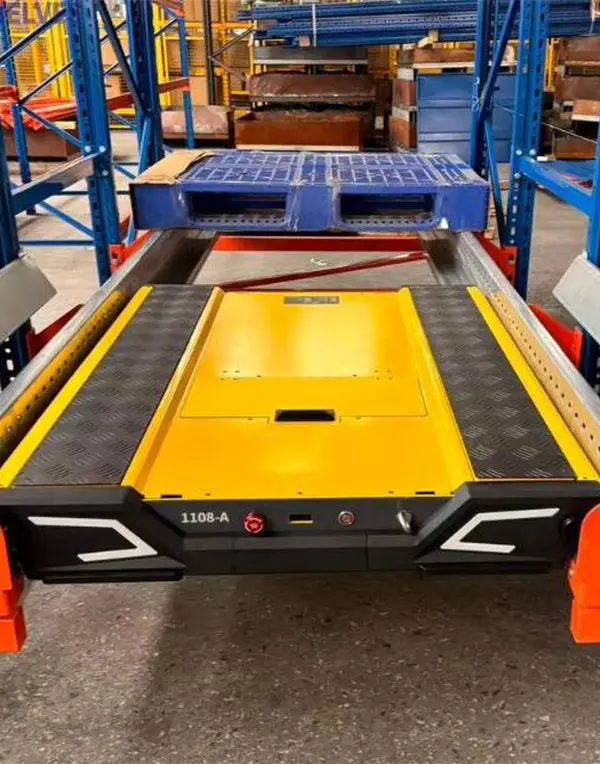

Cold Chain Radio Shuttle Racking
Cold Storage · Agriculture

Radio Shuttle Racking for Produce Cold Storage

Sub-zero automated shuttle channels reducing energy consumption per pallet position in high-throughput food logistics.

Procurement FAQ

Frequently Asked Questions on Pallet Racking

Key information regarding load limits, layout customization, container shipping, and site installation.

What types of pallet racking systems are available?
Guangzhou Heda Shelves Co., Ltd. manufactures Selective Pallet Racking, Drive-In Racking, Double-Deep Racking, Push-Back Racking, Pallet Flow Gravity Racking, Very Narrow Aisle (VNA) Racking, and Radio Shuttle Systems. Systems can be combined across different functional zones of the same facility.
Can you help design a warehouse racking layout from architectural plans?
Yes. Simply send us your warehouse clear dimensions, column spacing, pallet parameters, load weights, and forklift specifications. Our engineering team prepares complete CAD layout schematics and 3D operational visuals free of charge.
What is the load capacity of your heavy-duty pallet racking?
Standard heavy-duty pallet racking supports from 1,000 kg up to 5,000 kg per beam level. High-density formats like Drive-In, Push Back, and Radio Shuttle systems typically carry 1,000 kg to 3,000 kg per pallet position based on project requirements.
Can pallet racking be customized for regional African warehouse environments?
Yes. All uprights and beams undergo thorough pickling and phosphating before electrostatic powder coating to prevent corrosion in humid coastal regions. Hot-dip galvanized finishes are available for outdoor or refrigerated environments.
How is the racking packaged for container shipping to African ports?
Components are knock-down packaged, tightly bundled, and nested to maximize the cubic meter utilization of 20GP and 40HQ ocean containers. This significantly minimizes freight cost per pallet position to ports like Lagos, Tema, Mombasa, Durban, and Alexandria.
How is pallet racking assembled and installed on-site?
Orders ship with detailed CAD assembly drawings, component numbers, and instructional videos enabling local construction crews to erect systems safely. On-site technical supervisors can also be dispatched for large-scale logistics developments.
