Certified Pallet Racking & Industrial Storage Assemblies
Precision-manufactured from high-tensile Q235B and Q355B cold-rolled structural steel, optimized for dynamic intralogistics throughput and standardized sea container loading.
Custom Heavy Duty
Drainage Design
Galvanized High-Tensile

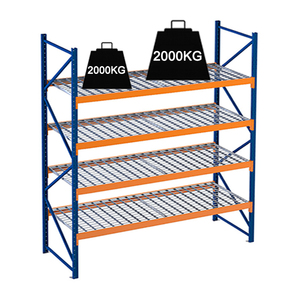

1000 - 3000 KG
Racking Compatible

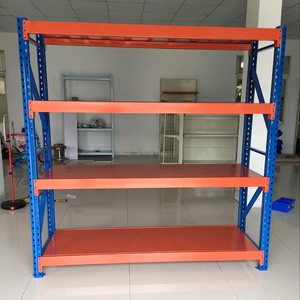

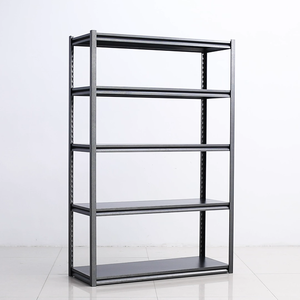

4-Tier System
Medium Duty Modular
Heavy-Duty Pallet Racking Structural Selection Architecture
Specifying an industrial pallet racking installation demands an exhaustive engineering assessment spanning finite element analysis (FEA), dead/live load deflection limitations, seismic soil acceleration ratings, and floor slab bearing thresholds. Industrial logistics racking does not operate as static furniture; it is an active structural framework operating under relentless mechanical impact, cyclic vibration, and dynamic load redistribution.
Under European Norm EN 15512:2020 (Steel static storage systems - Specification of beam-and-upright pallet racking systems) and the Construction Products Regulation (CPR 305/2011/EU), structural integrity pivots on the elastic-plastic response of cold-formed perforated upright columns. At Guangzhou Heda Shelves Co., Ltd., our engineering departments employ Q235B (yield strength ≥ 235 MPa) and Q355B (yield strength ≥ 355 MPa) high-grade steel coils sourced directly from top-tier primary domestic steel mills to manufacture structural profiles capable of withstanding dynamic operational forces.
Structural Reliability Notice: In compliance with EN 15512 and FEM 10.2.02 standards, maximum allowable beam deflection under full static payload must not exceed L/200 (where L is the clear span distance between upright columns). Every HEDA beam connector incorporates an integrated automated safety locking mechanism resisting an upward dislodgment force exceeding 5.0 kN.
When selecting your layout topology, warehouse architects must balance inventory selectivity against volume utilization. Selective Pallet Racking (SPR) guarantees 100% immediate SKU accessibility with approximately 40% floor area utilization. In contrast, High-Density Radio Shuttle Racking (SRS) and Drive-In Racking (DIR) leverage deep-lane channels, increasing spatial cube utilization above 80% while constraining operational selectivity to FIFO (First-In, First-Out) or LIFO (Last-In, First-Out) regimes.
| Racking Topology | Volume Utilization | SKU Selectivity | Unit Payload Capacity | Handling Fleet Pairing | Primary Sector Application |
|---|---|---|---|---|---|
| Selective Pallet Racking (SPR) | 40% – 45% | 100% Direct Access | 1,000 – 4,500 kg / level | Counterbalance, Reach Trucks | FMCG, 3PL Distribution, E-Commerce |
| Double-Deep Racking | 55% – 60% | 50% Immediate Access | 1,000 – 3,000 kg / level | Pantograph Double-Reach Truck | Dry Goods, Intermediate Buffers |
| Radio Shuttle Automation | 75% – 85% | Lane Dependent (FIFO/LIFO) | 500 – 2,000 kg / pallet | Standard Forklifts + AGV / Shuttle | Cold Storage, Beverage, Agro-Bulk |
| Drive-In / Drive-Through | 65% – 75% | Batch Access (LIFO/FIFO) | 1,000 – 2,000 kg / pallet | Narrow Counterbalance | Raw Material Warehousing, Seasonal |
| Heavy-Duty Cantilever | Variable Linear | 100% Clear Access | 500 – 3,000 kg / arm | Side Loaders, 4-Way Forklifts | Structural Steel, Timber, PVC Pipes |
| Rack-Supported Mezzanine | 100% Volumetric Expansion | Manual Tier Picking | 300 – 1,000 kg / m² deck | Conveyors, Vertical Lifts | Automotive Spare Parts, Garments |
Future Procurement Trends in Industrial Storage Infrastructure
Global supply chain disruptions, escalating cold chain footprints, decarbonization pressures, and automation convergence are fundamentally transforming industrial racking procurement paradigms.
1. Decarbonization & Circular Steel Accounting
Tier-1 multinational enterprise procurement mandates documented Scope 3 emissions reporting. Steel coil production accounts for substantial embedded carbon; industrial buyers are demanding suppliers demonstrate electric arc furnace (EAF) utilization, secondary recycled scrap ratios exceeding 25%, and low-temperature thermosetting powder coating finishes that curtail carbon output during baking polymerization.
2. Hybrid Automation & AMR Compatibility
Warehousing operations are transitioning from conventional manual forklift handling to hybrid semi-automated environments. Upright post hole punching tolerances must adhere to strict sub-millimeter precision to ensure flawless optical sensor navigation for Autonomous Mobile Robots (AMRs) and automated pallet shuttle fleets traversing multi-tier rail grids.
3. Climate-Resilient Galvanizing in Tropical & Coastal Hubs
With cross-border logistics surging across coastal African corridors (Lagos, Tema, Mombasa, Durban) and Southeast Asian free trade ports, hot-dip galvanized (HDG) coating thickness (≥ 65 μm according to ISO 1461) has become the gold standard to combat saline atmospheric corrosion (ISO 12944 C4/C5 classification), outpacing traditional indoor coatings.
10-Stage Controlled Racking Fabrication Methodology
HEDA Shelves integrates continuous cold-roll forming, robotic laser cutting, and automated electrostatic powder coating lines to guarantee sub-millimeter metallurgical adherence across every export container.
Specialized Storage Architectures by Industrial Sector
Engineered around operational bottlenecks: humidity exposure, massive single-point loads, high SKU complexity, or strict cold-chain temperature dynamics.
Agriculture & Agro-Processing
Elevated pallet storage for grain, cocoa, seed, and fertilizer sacks. Prevents floor moisture absorption, enables batch FIFO tracking, and maximizes air circulation to prevent mold spores.
Automotive & Aftermarket Spare Parts
Integrated rack-supported mezzanines and multi-tier longspan shelving. Organizes thousands of high-velocity SKUs ranging from miniature fasteners to bulky body panels.
Construction & Building Materials
Heavy-duty structural cantilever and open-span rack systems accommodating steel rebar, timber bundles, extrusions, and heavy sheet stock with zero frontal column interference.
Food, Beverage & Fast-Moving Consumer Goods
Gravity pallet flow and high-density drive-in systems ensuring strict expiry date control, eliminating pallet stack-crush damage, and handling rapid throughput during peak dispatch.
Refrigerated Logistics & Cold Chain
Semi-automated radio shuttle configurations engineered for sub-zero (-30°C) blast freezers. Minimizes refrigerated air cubic loss by compacting aisle space to the absolute minimum.
Chemicals, Lubricants & Mining Stores
Reinforced upright frames featuring drum support cradles, spill containment trays, and wire mesh decking to securely store hazardous barrels, IBC totes, and heavy drill consumables.
Guangzhou Heda Shelves Co., Ltd. - Manufacturing Infrastructure
Founded in 2001, Guangzhou Heda Shelves operates as an international direct manufacturer specializing in heavy industrial racking, structural platforms, and complete intralogistics supply chains.
25+ Years Industrial Heritage
Over two decades of continuous structural innovation, delivering tailored storage engineering across international industrial sectors.
Free CAD & FEA Calculations
Senior structural engineering teams prepare verified CAD layouts, 3D renderings, and load deflection analyses within 24 hours.
Standardized Global Quality
Independent tensile testing, weld penetration ultrasonic inspections, and salt spray corrosion testing before container sealing.
Container Cubic Optimization
Precision knock-down component bundling designed specifically to maximize freight cubic volume in 20GP and 40HQ sea containers.
International Compliance & Structural Certification Audit Trails
All export assemblies undergo accredited third-party validation ensuring conformity with the European Construction Products Regulation, ISO quality management protocols, and international environmental safety directives.
CE Marking Certificate
No. 2435-CPR-8605159
ISO 9001:2015 Quality Standard
Reg. 18624Q00169R0M
RoHS Safety Compliance
Hazardous Substance Free
Load Verification Audit
Accredited Laboratory ProofEssential Engineering & Export Procurement Queries
Comprehensive technical answers prepared by our project engineers covering structural verification, maritime freight packing, anti-corrosion finishes, and on-site assembly guidance.
