Featured Light & Medium Duty Pallet Racking Systems
Precision-engineered using high-tensile cold-rolled Q235B structural steel. Each unit features electrostatic corrosion protection, adjustable pitch configurations, and verified load safety thresholds.

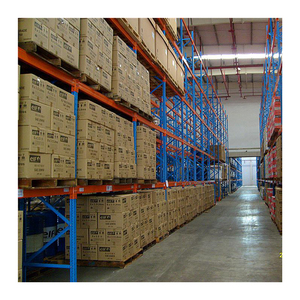

Customized Heavy & Light Duty Steel Warehouse Pallet Racking System
- Load: 300 - 1,500 kg per level
- Steel: Q235B Cold-Rolled Carbon
- Pitch: 50mm / 75mm Adjustable
Supermarket Warehouse Light-Duty 4-Tier Boltless Storage Pallet Rack
- Certification: CE No. 2435-CPR-8605159
- Coating: Anti-Corrosion Phosphated
- Capacity: 150 - 350 kg/layer
Selective Light-to-Medium Multi-Tier Cold Roll Steel Pallet Storage Shelf
- Access: 100% Direct SKU Selectivity
- Safety: Spring-Loaded Locking Pins
- Application: FMCG & Distribution

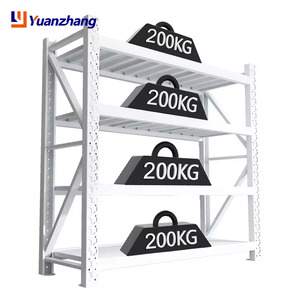

YZ Durable Light Duty Industrial Storage Boltless Steel Shelving Unit
- Setup: Modular Tool-Free Assembly
- Decking: Steel Panels or Wire Mesh
- Durability: Scratch-Resistant Finish

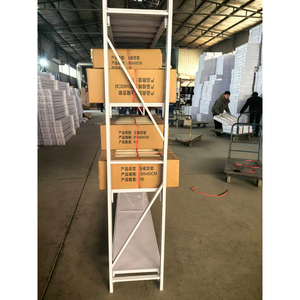

Engineered Light Duty Storage Shelf Rack & Modular Warehouse Shelves
- Load: 200 - 500 kg per tier
- Profile: Butterfly / Teardrop Slots
- Standard: RoHS & ISO 9001:2015
Industrial Pallet Organization Rack System for Scalable Distribution
- Beam Type: Box & Step Beams
- Deflection Rate: < L/200 Under Load
- Corrosion: Dual Powder Coating

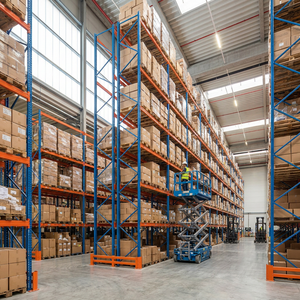

Certified Material Handling Selective Steel Pallet Racking Storage Frame
- Upright Frame: High-Grade Roll Formed
- Anchor: Heavy Duty Baseplate Dynabolts
- Custom: Color, Size & Spacing OEM

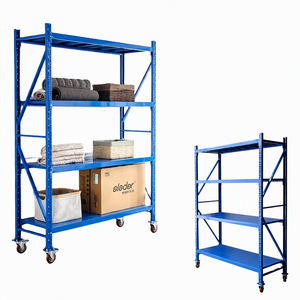

Light Duty Steel 4-Layer Powder Coated Storage Pallet Rack with Industrial Wheels
- Mobility: 360° Industrial Swivel Casters
- Overall Capacity: 500 kg Mobile Payload
- Finish: Scratch-Proof Powder Coat
Structural Mechanics of CE-Certified Light Duty Pallet Racking
Bridging the gap between manual-pick industrial shelving and heavy structural racking through cold-formed high-strength steel profiles and certified structural integrity.
Cold-Roll Micro-Profile Geometry
Light-duty pallet racking systems rely on precision cold-roll formed open C-sections and omega-shaped uprights. Cold working increases the material's yield strength (Rp0.2) by up to 22% via work hardening. With steel gauge thicknesses calibrated between 1.2mm and 2.0mm, our profiles optimize weight-to-load ratios without compromising seismic or torsional stability, fully compliant with EN 15512 European standards.
Beam Connector Safety Dynamics
Connector clips feature a 3-claw or 4-claw configuration precision-punched to interface seamlessly with butterfly or teardrop column perforations. Integrated spring steel safety locking pins prevent upward dislodgement from inadvertent forklift tine contact or manual handling impacts, sustaining upward shearing loads exceeding 5.5 kN per connection node.
Deflection Criteria & Safety Limits
Structural reliability requires strict deflection limits under maximum allowable working load. Our beams are engineered to conform to FEM 10.2.02 deflection limits, guaranteeing maximum vertical deformation below L/200 under uniformly distributed loads (UDL). This mechanical precision eliminates shelf sagging, preserves pallet balance, and guarantees worker safety in high-turnover fulfillment centers.
Performance Matrix: Light Duty Pallet Racks vs. Alternative Systems
| System Classification | Rated Tier Payload (UDL) | Upright Steel Gauge | Handling Interface | Deflection Threshold | Standard Certifications | Primary Fulfillment Role |
|---|---|---|---|---|---|---|
| Light Duty Pallet Racking | 200 kg – 800 kg | 1.2 mm – 1.8 mm Q235B | Manual Pick / Stacker / AGV | < L/200 | CE / ISO 9001 / RoHS | E-commerce, FMCG, Bins, Cartons |
| Medium Longspan Shelving | 150 kg – 500 kg | 1.0 mm – 1.5 mm Q235B | 100% Hand Loaded Manual | < L/180 | ISO 9001:2015 | Automotive Spare Parts, Hardware |
| Standard Heavy Duty Selective | 1,000 kg – 4,000 kg | 1.8 mm – 2.5 mm Q345B | Counterbalanced / Reach Trucks | < L/250 | CE / EN 15512 | Bulk Pallet Storage, Industrial Drums |
| Rack-Supported Mezzanines | 300 kg – 1,000 kg / m² | 2.0 mm – 3.2 mm Structural | Multi-Tier Pedestrian / Trolley | < L/300 | CE / CPR-8605159 | Vertical Space Multiplication |
Inside Our 30,000 m² Advanced Production Facility
Since 2001, Guangzhou Heda Shelves Co., Ltd. has established an integrated, single-roof manufacturing ecosystem producing up to 30,000 metric tons per month of precision steel storage systems.
Coil Slitting & Inspection
Prime certified Q235B hot/cold-rolled coils undergo spectral chemical analysis and ultrasonic flaw testing before decoiling.
Continuous CNC Punching
Multi-station mechanical presses punch teardrop and butterfly pitch patterns with ±0.1mm linear positional accuracy.
Multi-Pass Cold Roll Forming
18 to 24 progressive roller stations shape high-rigidity upright posts and box beams while preserving residual yield strength.
Chemical Pre-Treatment
A 5-stage dip cycle including acid pickling, ultrasonic degreasing, and zinc phosphating creates superior primer adhesion.
Electrostatic Curing
Automated powder guns apply 60–90µm thermoset epoxy polyester coatings cured at 200°C for exceptional corrosion resistance.
Verified Factory Accreditations
CE CPR: 2435-CPR-8605159 | ISO 9001:2015: 18624Q00169R0M | RoHS Heavy Metal Certified
Future Procurement Trends in Light Duty Pallet Racking
As global intralogistics accelerates toward omnichannel fulfillment and micro-distribution, light-duty pallet racking systems are evolving far beyond static steel shelving.
1. AMR & Cobot Compatibility
Modern micro-fulfillment centers require pallet racking capable of interfacing directly with Autonomous Mobile Robots (AMRs) and automated pallet lifters. Procurement standards are prioritizing lower baseplate profiles, magnetic navigation tape slots, and anti-glare powder finishes to facilitate LiDAR and computer vision scanning.
2. Ultra-High-Strength Thin Steels
Global ocean freight costs are driving a shift toward high-tensile micro-alloyed steels (such as Strenx and advanced cold-rolled Q345B derivatives). These alloys achieve equal or superior load safety coefficients with a 15–20% reduction in deadweight, significantly minimizing container ocean shipping expenses per storage position.
3. Modular Reconfigurability
Rapid SKU lifecycle shifts dictate boltless, modular racking systems that warehouse staff can reconfigure in minutes without heavy tools or welding. Forward-looking buyers are demanding standardized multi-pitch connections allowing seamless conversion from pallet tiers to longspan picking decks.
4. Low-VOC Eco-Friendly Coatings
ESG compliance and carbon footprint accounting are heavily influencing European and North American tier-1 warehouse procurement. Modern supply chains specify solvent-free, zero-VOC TGIC-free thermoset powder coatings that yield exceptional salt-spray durability (ASTM B117 > 500 hours) while ensuring recyclable sustainability.
Optimizing Containerized Freight for Overseas Buyers
For international importers, distributors, and logistics contractors, the true landed cost of pallet racking is largely governed by container cubic utilization and protective packaging integrity. Racking frames that are improperly bundled result in broken powder coats, rusted steel, bent connectors, and up to 35% wasted ocean container space.
At HEDA Shelves, all light duty pallet racking uprights and beams are processed through high-density flat-pack bundle algorithms. Cold-rolled uprights are nested back-to-back with custom corrugated edge protectors, bound with heavy-duty polyester strapping, and wrapped in moisture-barrier thermal plastic. Step beams and box beams are palletized with anti-abrasive non-woven dividers to eliminate vibration damage during long maritime transits.
Export Shipping Checklist
- Moisture Desiccant Pouches in 40HQ
- Heat-Treated ISPM-15 Wooden Skids
- Sequential Component Color Coding
- 3D Installation Drawing & Part Index
- Full Port Clearance Documentation
Frequently Asked Engineering & Buying Questions
Real technical clarity addressing structural certifications, deflection calculations, coastal corrosion, and turnkey international delivery.
What official European and international certifications cover your light duty pallet racking?
How do you calculate safe working loads and maximum beam deflection?
Can light-duty pallet racking withstand high humidity, coastal air, or cold storage conditions?
What parameters do your engineers need to produce a complimentary 3D CAD warehouse layout?
What is the difference between boltless teardrop and butterfly upright pitch configurations?
Can decking panels be customized for non-standard pallets, bins, or small boxes?
How are shipping containers planned to prevent shipping damage and lower freight costs?
Do you offer OEM and custom brand manufacturing for overseas racking suppliers?
Ready to Optimize Your Warehouse Storage Footprint?
Send us your warehouse CAD drawings or floor dimensions. Our engineering team will deliver a customized 2D/3D storage layout, structural load calculation sheet, and containerized export quotation within 24 hours.
