Engineered Industrial Racks for Mission-Critical Warehousing
Manufactured from high-tensile cold-rolled Q235B/Q355B structural steel, our industrial rack configurations provide verified load safety, micro-adjustable beam levels, and extreme resistance to mechanical impacts.
Heavy Duty Shelving Pallet Rack for Storage
- Load Capacity: 1,000–4,500 kg/tier
- Pitch Adjustment: 50mm / 75mm
- Steel Specification: SS400 / Q235B
- Safety Factor: 1.65 (FEM 10.2.02)
Garage Storage Factory Steel Metal Van Rack System Heavy Duty Shelving Single Deep Industrial Pallet Rack Shelving
- Access Efficiency: 100% Immediate Direct Access
- Aisle Compatibility: Counterbalance & Reach Truck
- Upright Profile: 90×70mm / 100×70mm Omega
- Surface Coating: Electrostatic Epoxy Powder
Boltless Adjustable Heavy Duty Load-Bearing 300kg/Layer Iron 4-Layer Industrial Storage Shelf Racking System
- Layer Capacity: 300–800 kg/level
- Assembly Mechanism: Keyhole Boltless Interlock
- Decking Medium: Cold-Rolled Steel / Wire Deck
- Corrosion Test: 500h Neutral Salt Spray

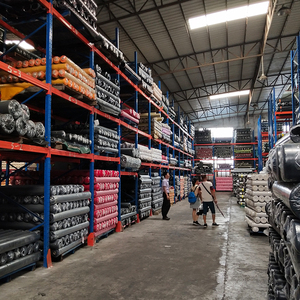

Highly Customizable Free Design Storage Rack for Various Heavy Duty Storing 1000KG 2000KG 3000KG Pounds Tons
- Custom Range: 1,000kg to 5,000kg/level
- Frame Height: Up to 12,000mm Continuous
- CAD / CAE: Free 3D Static Simulation
- Standard Metric: AS4084-2012 / RMI MH16.1
Heavy Duty Adjustable Metal Shelves Racking System Stacking Warehouse Storage Pallet Metal Racking
- Beam Deflection: ≤ L/200 Under Max Load
- Connector Claws: 3 or 4 Riveted Lug Locking
- Safety Pins: Zinc-Plated Spring Latch
- Anchor Fasteners: M12×100 Heavy Anchor Bolts
MZG ODM Factory Industrial Warehouse Parts Metal Heavy Duty Storage Organizer Rack Wire Shelving Systems with Wheel
- Mobility: Heavy Castor with Foot Brake
- Ventilation: Open Wire Mesh Airflow
- Fire Suppression: NFPA 13 Sprinkler Compliant
- Layer Capacity: 250–500 kg Dynamic
Powder Coated Steel Heavy Duty Industrial Racks Warehouse Racking Storage Shelf Shelving Units Pallet Rack System
- Coating Thickness: 60–90 μm Thermoset
- Pre-Treatment: 9-Stage Acid Pickling & Phosphate
- Seismic Grade: Zones 1 through 4 Designed
- Standard Finish: RAL 5015 Blue / RAL 2004 Orange
Warehouse Pallet Racking Shelves Unit Industrial Heavy Duty Metal Rack Storage Shelf Pallet Stacking Rack System
- Stacking Capacity: Up to 15,000 kg Frame Rating
- Pallet Types: Euro, US 40×48, Perimeter Base
- Horizontal Beam: Dual-C Interlocked Box Beam
- Baseplates: Pre-drilled Floor Anchor Plates
Structural Physics, Metallurgy & Safety Factors in Industrial Rack Manufacturing
Specifying industrial racking requires understanding cold-formed steel engineering, deflection parameters, and metallurgy. China's top manufacturers deploy precision roll-forming lines to achieve millimeter-accurate tolerances that prevent structural failure under catastrophic seismic or forklift impact scenarios.
Cold-Rolled Q235B vs. Q355B Structural Steel
Our upright columns and load beams use virgin hot-rolled steel strip, cold-rolled into specialized Omega and Box profiles. Q235B possesses a yield strength (σs) ≥ 235 MPa with elongation ≥ 26%, providing excellent ductile deformation before yield. For extra-heavy high-bay installations exceeding 12 meters, high-strength Q355B low-alloy steel (σs ≥ 355 MPa) is deployed to maintain slim column cross-sections while supporting bay loads exceeding 20,000 kg.
Deflection Limits & EN 15512 / RMI Compliance
International engineering standards dictate that beam deflection under safe working load (SWL) must strictly satisfy δ ≤ L/200 (or L/250 under rigid FEM / European codes), where L is clear beam span. Our automated robotic welding connects beam profiles to heavy 3-claw or 4-claw stamped end connectors. This moment-resisting semi-rigid joint dampens frame sway and eliminates torsional twist during uneven dynamic forklift loading.
9-Stage Pre-Treatment & Electrostatic Coating
Substandard surface prep causes internal sub-film oxidation and premature structural peeling. Our automated finishing lines enforce continuous 9-stage degreasing, ultrasonic cleaning, acid descaling, zinc-iron phosphating, and deionized water rinsing. The electrostatically sprayed thermoset polyester powder achieves an average thickness of 65 to 85 microns (μm), resisting abrasions, hydraulic oils, battery acids, and humid maritime atmosphere.
Standardized Engineering Specifications by Beam Section
| Profile Designation | Beam Cross Section (H×W×T mm) | Span Range (mm) | Safe Working Load / Pair (kg) | Connector Type | Primary Industrial Application |
|---|---|---|---|---|---|
| Light Box-Beam LB-80 | 80 × 50 × 1.5 | 2300 – 2700 | 1,000 – 1,500 kg | 3-Claw Lug (3.0mm) | Retail stockrooms, manual carton picking, light pallets |
| Standard Step-Beam SB-100 | 100 × 50 × 1.5 | 2300 – 2700 | 1,800 – 2,200 kg | 3-Claw Lug (3.5mm) | FMCG distributions, standard 1000×1200 Euro-pallets |
| Heavy Double-C Box DB-120 | 120 × 50 × 1.5 | 2700 – 3300 | 2,500 – 3,200 kg | 4-Claw Lug (4.0mm) | Manufacturing assembly, heavy automotive components |
| High-Load Structural DB-140 | 140 × 50 × 1.8 | 2700 – 3600 | 3,500 – 4,200 kg | 4-Claw Heavy Lug (4.5mm) | Chemical drums, raw metal coils, multi-tier pallet tiers |
| Ultra-Span Extreme DB-160 | 160 × 50 × 2.0 | 3300 – 3900 | 4,500 – 5,500 kg | 5-Claw Reinforced Plate | Heavy mold tooling, bulk agricultural grain and fertilizer |
Why Global Supply Chains Rely on Guangzhou Heda Shelves
Established in 2001, Guangzhou Heda Shelves Co., Ltd. has scaled from a precision tooling shop to an international material handling powerhouse, providing factory-direct design, manufacturing, and technical consultation to over 120 countries.
Full In-House Quality Governance: From Raw Coil to Container Loading
Unlike export traders or intermediary brokers who outsource production across fragmented workshops, Guangzhou Heda Shelves maintains single-source manufacturing control. Located in Haizhu District, Guangzhou, our facility houses continuous roll-forming lines, automated punching presses, high-precision robotic welding arms, and a zero-discharge powder coating tunnel.
Every batch of cold-rolled steel coils is validated with Mill Test Certificates (MTC) inspecting yield strength, tensile limits, and carbon/silicon/manganese chemical composition. Finished components undergo rigorous third-party ultrasonic weld inspection, cross-hatch paint adhesion tests, and real-time hydraulic cylinder loading trials.
- Official CE Certification: Tested under Structural Steel Execution standard No. 2435-CPR-8605159.
- ISO 9001:2015 Registered: Quality Management System certified under No. 18624Q00169R0M (Valid through 2027).
- RoHS & REACH Compliance: Non-toxic, lead-free polyester powder finishes for cleanroom and food-grade supply chains.
- Free 3D Architectural CAD/CAE: Detailed pallet layout drawings, aisle clearances, and seismic moment calculations within 24 hours.
Ten-Stage In-House Quality Control Workflow
Prime Steel Inflow
Q235B/Q355B coils verified via MTC
CNC Slitting & Cut
High-speed laser cutting ±0.2mm
Multi-Die Punching
Automated 50/75mm pitch presses
Continuous Cold Roll
Omega columns rolled without micro-cracks
Double-C Interlock
Seamed box-beam profile forming
Robotic Seam Weld
Shielded gas automated beam-lug welding
Surface Shot-Blast
Mechanical scale removal to Sa 2.5
Phosphatization
9-stage chemical wash & passivation
Powder Baking
Thermosetting polymer cured at 200°C
Export Crating
Knock-down bundling for 40HQ containers
Future Procurement & Technology Trends in Industrial Racking (2025–2035)
The global industrial warehousing landscape is navigating unprecedented automation, micro-fulfillment demands, seismic code updates, and green steel imperatives. Procurement executives must specify infrastructure designed for a 15-to-25-year structural lifecycle.
Hybridization of Static Racks with Autonomous Mobile Robots (AMRs)
Traditional static selective pallet racking is evolving into hybrid structures configured for high-speed automated mobile robots and automated guide vehicles (AGVs). Procurement specifications increasingly mandate bottom-tier laser-guided runway clearances, flush baseplate counter-sinking, and heavy-gauge column leg protectors that withstand repetitive robot wheel impacts without degrading structural integrity.
Sub-Zero Cryogenic Steel Metallurgy for Cold Chain Expansion
With explosive growth in pharmaceutical logistics and frozen food trade across developing markets, cold-store racking has become a major procurement driver. Operating at -25°C to -35°C induces ductile-to-brittle metallurgical transition in standard carbon steel. Future procurement focuses on low-temperature impact tested steels (e.g., Q355D/E) combined with thermal galvanized zinc finishes (HDG ≥ 85 μm) that eliminate rust under intense condensation cycling.
Smart Racks with Integrated Load-Cell & Impact Sensor Telemetry
The industrial rack of the future is no longer passive steel. Tier-1 enterprise buyers are beginning to integrate optical deflection fiber sensors and wireless accelerometers on crucial aisle-end uprights. These industrial IoT nodes log structural overload, detect undisclosed forklift collisions, and push real-time alerts to warehouse management software (WMS) before catastrophic progressive bay collapse can occur.
Knock-Down Nesting Geometry for Maritime Freight Optimization
Global sea freight volatility has forced Chinese manufacturers to redesign beam profiles and frame bracing. Advanced computer modeling allows upright columns and diagonal braces to nest tightly inside standard 40HQ high-cube shipping containers. This geometric nesting increases container steel payload to maximum weight limits (26.5 to 27.5 metric tons per container), drastically driving down landed cost per pallet location.
Circular Life-Cycle & Decarbonized "Green Steel" Procurement
European and North American multinational corporations are implementing Scope 3 carbon emission requirements for warehouse fixtures. Leading Chinese suppliers are partnering with electric arc furnace (EAF) steel mills utilizing scrap steel and renewable hydroelectric/solar power. Choosing powder coats certified free of volatile organic compounds (VOCs) and halogen-free guarantees streamlined compliance with global ESG mandates.
Shift Towards Fully Mechanical, Zero-Electricity Storage
In regions facing unreliable electric grids or elevated industrial kilowatt rates, procurement officers are actively replacing motorized retrieval systems with purely mechanical solutions. Pallet flow gravity lanes, push-back nesting carts, and multi-deep drive-in configurations ensure seamless 24/7 inventory turnover with zero electrical dependence or electronic failure risks during blackouts.
Total Cost of Ownership (TCO): Direct China Manufacturer vs. Local Distributors
Savvy supply chain directors evaluate warehouse storage beyond initial invoice pricing. Sourcing directly from top-tier Chinese manufacturers yields substantial financial advantages across capital expenditure, engineering customization, and container logistics.
30% to 50% Capital Expenditure Reduction
Local racking distributors in North America, Europe, Australia, and Africa typically re-brand imported Chinese racking components while layering a 35% to 65% distributor markup, administrative overhead, and local warehousing margins. Factory-direct procurement transfers these savings straight into your operational bottom line.
Custom Dimensional & Load Matching
Stockist dealers force buyers to adapt facility operations around rigid pre-fabricated inventory dimensions. Direct collaboration with HEDA Shelves engineers unlocks tailor-made column profiles, variable beam lengths (e.g., custom 2,350mm or 3,900mm clear openings), heavy gauge baseplates, and specialized safety deck configurations tailored to exact pallet footprints.
Container Cubic Optimization
Our dedicated shipping logistics department uses 3D packing software to simulate exact beam interlocking and column stacking within standard 20GP, 40GP, and 40HQ maritime containers. This eliminates wasted void volume, secures steel against transit rubbing, and ensures every cubic meter of ocean freight is fully capitalized.
Frequently Asked Technical & Commercial Questions
Engineered by senior storage consultants to resolve critical operational doubts concerning steel specifications, load limits, building clearances, customs compliance, and installation safety.
What are the key technical differences between Chinese steel grades Q235B/Q355B and international standards like ASTM A36 or EN S235JR? +
How is safe working load (SWL) calculated, and what safety factor is applied to industrial pallet racks? +
What warehouse parameters must a client submit for HEDA Shelves to generate a certified 3D CAD layout? +
How does HEDA Shelves protect industrial steel racks against rust in coastal ports or sub-zero cold rooms? +
What safety accessories are recommended to prevent rack failure caused by forklift truck impacts? +
How does knock-down packaging work, and how many pallet rack positions fit in a 40HQ container? +
Can a company install HEDA industrial racking using local maintenance crews, or is on-site supervision needed? +
What international certifications and export documentation does HEDA Shelves supply for customs clearance? +
