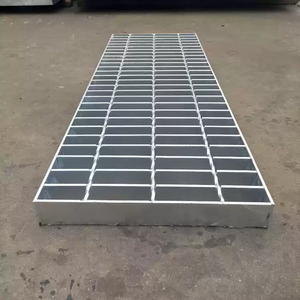

Galvanized Stainless Steel Press Locked Bar Grate Pallet Rack Decking for Supermarket Warehouse Outdoor Floor Application
Industrial Storage Warehouse Systems Medium Duty 500kg Per Tier Stack Racks and Shelves for Warehousing & Inventory Management
Boltless Adjustable Industrial Heavy Duty Pallet Racking System Warehouse Steel Metal Storage Racks Shelving Units
Guijie High Load Capacity 4-Layer Drive-Through Steel/Iron Warehouse Rack Powder Coated Finish Adjustable Durable Corrosion
Engineering External Pallet Racking: Wind Uplift, Seismic Resistance & Microclimates
Unlike indoor selective racking protected inside climate-controlled structures, external yard pallet racking operates within open-air microclimates characterized by dynamic atmospheric turbulence, high relative humidity, UV radiation, and heavy rainfall.
As a leading Chinese industrial rack manufacturer, Guangzhou Heda Shelves Co., Ltd. designs external storage systems according to rigorous international structural codes, including EN 15512:2020 (European Steel Static Storage Systems), RMI MH16.1:2021 (Specification for the Design, Testing and Utilization of Industrial Steel Storage Racks), and ASCE 7-22 (Minimum Design Loads and Associated Criteria for Buildings and Other Structures).
1. Aerodynamic Wind Shear and Overturning Stability (ASCE 7-22 & Eurocode EN 1991-1-4)
When wind flows past an outdoor pallet rack, the solid surfaces of stretch-wrapped pallets create massive drag forces. Wind velocities up to 130–160 km/h exert substantial horizontal forces on top-tier frames. HEDA Shelves engineers mitigate external wind-induced dynamic tipping and structural drift through three engineering solutions:
- Enlarged Footprint Anchoring: Cold-rolled upright baseplates are fabricated from heavy 8mm–12mm Q355B structural steel plates secured by multi-point M16/M20 chemical resin or undercut wedge mechanical expansion anchors drilled into 250mm–350mm reinforced concrete slabs (C25/30 or C30/37).
- Structural Horizontal & Vertical X-Bracing: Outdoor runs feature rigid structural steel cross-bracing bays every 4 to 6 modules. This converts lateral wind shear directly into ground-plane axial compression, preventing rack sway and progressive buckling.
- Aerodynamic Deflector Canopies: When external racking is configured with an integrated roof canopy, our engineering team conducts computational fluid dynamics (CFD) modeling to establish positive pressure and negative suction load limits, avoiding catastrophic uplift during storm surges.
2. Metallurgical Surface Protection: Hot-Dip Galvanizing vs. Dual-Process Powder Coating
External industrial storage faces continuous moisture attack leading to oxidation. According to ISO 12944 atmospheric corrosivity categories, outdoor coastal yards or chemical storage facilities fall into categories C3 (Medium), C4 (High), or C5 (Very High / Marine). To guarantee a 20-to-30-year design life without degradation, HEDA Shelves provides two proven surface engineering systems:
- Hot-Dip Galvanizing (HDG) per ISO 1461 / ASTM A123: Steel sections undergo a comprehensive 10-stage process: acid degreasing, water rinsing, hydrochloric acid pickling, fluxing in zinc ammonium chloride, drying, and total immersion in molten zinc at 445°C–455°C. This forms multiple iron-zinc metallurgical alloy layers (Gamma, Delta, Zeta) capped by a pure zinc (Eta) surface with a dry film thickness exceeding 65 μm–85 μm. If scratched during forklift loading, sacrificial anodic protection shields the substrate steel automatically.
- Duplex System (Phosphating + E-Coat + High-Polymer Architectural Powder): For operations requiring corporate color coding or UV chemical barrier coatings, raw components undergo automated pickling and phosphating, followed by zinc-rich primer and architectural polyester electrostatic powder coating baked at 200°C. This dual barrier delivers over 1,000 hours of neutral salt spray resistance (ASTM B117) with superior mechanical impact toughness.
3. Hydraulic Drainage and Fire Safety (NFPA 13 & FM Global)
Outdoor horizontal shelving components cannot use solid timber or sheet steel that collects standing water, which accelerates rust, increases beam dead-weight, and causes ice hazards. HEDA Shelves specifies heavy-duty hot-dip galvanized press-locked bar grates and wire mesh decking with 70%–85% open area. This allows storm runoff to drain straight to ground-level drainage swales, while ensuring complete compliance with automatic overhead exterior fire deluge protocols.
| Corrosion Protection System | Standard Reference | Coating Thickness | Salt Spray Rating (ASTM B117) | Corrosivity Category (ISO 12944) | Recommended External Use Case |
|---|---|---|---|---|---|
| Batch Hot-Dip Galvanizing (HDG) | ISO 1461 / ASTM A123 | 65 – 95 μm | 2,000+ Hours (No red rust) | C4 (High) / C5 (Marine/Industrial) | Uncovered outdoor yard racking, marine ports, coastal logistics, heavy chemical outdoor stores. |
| Duplex Zinc Primer + UV Polyester | Qualicoat Class 1 / ISO 2810 | 90 – 120 μm total | 1,200 Hours | C3 (Medium) / C4 (Semi-outdoor) | Covered external canopies, dry climate yard storage, high-visibility retail builder yards. |
| Continuous Pre-Galvanized Coil (Z275) | EN 10346 | 20 – 25 μm (275 g/m²) | 400 – 600 Hours | C2 (Low) / C3 (Protected) | Internal warehouse beams, dry-climate sheltered pick-towers, light-duty auxiliary decking. |
| Standard Epoxy Powder Coating | GB/T 18593 | 60 – 75 μm | 250 – 400 Hours | C1 (Very Low) / C2 (Low) | Indoor temperature-controlled distribution centers only (Not suited for external exposure). |
