High-Performance Industrial Racking Portfolio
Precision-engineered structural steel storage frameworks manufactured to FEM 10.2.02, EN 15512, and RMI standards. Designed for extreme load dynamics, harsh environments, and maximum volumetric utilization.
Sanitary Grade
304 Stainless Steel Vertical Pallet Storage Racks for Commercial Kitchens & Cleanrooms
- Material: Premium SUS304 Austenitic Steel
- Resistance: Acid, Moisture, & Alkaline Proof
- Hygiene: NSF / HACCP Process Compliant

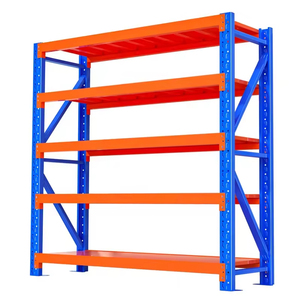

Corrosion Resistant

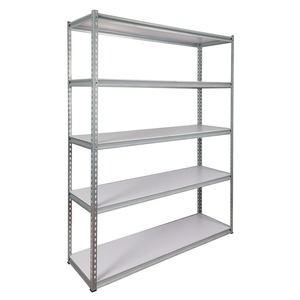

Medium Duty Corrosion-Protected Metal Storage Racks for Supermarkets & Logistics Hubs
- Load Capacity: 200kg – 500kg / Tier UDL
- Finish: Thermoset Epoxy Powder Coating
- Modularity: 50mm Pitch Boltless Assembly

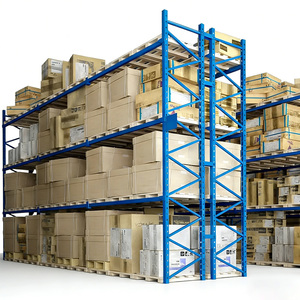

Cold-Rolled Steel
3-Layer Card Slot Assembly Cold-Rolled Steel Heavy-Duty Pallet Shelving Rack
- Structure: 3-5 Connector Lug Card Slots
- Steel Standard: High-Yield Q235B / Q355B
- Safety: Independent Spring-Lock Pins

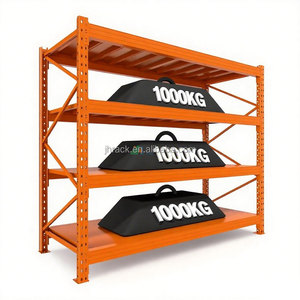

1000kg Rating
4-Tier 1000kg/Level Heavy Duty Industrial Storage Racking Units for Heavy Fabrication
- Capacity: 1,000kg – 4,000kg / Beam Level
- Beams: Twin-C Interlocking Box Beams
- Application: Machinery Parts, Dies & Coils
Modular Stacking
Heavy Duty Modular Stillage Storage Rack & Post Pallet Stacking System
- Stacking Factor: 4 to 6 High Fully Loaded
- Design: Demountable Posts / Nestable Bases
- Flexibility: Rapid Bulk Warehousing Without Fixed Aisles

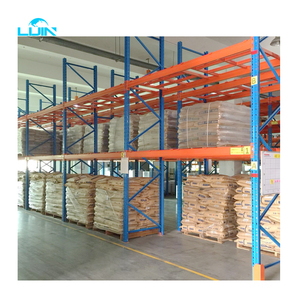

Forklift Ready
1-3 Ton Adjustable Pallet Racking Shelf Unit for Counterbalance & Reach Trucks
- Column Profile: 90x68mm / 100x68mm / 120x95mm
- Upright Frame: Fully Bolted Structural Trusses
- Pallet Access: 100% Direct Selective Access

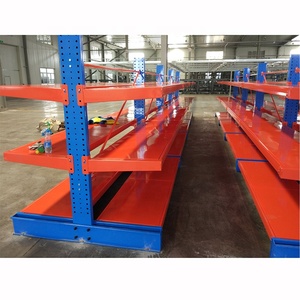

Long Load Storage
Heavy-Duty Structural Cantilever Racking System for Pipes, Rebar, and Timber Bundles
- Configuration: Single-Sided & Double-Sided
- Arm Load: Up to 1,500kg Per Cantilever Arm
- Base: H-Section Heavy Structural Footing

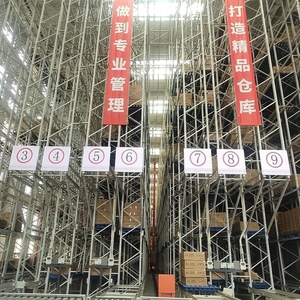

High-Bay Automated
High-Bay Modular Flow & Pallet Live Storage Racking System for FMCG Hubs
- Inventory Rotation: True First-In First-Out (FIFO)
- Roller Tracks: Speed-Regulated Braking Rollers
- Density: +60% Floor Space Efficiency vs Conventional
Enterprise Competence & Engineering Heritage: Guangzhou Heda Shelves Co., Ltd.
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. has evolved from an advanced precision cold roll-forming workshop into a worldwide heavy-duty warehouse racking authority and EPC-grade supplier. Operating from an integrated 30,000 square meter intelligent production base in Guangzhou, China, our infrastructure commands a monthly processing output exceeding 30,000 metric tons of structural and high-strength steel. We maintain strict vertical integration: continuous cold roll-forming, automated CNC punching matrix lines, robotic laser profiling, high-precision carbon-arc robotic welding, automatic multi-stage chemical pretreatment, and automated dual-cyclone electrostatic powder coat curing ovens operate within one unified quality boundary.
Our structural designs strictly adhere to international engineering benchmarks including European Standard EN 15512 (Steel Static Storage Systems), FEM 10.2.02 (European Materials Handling Federation), Australian Standard AS 4084-2023, and the American Rack Manufacturers Institute (RMI) MH16.1 specifications. Quality assurance is officially verified through our holding of authoritative CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management Certification (No. 18624Q00169R0M), and certified RoHS Compliance across all surface coatings. With more than 10,000 completed heavy warehouse installations across 120+ countries, HEDA Shelves provides overseas procurement managers with an unbroken audit trail, verified mill test certificates (MTC), finite element analysis (FEA) reports, and seismic engineering packages.
For international supply chain planners and procurement directors, partnering directly with a first-tier Chinese original equipment manufacturer provides decisive financial and structural benefits. By bypassing middle-tier export trading companies, international buyers eliminate 15% to 28% in stacked markups while establishing direct engineering dialogues with our structural design department. Our bilingual project engineers provide free 3D AutoCAD design layouts, load stress simulations, and volumetric container packing plans within 24 hours of receiving site blueprints, ensuring zero dimensional discrepancies upon field arrival.
Certified Metallurgy
Exclusively prime Q235B and Q355B cold-rolled carbon steel coils sourced from Baosteel and Shougang with traceable mill certificates and uniform grain structure.
10-Stage Surface Finish
Degreasing, chemical pickling, surface phosphating, triple deionized water rinsing, and thermoset electrostatic epoxy coating cured at 200°C for superior salt spray endurance.
Precision Roll-Forming
Continuous CNC multi-roller cold roll-forming technology ensures tight hole-pitch tolerances (±0.1mm) and zero residual internal torsion in vertical structural upright columns.
Export Pack Optimization
Proprietary container nesting and high-density timber-dunnage banding protect coatings during oceanic transport while driving down freight cost per pallet location.
Technical Specification & Selection Matrix
Evaluate industrial racking architectures across volumetric density, operational selectivity, forklift compatibility, and capital investment requirements to identify the optimum intralogistics asset.
| Racking Architecture | Typical Steel Grade | Floor Space Use (%) | Pallet Selectivity | Inventory Cycle | Max Height Range | Capital Investment |
|---|---|---|---|---|---|---|
| Standard Selective Racking | Q235B Cold-Rolled | 40% – 45% | 100% Direct | FIFO / LIFO Flexible | Up to 12.0m | Low / Baseline |
| Narrow Aisle (VNA) Systems | Q355B High-Yield | 60% – 65% | 100% Direct | Strict FIFO Accessible | Up to 16.5m | Medium |
| Drive-In / Drive-Through | Q235B Structural | 70% – 75% | 15% – 20% Batch | LIFO (Drive-In) / FIFO | Up to 11.0m | Medium |
| Push-Back Cart Racking | Q235B / Q355B Mix | 65% – 72% | 25% (Per Lane) | LIFO via Inclined Rail | Up to 9.0m | Medium-High |
| Radio Shuttle Automation | Q355B Ultra-Precision | 80% – 88% | Semi-Selective | Software Managed FIFO/LIFO | Up to 24.0m | High / Advanced |
| Heavy Structural Cantilever | Hot-Rolled I-Beam | Open Matrix | 100% Direct (Arms) | Batch / Continuous | Up to 10.0m | Medium |
| Pallet Live Gravity Flow | Q235B + Alloy Rollers | 75% – 82% | 100% Face Row | Strict Dynamic FIFO | Up to 12.0m | High |
Strategic Industrial Racking Procurement Trends (2025–2035)
Global warehouse operations are evolving under the pressure of rising urban land values, skilled labor constraints, and strict ESG compliance. The following structural shifts define modern procurement directives.
1. Retrofittable Automation & Shuttle-Ready Uprights
Global buyers are abandoning rigid, single-purpose racking structures in favor of future-proof frameworks. Modern standard selective layouts are engineered with standardized upright hole patterns capable of being retrofitted into semi-automated 4-way radio shuttle or automated storage and retrieval systems (AS/RS) without complete civil teardowns.
2. ESG, Low-Carbon Metallurgy & Zero-VOC Finishing
Institutional multinational corporations and 3PL operators increasingly mandate Scope 3 carbon audits. Chinese tier-1 suppliers utilize EAF (Electric Arc Furnace) recycled content scrap steel, chrome-free silane passivated conversion coatings, and 100% solvent-free electrostatic powder recovery systems, achieving significant carbon footprint reductions.
3. Extreme Climate Metallurgy & Galvanized Micro-Alloys
With rapid supply chain expansion across high-humidity coastal corridors (Southeast Asia, West Africa, the Gulf, and Latin America), pre-galvanized coils (Z275/Z350) and zinc-aluminum-magnesium (ZAM) micro-alloy coatings are replacing conventional wet paint systems, offering 500% longer protection against coastal saline air and extreme cold room condensation cycles.
Technological Development Horizons: Next-Gen Storage Infrastructure
The boundary between static passive steel racks and active automated intralogistics is dissolving. Next-generation warehouse racking is evolving into an intelligent cyber-physical node equipped with structural health monitoring (SHM). By embedding miniature fiber-Bragg grating (FBG) strain gauges and high-frequency acoustic emission sensors directly into the baseplates and critical beam-to-column connector nodes, warehouse safety engineers can monitor structural deflection, dynamic forklift impact events, and micro-crack fatigue accumulation in real time via digital twin SCADA interfaces.
Furthermore, aerodynamic design principles are revolutionizing ultra-deep cold storage facilities. In cold chain fulfillment centers, dynamic thermodynamic computational fluid dynamics (CFD) modeling now governs rack profile engineering. Perforated beam profiles and variable-pitch slotting arrays maximize forced convective cold airflow around pallet perimeters, eliminating dead thermal pockets, reducing product spoilage, and yielding measurable refrigeration energy savings of 18% to 24% annually.
Industrial Racking Procurement Knowledge Base & FAQ
Authoritative engineering insights to assist global project engineers, procurement executives, and safety auditors in navigating international standards and manufacturing specifications.
What are the metallurgical differences between Q235B and Q355B steel in racking structural calculations?
How does HEDA Shelves ensure compliance with international seismic design codes (FEM, RMI, AS 4084)?
What surface finish parameters are recommended for coastal humidity and cold storage environments?
How are components bundled and protected to maximize ocean container cubic efficiency (TEU loading)?
What verification and factory acceptance testing (FAT) occurs prior to international dispatch?
Can HEDA Shelves support on-site installation and provide turnkey structural engineering sign-offs?
Accelerate Your Warehouse Intralogistics Efficiency
Connect directly with our senior structural engineers for a comprehensive site review. Receive custom 2D/3D CAD layout schematics, finite element static load calculations, and factory-direct pricing proposals tailored to your operational specifications.
