Engineered Industrial Warehouse Racking Portfolio
Direct from our 30,000 m² Guangzhou production facility. Every upright column, roll-formed load beam, and interlocking connector is FEA-tested and manufactured under ISO 9001:2015 and CE EN 15512 safety protocols.
Adjustable Steel Shelves Heavy Duty Capacity Shelf for Bulk Storage
- Load Capacity: 500 – 1,500 kg / Tier
- Material: Q235B Cold-Rolled Carbon Steel
- Pitch Adjustability: 50mm / 75mm Increments
Steel Warehouse Rack Systems with Shelving Units and Steel Stairs
- Multi-Tier: 2 to 4 Structural Levels
- Floor Loading: 300 – 1,000 kg / m²
- Structural Safety: Integrated Staircases & Railing
High Quality 7 Layers 250kgs Factory Metal Storage Rack Shelving
- Layer Rating: 250 kg Uniform Distributed Load
- Architecture: 7-Tier High-Density Vertical Storage
- Surface: Epoxy-Polyester Powder Coating
Warehouse Rack Platform Floor Deck | Dry-Lay Prefabricated Panel
- Modular Tech: Zero-Concrete Dry-Lay Locking
- Perforation: Fire Sprinkler & Light Permeable
- Durability: Galvanized / Heavy Wear Resistant
5 Layer Heavy Duty Stainless Steel Shelving Industrial Storage Rack
- Metallurgy: SUS304 / SUS316 Austenitic Steel
- Thermal Range: Subzero -40°C Cold Room Proof
- Applications: Cleanroom, Pharma & Food Grade

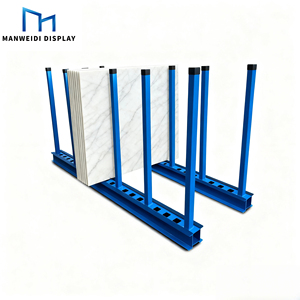

Stone Warehouse Large Marble & Granite Slab Storage Racks
- Structural Steel: A-Frame Heavy Structural Tube
- Load Capacity: Up to 5,000 kg per Storage Bay
- Protection: Vulcanized Rubber Strip Inlays
Warehouse Storage High Precision Modular Shelving Units
- Modularity: Fast Interlocking Boltless Assembly
- Compatibility: Tool Cribs, Garages & Parts Bins
- Protection: Chemical Resistant Poly Decking
Large Span Clear Height Logistics Pallet Racking System
- Clear Height: Vertical Engineering up to 16m
- Span Configuration: Box-Beam Span up to 3.9m
- Optimization: VNA & High-Reach Truck Ready
Guangzhou Heda Shelves Co., Ltd. Manufacturing Authority
Operating since 2001, we provide international enterprise logistics operators, distribution corporations, and EPC warehouse contractors with end-to-end structural integrity, precision roll forming, and certifiable quality assurance.
Accredited Compliance
Full conformance with European CE Certification (No. 2435-CPR-8605159), ISO 9001:2015 Quality Management System (No. 18624Q00169R0M valid through 2027), and strict RoHS hazardous substances protocols.
Integrated Metallurgical Control
We source certified prime Q235B and Q355B structural coil exclusively from premier tier-one domestic steel mills. Traceable mill test certificates (MTC) guarantee tensile strength and chemical composition compliance.
Global Container Optimization
Proprietary knock-down nesting algorithms maximize the volumetric utilization of 20GP and 40HQ sea containers, drastically reducing ocean freight overhead per pallet position delivered to global deep-water ports.
Structural Mechanics of Modern Warehouse Racking Systems
In global industrial logistics, warehouse racking is classified as an engineered building interior structure subject to static dead loads, dynamic forklift impact loads, and regional seismic accelerations. Under international frameworks such as FEM 10.2.02 (European Racking Federation), RMI MH16.1 (Rack Manufacturers Institute), and EN 15512, industrial storage design requires rigorous finite element analysis (FEA) to verify upright frame buckling margins, torsional stiffness, and beam connector shear capacities.
For pallet rack load beams subjected to uniform vertical loading, the standard deflection limit under maximum safe operating load is strictly constrained to
δ ≤ L / 200 (where L represents the clear span distance between uprights). For automated crane-served and radio-shuttle high-bay installations, deflection is further restricted to δ ≤ L / 300 to prevent automated optical sensor misalignment and vehicle carrier jamming.
The performance of structural uprights depends on column cross-sectional geometry, punch hole profiling, and effective steel thickness. Guangzhou Heda Shelves utilizes proprietary multi-bend omega (Ω) column profiles rolled with up to 12 cold-formed stiffening facets. This geometry relocates the shear center and significantly increases the radius of gyration, elevating the critical Euler buckling stress without requiring excessive deadweight steel tonnage.
10-Stage Precision Production Ecosystem
Consistency in metallurgical fabrication dictates the lifespan of racking in demanding 24/7 fulfillment centers. Every component produced across our Guangzhou industrial footprint follows a calibrated 10-stage manufacturing sequence:
Steel Slitting
High-precision uncoiling and laser edge trimming of prime Q235B / Q355B coils.
CNC Punching
Continuous computer-controlled multi-station upright hole piercing at ±0.1mm tolerance.
Roll Forming
Gradual 18-to-24 pass cold roll forming preserving grain structure integrity.
Robotic Weld
Automated multi-axis CO₂ shielded arc welding of beam connectors and footplates.
Pretreatment
Immersion degreasing, ultrasonic rust removal, acid pickling, and micro-phosphating.
DI Water Rinse
Demineralized high-pressure multi-stage cascading rinse eliminating chemical carryover.
Powder Coat
Automated electrostatic spray booth delivering 60–90µm uniform polymer film.
Thermal Cure
200°C convective curing tunnel for molecular cross-linking and impact toughness.
FEA & QC Audit
Destructive weld shearing, cross-hatch paint adhesion, and ultrasonic thickness tests.
Export Stowing
Corrugated separation, moisture-barrier wrapping, and palletized steel strapping.
Comprehensive Racking Architecture Evaluation Matrix
Selecting the optimal warehouse racking system requires balancing storage density, SKU accessibility, operational throughput, and capital expenditure per pallet location. The following matrix summarizes core technical characteristics across major configurations:
| Racking Architecture | Space Utilization | SKU Selectivity | Stock Rotation | Forklift Compatibility | Typical Applications |
|---|---|---|---|---|---|
| Selective Pallet Racking | 40% – 50% | 100% Direct Access | FIFO / LIFO | Standard Counterbalance, Reach Truck | FMCG, 3PL Distribution, General Retail |
| Double-Deep Racking | 55% – 65% | 50% Direct Access | LIFO | Pantograph Reach Truck | Bulk Raw Materials, Dry Goods Storage |
| Drive-In / Drive-Through | 65% – 75% | Low (Per Lane) | LIFO (Drive-In) / FIFO | Narrow Counterbalance | Beverage, Cold Chain, Homogeneous SKUs |
| Radio Shuttle Automation | 75% – 85% | High (Automated Lane) | FIFO & LIFO Software Switch | Standard Forklift (Does not enter rack) | Deep Freeze, Buffer Warehouses, High Volume |
| Very Narrow Aisle (VNA) | 60% – 70% | 100% Direct Access | FIFO | Specialized Wire-Guided VNA Turret Truck | High-Bay E-Commerce Hubs, Pharma Hubs |
| Rack-Supported Mezzanine | 150% – 300% Floor Multiplier | 100% Manual Bin Picking | Flexible Multi-Tier FIFO | Hand Trucks, Conveyors, Vertical Lifts | Auto Spare Parts, Apparel Fulfillment |
Future Procurement Trends in Industrial Warehouse Storage
Macroeconomic shifts, automated mobile robotics (AMRs), climate-resilient engineering, and supply-chain nearshoring are fundamentally transforming how global supply-chain directors procure Chinese industrial racking assets.
1. Automation-Ready Hybrid Infrastructure
Traditional static storage is transitioning to modular hybrid racking engineered to accommodate Autonomous Mobile Robots (AMRs) and automated four-way radio shuttles. Procurement criteria now emphasize tighter floor flatness tolerances (DIN 18202 / TR34) and sub-millimeter beam punching precision to facilitate robotic LiDAR navigation.
2. Decarbonized Metallurgy & Circular LCA
Global environmental disclosures (Scope 3 carbon reporting) are prompting institutional buyers to specify EAF (Electric Arc Furnace) recycled steel profiles and low-VOC thermosetting powder coatings. Life Cycle Assessment (LCA) data and recyclable packaging are becoming decisive factors in competitive public tenders.
3. Climate-Resilient Tropicalized Finishes
With accelerated supply chain expansion across high-humidity coastal hubs in Southeast Asia, Africa, and the Middle East, standard paint finishes are insufficient. Procurement contracts increasingly demand micro-crystalline zinc phosphating combined with marine-grade polyester powders or continuous pre-galvanized cold-formed uprights (G90 / Z275) to resist salt-spray atmospheric corrosion.
Frequently Asked Questions: Global Industrial Racking Procurement
Comprehensive engineering, commercial, and freight guidance compiled by Guangzhou Heda Shelves senior structural project managers.
What specific engineering data is required to generate a certified CAD warehouse layout and load calculation?
- Architectural Building Drawings: Precise interior building dimensions, clear height under roof joists/sprinklers, building column grid centers, warehouse slab expansion joint locations, and dock door clearances.
- Unit Load Parameters: Pallet dimension (W × D × H including goods overhang), pallet entry orientation, pallet bottom configuration (skid, 2-way, 4-way), minimum/maximum/average gross pallet weight.
- Material Handling Equipment (MHE): Specific forklift make/model, maximum lift mast height, free lift height, collapsed overall mast height, and manufacturer-mandated Right-Angle Stacking Aisle Width (Ast) requirement.
- Environmental & Seismic Criteria: Regional seismic acceleration coefficients (Ss, S1), building fire protection system design (in-rack sprinkler pipe elevations), and ambient operating temperature (e.g., ambient vs -25°C blast freezer).
How does Guangzhou Heda Shelves ensure seismic compliance for high-bay warehouse installations?
- Heavy-duty oversized ductile baseplates with dual or quadruple high-tensile wedge anchor anchors per upright leg.
- Transverse and longitudinal vertical K-bracing and portal bracing towers along back-to-back row configurations.
- Upright-to-beam connectors fabricated with 4 to 5 high-strength interlocking cold-punched teeth and cold-rolled locking safety pins capable of withstanding cyclic seismic moment reversals.
What surface treatment is recommended for high-humidity coastal climates versus cold chain facilities?
How are heavy-duty structural steel components packed to prevent deformation during ocean shipping?
What verification can you provide for project financing, customs clearance, and local structural sign-off?
- Mill Test Certificates (MTC) according to EN 10204 3.1 certifying steel chemical composition and mechanical properties.
- Guangzhou Heda Shelves official CE Declaration of Performance (DoP) under EN 1090-1 / EN 15512 (Certificate No. 2435-CPR-8605159).
- ISO 9001:2015 Quality Management certificate documentation (Certificate No. 18624Q00169R0M).
- Certified structural static calculation book stamped by our senior structural engineering department detailing load safety factors.
- Comprehensive 2D CAD assembly blueprints, step-by-step 3D exploded view installation manuals, and component numbering tags.
Ready to Engineer Your High-Yield Warehouse Storage Facility?
Submit your warehouse floor dimensions, SKU parameters, and material handling truck specifications today. Our senior structural logistics engineering team will deliver a fully optimized 2D CAD schematic, 3D rendering, and structural load analysis free of charge within 24 hours.
