Featured Warehouse Storage & Pallet Racking Systems
Explore heavy-duty, high-density, and precision-engineered racking structural frames manufactured using high-tensile Q235B/Q355B structural steel, designed to withstand rigorous international seismic and dynamic working loads.

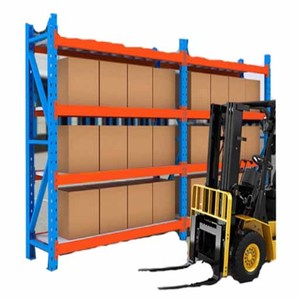

Selective Heavy Duty Pallet Rack 4000kg Capacity Industrial Warehouse Steel Storage System Rack Pallet Shelving Solution
- Capacity: Up to 4,000 kg / Beam Level
- Material: Cold-Rolled Q235B Certified Steel
- Pitch: 50mm / 75mm Adjustable Uprights
Factory Custom Heavy Duty Steel Four-Way Shuttle Racking System High-Density Warehouse Rack With Large Load Capacity
- Drive: Fully Automated 4-Way Radio Carrier
- Space Efficiency: Up to 85% Volume Utilization
- Integration: Real-time WMS / WCS Interfacing

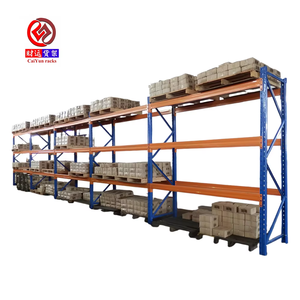

Factory Supply Heavy Duty Warehouse Storage System Live Heavy Rack System Selective Warehouse Stacking Shelving Display Shelves
- Mechanics: Gravity Roller Beds with Speed Dampers
- Stock Control: Guaranteed FIFO Batch Fulfillment
- Energy Use: 0-Electricity Gravity Operation
Smart Warehouse Storage System Steel Sheet Vertical Type Rack Heavy Duty Solution For Various Size Plate
- Payload: Heavy Sheet Metal & Structural Slates
- Protection: Scratch-Resistant UHMW Polymer Guides
- Handling: Overhead Crane / Forklift Accessible
High ROI Warehouse Rack Heavy Duty Industrial Storage Shelving Unit for Export
- Construction: High ROI Knock-Down Frame
- Finish: 80μm Electrostatic Epoxy-Polyester
- Containerization: 98% Cube Pack Density
Beam Pallet Rack Q235B Steel Adjustable Heavy Duty Warehouse Storage Rack Custom Design Standard High Density 3 Year Warranty
- Beams: Twin C-Welded Box Beam Profiles
- Safety: Spring-Loaded Connector Safety Locking Pins
- Deflection: Rigorously Tested Below L/250 Standard

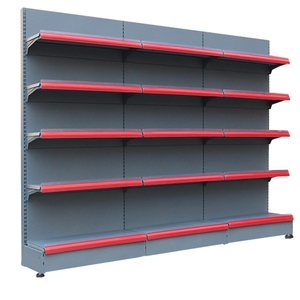

Guichang Estantes Light Heavy Duty Iron Supermarket Shelves Grocery Retail Store Shops Supermarket Gondola Shelving Display Rack
- Application: Cash-and-Carry, Commercial & Hypermarkets
- Modularity: Single/Double Sided with End-Caps
- Load: Heavy Base Footprint with Perforated Backplates
Logistics Center Pallet Rack Warehouse Rack Manufacturer Q235B Steel Heavy Duty Storage Rack Custom Design ISO Certified System
- Deployment: 3PL Centers, Bulk Distribution Hubs
- Seismic Certification: Zone 4 Seismic Base Footings
- Compliance: ISO 9001:2015 & CE Execution Class 2
Structural Integrity & Engineering Rigor in Global Pallet Rack Procurement
Procuring structural warehouse racking from China requires moving beyond surface-level pricing into strict engineering qualification. Guangzhou Heda Shelves Co., Ltd. operates as a vertically integrated tier-one manufacturer, converting certified hot-rolled and cold-rolled prime steel coils (predominantly standard Q235B and high-yield Q355B) into precision-formed upright columns, load beams, and dynamic automated storage channels.
Every structural profile produced across our 30,000 m² Guangzhou production facility is calculated in adherence to international standards: the American RMI (Rack Manufacturers Institute) MH16.1, European Standards EN 15512 / EN 15620, and Australian Standard AS 4084-2023. Our engineering team conducts full Finite Element Analysis (FEA) simulations to account for vertical static gravity dead-loads, operational dynamic live-loads from material handling equipment (MHE), torsional twisting moments, and site-specific seismic response spectra.
Technical Benchmark: Yield strength testing guarantees Q235B minimum yield values ≥ 235 MPa (ultimate tensile strength 370–500 MPa), while Q355B provides ≥ 355 MPa (tensile 470–630 MPa), ensuring deflection indices strictly comply with the conservative L/250 beam threshold under maximum load.
By controlling every step under one roof—from CNC punching, continuous roll-forming lines, and robotic welding to multi-tank chemical surface conversion—HEDA guarantees dimensional tolerances within ±0.5mm across extended multi-tier installations.
Metallurgical & Engineering Benchmarks
| Primary Structural Steels | Q235B, Q355B, SS400, ASTM A1011 |
| Manufacturing Code Standards | RMI MH16.1, EN 15512, AS 4084-2023 |
| Upright Column Profiling | 11-13 Folding Ribs Omega Profile |
| Beam-to-Column Connection | 3 to 5-Claw Welded Connectors with Safety Lock |
| Surface Pretreatment | 9-Stage Immersion Pickling & Phosphating |
| Finish Coating | Electrostatic Epoxy-Polyester (60-80μm DFT) |
| Salt Spray Corrosion Resistance | ASTM B117 > 500 Hours Standard |
| Third-Party Certifications | CE (2435-CPR-8605159), ISO 9001:2015 |
In-House Manufacturing: 10 Rigorous Production Phases
Structural stability starts at the molecular level. Below is the full industrial journey of structural steel inside HEDA's automated facility, transforming raw coils into certified heavy-load logistics infrastructures.
Prime Raw Steel
Certified high-grade mill coils with mill test certificates (MTC) verifying chemistry.
Precision Slitting
High-speed CNC longitudinal slitting lines cutting exact widths within ±0.1mm margins.
CNC Column Punching
Automated continuous punch presses creating standard 50mm/75mm drop-hole patterns.
Cold Roll Forming
Multi-station cold roll formers producing multi-bend Omega uprights and step beams.
Profile Cutting
Laser and flying saw cutting synchronization ensuring zero deformation and burr-free edges.
Automated Welding
Robotic CO2 gas-shielded fillet welding of heavy beam connectors and baseplate joints.
Mechanical Polishing
Automated shot-blasting and surface dressing removing micro-scale weld slag and scale.
Pickling & Phosphating
Chemical degreasing, acid pickling, and zinc phosphating for supreme anti-corrosion bonding.
Powder Curing
Automated electrostatic thermosetting powder application baked at 180°C–200°C.
QA Load & Pack
Deflection verification, bundle banding, protective wrapping, and container cube loading.
Future Sourcing & Procurement Trends in Warehouse Storage Systems
The global logistics environment is undergoing a rapid transition toward automated workflows, harsh environmental resilience, and stringent carbon accounting. Key technological macro-trends dictate international procurement decisions.
AS/RS & Shuttle Readiness
Transitioning from conventional reach-truck aisles to 4-Way Radio Shuttle matrices and crane-based Automated Storage and Retrieval Systems (AS/RS). Modern buyers demand structural tolerances within ±1.0mm per 10m height to prevent automated vehicle sensor misalignments.
Automation FocusCorrosion & Cold-Chain Armor
Exploding demand for pharmaceutical and fresh food cold chains (-30°C blast freezers) necessitates specialized metallurgy. Low-temperature impact-tested steel grades combined with continuous hot-dip galvanizing prevent hydrogen embrittlement and coating delamination under extreme condensation.
Cold Chain EngineeringModular Rack-Clad Warehouses
The structural racking framework serves as the primary load-bearing skeleton supporting roof trusses and wall insulated sandwich cladding. This technique cuts civil construction timelines by 40% and drastically lowers total real estate capex per pallet position.
Civil Architecture ConvergenceGreen Steel & Scope-3 Verification
Multinational procurement mandates require verified Environmental Product Declarations (EPD). Utilizing Electric Arc Furnace (EAF) scrap-recycled steel and volatile organic compound (VOC)-free thermoset powders directly reduces the embedded carbon footprint of heavy logistics infrastructure.
Sustainability ComplianceExport Container Freight Optimization (40ft HQ)
| Max Ocean Gross Weight | 26,000 to 28,000 kg (Port-Dependent) |
| Upright Frame Packaging | Pre-Assembled Bolted or Knock-Down Bundles |
| KD Freight Savings | Up to 35% Additional Volume per Container |
| Beam Interlock Nesting | Boxed in Pairs with Foam Buffer Interleaving |
| Baseplate & Hardware Box | Reinforced Euro-Palletized Wooden Crates |
| Transit Anti-Rust Protection | VCI (Vapor Corrosion Inhibitor) Wrapping |
| Typical Port Gate-to-Gate | Nansha / Huangpu / Shekou Direct Sea Lines |
Optimizing Landed Cost per Pallet Location
The true procurement cost of structural warehouse shelving is not determined by the factory ex-works gate invoice; it is measured by the total landed cost per accessible pallet position (including maritime freight, import tariff classification, local offloading, and structural erection labor).
As an experienced exporter shipping to over 120 countries, HEDA Shelves engineers our components specifically for global shipping containers. We offer both pre-welded upright frames and modular knock-down (KD) bolted upright designs. In transoceanic shipping routes where freight costs are elevated, our KD system nests upright profiles into tight steel-banded bundles, eliminating empty air and packing up to 26–28 metric tons inside a standard 40-foot High Cube (40HQ) container.
Logistics Efficiency: By utilizing bespoke beam nesting brackets and CNC-calculated load sequencing, we increase container cube fill rates to 95–98%, dropping ocean freight expenditures per pallet position by $1.80 to $3.40 across major transatlantic and transpacific shipping corridors.
Furthermore, all shipments leave our Guangzhou factory with color-coded assembly tags, comprehensive steel pallet packaging, and detailed 3D installation blueprints that enable local contractor crews to execute installation without engineering errors.
Direct Manufacturer Advantages & Engineering Pedigree
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. has evolved into an international supplier of certified storage solutions, combining cutting-edge structural research with precision Chinese manufacturing.
25 Years Industrial Experience
Over two decades of dedicated R&D and custom fabrication in logistics infrastructure. We have solved complex warehousing challenges for more than 10,000 corporate projects worldwide, maintaining zero catastrophic structural failures.
Complimentary 3D CAD Engineering
We do not require pre-payments for structural layouts. Share your warehouse floor dimensions, building clear heights, obstacle columns, forklift turn radii, and pallet specifications to receive free 2D CAD layouts and 3D architectural renders within 24 hours.
International Quality Accreditations
HEDA Shelves operates under documented quality management systems: CE certification (Ref No. 2435-CPR-8605159) for structural steel execution, ISO 9001:2015 certification (Registration No. 18624Q00169R0M), and strict RoHS chemical safety testing on coatings.
Frequently Asked Technical Questions (FAQ)
Direct, engineering-backed answers addressing critical purchasing, safety, seismic compliance, and international shipping questions encountered by supply chain directors.
How does HEDA determine the maximum safe working load (SWL) for pallet rack beams and frames?
What is the difference between standard Q235B steel and high-tensile Q355B in racking design?
Can HEDA pallet rack systems be configured for active seismic zones (Zone 3 and Zone 4)?
What corrosion protection finish should be chosen: Powder Coating vs. Hot-Dip Galvanizing?
How are components packaged to prevent damage during multi-week ocean transport?
What documentation is provided to satisfy local building control and municipal permitting?
Request a Tailored Engineering Blueprint & Factory Quote
Connect directly with HEDA's structural engineering team. Submit your warehouse architectural layout, target pallet positions, and material handling specifications to receive a complimentary 2D CAD design, 3D structural render, load calculation, and optimized containerized export pricing within 24 hours.
