High-Performance Pallet Racking & Heavy-Duty Structural Assemblies
Manufactured strictly with high-tensile Q235B and Q355B structural steel, our modular upright frames and beam systems integrate seamlessly across selective, dynamic, and multi-tier picking environments.

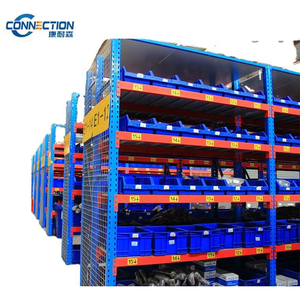

Heavy Duty Metal Shelving Industrial Warehouse Storage Rack Shelf Steel Racking System
- Upright Section: 80–120mm Omega profile
- Capacity: Up to 5,000 kg / layer
- 50mm / 75mm beam pitch pitch

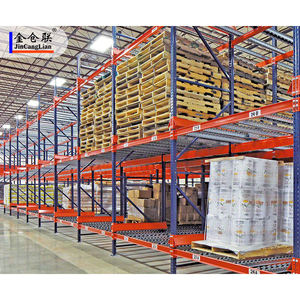

Industrial Heavy Duty Gravity Flow FIFO Steel Carton Flow Warehouse Storage Pallet Rack
- Zero energy unpowered roller bed
- Heavy structural upright uprights
- Integrated centrifugal speed controllers

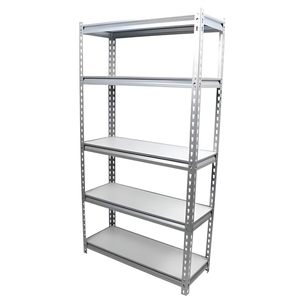

Mracking Popular Adjustable Metal Boltless Shelf Racks Medium Duty Warehouse Storage Rack
- Boltless rivet interlock system
- Capacity: 300–800 kg per shelf
- Fast assembly knockdown design

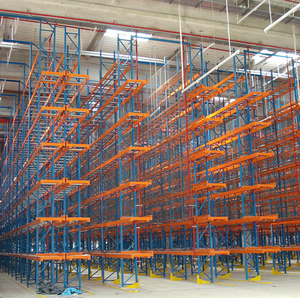

Very Narrow Aisle Racking System Solution VNA Rack High Density Storage
- Max vertical height: Up to 18 meters
- Guide rail / wire guidance ready
- Aisle clearance from 1,600mm

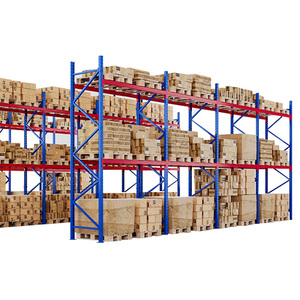

Heavy Duty Rack System Warehouse Storage Rack Pallet Racking
- Cold-rolled one-piece formed columns
- Safety factor compliant with RMI MH16.1
- Custom beam connectors (3-4 claws)

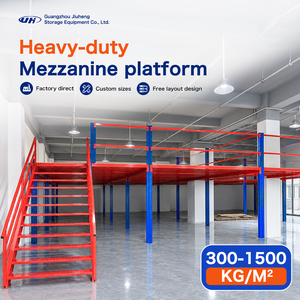

Multi Tier Warehouse Mezzanine Rack Heavy Duty Steel Storage Platform
- Structural column supported platforms
- Floor capacity: 300–1,200 kg/m²
- Integrated staircases & safety barriers

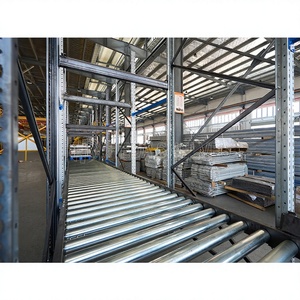

Hot Sale Gravity Flow Roller Racking Systems Customized Heavy Duty Carton Flow Racks
- Aluminum alloy / steel roller tracks
- Optimized for split-case picking & assembly
- Drop-in adjustable lane dividers
CASE CARTER OEM Heavy Duty Foldable Stack Wire Mesh Steel Pallet Storage Container Rack
- Stacking strength: 4 layers high under load
- Fold-down drop gate for simple retrieval
- Electro-galvanized / powder coated
Structural Metallurgy & Cold-Roll Forming Mechanics of Rack Uprights
In selective and high-density pallet racking systems, upright columns represent the fundamental structural element dictating critical buckling resistance, seismic shear survivability, and axial load stability.
Omega Cross-Sectional Geometry
Unlike standard generic open C-channels, custom OEM pallet rack uprights utilize multi-ribbed "Omega" profiles featuring 11 to 13 mechanical cold-bends. Each continuous bend induces localized strain hardening along the steel corners, elevating structural yield strength and shifting torsional-flexural buckling thresholds upwards by as much as 28% without increasing linear mass.
CNC Rotary & Progressive Die Punching
Our automated production line incorporates high-speed CNC progressive punching tools to perforate teardrop, hex-hole, or diamond patterns at ultra-precise 50mm, 75mm, or 76.2mm (3-inch) pitches. Punch die edge radii are micro-burnished to eliminate micro-cracking and stress concentration points along hole peripheries, safeguarding beam-connector interlock stability under dynamic cyclic loading.
Finite Element (FEM) Limit-State Analysis
Every frame assembly—comprising two cold-formed uprights tied by diagonal and horizontal C-profile bracing channels—is analyzed under nonlinear structural matrix algorithms compliant with RMI MH16.1, EN 15512, and AS 4084 standards. The effective unbraced column length (K-factor) is strictly calibrated against baseplate anchor bolt friction and moment connection rigidity.
Standard & Custom OEM Pallet Rack Upright Specifications
Explore engineering parameters for export upright profiles produced across our Guangzhou fabrication facilities.
| Profile Model | Width × Depth (mm) | Material Thickness | Steel Grade | Punch Hole Pitch | Max Frame Capacity | Target Applications |
|---|---|---|---|---|---|---|
| HD-UP-80 | 80 × 60 mm | 1.5 mm – 1.8 mm | Q235B (Yield ≥ 235 MPa) | 50 mm / 75 mm | 8,000 kg | Medium-duty warehousing, carton flow, manual pick levels |
| HD-UP-90 | 90 × 65 mm | 1.8 mm – 2.0 mm | Q235B / Q355B | 50 mm / 75 mm / 76.2 mm | 12,500 kg | Standard selective pallet racks, FMCG distribution centers |
| HD-UP-100 | 100 × 70 mm | 2.0 mm – 2.3 mm | Q355B (Yield ≥ 355 MPa) | 75 mm / 76.2 mm Teardrop | 16,000 kg | Drive-in racking, double deep layouts, regional 3PL hubs |
| HD-UP-120 | 120 × 95 mm | 2.3 mm – 2.75 mm | Q355B High-Tensile | 75 mm Pitch | 22,000 kg | VNA systems up to 16m, automated crane racks, heavy industrial |
| HD-UP-140/160 | 140/160 × 120 mm | 2.75 mm – 3.2 mm | Custom Micro-Alloyed | Custom OEM Specification | 30,000+ kg | High-bay AS/RS clad-rack warehouses, heavy seismic zones |
Controlled 10-Stage Upright Frame Manufacturing Process
From prime hot-rolled pickled steel coils to multi-pass roll forming, continuous weld bracing, and chemical conversion coatings, consistency is audited through every meter of production.
Certified Coils
CNC Punching
Roll Forming
Chemical Wash
Electrostatic Coat
Future Procurement Trends & Technological Evolutions
How global supply chain volatility, AS/RS integration, and surface treatment science are transforming commercial racking procurement for enterprise warehouse builders.
1. Shift Toward Micro-Alloyed High-Yield Steels (Weight Optimization vs. Strength)
International logistics operators are transitioning away from heavy, unoptimized mild steel profiles. Future upright column procurement is heavily weighted toward Q355B and micro-alloyed automotive-grade steels that offer elevated yield strengths above 420 MPa. By using thinner-gauge steel engineered with complex multi-bend geometric stiffness, factories reduce raw material consumption by 12–18% per pallet position while maintaining identical structural safety coefficients. This weight reduction directly translates into reduced ocean container freight costs per shipped bay.
2. Automation-Ready Tolerance Specs (±0.5mm Deviation Controls)
With rapid adoption of autonomous mobile robots (AMRs), very narrow aisle (VNA) forklifts, and automated storage and retrieval systems (AS/RS), upright straightness tolerances have emerged as a critical procurement specification. Traditional manual warehousing tolerances (±2.0mm per 3m span) result in automated crane sensor fault trips at vertical heights exceeding 12 meters. Export upright factories must utilize continuous laser-guided roll-forming tracking and automated hydraulic straightening fixtures to assure cumulative vertical column plumbness within ±1/1000 along the entire height of the post.
3. Multi-Climate Anti-Corrosion Barrier Engineering
Procurement directors serving tropical, coastal, and sub-zero cold chain logistics environments increasingly reject superficial one-coat spray paints. Industry standards are shifting to a 9-stage immersion bath sequence involving ultrasonic degreasing, hot acid pickling, zinc-phosphating micro-crystalline conversion coating, and high-polymer polyester electrostatic powder curing at 200°C. For high-humidity maritime warehouses and -30°C blast-freezers, pre-galvanized cold coil forming or post-fabrication hot-dip galvanizing (HDG) conforming to ISO 1461 guarantees over 25 years of structural integrity without peeling or oxidative rust bleed.
4. Knockdown Container Cube Optimization & Green Logistics
International shipping freight rate fluctuations continue to penalize bulky, pre-welded structural components. Modern OEM upright frames are engineered as bolt-together knockdown modular sets consisting of upright posts, roll-formed C-channel bracing, heavy cast-steel baseplates, and Grade 8.8 structural locking bolts. Uprights are nested in high-density nesting bundles secured with high-tensile steel strapping and custom timber cradles, maximizing 40HQ container payload utilization up to 26–28 metric tons while eliminating container transit damage.
Why International Tier-1 Contractors Partner With Us
Headquartered in Guangzhou with over two decades of dedicated manufacturing excellence, we provide turnkey OEM/ODM warehouse racking engineering across more than 120 countries.
Years of Expertise
Founded in 2001, providing continuous engineering refinement in metal storage racks and heavy industrial mezzanines.
Tons Monthly Output
Our 30,000 m² advanced manufacturing facility houses continuous automatic roll-forming lines and robotic welding bays.
Projects Delivered
Over 10,000 warehouse projects completed globally. Complimentary structural CAD floorplans, 3D renders, and load calculations.
International Audited
Certified under CE No. 2435-CPR-8605159, ISO 9001:2015 No. 18624Q00169R0M, and comprehensive RoHS chemical compliance.
Frequently Asked Questions on Custom Pallet Rack Uprights
In-depth structural and commercial guidance written by our chief mechanical engineering staff.
What parameters determine the total weight capacity of an upright frame?
Can you produce custom hole punch patterns matching existing brand profiles?
How do you ensure corrosion resistance during ocean freight and tropical warehousing?
How are upright frames packed to avoid freight damage in 20GP and 40HQ containers?
What engineering documents are provided prior to production confirmation?
What are the lead times for custom roll-formed upright orders?
Consult Our Warehouse Engineering Team Today
Send your building dimensions, pallet load requirements, and forklift operational specifications. Our technical engineering division delivers custom CAD warehouse layouts, 3D renderings, and FOB/CIF container shipping quotations within 24 hours.
