Precision Upright Columns & Industrial Frame Assemblies
Explore our flagship heavy-duty pallet rack upright frames, cold-rolled structural steel columns, and specialized multi-tier storage configurations manufactured to rigorous international standards.
- 2.0" (50.8mm) Pitch Pitch Interchangeable
- Q235B / Q355B High Yield Carbon Steel
- Payload: Up to 18,000 kg Frame Capacity

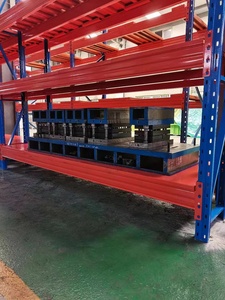

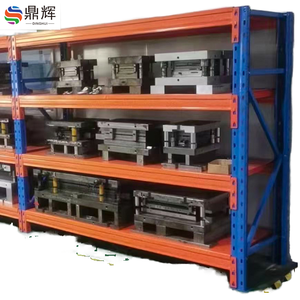

- Triple Column Rigid Heavy-Duty Design
- Integrated Spray-Coated Steel Decks
- Extra-Depth Industrial Rigidity
- 50mm / 75mm Pitch European Standard
- Cold-Formed Multi-Bend Stiffened Flanges
- Modularity for Facility Expansions

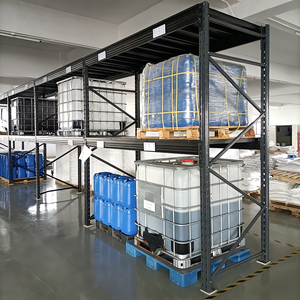

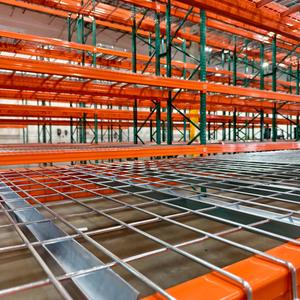

- Heavy Formed Steel Column Guard Included
- Reinforced Wire Mesh Structural Decks
- OSHA & EN 15512 Safety Standard
- Thermoset Electrostatic Powder Coating
- Phosphatized Pre-treatment Corrosion Barrier
- Multi-Layer Beam Level Customization

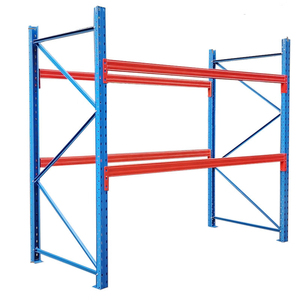

- Seismic Engineered Footplate Anchor Holes
- Continuous Seam Robotic Welded Trusses
- Galvanized or Powder Coated Finish
- Narrow Flange Cold-Formed Columns
- Hand-Loaded Bin & Carton Integration
- Boltless Quick-Erect Clip Architecture
- Reinforced Dynamic Brake Load Columns
- Sloped Roller Bed Upright Bracing
- FIFO Zero-Energy Stock Rotation
Structural Anatomy & Metallurgy of OEM Upright Frames
A rigorous examination of cold-roll-formed steel mechanics, section modulus optimization, punching perforation kinematics, and frame load-bearing behavior under ANSI MH16.1 and EN 15512 specifications.
1. Cold-Formed Steel Geometry & Stiffener Flanges
The primary load capacity of an upright post does not depend solely on steel thickness; it is critically dictated by the profile's cross-sectional geometry and the placement of cold-formed stiffening bends. Standard C-sections without secondary returns suffer from premature torsional-flexural buckling under axial stress.
Our OEM factory deploys multi-station roll-forming lines (up to 24 roll-forming passes) that shape hot-rolled, pickled-and-oiled structural strip steel (Q235B, Q355B, and ASTM A1011 equivalent) into optimized Omega (Ω) and multi-faceted open profiles. Each return lip and intermediate web indentation introduces longitudinal cold-work hardening, locally raising the steel's yield strength by 12% to 18% along critical buckling axes.
This superior cross-sectional moment of inertia ($I_x$ and $I_y$) guarantees that our upright frames sustain maximum permissible vertical bay loads of up to 30,000 kg while maintaining full compliance with AISI S100 North American and Eurocode 3 Part 1-3 structural specifications.
Perforation Pitch & Net Section Area
Hole punching inherently reduces the gross cross-sectional area ($A_g$) to an effective net area ($A_{net}$). Our CNC punching dies utilize calculated fillet radii on teardrop slots (2.0" / 50.8mm pitch) and European diamond/hexagon slots (50mm, 75mm, 76.2mm pitch) to eliminate micro-crack stress concentrations during cyclic seismic excitation.
Bolted vs. Fully Welded Truss Bracing
We engineer two distinct truss assemblies: Bolted K-Bracing (utilizing M8/M10 grade 8.8 serrated-flange locking bolts for easy ocean container packing and damaged-part site replacement) and Continuous Robotic Mig-Welded Trusses (designed for maximum shear diaphragm stiffness in high-vibration seismic zones and ASRS applications).
Baseplate Anchor Load Transfer
Every upright column connects to the concrete floor slab through laser-cut structural steel footplates (standard 100x120mm to 160x180mm with 4.0mm to 10.0mm thickness). Dual seismic wedge anchor perforations ensure uniform dispersion of shear overturning moments into the slab foundation, preventing upright punch-through.
Standard Industrial Upright Section Profiles & Axial Capacity Guide
| Profile Model | Width × Depth (mm) | Available Thickness | Steel Grade | Gross Area ($A_g$) | Max Bay Load (Lu = 1.5m) | Punching Compatibility |
|---|---|---|---|---|---|---|
| HD-UP-80 | 80 × 60 mm | 1.5 mm / 1.8 mm / 2.0 mm | Q235B | 3.12 cm² | 8,500 kg | Teardrop / 50mm Diamond |
| HD-UP-90 | 90 × 70 mm | 1.8 mm / 2.0 mm / 2.3 mm | Q235B / Q355B | 4.25 cm² | 14,200 kg | 50mm / 75mm / Teardrop |
| HD-UP-100 | 100 × 70 mm | 2.0 mm / 2.3 mm / 2.5 mm | Q355B Structural | 5.18 cm² | 19,800 kg | 75mm / 76.2mm Hex / Teardrop |
| HD-UP-120 | 120 × 95 mm | 2.3 mm / 2.5 mm / 3.0 mm | Q355B Heavy | 7.64 cm² | 26,500 kg | 75mm European / Custom OEM |
| HD-UP-140 HD | 140 × 100 mm | 2.5 mm / 3.0 mm / 3.2 mm | High-Strength Q355B | 9.82 cm² | 32,000 kg | ASRS Narrow Pitch / Custom |
*Note: Maximum bay load ratings assume a maximum unbraced vertical beam clearance ($Lu$) of 1,500mm, properly grounded baseplates, and standard horizontal/diagonal truss spacing calculated per ANSI MH16.1 & EN 15512 standards.
Inside Our 30,000 m² Upright Production Facility
From prime cold-rolled steel coils to CNC-machined punching lines and automated powder coating ovens: our 10-stage quality-controlled manufacturing process eliminates micro-defects.
Direct Factory Customization Capabilities
As an established OEM/ODM manufacturing partner, Guangzhou Heda Shelves Co., Ltd. collaborates directly with racking distributors, structural system integrators, and logistics contractors worldwide. Whether your market necessitates strict adherence to the North American RMI standard (teardrop punch) or European FEM 10.2.02 / EN 15512 specifications, our tooling division fabricates custom column dies to your precise dimensional drawings.
- Custom Gauge & Depths: Depths from 600mm to 1,500mm; column heights continuous up to 12.0 meters without splice joints.
- Corrosion Resistance Mastery: 9-stage pre-treatment, nano-ceramic conversion, and lead-free thermoset powder coat cured at 200°C (60–80μm thickness) or ISO 1461 Hot-Dip Galvanizing for harsh cold-storage and tropical humidity.
- Containerized Nesting Technology: Optimized knock-down upright packaging engineered to load maximum gross weight into 20GP and 40HQ containers, slashing landed freight cost per pallet position.
Quality Verification & Certification Protocol
All production runs undergo rigorous physical metallurgical and destructive load bench testing to ensure certified performance before reaching international shipping docks:
Future Trends in Pallet Rack Upright Procurement (2026–2035)
As modern distribution hubs transition toward semi-automation, automated storage and retrieval systems (ASRS), and resilient regional supply hubs, upright column specifications are undergoing revolutionary shifts.
Hyper-Tolerance High-Bay Upright Columns
With automated cranes and radio shuttle carriers operating at speeds exceeding 2.5 m/s, warehouse operators require upright column straightness tolerances exceeding 1/1000 of total height. The procurement trend is shifting away from manual field adjustments toward laser-aligned, factory-indexed columns engineered with zero-play connector pinholes.
High-Strength Low-Alloy (HSLA) Steels
To combat escalating international ocean shipping costs, global buyers are specifying HSLA steel grades (such as Q355B and Q460). These advanced micro-alloyed sheets provide identical axial load capacities with 15% to 20% thinner profiles, significantly reducing shipping weight while lowering the embodied carbon footprint of the facility.
Dynamic Seismic Dissipation & Pre-Galvanization
Supply chain volatility and extreme coastal/cold-chain operating conditions have fueled a 40% surge in pre-galvanized upright frame demand (hot-dip continuous sheet conforming to Z275 coating weights). In parallel, seismic design mandates across earthquake zones demand ductile, energy-absorbing baseplates that mitigate frame buckling during ground acceleration.
Our engineering department provides prospective warehouse buyers and engineering EPC contractors with full 3D CAD modeling, FEA dynamic structural simulation, and seismic layout calculations completely free of charge prior to manufacturing sign-off.
Why Enterprise Logistics Partners Choose HEDA Shelves
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. has evolved from a specialized roll-forming workshop into an international storage manufacturing powerhouse. With over 300 skilled technicians, state-of-the-art robotic welding centers, and dedicated engineering export teams, we provide complete transparency from coil arrival to container sealing.
- Documented Certifications: Official CE Certificate (No. 2435-CPR-8605159) ensuring structural compliance for European and global worksites; ISO 9001:2015 Quality Management System (No. 18624Q00169R0M).
- Global Delivery Track Record: Successfully executed over 10,000 warehouse, cold-storage, automotive, and retail mezzanine projects across 120+ countries worldwide.
- End-to-End Installation Guidance: Every export consignment includes barcode-indexed component numbering, detailed 3D step-by-step assembly drawings, and remote video technical supervision.
Frequently Asked Questions by Industrial Buyers
Authoritative technical and logistical answers addressing upright frame calculations, column impact resilience, profile interchangeability, and global export shipping.
Plan Your Storage Project with Senior Racking Engineers
Direct factory pricing, custom OEM cold-formed upright profiles, free 3D CAD facility design, and certified load calculations provided within 24 hours.
