The Intralogistics Engineering of Dynamic FIFO Pallet Racking Systems

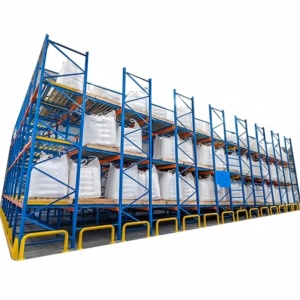

In high-velocity warehouse environments, inventory handling efficiency, expiration date integrity, and footprint utilization define operational profitability. First-In, First-Out (FIFO) pallet flow racking—commonly termed dynamic live storage—is the premier non-powered automation solution for cold-chain facilities, food and beverage processing, pharmaceuticals, FMCG distribution, and automotive assembly buffers. By utilizing the physical law of gravity across inclined roller tracks, FIFO racking merges the high-density characteristics of drive-in racking with the immediate SKU accessibility of selective systems, eliminating up to 60% of forklift travel paths.

1. Dynamic Roller Track Kinematics and Gravitational Force Equilibrium

At the center of any high-performance FIFO pallet flow system is the engineered balance between kinetic gravity propulsion and controlled retardation. Roller tracks are installed at a standardized gradient ranging between 2.8% and 3.5% (typically 3.0% for standard Euro/ISO wooden pallets). This incline provides sufficient gravitational force ($F_g = m \cdot g \cdot \sin\theta$) to overcome the initial static friction of the roller bearings without allowing accelerating pallets to reach dangerous terminal velocities.

Furthermore, dynamic FIFO lanes must manage hydraulic back-pressure. In lanes exceeding five pallets in depth, the cumulative gravitational thrust of trailing pallets against the front discharge pallet can cause "forklift pinch," where extraction forks cannot safely lift the primary pallet without structural binding. Our OEM/ODM installations incorporate patented mechanical Pallet Separation Stop Mechanisms. When the leading pallet glides to the unload stop, it activates an articulated mechanical trip arm that mechanically arrests all subsequent pallets 300mm behind the lead position. The moment the front pallet is hoisted by a reach truck, the stop disengages smoothly, permitting the trailing queue to step forward one single position under governed braking control.

2. Metallurgy, Cold-Formed Profiling, and Upright Engineering

Structural reliability under severe dynamic stress dictates the selection of steel alloys. While conventional static racks often utilize standard commercial steel, dynamic FIFO upright frames must handle asymmetric impact forces, roller rack vibrational frequencies, and high deadweight concentrations. We engineer our vertical uprights and load-bearing horizontal beams using structural-grade Q235B and high-yield Q355B cold-rolled steel coils with certified yield strengths ($f_y$) exceeding 355 MPa.

Our continuous automated roll-forming lines shape omega-profile columns featuring 11 to 13 structural bends per section. This closed-geometry cold profiling maximizes the radius of gyration, dramatically enhancing column resistance against elastic torsional-flexural buckling under axial compression. Upright frames are punched at 50mm or 75mm precision pitches on automated German multi-stage CNC stamping presses, providing infinite adjustability for diverse load height clearances. Box beams are fabricated with interlocked double-C profiles, continuously welded by multi-axis OTC robotic systems to ensure flawless penetration along the neutral axis.

3. Specialized Surface Protection: Tropical & Sub-Zero Cold-Chain Resilience

A critical failure point in international storage exports is surface coating degradation caused by temperature cycling, condensation, and chemical cleaners. Dynamic FIFO installations are frequently deployed inside sub-zero blast freezers (-30°C) or highly humid coastal distribution terminals (such as ports across Africa, South Asia, and the Middle East). In these environments, micro-cracks in painted steel cause internal galvanic corrosion that compromises structural integrity.

To eliminate this risk, our 30,000 m² Guangzhou production facility integrates a state-of-the-art 10-Stage Chemical Pretreatment & Electrostatic Powder Coating Line. Components pass sequentially through high-pressure hot alkaline degreasing, ultrasonic water rinsing, chemical acid pickling to eliminate scale, and a nano-ceramic zinc phosphating bath that creates a dense crystalline conversion barrier. The electrostatic application of high-durability thermosetting epoxy-polyester hybrid powder produces an ultra-uniform coating thickness of 60 to 90 microns, post-cured at 200°C for 25 minutes. This automated procedure achieves a 500-hour neutral salt spray rating (ASTM B117) and guarantees cross-hatch adhesion compliance (ISO 2409 Class 0). For deep-freeze chambers and open-air yard racking, continuous hot-dip galvanization according to ISO 1461 is available, yielding zinc protective layers up to 85 microns thick.
