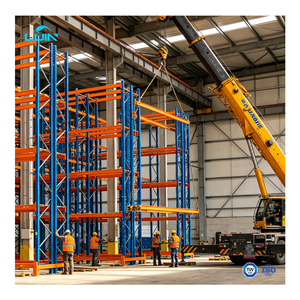

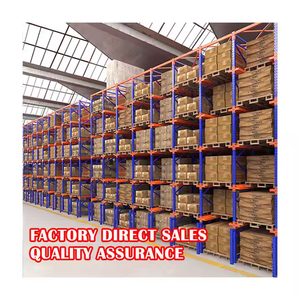

Heavy-Duty Structural Pallet Rack Showcase
Manufactured from prime certified hot-rolled C-channel structural steel (ASTM A36 / Q235B & Q355B). Designed to eliminate catastrophic forklift impact buckling, withstand severe seismic acceleration, and support unit pallet loads exceeding 5,000 kg per tier.
- Steel Grade: ASTM A36 / Q235B
- Load Rating: 500 – 1,500 kg/m²
- Finish: Hot-Dip Galvanized / Epoxied
- Dimensions: L2200*W1200*H4050 mm
- Payload: 2,000 kg / Level (UDL)
- Frame Profile: Heavy Cold-Formed Upright
- Material: Structural C3/C4 Channels
- Impact Rating: Up to 50 kJ Collision Safe
- Connection: High-Tensile Grade 8.8 Bolts
- Configuration: 3-Layer Modular Slot
- Coating: Thermoset Epoxy Powder 90μm
- Customization: OEM Pitch & Column Section
- Compliance: EN 15512 / CE 2435-CPR
- Capacity: 3,500 – 5,000 kg / Bay
- Environment: Dry Logistics & Cold Rooms
- System: FIFO Dynamic Roller Track
- Brake Rollers: Speed Governed Safety Retarders
- Frame: Heavy Hot-Rolled C-Sections
- Baseplates: Welded Extended Seismic Footplates
- Upright Gauges: 3.0 mm to 5.0 mm Solid Web
- Beam Types: Boxed C-Channels with End Clips
- Engineering: High Load Capacity / Free 3D Design
- Adjustability: 50mm / 75mm Pitch Spacing
- Testing: RMI MH16.1 Monotonic Load Tested
Hot-Rolled Structural C-Channel vs. Roll-Formed Gauge Racking
In high-throughput distribution environments, sub-zero cold chain facilities, and seismic zones, material selection dictates catastrophic risk margins, structural longevity, and the Total Cost of Ownership (TCO).
Metallurgical Integrity
Hot-rolled structural steel sections (ASTM A36 / Chinese Standard Q235B and Q355B) feature uniform structural density and web thicknesses between 4.0 mm and 6.5 mm. Unlike thin cold-rolled gauge steel (1.5 mm – 2.5 mm) which accumulates micro-fissuring and high residual stress at formed bend radii, hot-rolled C-channels are isotropic, ductile, and immune to work-hardening embrittlement under intense cyclic loading.
Collision & Impact Energy Dissipation
Forklift impact is the primary failure trigger in industrial high bays. Structural C-channel uprights possess over 250% higher torsional rigidity and extreme shear section modulus. In dynamic collision tests, a 4.0 mm structural post sustains impacts exceeding 50 kJ of kinetic energy with only localized cosmetic scuffing, whereas open-lipped roll-formed profiles crimp and suffer sudden global buckling under 12–15 kJ.
High-Tensile Bolted Structural Joints
Structural pallet racks use solid welded beam-end plates joined to C-channel uprights via Class 8.8 / ASTM A325 high-tensile structural bolts with hardened mechanical lock washers. This eliminates tear-drop clip dislodgement caused by erratic operator lift pulses, prevents joint shear deformation under heavy horizontal seismic sway, and guarantees rigid frame moment resistance.
| Engineering Parameter | Hot-Rolled Structural C-Channel Rack | Conventional Cold Roll-Formed Rack | Structural Safety Advantage |
|---|---|---|---|
| Raw Material & Steel Grade | ASTM A36 / Q235B / Q355B Solid Structural Steel | Cold-Rolled Sheet Coil (Q235 Strip Steel) | Zero residual bend stress |
| Upright Web Thickness | 4.0 mm to 6.5 mm Solid C-Channel | 1.5 mm to 2.5 mm Folded Sheet | +220% Steel Volume per Linear Metre |
| Forklift Kinetic Impact Limit | > 50 Kilojoules (Energy Absorbable) | 10 – 15 Kilojoules (Vulnerable to Buckling) | Extreme anti-collapse resistance |
| Beam-to-Column Locking Method | Grade 8.8 High-Tensile Structural Bolts & Nuts | Teardrop / Diamond Clip with Safety Pins | Eliminates uplift clip shear failure |
| Sub-Zero Cold Store Performance (-30°C) | Superior Charpy V-Notch impact toughness (Q355D) | High risk of cold embrittlement fractures | Unrivaled in blast freezers |
| Annual Inspection Replacement Rate | < 0.8% Frame Component Replacement | 12% – 28% Damaged Uprights Annually | Saves >65% on 10-Year TCO |
| Seismic Code Design Conformance | RMI MH16.1, EN 15512, AS 4084, Seismic Zone 4 | Limited to low/moderate seismic spectral forces | Seismic Force Reduction Factor R=6 |
Integrated Steel Fabrication from Coil to Sea Container
Operating a dedicated 30,000 m² heavy industrial production base in Guangzhou, Guangzhou Heda Shelves Co., Ltd. delivers direct factory engineering governance without intermediary brokers. Our full lifecycle quality control ensures millimeter precision for global multi-tier projects.
Prime Material Procurement & Ultrasonic Testing
All structural raw steel plates and C-channels are sourced directly from premier steel mills with complete chemical composition and tensile mechanical mill test certificates (MTC). Ultrasonic flaw detection verifies homogeneous grain structure prior to cutting.
Automated Multi-Axis CNC Laser & Plasma Cutting
High-precision fiber laser and heavy CNC plasma gantries execute high-speed thermal profiling, achieving ±0.2 mm tolerances on hole pitches, slotted connectors, and structural baseplate gussets for bolt alignment during site erection.
Heavy-Duty Automated Upright Punching
Our 400-ton hydraulic press lines punch structural C-channel webs with synchronized multi-hole tooling. Standard 50 mm and 75 mm modular hole centers are punched cleanly without burrs, micro-cracks, or perimeter flange distortion.
Robotic Multi-Pass Submerged Arc Welding
Structural beam end plates, bracing cleats, and floor footplates are welded using Panasonic multi-axis robotic welding stations. Shielded carbon dioxide and argon gas mixtures guarantee deep weld penetration without porosity, spatter, or weld undercut.
10-Stage Chemical Pre-Treatment & Degreasing
Prior to coating, steel members undergo continuous 10-stage processing: hot alkaline degreasing, ultrasonic water rinsing, acid pickling to eliminate scale, and automated zinc/iron phosphating to build an impenetrable anti-corrosive conversion film.
Electrostatic Hybrid Epoxy-Polyester Powder Coating
Automated Swiss Gema reciprocator guns apply thermoset TGIC-free polyester-epoxy powders (80–120 μm dry film thickness). Cured in a 200°C continuous convection tunnel, this finish delivers 500-hour ASTM B117 salt-spray corrosion resistance.
Hot-Dip Galvanizing (ASTM A123 / ISO 1461)
For blast freezers (-30°C), offshore distribution centers, and corrosive fertilizer or chemical warehouses, structural components undergo molten zinc immersion at 450°C, producing a metallurgical zinc-iron alloy barrier exceeding 85 μm thickness.
Stringent Load Deflection Bench Testing (QC)
Finished upright frames and structural beams undergo static destruction and deflection verification on hydraulic load frames. Beam vertical deflection is strictly verified to stay under L/200 (or L/500 for semi-automated and AS/RS installations).
Container Nesting & Maritime Export Bundling
Components are knock-down packaged with timber dunnage, protective corrugated interleaves, and heavy steel strapping. CAD-simulated container packouts maximize weight and cube inside 20GP, 40GP, and 40HQ maritime containers without transit damage.
Future Industrial Storage Procurement Trends
Procurement directors and warehouse operations executives must adapt to rapid paradigm shifts across global supply chains. Below are the key engineering and commercial procurement vectors shaping industrial storage decisions.
1. The Transition to Automated Material Handling (AGV / AMR & AS/RS)
The rapid adoption of Autonomous Mobile Robots (AMRs) and Automated Storage and Retrieval Systems (AS/RS) is reshaping racking tolerances. Traditional roll-formed racks exhibit minor elastic flex and beam sagging that trigger laser navigation errors on automated cranes. Structural C-channel racks, with rigid joint kinematics and deflection thresholds strictly under L/500, provide the dimensional stability required for high-bay autonomous warehouses.
2. High-Seismic Resilience and Tightened International Building Codes
Municipal planning authorities in North America, Latin America, EMEA, and Australasia are enforcing stricter seismic safety requirements (RMI ANSI MH16.1, IBC 2024, Eurocode 3 & 8). Facilities located in high spectral acceleration zones ($S_s > 1.5g$) are phasing out open thin-gauge posts in favor of heavy structural channels equipped with oversized baseplates, multi-anchor epoxy arrays, and welded truss bracings.
3. Cold Chain Expansion & High-Density Energy Optimization
Refrigerated and frozen distribution centers (-25°C to -30°C) represent the highest energy cost per cubic meter in modern warehousing. In deep-freeze environments, thin steel risks low-temperature embrittlement failure. Structural steel systems fabricated from low-temperature Charpy-certified grades (such as Q355D) combined with radio shuttle semi-automation deliver both safety and dense volumetric storage utilization.
4. Sustainable Procurement, Circular Steel & EPD Transparency
Multinational corporate enterprise buyers now demand Environmental Product Declarations (EPDs), Scope 1–3 carbon footprint disclosures, and closed-loop recyclability. Structural steel rack systems, constructed from Electric Arc Furnace (EAF) scrap steel, offer a fully recyclable asset profile. Their 25–30 year service life minimizes repeat manufacturing carbon outlays compared to fragile sheet products replaced on 5-year cycles.
Technological Advancements in Structural Storage Systems
How intelligent sensor integration, finite element structural modeling, and hybrid metallurgy are transforming conventional passive steel racks into resilient industrial infrastructure.
FEA Digital Twin Simulations
Every custom OEM/ODM racking configuration is modeled using non-linear Finite Element Analysis (FEA) software. Engineers simulate 3-dimensional seismic ground acceleration, asymmetrical live pallet loads, and extreme frame buckling states, ensuring steel mass is concentrated precisely where shear, moment, and axial stresses peak.
Hybrid Structural-Rollformed Profiles
To balance project expenditure and impact resilience, modern rack architecture pairs structural hot-rolled C-channels on the lower 2,500 mm impact zone with roll-formed upper extensions. This design defends the vulnerable base against forklift mast strikes while lowering upper frame steel weight and total project cost.
IoT Strain & Impact Telemetry
Leading-edge logistics installations incorporate wireless strain gauges and three-axis micro-electromechanical (MEMS) accelerometers directly into structural baseplates. When a reach truck strikes an upright, maintenance managers receive instant collision alerts with exact G-force values, accelerating structural safety audits.
Why Tier-1 Importers & Contractors Trust HEDA Shelves
As a global racking manufacturer founded in 2001, Guangzhou Heda Shelves Co., Ltd. combines heavy manufacturing infrastructure, strict international compliance, and professional turnkey engineering support.
Full International Certifications
Fully compliant with international engineering standards. We hold formal European CE Certification No. 2435-CPR-8605159 under the Construction Products Regulation, certified ISO 9001:2015 Quality Management System No. 18624Q00169R0M, and comprehensive RoHS chemical safety compliance.
Free 3D CAD & Structural Calculations
Our in-house structural engineering department generates full 2D AutoCAD equipment layouts, 3D photorealistic BIM models, and structural calculation reports within 24 to 48 hours. We calculate load charts, upright buckling factors, and floor anchor embedment depths free of charge.
Comprehensive OEM/ODM Customization
From custom steel channel heights, punching pitches, welded beam connectors, and branded powder-coat RAL color matching to custom embossed partner logos, we tailor every component to client specifications for distributor private labeling or complex architectural integration.
Export Packaging & Global Logistics
Exporting across 120+ countries, our packaging engineers utilize structural steel nesting racks and modular steel banding to ensure heavy components ship securely in 20GP/40HQ containers, protecting against maritime salt spray and transshipment handling shocks.
Frequently Asked Questions on Structural Pallet Racking
Technical, logistical, and structural compliance answers written by our senior structural engineering team for warehouse planners, operations directors, and equipment buyers.
What are the key engineering criteria for specifying hot-rolled structural steel over roll-formed steel? +
How do bolted structural beam connections perform during seismic ground acceleration? +
What surface finish options are available to protect structural steel against harsh corrosion? +
Can structural pallet racking be integrated with Automated Guided Vehicles (AGVs) and AS/RS systems? +
How does HEDA optimize maritime export container packing for heavy structural steel components? +
What structural engineering documentation is supplied for building permits and insurance approvals? +
Request an Engineered Layout & Factory-Direct Quotation
Send our senior engineering team your warehouse dimensions, clear ceiling heights, pallet specifications, and forklift fleet details. We will generate an optimized 2D/3D layout, structural load calculation report, and container shipping budget within 24 hours.
