High-Performance Storage Systems for Modern Warehousing
Engineered to international FEM 10.2.02, EN 15512, and RMI standards. Inspect our flagship pallet racking and multi-tier industrial shelving systems built for heavy payload stability and extreme environmental durability.
Cold Chain
Narrow Aisle
Manual Pick

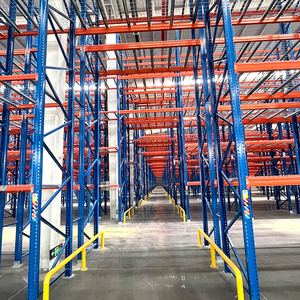

Euro Standard
Universal Access
Dynamic Gravity
Custom Modular
Strategic Sourcing Intelligence
Top 10 Storage Racking Shelves Factory & Suppliers: Global Benchmark
Selecting an industrial storage supplier is an architectural decision impacting lifecycle operating expenses, seismic building compliance, and floor space density. Below is the definitive evaluation of the world's leading racking manufacturers ranked by steel processing capacity, engineering automation, and global supply stability.
1. Guangzhou Heda Shelves Co., Ltd.
Founded in 2001 with a self-owned 30,000 m² heavy-gauge production facility, HEDA Shelves stands as the premier factory-direct manufacturer for customized heavy-duty pallet racking, multi-tier mezzanines, and cantilever systems. Renowned for its container-optimized packaging algorithms and rapid 24-hour CAD/FEA engineering design.
30,000T Monthly
ISO 9001:2015
CE 2435-CPR
2. Mecalux S.A.
A European automated storage and racking titan with extensive global footprint, delivering large-scale AS/RS and stacker crane integration alongside traditional selective and drive-in systems.
AS/RS Integration
WMS Software
Europe & Americas
3. SSI Schaefer
A global leader in fully automated intralogistics systems, high-bay racking cladding structures, and integrated modular shuttle technologies suitable for high-throughput fulfillment centers.
Automated Cladding
Intralogistics
High-Bay Silos
4. Dexion Storage Solutions
With deep roots in the original slotted angle invention, Dexion delivers specialized dynamic flow racking, mobile pallet racking (MOVO), and industrial shelving across EMEA and Australasia.
MOVO Systems
Slotted Legacy
EN Compliance
5. Jracking Group
Specializes in standard Euro-spec teardrop and cantilever systems with diversified production bases across China and Vietnam, catering to overseas trade distribution.
Teardrop Racks
Export Focused
Southeast Asia
6. Stow Group
One of Europe's largest racking conglomerates, prominent for its innovative "Atlas" pallet shuttle technology and structural steel mezzanine manufacturing platforms.
Atlas Shuttle
Heavy Mezzanines
Seismic Rating
7. BITO Lagertechnik
A German specialist renowned for ultra-precise order picking shelving, carton live storage, and multi-tier picking towers built for e-commerce omnichannel distribution.
Carton Live
Pick Towers
German Standards
8. Jungheinrich AG
While celebrated globally for material handling trucks, Jungheinrich engineers comprehensive rack integration engineered specifically around tight-tolerance reach truck and VNA fleets.
Truck Matching
VNA Wire Guide
Full Systems
9. AR Racking & 10. Daifuku
AR Racking excels in high-durability hot-dip galvanized outdoor racks, while Daifuku leads global materials integration for multi-million dollar automated high-bay distribution infrastructure.
Galvanized Heavy
Turnkey AS/RS
Seismic Damping
| Procurement Dimension | Direct Factory Tier 1 (HEDA Model) | Brand System Integrators (Schaefer/Mecalux) | Local Regional Fabricators |
|---|---|---|---|
| Landed Capital Expenditure | 35% - 50% Lower (Factory Direct, No Broker Markup) | Premium (+40-80% Engineering Brand Overhead) | Moderate Base, High Steel Surcharge Risk |
| Steel Certification & Traceability | Certified Q235B/Q355B with Mill Certificates & CE | EN 10025 Certified European Coils | Often Non-Destructive Batch Inconsistent |
| Ocean Freight Optimization | Computerized 40HQ KD Stacking (Max Ton/Cube Yield) | Standard Container Packing | N/A (Domestic Road Freight Only) |
| Custom Layout & FEA Lead Time | 24 - 48 Hours Turnaround (Included Free of Charge) | 2 - 4 Weeks Complex Proposal Cycles | Ad-Hoc Hand Sketches (No 3D Simulation) |
| Environmental Pretreatment | 10-Step Acid Pickling, Phosphating & Anti-Rust Powder | High-End Industrial Coating Lines | Single Dip Solvent Spray (Prone to Peeling) |
Strategic Forecasting
Storage Racking Procurement Trends (2026–2030)
Industrial storage procurement is transitioning from static steel buying to integrated lifecycle supply planning. Engineering teams and chief procurement officers face dynamic global supply shifts that dictate how storage infrastructure must be specified.
1. Volumetric Freight Efficiency
With shipping rates fluctuating, procurement teams now audit the "Packed Cubic Volume to Assembled Capacity Ratio." Factories using precise nested profile stamping maximize 40-foot High Cube (40HQ) container payloads, shaving up to 22% off landed freight costs per pallet location.
2. Grid-Resilient Mechanical Storage
Power instability across emerging industrial hubs has triggered a major resurgence in non-electric high-density systems. Gravity pallet flow, push-back carts, and deep-lane mechanical runners allow 24/7 continuous warehouse operations during electrical power disruptions.
3. Extreme Climate Metallurgy
Tropical heat, coastal saline air, and cold-chain blast freezers create rapid structural fatigue. Specifiers are abandoning standard solvent paints in favor of certified 10-step pickling, phosphating, and thermosetting electrostatic polyester powder or hot-dip galvanizing.
4. Multi-Tier Hybrid Mezzanines
Urban warehouse lease rates demand vertical expansion. Rack-supported mezzanines and multi-tier picking structures are replacing horizontal expansions, allowing distribution facilities to triple operational square footage without adding real estate overhead.
Engineering Whitepaper
Industrial Racking Evolution: From Static Beams to Kinetic Architecture
The transition from low-bay static storage to automated, load-calculated vertical systems is driven by structural physics and finite element optimization. Understand the engineering principles that define safe, high-density warehousing.
Cold Roll-Formed Upright Geometries
Modern upright profiles utilize advanced multi-bend Omega (Ω) cross-sections with continuous web ribs. This engineering configuration redistributes axial compression forces and dramatically elevates torsional rigidity, preventing column buckling under extreme static and dynamic loads.
Multi-Bending Rigidity
Omega Profiles
FEM 10.2.02
Interlocking Connector Claw Mechanics
Welded box beams engage column uprights via CNC-punched tapered teardrop or trapezoidal slots. Multi-claw hooks generate a self-tightening wedge action under downward pallet mass, accompanied by spring-loaded safety pins rated to resist upward forklift impacts in excess of 5,000 N.
Wedge Lock Geometry
5kN Safety Pins
Zero Dislodgment
Finite Element Dynamic Analysis (FEA)
Leading suppliers validate every design iteration through computational FEA modeling. Engineers simulate asymmetric pallet load distributions, earthquake ground accelerations (UBC/IBC seismic provisions), and maximum allowable elastic beam deflection limits (strictly capped at L/200).
L/200 Deflection
Seismic Simulation
Stress Distribution
Zero-Defect Quality Control
Our 10-Stage Precision Manufacturing Sequence
Every beam and upright profile undergoes 10 verified production checkpoints to guarantee weld integrity and corrosion immunity.
Step 01Prime Steel Coils
Step 02CNC Slitting & Cutting
Step 03Automated Punching
Step 04Cold Bending
Step 05Profile Roll-Forming
Step 06Surface Polishing
Step 07Robotic Welding
Step 08Pickling & Phosphating
Step 09Powder Coating
Step 10QC & Container Stuffing
Procurement Clarity
Frequently Asked Questions: Industrial Storage Racking
Authoritative technical guidance compiled by our senior structural engineers to resolve key commercial, logistical, and safety questions prior to placing enterprise orders.
What essential warehouse dimensions and data are required to generate an accurate CAD layout? +
To prepare a precise engineering layout, our team requires: (1) Architectural floor plan indicating building length, width, clear height beneath ceiling beams/fire sprinklers, plus column grid spacing; (2) Ingress/egress roll-up doors, emergency exit paths, and warehouse floor expansion joint locations; (3) Pallet specifications including overall width, depth, height (including load), and maximum gross weight per pallet; (4) Forklift truck model, turning radius, maximum mast elevation, and minimum aisle passage width; (5) SKU velocity profiles and stock rotation requirements (FIFO vs. LIFO).
How does HEDA prevent rust and paint peeling in coastal, humid, or refrigerated environments? +
Unlike budget suppliers who spray paint directly onto oily steel, HEDA operates an automated 10-stage chemical pre-treatment system. Steel profiles pass through immersion acid pickling (to eradicate all mill scale and oxidation) followed by zinc phosphating (to etch a crystalline anti-corrosion barrier and enhance mechanical adhesion). Finally, parts receive an electrostatic thermosetting polyester powder coating baked at 180°C - 200°C. For sub-zero cold storage down to -35°C or outdoor applications, we provide pre-galvanized or hot-dip galvanized finishes certified to ASTM A123.
What are the maximum beam deflection thresholds allowed under international safety standards? +
Under FEM 10.2.02 and EN 15512 European standards, maximum beam deflection under safe working load (SWL) must not exceed 1/200th of the clear span length (Deflection ≤ L/200). In the United States, RMI MH16.1 sets a limit of L/180. HEDA engineers its beam box sections to conform strictly to the conservative L/200 threshold with a mandatory minimum 1.5 safety factor on ultimate tensile yield strength, ensuring zero permanent plastic deformation.
How are racking components packed to prevent transport damage and minimize container freight costs? +
All components are knock-down (KD) engineered. Upright frames are pre-assembled or shipped disassembled with nesting profiles. Beams are banded in high-density bundles separated by timber dunnage and protective corrugated edge buffers, wrapped in moisture-resistant shrink film. Our CAD loading algorithms simulate container center of gravity and spatial utilization, allowing a single 40-foot High Cube (40HQ) container to accommodate between 22 to 26 metric tons of structural steel without void waste.
Can non-electric mechanical racking operate seamlessly during municipal power outages? +
Yes. Selective pallet racking, double-deep racking, drive-in racking, cantilever racking, push-back cart racks, and gravity live roller racks are 100% mechanical. They rely purely on gravity and standard forklift mast hydraulics, remaining completely unaffected by electrical grid disruptions. For radio shuttle racking systems, carriers utilize swappable lithium-ion battery packs that can be charged via auxiliary standby generators or solar backup stations.
What on-site installation guidance and support does HEDA provide for international shipments? +
Every export shipment includes comprehensive component numbering tags matching a master Bill of Materials (BOM), step-by-step CAD installation blue-prints, and 3D exploded view assembly manuals. Our engineering division offers remote video conference installation guidance. For large-scale projects exceeding 1,000 pallet positions or multi-tier structural mezzanines, we can dispatch bilingual on-site installation supervisors to direct your local rigging and assembly crew.
What official structural certifications and mill test reports are supplied with each batch? +
HEDA holds CE Certification (Certificate No. 2435-CPR-8605159) under the European Construction Products Regulation, ISO 9001:2015 Quality Management Certification (Certificate No. 18624Q00169R0M), and comprehensive RoHS environmental test certificates. With each delivered container, we can furnish raw material chemical composition and mechanical tensile Mill Test Certificates (MTC) trace-able to the original steel rolling batch.
Accelerate Your Sourcing Roadmap
Request Your Free 3D Warehouse Layout & Static Load Calculation
Provide your building dimensions, pallet unit loads, and target storage capacity. Our certified structural engineers will generate an optimized 2D CAD floor plan, 3D spatial rendering, and complete structural load analysis within 24 to 48 hours — with zero cost and no commercial obligation.
✓ Complete Bill of Materials
✓ Ocean Freight Container Estimate
✓ Seismic & Deflection Compliance
