High-Density Industrial Storage & Pallet Racking Systems
Explore precision-formed cold-rolled steel storage systems engineered to maximize vertical volumetric space, ensure seismic load stability, and streamline palletized workflow across regional distribution hubs.

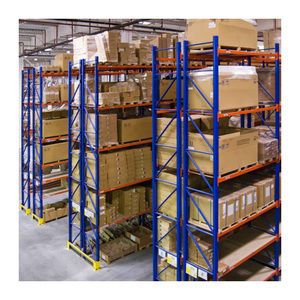

Heavy Duty Pallet Racking Storage Shelf
Factory-customized heavy-duty structural racking with high-rigidity teardrop or slotted upright columns, configured for single or multi-deep selective pallet access.
- Capacity: 1,000–4,500 kg per beam level
- Steel Grade: High-yield Q235B / Q355B

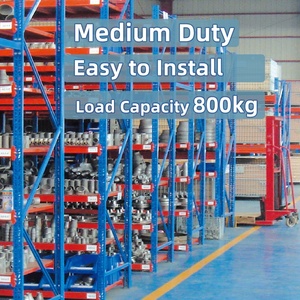

Medium Duty Adjustable Bolted Shelving
Versatile cold-rolled steel industrial shelving designed for manual case-picking, spare parts repositories, and medium-scale carton distribution centers.
- Capacity: 300–800 kg per level
- Adjustment: 50mm pitch flexible spacing
Heavy Duty Triple-Upright Pallet Rack
Reinforced triple-column framing fitted with electrostatic spray-coated steel decks, built to sustain oversized pallets, heavy molds, and intense point-loading.
- Decking: Formed steel panels / wire mesh
- Safety: Interlocking safety lock pins
4-Layer Boltless Heavy Duty Shelving
Rapid-assembly boltless shelving units for commercial logistics staging, retail backrooms, and light industrial maintenance parts inventory.
- Assembly: 100% tool-free interlocking
- Load: Up to 500 kg per shelf tier
5-Layer FIFO Gravity Flow-Through Racking
Inclined roller-bed gravity flow tracks facilitating seamless First-In, First-Out replenishment for high-velocity perishable, pharmaceutical, and beverage goods.
- Speed Control: Centrifugal brake rollers
- Density: Cuts warehouse aisle needs by 50%
Heavy Duty Pallet Storage Rack System
Universal industrial tall warehouse rack system compatible with counterbalance, reach truck, and VNA turret systems, optimized for maximum vertical clearance.
- Height Capability: Up to 18 meters tall
- Finish: Anti-corrosion powder coating
Two-Level Steel Platform Mezzanine
Structural multi-tier mezzanine platform doubling usable ground footprint without structural civil alterations; features integrated stairs, handrails, and pallet drop gates.
- Deck Load: 300–1,000 kg / m²
- Surface: Perforated steel / anti-slip chequer
Custom Warehouse Long Span Shelving
Heavy-duty long-span industrial shelving engineered with step beams and drop-in wire decking or galvanized panels, suited for hand-loaded bulk cartons and intermediate containers.
- Span Length: 1,500mm to 2,700mm
- Flexibility: Fast modular beam re-pitching
Top 10 Tall Warehouse Racking Manufacturers & Factories
A rigorous comparative framework examining the world’s leading manufacturers of high-bay pallet racking, automated clad-rack warehouses, and structural mezzanine facilities.
1. Guangzhou HEDA Shelves Co., Ltd. (China)
Core Specialization: Direct factory custom heavy-duty tall pallet racks, structural steel mezzanines, and radio shuttle dense systems. Operating a 30,000 m² facility with automated roll-forming and 10-stage chemical powder coating. CE (2435-CPR-8605159) and ISO 9001:2015 certified, offering free turnkey 3D/CAD layout designs and global sea shipping optimization.
2. SSI Schaefer (Germany)
Core Specialization: Turnkey automated high-bay warehouses, automated storage and retrieval systems (ASRS), and clad-rack architectural structures exceeding 30 meters. Celebrated for high-precision European steel fabrication, advanced warehouse management software (WAMS) integration, and immense multinational distribution center solutions.
3. Dexion / Constructor Group (Europe)
Core Specialization: Inventor of the slotted-angle standard, dominating industrial pallet racking and mobile heavy-duty shelving. Renowned for stringent FEM compliance, seismic engineering calculations in earthquake zones, and dense pallet live-storage implementations.
4. Mecalux, S.A. (Spain)
Core Specialization: Automated stacker-crane tall pallet racks and self-supporting clad-rack buildings. Serves mid-to-enterprise logistics hubs across EMEA and the Americas with heavy emphasis on galvanized cold-store racking and automated robotic pallet shuttles.
5. Ridg-U-Rak, Inc. (USA)
Core Specialization: North American heavy-duty structural steel channel racking, seismic-resistant column uprights, and tubular roll-formed configurations. Widely specified in high-volume food processing plants, beverage distribution centers, and Class IV seismic facilities across the US.
6. Interlake Mecalux (USA / Mexico)
Core Specialization: Standardized teardrop punch uprights, bolted beam profiles, and high-density push-back racking networks. Known for rapid distribution delivery across the NAFTA trade bloc and turnkey compatibility with legacy American warehouse equipment.
7. Daifuku Co., Ltd. (Japan)
Core Specialization: Ultra-tall cleanroom automated racking and advanced ASRS solutions for semiconductor, electronics, and automotive manufacturing. Specializes in sub-millimeter manufacturing tolerances, vibration-dampened racking, and automated sorting cranes.
8. Frazier Industrial Company (USA)
Core Specialization: 100% structural steel pallet racking using heavy hot-rolled C-channel beams. The acknowledged industry benchmark for impact-resistant warehouse racks in refrigerated facilities, lumber yards, and high-abuse industrial staging locations.
9. Stow Group (Belgium)
Core Specialization: Industrial racking engineering and pallet shuttle robotics (e.g., Stow Atlas). Renowned for automated modular rack solutions across Europe, certified under FEM 10.2.02 and EN 15512 static calculation safety standards.
10. Jungheinrich AG (Germany)
Core Specialization: Holistic intralogistics ecosystems combining high-rack narrow-aisle (VNA) systems, automated guided vehicles (AGVs), and multi-tier structural picking towers with automated stackers for pharmaceutical and e-commerce distribution centers.
Inside the HEDA Factory: From Hot-Rolled Coil to Certified Heavy Racks
Operational reliability in tall warehouse racking relies strictly on metallurgical consistency, micro-tolerance cold roll-forming, and multi-stage anti-corrosion chemical treatment. Review our 10-stage production standard.
Certified Prime Steel
Mill-tested Q235B / Q355B coils verified for tensile yield, elongation, and structural ductility.
Precision CNC Slitting
Laser and CNC slitting lines trim coils to exact widths with microscopic tolerance adherence.
Automated CNC Punching
Continuous hydraulic stamping ensures continuous pitch accuracy (50mm/75mm) across entire upright lengths.
Multi-Roll Cold Forming
Gradual 24-pass roll-forming prevents residual metallurgical stress in deep omega-section columns.
Profile Verification
Laser caliper inspection confirms column profile geometry, return-flange rigidity, and straightness.
Robotic Laser Welding
Automated multi-axis robotic welders lock beam end-connectors with zero structural spatter.
Mechanical Polishing
Automated shot-blasting and mechanical polishing completely strip scale, oil, and welding residue.
Acid Pickling & Phosphating
Chemical pre-treatment bath coats the raw steel with a microscopic anti-corrosion phosphate skin.
Electrostatic Powder Cure
Automated Nordson electrostatic spray booths apply 80-120μm epoxy-polyester cured at 200°C.
CMM QA & Container Loading
Deflection load testing, CE compliance checks, and high-density knock-down seaworthy bundle packaging.
| Racking Architecture | Typical Max Height | Payload / Pallet Position | Aisle Width (AST) | Space Utilization | Stock Rotation Strategy |
|---|---|---|---|---|---|
| Standard Selective Racking | Up to 12.0 Meters | 500 – 2,500 kg | 3.0 – 3.8 Meters | 40% – 50% Volumetric | 100% Direct Access (FIFO) |
| Very Narrow Aisle (VNA) | Up to 18.0 Meters | 1,000 – 2,000 kg | 1.6 – 1.9 Meters | 65% – 75% Volumetric | 100% Direct Access (FIFO) |
| Drive-In / Drive-Through | Up to 12.0 Meters | 800 – 1,800 kg | Aisles Eliminated | 75% – 85% Volumetric | Last-In, First-Out (LIFO) |
| Radio Shuttle Automation | Up to 24.0 Meters | 500 – 2,000 kg | Main Access Only | 85% – 90% Volumetric | Configurable FIFO / LIFO |
| Structural Multi-Tier Mezzanine | Multi-Level (2–4 Floors) | 300 – 1,000 kg/m² | Manual Cart / Hand Truck | 100% Floor Area Gain | Item/SKU Bin Pick Picking |
Future Procurement Trends for Tall Warehouse Racking (2025–2030)
Supply chain infrastructure is transitioning from conventional static racks toward dynamic, highly integrated automated high-bay envelopes. Procurement directors must account for four major seismic shifts.
AMR & AGV Floor Interfaces
Modern tall racks are no longer designed solely for human-operated forklifts. Upright footings, baseplates, and bottom beam clearance levels now require robotic undercarriage tolerances and QR-code floor navigation integration to service autonomous mobile shuttles.
Rack-Supported Clad Buildings
Industrial land prices demand extreme height. The procurement trend favors rack-supported buildings where the high-bay racking serves as the primary structural frame supporting wall cladding and roof trusses, eliminating concrete pillar structural footprints.
Structural IoT Telemetry Sensors
Forward-thinking logistics facilities are procuring racks equipped with integrated impact-sensing accelerometers and structural deflection strain gauges that provide early-warning collision detection via cloud dashboards before catastrophic upright collapse can occur.
Carbon-Neutral Green Steel
Global carbon tariffs and ESG covenants necessitate low-carbon procurement. Buyers require electric arc furnace (EAF) certified steel, volatile organic compound (VOC)-free thermoset electrostatic powders, and knock-down containerization that slashes ocean carbon emissions.
Frequently Asked Questions on Tall Warehouse Racking Procurement
Direct answers from senior structural engineers regarding deflection limits, seismic certification, tropical corrosion resilience, and project commissioning.
What is the permissible deflection limit for tall warehouse racking beams?
According to international FEM 10.2.02, EN 15512, and ANSI/RMI MH16.1 specifications, the maximum allowable vertical deflection for pallet rack beams under full static working load is L/200 (where L is the clear span distance between uprights). For automated ASRS systems or narrow aisle turret applications, deflection tolerances are tightened to L/300 or L/400 to prevent automated shuttle sensor disruption.
How does HEDA prevent upright damage and corrosion in coastal, tropical markets?
All HEDA structural components undergo industrial pickling and phosphating before receiving an automated electrostatic powder coat cure (80–120μm thickness) that exceeds 500-hour salt spray testing standards. For cold-storage or open-air humid environments, hot-dip galvanization is provided, complemented by heavy wrap-around column base protectors and aisle bullnose collision guards.
What precise technical data is required to generate an engineering CAD layout?
Our engineering department requires: (1) Architectural warehouse CAD drawing indicating clear building height, column grids, and dock doors; (2) Pallet dimensions (Length x Width x Height including overhang) and gross pallet weight; (3) Existing or intended forklift make, mast lift height, and turning radius (AST); (4) Inventory turnover metrics and SKU counts.
Can our local technical crew install HEDA tall warehouse racks safely?
Yes. Every overseas shipment is packed with detailed component tagging matching full 3D assembly shop drawings, torque specs for anchor bolts, and step-by-step installation manuals. HEDA provides live remote engineering video supervision or dispatches on-site installation directors for large-scale multi-tier mezzanine and tall ASRS projects.
