High-Performance Bulk Storage Racks & Systems
Explore our export-grade industrial storage systems engineered to European standard EN 15512 and American RMI specifications. Built with premium SS400 and Q235B/Q355B structural steel, optimized for container freight consolidation and maximum floor-to-ceiling volume utilization.
Heavy Duty Steel Roller Dynamic Gravity Pallet Rack 1000kg Capacity Collapsible ODM Industrial Warehouse Storage Cargo Equipment
- Capacity: 500 – 1,500 kg / pallet position
- FIFO Stock Control: Gravity roller tracks with speed brakes
- Application: Cold storage & high-turnover FMCG
Smart Warehouse Robot Picking Systems Automated Storage Retrieval System Tool Storage System Asrs Shelving Rack
- Integration: Autonomous Mobile Robots (AMR) & Stacker Cranes
- Software Compatibility: WMS / WCS API connection
- Benefit: Zero picking errors, 24/7 automated retrieval

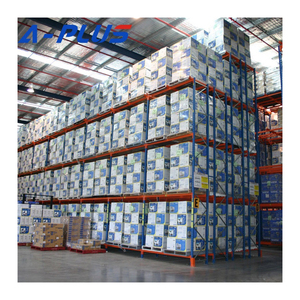

Warehouse High Density Metal Steel Pallet Rack Customize Double Deep Racking System
- Layout: 2 pallets deep per aisle face
- Space Efficiency: +30% to +40% capacity vs selective racks
- Equipment: Pantograph reach truck compatible
Customizable Stainless Steel Storage Shelving Rack Shelf Factory Square Legs Strong and Durable for Warehouse Kitchen Display
- Metallurgy: AISI 304 / 316 anti-corrosion stainless steel
- Compliance: HACCP, GMP & FDA sanitary standards
- Structure: Square hollow leg, anti-microbial welded joints
High Quality Durable Corrosion Protected Boltless Adjustable Warehouse Light Duty Industrial Metal Shelving Metal Storage Racks
- Bay Load: 150 – 500 kg / adjustable shelf tier
- Assembly: 100% boltless plug-in interlocking design
- Finish: Anti-scratch epoxy electrostatic powder coat
Heavy Duty 4 Way Shuttle Racking System Steel Radio Shuttle Pallet Rack High Density Automated Warehouse Storage Manufacturer
- Motion: Bi-directional 4-way intelligent shuttle carrier
- Battery Tech: Fast-charging lithium-iron phosphate pack
- Space Optimization: Up to 90% floor footprint coverage
Boltless Rack System Storage Racks Shelving Units Storage Shelves Heavy Duty Shelves for Warehouse
- Frame Capacity: Up to 5,000 kg total column capacity
- Profile: Cold-rolled 55mm pitch butterfly teardrop punch
- Application: Heavy manual cartoning & e-commerce fulfillment
Jracking EU Standard Warehouse Storage Racks Custom Heavy-Duty Pallet Racking System for Industrial Warehouse
- Standard: Full compliance with FEM 10.2.02 / EN 15512
- Beam Profile: Double-C interlocked box beam 80–160mm
- Safety: Spring-locking safety pins & seismic baseplates
Engineering Standards for Industrial Bulk Storage Racking Systems
In modern industrial supply chains, bulk storage racks function as the primary structural skeleton of the entire fulfillment operation. Sourcing heavy-duty storage racks from China is no longer simply an exercise in seeking low unit steel costs; tier-one logistics operators, 3PL giants, pharmaceutical cold chains, and FMCG conglomerates prioritize structural reliability, exact deflection tolerances, seismic compliance, and total lifecycle performance.
Guangzhou Heda Shelves Co., Ltd. (HEDA Shelves) operates at the nexus of high-precision metallurgical fabrication and modular intralogistics design. When selecting an industrial storage racking manufacturer, global supply chain directors must evaluate structural steel properties. High-tensile cold-rolled coils (Q235B and Q355B structural grade) are engineered through multi-station continuous roll-forming lines to achieve precise cold work hardening without inducing micro-fractures along column perforations.
Technical Compliance Alert: Low-cost non-standard steel often exhibits localized yield variances under ambient thermal fluctuations. HEDA Shelves certifies all upright frames, interlocked boxed step-beams, and load-distribution baseplates in complete accordance with EN 15512 (European Steel Static Racking), RMI MH16.1 (Specification for the Design, Testing and Utilization of Industrial Steel Storage Racks), and AS 4084-2023.
Steel Metallurgy & Upright Forming
Our proprietary 55mm and 75mm continuous hole-pitch columns are roll-formed through 22 cold-bending passes. This retains cold-work tensile strength up to 490 MPa while eliminating micro-buckling risks under heavy cyclical forklift loading.
Double-C Interlocked Box Beams
Manufactured using twin nested cold-rolled C-channels seam-welded with automated Panasonic robotic arms. This prevents torsional warping under dynamic pallet impact and guarantees a deflection ratio within L/200 to L/250 under maximum rated payload.
Pickling, Phosphating & Powder Coating
Prior to electrostatic coating, our steel undergoes a rigorous 4-stage surface conversion bath: chemical degreasing, rust-stripping pickling, zinc-phosphating, and deionized water rinsing. The resulting 70–90 micron thermoset polyester finish resists salt-spray corrosion for over 500 hours.
Structural Comparison: China Bulk Storage Racking Systems
Selecting the optimal bulk storage geometry requires cross-referencing floor footprint utilization against SKU selectivity, warehouse ceiling clear height, and handling equipment. Below is a detailed engineering matrix summarizing the primary racking architectures manufactured at our Guangzhou plant:
| Racking Architecture | Density Index | Selectivity | Load Capacity / Tier | Stock Rotation | Recommended Facility Use |
|---|---|---|---|---|---|
| Selective Pallet Racking | Baseline (50–60%) | 100% Direct Access | 1,000 – 4,500 kg | FIFO / LIFO | General distribution, high SKU count, e-commerce retail |
| Double Deep Racking | High (65–75%) | 50% Immediate Access | 1,000 – 3,000 kg | LIFO | Dry food storage, beverage staging, pharmaceutical depots |
| Drive-In / Drive-Through | Very High (75–85%) | Low (Batch Access) | 800 – 2,000 kg | LIFO (Drive-In) / FIFO | Cold storage rooms, seasonal bulk harvests, single-SKU manufacturing |
| Radio Shuttle Automation | Maximum (85–92%) | Lane-Based Control | 500 – 2,000 kg | FIFO or LIFO Programmable | Sub-zero cold logistics (-25°C), high-velocity automated FMCG |
| Dynamic Gravity Pallet Flow | High (70–80%) | Lane Front Selection | 1,000 – 1,500 kg | Strict FIFO Automatic | Perishable dairy, fresh grocery dispatch, staging buffer lines |
| Heavy Duty Cantilever Racks | Custom Open-Bay | 100% Unobstructed | 500 – 3,000 kg / arm | Direct Handling | Steel tubing, PVC extrusion, timber yards, construction merchants |
Future Procurement Trends in Bulk Storage Infrastructure (2025–2030)
Global logistics operations face rising commercial real estate rents, fluctuating energy expenses, and volatile international container ocean freight. As a leading manufacturer supplying warehouse infrastructure to North America, Europe, the Middle East, Southeast Asia, and Africa, HEDA Shelves monitors several strategic procurement shifts:
1. Container-Optimized Demountable Engineering
Global ocean freight costs require smart container loading efficiency. Procurement teams now reject oversized welded structures. HEDA Shelves engineers our upright frames as fully demountable, knock-down assemblies utilizing interlocking diagonal and horizontal bracing. Upright components nest inside one another, and beams are packaged with steel strapping and protective edgeboards, allowing 40-foot High Cube (40HQ) containers to safely reach 26,000–28,000 kg gross shipping weight.
2. Hybrid Mechanical-Automated Implementations
Rather than committing massive capital to fully rigid, hard-to-modify ASRS high-bay buildings, modern 3PL and distribution centers are transitioning toward modular, flexible semi-automation. Pallet shuttle channels can easily be reconfigured into standard selective or drive-in positions if product SKUs shift, offering an agile compromise between capital expenditure, maintenance requirements, and storage density.
3. Resilient Design for Outage-Prone & Tropical Climates
Warehouses in tropical coastal regions, island hubs, and emerging manufacturing centers face high humidity and intermittent power outages. Procurement managers are specifying purely mechanical gravity flow and push-back rack systems that function reliably during grid interruptions, alongside hot-dip galvanized and marine-grade outdoor finishes that resist atmospheric salt corrosion.
4. Factory-Direct Design-to-Install Turnkey Partnerships
The traditional model of buying through domestic distributors who mark up Chinese factory goods by 35% to 60% is being replaced by direct partnerships with verified OEM/ODM manufacturers like HEDA Shelves. Procurement directors collaborate directly with our structural engineering team via CAD, BIM 3D models, and digital shop floor inspections, receiving full design documentation before production begins.
Precision Manufacturing: From Steel Coil to Export Container
Every single racking member leaving our Guangzhou plant passes through a ten-stage fabrication protocol overseen by certified internal inspectors. Our manufacturing equipment ensures dimensional tolerances within +/- 0.5mm across extended 12-meter upright upright posts.
Certified Steel Coils
Precision Cutting
CNC Hole Punching
Cold Bending Forming
Roll Profile Forming
Precision Polishing
Robotic Beam Welding
Acid Pickling & Phosphating
Electrostatic Powder Coat
QC Load Test & Export Staging
Manufacturer Credentials & Engineering Certifications
Institutional clients require verifiable documentation before clearing customs and commencing civil structural installation. HEDA Shelves maintains active, audited third-party certifications accessible for project tenders worldwide.
CE Factory Production Control
Ref No. 2435-CPR-8605159
ISO 9001:2015 Quality Management
Registration No. 18624Q00169R0M
RoHS Environmental Safety
Non-Hazardous Surface Coating Test
Bureau Veritas / SGS Audited
Structural Steel Weld Integrity Confirmed
Bulk Storage Racks Procurement: Technical FAQ
Answers to common questions regarding structural load verification, seismic design, shipping optimization, surface durability, and on-site assembly.
How does HEDA Shelves calculate and guarantee safe working load (SWL) capacities?
Every racking system engineered at our factory undergoes finite element analysis (FEA) modeling simulating both dead weights and dynamic forklift impacts. Our engineering output includes structural calculation sheets verifying frame buckling limits, beam shear tolerances, and baseplate point loads to concrete slabs in accordance with EN 15512 and RMI standards. Load warning plaques are supplied with every order.
What surface treatment protects racking in high-humidity or cold chain environments?
For ambient warehouses in coastal, high-humidity regions, we apply a thermosetting polyester powder coating over an acid-pickled and zinc-phosphated steel substrate. For sub-zero cold chain facilities (down to -30°C) or open-air covered staging areas, we recommend hot-dip galvanizing with a minimum zinc coating thickness of 65–85 microns (ISO 1461), preventing flaking and subsurface oxidation.
How are bulk storage racks packaged to prevent ocean shipping damage?
Uprights are bundled with protective dunnage and heavy steel banding to prevent frame distortion. Beam ends and connector claws are wrapped in multi-layer corrugated bubble wrap and corner protectors to avoid contact damage during transit. Fasteners, footplates, safety pins, and small hardware are packaged in reinforced wooden cases labeled with corresponding container manifest tags.
Can HEDA Shelves produce custom profiles matching existing European or US racks?
Yes. As an original equipment and design manufacturer (OEM/ODM), our tooling workshop can produce custom teardrop, hexagonal, diamond, and butterfly punch patterns to match existing installations like Dexion, Stow, Interlake, or Mecalux. We also offer custom RAL powder-coating colors to integrate seamlessly with your existing facility branding.
What documentation is required to receive a free 2D/3D CAD warehouse layout?
To prepare an engineered CAD drawing and accurate quotation, our engineering team needs: (1) Architectural building floor plan indicating clear height, columns, and dock doors; (2) Pallet dimensions (W x D x H) including overhang and maximum unit weight; (3) Forklift model, minimum turning aisle radius (AST), and maximum lift height; and (4) Target storage capacity or inventory turnover speed.
How does HEDA Shelves support on-site installation in international markets?
All delivered components feature numbered tags corresponding directly to color-coded CAD assembly manuals. We supply step-by-step video installation walk-throughs and provide dedicated remote video engineering support during construction. For large-scale projects (>500 pallet positions or complex multi-tier mezzanine floors), we can dispatch senior installation engineers on-site to direct your local team.
Connect Directly with a Senior Racking Engineer
Skip intermediary sales agents. Send us your architectural floor plan, pallet dimensions, and storage volume requirements. Our structural engineering team will deliver a comprehensive 2D CAD layout, 3D visualization, and structural load calculation within 24 hours.
