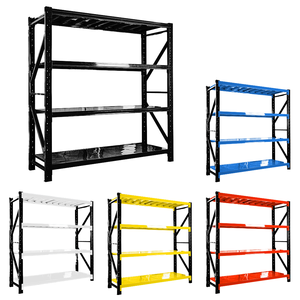

5-Tier Medium-Duty Boltless Garage Shelf Rack
Cold-Rolled
Zinc/Phosphate
Multi-Tier
Corrosion Guard
Wholesale Corrosion-Proof Warehouse Steel Shelving
Tropical Finish
Electrostatic Epoxy
ISO 9001
4-Layer System
Engineered 4-Layer Boltless Warehouse Storage Rack
Heavy Guage
Versatile Pitch
CE Certified
Grid Structure
NEXARA 1000x1000mm 9-Runner Grid Plastic Pallet
0.8T Dynamic
Virgin HDPE
Sanitary Spec
Smart Automation
Intelligent Four-Way Shuttle Automated Racking System
Robotic ASRS
IoT Telemetry
High Density
Strategic Sourcing Analysis
Macroeconomic & Industrial Foundations of China’s Racking Dominance
A technical assessment of continuous coil processing, supply chain localization, and high-tensile metallurgical advantages for commercial warehouse infrastructure.
Upstream Steel Integration
Direct supply partnerships with Tier-1 Chinese mills such as Baosteel and Shougang secure certified Q235B and Q355B hot-rolled strip coils. Eliminating multi-tier steel distributors maintains strict chemical homogeny, keeping sulfur and phosphorus impurities below 0.035%, which guarantees maximum tensile predictability during high-load deflection events.
Continuous Roll-Forming Tolerances
Modern Chinese manufacturing facilities run multi-station CNC roll-forming lines with continuous optical laser tracking. Upright profile punches, teardrop connection slots, and beam-locking detents are punched prior to profiling within an ultra-tight ±0.1mm dimensional tolerance, eliminating mechanical racking drift across runs exceeding 100 meters.
Logistical Cubing & Landed TCO
Chinese racking manufacturers engineered knocked-down structural geometries explicitly optimized for ISO intermodal 40-foot High Cube (40HQ) maritime containers. Nesting upright frame columns, flanged box beams, and interlocking deck panels delivers packing densities up to 26 metric tons per container, directly minimizing ocean freight cost per pallet location.
Procurement Whitepaper Note: Mitigating Landed Risk Through Certified Chinese Mill Run Documentation
Procuring warehouse racking internationally demands verified traceability. Professional engineering buyers bypass spot-market intermediaries in favor of original equipment manufacturers that provide genuine Mill Test Certificates (MTC) conforming to EN 10204 3.1 standards. This guarantees that chemical composition, Charpy V-notch impact toughness, and yield stress metrics rigorously correspond to structural calculations.
25+
Years Engineering Pedigree (Est. 2001)
30,000m²
Consolidated Manufacturing Plant Area
30,000
Monthly Output Tonnage (Metric Tons)
120+
Global Industrial Export Markets
Metallurgical & Structural Integrity
Engineering Standards: Q235B vs. Q355B Cold-Formed Steel
Mathematical calculations, deflection thresholds, and finite element modeling (FEM) principles that define high-capacity industrial warehouse reliability.
Structural Limit States and Deflection Limits (L/200)
Industrial pallet racking is not merely a steel frame; it is an active structural skeleton subject to dynamic impact, seismic shear, and static deadweight. Under the European Standard EN 15512 and ANSI/RMI MH16.1, structural beam deflection under maximum working load must not breach L/200 (where L is the clear span distance between uprights).
- Yield Strength Thresholds: Q235B supplies minimum yield strength $f_y = 235 \text{ N/mm}^2$, ideal for conventional selective racking up to 12 meters. Q355B ($f_y = 355 \text{ N/mm}^2$) is specified for extreme heights, seismic nodes, and narrow-aisle systems.
- Torsional Moment Resistance: High-precision, cold-rolled interlocking beam connectors feature 3 to 5 multi-point wrap claws that grip column perforations, transferring vertical shear forces directly to upright centerlines.
- Safety Overload Factors: Designed with a structural material factor $\gamma_M = 1.4$ for dead loads and $\gamma_Q = 1.6$ for live variable pallet loads, preventing catastrophic buckling under asymmetric stacking.
| Steel Classification | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation at Break | Target Racking Application | Equivalent Grade |
|---|---|---|---|---|---|
| Q235B (Standard Carbon Steel) | 370 – 500 MPa | ≥ 235 MPa | ≥ 26% | Selective Racking, Shelving, Light Cantilever | ASTM A36 / S235JR |
| Q355B (High-Tensile Low Alloy) | 470 – 630 MPa | ≥ 355 MPa | ≥ 21% | High-Bay AS/RS, Heavy Cantilever, Mezzanines | ASTM A572 Gr 50 / S355JR |
| Cold-Rolled SPCC Strip | ≥ 270 MPa | ≥ 140 – 240 MPa | ≥ 38% | Boltless Rivet Racks, Light Metal Shelf Panels | JIS G3141 / EN 10130 DC01 |
| Hot-Dip Galvanized HDG | Custom Base (Q235B) | ≥ 235 MPa | ≥ 24% | Cold Storage (-30°C), Coastal Maritime, Outdoor Yards | ISO 1461 Coating |
Future Procurement Trends (2026-2035)
The Shift to Semi-Autonomous & Robotic Warehouse Architectures
How forward-thinking procurement teams are upgrading legacy static selective setups to intelligent 4-way shuttle lanes and Automated Storage and Retrieval Systems (AS/RS).
Intelligent 4-Way Radio Shuttles
By shifting material transport from aisle-bound forklift operators to omnidirectional robotic carriers, 4-Way Shuttle systems maximize floor-to-ceiling volumetric cube usage. Radio shuttles operate within specialized guide rails, executing longitudinal and cross-lane travel via WCS/WMS command protocols, elevating storage density by over 60% compared to standard reach-truck layouts.
Thermal Energy Optimization in Cold Storage
Cold chain operational expenditures are largely driven by cooling losses across unutilized airspace. Integrating drive-in and automated shuttle racking within sub-zero cold rooms (-25°C to -30°C) compresses thermal footprint, increases chilled mass thermal stability, and minimizes expensive cubic meter energy overhead.
Modular Boltless Mezzanines & Picking Tiers
For high-SKU ecommerce fulfillment and automotive parts distribution, vertical expansion via rack-supported mezzanines provides exponential floor surface multiplication. Multi-tier structures combine pallet replenishment at lower tiers with manual picking platforms on composite or galvanized steel open-grid floor panels above.
Enterprise Pedigree
Why International Supply Chains Partner with HEDA Shelves
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. operates an integrated, high-capacity industrial manufacturing ecosystem engineered for international compliance and turnkey supply.
25+ Years Industrial Mastery
Over two decades of structural engineering refinement, supplying dependable warehouse racking systems across 120+ destination countries and 10,000+ completed facilities worldwide.
Complimentary 3D CAD & FEA
Our structural engineering division prepares full CAD facility layouts, aisle kinematic simulations, and static/dynamic finite element load verifications prior to production commitment.
Audited International Compliance
Certified to CE standard 2435-CPR-8605159, ISO 9001:2015 Quality Management (No. 18624Q00169R0M), and strict RoHS hazardous chemical compliance for sensitive environments.
Custom OEM / ODM Engineering
From custom beam profiles, teardrop vs diamond punches, to electrostatic RAL color matching and specialized seismic baseplates—we tailor every specification to your operational profile.
Manufacturing Excellence
10-Stage Precision Production & Surface Treatment Matrix
From mill-certified raw coils to corrosion-resistant epoxy-polyester electrostatic curing, our facility maintains rigorous multi-checkpoint quality control.
PHASE 01
Raw Material Verification
PHASE 02
Precision Steel Cutting
PHASE 03
Automated Punching
PHASE 04
Cold Roll Forming
PHASE 05
Profile Calibration
PHASE 06
Deburring & Polishing
PHASE 07
Robotic CO2 Welding
PHASE 08
Acid Pickling & Phosphate
PHASE 09
Electrostatic Coating
PHASE 10
QC & Intermodal Packing
Documented Verification
Verified Quality Certifications
Our manufacturing facility and structural systems comply with stringent international safety, load capacity, and material purity mandates.
Procurement Knowledge Base
Frequently Asked Questions: Global Procurement & Engineering
Authoritative answers covering structural engineering calculations, shipping container packing, corrosion protection, and on-site assembly.
What essential warehouse architectural metrics are required to engineer an optimized layout?
To generate a structurally verified CAD floor plan and 3D simulation, our engineering team requires: (1) Architectural drawings indicating clear building height to the lowest hanging obstacle (trusses, sprinklers, or HVAC ductwork); (2) Slab specifications, specifically concrete thickness, compressive strength (e.g., C25/30 or 3,000–4,000 PSI), and floor reinforcement details to determine anchor pull-out limits; (3) Palletized cargo parameters—including dimensions (W × D × H), pallet overhang, and maximum gross weight; (4) Material handling equipment (MHE) turning radius and maximum lift mast height to calibrate required aisle widths (ranging from 1.6m for VNA to 3.2m for standard counterbalance forklifts).
How does HEDA Shelves protect steel components against tropical humidity and coastal salt spray?
Corrosion failure in warehouse racking typically originates beneath poor coatings. HEDA utilizes a comprehensive 10-stage chemical pre-treatment system that includes hot alkaline degreasing, industrial acid pickling to eliminate mill scale, and micro-crystalline zinc phosphating. Following pre-treatment, parts pass through automated electrostatic powder booths applying 60–80 microns of high-molecular thermoset epoxy-polyester powder, baked at 180°C–200°C. For extreme maritime or chemical environments, we supply hot-dip galvanized components (HDG) conforming to ISO 1461, ensuring lasting resistance against aggressive atmospheric moisture.
How do you calculate seismic loading and resistance for international seismic zones?
Seismic racking design follows the seismic response spectrum defined by Eurocode 8, EN 16681, and RMI standards. Our engineers compute the fundamental structural oscillation period and apply modal response spectrum analysis to determine dynamic horizontal shear forces at beam-to-column connections. In high-seismic zones (such as coastal South America, Japan, the Mediterranean, or the Pacific Rim), we incorporate expanded heavy-gauge baseplates, high-ductility anchor bolts, and rear transverse and longitudinal horizontal diagonal portal bracing systems to absorb ground motion energy without brittle joint failure.
Which high-density storage configurations maintain operational throughput during electrical grid disruptions?
For operational facilities in regions vulnerable to unstable electrical grids, fully mechanical high-density solutions guarantee zero downtime. Selective Pallet Racking, Drive-In/Drive-Through, Gravity Pallet Flow, and Push-Back Racking operate entirely via gravity and forklift hydraulics, requiring zero external facility electricity. In automated Radio Shuttle systems, carriers operate on independent industrial lithium-iron-phosphate (LiFePO4) battery packs, which can be charged via auxiliary backup generators or scheduled around off-peak grid stability windows.
How is container cubing maximized to minimize ocean freight costs per pallet position?
Racking components are engineered as modular knocked-down assemblies specifically configured for 20GP and 40HQ container interiors. Upright frames are either shipped fully unbolted for maximum nesting density or flat-packed using custom corrugated steel bundling straps. Box beams are bundled face-to-face with protective buffer sheets, and metal decking panels stack with zero volumetric deadspace. This nesting protocol achieves container utilization rates exceeding 95% of permissible weight/volume allowances, lowering ocean freight expenditures to a fraction of pre-assembled structures.
What installation documentation and on-site support are provided to overseas mechanical teams?
Every export shipment includes comprehensive mechanical drawings, numbered packing lists corresponding to physical crate tags, connection torque charts, and step-by-step structural erection blueprints. For local maintenance and engineering crews, we provide detailed 3D digital video guidance showing correct column splicing, baseplate leveling via high-precision steel shims, and beam locking pin placement. For large-scale multi-tier mezzanines or AS/RS projects, HEDA can deploy certified on-site structural supervisors to direct local installation teams and certify final plumb-line tolerances.
