Engineered Long Span & Industrial Storage Inventory
Our heavy-duty, medium-duty, and high-density longspan shelving lines are manufactured strictly under ISO 9001:2015 and CE certification parameters. Explore our export-grade storage units designed for multi-tier fulfillment hubs, parts distribution depots, and commercial stockrooms.

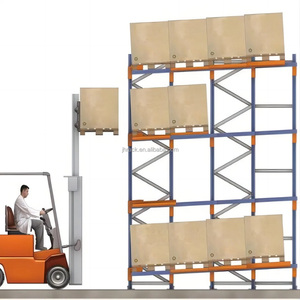

Slide System Warehouse Equipment Steel Shelving Industrial Metal Storage Shelves Push-Back Push Pallet Racking for Sale
View Specifications
JIAMEI Storage Shelving Warehouse Storage Rack Long Span Shelf Rack
View Specifications

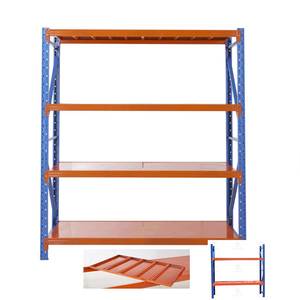

New Warehouse Longspan Racking Customized Color Supermarket Rack Manufacturers 200Kg Steel Wide Span Shelving Racks
View Specifications

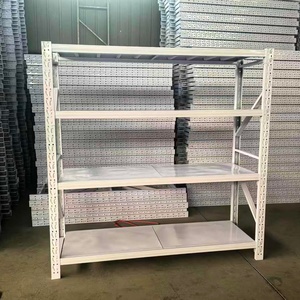

Customized Industrial Pallet Racking System Steel Warehouse Storage Rack with High Load Capacity Long-Span Shelving Racks
View Specifications

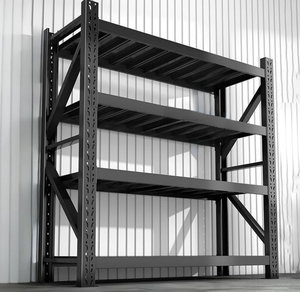

5 Layer Long Span Medium Duty Cold Rolled Steel Shelving Rack for Warehouse Organization
View Specifications

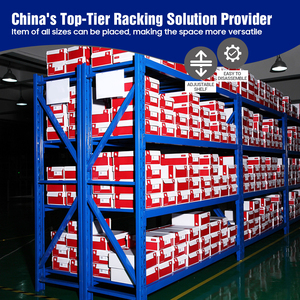

Shelving Light Duty Commercial Storage System For Stockroom Organization In Warehouses Garages And General Storage Areas
View Specifications

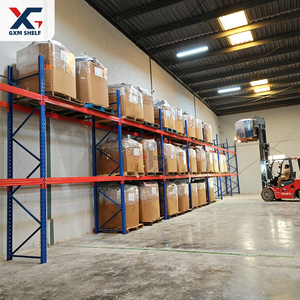

GXM Stacking Racks & Shelves Custom Pallet Warehouse Material Storage Metal Industrial Selective Heavy Duty Rack System
View Specifications

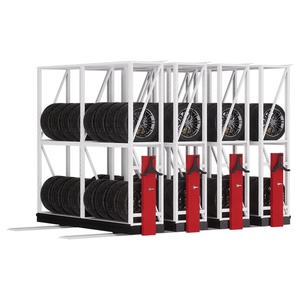

Compact Mobile Cabinet New Design Steel Manual Mass Shelf New Arrival Shelving System for Tire Mobile Racking
View SpecificationsStructural Metallurgy, Cold-Forming Tolerances & Static Calculations
Long span shelving serves as the foundational spine for manual order picking, split-case handling, and medium-to-heavy carton loading. Unlike basic bolt-together utility racks, an industrial longspan system requires finite element analysis (FEA), high tensile yield strengths, and precise deflection control under EN 15512 and FEM 10.2.02 standards.
Cold-Rolled Q235B / SPCC Steel
We source prime, mill-certified steel coils with guaranteed carbon equivalency and minimum yield strength exceeding 235 MPa. Cold rolling enhances work hardening along profile radius corners, delivering maximum structural stiffness at minimum tare weight.
Tear-Drop & Butterfly Pitch Geometry
Our upright frames feature high-precision automated column punching with 50mm or 75mm beam adjustment pitches. Patented 3-prong and 4-prong beam connectors wedge tightly under downward load, creating a self-locking, moment-resistant portal frame connection.
10-Stage Surface Pretreatment
Before coating, all fabricated steel sections undergo continuous immersion pickling, degreasing, and zinc phosphating. Electrostatic epoxy-polyester powder coating (60–80 μm) cures at 200°C, providing superior salt spray resistance for coastal and tropical warehouses.
| Structural Parameter | Light-Duty Long Span | Medium-Duty Longspan (Standard) | Heavy-Duty Industrial Longspan | Compliance / Testing Standards |
|---|---|---|---|---|
| Uniform Distributed Load (UDL) | 100 – 250 kg / Level | 300 – 600 kg / Level | 800 – 1,500 kg / Level | EN 15512 / ANSI MH16.1 |
| Clear Beam Span Options | 900 mm – 1,500 mm | 1,200 mm – 2,100 mm | 1,800 mm – 2,700 mm | ISO 9001:2015 QC Protocols |
| Allowable Elastic Deflection | ≤ Span / 200 | ≤ Span / 250 | ≤ Span / 300 | FEM 10.2.02 Static Guidelines |
| Decking Substrate Compatibility | Particle Board / MDF | Drop-in Steel Panels / Wire Mesh | Galvanized Steel Panels / Heavy Mesh | ASTM A653 / EN 10346 |
| Corrosion Resistance Life | 5 – 8 Years (Indoor Normal) | 12 – 15 Years (Industrial Ambient) | 20+ Years (Zinc Phosphated / Galvanized) | ASTM B117 Salt Fog Test (500 hrs) |
Long Span System Recommendation by Logistics Profile
Selecting the optimal beam depth, upright gauge, and shelf infill depends directly on pallet interaction, picking frequency, and bulk item geometry. Below are engineered recommendations based on over 10,000 warehouse projects completed across Africa, the Middle East, Southeast Asia, and Europe.
1. Automotive Aftermarket & Machinery Spares
Primary Bottlenecks: Mixed-weight parts ranging from brake rotors and exhaust pipes to small fasteners, causing shelf sagging and misplaced SKUs.
Engineered Configuration: Step beam long span systems equipped with ribbed galvanized steel drop-in decking (500 kg/tier) combined with vertical divider sheets. Lower levels accommodate palletized engines while upper levels feed carton flow tracks for split-case picking.
- ✔ Recommended Depth: 600mm – 800mm
- ✔ Safety Locking: Secondary locking spring clips per beam connector
2. E-Commerce Fulfillment & Apparel Centers
Primary Bottlenecks: Rapid pick-wave cycles, high turnover SKU variations, and maximum vertical air-cube utilization requirements.
Engineered Configuration: Multi-tier rack-supported long span shelving mezzanines (2 to 4 tiers). By utilizing the continuous upright verticality to carry suspended intermediate steel grating catwalks, warehouse floor capacity is doubled or tripled without civil footprint expansion.
- ✔ Clear Aisle Width: 900mm – 1100mm for high-speed picking carts
- ✔ Integrated Fire Safety: Open steel mesh decking allowing sprinkler penetration
3. Fast-Moving Consumer Goods (FMCG) & Agro-Input Depots
Primary Bottlenecks: Floor-stacked sacks of seed, fertilizer, and bulk food items suffering from floor moisture, bottom sack crushing, and poor FIFO rotation.
Engineered Configuration: Wide-span heavy duty shelving (1000 kg capacity per bay) featuring wire mesh decks to maintain continuous airflow and deter vermin nesting. Eliminates pallet crushing and facilitates rapid manual verification by lot number.
- ✔ Surface Finish: Hot-dip galvanization or epoxy electrostatic coating for humid climates
- ✔ Column Protection: Wrap-around steel floor anchor guards against manual hand trucks
4. Industrial Hardware & Building Supply Wholesalers
Primary Bottlenecks: Irregular lengths, dense metal valves, power tools, and high-impact loading that destroys standard commercial shelving.
Engineered Configuration: Hybrid longspan framing paired with heavy box beams. Beams feature reinforced end-connectors welded under continuous robotic gas shielded arc welding (GMAW), delivering zero joint deflection when heavy crates are loaded.
- ✔ Upright Section: Omega-profile cold bent upright (1.8mm – 2.0mm thickness)
- ✔ Deck Support Bars: 3 to 4 welded under-beam cross-ties per tier
Strategic Sourcing Shifts & Technological Evolution (2025–2030)
Modern procurement executives are navigating supply chain decentralization, fluctuating maritime freight rates, and rising ESG audit requirements. Sourcing long span shelving systems is no longer a transactional quote comparison—it requires life-cycle landed cost optimization and modular architectural agility.
Container Cube Optimization
Ocean freight volatility requires precision knock-down packaging. Global exporters engineer nested upright bracing and bundle-optimized beam lengths to achieve ≥95% spatial efficiency in standard 40ft High Cube (40HQ) containers, reducing freight cost per storage tier by up to 28%.
BIM & Digital Twin Integration
Enterprise procurement now mandates Building Information Modeling (BIM) files prior to vessel departure. Supplying fully parametric Revit/IFC families of long span bays enables warehouse architects to simulate MEP clearances, sprinkler cones, and AGV pathways long before physical installation.
Hybrid AMR/AGV Pick Compatibility
Autonomous Mobile Robots (AMRs) are rapidly coexisting with manual picking teams. Modern long span shelving profiles incorporate laser-perforated upright faces for optical navigation reflectors and recessed bottom footings that provide smooth floor clearance for robotic sweep arms.
World-Class Manufacturing Scale, Certification & Export Verification
Headquartered in Guangzhou, China, Guangzhou Heda Shelves Co., Ltd. has specialized in industrial storage systems since 2001. We maintain full in-house control over roll-forming, punching, welding, and surface finishing across our comprehensive 30,000 m² factory.
25+ Years Experience
Dedicated strictly to heavy racking, industrial shelving, and multi-tier mezzanine engineering for global logistics operators.
CE Certified Production
Certified under Certificate No. 2435-CPR-8605159, ensuring full conformity with European structural steel execution standards.
ISO 9001:2015 Registered
Registered under No. 18624Q00169R0M (valid through June 2027), ensuring documented material traceability for all steel heats.
Zero-Cost Engineering
Every project receives a complimentary 2D AutoCAD layout, 3D structural model, and dynamic static calculation before purchase contracts.
Inside Our 10-Stage Automated Fabrication Pipeline
01. Prime Raw Material Sourcing: High-grade Baosteel and Shougang cold-rolled steel coils with mill test certificates (MTC).
02. Automated Continuous Slitting: CNC longitudinal slitting ensures clean edge squareness without burrs or work-hardened tears.
03. High-Speed CNC Punching: Multi-station punch presses ensure pitch precision within ±0.1mm tolerance across continuous lengths.
04. Precision Cold Roll-Forming: 24-station progressive forming rollers produce structurally uniform omega upright columns.
05. Profile Cutting & Notching: Automated flying hydraulic shear systems cut sections to exact project elevations with zero distortion.
06. Robotic GMAW Welding: Robotic manipulators weld connector brackets to step beams with constant penetration and zero spatter.
07. Shot Blasting & Polishing: Steel surfaces undergo mechanical shot blasting to remove scale and optimize mechanical coating grip.
08. Continuous Acid Pickling & Phosphating: Dual-tank chemical passivation eliminates oxidation and forms a protective zinc phosphate coat.
09. Electrostatic Powder Coating: Automated Swiss Gema electrostatic guns deliver uniform 70μm epoxy resin cure at 200°C.
10. Comprehensive QC & Seaworthy Bundling: Thickness gauging, cross-hatch adhesion testing, and palletized moisture-barrier wrap.
Industrial Long Span Shelving: Technical Procurement FAQ
Direct answers from our structural engineering division covering load safety factors, seismic engineering, coastal corrosion management, and container shipping.
Request a Free 2D/3D Warehouse Layout & Direct Factory Quotation
Send our senior engineering team your warehouse dimensions, clear height, intended loading per shelf tier, and destination port. We provide complete AutoCAD floor plans, 3D renderings, and transparent FOB/CIF container shipping quotations within 24 hours.
