Featured Wide Pallet Racking & Industrial Storage Assemblies
Engineered for warehouse operators, 3PL distribution centers, and manufacturing plants requiring certified structural integrity, flexible bay widths, and seamless material handling integration.
Heavy Duty Pallet Rack 1000KG 2000KG Per Level Metal High Density Free 3D Design Q235B Steel Shelving
- 1,000kg to 2,000kg Uniform Load per Beam Level
- Cold-formed omega section uprights (75mm pitch)
- Epoxy electrostatic powder coating (60-80 microns)
Industrial Heavy Duty Storage Shelves Systems Stacking Units Metal Rack Warehouse Steel Pallet Racking
- 100% immediate selective pallet accessibility
- High-rigidity boxed step beam profile with safety pins
- Adaptable to counterbalance and reach truck fleets
Boltless Adjustable Heavy Duty Load-Bearing 500kg/Layer Steel Racks Warehouse Industrial Stack Storage Racking Shelving System
- Rapid interlocking connector design (zero welding)
- 500kg load capacity per shelf layer with steel deck
- Modular expansion for combined carton picking

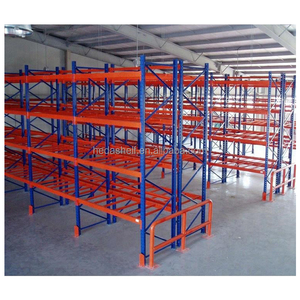

Wide Aisle Pallet Racking Heavy Duty Metal Rack Double Deep Clothes Racking System for Warehouse
- Optimized for wide aisle (3.2m - 3.8m) forklift turning
- Configurable into Double-Deep space-saving layouts
- Integrated garment bars or wire decking options
Space-Saving Steel Pallet Rack With Reinforced Tubes Adjustable Steel Post Pallet For Secure Logistics
- Demountable post system for dynamic bulk staging
- Reinforced structural square tube load uprights
- Foldable & stackable design reduces return freight
Heavy Duty Pallet Rack with Triple-Upright Frame spray-Coated Steel Decks for Industrial & Retail Storage
- Triple-column framework for deep pallet support
- High-rigidity ribbed steel decking panels
- Extreme resistance to point loading and impact
Industrial Steel Heavy Duty Pallet Storage Shelves Systems Stacking Rack Units with 5000KG Load-Bearing CE Certified
- Massive 5,000kg maximum tier load capability
- CE Certified: EN 15512 structural calculation compliance
- Designed for industrial raw materials & tooling dyes
OEM Very Narrow Aisle Metal Storage Rack Steel Warehouse Racking System
- 1.6m to 1.9m aisle spacing for maximum vertical cubic gain
- Structural floor guide rails or wire-guidance tracking
- Up to 15m structural upright heights without deflection
What Makes Wide Pallet Racking the Universal Benchmark?
Wide pallet racking (often termed standard selective pallet racking with wide aisles) remains the world’s most versatile warehouse layout. Designed with operating aisles ranging between 3.0 meters and 3.8 meters, this topology enables standard counterbalance and reach trucks to access 100% of inventory locations instantaneously, completely eliminating the operational bottlenecks and specialized truck requirements of high-density compact storage.
At our manufacturing facility, engineering starts at the microscopic level. We process cold-rolled Q235B and high-tensile Q355B structural carbon steel, roll-formed into continuous 11-to-13-fold omega upright cross-sections. This multi-flange profile disperses vertical axial compression while countering torsional rotation induced by uneven pallet placement or accidental mast nudging.
Each beam tier is secured via high-stiffness 3-claw or 4-claw forged steel beam end connectors, featuring integral tapered locating hooks that wedged tighter under increased dead loads. Mechanical safety locking pins ensure beams cannot be inadvertently dislodged during rapid, high-cycle forklift pallet picking.
Finite Element Analysis (FEA) Load Standards
Every pallet rack frame geometry fabricated in our plant undergoes rigorous structural stress calculations following European EN 15512 and FEM 10.2.02 codes. Maximum vertical beam deflection is strictly engineered to not exceed:
Where L equals the clear span between adjacent upright frame columns. By testing raw materials for tensile yield limits (minimum 235 N/mm² for Q235B up to 355 N/mm² for Q355B), we deliver racks that endure dynamic operational vibrations without fatigue failure over decades of heavy service.
| Storage Topology | Operating Aisle Width | Pallet Selectivity | Floor Space Utilization | Equipment Requirements | Initial Cost / Pallet |
|---|---|---|---|---|---|
| Wide Pallet Racking (Selective) | 3.0m - 3.8m | 100% Direct Access | 40% - 45% | Standard Counterbalance / Reach Trucks | Lowest ($) |
| Very Narrow Aisle (VNA) | 1.6m - 1.9m | 100% Direct Access | 60% - 65% | Turret Trucks / Wire-Guided Forklifts | Moderate ($$) |
| Double Deep Racking | 3.0m - 3.5m | 50% Immediate Access | 55% - 60% | Pantograph Reach Trucks | Low-Moderate ($$) |
| Drive-In Racking System | Aisles eliminated | LIFO Lane Bulk Access | 70% - 75% | Standard Forklifts Entering Racks | Moderate ($$) |
| Radio Shuttle Automation | Central staging aisle | FIFO or LIFO by Tier | 80% - 85% | Semi-Automated Battery Shuttle + Forklift | High ($$$$) |
Full Traceability: From Raw Coil to Finished Container
Quality control is never outsourced. Our 30,000 square meter factory executes all 10 stages under continuous ISO 9001:2015 management, ensuring that every batch shipped to overseas buyers meets strict dimensional tolerances.
Future Procurement Trends in Warehouse Racking Architecture
Procurement leaders are navigating unprecedented disruptions across logistics real estate costs, labor shortages, and ESG compliance. These five structural shifts dictate modern project specifications.
Hybrid AMR & MHE Co-Existence
Standard wide aisle systems are shifting from pure manual forklift handling to hybrid lanes where Autonomous Mobile Robots (AMRs) perform low-level floor case picking while narrow reach trucks manage vertical high-bay replenishments. Bay clear widths and beam levels are being engineered with digital positioning markers to support optical and LiDAR guidance.
Low-Carbon Green Steel Mandates
European, North American, and multinational EPC contractors are enforcing Scope 3 emissions limits. Our production lines integrate Electric Arc Furnace (EAF) scrap-recycled green steel with certified Environmental Product Declarations (EPD), slashing the embedded carbon footprint of steel racking by up to 48% compared to blast-furnace rolling.
Seismic-Damped Base Engineering
As mega-distribution hubs expand across high-seismic fault zones in the Americas, Mediterranean, and Asia-Pacific, rigid anchored base plates are being augmented by ductile hysteretic dampers. These engineered dissipation bases reduce horizontal shear accelerations transferred into pallet tiers during seismic events, preventing catastrophic progressive collapse.
Cold-Chain Deep Freeze Nanocoatings
With pharmaceutical and fresh-food cold storage expanding globally, wide pallet racking must withstand continuous -30°C thermal conditions and severe condensation cycling. Specially formulated zinc-rich phosphate pretreatments combined with hydrophobic polyester powders prevent micro-cracking and sub-surface corrosion where standard paints fail within 24 months.
IoT Load Cell & Deflection Telemetry
The next generation of high-bay logistics integrates embedded wireless strain gauges into high-stress beam-connector junctions. Real-time telemetry warns logistics managers if an overloaded pallet exceeds structural deflection limits or if a forklift impact has compromised the axial load capacity of an upright frame before deformation turns critical.
Knock-Down Interlocking Standardization
Ocean freight volatility requires extreme container cubic density. Advanced wide pallet racking designs feature boltless, nestable teardrop and slotted components that pack 28 tons of structural steel into a single 40-foot High Cube (40HQ) container, reducing landed logistics expenditure per pallet position by over 32% compared to pre-welded frames.
Total Cost of Ownership (TCO) in Pallet Racking Sourcing
Experienced procurement directors analyze long-term TCO over 15 to 20 operational cycles, not merely ex-factory initial invoice pricing.
Direct Factory CAPEX Advantage
By sourcing directly from Guangzhou Heda Shelves Co., Ltd., international buyers bypass multi-tier local trading intermediaries, achieving direct factory pricing on raw structural coils. In-house roll-forming lines, automated continuous stamping, and high-efficiency batch welding reduce direct fabrication costs by 22% to 35% relative to localized European or American manufacturers.
Container Packing Density (CBM)
A racking system that is poorly packed incurs severe freight penalties. Our shipping department utilizes custom 3D nesting software to bundle upright columns, step beams, and decking components, eliminating hollow space. A standard 40HQ container comfortably accommodates up to 600–900 selective pallet positions, dramatically lowering ocean freight cost per pallet location.
Operational Maintenance & Safety
Damage from forklift strikes accounts for up to 80% of warehouse racking lifecycle expense. By providing heavy-duty column base wrap protectors, structural aisle end barriers, and standard 75mm beam adjustment increments, our systems enable fast, modular component replacements without dismantling adjacent warehouse bays.
Frequently Asked Technical Questions by Global Buyers
Direct engineering answers covering international structural standards, installation tolerances, seismic anchors, and container export shipping.
Ready to Optimize Your Warehouse Layout & Secure Direct Export Pricing?
Connect directly with our senior racking structural engineers. Submit your warehouse floor plan today for a free comprehensive engineering layout, 3D visual rendering, structural deflection calculation, and container load optimization plan within 24 hours.
