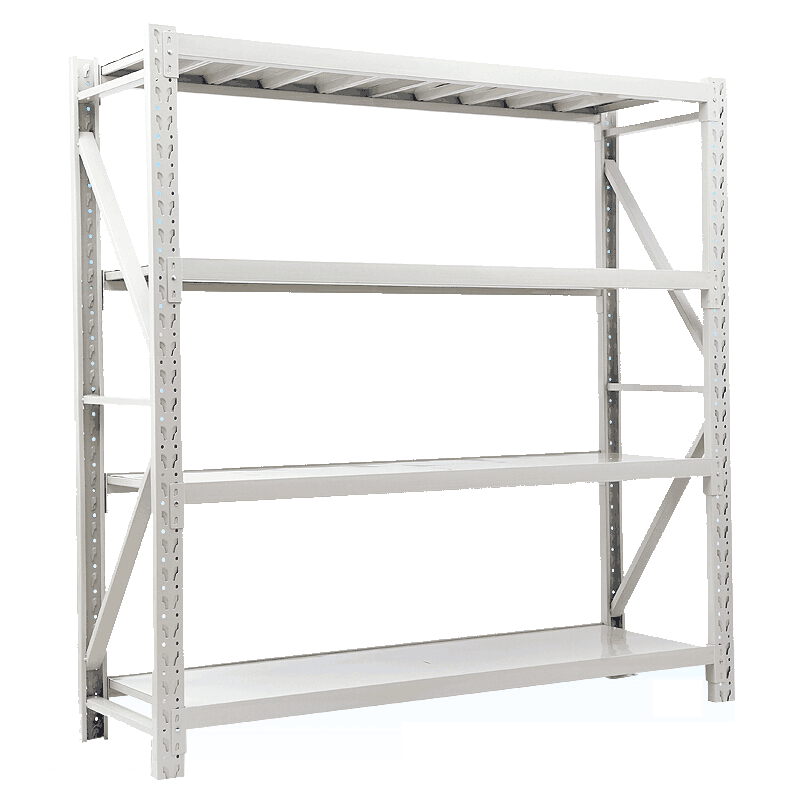

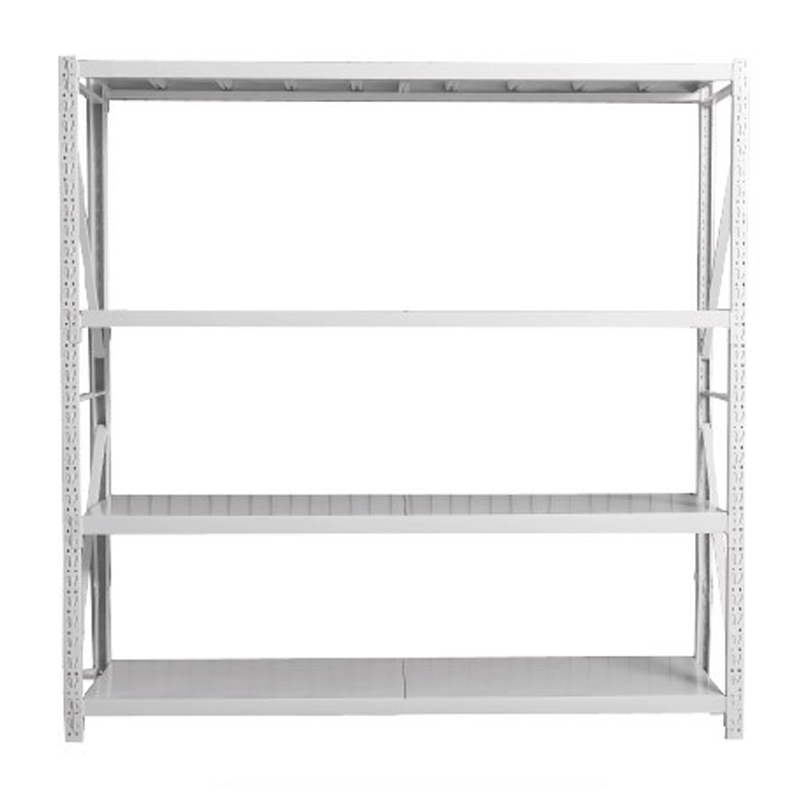

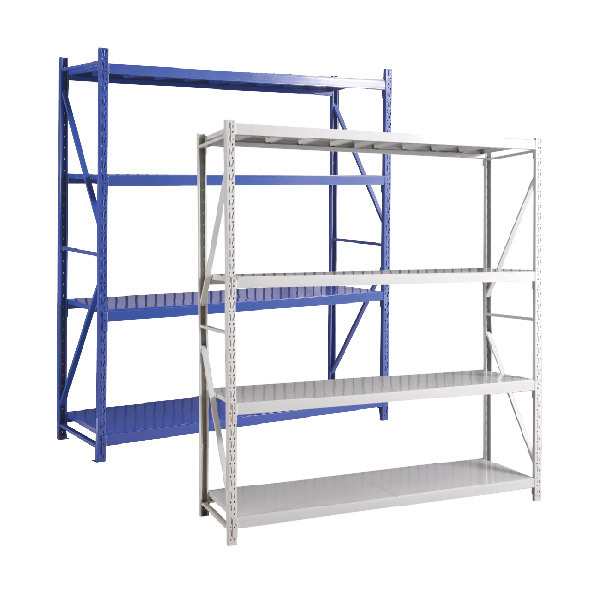

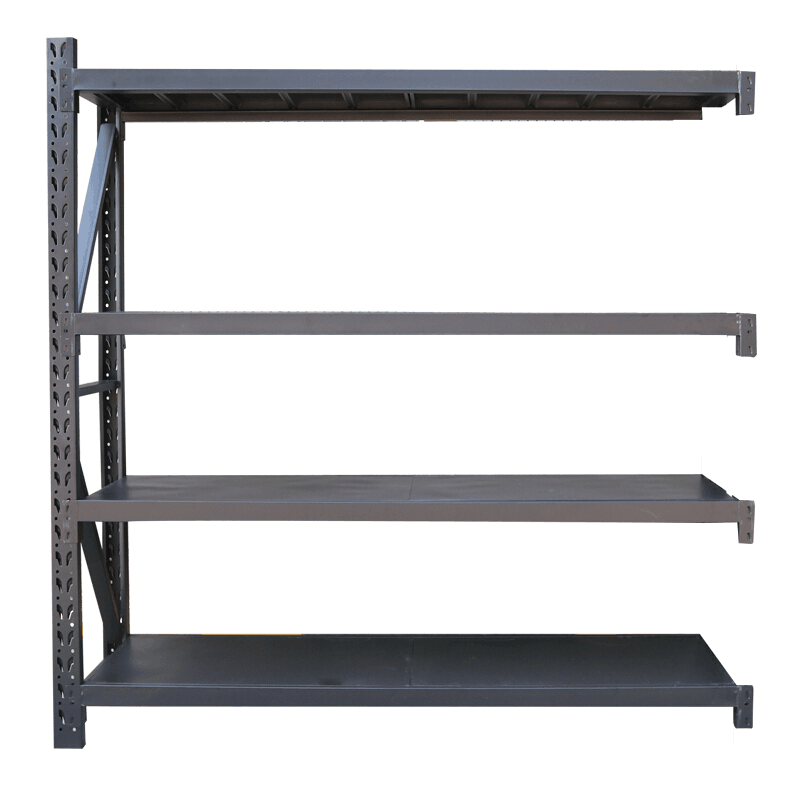

4-Shelf Light Duty Boltless Rivet Shelving Metal Shelf Storage Racks For Garage and Supermarket Shelves HJQ-105
Product Description
4-Shelf Light Duty Boltless Rivet Shelving Metal Shelf Storage Racks For Garage And Supermarket Shelves HJQ-105
Product Specifications
| Item No. | HJQ-105 | Type | Boltless / Rivet Shelving |
| Product Name | Multi-Layers Medium Duty Storage Rack | Material | Steel |
| Optional Color | Black / Blue / White | Size (mm) | H2000 * W1000 * D500 |
| Layer | 4 layers | Feature | Adjustable layers |
| Surface Treatment | Powder coated | Max Load Capacity (kg) | 200kg / layer |
| Application | Warehouse, supermarket, logistics, etc | Net Weight (kg) | 18.7 |
| Package Size (mm) |
2000*500*100mm (Column: 2pcs/box) 990*260*100mm (Beam: 8pcs/box) 900*480*118mm (Panel: 4pcs/box) |
Gross Weight (kg) | 20.32 |
Product Overview & Features
Medium duty shelvings belong to shelves, it's distinguished and named according to the loading capacity, between light and heavy racking. Generally could load 150-600kg per level.
- 1. Use the high quality steel rolling formed, is full assembly steel shelves.
- 2. The main parts include upright, beam, bracing and layer panels etc.
- 3. Simple structure and easy installation, no bolt.
- 4. Assemble directly and infinite connection.
- 5. Apply to handle the medium goods by manpower.
- 6. Compatible with most type of handling equipment and building structures.
- 7. The most popular and economical racking in warehouse.
Design & Structural Advantages

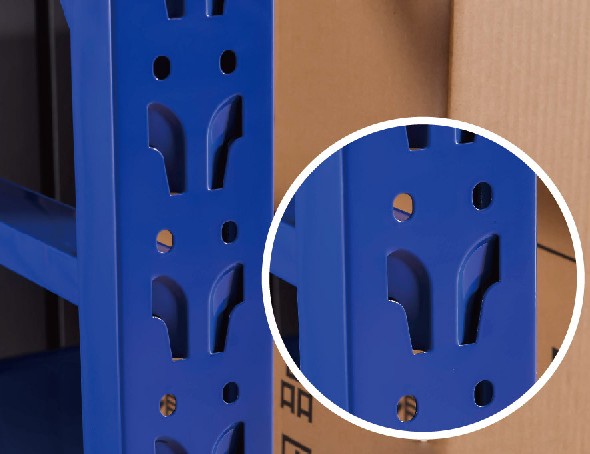

Butterfly hole design, perfectly combined with the fastener on the beam, the height of inter layer spacing can be adjusted at will, freely to disassemble and assemble.

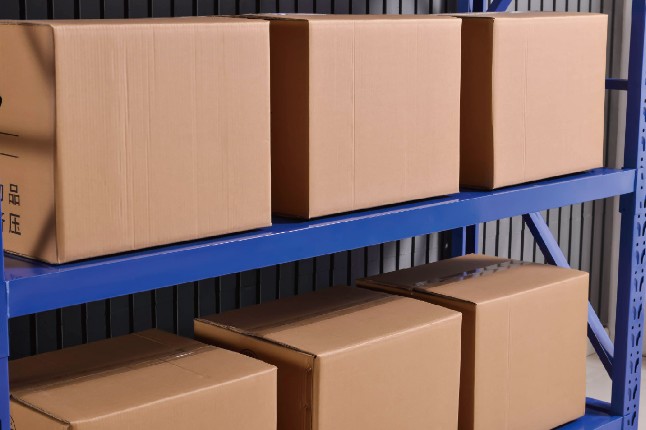

The column has both transverse support and oblique support; Strong welding, no shaking, stronger bearing capacity.

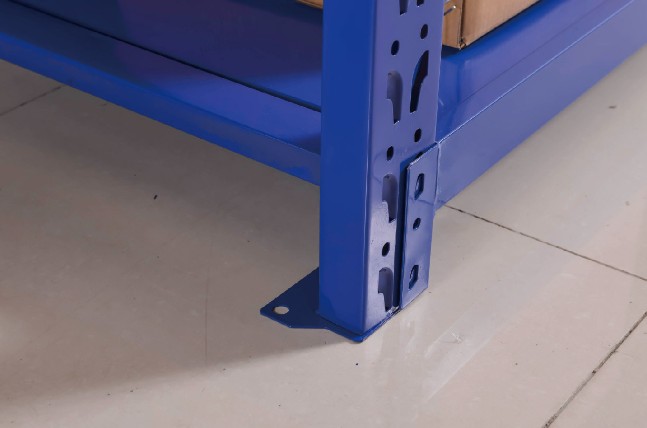

Widen welding plate, enhance the friction between shelf and the ground, make the shelf more stable.

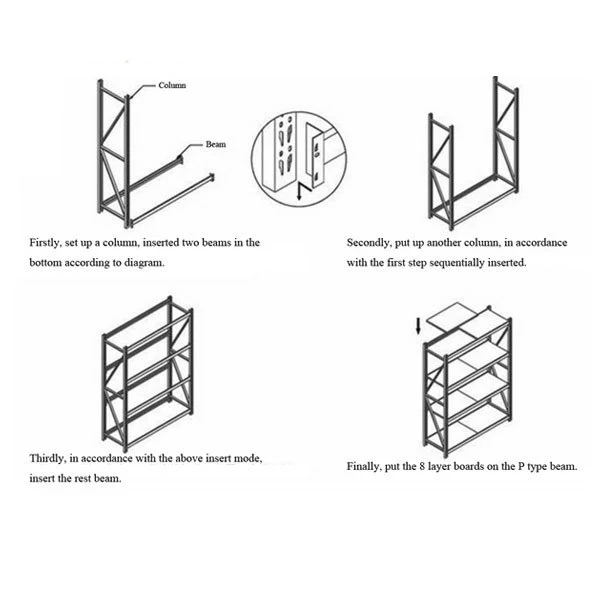

Installation Instructions
Frequently Asked Questions (FAQ)
What is the maximum loading capacity per tier for the HJQ-105 model?
Each layer of the HJQ-105 shelving unit has a rated maximum load capacity of 200 kg when weight is uniformly distributed.
Are bolts or specialized tools required for installation?
No bolts or special tools are required. The shelving uses an interlocking rivet butterfly hole design that snaps securely into position for quick and simple manual setup.
Can the shelf height levels be adjusted after assembly?
Yes, the upright posts are punched with evenly-spaced butterfly holes, allowing each shelf panel tier to be adjusted freely to fit items of various heights.
What color finishes are available for this storage rack?
The unit comes with an electrostatic powder-coated protective surface, available in Black, Blue, and White color options.
What components are included in the packaging?
The complete kit is packaged into 3 compact cartons: Columns (2 pcs/box), Horizontal/Support Beams (8 pcs/box), and Layer Panels (4 pcs/box).
Where is this boltless rivet shelving best applied?
It is widely applicable for industrial warehouses, commercial supermarkets, garages, retail stockrooms, and logistics distribution centers.
