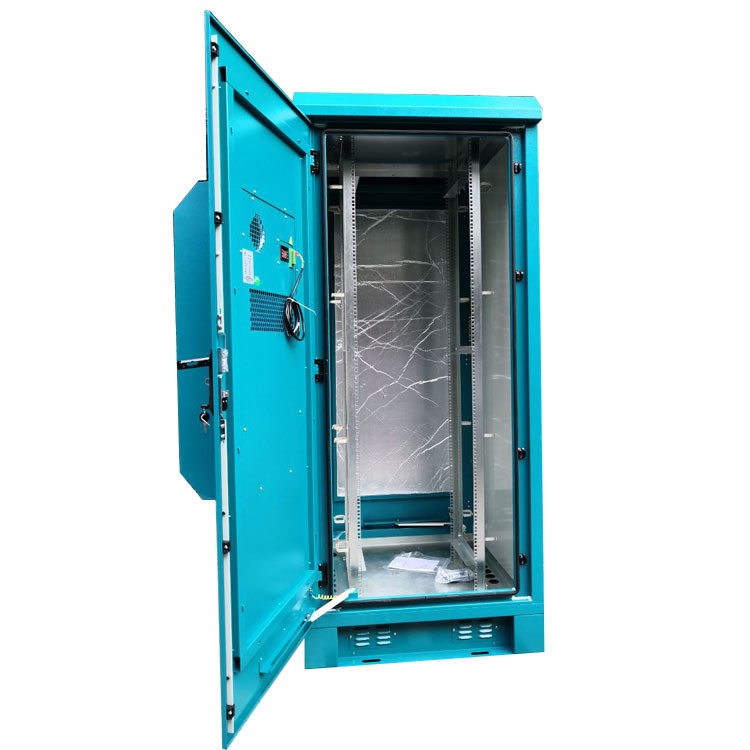

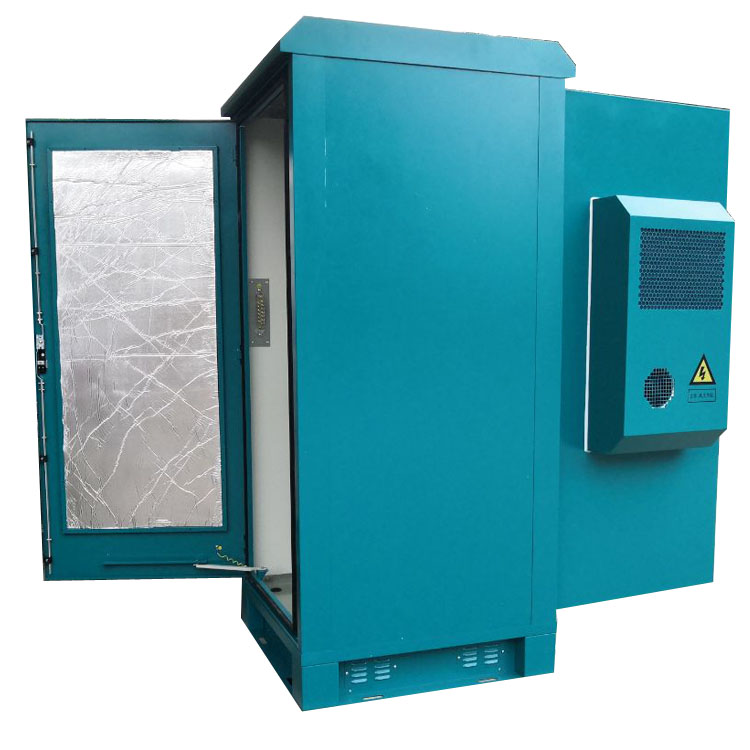

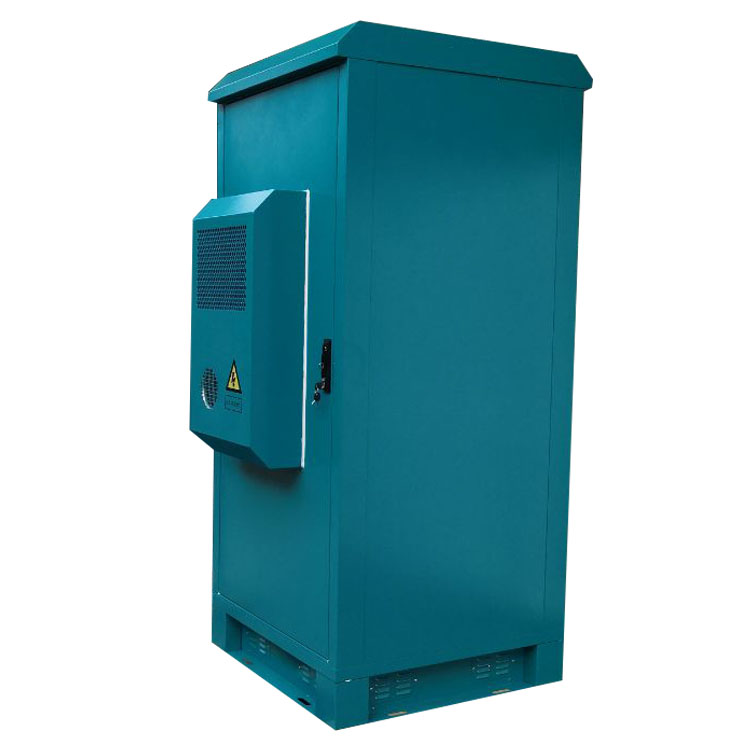

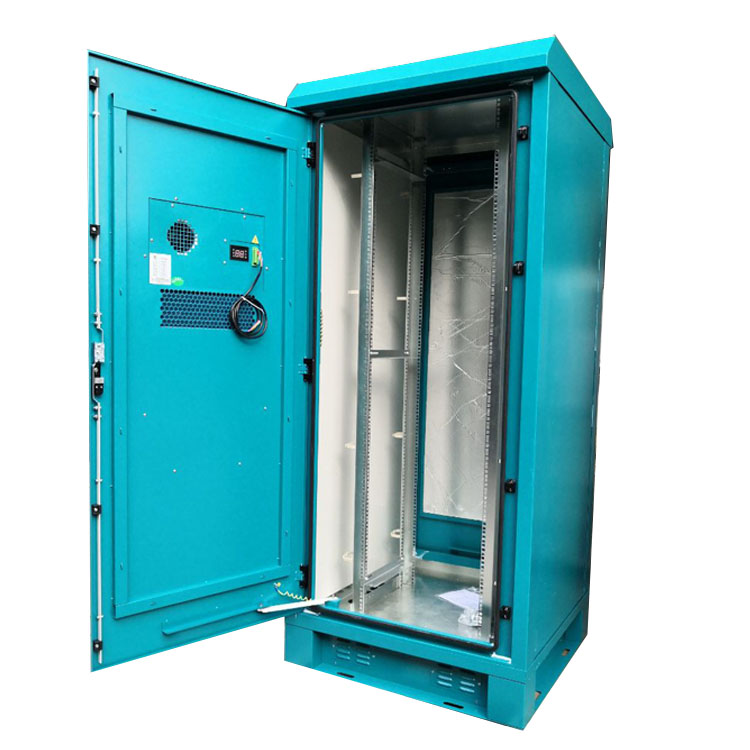

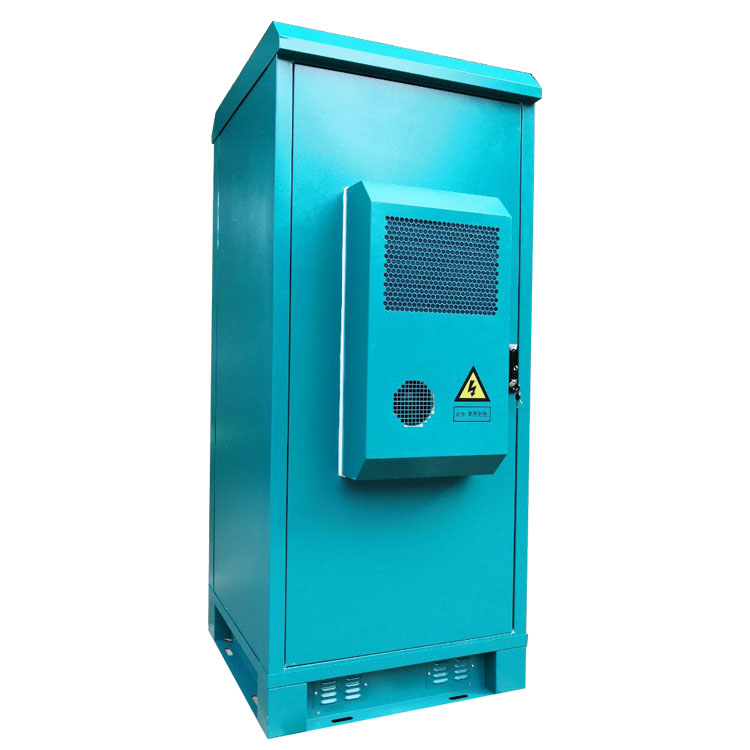

19" RACK Internal Capacity And IP55 Protection Level 40U Base Station Waterproof Storage Telecom Cabinet
Product Description
Product Description
Strong Internal Rack: Configured for telecom equipment, power source, battery systems, temperature control units, and other accessories.
Digital Monitoring Interface: Real-time parameters display, temperature settings, internal/external alarms, and system notifications.
Thermal & Fire Protection: Constructed with low thermal conductivity, heat-insulating, and flame-retardant materials.
Versatile Installation: Engineered for extreme environments including mountain peaks, commercial building rooftops, and isolated regions.
IP55 Ingress Protection: Comprehensive protection against wind, driving sand, continuous rain, UV exposure, and vandalism.
Customized Manufacturing: Tailored specifications, materials, and configurations available to meet unique project demands.
Product Features
Attractive powder coat finish with galvanised steel base.
Anti-theft four-point outdoor cabinet lock with keyhole protection.
IP55 cabinet walls and roof in double steel with high quality insulation.
High performance air-conditioning unit for efficient heat removal.
Integrated mechanical door stopper to hold door safely open during maintenance.
Certified to pass earthquake intensity 8 anti-seismic performance testing.
Technical Data Sheet
| Dimensions | Internal: Standard 40U × 800 × 800 mm External: Standard 2100 × 900 × 900 mm |
| Door & Hinge | Two access doors with specialized outdoor lock (padlock compatible); Embedded hinges |
| Material | Galvanization plate with 45mm PEF insulation cotton. Available Options: Galvanized iron, Aluminum, Stainless steel, Cold-rolled steel |
| Internal Capacity | Standard 40U (Customizable: 27U, 30U, 32U, 35U, 37U, 42U, etc.) |
| Structure & Mount | Modular Assembly structure; Standard 19" rack installation |
| Cable Entry | Bottom entry: Φ50 × 5 ports (or configured to project requirements) |
| Finish & Ingress | Blue powder coating finish (custom colors supported); IP55 Protection Level |
| Cooling System | 1500W 220VAC high-efficiency industrial air conditioner |
| Internal Lighting | 48V LED illumination; automatic on/off control via door sensor |
| Operating Temperature | Working: -40°C ~ +55°C Storage/Transport: -50°C ~ +70°C |

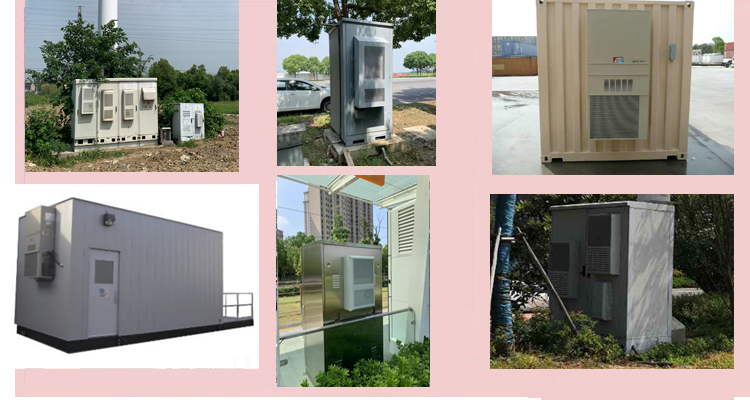

Product Application
Packing & Delivery

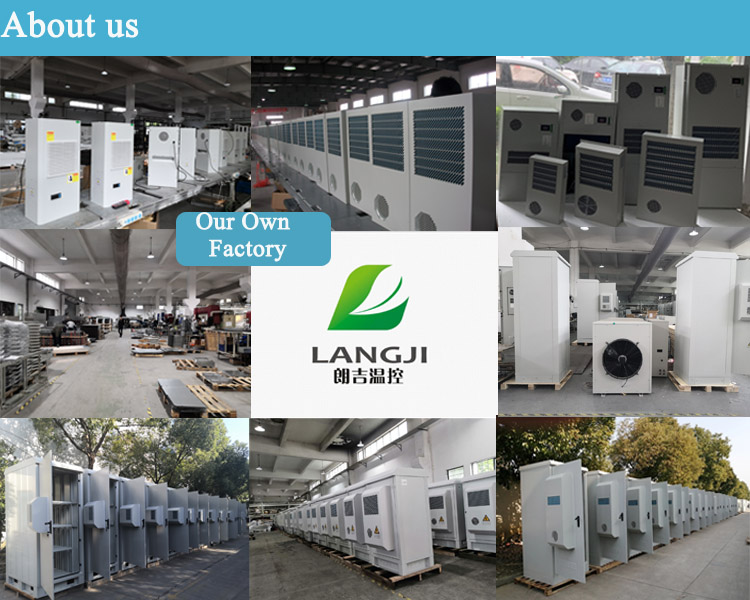

About Suzhou Langji Technology
Langji Technology Co., Ltd. was founded in 2009. It is a high-tech enterprise integrating R&D, manufacturing, and sales. Located near Taihu Lake in Suzhou City, the company has a registered capital of 50 million RMB. The modern facility covers 5,000 square meters, employs around 200 dedicated staff, and achieves annual sales approaching 100 million RMB.
Langji provides comprehensive temperature control solutions across multiple mission-critical sectors:
Telecommunication
Data Center
Base Station
Solar Installations
Wireless Cell Sites
Industrial Automation
Energy Storage
Operating under ISO9001 and ISO14001 management standards, Langji delivers high-reliability precision cooling, heat exchangers, and insulated outdoor cabinets certified to CE and CCC. Langji systems are deployed worldwide across China, India, Russia, the Middle East, Southeast Asia, South America, Africa, Europe, and the USA.
Our Exhibition
Contact Us
| [email protected] | |
| Phone Number | +86-15162405475 |
| Wechat / Whatsapp / Skype | +86-15162405475 |
| Tel / Fax | Tel: +86-512-66892668 | Fax: +86-512-66592789 |
| Manufacturer | Suzhou Langji Technology Co., Ltd. |
| Address | No. 58, Tongxin Road, Tongan Town, High-Tech Zone, Suzhou, Jiangsu Province, China |
| Official Website | english.szlangji.com |
Frequently Asked Questions (FAQ)
What is the minimum order quantity (MOQ) for outdoor cabinets?
We maintain a low MOQ policy. Sample orders of 1 piece are fully supported for preliminary quality and design validation.
Do you provide custom design and OEM/ODM services?
Yes, we are a direct manufacturer equipped with internal R&D. We provide complete customization including dimensional alterations, thermal calculations, sheet metal choices, and custom logo printing.
What are the standard shipping arrangements and transit lead times?
Sample and urgent shipments are dispatched by Air/Express (DHL, FedEx, UPS, TNT, EMS) taking approximately 5-12 days. Commercial volume orders are shipped via sea freight, generally taking 1-2 months depending on the port of delivery.
What payment methods are supported?
We accept T/T (typically 50% deposit and balance before dispatch), L/C, Trade Assurance, and Western Union.
What warranty is provided with the equipment?
All manufactured equipment, including internal cooling systems and physical structures, comes with a comprehensive 12-month standard warranty.
Can we schedule an on-site factory audit in China?
Yes, visitors are welcome. Please contact our sales representatives in advance to arrange schedules and local transportation pick-up.
