ASRS Pallet Rack System New Energy Automated Storage Retrieval System Customized Industrial Racks Warehouse Smart Robot Shelf
Product Description
Automated Warehouse Solutions
Chinese Shuttle Rack Manufacturer Factory: Metal Shelves & Vertical Storage ASRS Warehouse Racking System Shelving Units

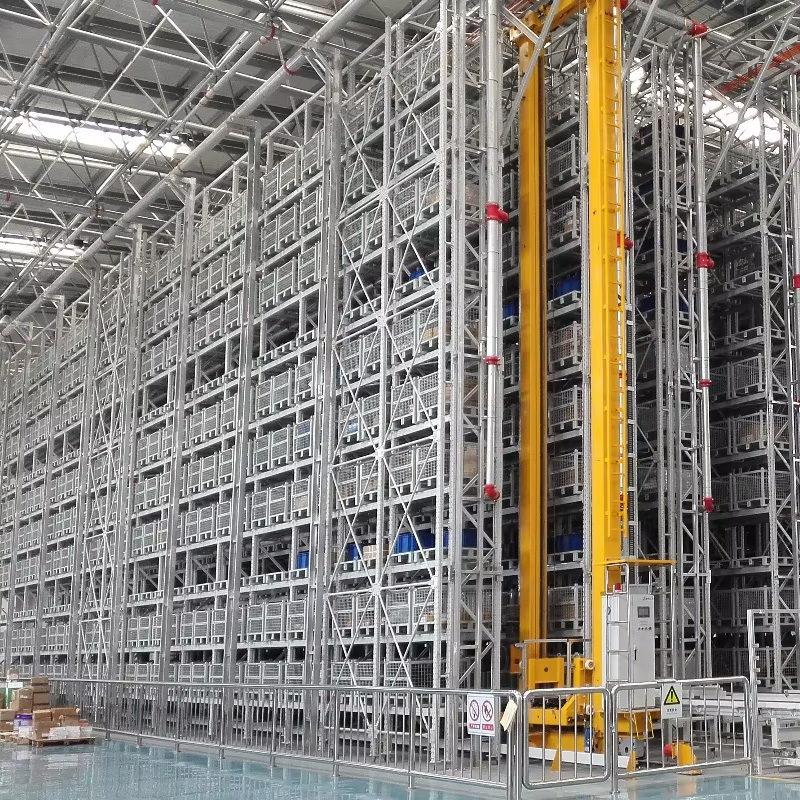

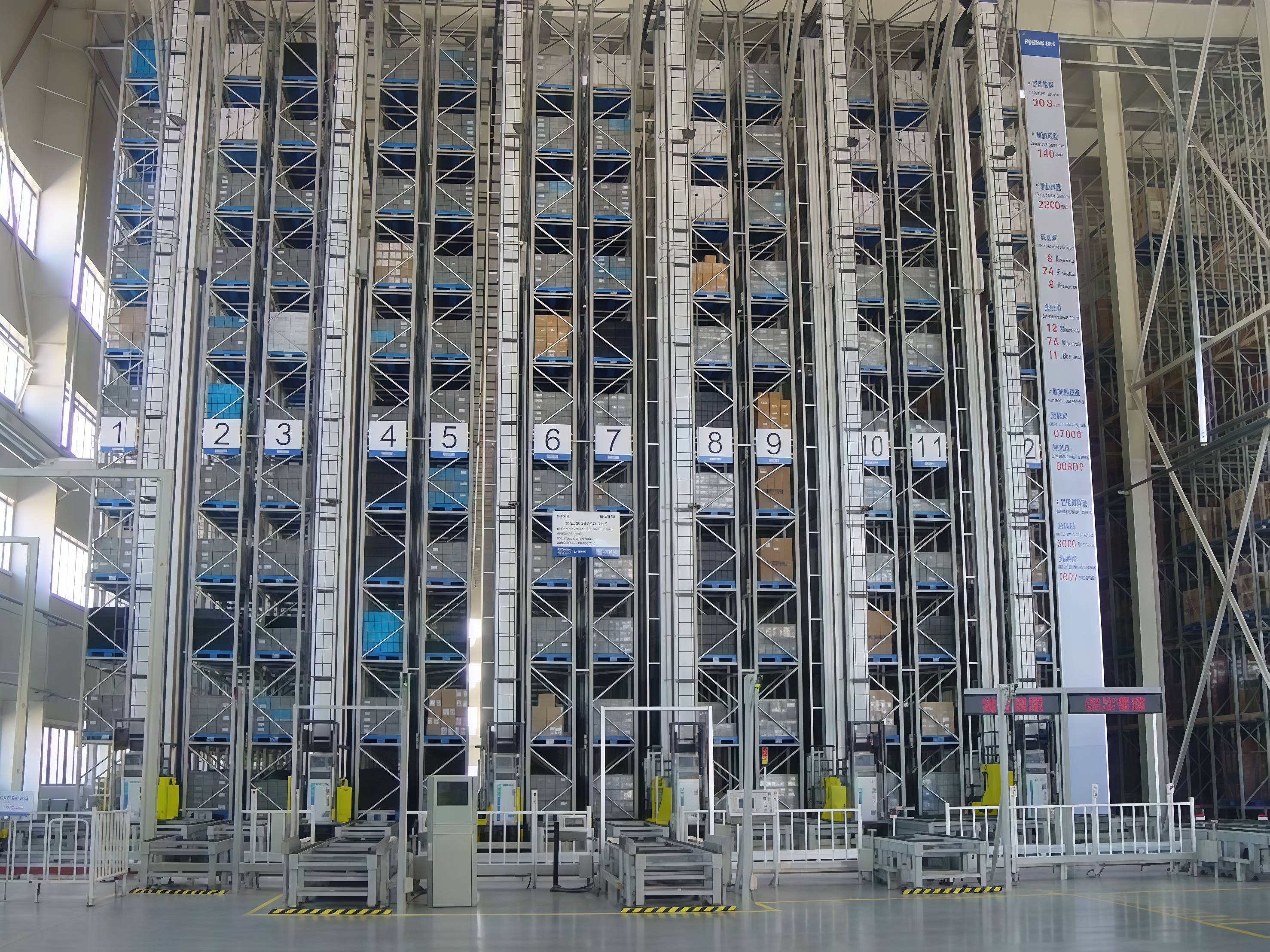

What is Automated Stacking Crane ASRS
The Industrial Pallet Racking System with Automated Stacking Cranes is a cutting-edge warehouse automation solution designed to optimize storage space and streamline operations. Equipped with a Stacker Crane ASRS, it efficiently loads and unloads heavy items, providing high-density vertical storage for increased operational efficiency.
With a maximum load capacity of 1,500 kg per pallet, it delivers precise real-time inventory tracking integrated through its WCS/WMS module. Highly adaptable and compatible with various equipment types and locations, this system easily accommodates raw materials, finished goods, or industrial components to boost warehouse productivity and organization.
Core Advantages
Why Choose Automated Storage & Retrieval Systems
Space Efficiency
Utilizes vertical height and cuts down access aisles, maximizing storage capacity within the same footprint.
Increased Productivity
Fully automated loading and retrieval cycles deliver rapid product throughput and smooth workflow.
Reduced Labor Costs
Significantly lowers manual material handling dependency, cutting long-term operational expenditures.
Accuracy & Traceability
Minimizes human handling errors, assuring precise stock auditing and tracking via software integration.
Customization & Scalability
Configurable to unique pallet dimensions and expandable as business logistics demands grow.
Energy Efficiency
Engineered with smart energy-saving control features that lower power consumption in continuous operation.

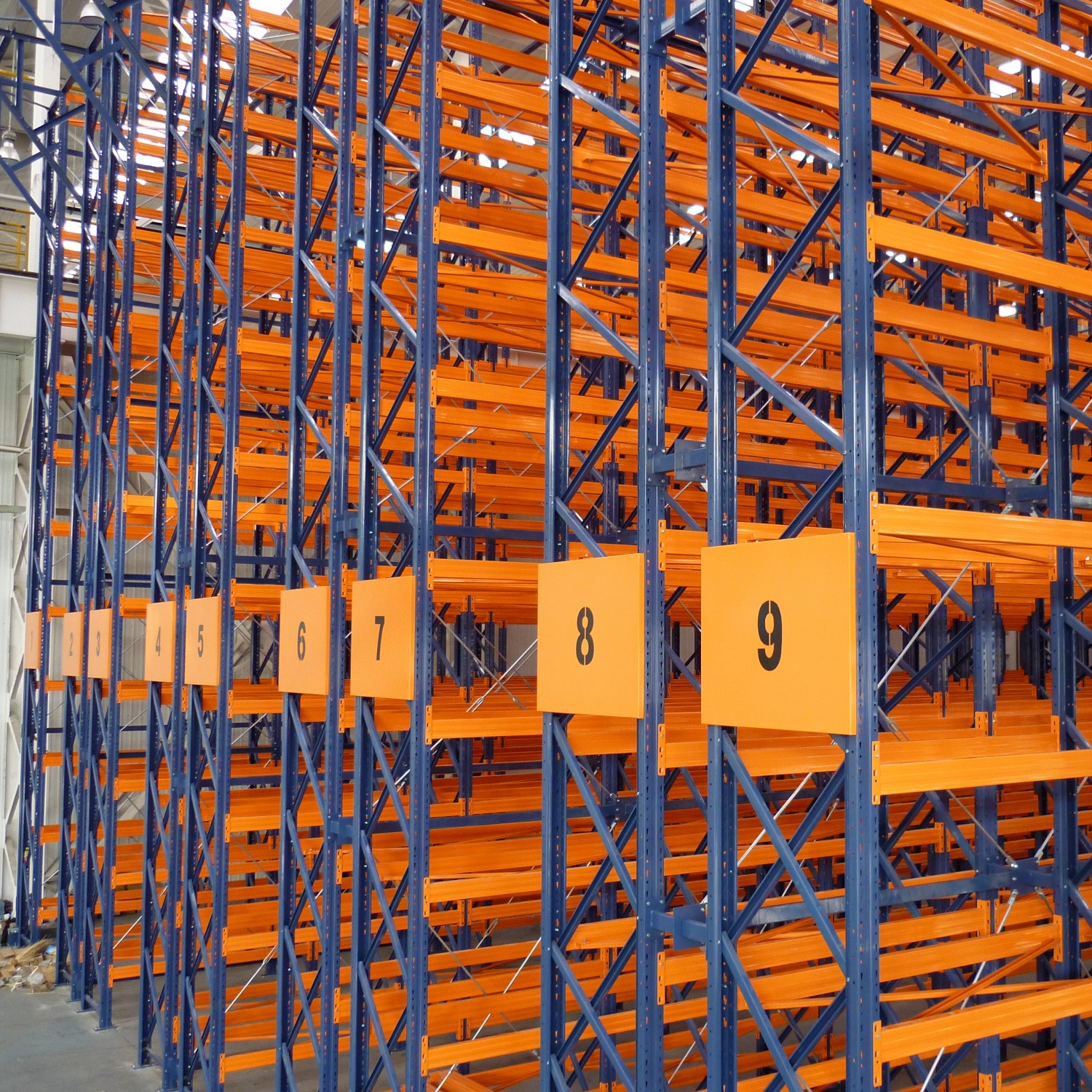

Engineering Projects

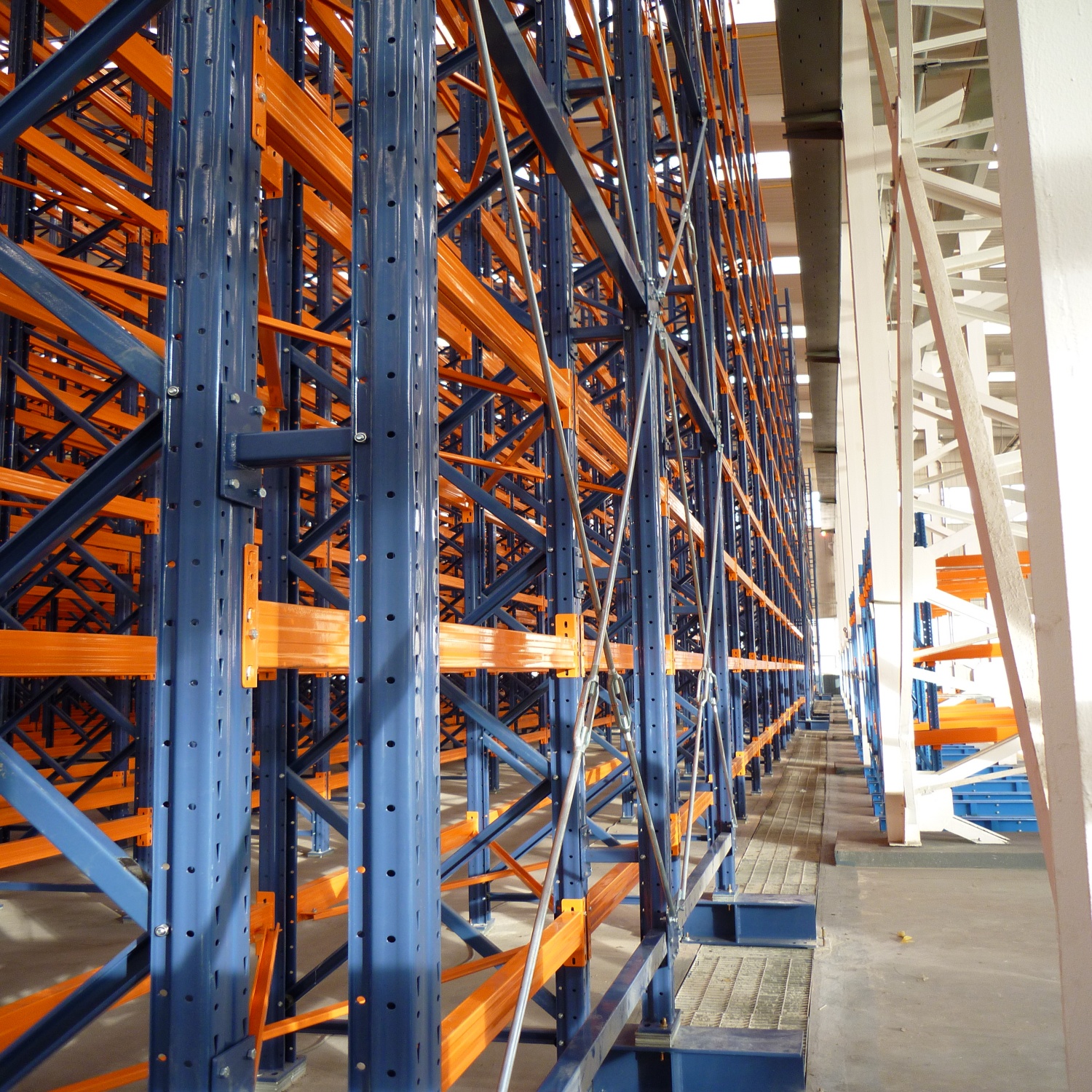

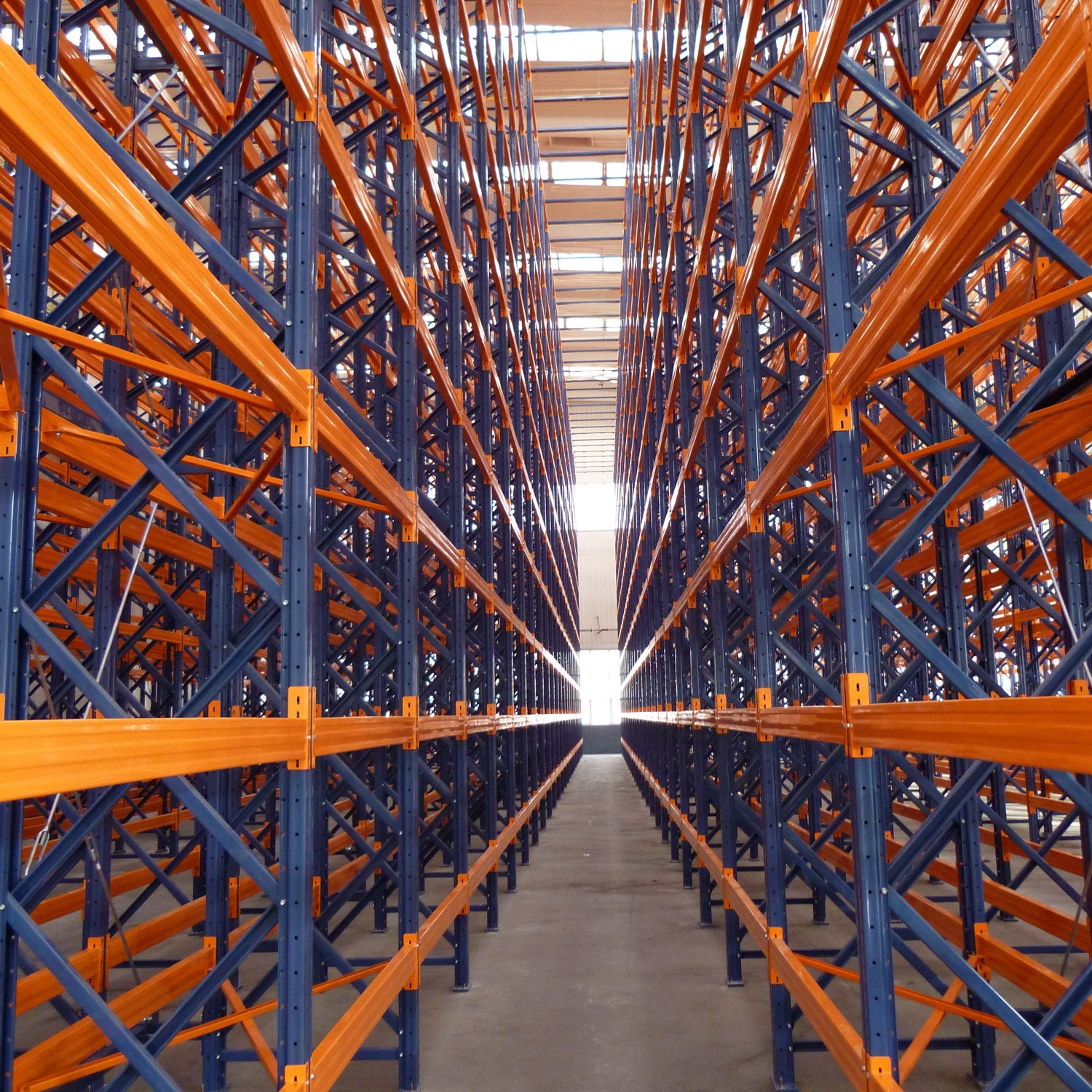

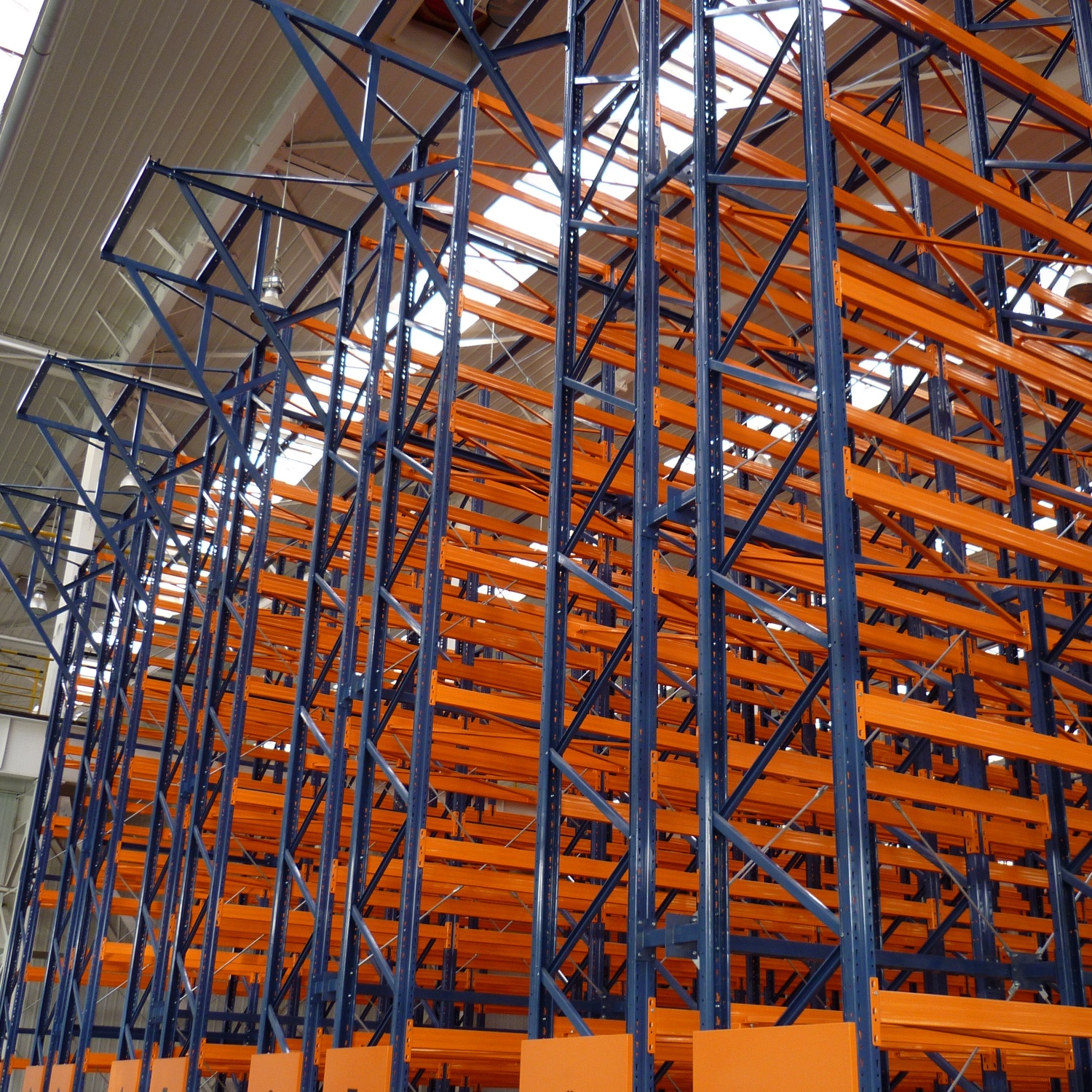

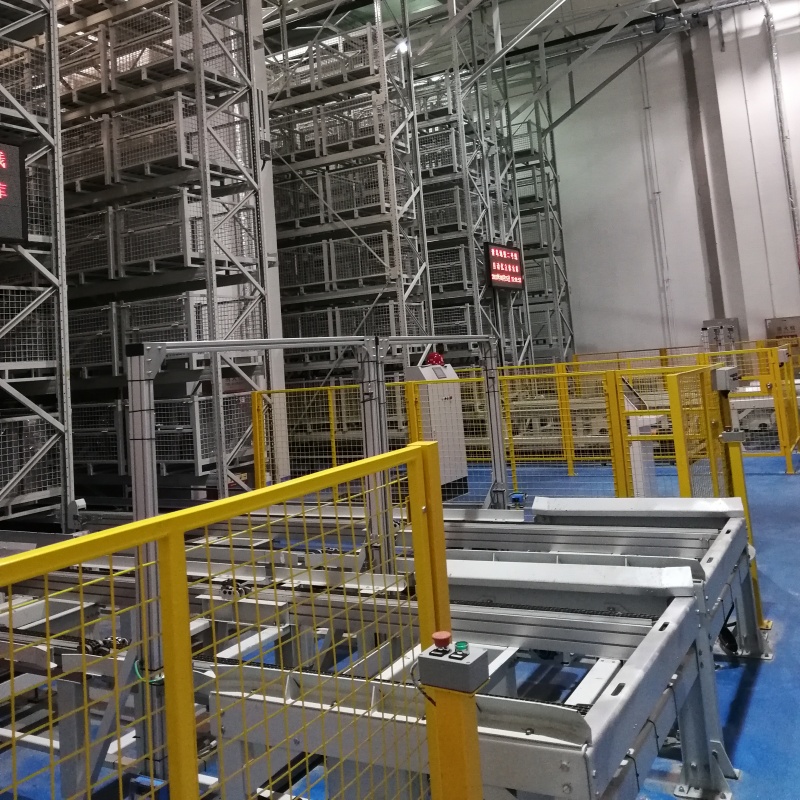

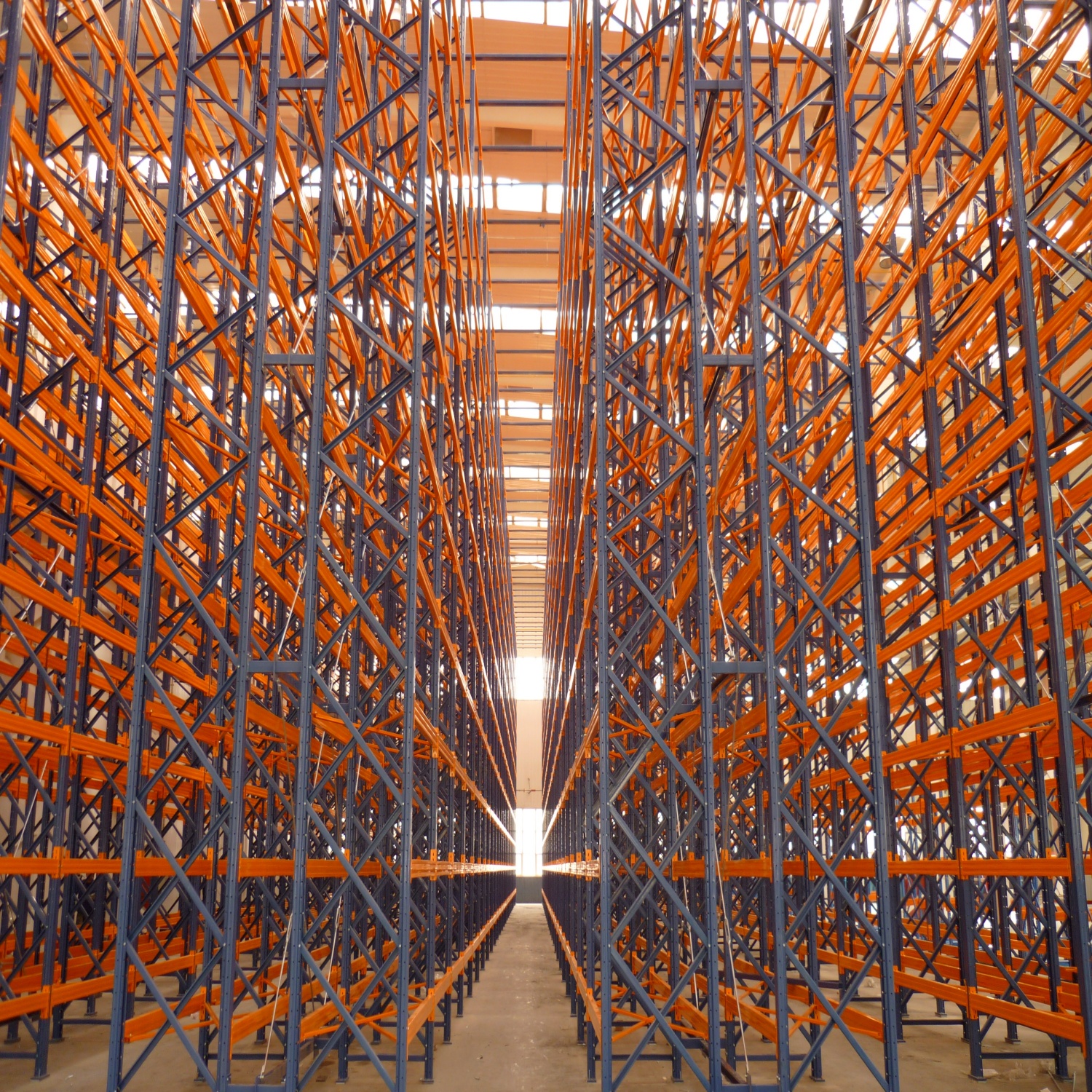

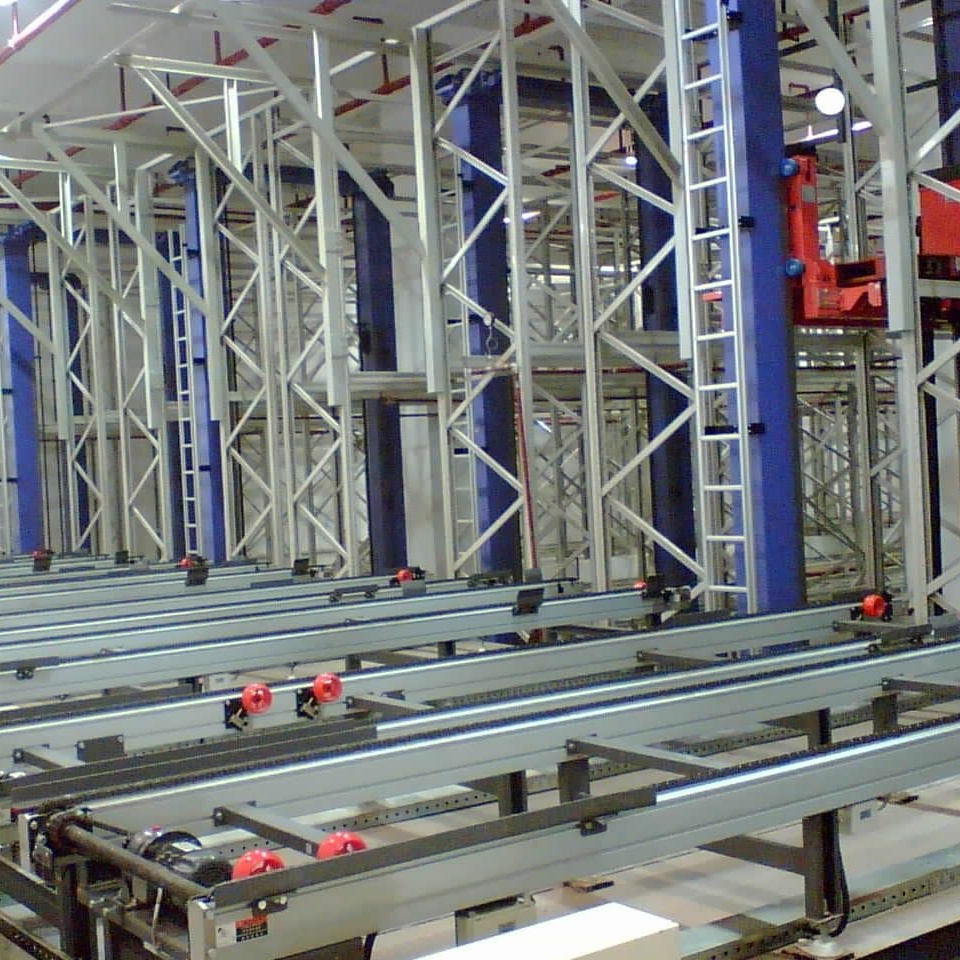

Automated High-Bay Racking Installations

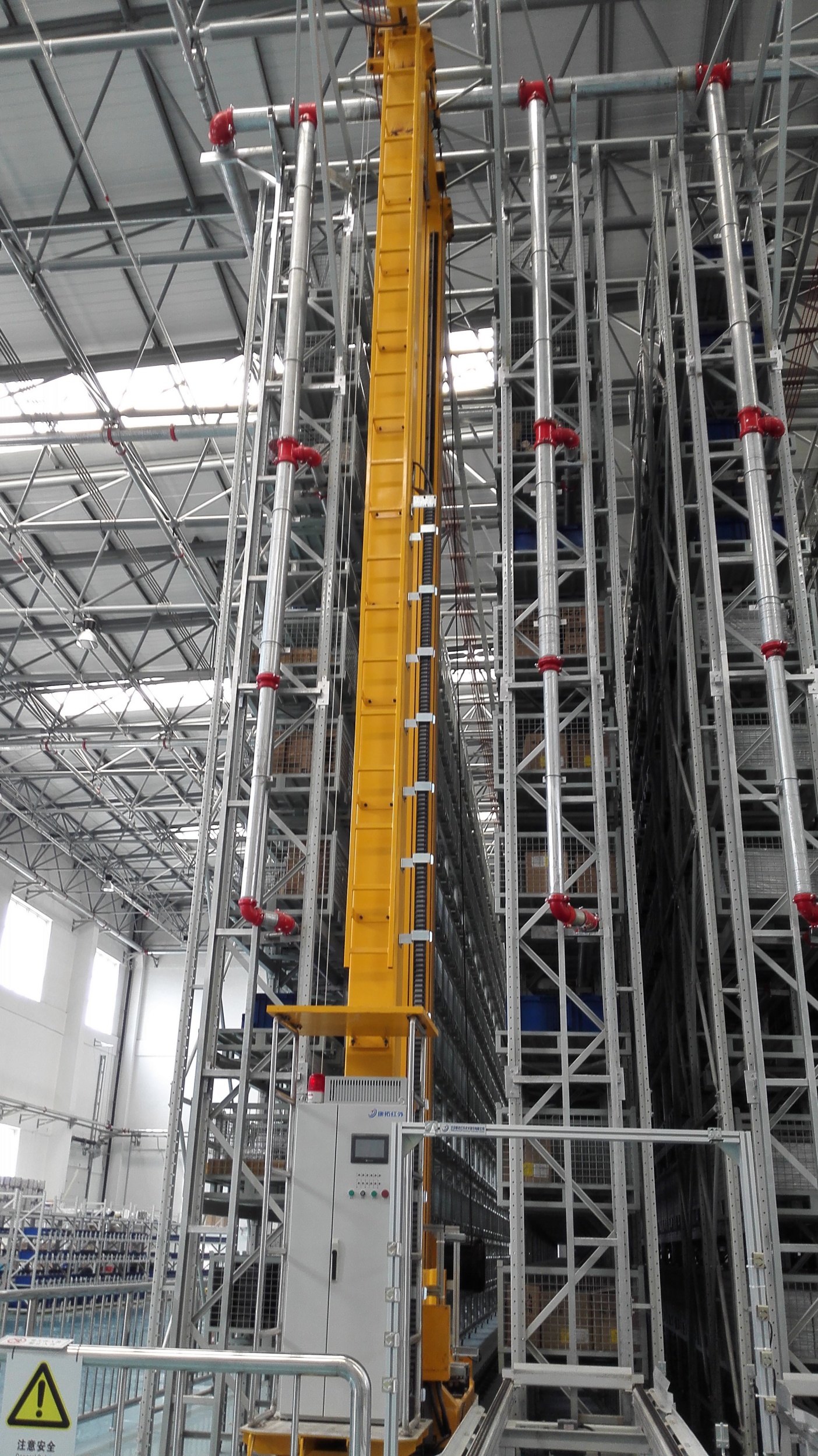

System Composition

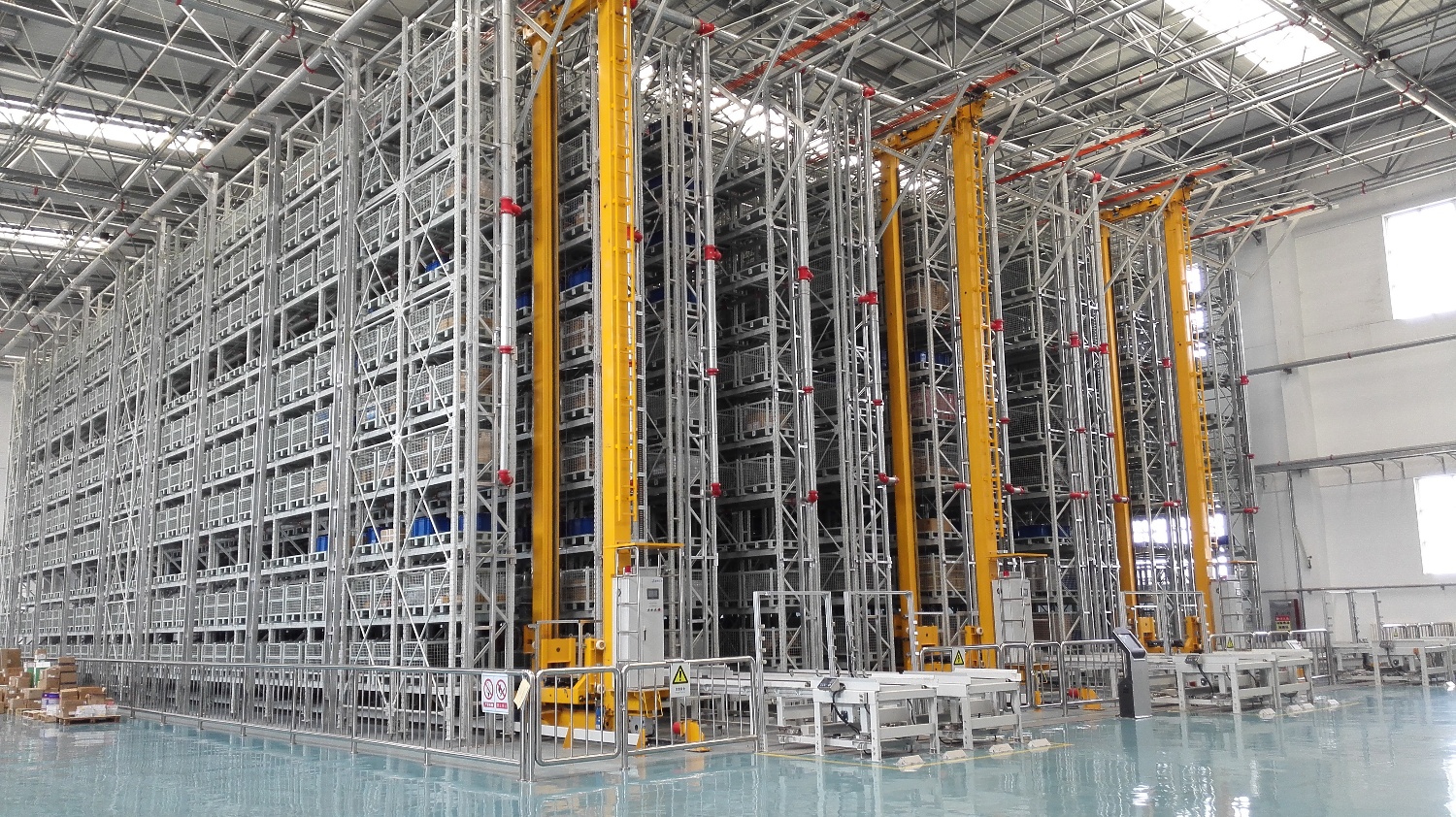

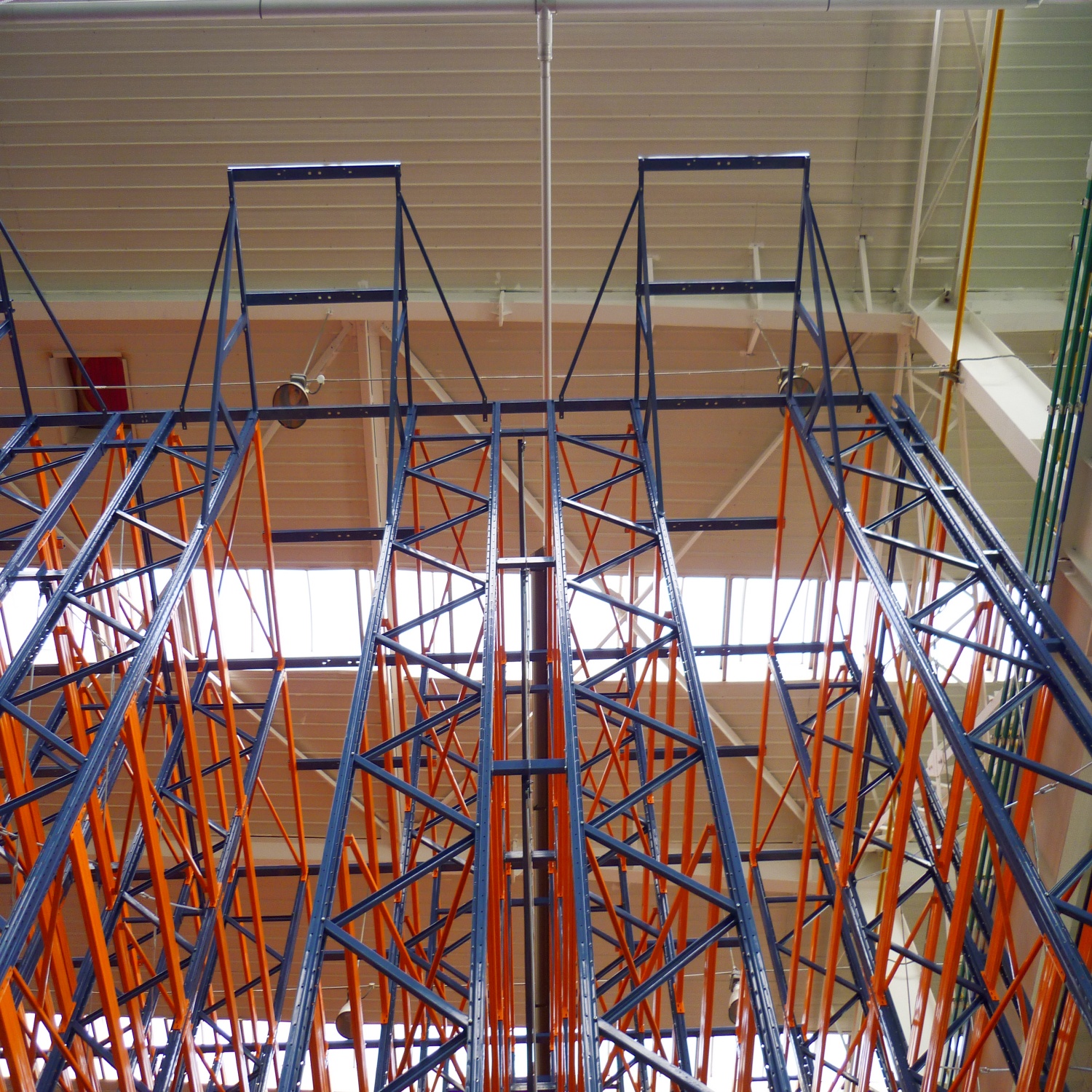

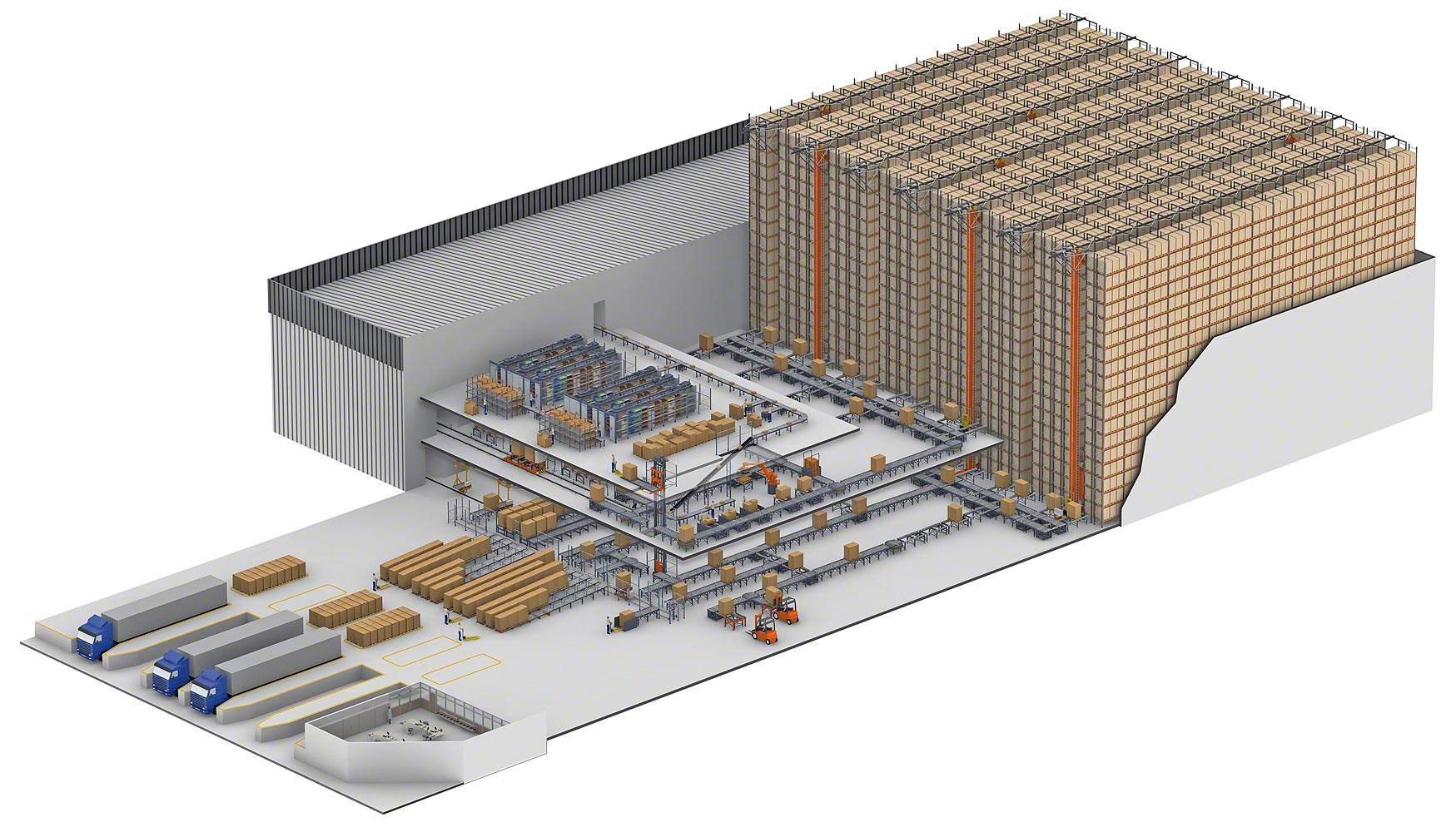

Automated Rack Warehouse Structure
The Automated Warehouse System (AS/RS) is a complex automation system composed of three-dimensional shelving, rail roadway stackers, pallet conveyor systems, entrance/exit barcode reading systems with dimensional detection, communication systems, automatic control architectures, computer monitoring networks, and management systems.
Auxiliary equipment includes wire and cable tray distribution cabinets, pallets, adjustment platforms, and heavy-duty steel structure platforms, all synchronized to handle high-throughput logistics.
Intelligent Operations & Shelf Types
Utilizing first-class integrated logistics concepts along with advanced bus control and communication technology, warehouse operations run through synchronized coordination. Shelves can be configured as beam shelves, ox leg shelves, or mobile shelves, chosen based on cargo unit weight, shape, and size.

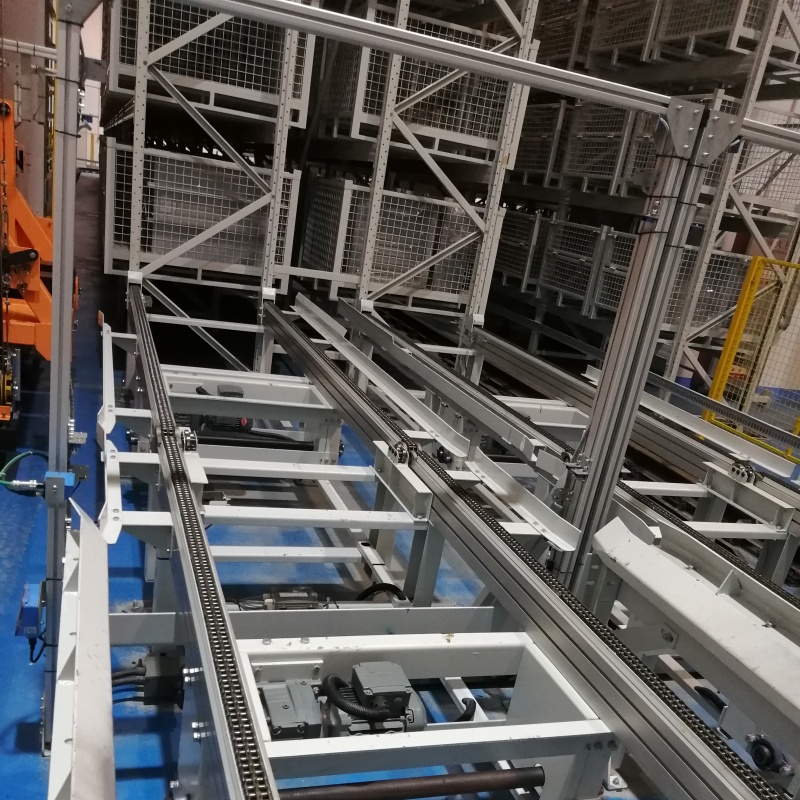

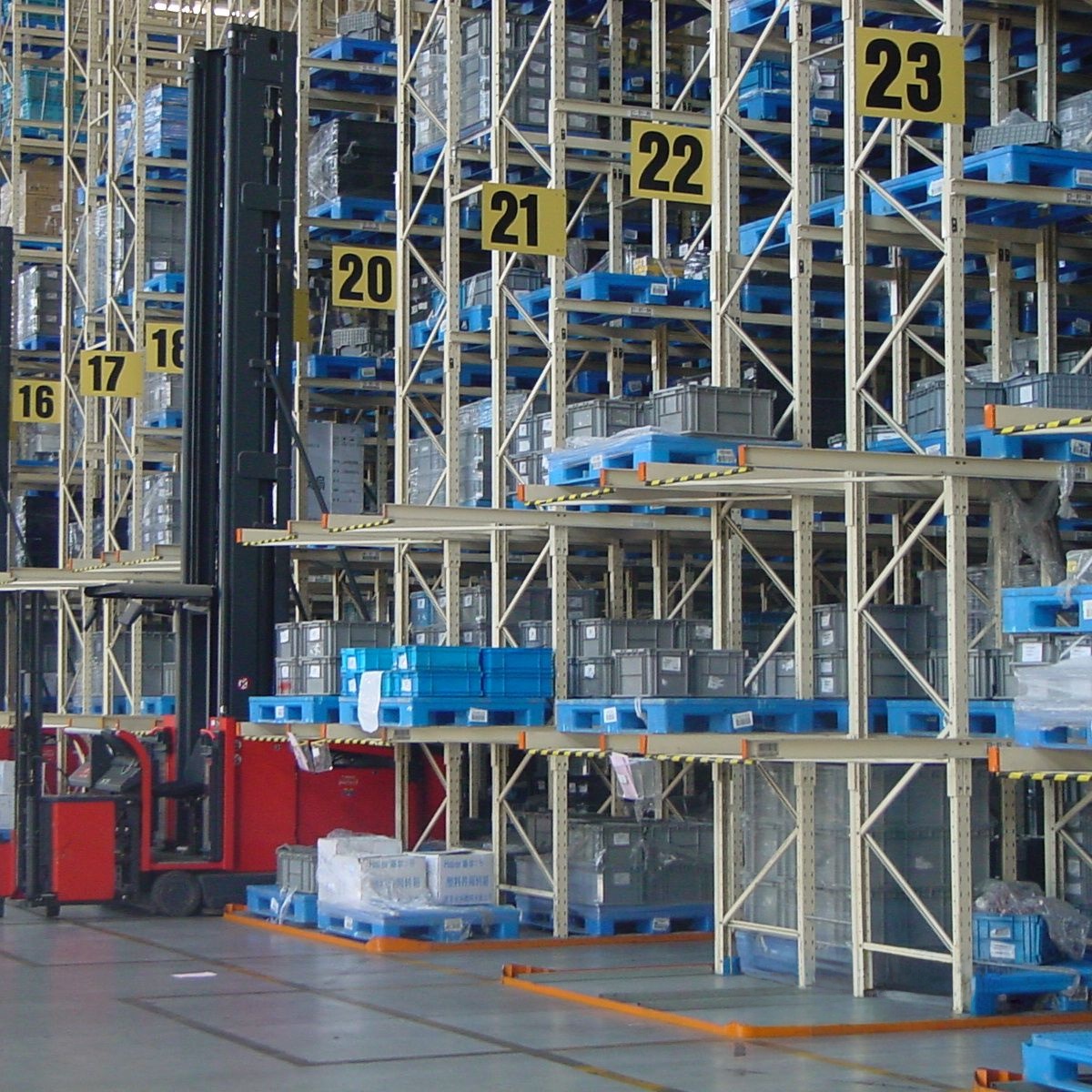

Pallet Options & Laneway Crane Work

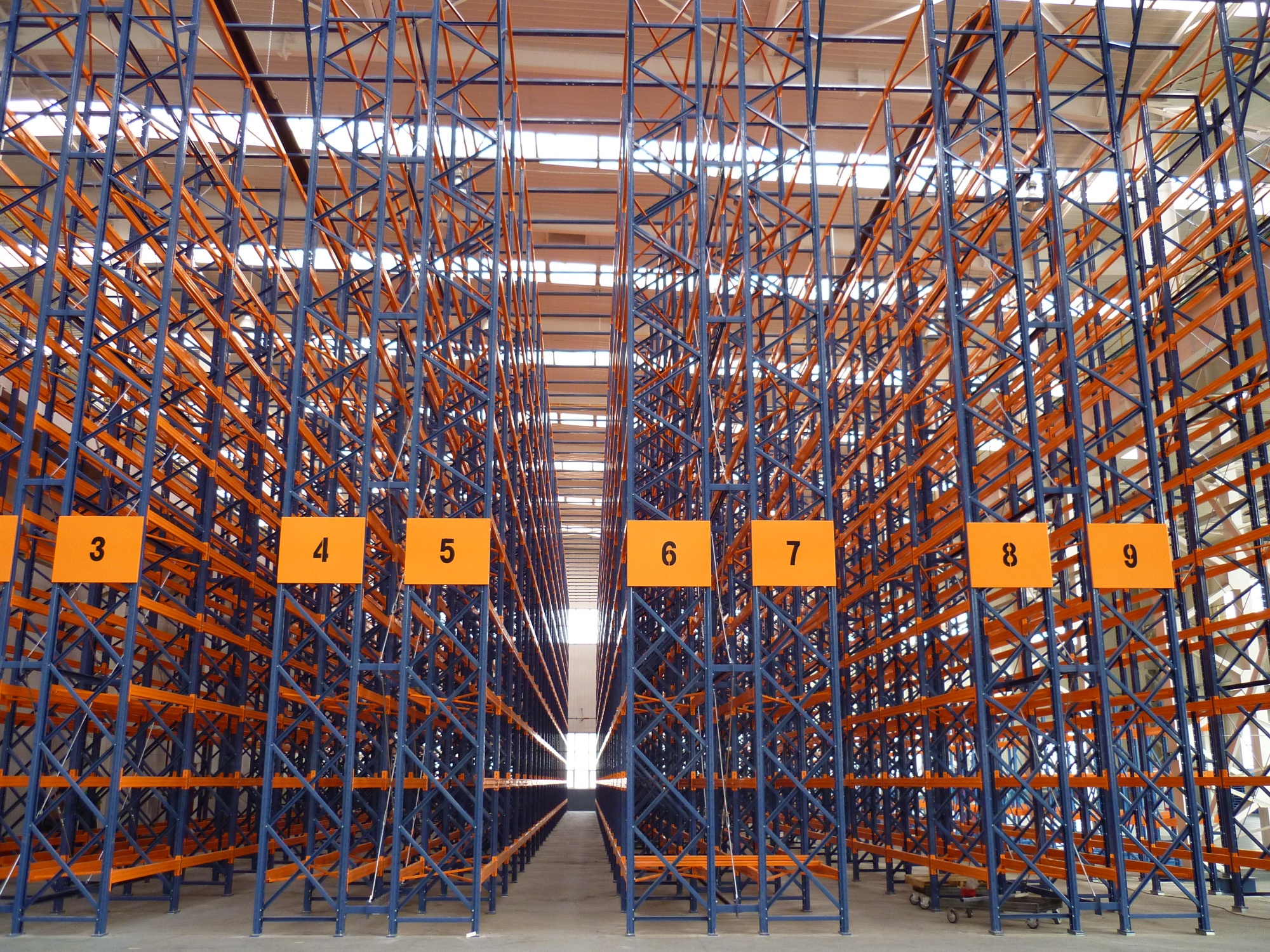

The system accommodates high-rigidity steel pallets or reinforced plastic pallets. Beams are engineered to match pallet load dimensions; for smaller shelves, beams can be substituted to place plastic totes directly on supports. The laneway stacking crane travels rapidly down aisles to execute precise picking and deposit commands.

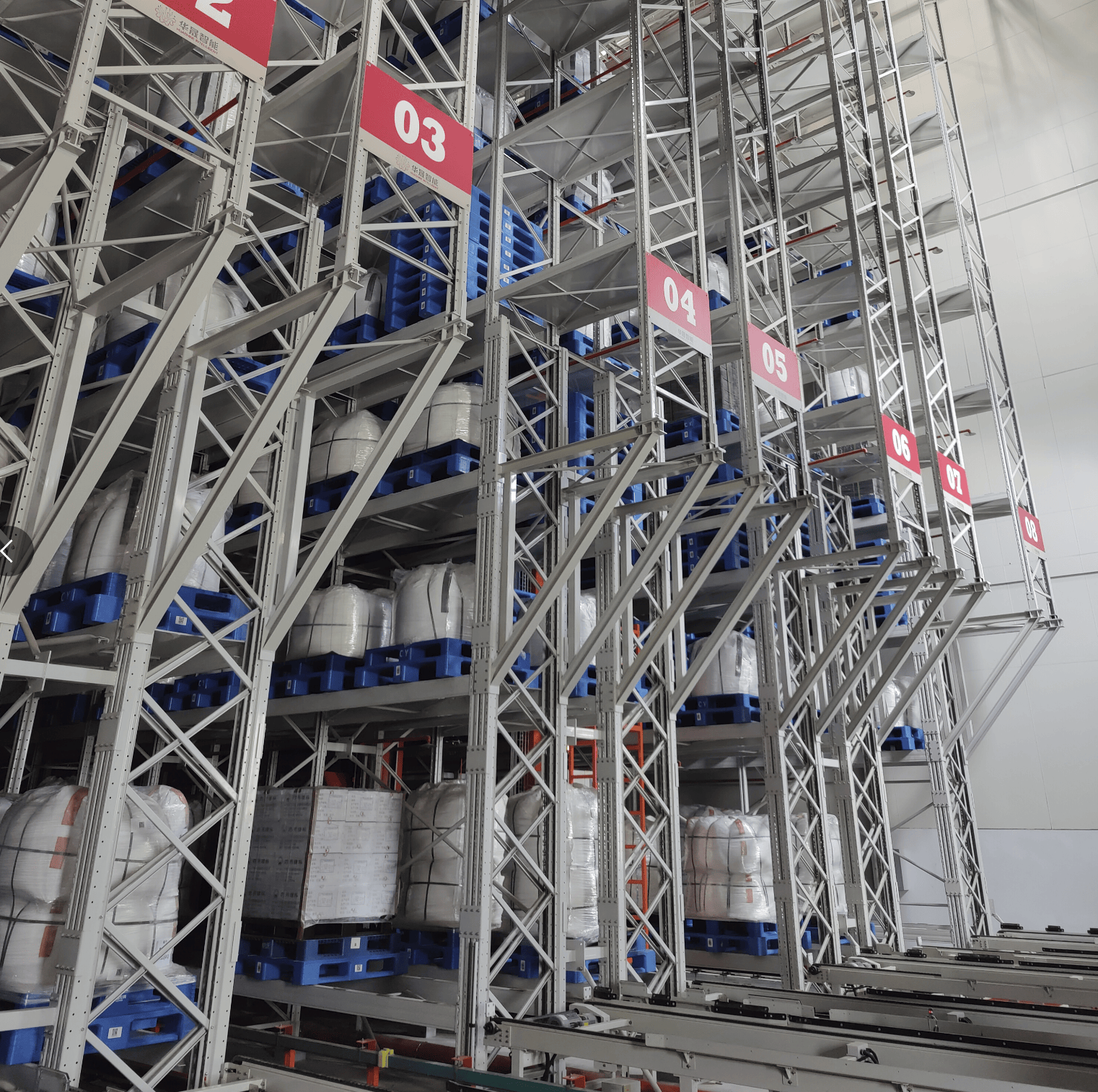

Versatile Application
Automated Heavy Duty Rack Industry Use

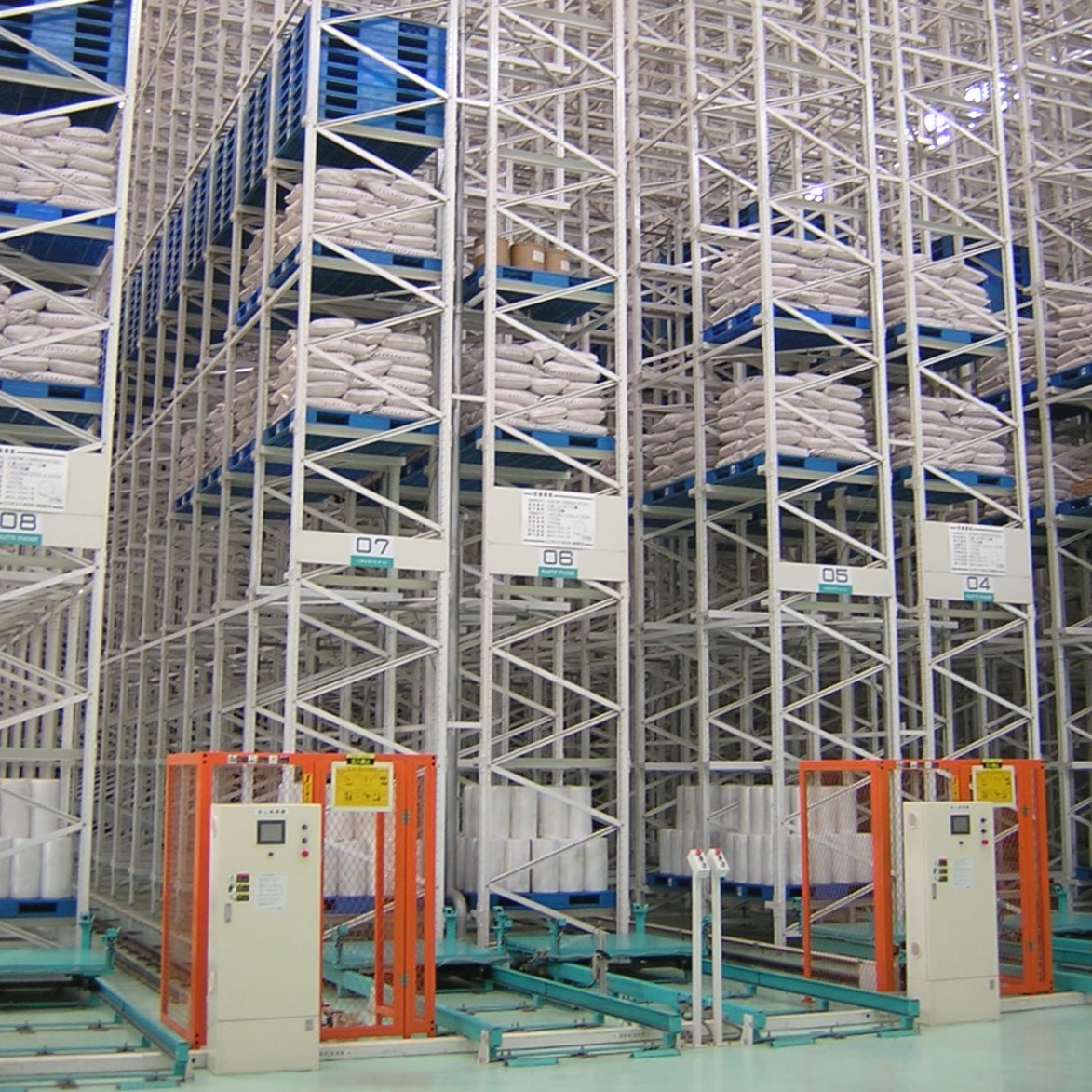

Automated stereoscopic storage systems are widely deployed across high-demand industrial sectors. Key applications include:
Pharmaceuticals & Chemicals
Machinery & Electronics
Food, Beverage & Tobacco
Aerospace & Rail Transit
Technical Specifications
Product Parameters
| Product Name | Heavy Duty Warehouse Shelves Racks / ASRS Rack |
| Brand Name | FANGDING |
| Place of Origin | China, Shandong |
| Primary Material | Q235B High Grade Steel (Custom options available) |
| Surface Treatment | Electrostatic Powder Coating |
| Color Options | Orange, Blue, or Fully Customized |
| Size & Capacity | Customized to client requirements (up to 1,500 kg per pallet load) |
| Usage & Application | Industrial Warehouse Storage & Goods Storage |
| Certifications | ISO9001 / CE / SGS |
| Packaging & Guarantee | Standard export packaging / Quality Guaranteed |
System Design Guidelines
Purchasing Notes for Rack Engineering
1. Pallet Specifications
Must verify pallet dimensions, entry direction, unit capacity, and the maximum weight per pallet position for proper structural load calculation.
2. Warehouse Architecture
Clarify building footprint, clear vertical height, and the exact locations of fire hydrants, emergency exits, pillars, and structural obstacles.
3. Equipment Parameters
Provide forklift and crane data, including maximum lift elevation, maximum load weight at height, fork width, and turning clearance.
Storage Strategy: Goods enter and exit systematically. This layout provides low investment costs for uniform batch goods, maximizes vertical ground density, and optimizes total floor space utilization.
Manufacturing Excellence
- High Capacity: Up to 3,000 tons monthly production capacity, ready for large-scale industrial projects with strict delivery schedules.
- Technical Support: Rapid design delivery with professional CAD drawings, on-site measurements, and structural installation guidance.
- Full Customization: Diverse steel specifications to meet distinctive payload requirements, warehouse dimensions, and pallet conditions.
Professional Engineering Consultation
- One-Stop Service: Experienced export engineers quickly confirm system requirements, project specs, and international logistics.
- Certified R&D: Backed by SGS, ISO9001, grinding test certifications, and numerous patents as a dedicated manufacturing plant.
- Core Principles: Committed to sustainable development, strict integrity, safety compliance, and recognized worldwide quality.
Logistics Standards

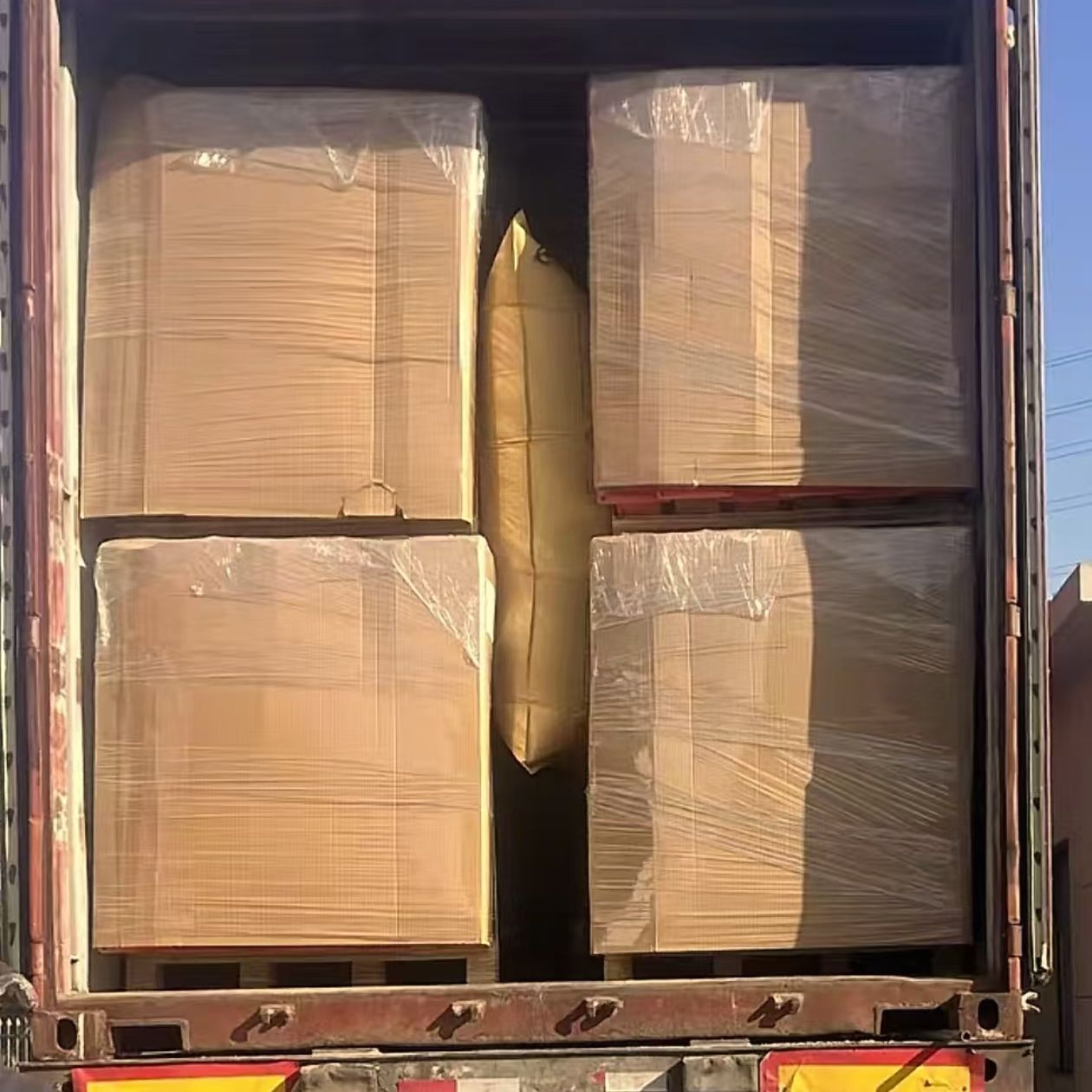

Packaging & Shipping Safety

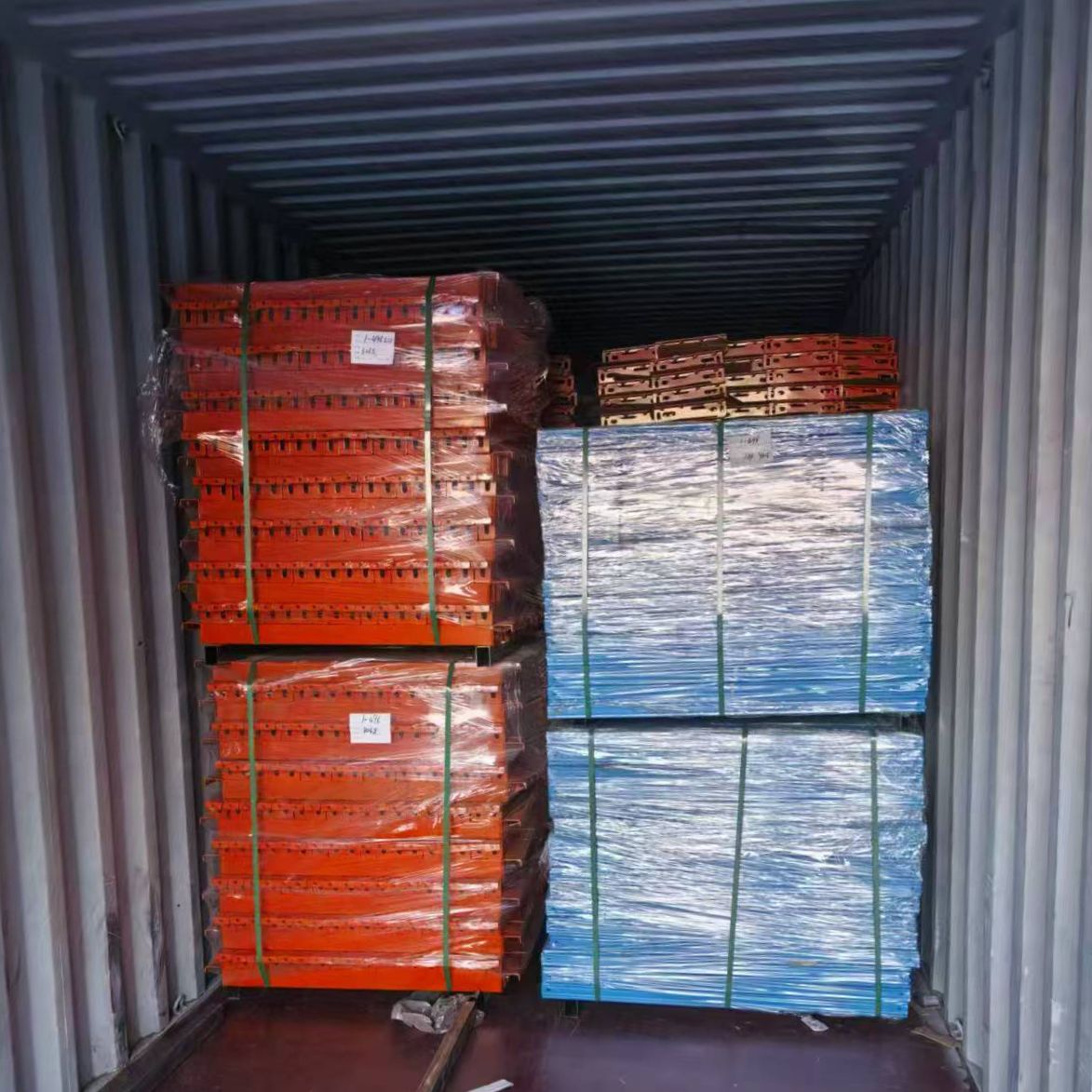

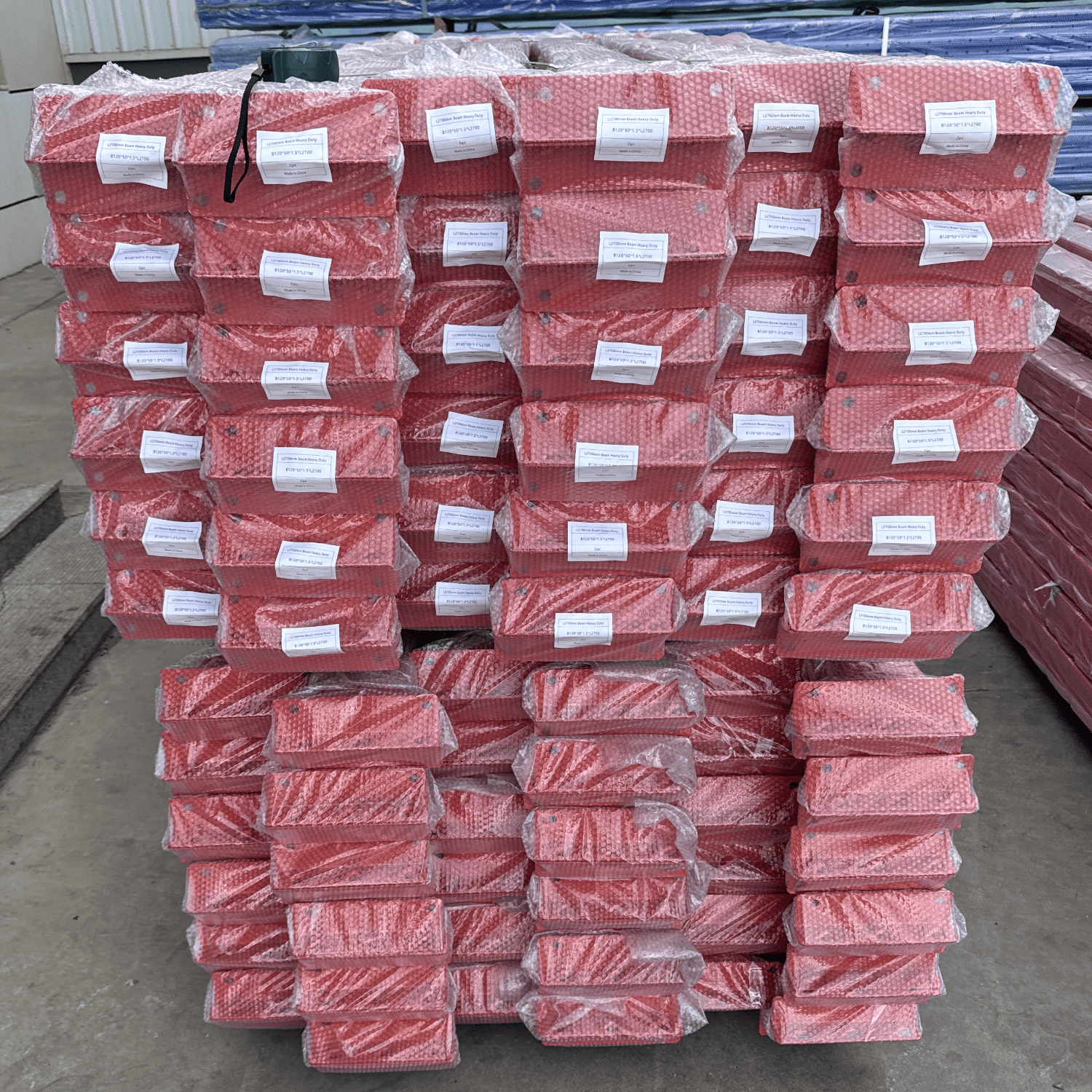

Cargo Fixation
Racks, straps, and frames secure mezzanine and ASRS components to prevent movement or collision from transit vibrations. Heavy uprights and beams receive multi-layer reinforcement.

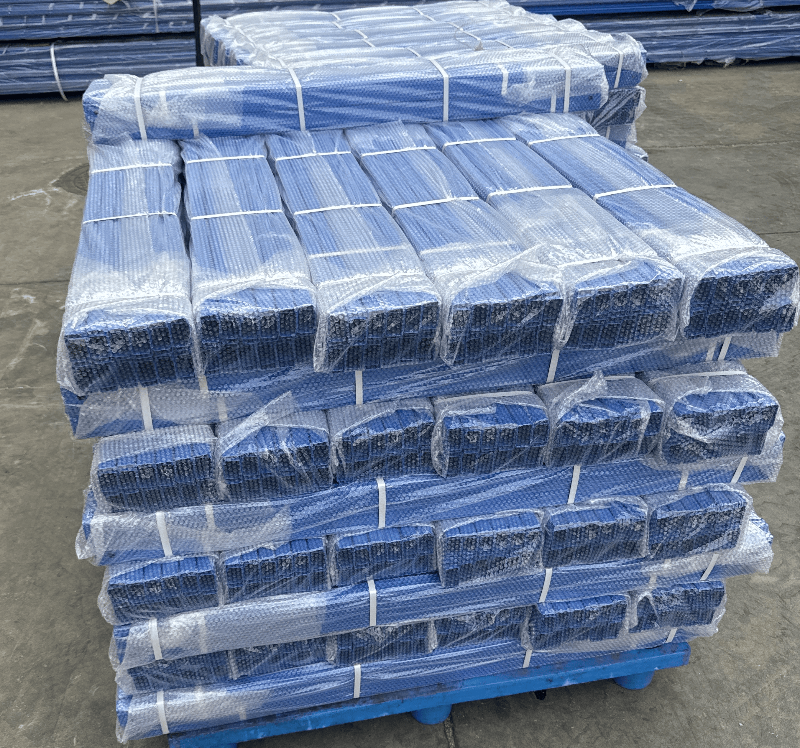

Vibration Damping
Rubber pads and foam boards are placed around goods to absorb road vibrations, shielding powder-coated finishes and critical surfaces from abrasion and scratches.

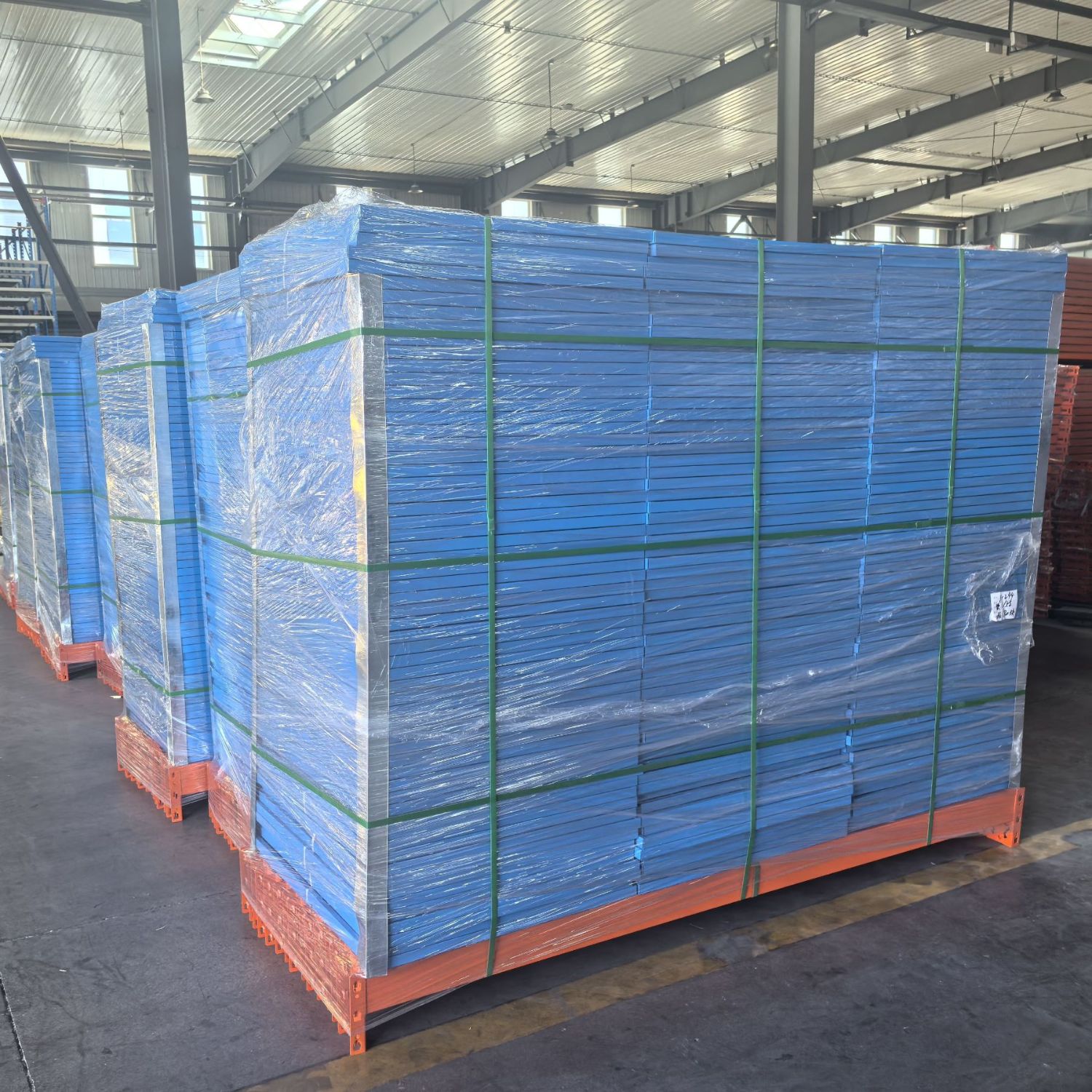

Rain & Moisture Protection
High-grade waterproof tarpaulins protect steel loads during transit. Desiccants are packed inside long-haul containers to keep components dry and rust-free across humid sea voyages.
Enterprise Background
About Shandong Fangding
Founded in 2008, Shandong Fangding is a professional manufacturer integrating the R&D, design, production, and installation of modern logistics technologies. Recognized as a specialized, innovative, and high-tech enterprise, the facility houses cold-rolling section lines, automated electrostatic powder coating lines, and automatic continuous strip steel punching lines.
The diverse product catalog includes pallet racking, heavy-duty racking, medium-duty racking, ASRS racking, drive-through racking, mezzanine racking, cantilever racking, wireless shuttle racking, VNA racking, platform racking, flow racking, and long material racking. The enterprise exceeds 20,000 tons in annual capacity with an annual output value of 200 million RMB.

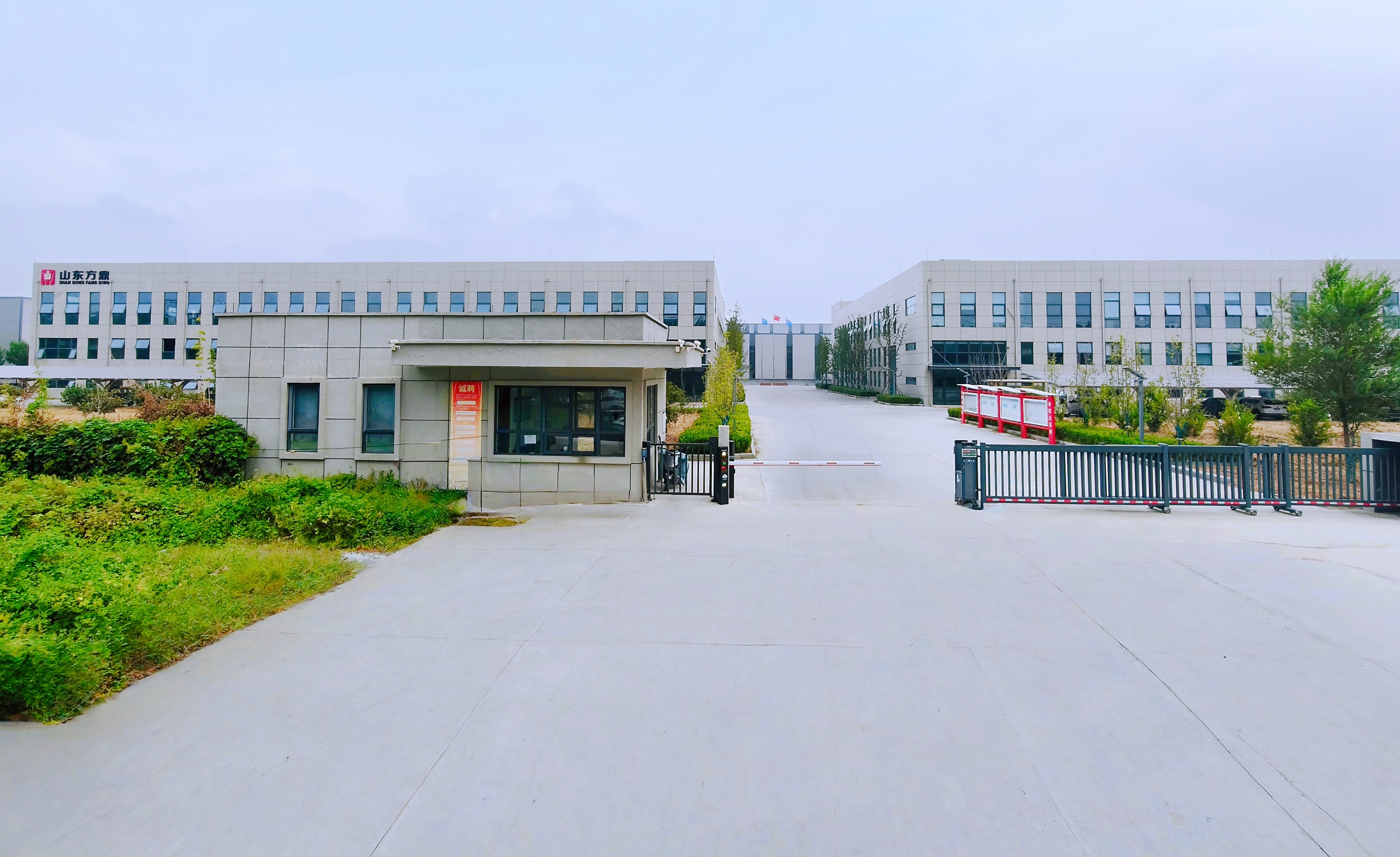

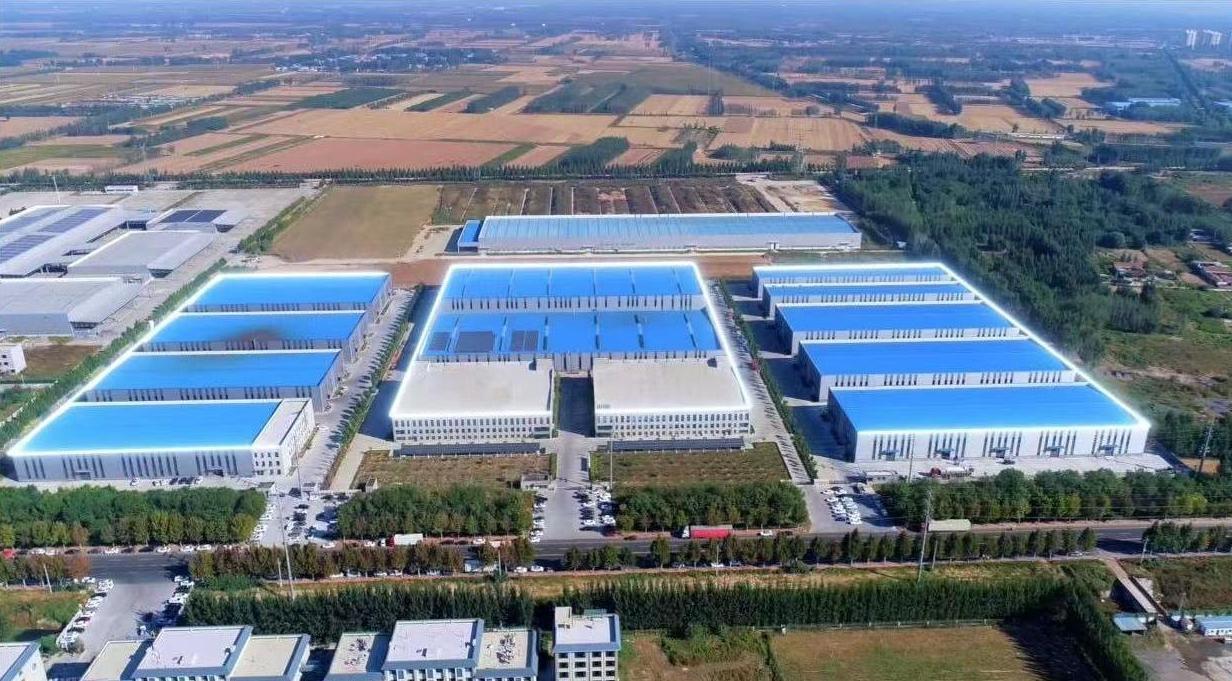

Our Factory
Our Reception

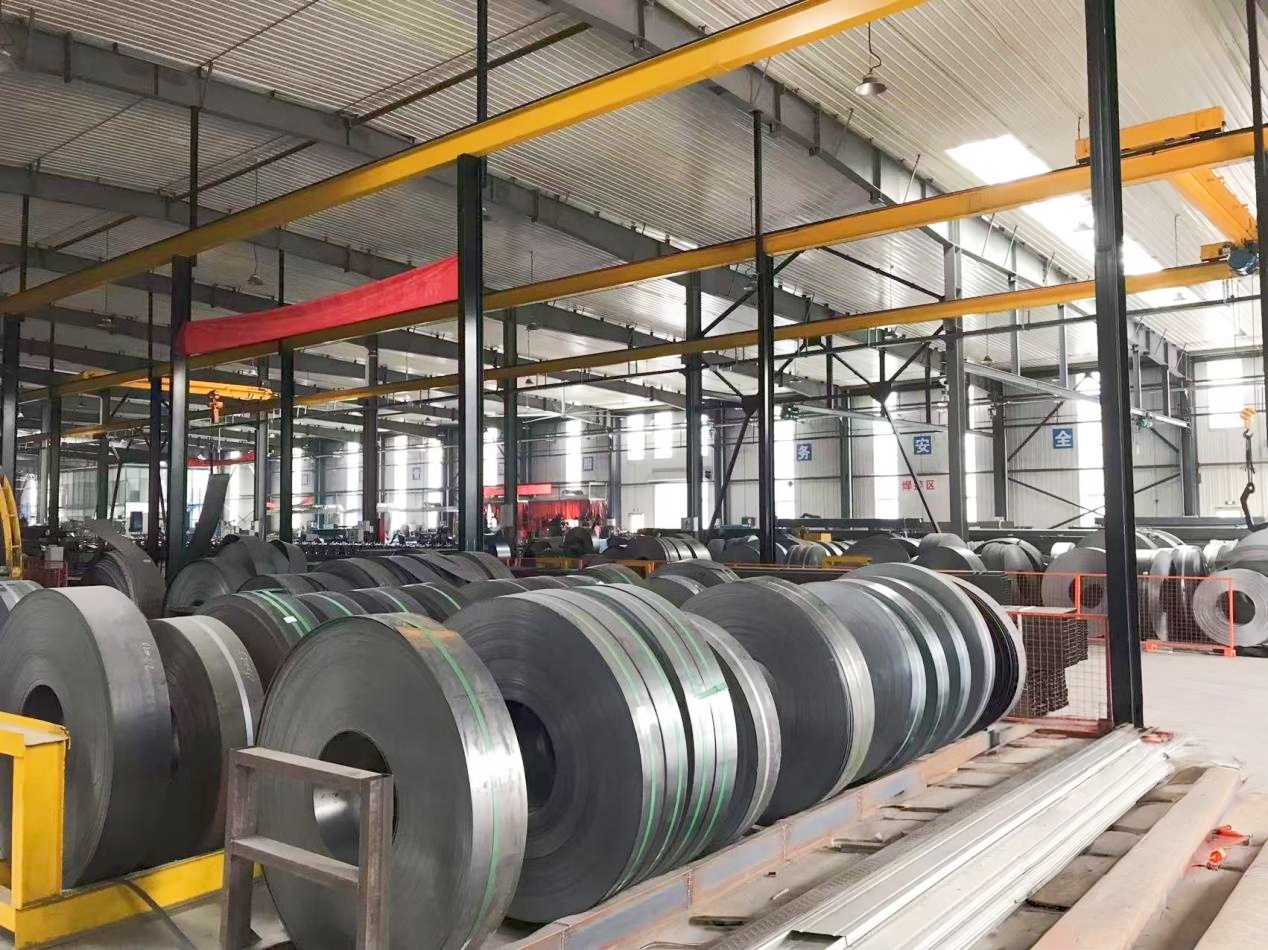

Our Warehouse

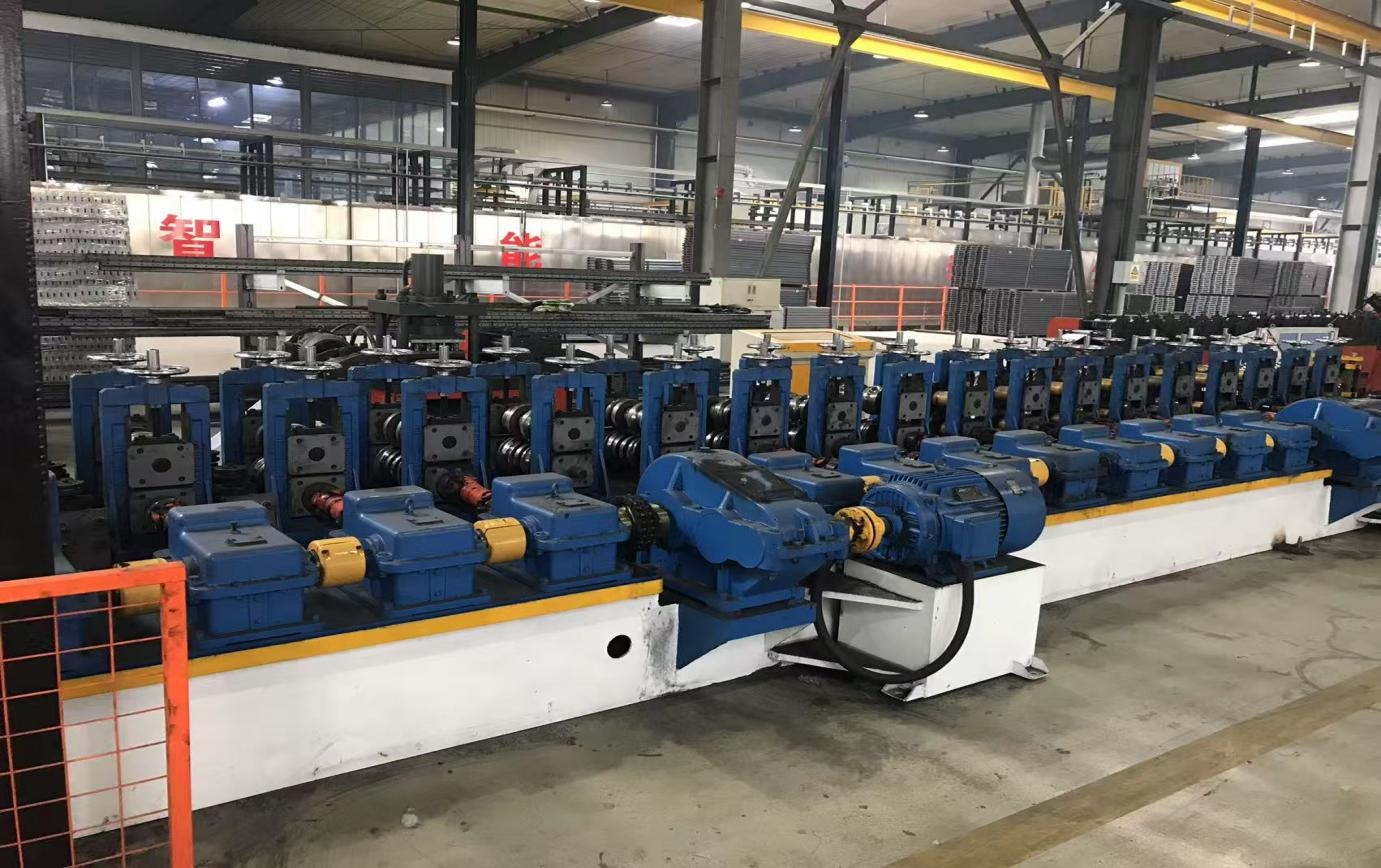

Our Equipment
Client Support
Our Full Lifecycle Services
Phase 1
Before Order
- Free detailed CAD layout drawings & quotations.
- Solution revisions tailored to your storage needs.
- Direct consultation for standard and complex steel racks.
Phase 2
During Order
- Direct bank transfer or third-party trade assurance.
- Secure transactions protecting customer business interests.
- Flexible order adjustments negotiable before manufacturing begins.
Phase 3
After Order

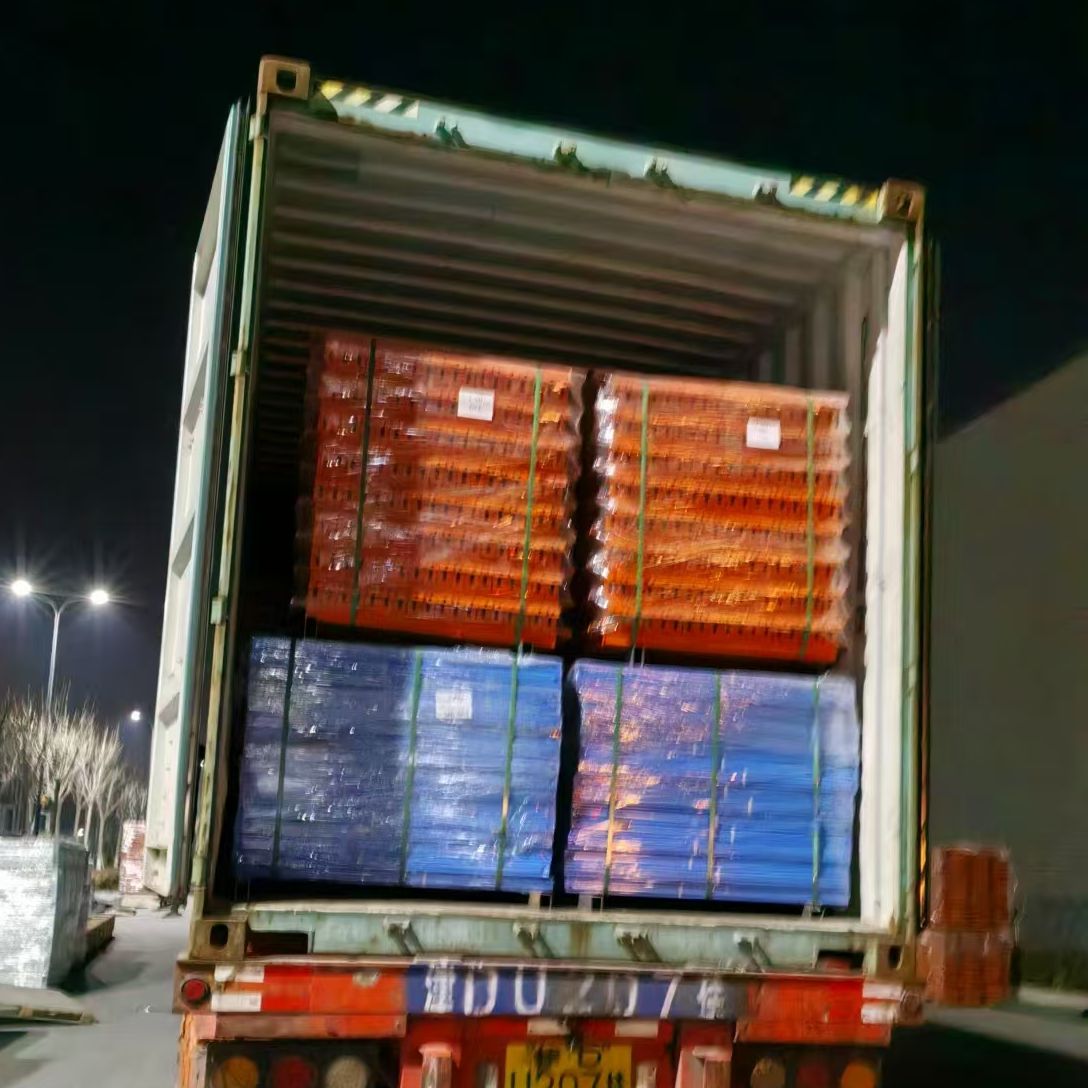

- Detailed packing lists and container loading photo updates.
- Step-by-step installation drawings and video manuals provided.
- Professional installation crews available for full on-site setup.
Got Questions?
Frequently Asked Questions
Q1: Are you a factory or a trading company?
We are a direct manufacturing factory specializing in heavy-duty industrial storage racks and automated warehouse systems since 2008.
Q2: Where is your factory located and how can I visit?
Our plant is located in Dezhou City, Shandong Province, China. You can get in touch with our team to arrange your travel schedule, and we will assist with on-site reception.
Q3: What raw steel materials are used in your products?
For standard temperature warehouses, we use high-grade carbon steel Q235B. For cold storage facilities operating at or below -18°C, we utilize impact-resistant Q345D steel or tailor-made alloys.
Q4: Do you have a Minimum Order Quantity (MOQ) limitation?
We do not impose strict MOQ limits for most products. However, a 1*20ft container load is generally recommended to optimize freight costs and logistical convenience.
Q5: What is the typical production and delivery lead time?
Delivery depends on order volume and the chosen rack configurations, typically ranging from 15 to 30 days after initial deposit confirmation.
Q6: How are the racking systems installed on-site?
We provide complete installation drawings and comprehensive video guides. If necessary, we can dispatch seasoned engineers for technical oversight or deploy a full installation team to perform the assembly.
