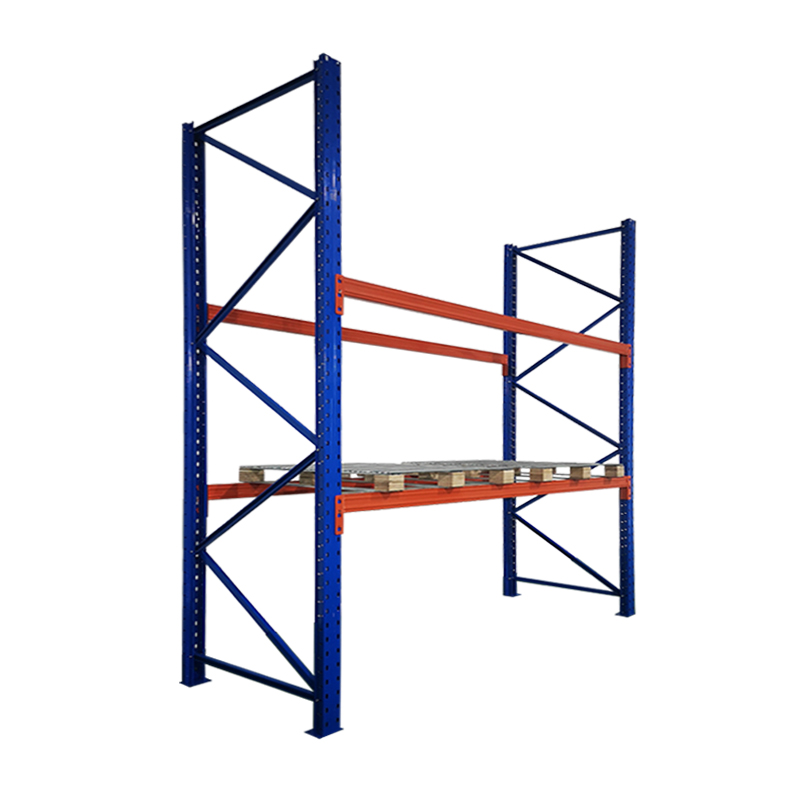

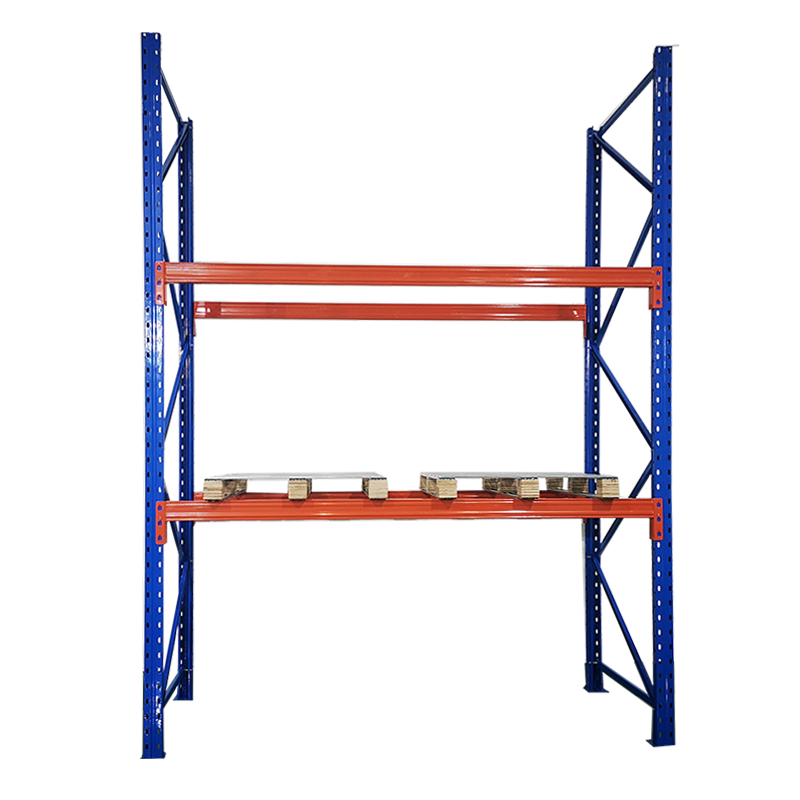

Customized Heavy Duty 4.5T Per Layer Metal Warehouse Storage Pallet Shelving Rack
Product Description
Product Description
| Customized Heavy Duty 4.5T Per Layer Metal Warehouse Storage Pallet Shelving Rack | ||||
| Product Name | Specifications (mm) | QTY | Unit | Remarks |
|---|---|---|---|---|
| Heavy Duty Shelving Racks | Specifically constructed and designed for tough loads between 1000kg - 4500kgs/UDL (Uniformly Distributive Load), serving as the optimal system for heavy-capacity warehouse operations. Innovations in the box beam structure increase load rating capacities while bracket versatility simplifies installation and teardown procedures. | |||
| Configurations | Beam Length: Customized Upright Frame: Customized Layers: Selective Weight Capacity: 1000 ~ 4500kg/layer Colors: Blue, White, Orange Red | |||
Specifications & Standards
• Supply Areas: USA, Europe, Australia, etc.
• Material: High-grade Q235B Steel
• Payment Terms: 40% deposit upon PI confirmation, 60% balance paid prior to dispatch.
• Material: High-grade Q235B Steel
• Payment Terms: 40% deposit upon PI confirmation, 60% balance paid prior to dispatch.
Superficial Treatment
Epoxy resin static electrostatic powder coating finish.
• Coating Thickness: 60-80 microns.
• Spray Process: Degreasing → Parkerising → High-pressure rinsing → Drying → Static coating → High-temperature curing.
• Coating Thickness: 60-80 microns.
• Spray Process: Degreasing → Parkerising → High-pressure rinsing → Drying → Static coating → High-temperature curing.
Detailed Images
Heavy Duty Racking Features
Consists of upright frames, beams, and steel decking plates, engineered for straightforward boltless assembly.
• Deflection limits: Beam allowable flexivity length is 1/200; upright maximum flexivity height is 1/1000.
• Height Adjustability: Upright hole pitch is 75 mm, allowing flexible vertical beam adjustment.
• Safety Engineering: Distinctive rhombus hole pattern for bidirectional interlocking, equipped with beam locking safety pins to prevent accidental dislodgement during forklift maneuvering.
• Deflection limits: Beam allowable flexivity length is 1/200; upright maximum flexivity height is 1/1000.
• Height Adjustability: Upright hole pitch is 75 mm, allowing flexible vertical beam adjustment.
• Safety Engineering: Distinctive rhombus hole pattern for bidirectional interlocking, equipped with beam locking safety pins to prevent accidental dislodgement during forklift maneuvering.

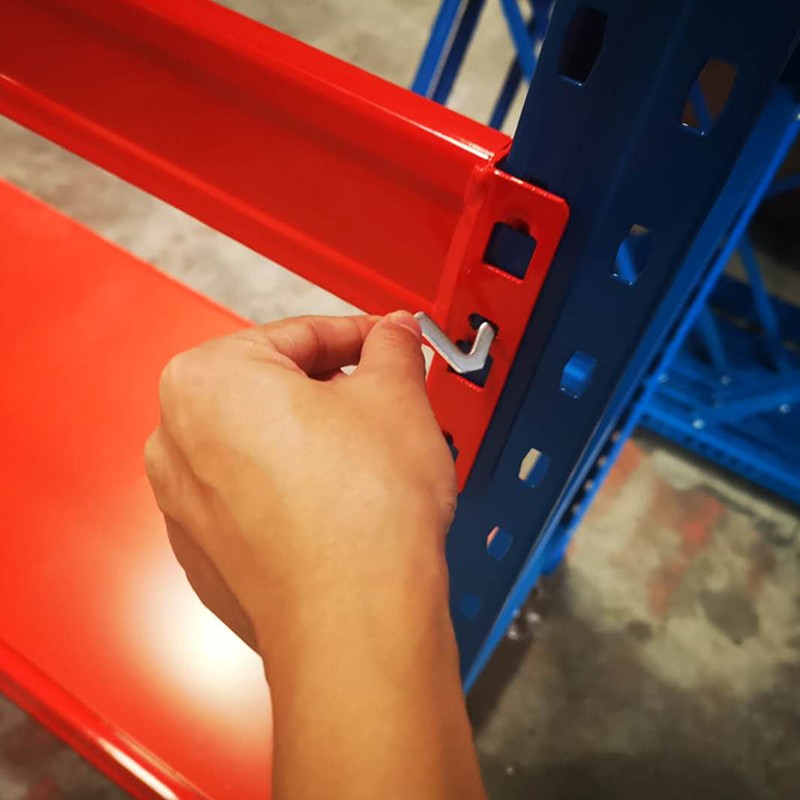

Steel Plate

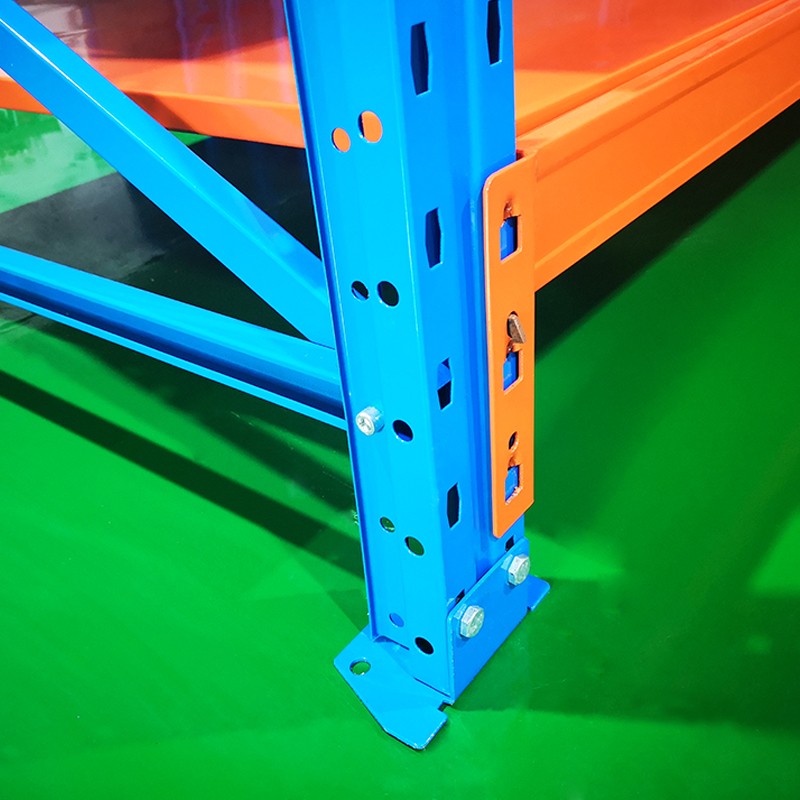

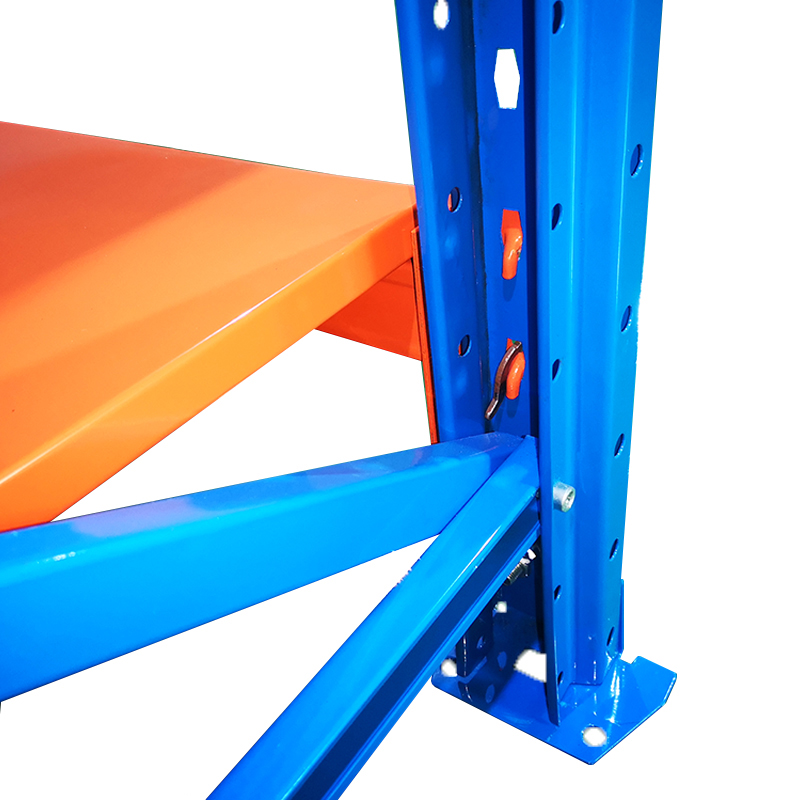

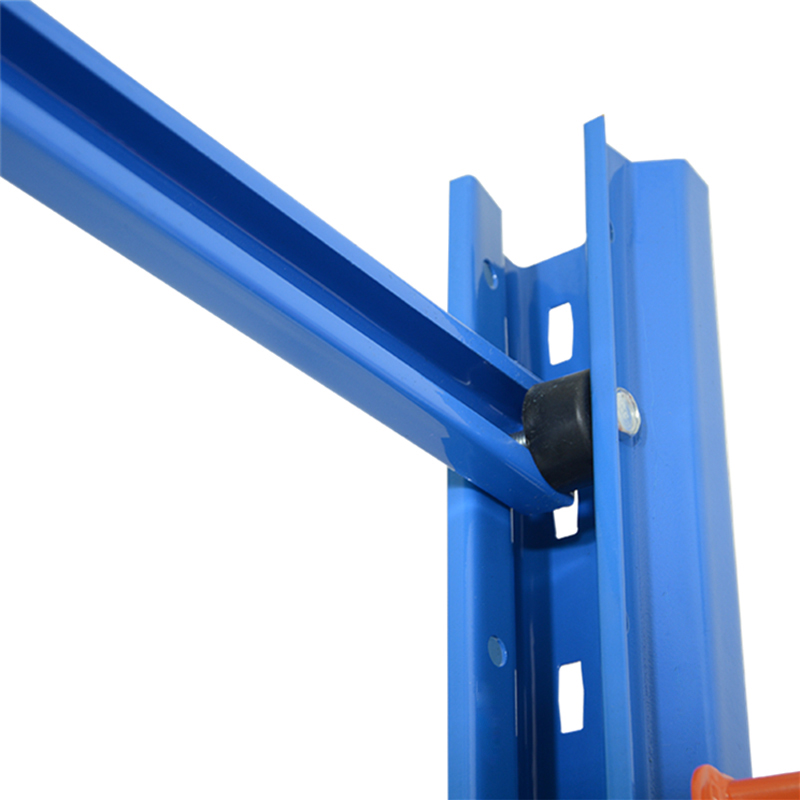

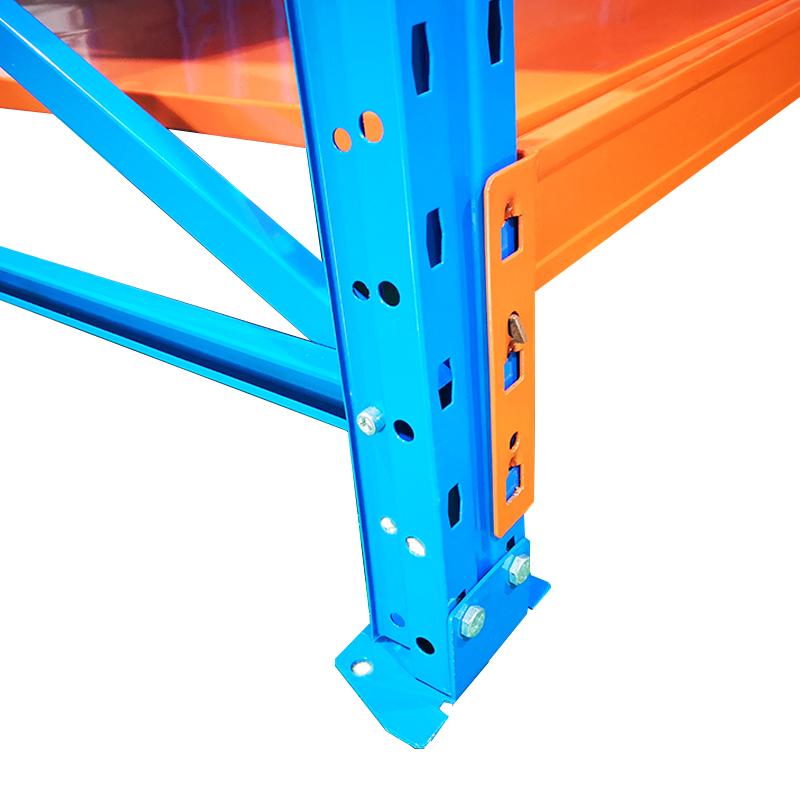

Beam & Upright # 01

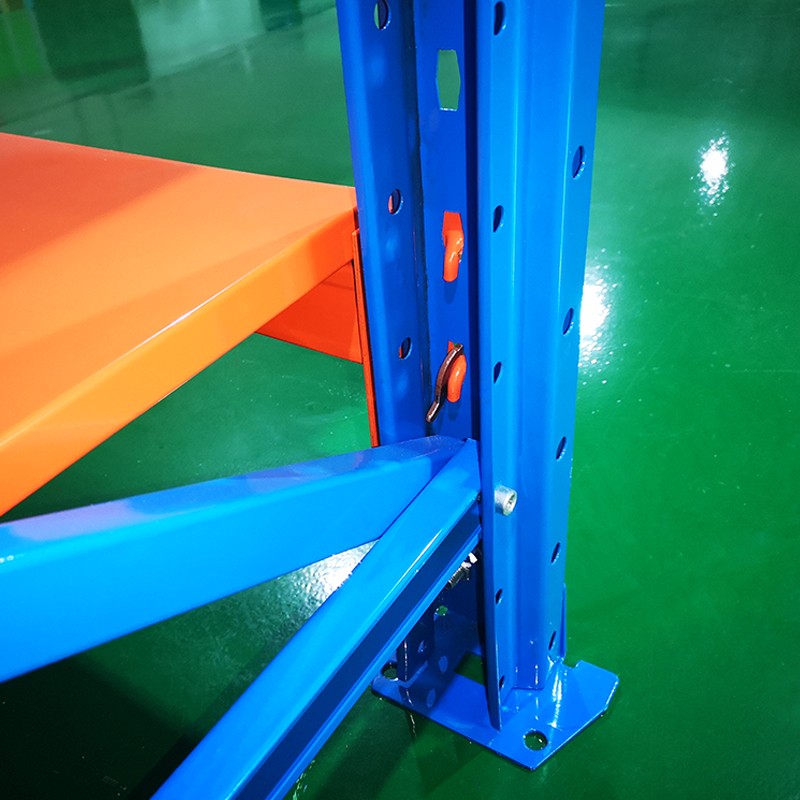

Beam & Upright # 02

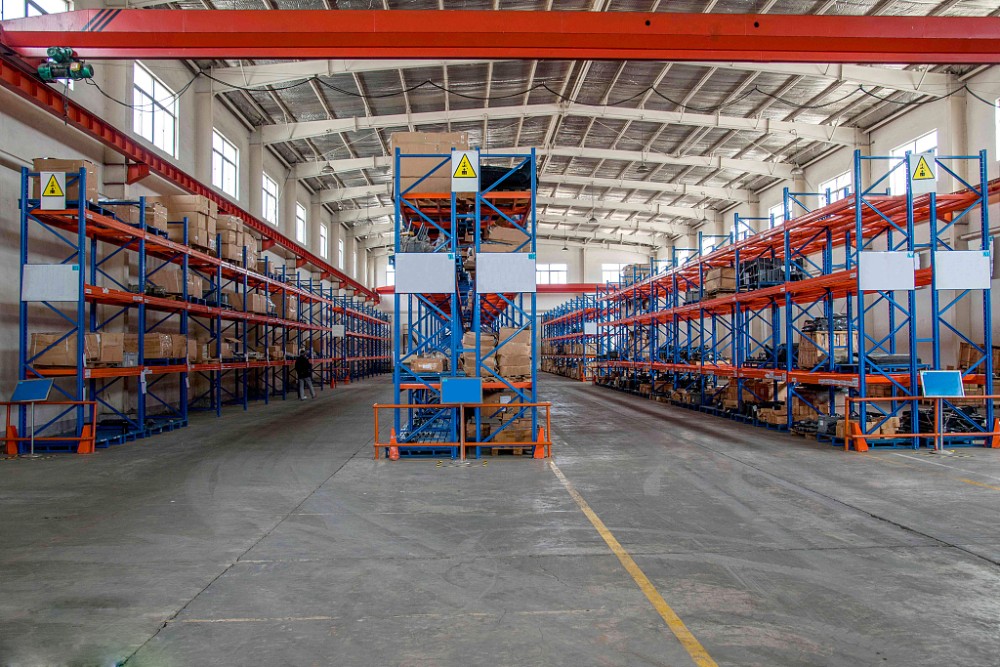

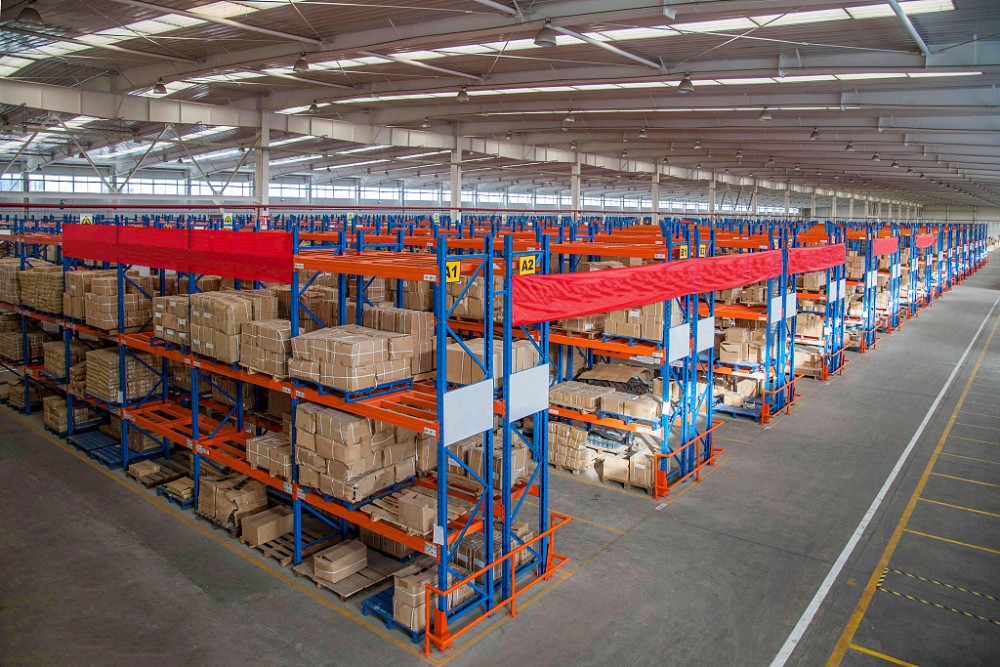

Product Case # 01

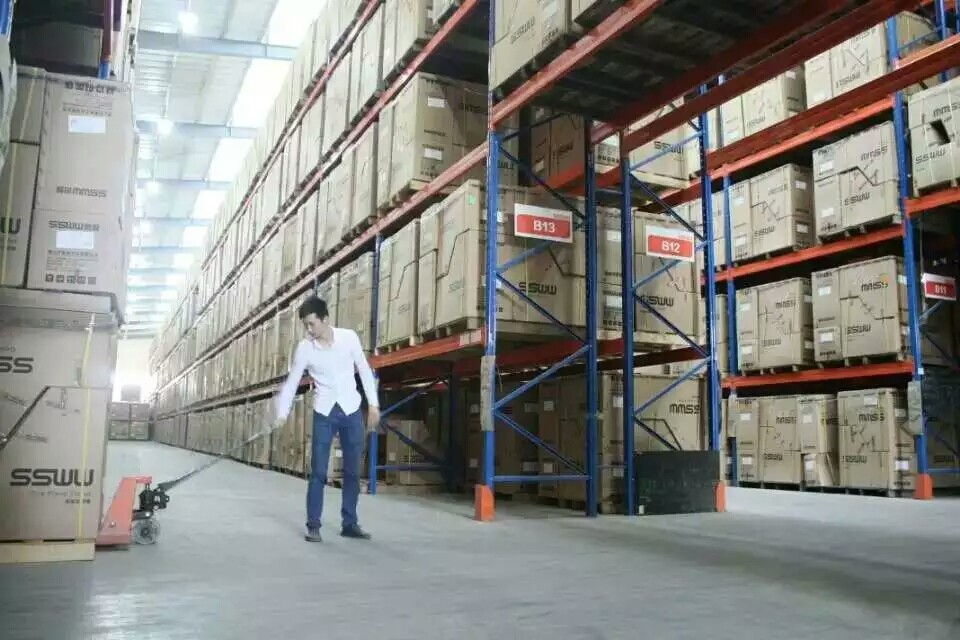

Product Case # 02
Hot Sale Products

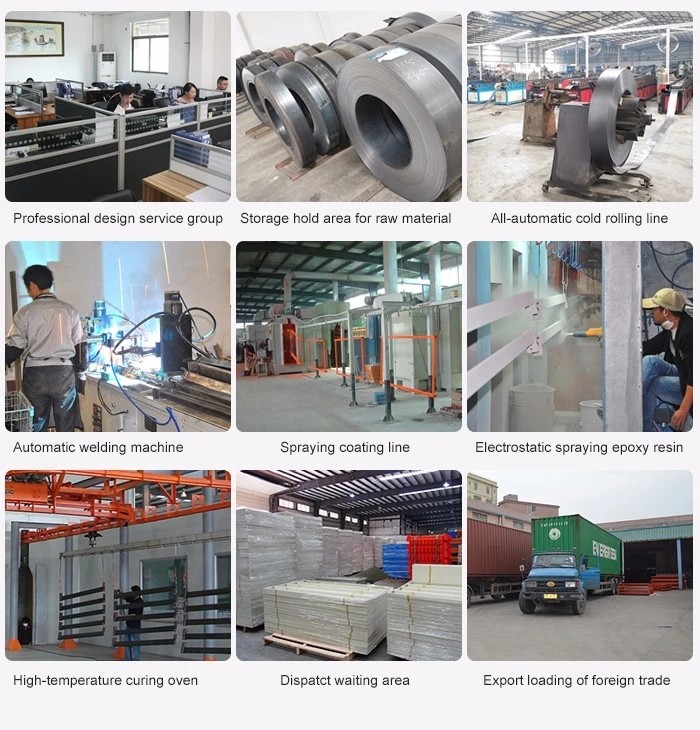

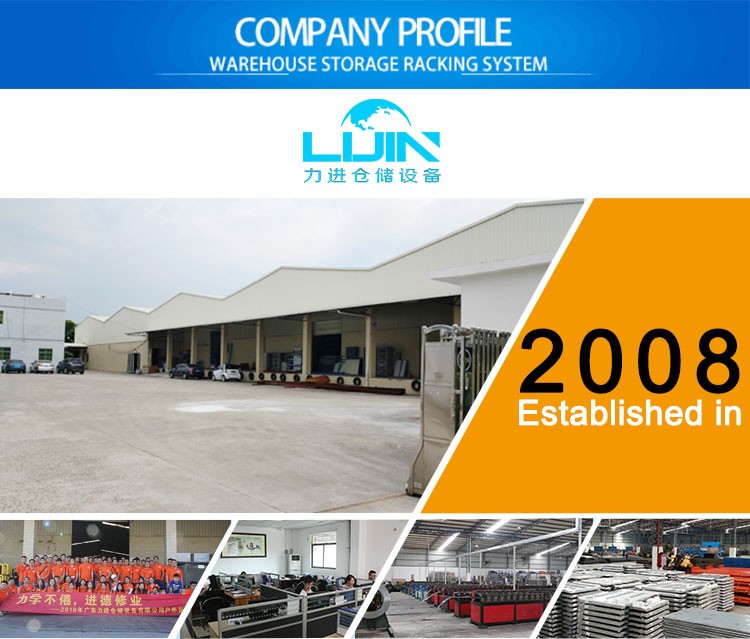

Company Profile
Guangdong Lijin Storage Equipment Co., Ltd. is a premier manufacturer in China specializing in advanced storage racking and industrial shelving solutions. Our product range includes selective pallet racking, shelving units, mobile racks, mezzanine platforms, cantilever racking, gravity flow pallet live systems, push-back racking, and automated radio shuttle systems.
We deliver comprehensive storage engineering for various sectors including retail, manufacturing, logistics, distribution, and commercial engineering. All manufacturing complies with stringent international safety standards, utilizing certified materials for superior load safety and lifespan reliability.
Exhibitions & Certifications
Our Service Guarantee
- OEM/ODM Support: Full customization available for structural design, capacity criteria, and packaging schemes.
- Sample Program: Fast sample arrangement for mechanical inspection and configuration evaluation.
- 24-Hour Technical Support: Responsive inquiry management and comprehensive layout guidance within 24 hours.
- Logistics Tracking: Consignment status updates sent every two days throughout transport until successful port arrival and installation clearance.
Frequently Asked Questions (FAQ)
Q1: What are your export packaging methods?
Goods are primarily protected using corrugated cartons and multi-layer plastic air bubble wraps to protect against moisture and abrasion during sea freight.
Q2: What payment terms and procedures do you support?
Standard terms are T/T 30% to 40% deposit upon proforma invoice sign-off, with the balance clearable upon photographic cargo inspection prior to shipping.
Q3: Which trade delivery terms are applicable?
We support global trade terms including EXW, FOB, CFR, and CIF shipping conditions tailored to client requirements.
Q4: What is the estimated standard production lead time?
Standard lead time ranges from 15 to 25 calendar days following receipt of the initial down payment, depending on volume specifications and profile engineering.
Q5: Can you manufacture based on tailored samples or drawings?
Yes, we can produce directly from your architectural layouts, technical blueprints, or structural physical samples, along with internal mold customization.
Q6: Are quality inspections conducted before product shipment?
Yes, 100% of manufactured batches undergo structural tolerance, paint finish, and loading stability assessments before final packing and logistics dispatch.
