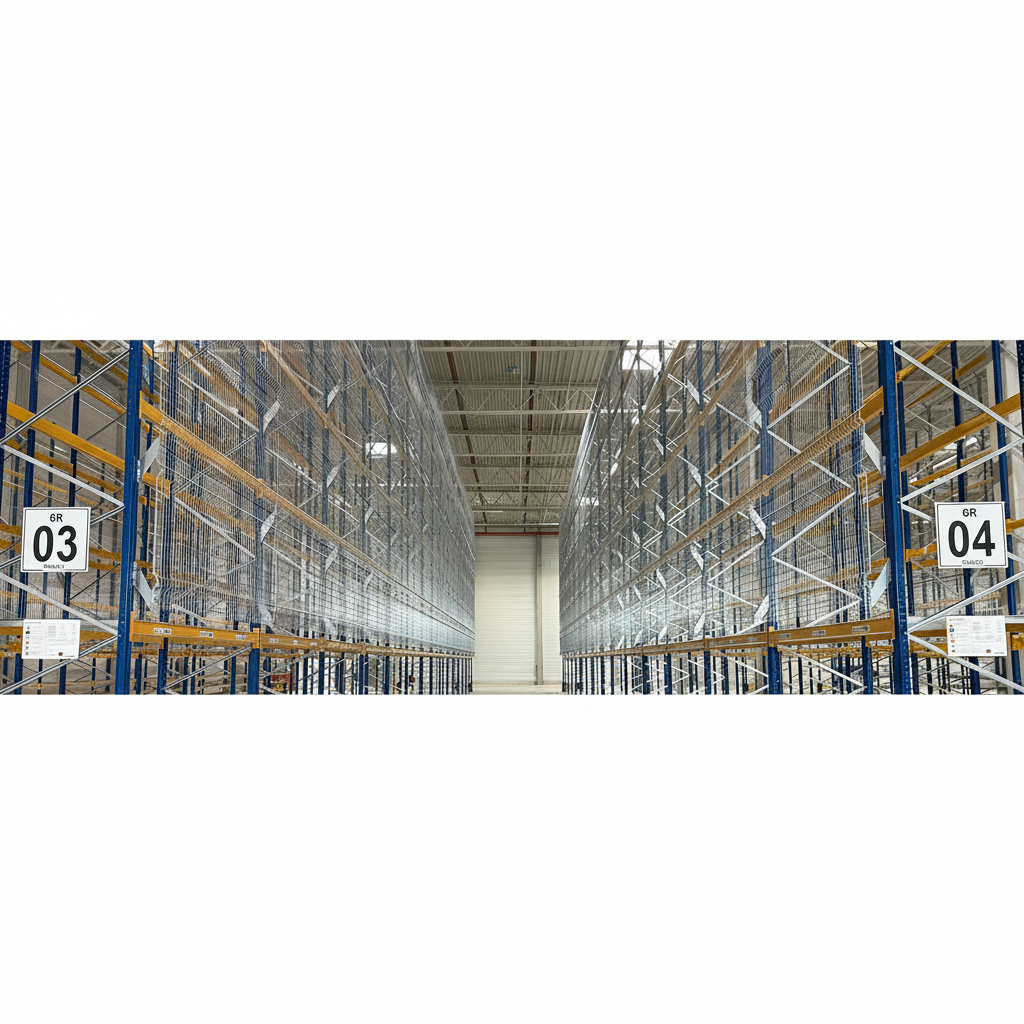

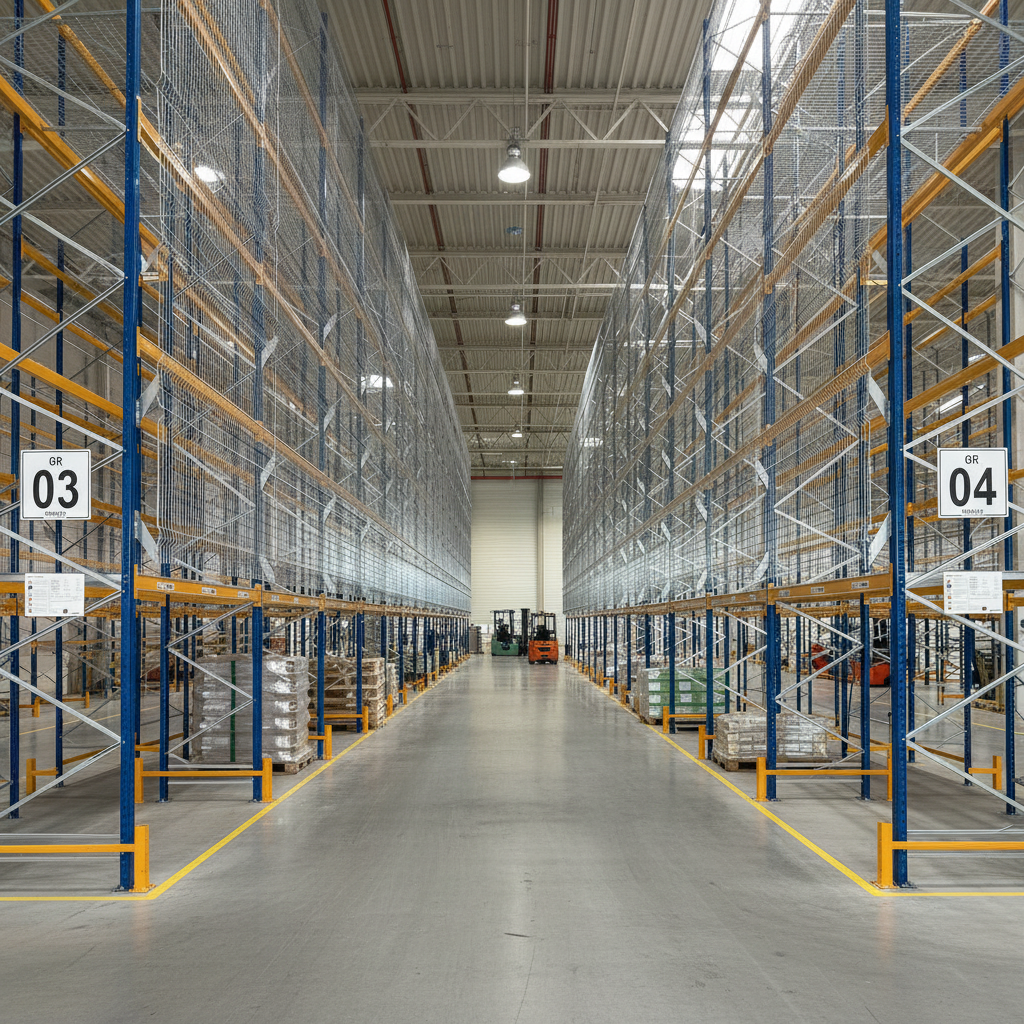

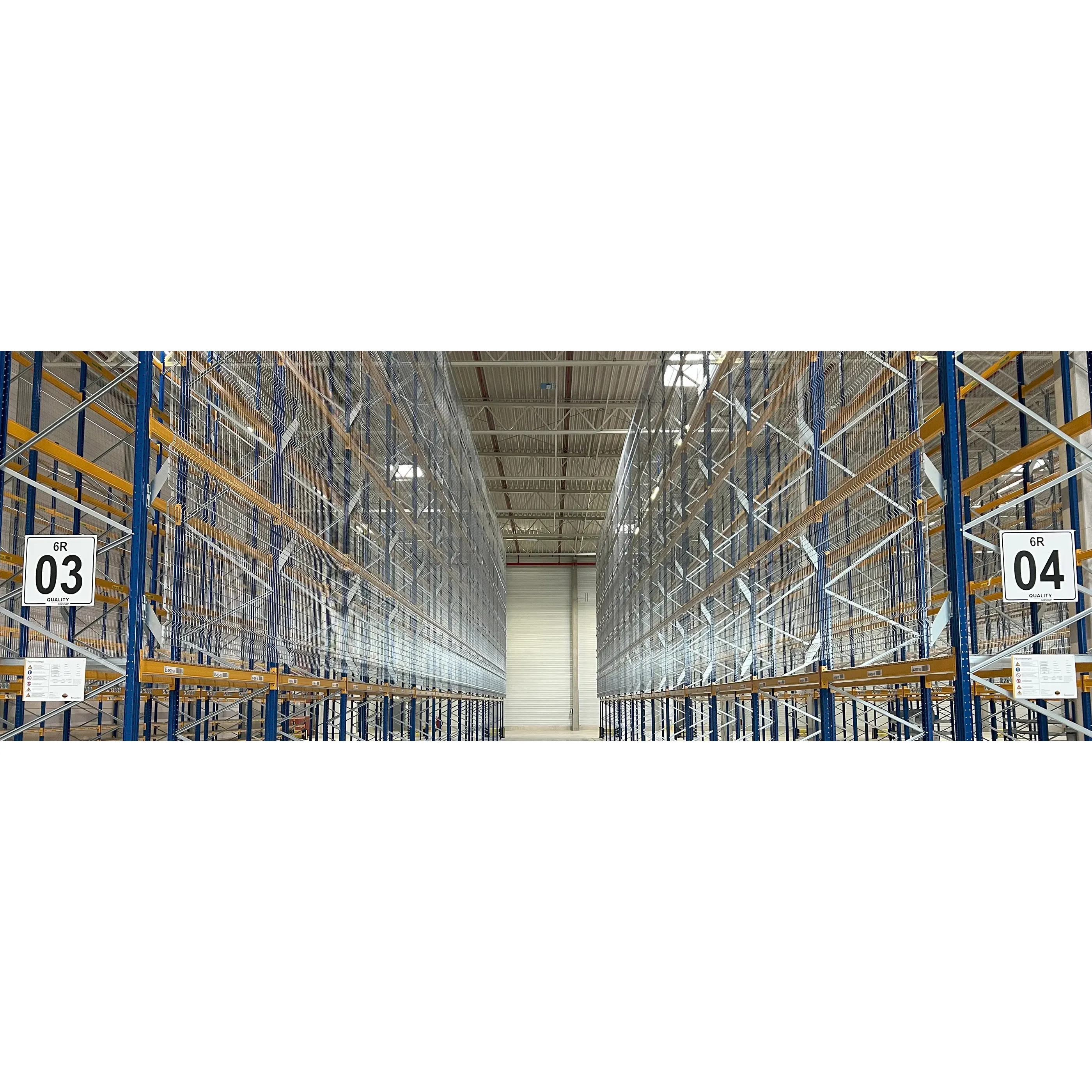

Debion Protect Grid Back Wall System For Warehouse Shelving Storage Solution
Product Description
Product Overview
The DEBION® PROTECT grid back wall system is an easy-to-install, cost-effective, and flexible back wall system designed for shelving units. Characterized by simple assembly and a direct connection to vertical posts, this system can be universally applied to any shelving system. It provides on-site adjustability and an aesthetically pleasing finish. Variable shelf spacing is available upon request, alongside custom dimensions without extended delivery times. Manufactured from robust galvanized steel, the grid back wall features a wire thickness of Ø 3.8 mm and a mesh size of 50 × 100 mm, reinforced with 2 or 3 horizontal embossings. Delivered with left and right console variants and standard M10 fastening materials, this configuration represents a safe, translucent, and highly economical protective solution for retail, logistics, and warehouse environments.
Simple Assembly: Direct connection to vertical posts with on-site adjustability.
Universal Compatibility: Fits any shelving system with variable shelf spacing options.
Reinforced Build: Galvanized steel wire with 2 or 3 horizontal reinforcement embossings.
Target Applications: Translucent, safe, and cost-effective for retail, logistics, and warehouses.
Technical Specifications
| Material | Galvanized Steel |
|---|---|
| Wire Thickness | Ø 3.8 mm |
| Mesh Dimensions | 50 × 100 mm |
| Reinforcement | 2 or 3 horizontal embossings |
| Standard Dimensions (L×H) | 2,760 mm × 1,480 mm / 980 mm 3,660 mm × 1,480 mm / 980 mm |
| Console Specifications | Left and right versions; standard console spacing of 150 mm |
| Fastening Components | M10 fastening material included; 2 consoles plus 1 additional piece per wall required for each back wall grid |
Company Information
| Company Name | WDM Deutenberg GmbH |
|---|---|
| Company Address | Putlitzer Strasse 8 |
| Company Country | DE (Germany) |
Frequently Asked Questions
What applications is the DEBION® PROTECT grid back wall system suitable for?
The DEBION® PROTECT system is ideally designed for retail, logistics, and warehouse shelving setups, providing a secure, translucent, and cost-effective barrier solution.
What are the standard dimensions and mesh specifications?
The system features a wire diameter of Ø 3.8 mm and a 50 × 100 mm mesh size. Standard sizes include lengths of 2,760 mm or 3,660 mm with heights of 1,480 mm or 980 mm.
Can the grid back wall system be customized to specific dimensions?
Yes. The system supports variable shelf spacing upon request as well as custom dimensions without long delivery lead times, and it can be adjusted on-site.
How is the grid back wall mounted to the shelving uprights?
The wall connects directly to the vertical posts using left and right consoles with a standard 150 mm spacing. Two consoles plus one additional piece per wall are required for each back wall grid, with M10 fastening materials included.
How is additional stability achieved on the grid panels?
Each panel is constructed from galvanized steel and is additionally reinforced with 2 or 3 horizontal embossings across the grid structure to ensure rigidity and structural integrity.
