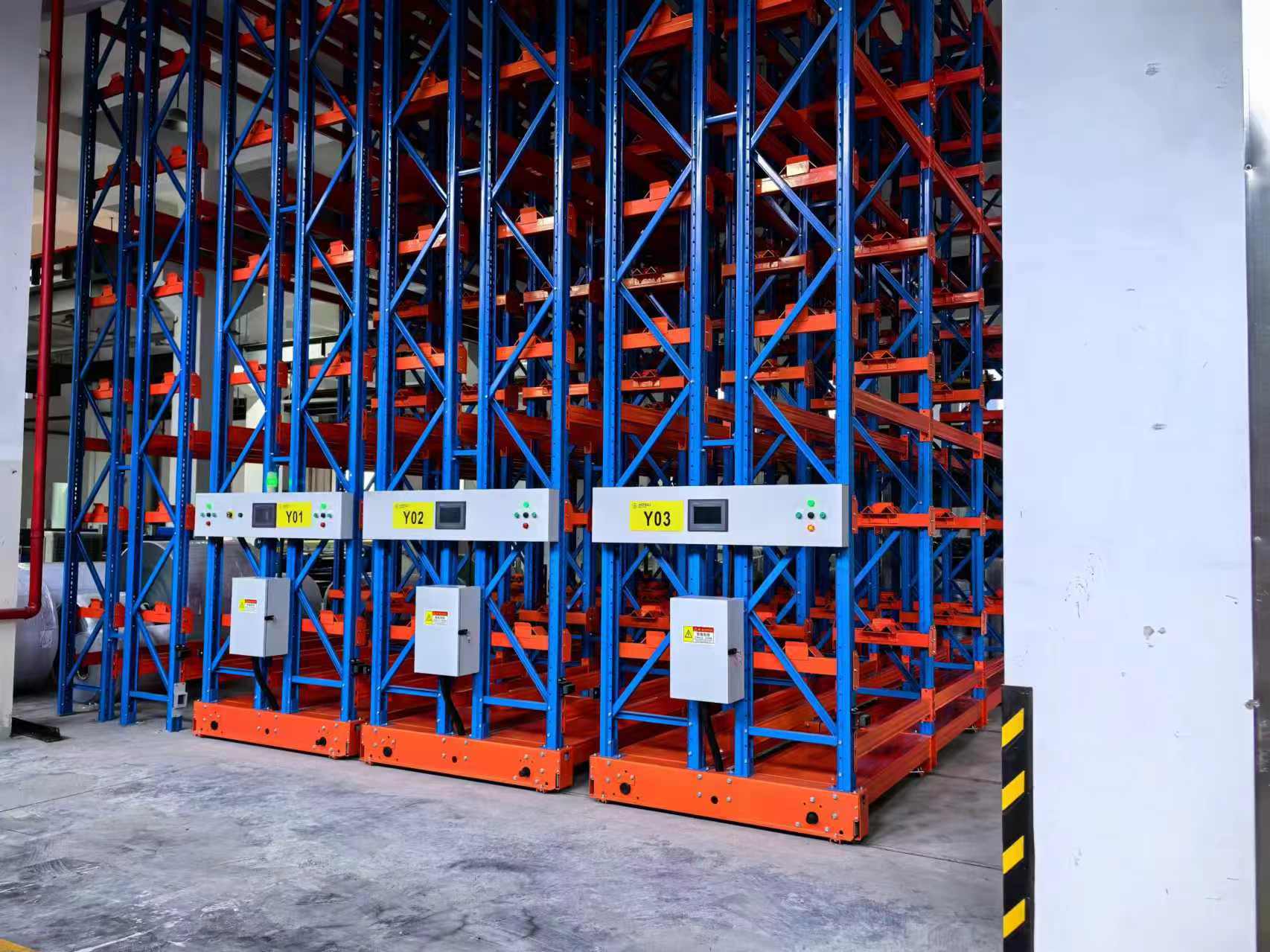

Corrosion-resistant Automatic Electric Mobile Pallet Racking Warehouse Shelves Mobile Rack System for Cold Room Storage
Product Description

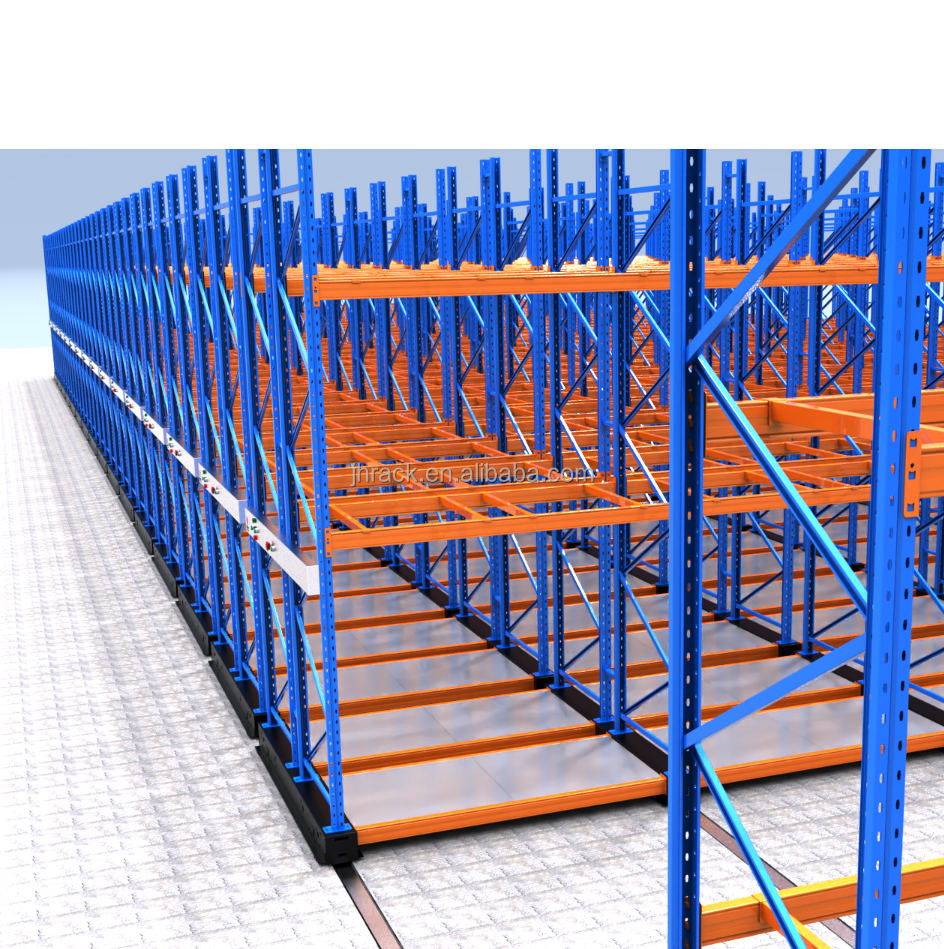

Mobile Racking System
Corrosion-Resistant Automatic Electric Mobile Pallet Racking Warehouse Shelves Mobile Rack System For Cold Room Storage
Products Description

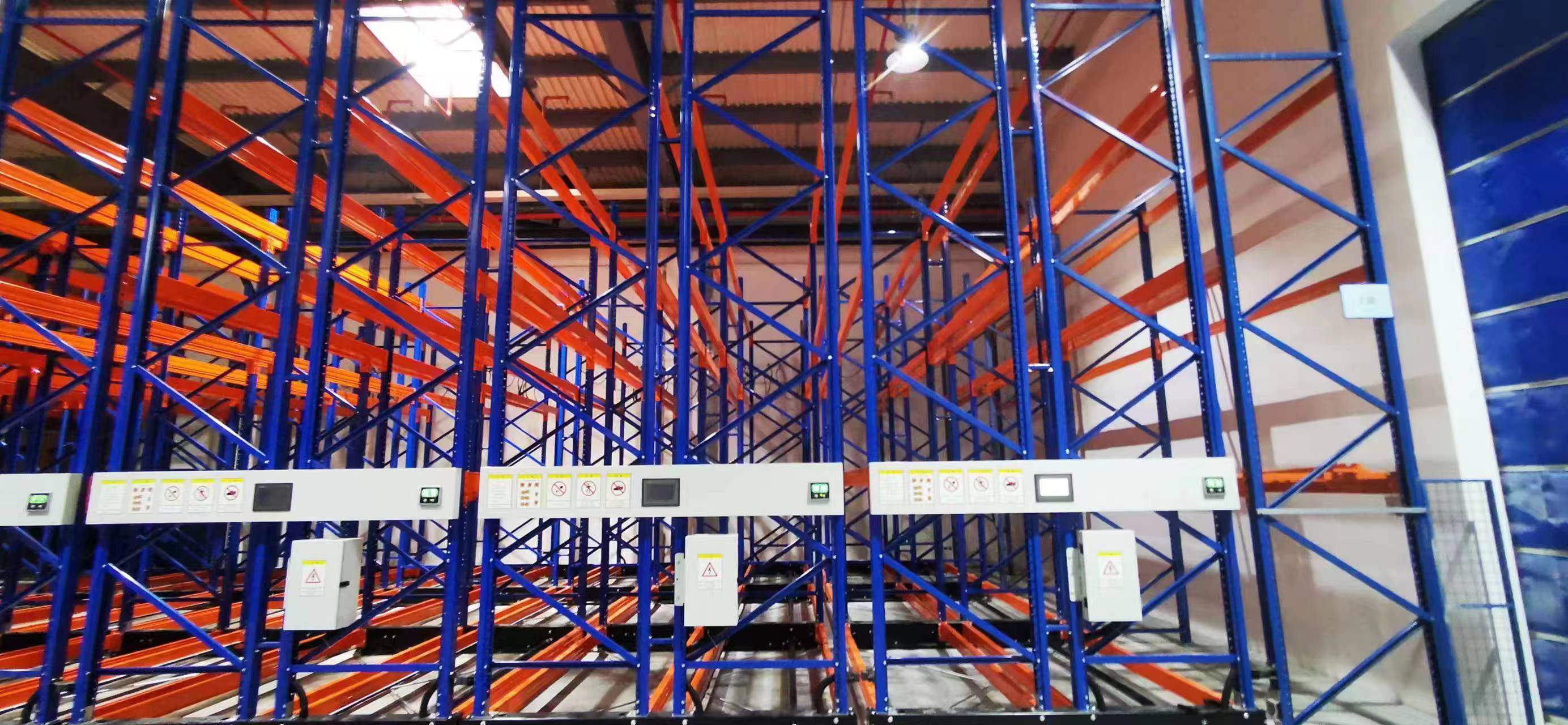

The Electric mobile shelving system, is a professional high-density intelligent warehousing system, is a set of upper computer WMS warehouse management software, imported PLC, inverters, sensors, 7-inch touch screen, Android intelligent mobile terminal collector, RFID, bar code technology system of intelligent storage function as one of the modern warehouse management system, the system only requires a channel, the utilization of space is extremely high.
Specification
| Model | Load Capacity | Movement Speed | Motor power | Power supply form | Power supply | Control mode | Safety device |
|---|---|---|---|---|---|---|---|
| Railed | 32 tons/sets | Max. 10M/min | Max. 1.5KW | Tow cable synchro line | 220v / 380v | Automatic linkage / PC control / remote control | Channel self-locking / Automatic detection / Emergency stop, sound and light alarm overload, overcurrent protection |
| Trackless | 16 tons/sets |

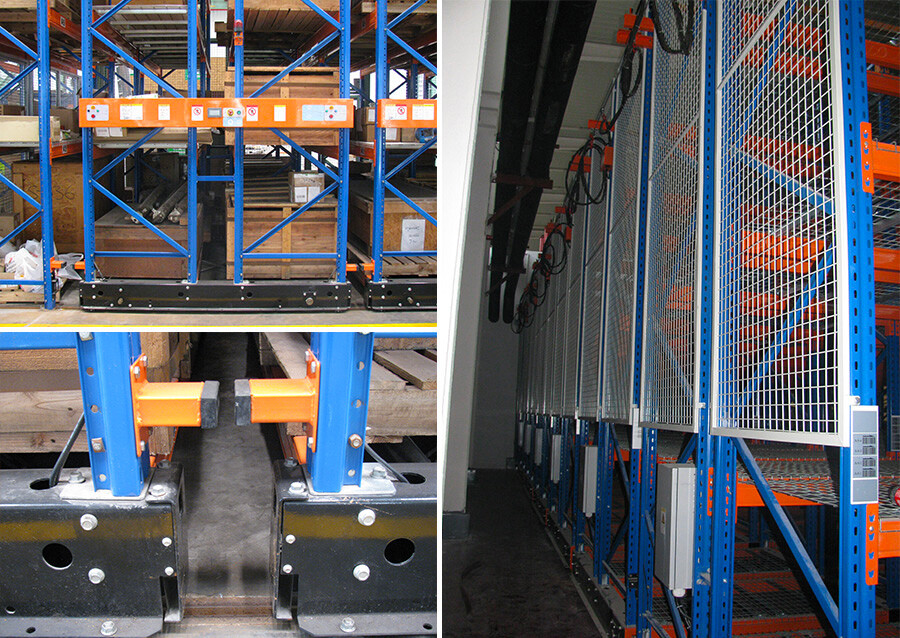

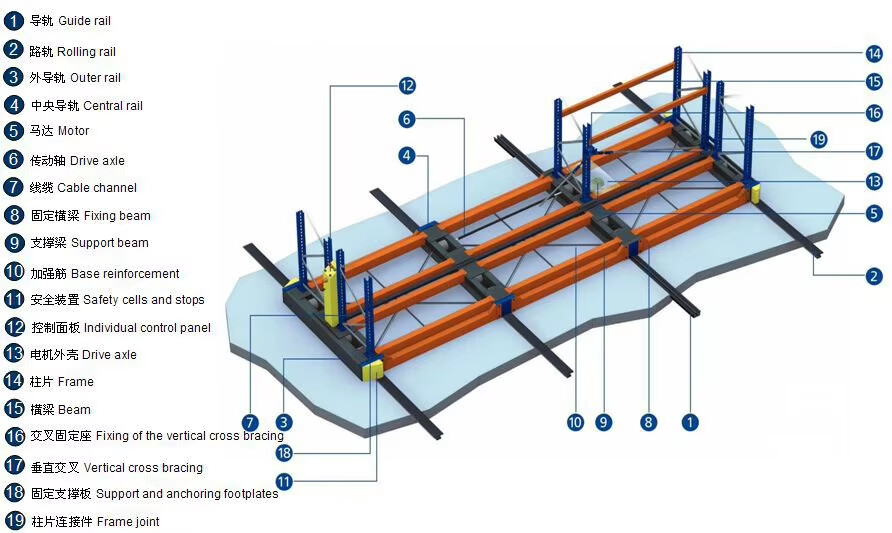

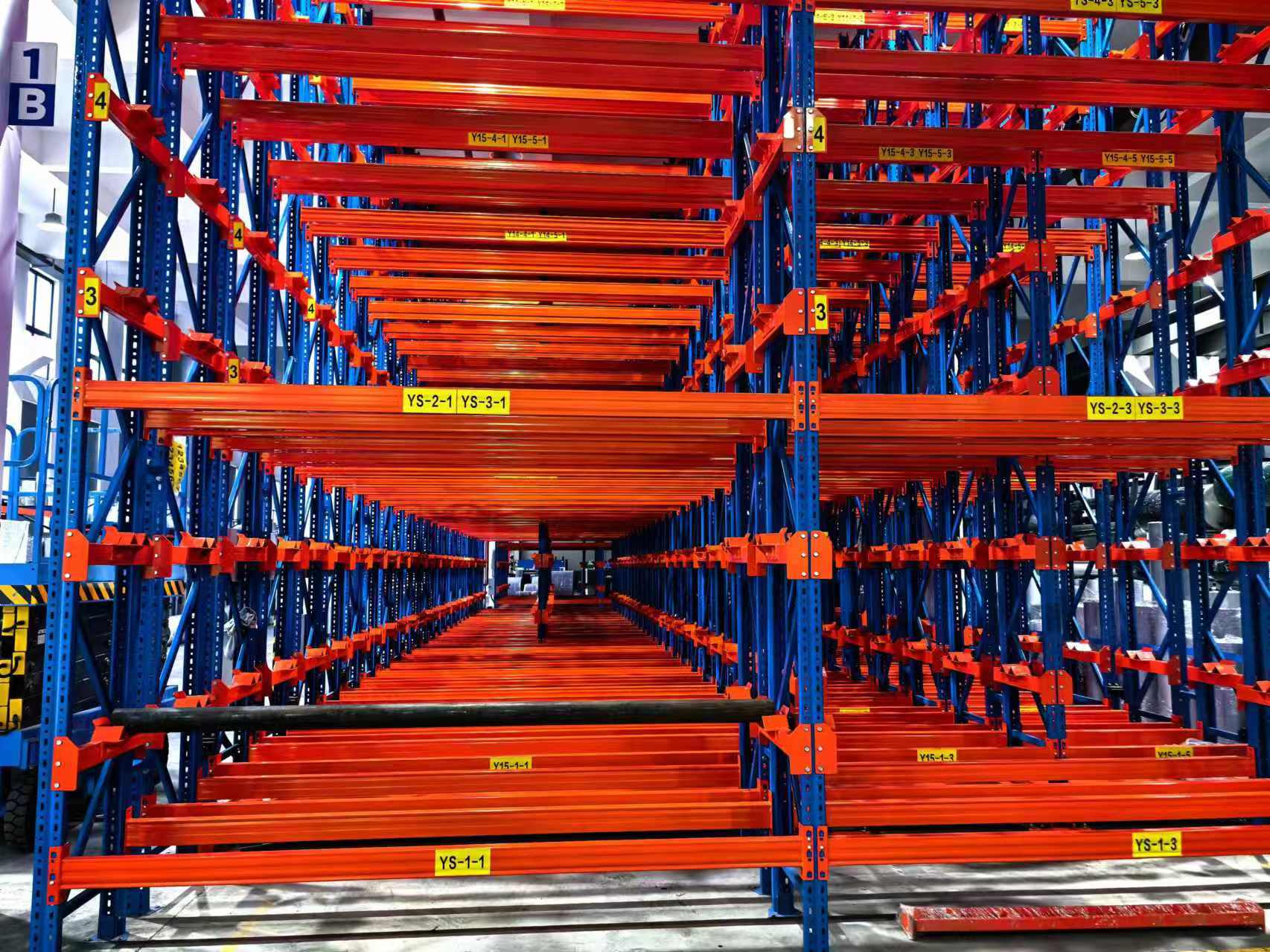

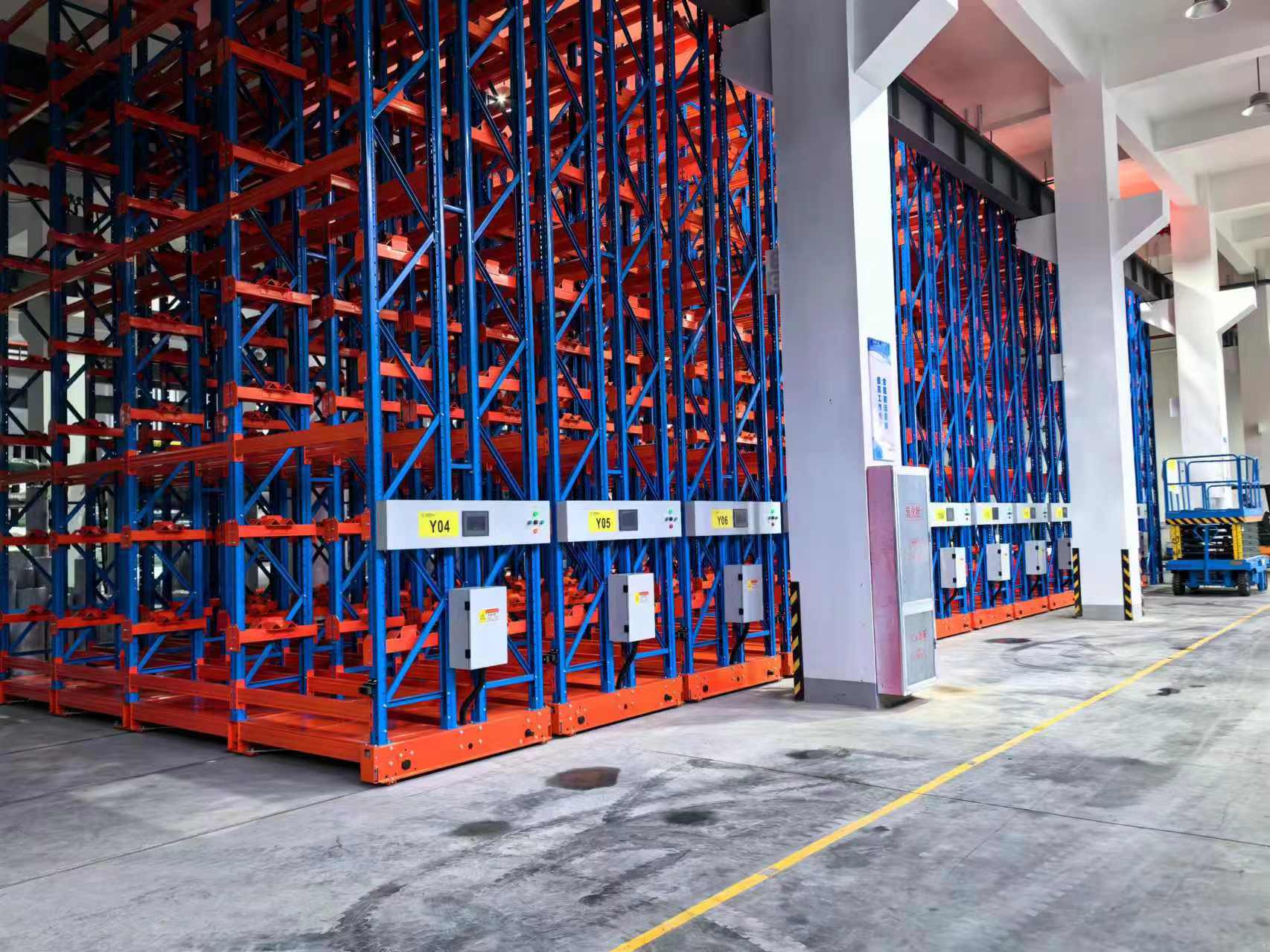

1. Mobile shelving units: These are rail mounted shelves that can be moved along the rails as needed.
2. Motorized Drive System: The motor and control system used to drive the shelving units along the track.
3. Central Control Unit: Responsible for coordinating the operation of the entire system, including the movement and positioning of shelves and access to goods.
4. User Interface: The interface through which the operator can enter commands to control the movement of the shelves and the access to the goods.
5. Safety System: Includes various sensors and emergency stop mechanisms to ensure safe operation.
6. Shelf Management System: Software system for tracking inventory, managing shelf locations and optimizing storage space.
Product Advantage
High storage efficiency:
Only one aisle is needed, compared with traditional shelves, it can improve the utilization rate of the ground by about 80%.
Flexibility:
Provides high pickability, no need to look for aisles to access goods.
Safety:
Simple structure, safe and reliable, can be moved in case of power failure.
Suitable for special environments:

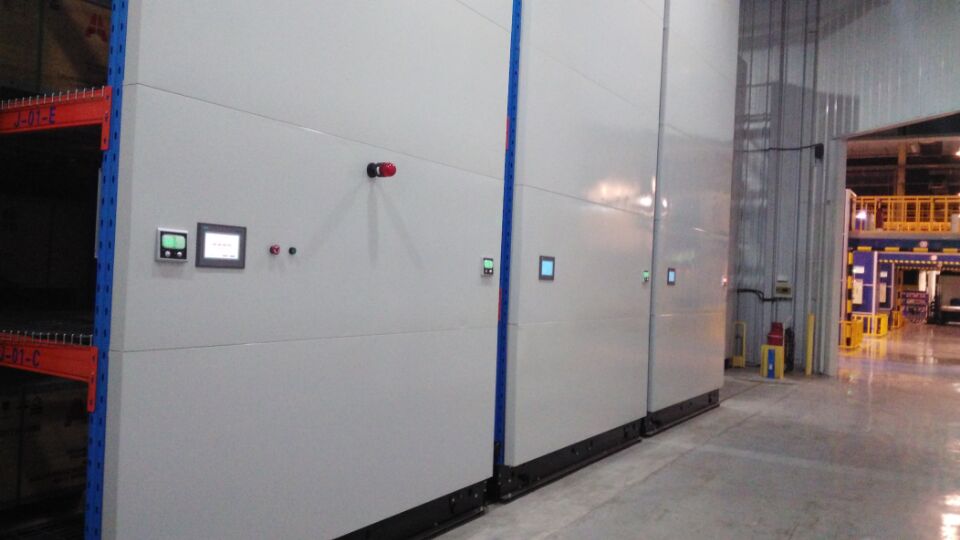

Suitable for special environments such as cold storage and explosion-proof warehouses.
Easy to operate:
Intuitive and easy to operate, through the computer control, it is extremely convenient to find the goods.

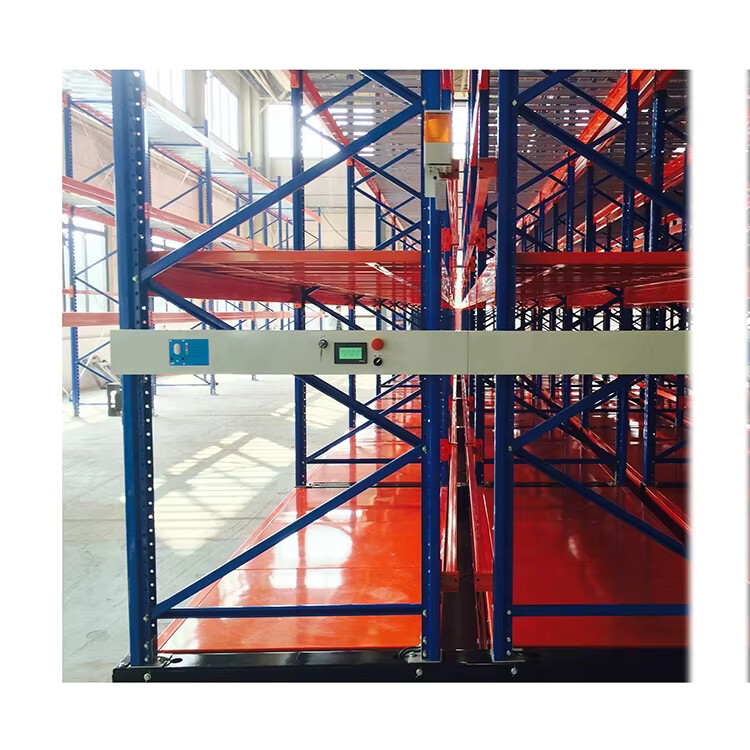

Seismic:
It has good seismic resistance, after the earthquake, the shelves will move smoothly, and will not fall down directly.
You can send us your cad drawing we will give you a quick online quote .Or you just tell us your tridimensional dimension of your warehouse we can design and draw drawings for you within 48 hours.
Company Profile
Nanjing Jinhui Storage Equipment Co., Ltd.
Anhui industry park: Area 40000 m2 | Employee: more than 50
Nanjing industry park: Area 20000 m2 | Employee: more than 50
Company Profile Video
We established in 2006, is a professional engaged in the research, development, sale and service of pallet racking, mezzanine floor, cantilever racking, light and middle duty shelving, steel pallet.
We are located in Nanjing city with convenient transportation access. We are rich of know how equipped with advanced streamlined product line. Besides an sophisticated team of installing and after service guarantee a happy experience of our product. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
In addition, we have obtained CE, ISO9001, ISO14001 and TUV certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Asia, North America, South America, Africa. We also welcome OEM and ODM orders.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Certificate
Joint Venture
FAQ
Are you a factory or trading company?
We are a manufactory for storage rack.
Where is your factory located? How can I visit there?
Our factory located in Nanjing City Jiangsu Province, China. You can fly to Nanjing airport directly. We will pick you up on Nanjing international airport. All our clients, from home or abroad, are warmly welcome to visit us.
What is the raw material of your products?
The material we choose is Q235 steel.
What is the packaging of the products?
Standard export package. All parts packed by steel belt and covered by plastic film.
What is the term of payment?
(1) T/T payment. (2) LC at sight.
What is your delivery time and loading port?
Loading ports are Nanjing or Shanghai port. Delivery time depends on order quantity and racking types, normally 15 to 30 days after receipt of deposit. Samples are available free of charge with courier fees borne by clients.
