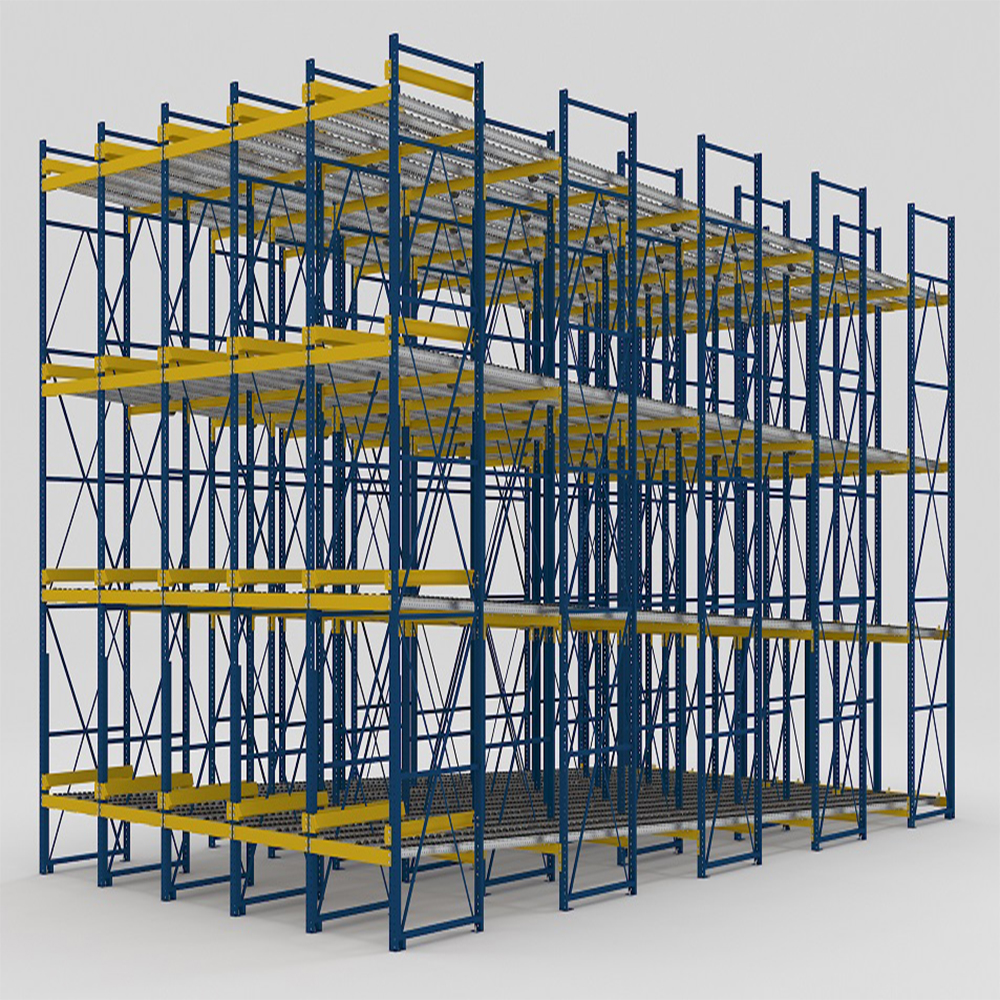

FIFO High Efficient Warehouse Storage Gravity Pallet Flow Racks Roller Rack/Pallet Flow Racking
Product Description
Specification
| Item | Heavy Duty Pallet Flow Racking |
|---|---|
| Style | FIFO Racking System |
| Material | Grade Q235 / Q345 |
| Certification | ISO9001 |
| Standard Color | Blue (RAL5017), Orange (RAL2004), Green (RAL6000), Light Grey (RAL7035), Yellow (RAL1037) |
| Access Style | High Accessibility & Selectivity |
| Adjustable Pitch | 50mm, 50.8mm, 75mm, 76.2mm |
| Finishing | Powder Coated or Galvanized |
| Application Environment | Normal Temperature or Freezer |
| Back-up Service | Installation Drawing / On-Site Instruction |
| Design Service | Free CAD Service Available |
| Lead Time | 3 Weeks for 2*40' Container |
| Standard Package | Palletized, Export-Purpose Packaging |
| Container Load | 10-15 tons / 1*20' container; 20-25 tons / 1*40' container |
| Trade Term | EXW, FOB, CNF, CIF |
Company Profile
Customer Photos
Our Advantages
Packing & Delivery
Frequently Asked Questions
Q What is a Heavy Duty Pallet Flow Racking System?

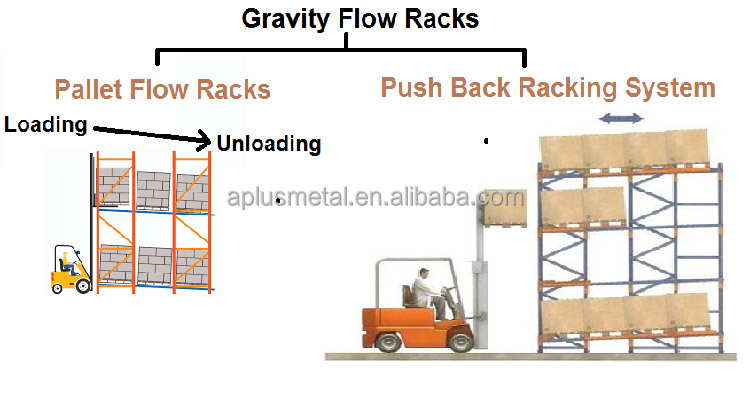

It is a high-density FIFO (First-In, First-Out) gravity storage system. Pallets are loaded from the higher end of inclined roller tracks and automatically glide forward to the retrieval aisle, maximizing storage volume and streamlining inventory turnover.
Q Can this racking system operate inside cold storage or freezer environments?
Yes. The system is designed to perform in both standard ambient warehouse conditions and low-temperature cold rooms or freezers. We offer corrosion-resistant powder coating or galvanized finishes tailored to high-moisture or low-temperature settings.
Q Do you provide customized design and CAD layouts?
Yes, we provide free professional CAD layout services based on your warehouse dimensions, pallet specifications, and load capacity requirements. Full installation drawings and on-site guidance are also available.
Q What are the available pitch adjustment options?
Beam pitch levels are adjustable at standard intervals of 50mm, 50.8mm, 75mm, or 76.2mm, allowing flexible reconfiguration for various pallet heights and operational needs.
Q What is the standard production lead time and loading capacity?
Standard production lead time is approximately 3 weeks for two 40-foot containers. Typical shipping container loading capacity is 10–15 tons for a 20' container and 20–25 tons for a 40' container.
Q What steel grades and certifications are applied to the products?
All structural components are manufactured using premium Grade Q235 and Q345 high-strength carbon steel under certified ISO9001 quality management procedures.
