Jiamu European Style Inverted Pallet Rack Durability Stability Zinc Steel Wire Mesh Decking Galvanized Powder Coated Foldable
Product Description
Products Description

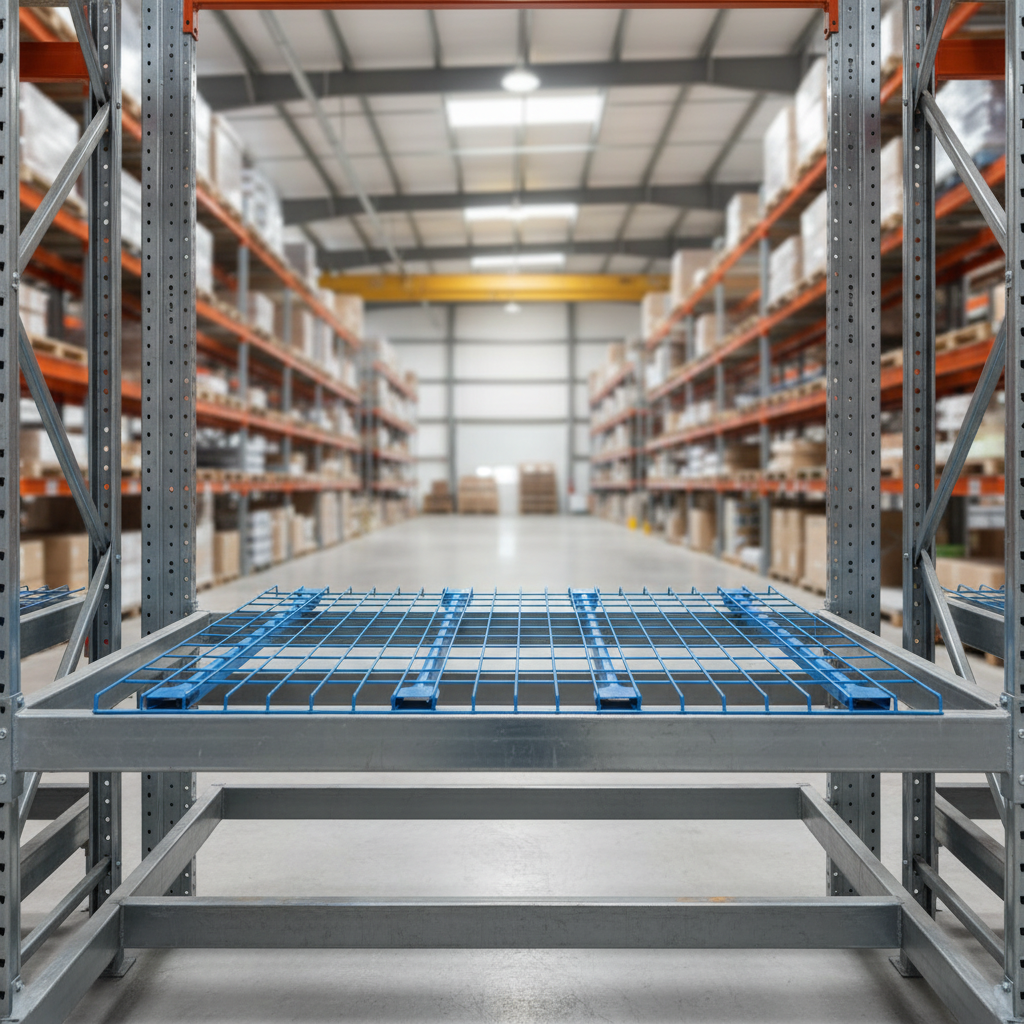

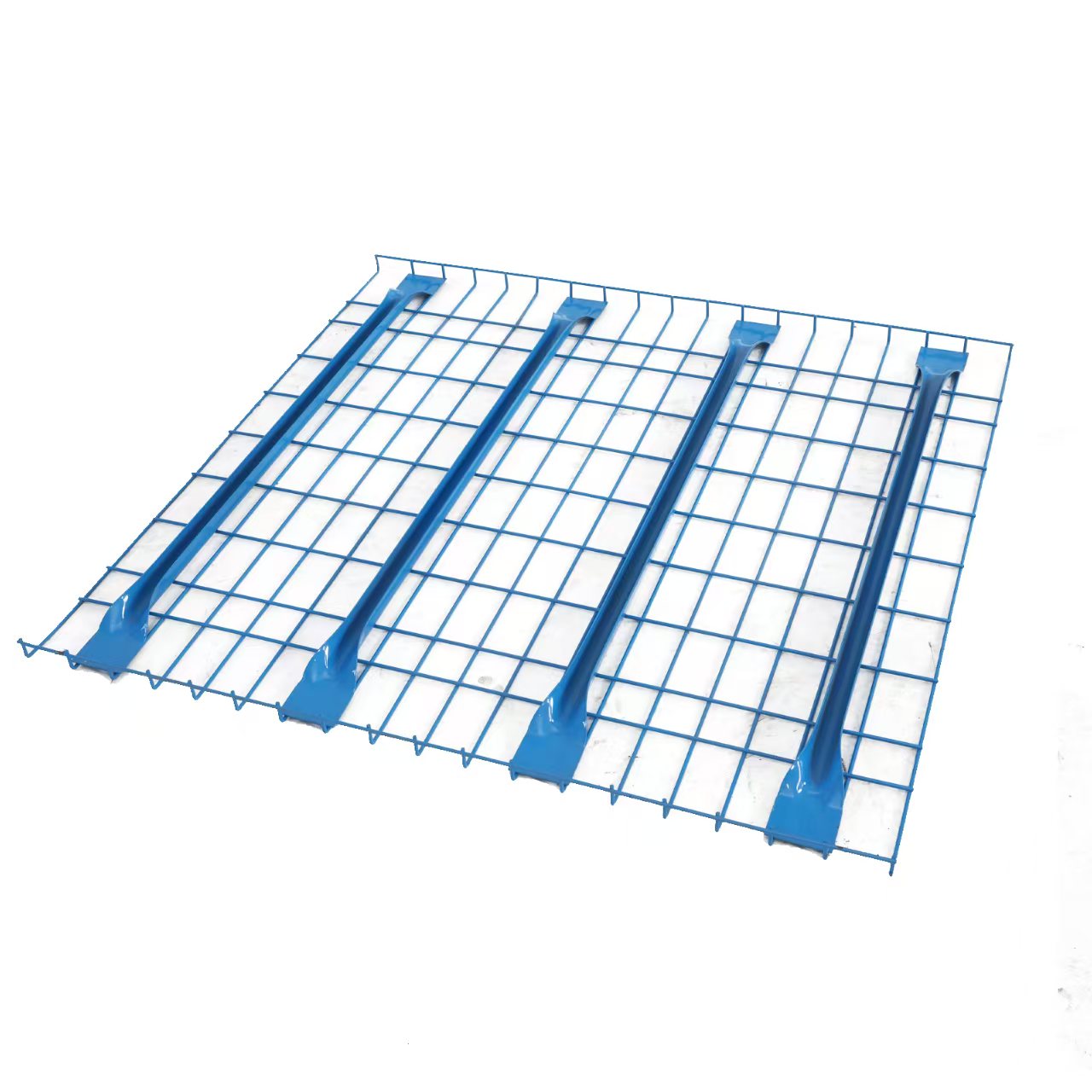

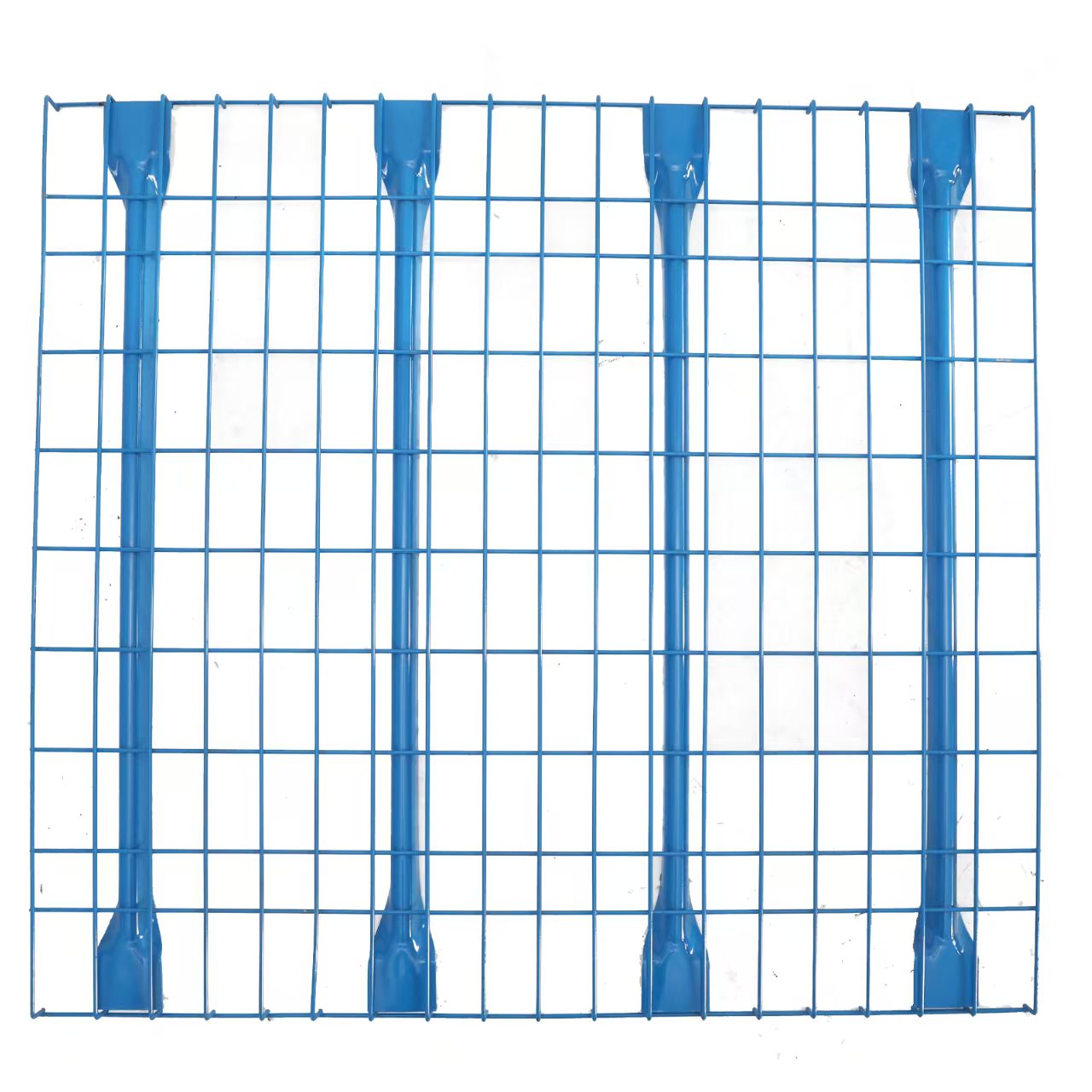

Wire Mesh Deck
Wire decking is widely used on pallet racks. It is easy to install onto the surface with the waterfalls over the beam face to fasten the wire decking. It protects the operators and products, providing heavy load capacity.
Easy Installation

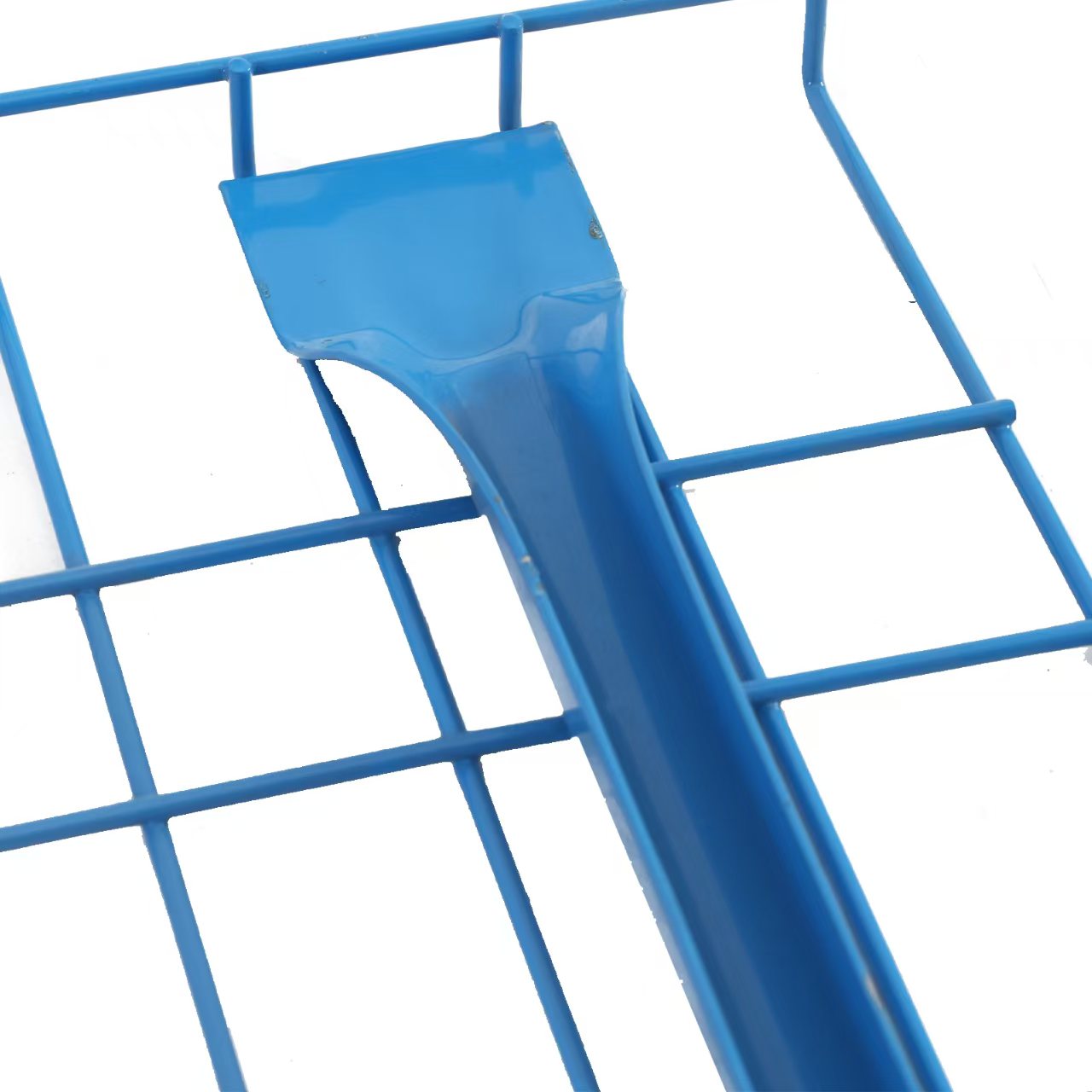

Simple waterfall edge design that locks securely over pallet beam faces without complex fasteners.
Enhanced Protection
Significantly protects operators and inventory from accidental falls between racking beams.
Heavy Load Capacity
Constructed with reinforced channels supporting high capacities ranging from 300kg to 1000kg+.
| Euro Sizes | |||
|---|---|---|---|
| Loading capacity 300kg | Loading capacity 800kg | Loading capacity 1000kg | |
| Dim (D×W) (mm) | Dim (D×W) (mm) | Dim (D×W) (mm) | |
| 600×880 | 1000×880 | 1050×1090 | 1000×1340 |
| 1000×880 | 1050×880 | 800×880 | 1050×1340 |
| 1050×880 | 1100×880 | 1200×880 | 800×1340 |
| 1100×880 | 1000×1090 | 1200×1090 | 1200×1340 |
| American Sizes | ||
|---|---|---|
| Standard U channel / Flared channel | ||
| Dim (D×W) (inch) | ||
| 24"×46" | 42"×46" | 24"×46" |
| 30"×46" | 42"×52" | 36"×46" |
| 36"×34" | 42"×58" | 36"×52" |
| 36"×46" | 48"×34" | 42"×46" |
| 36"×52" | 48"×46" | 42"×52" |
| 36"×58" | 48"×52" | 44"×46" |
| 42"×34" | 48"×58" | 48"×46" |
Product Category
Company Profile

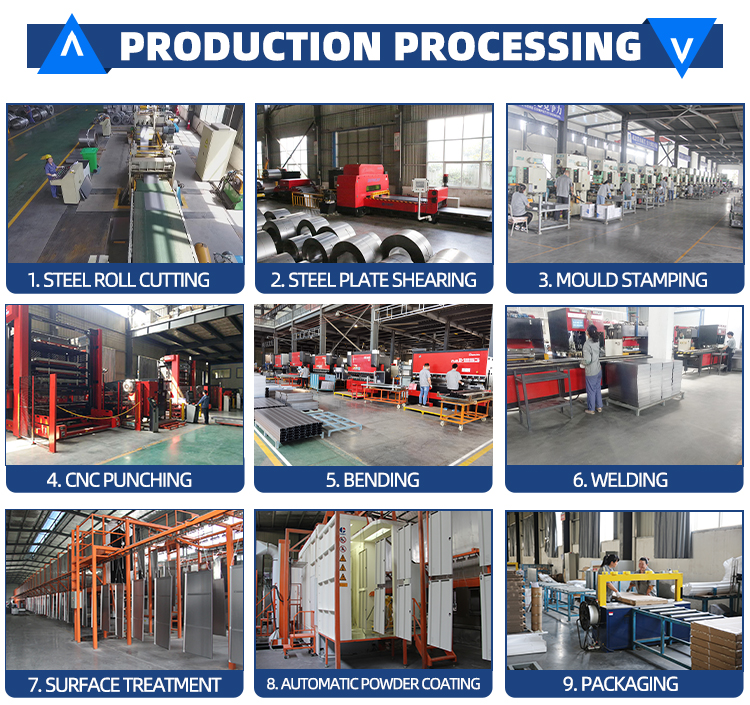

Production Processing

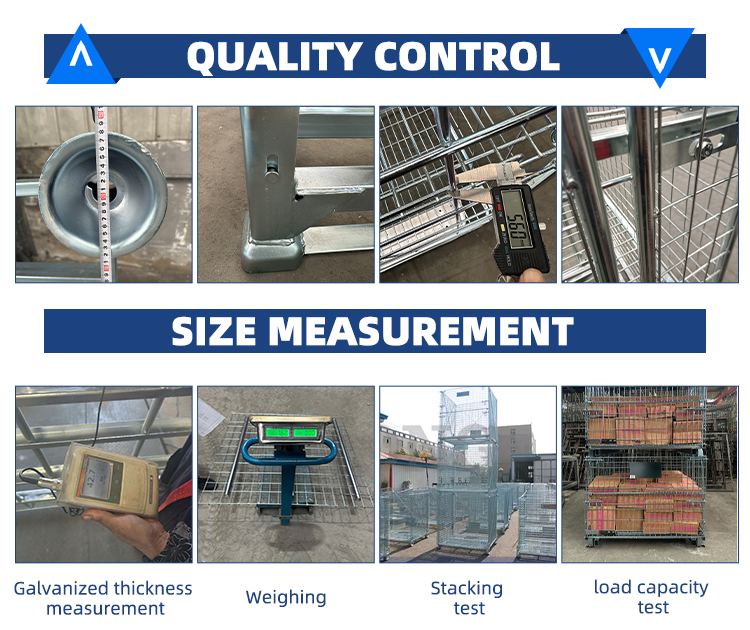

Quality Control
Certifications
Frequently Asked Questions
What is wire mesh decking primarily used for?
Wire mesh decking is widely installed on heavy-duty pallet racks in warehouses and distribution centers to provide safe, rigid platforms for storing pallets, boxes, and bulk items.
How does the waterfall design improve warehouse safety?
The waterfall edges extend over the front and rear face of the beam, locking the deck firmly into position and preventing accidental displacement during pallet placement or picking.
What are the available weight capacities for wire decking?
We supply standard load capacities ranging from 300kg, 800kg, up to 1000kg+ uniformly distributed load per level, engineered with high-strength support channels.

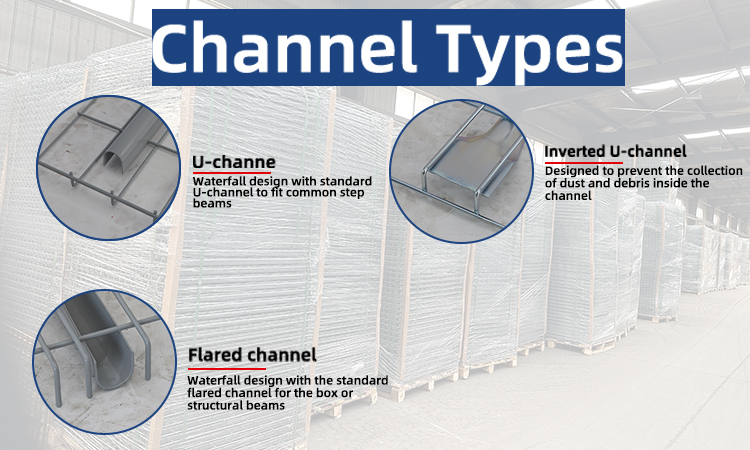

What is the difference between standard U-channel and flared channel wire decks?
Standard U-channels fit standard step beams, resting inside the step, while flared channels feature universal flanged ends suited for both box beams and structural beams.
Are both Euro and American rack dimensions supported?
Yes, our wire mesh decks are manufactured in standardized Euro metric dimensions (mm) and American imperial dimensions (inch), ensuring complete compatibility across global racking systems.
Does wire mesh decking meet warehouse fire safety codes?
Yes, the open mesh construction allows overhead fire sprinkler water and warehouse illumination to penetrate through multiple levels unimpeded, complying with global fire safety standards.
