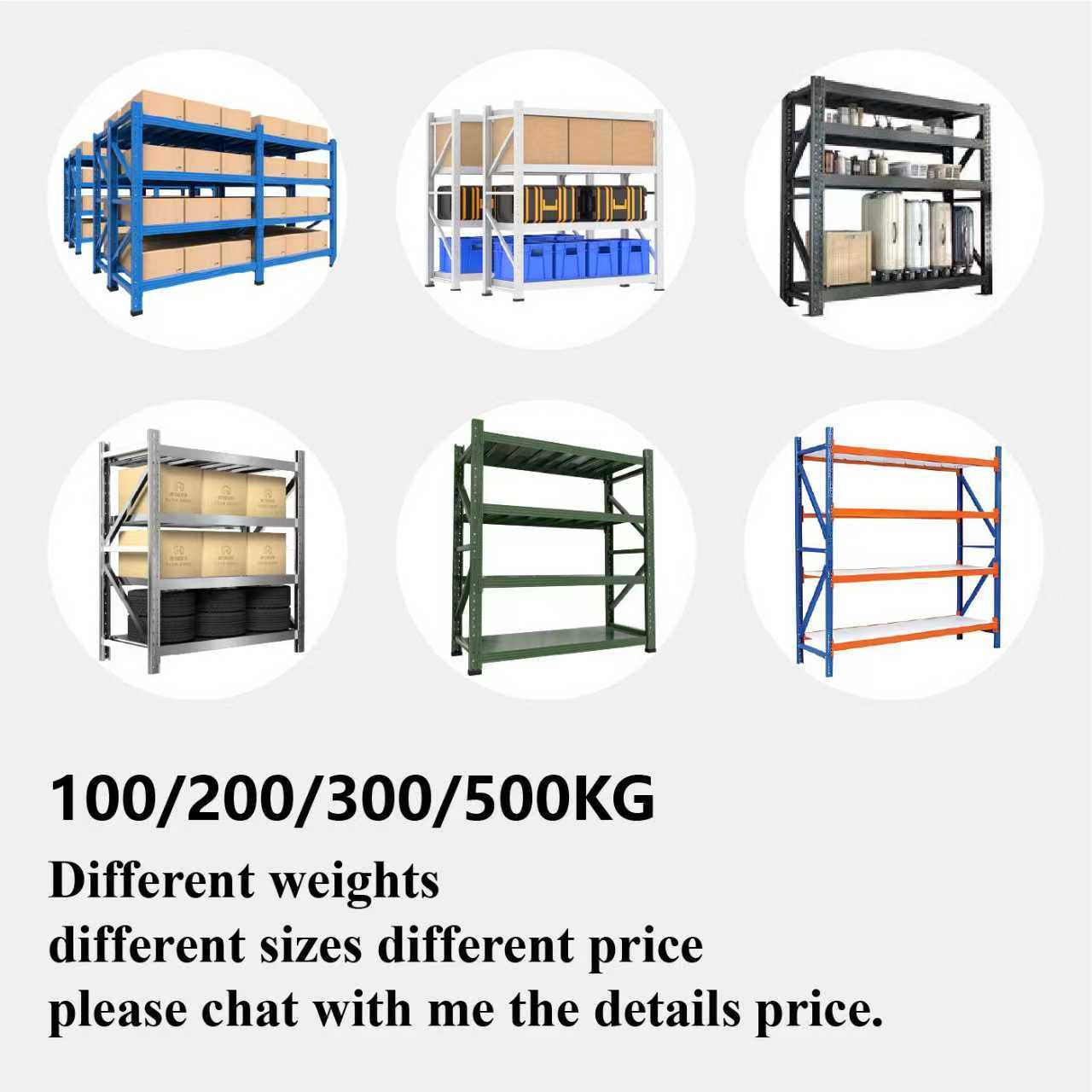

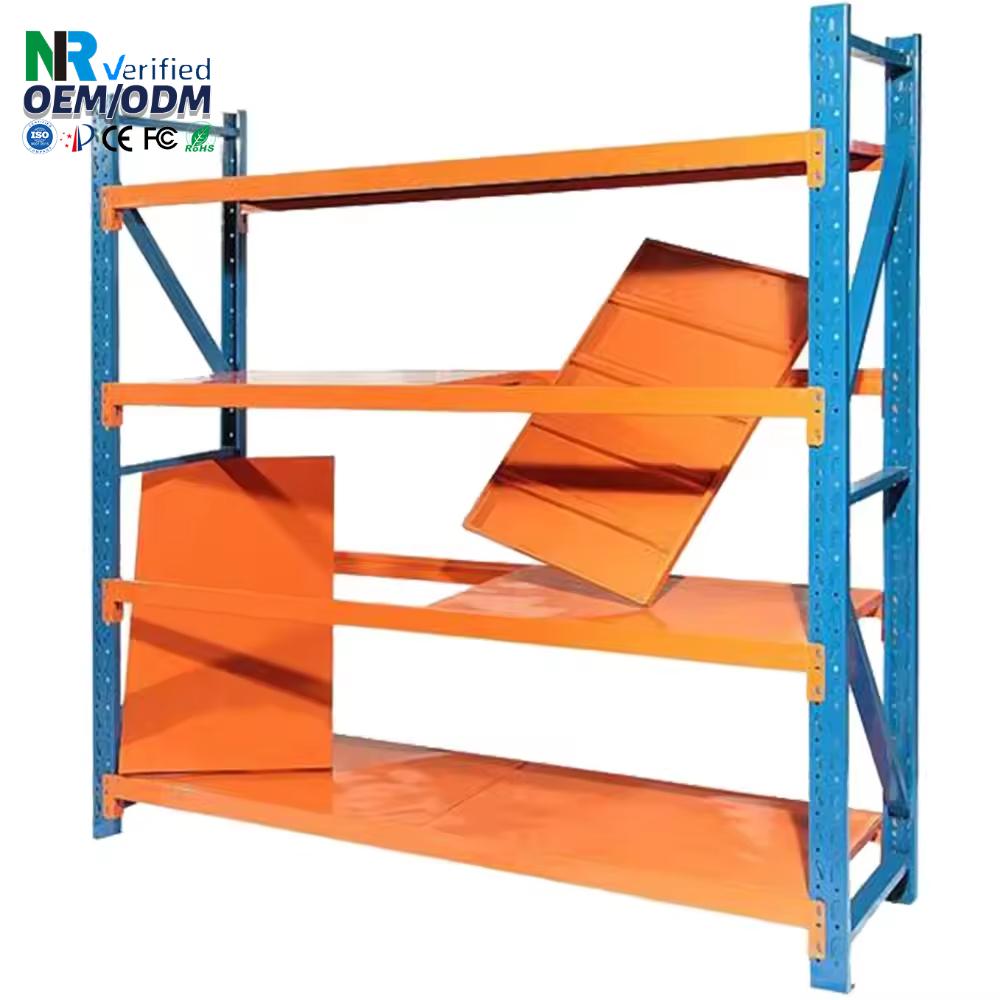

Metal Equipment Steel Rack System Industrial Shelving Heavy Duty Garage Shelving
Product Description
Customizable Warehouse Racking Solutions
We understand that every warehouse is unique. That's why we offer full customization to perfectly fit your space, inventory, and workflow. Below are our standard customization options.
| Customization Aspect | Standard Options & Your Choices | Why It Matters to You |
|---|---|---|
| 1. System Type & Design | Selective Pallet, Drive-In, Cantilever, Mezzanine. We design based on your SKUs and FIFO/LIFO needs. | Maximizes storage density and operational efficiency for your specific goods. |
| 2. Overall Dimensions | Height: Up to 12m. Width & Depth: Tailored to your pallet/box size and aisle width. |
Utilizes your warehouse's cubic space fully, avoiding wasted air space or cramped aisles. |

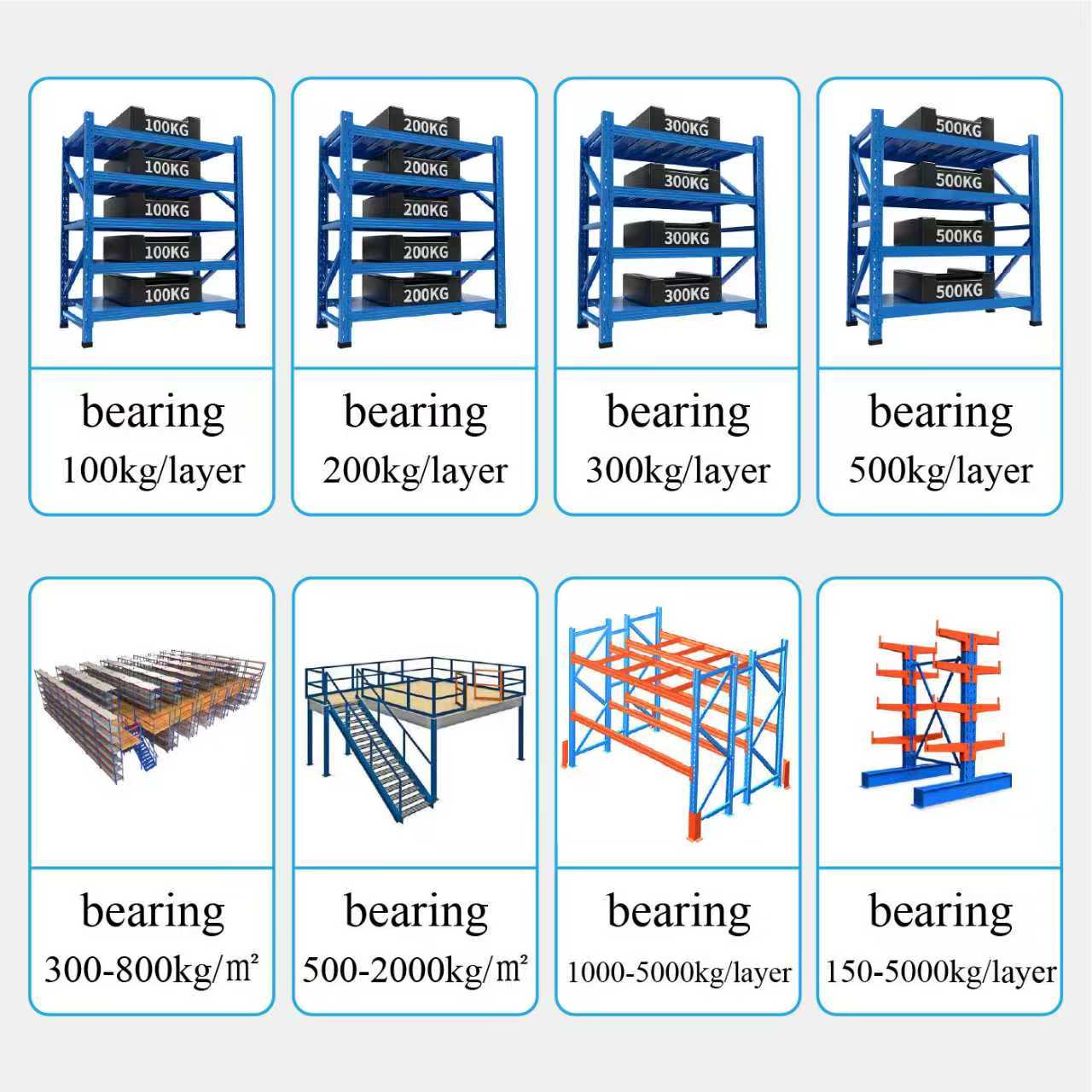

| 3. Load Capacity | Beam capacity: 500kg to 3,000kg+. Upright capacity: Custom engineered. | Ensures absolute safety for your heaviest loads, with certified ratings for peace of mind. |
| 4. Beam & Upright Specs | Material thickness (1.2mm-2.5mm), profile design (C-channel, step-beam), and finish color (RAL code). | Provides the ideal balance of strength, durability, and cost for your budget. |
| 5. Safety & Accessories | Add safety locks, column guards, pallet supports, wire mesh decking, row spacers, and signage. | Protects your inventory, staff, and equipment, ensuring compliance with safety standards. |
| 6. Surface Finish | Electrostatic epoxy powder coating. Choose color and thickness for corrosion resistance. | Protects against rust in varying humidity, and allows color-coding for warehouse zones. |
| 7. Integration & Compatibility | Designed to work seamlessly with your forklifts, pallet jacks, and WMS (Warehouse Management System). | Prevents accidents and streamlines operation, creating a smooth workflow from day one. |
| 8. Special Requirements | Seismic/wind ratings, food-grade/cleanroom coating, special bracing for narrow aisles (VNA). | Meets local building codes and specialized industry regulations. |
How to Start Your Custom Order
1
Share your warehouse layout or dimensions.
2
Tell us your pallet/goods specifications (size, weight, type).
3
Inform us of your target storage capacity and equipment used.
4
We will provide free CAD layout drawings and a comprehensive quotation within 48 hours.
Technical Specifications
System Type
Selective Pallet Racking, Boltless Design
Upright Frame Load
4000 kg Static Load Capacity Per Frame
Beam Load Capacity
1000 kg Dynamic Load Per Pair
Upright Profile
90mm x 70mm, Roll-formed Steel
Beam Specification
1.5mm Thick C-Channel with Safety Locks
Adjustability
75mm Vertical Beam Pitch for Flexibility
Surface Protection
120-Micron Epoxy Powder Coating, Anti-Rust
Pallet Support
Wire Mesh Decking or Steel Bar Supports Included
Accessories
Pallet supports, row spacers, decking, column guards
Safety Standard
Complies with ISO 9001 and ANSI MH16.1
Delivery & Lead Time
Standard 15-20 days, FOB or CIF terms available
Delivery Format
5-year warranty on structure and finish
Transportation Method
KD (Knock-Down), Professionally Packaged
Frequently Asked Questions
Q
What are the main types of warehouse racking systems you offer?
A
We primarily supply Selective Pallet Racking (most common), Drive-In/Drive-Through Racking (for high-density FIFO/LIFO), and Cantilever Racking (for long goods). We can help you select the optimal system based on SKU count, pallet type, and throughput needs.
Q
How do you determine the load capacity of your racks? Are the ratings safe and certified?
A
Load capacities are calculated per RMI/ANSI MH16.1 standards. Each upright frame and beam pair is rated for Static and Dynamic loads. Our stated capacities (e.g., 1000kg/beam) include a built-in safety factor and are validated by third-party certification (SGS/TÜV).
Q
How adjustable is the system for future layout changes?
A
Our systems feature a boltless, clip-in design with uprights punched at standard intervals (e.g., 75mm). Beams can be relocated without tools in minutes, allowing full reconfiguration or expansion as your inventory needs evolve.
Q
What safety features are included to prevent accidents?
A
Standard safety features include beam safety locks (to prevent dislodgement), column protectors, pallet supports, and load capacity labels. We strongly recommend professional installation and annual inspections to comply with OSHA guidelines.
Q
What is the lead time from order to delivery?
A
For standard configurations, lead time is 15-20 working days. Custom projects may require 3-4 weeks. We provide detailed production schedules and shipping updates (FOB/CIF terms available).
Q
Do you provide installation services or technical support?
A
We offer detailed assembly manuals, layout CAD drawings, and installation videos. We can also refer certified local installers. Our technical team provides free remote support during and after installation.
