High Density 5 Layer Heavy Duty Push Back Warehouse Rack Industrial Storage System for Food Beverages Daily Chemical Products
Product Description
Products Description

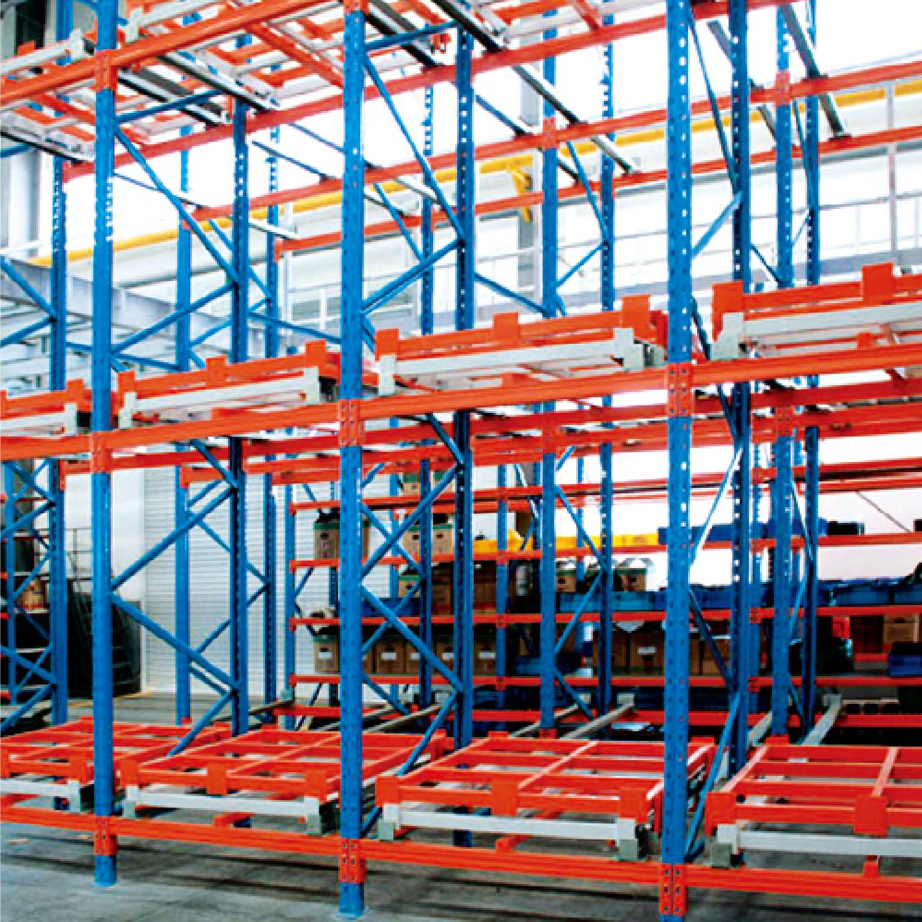

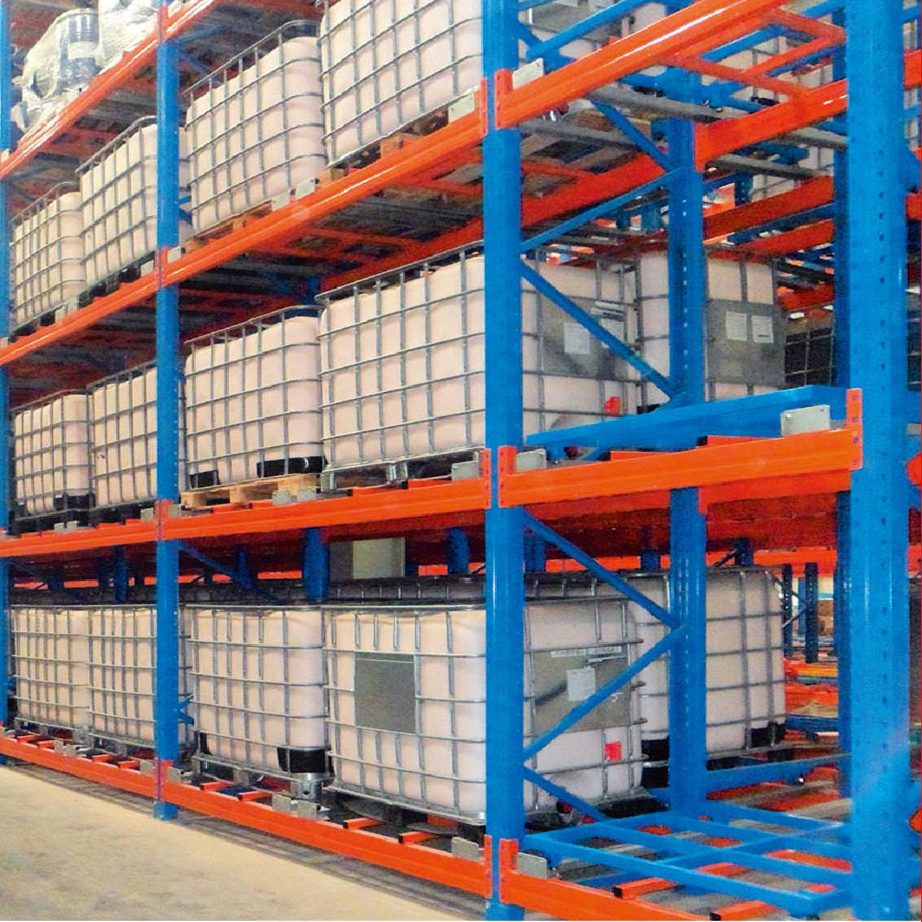

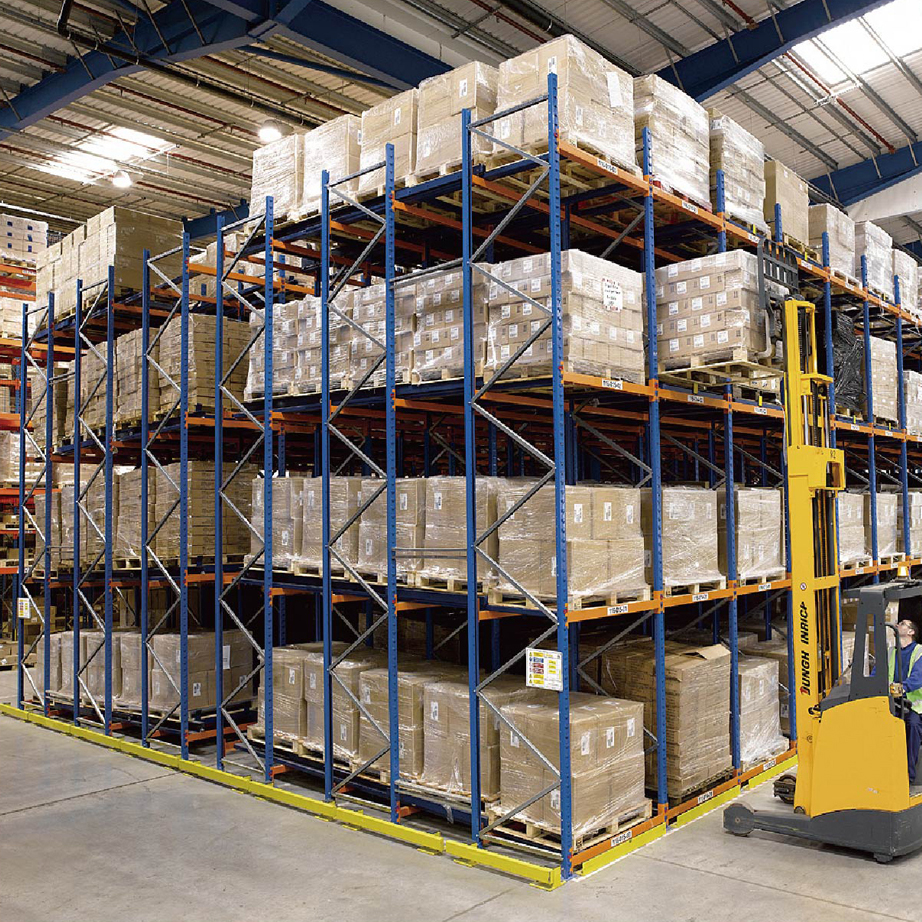

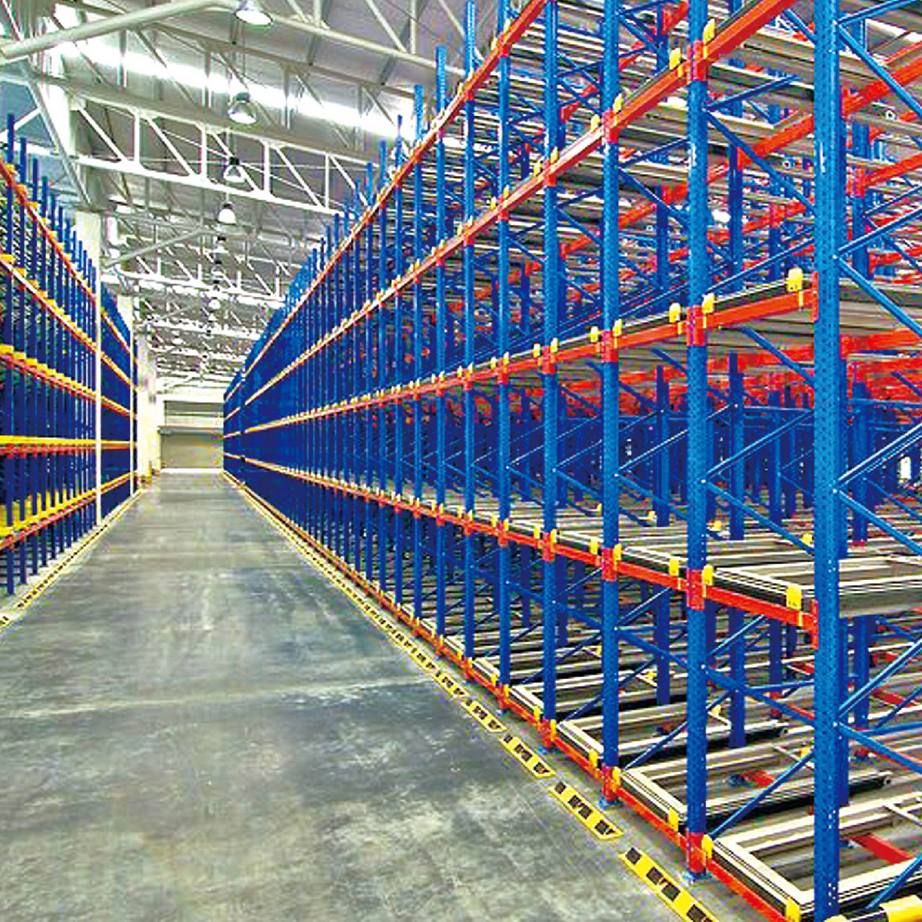

Push Back Racking

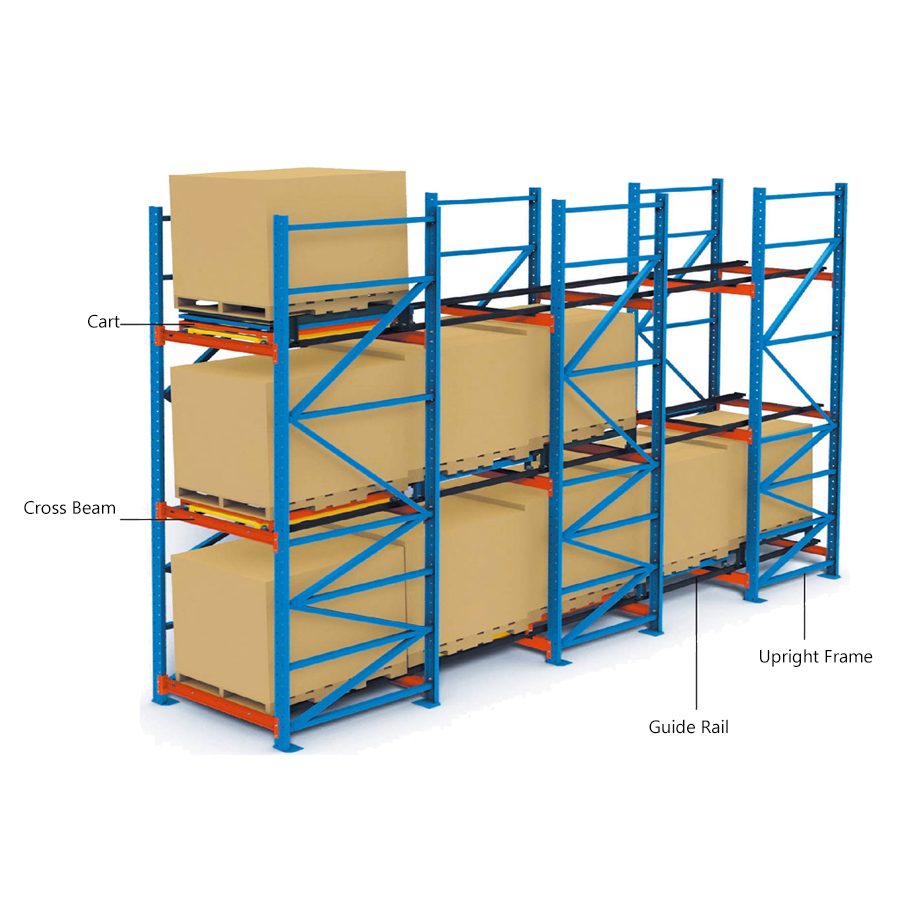

Push back racking is a type of pallet racking system. It uses a combination of inclined rails and pallet carts, where gravity enables FIFO (first-in, first-out) handling of goods. It is ideal for storing large quantities of a small variety of SKUs.
All loading and unloading operations are completed at the front of the rack by forklifts, with a maximum depth of up to 5 pallet positions, ensuring high space utilization.
Specification
| Item | Specification |
|---|---|
| Product Name | Push Back Racking |
| Material | High Quality Q235 Steel |
| Load Capacity | 500kg-4000kg/Level (Customizable) |
| Height | 2000mm-12000mm (Customizable) |
| Span (Beam Length) | 1500mm-3600mm (Customizable) |
| Depth | 800mm-1200mm (Customizable) |
| Layer | 2-8 Layers (Customizable) |
| Surface Treatment | Powder Coated (Blue/Orange/Other Colors Available) |
| Applicable Industries | Manufacturing, Logistics, Electronics, Automotive, etc. |
| MOQ | 50 sets |
| Delivery Time | 7-15 Days (Customized orders Negotiable) |
| Accessories | Contact Us for More Detail. |
Efficient Warehouse Management & Maximum Space Utilization
Our Factory & Services
23,000 m² modern production base with over 20,000 tons annual output, ensuring fast on-time delivery for both small sample orders and bulk projects.
Rigorous Quality Assurance: Rigorous full-process quality control, from raw material inspection, precision production to final testing, with certification to guarantee rack safety and long-term durability.
Expert Engineering Support: Dedicated sales & engineering team online around the clock, providing tailored rack solutions for manufacturing, logistics, automotive and other industries.
Frequently Asked Questions
Q1 What can we offer you?
Competitive pricing, more professional solutions, and superior product quality.
Q2 Do you provide installation guidance or on-site installation service?
We offer detailed, step-by-step installation manuals and video guidance for all our rack systems, which are easy to follow for your local installation team.
Q3 What is your delivery time?
For customized orders, the lead time is generally 7–15 working days, depending on the final quantity and specifications.
Q4 What’s your MOQ? Can I place a small trial order first?
We don’t have a strict MOQ. Small trial orders are totally welcome. But if the quantity is really low (like less than 10 sets), international shipping alone will be quite expensive, so we usually suggest combining it with other goods in a container to save cost.
Q5 What is the term of payment?
We accept T/T payment terms: 35% deposit to confirm the order, and the balance to be paid before shipment. For long-term cooperative customers, we can negotiate more flexible payment terms based on mutual trust.
Q6 Can the rack specifications and load capacities be customized?
Yes, height (2000mm-12000mm), beam length (1500mm-3600mm), layers (2-8 layers), and load capacities (500kg-4000kg/level) can all be fully customized to meet your specific warehouse requirements.
