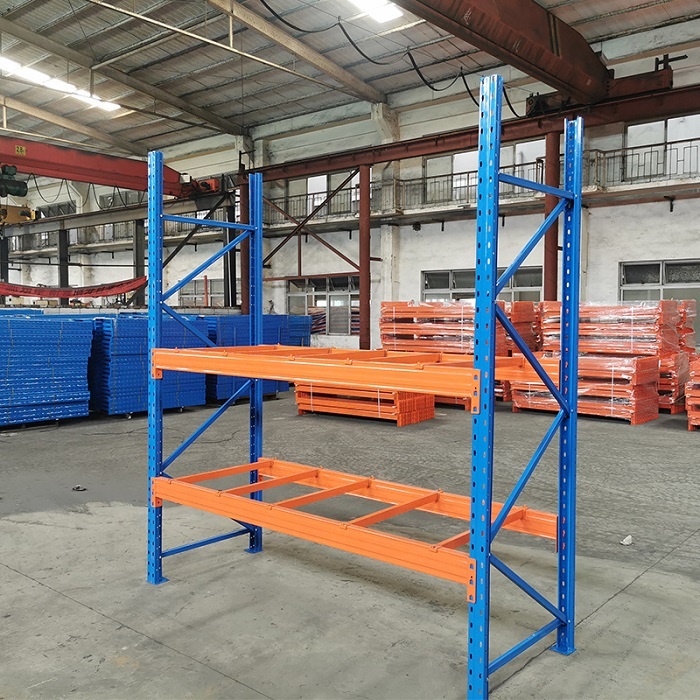

China Factory Heavy Duty Pallet Rack Upright Selective Steel Structure Uprights Steel Rack
Product Description
Product Description
Brief Introduction:
This heavy duty steel pallet rack has a high efficiency storage and is unlimited by the order of the goods in and out of the warehouse. This kind of racking is adjustable and suitable for forklift operations. Aisles can be categorized into traditional types (approx. 3000 mm) and narrow types (approx. 1700 mm), with the narrow configuration utilizing specialized narrow-aisle forklifts.
| Heavy Duty Rack | 1 | Composition | Frame | assembly frame |
|---|---|---|---|---|
| Beam | step beam | |||
| angle iron welded beam | ||||
| Panel | steel panel | |||
| wire decking panel | ||||
| wooden panel | ||||
| 2 | Application | 1) | store boxes | |
| 2) | store loosen goods | |||
| 3) | medium duty mezzanine |
Characters
- This kind of racking is made of special shaped section post, which improves the loading capacity.
- Beams can be adjusted up and down flexibly in increments of 75mm.
- Assembled frame structure together with safe accessories make it easy to assemble and disassemble, facilitating spare parts supply, after-sale maintenance, and replacement.
- Surface treatment utilizes epoxy electrostatic powder coating, providing high rust-proof performance.
- Accessories such as braces, back spacers, steel panels, foot protectors, rack protectors, and back meshes can be added according to requirements.
| Loading Capacity | Length | Depth | Height |
|---|---|---|---|
| 1000-5000kg/level; whole rack < 20000kg | 1,000 - 3,600mm | 800 - 1,500mm | 1,000 - 12,000mm |
| Special sizes are also available to specific storage needs. | |||

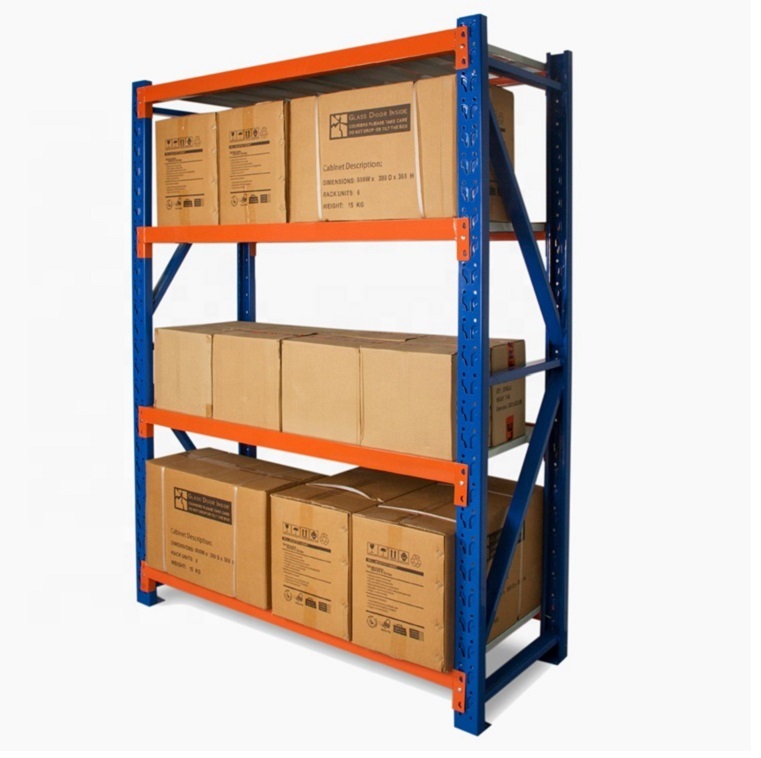

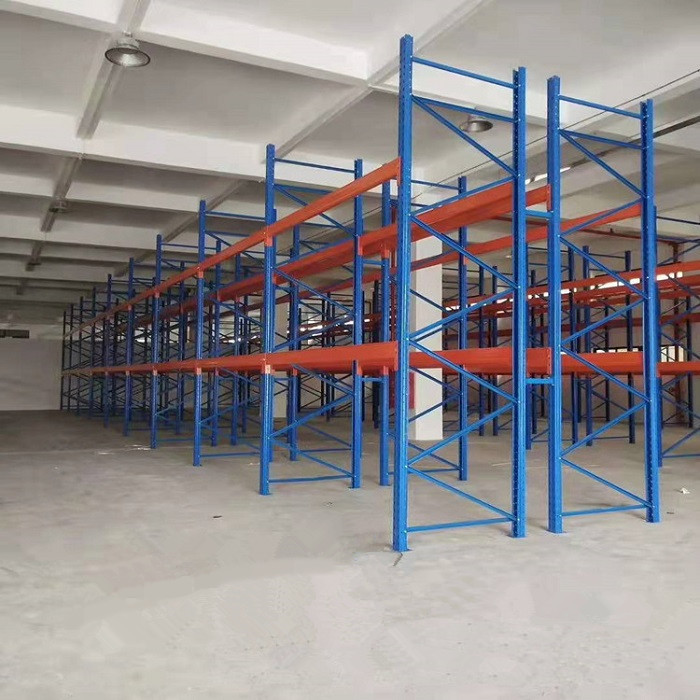

Product Overviews

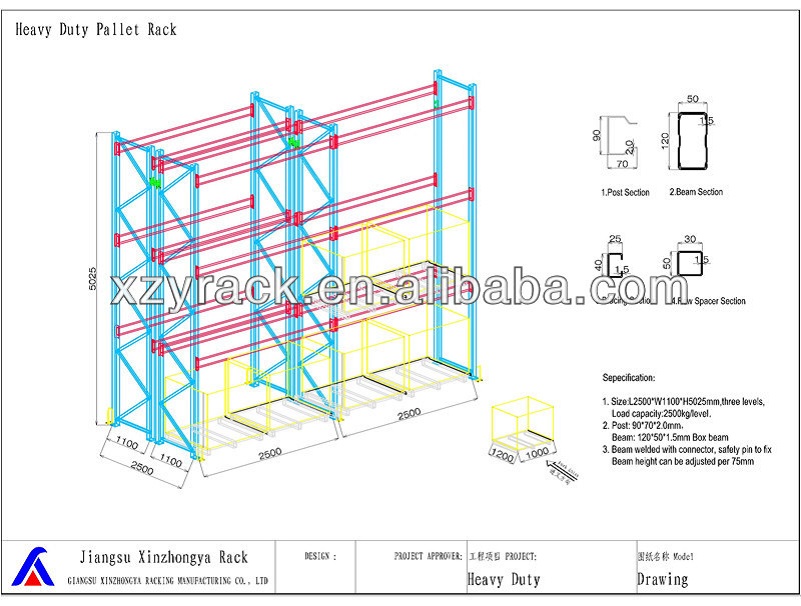

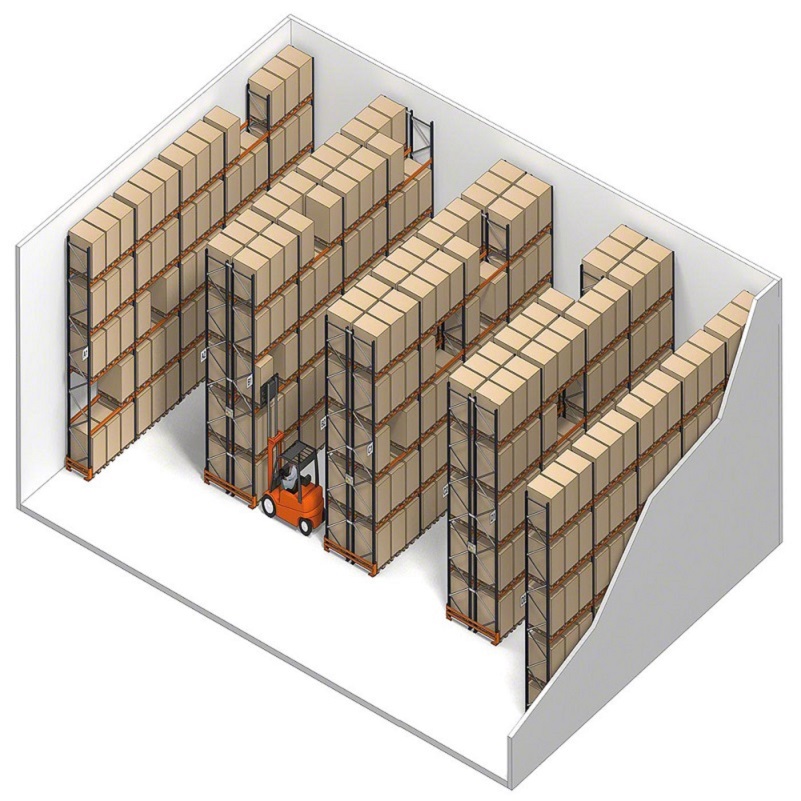

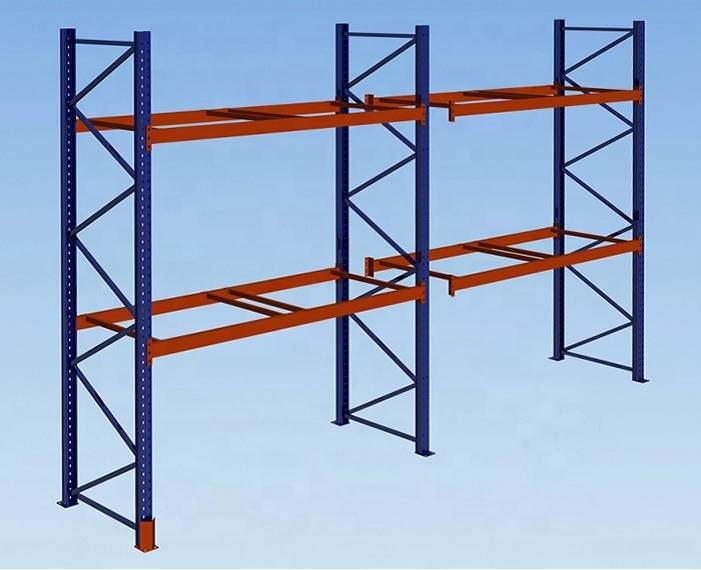

Heavy Duty Rack Drawing:

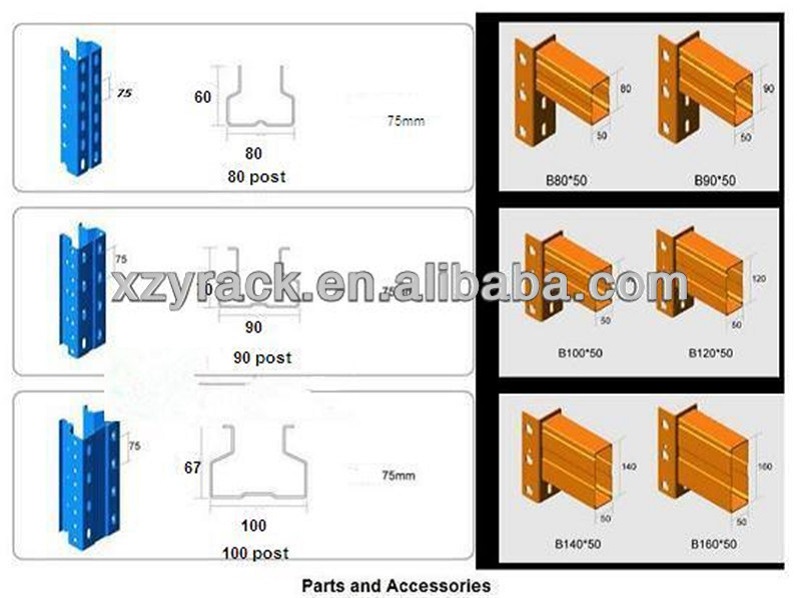

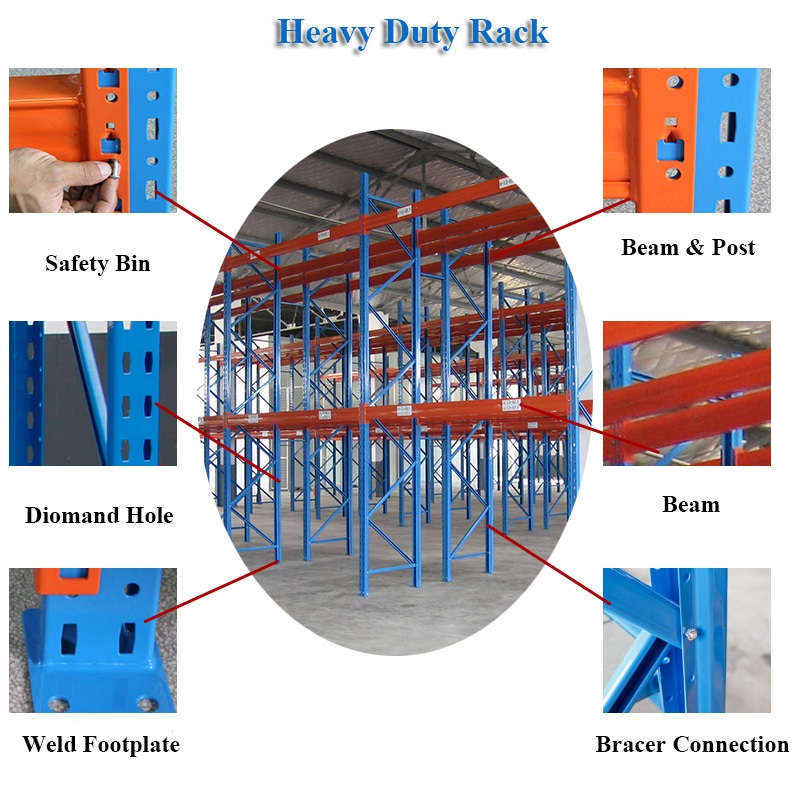

Heavy Duty Rack Components Details:

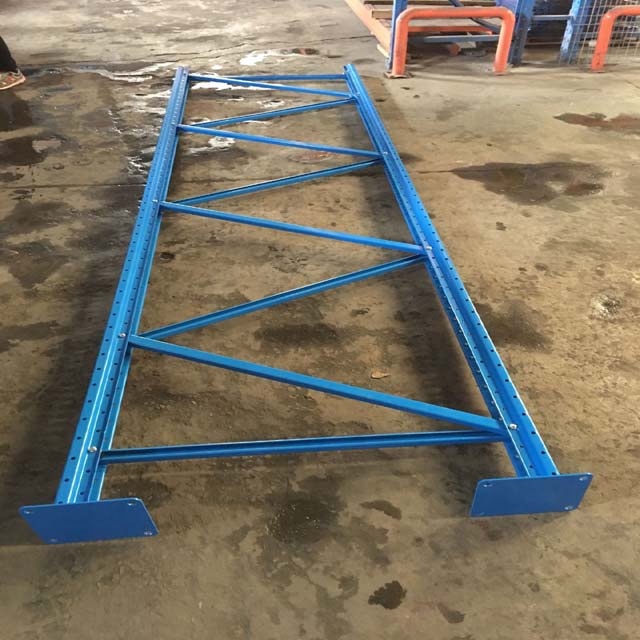

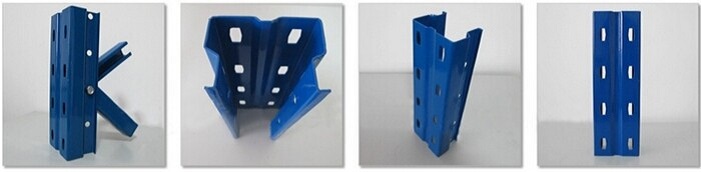

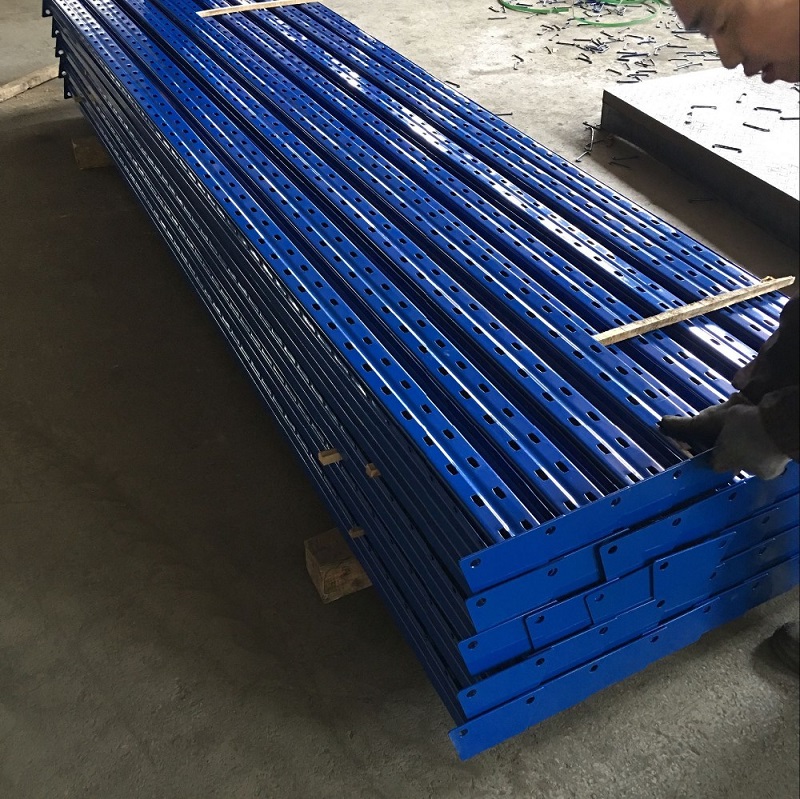

Post

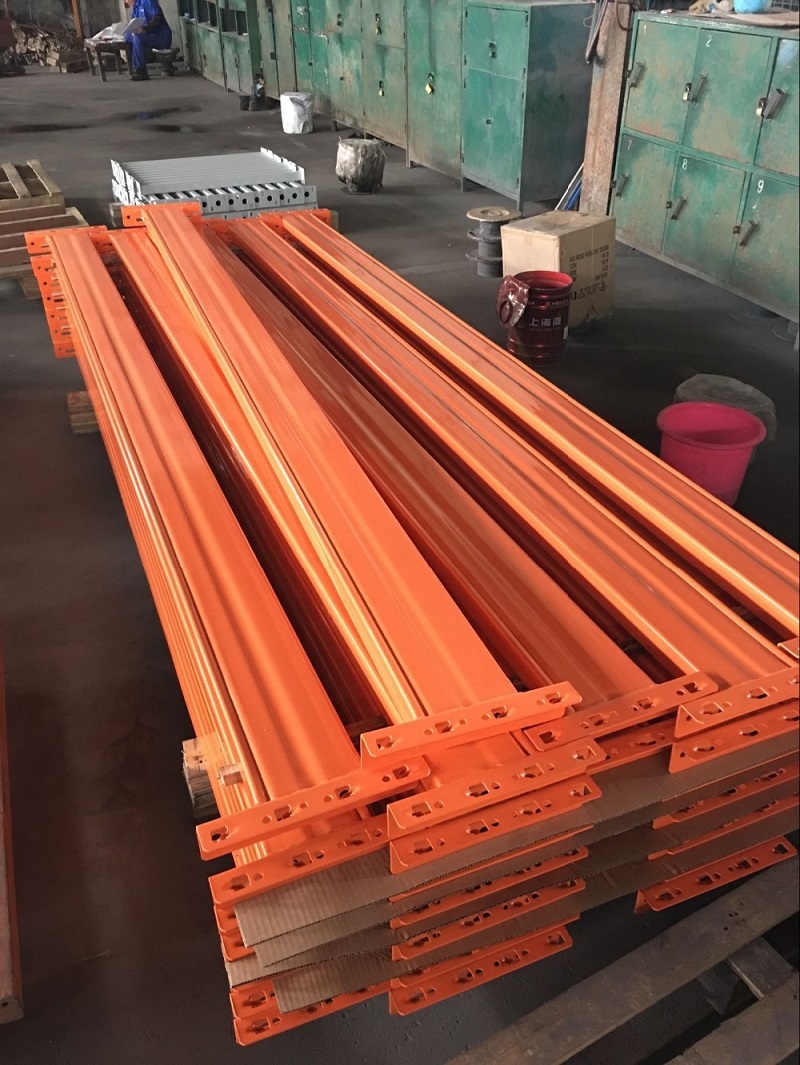

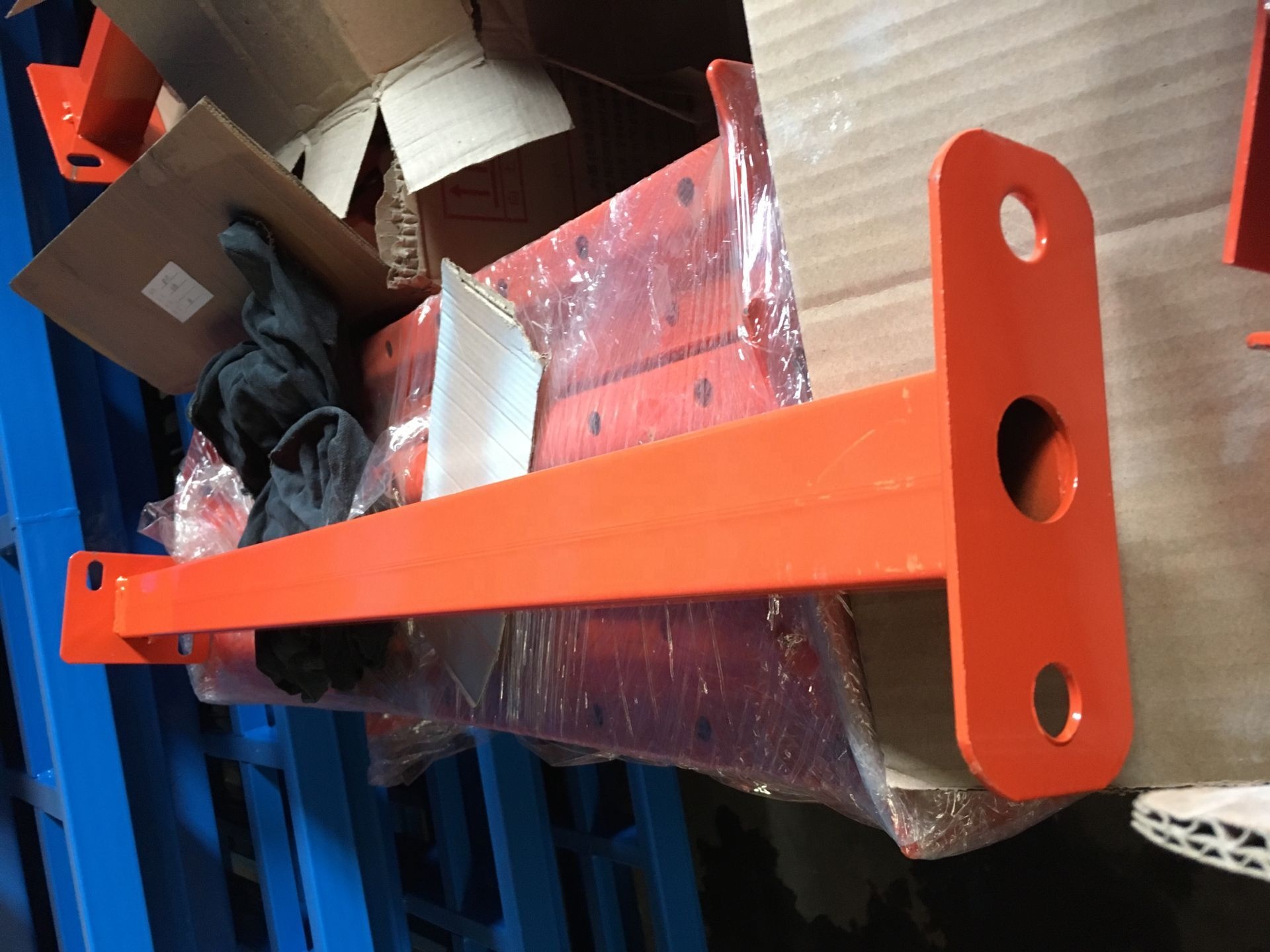

Beam

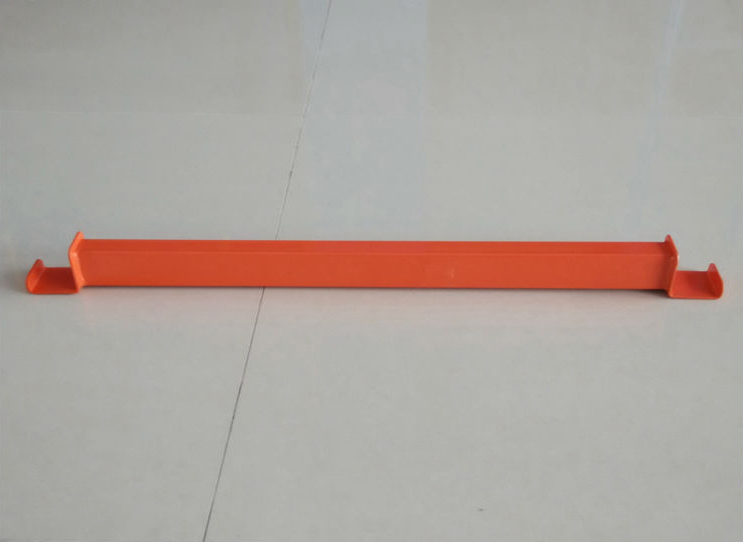

Support Bar
Add on rack is customized to save space.

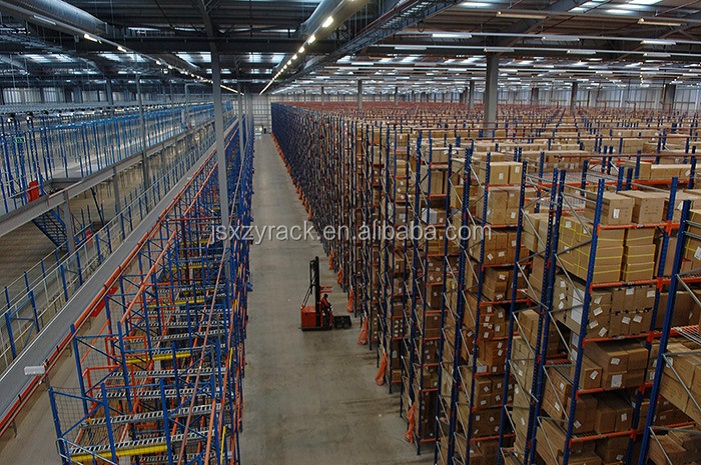

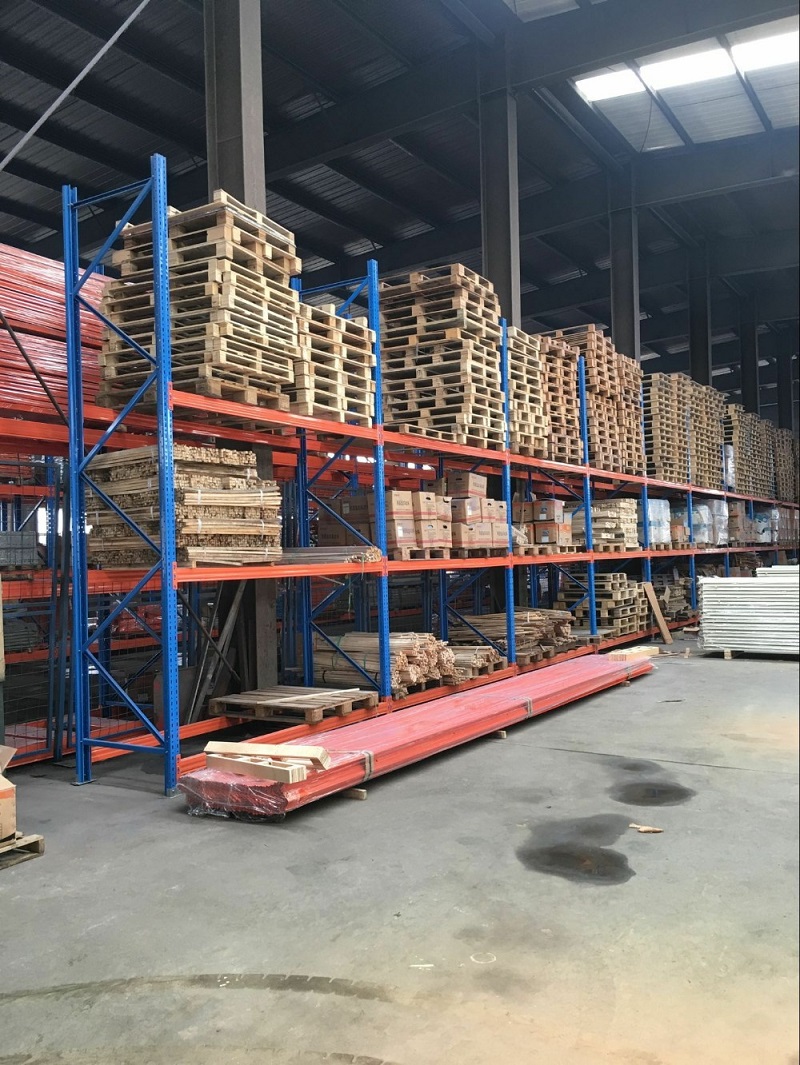

Application
Why Choose Us
01
Company was founded in 1999, having been in this tracking field for over 20 years.
02
Attending overseas exhibitions and experienced with international logistics and engineering issues.
03
Professional technical team adheres to the "quality first, customer first" philosophy.
04
10-year reliable quality warranty.

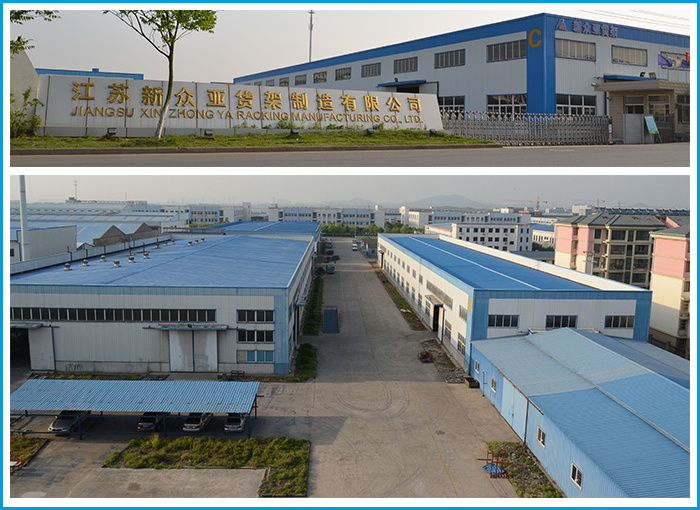

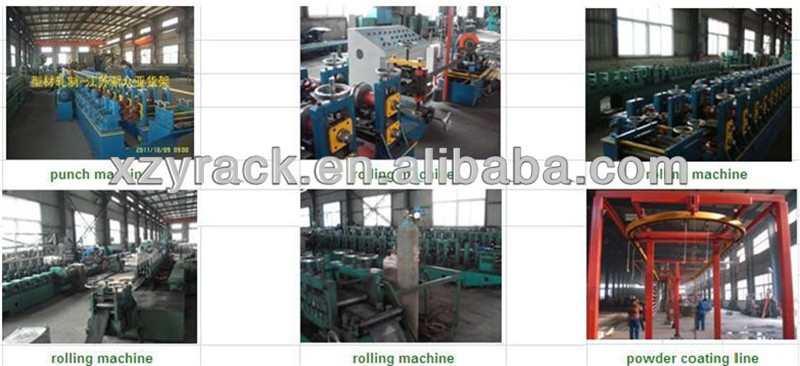

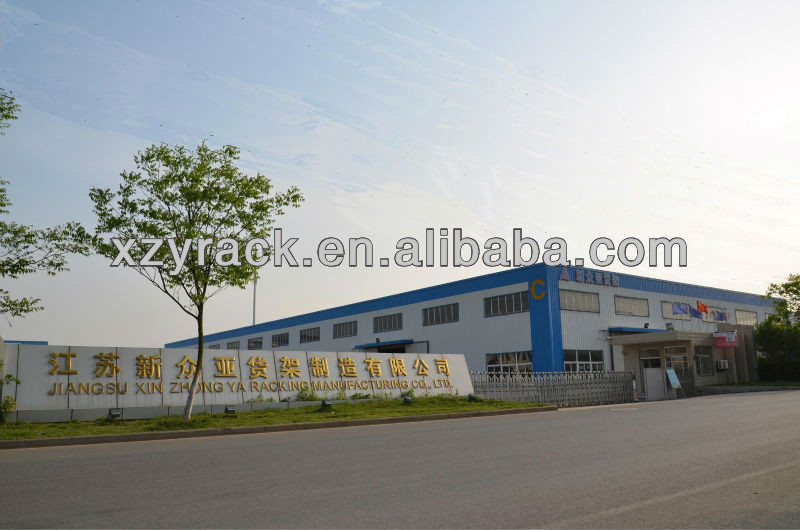

Company Information

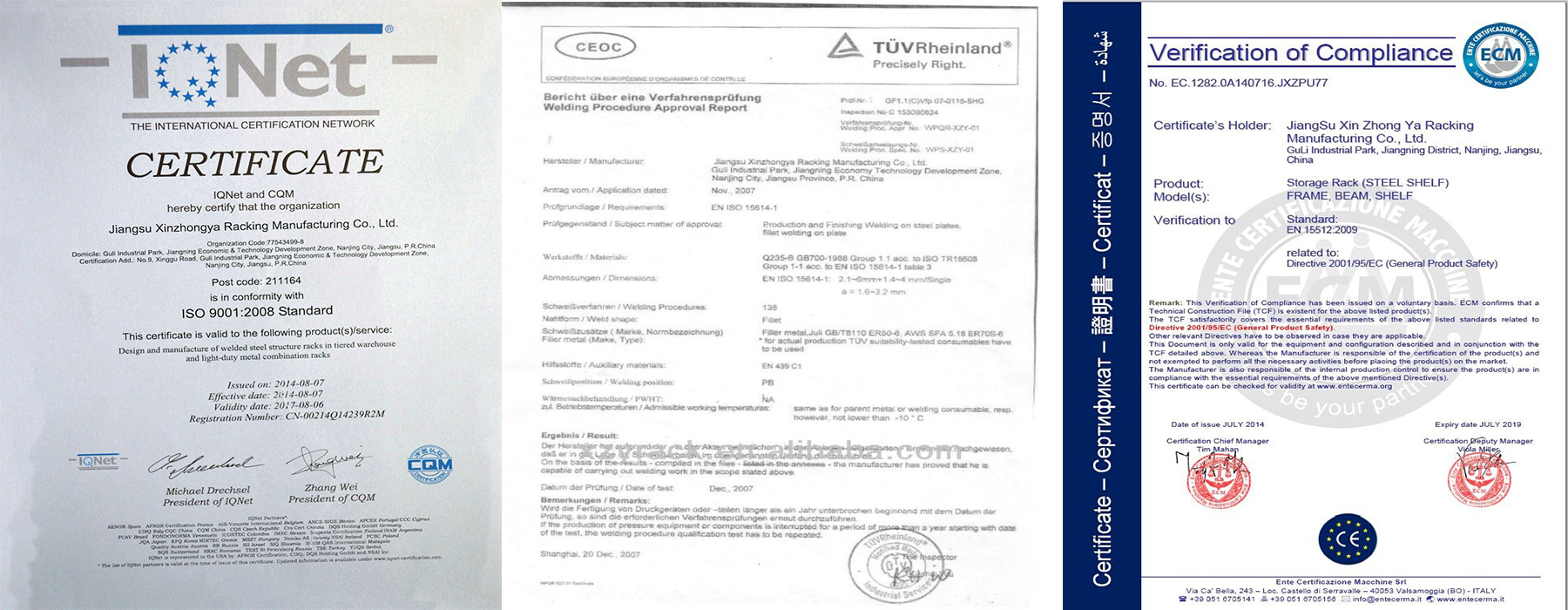

Certification:

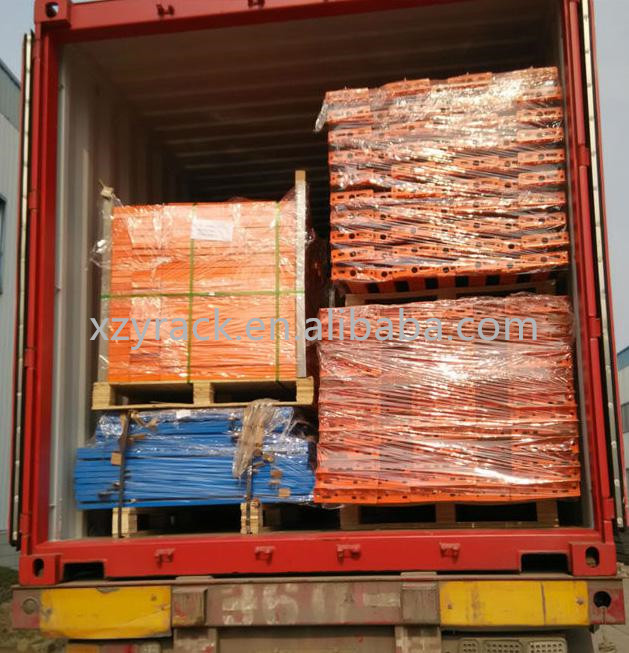

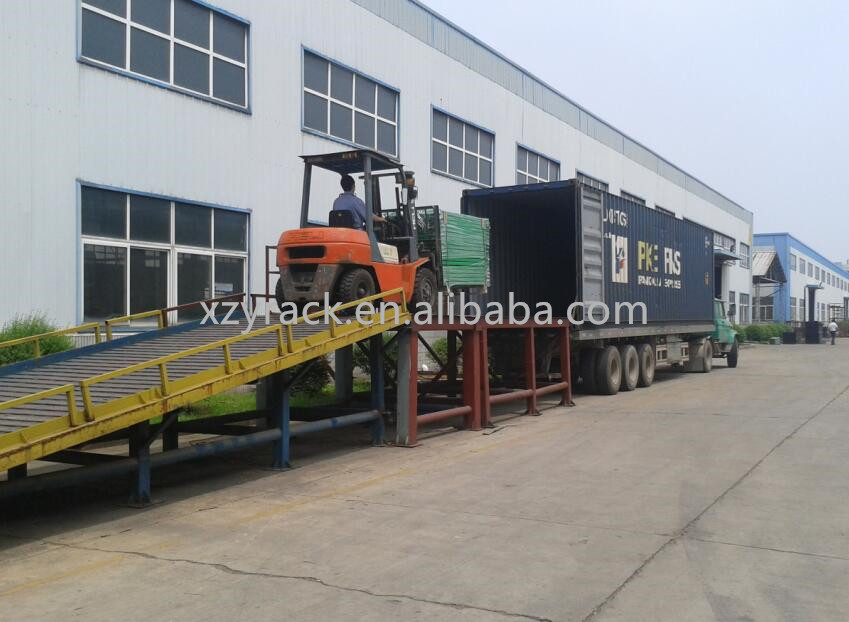

Packaging & Shipping
Frequently Asked Questions
What is the standard loading capacity per beam level?
The standard loading capacity ranges from 1,000kg to 5,000kg per level, with the total weight capacity per rack reaching up to 20,000kg.
Can the beam heights be adjusted after installation?
Yes, the beams can be adjusted up and down flexibly in pitch units of 75mm to match changes in pallet dimensions and storage needs.
Are custom dimensions available for unique warehouse layouts?
Yes, custom heights (up to 12,000mm), beam lengths (1,000mm to 3,600mm), and frame depths (800mm to 1,500mm) can be tailored to match your specific warehouse dimensions and forklift specifications.
What types of decking panels can be configured with this rack?
The structure supports solid steel panels, wire decking panels, and wooden panels based on the specific goods and safety requirements.
What surface finish is applied to prevent corrosion?
An epoxy electrostatic powder coating is applied to all components, ensuring durability and high rust-proof performance in industrial environments.
