Mracking Manufacturer's Industrial Drive-In Racking System Free Design Low Steel Shelves Garage Storage Corrosion Protection
Product Description

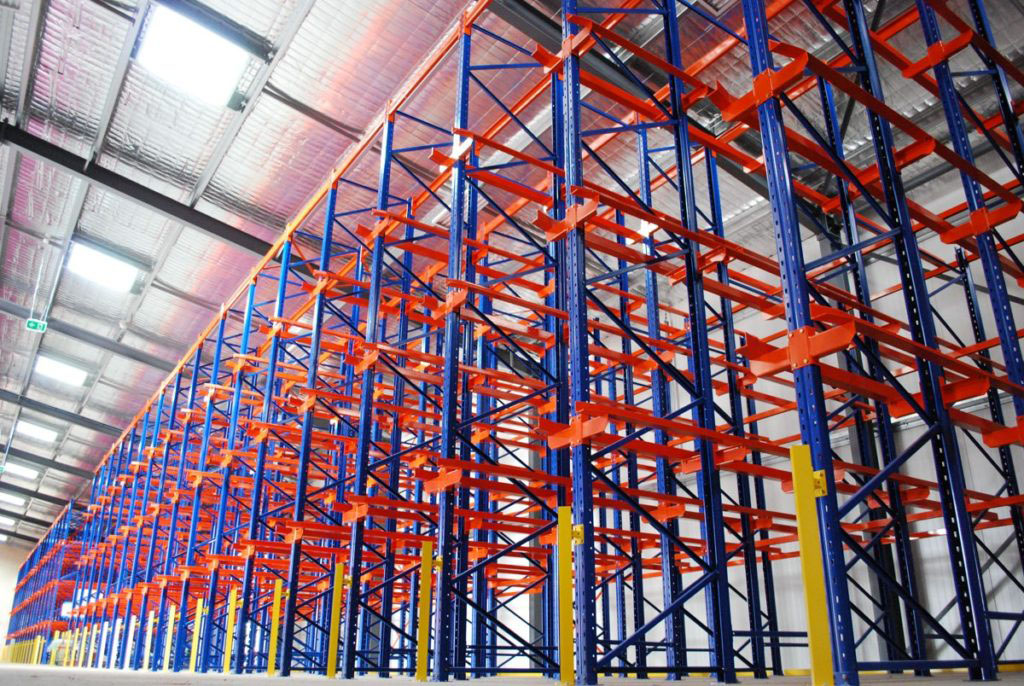

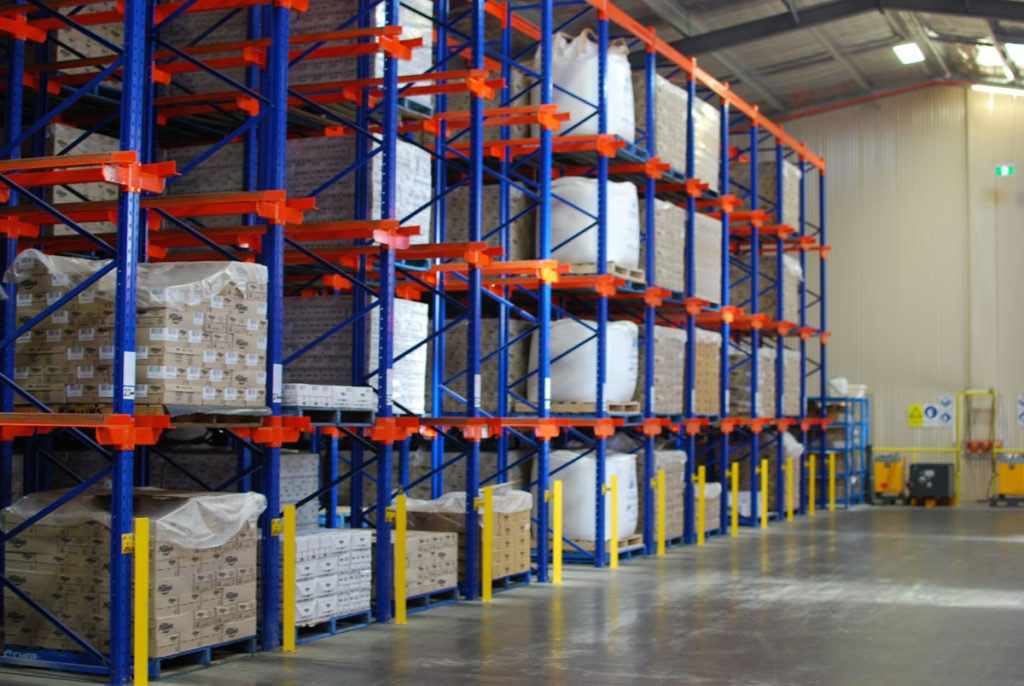

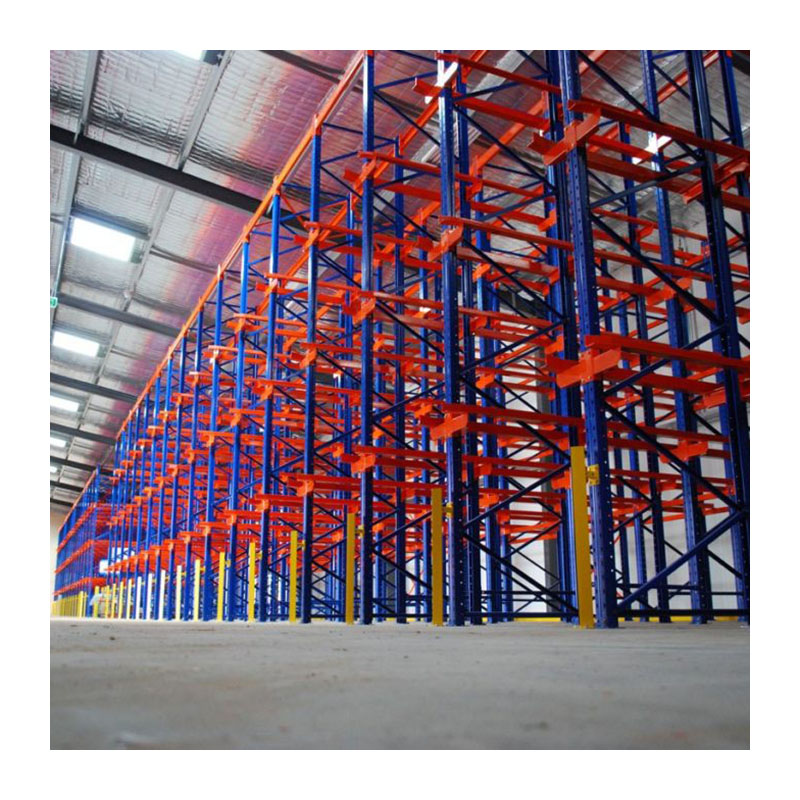

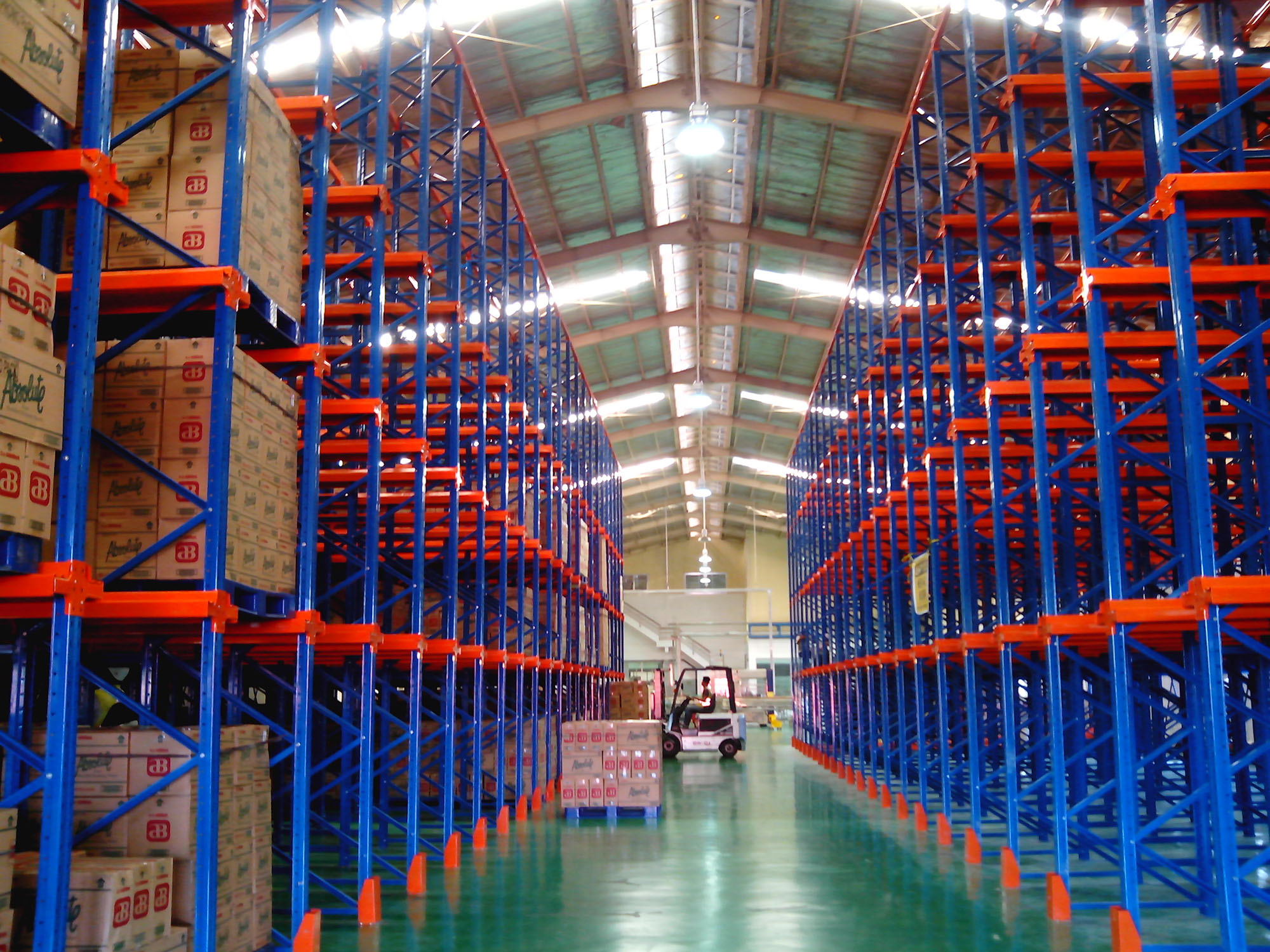

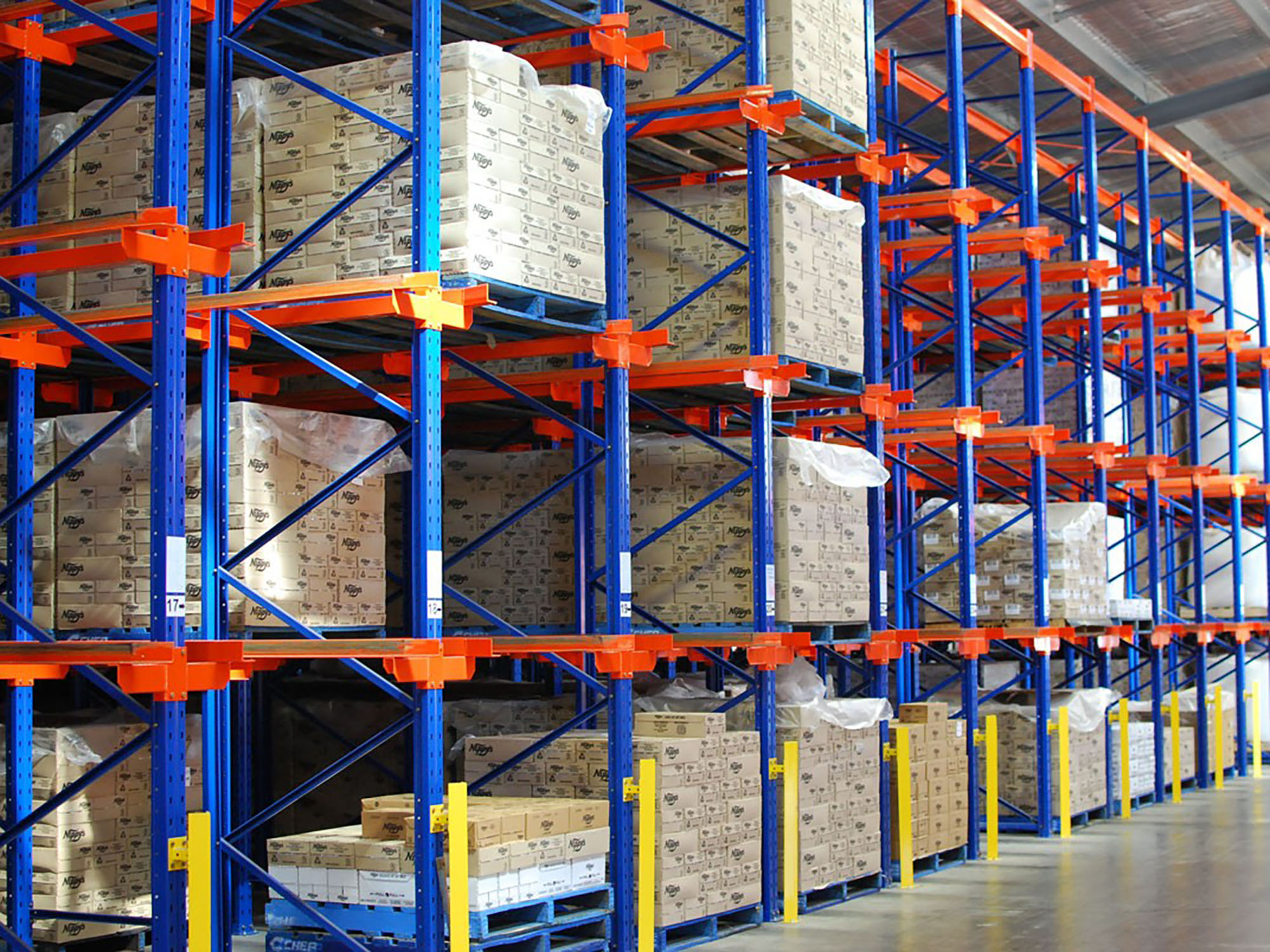

Product Description: Drive-in Rack
It is suitable for storing large quantity of goods with less types, goods of batched working and small range of selection. The goods are stored on the support guide rail with the pallet one after another in the direction of depth, increasing the storage density and space availability. It is quite convenient for fork truck drives into lane directly to store or take out the goods.
Technical Specifications
| Loading Weight |
Loading Weight: 800~1000kg/pallet. Height: 1500-8000mm, Wide/Depth: 1000-1500mm, Length: 1500-3200mm. Special size also available to specific storage needs. |
|---|---|
| Main Parts Specs |
Upright section: 90*65, 120*65, 1.5, 2.0mm. Beam Section: box beam 80*45 / 100*45 / 120*45 / 140*45 / 160*45, etc., Thickness: 1.0 / 1.2 / 1.5mm, etc. Components: horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components. |
| Material | High-quality cold rolled steel, Q235 |
| Package Term | Air bubble pack, PE stretch film for keeping free from scratch |
Key Features
Large loading capability: 1000KG-2000KG/each pallet.
The forklift may drive in the channel of racking to place and fetch pallets.
Low capital cost using conventional handling equipment.
Very high utility ratio of the warehouse.
Can first in - first out or first in - last out.
Structural steel construction for durability.
Pallet positions configure from 2 to 5 deep and 2 to 5 high deal for roofing.
Finish: Powder coating and various colors be available.
Suitable for storing few types of goods with large quantity.
Beam Loading Capacity & Size
Details Images & Structural Configurations
Single Entry Racks
Lift trucks can enter the rack from only one side.
Double Entry Racks
Lift trucks can enter from both sides of a row of racks. The center of the rack row is stabilized by a beam.
Product Overviews
Hot Sale Products
Heavy Duty Pallet Racking
Medium Duty Rack
Mould Rack
Cantilever Rack
Mezzanine Floor
Wire Mesh Container
Frequently Asked Questions (FAQ)
Q1Are you manufacture or trading company?
We are a professional racking manufacturer in Dongguan, Guangdong.
Q2What's the material of rack?
Our material is Q235B cold rolled steel.
Q3What is delivery time?
Less than 15 workdays in general. It also depends on the order quantity and shelving design.
Q4What is the term of payment?
30% T/T down payment and 70% T/T before delivery.
Q5How can I get a quick quotation on my racking project?
For a quick quotation, please let us know the following information:
1). The size of rack: Length * Depth * Height.
2). Layers per set.
3). Load capacity per beam layer.
4). Racking quantity.
Q6How does your factory do regarding quality control?
Quality is priority. We have ISO 9001 certifications.
