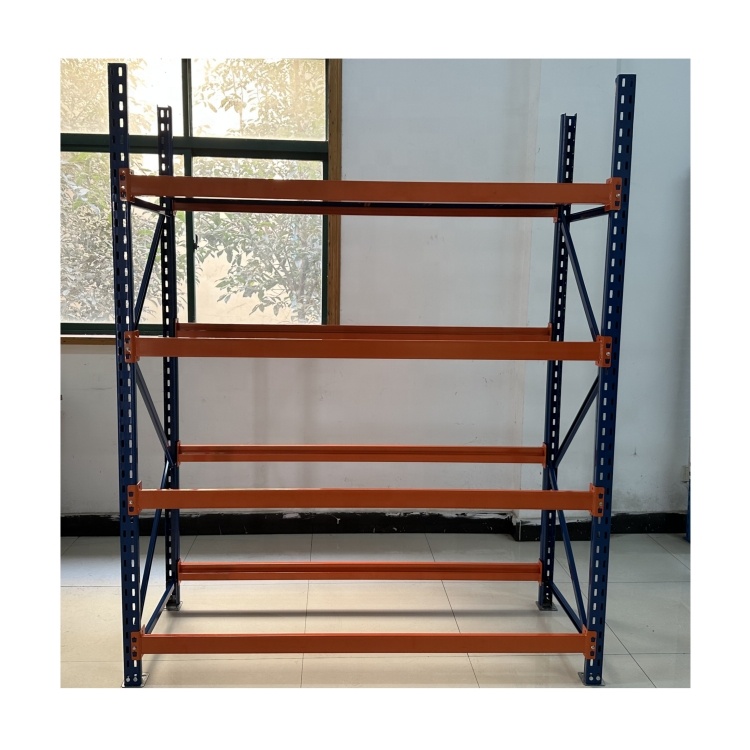

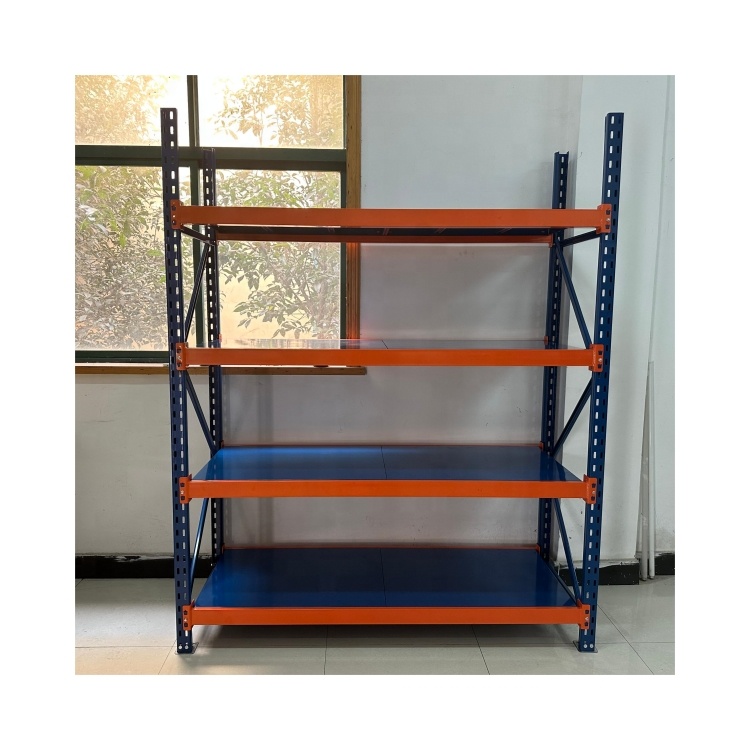

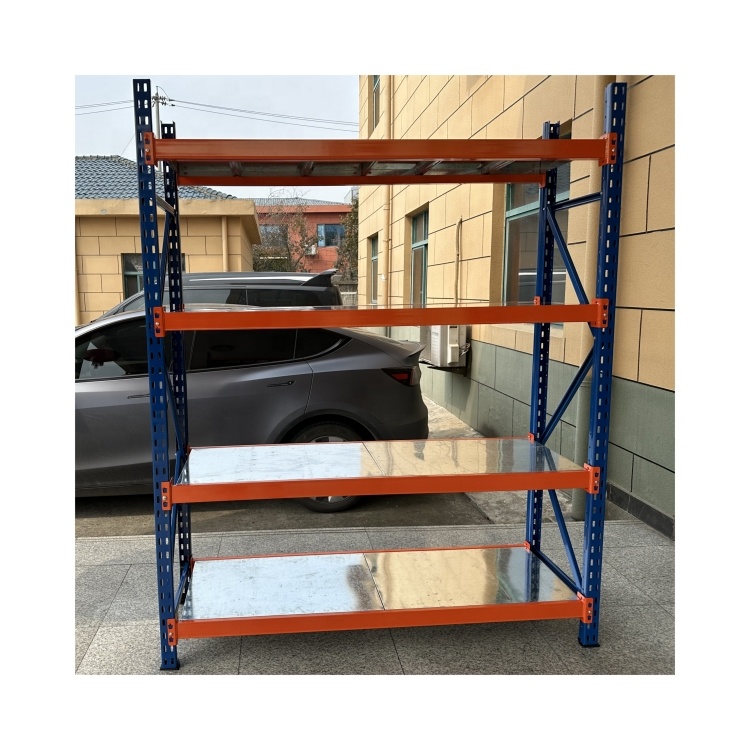

Garage Storage Factory Steel Warehouse Metal Van Rack System Medium Duty Shelving Single Deep Industrial Pallet Rack Shelving
Product Description
Product Categories
Product Description

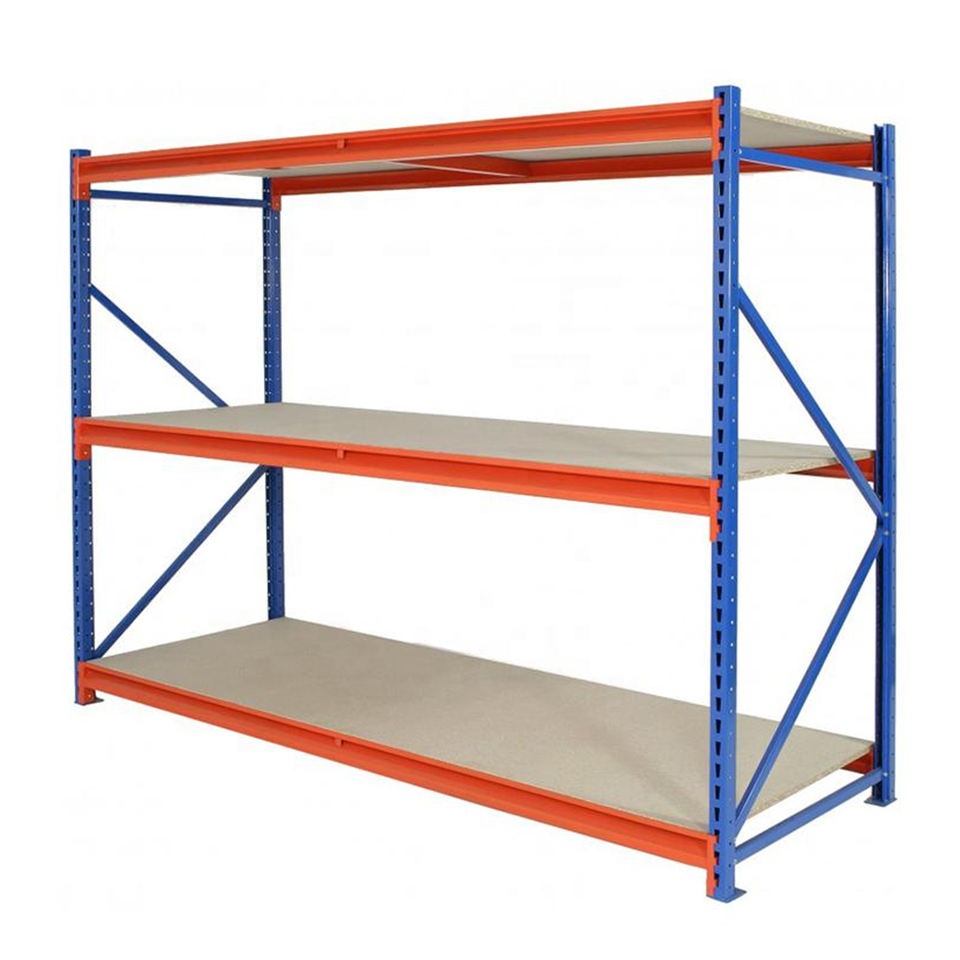

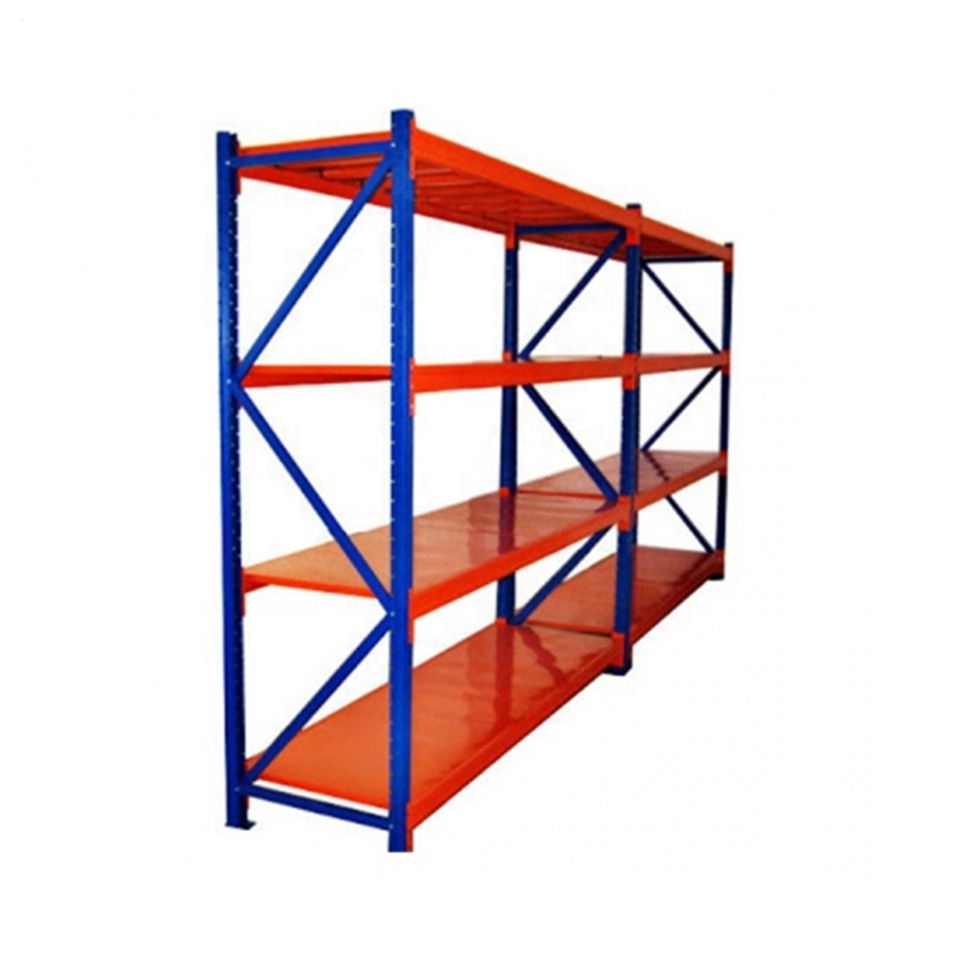

Medium Duty Rack
| Product Name | Storage Racking | Style | Medium Duty Rack |
| Brand | Peterack | Colour | Blue, white, orange, green, etc. |
| Material | Steel | Place of Product | Jiangsu Province, China |
| Feature | Corrosion Protection, Assembly | Packing | Export Package |
| Size | Customizable | Application | Widely used in light industries |
Medium duty shelves adopts plug-in combination structure, which is easy to install and disassemble. It can be equipped with steel and wood laminates with high floor height. Every 50mm can be adjusted, the width of the laminate can be freely combined, the unit can bear 200-800kg, and the specifications can be customized.
Features & Benefits
- Upright section: 55*47

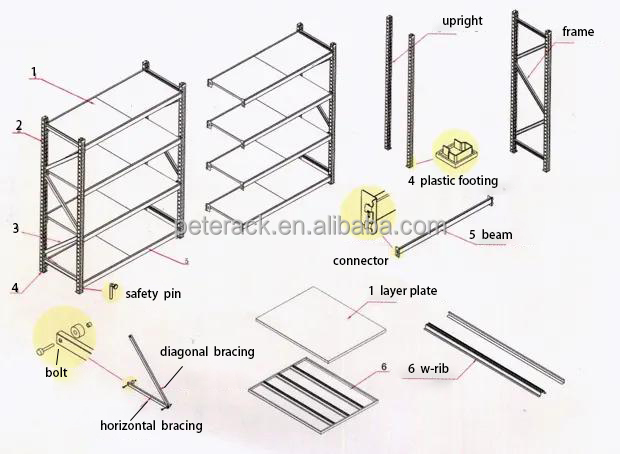

- Adopt the structural form of combination of beams and decking
- Can carry 200-800kg cross-sections with various specifications
- Can be installed and removed freely
- Each layer height can be adjusted, pitch: 50mm
- Lightweight, strong bearing capacity and low cost
| Weight Capacity | Product code | Specifiction (L*D*H)mm | Color | Remark |
|---|---|---|---|---|
| 250KG/layer | PT-W205-1252A | 1200*500/600*2000*4layer | Blue/Grey/Orange | upright:55*47*1.5mm beam:P50*30*1.2mm |
| 250KG/layer | PT-W205-2058A | 2000*500/600*2000*4layer | Blue/Grey/Orange | upright:55*47*1.5mm beam:P50*30*1.5mm |
| 300KG/layer | PT-W205-1552A | 1500*500/600*2000*4layer | Blue/Grey/Orange | upright:55*47*1.5mm beam:P50*30*1.5mm |
| PT-W205-1868A | 1800*500/600*2000*4layer | Blue/Grey/Orange | ||
| 500KG/layer | PT-W205-1252B | 1200*500/600*2000*4layer | Blue/Grey/Orange | upright:55*47*1.5mm beam:P50*30*1.5mm |
| PT-W205-1552B | 1500*500/600*2000*4layer | Blue/Grey/Orange | upright:55*47*1.5mm beam:P60*40*1.2mm | |
| PT-W205-1858B | 1800*500/600*2000*4layer | Blue/Grey/Orange | upright:55*47*1.5mm beam:P60*40*1.2mm | |
| PT-W205-2058B | 2000*500/600*2000*4layer | Blue/Grey/Orange | upright:55*47*1.5mm Beam:P80*50*1.2mm |

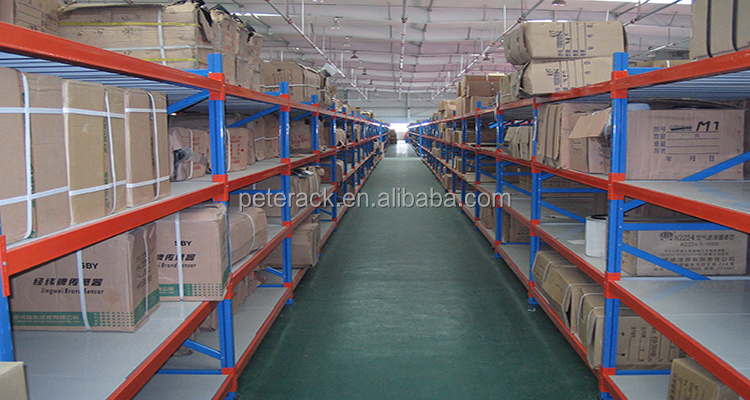

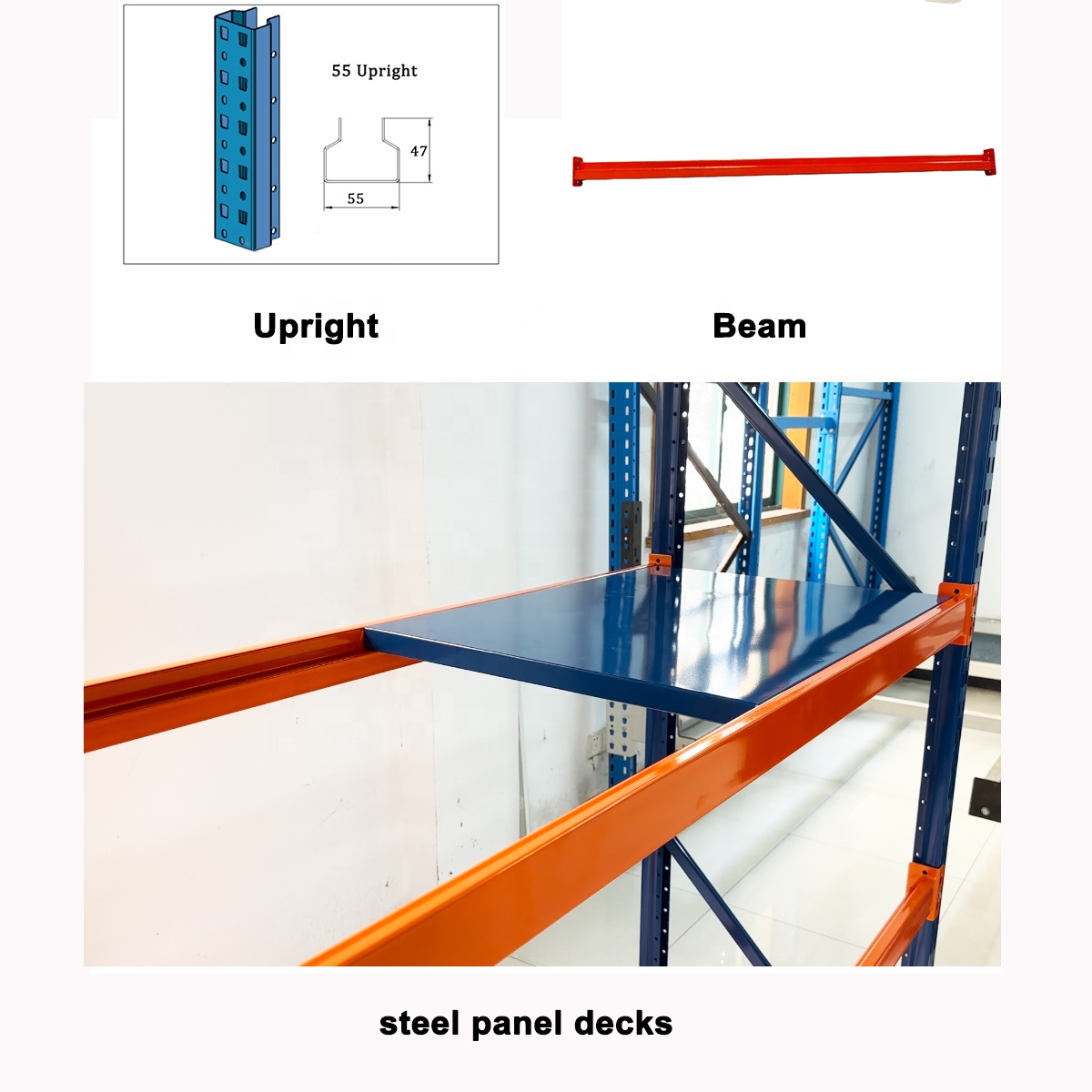

Medium duty shelves load carrying
Click here for a free design and quotation
Certifications

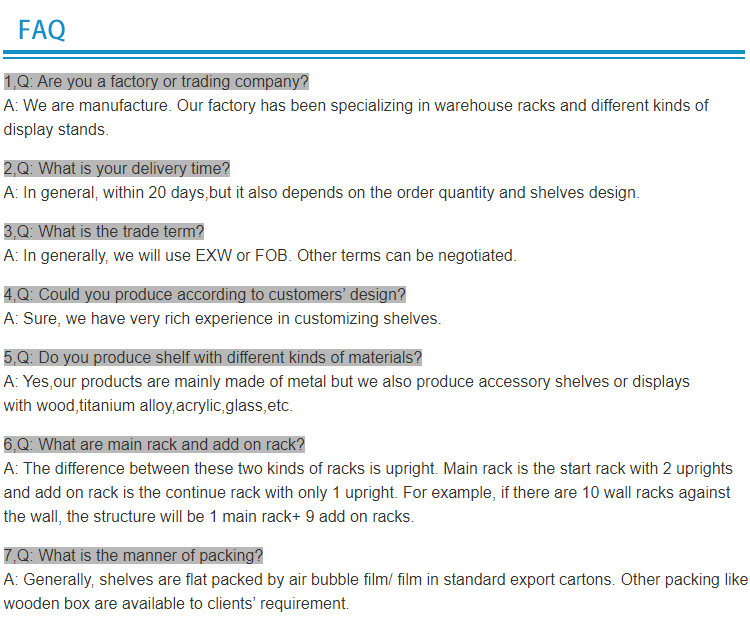

FAQ
What is the loading capacity of this medium duty rack?
The medium duty storage rack has a standard load capacity ranging from 200kg to 800kg per layer, with common configurations offering 250kg, 300kg, and 500kg per tier depending on beam and upright dimensions.
Can the layer heights be adjusted after installation?
Yes, the beam positions feature a standard 50mm pitch adjustment, allowing you to easily reposition the layer height according to your changing storage requirements.
Are custom sizes and colors available?
Yes, specifications are fully customizable. Standard available colors include blue, grey, orange, white, and green, and custom dimensions can be manufactured to match your space.
What surface treatment is applied for corrosion protection?
The steel components undergo strict pre-treatment followed by high-quality electrostatic powder coating, providing effective anti-corrosion protection and long service life.
How is the racking packaged for international shipping?
All racking components are packed in standard export packaging, bundled securely with protective wrapping to ensure safe transport and prevent transit damage.
