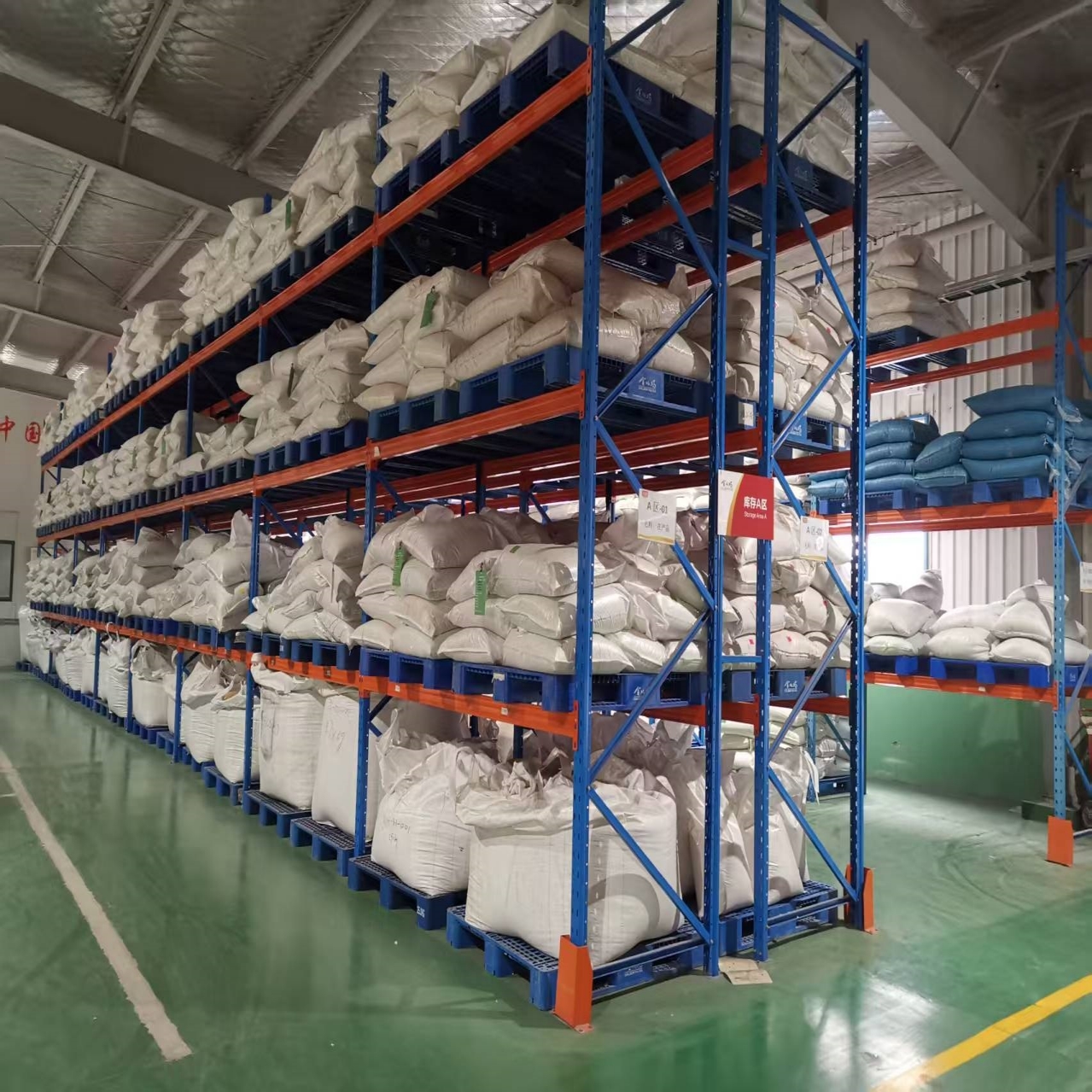

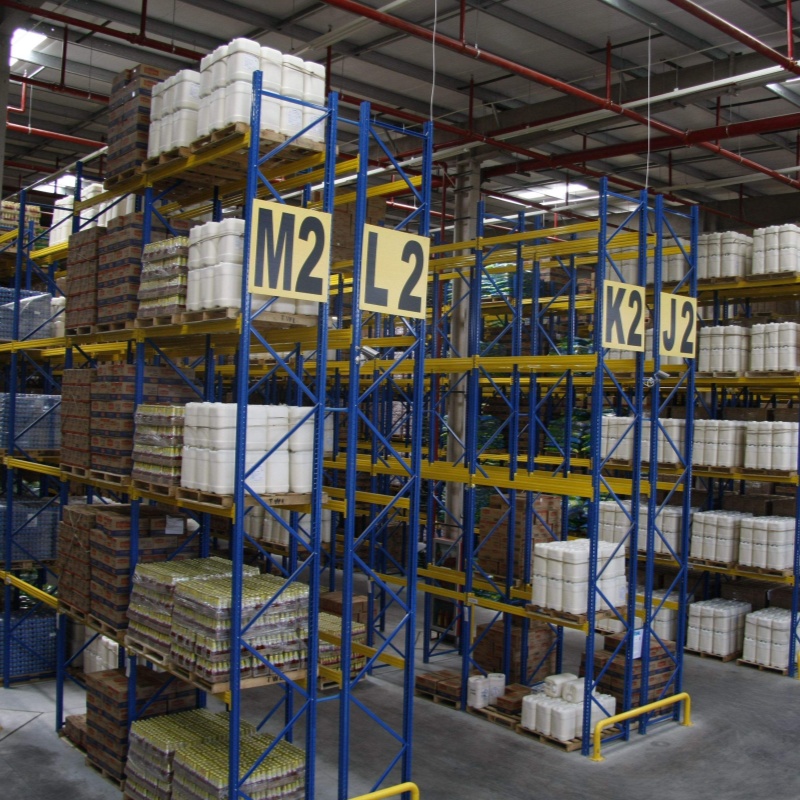

Industrial Storage Racks Custom 5 Layer US Teardrop Pallet Rack Conventional Pallet Racking For Warehouse Cold Room Storage
Product Description
Product Details

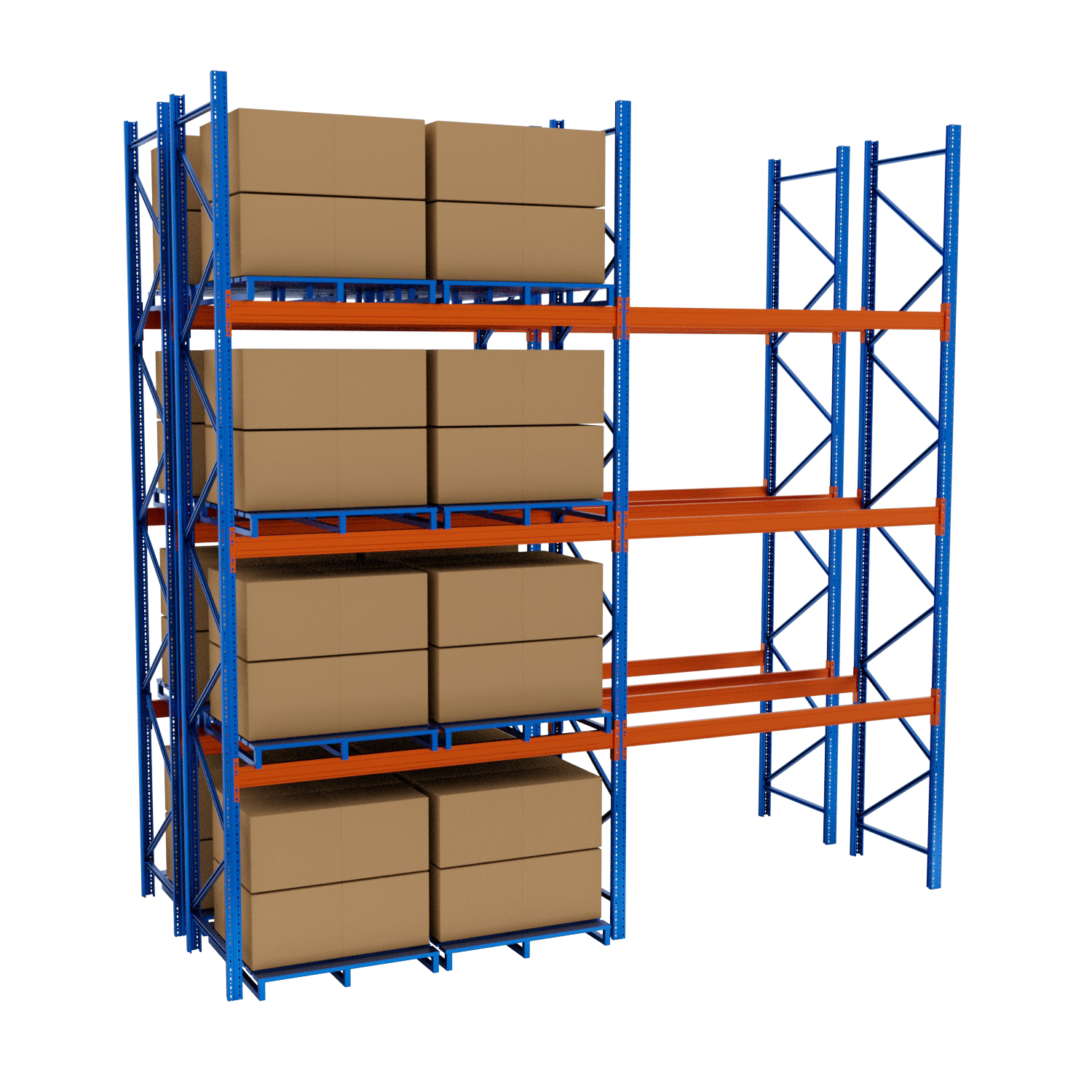

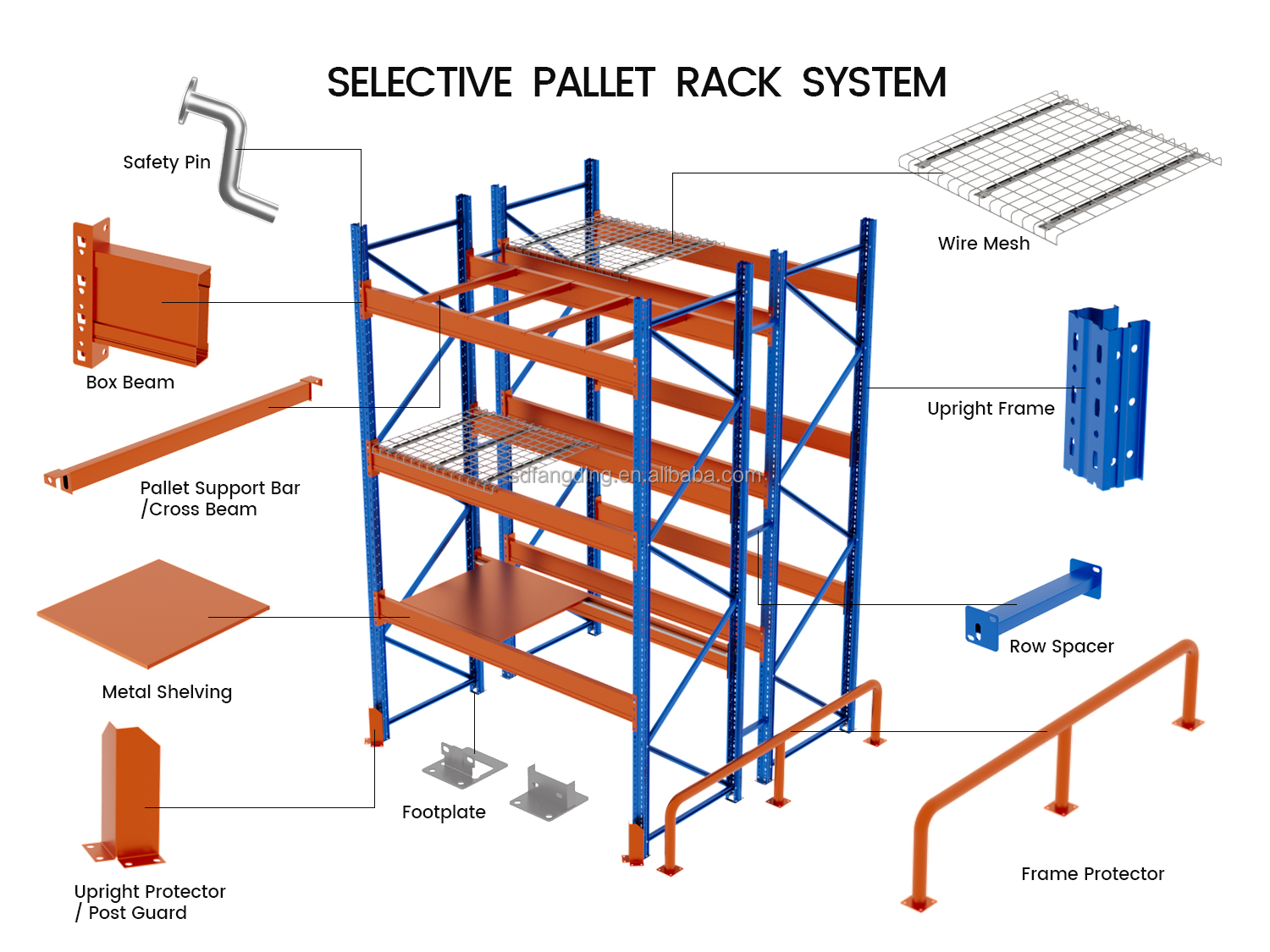

What is selective pallet racking?
Selective pallet rack also named beam rack or heavy-duty rack, is very common in the various kinds of warehouse racks. The main components are an upright frame+beam, the structure is concise and effective. This is the most diversified warehouse rack and works with forklifts for pallets up and down. It is wildly used by most enterprises. Selective pallet racks wildly use many manufacturers, E-commerce warehouses, third logistics and distribution centers, etc. It is suitable for many kinds of small bulk items, but also suitable for a small variety of items.

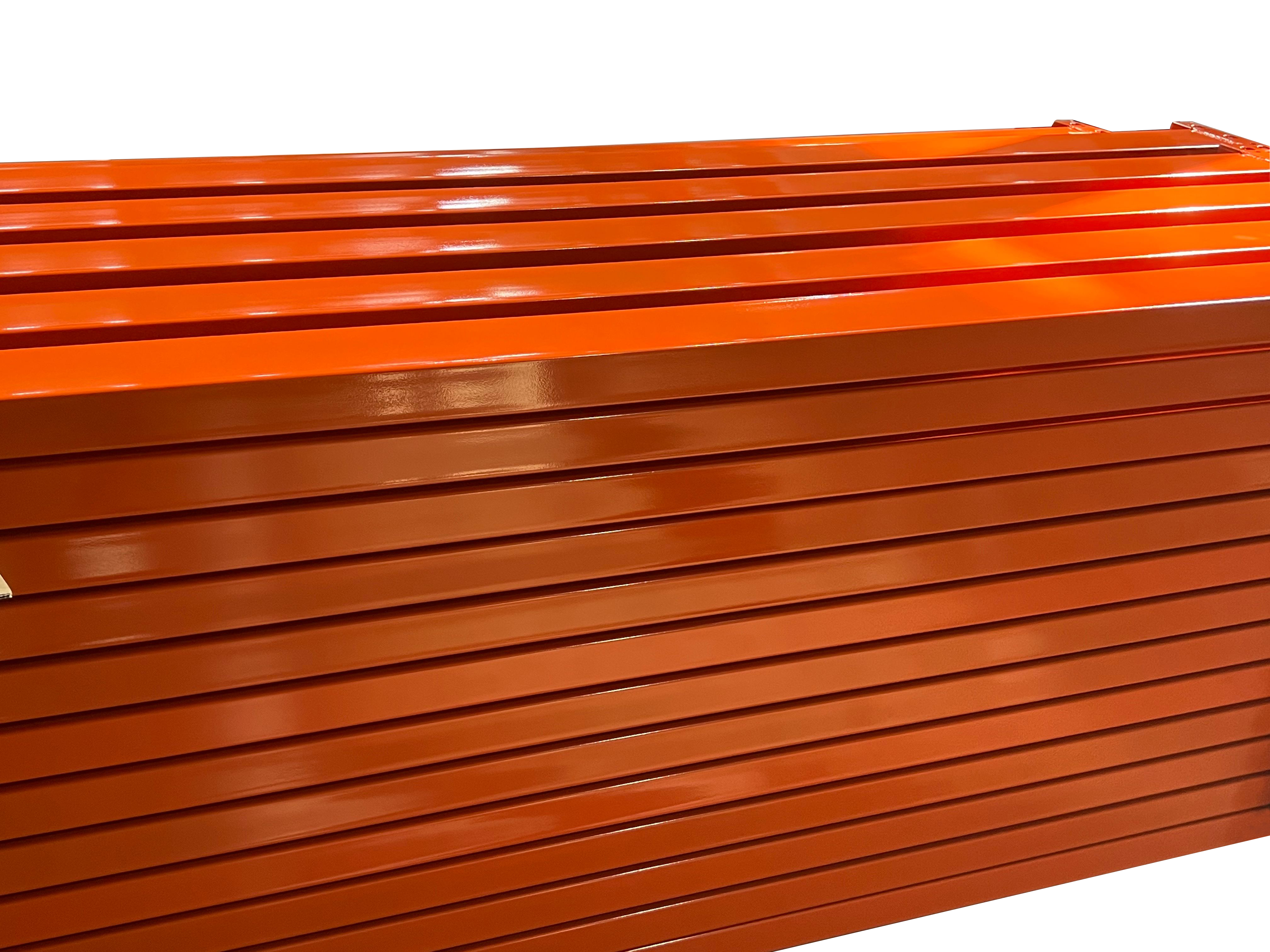

Surface Treatment
The surface is treated with electrostatic spraying, offering advantages such as corrosion resistance, rust prevention, and a long service life.

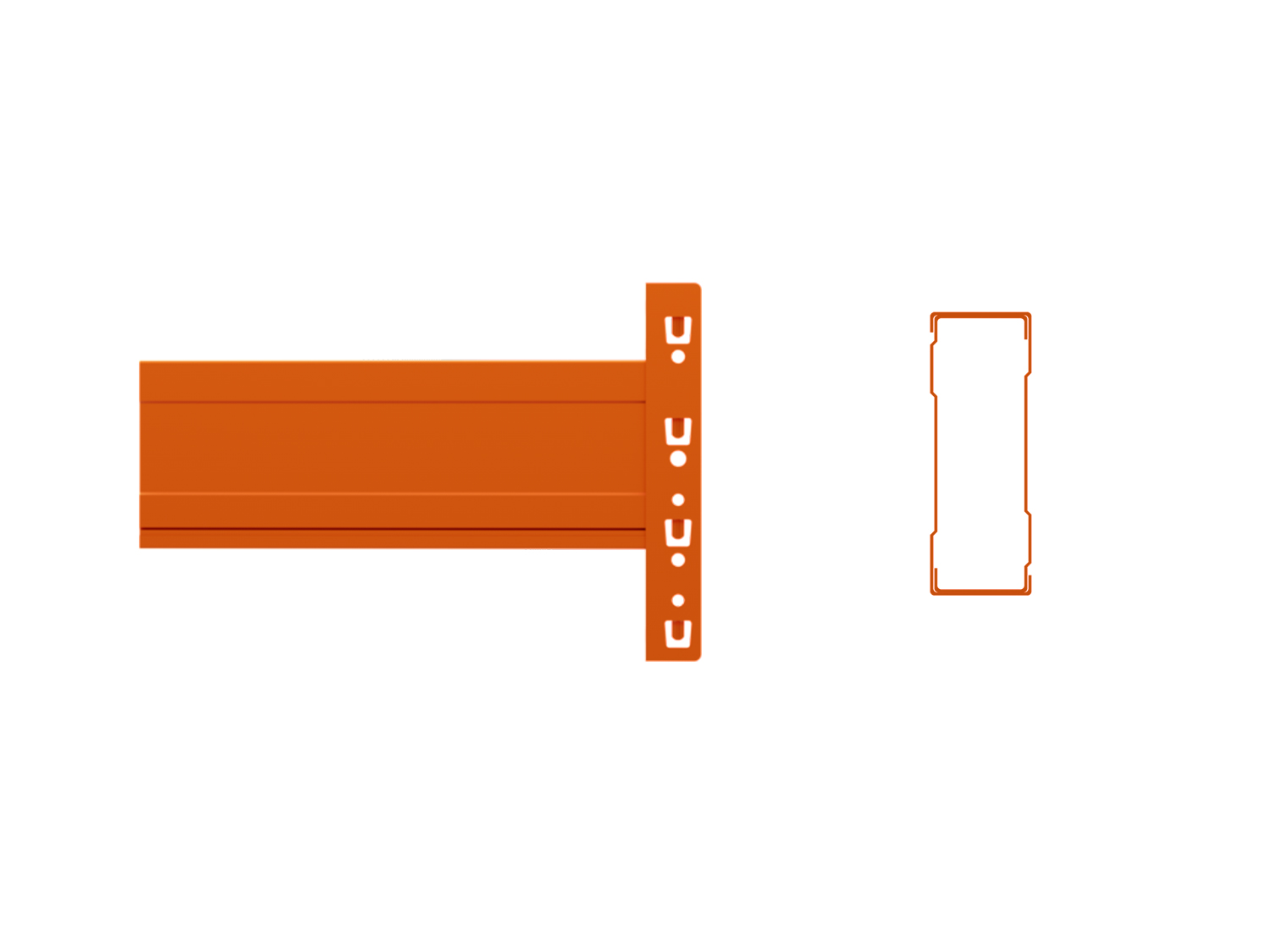

Crossbeams
Utilizing a high-specification C-shaped steel double-beam welded structure, it boasts superior bending strength compared to ordinary single beams.

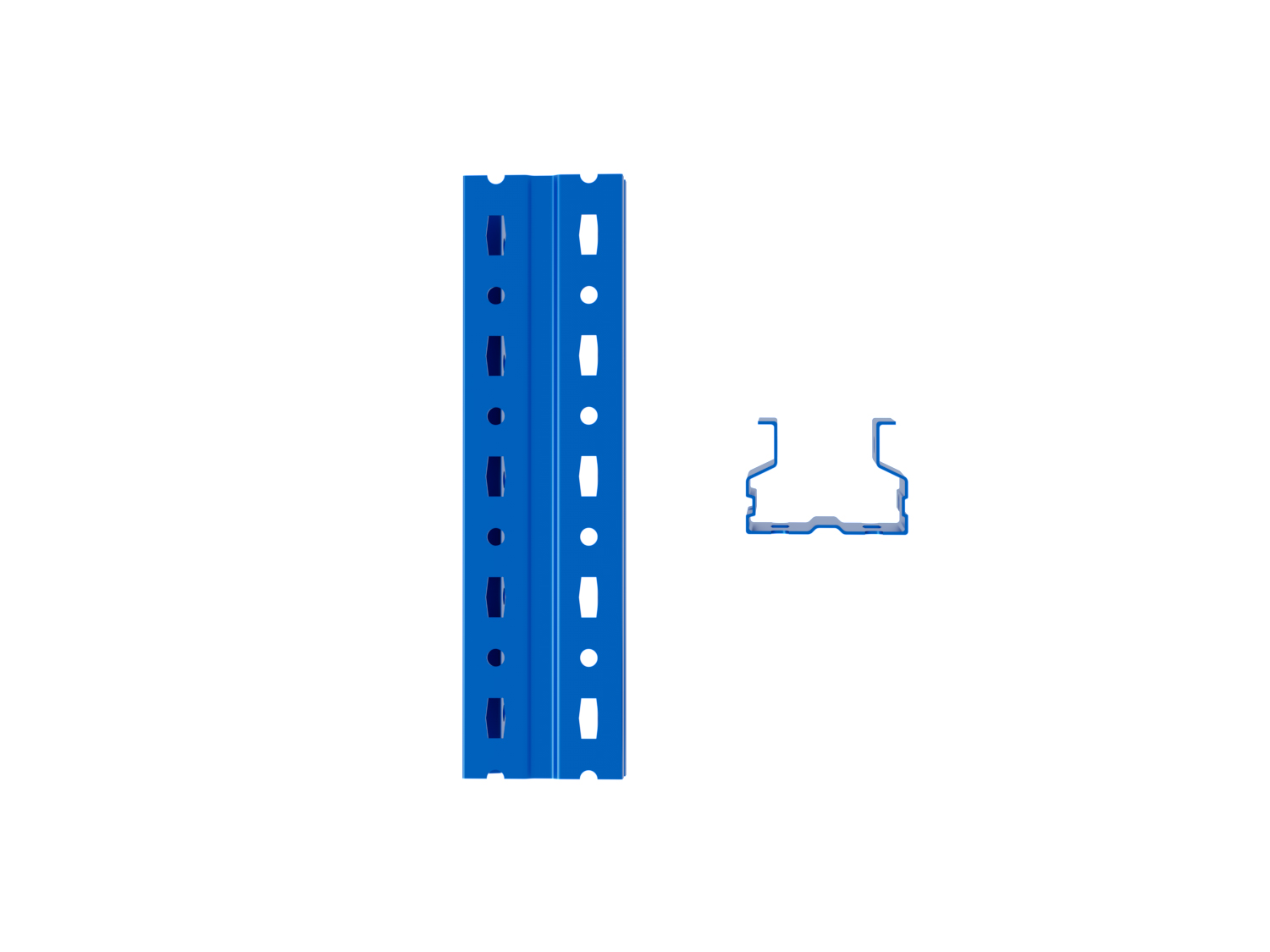

Uprights
Made of cold-formed steel plate with 21 folds for stronger load-bearing capacity. The surface features evenly distributed diamond-shaped or teardrop-shaped adjustable holes.

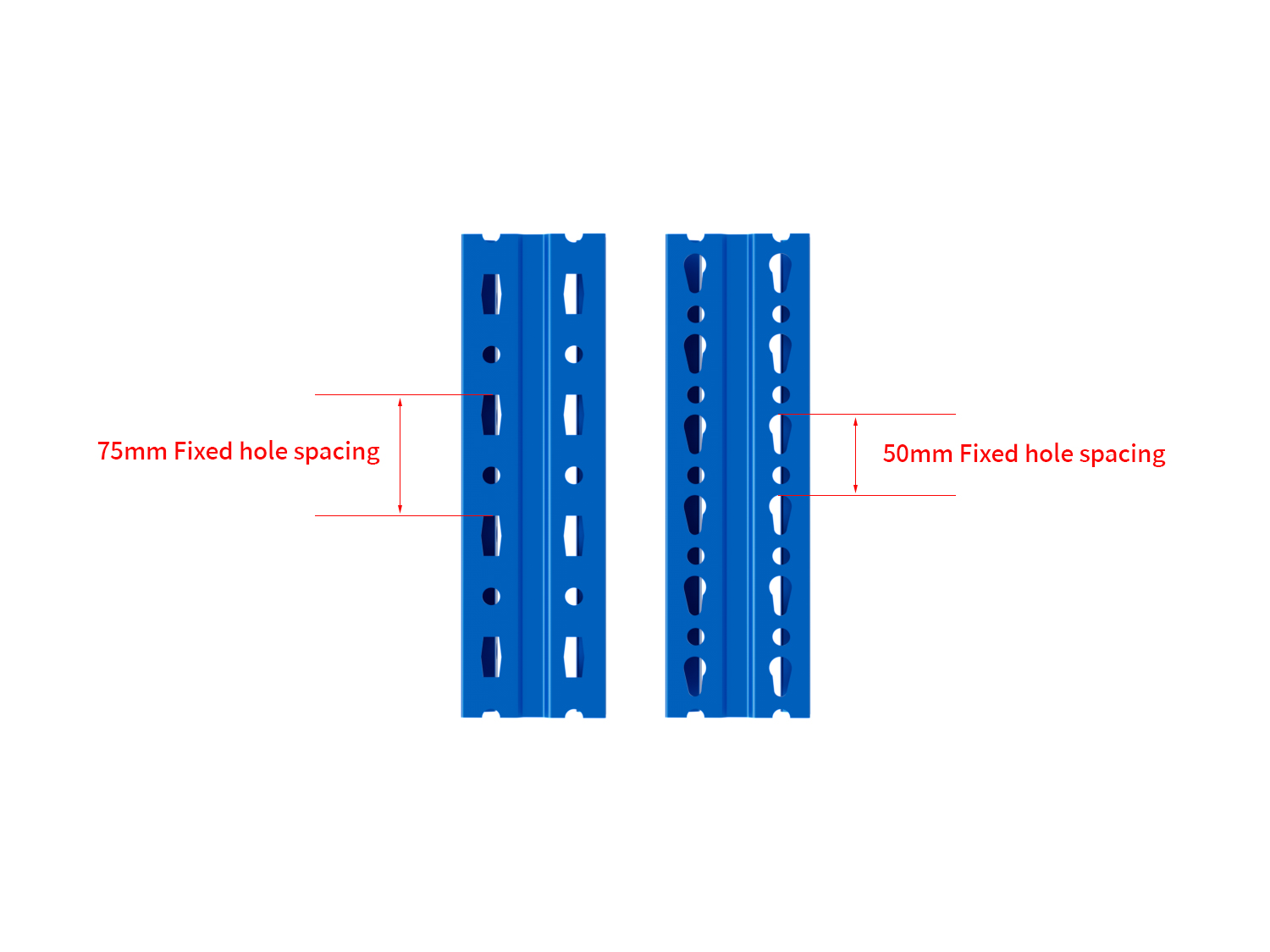

Adjustable Beam Height
Diamond-shaped holes: 75mm fixing hole spacing; Teardrop-shaped holes: 50mm fixing hole spacing. Customers can adjust the height of each layer as needed.

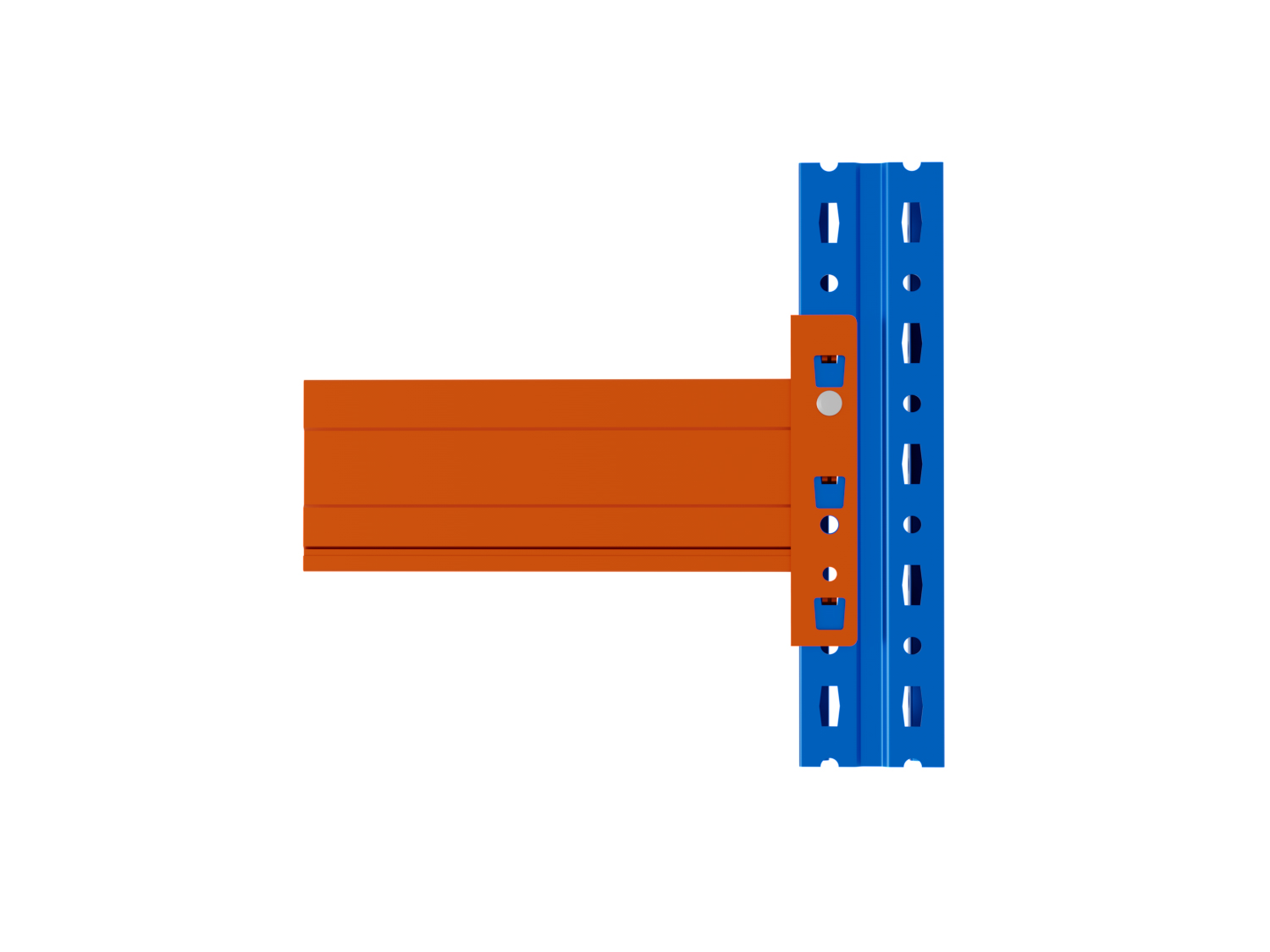

Double-locking structure
After the hooks are inserted into the column holes, they are locked again with bolts. This effectively prevents the crossbeam from falling off due to impact or vibration.

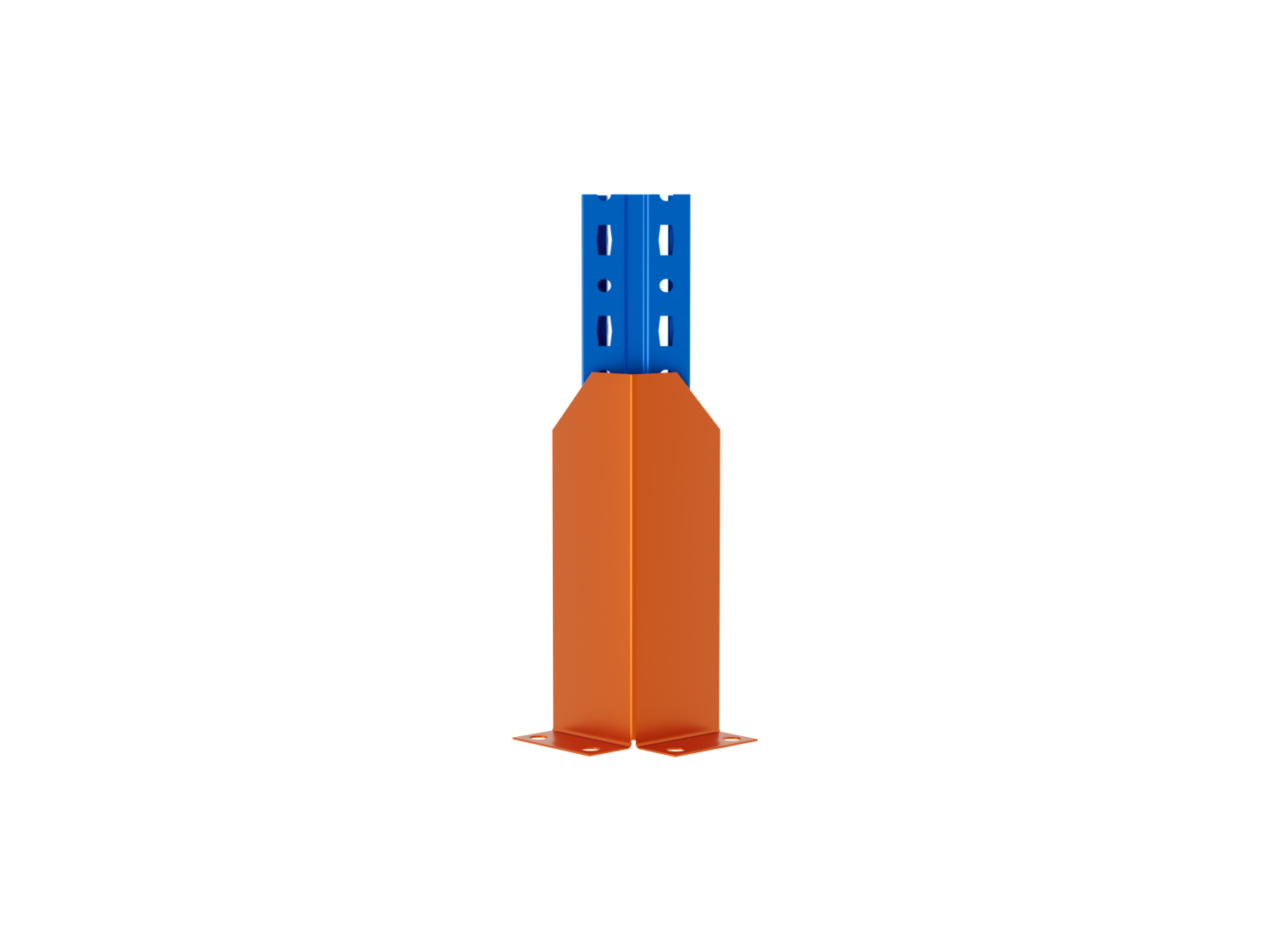

Column impact protection
High-strength steel anti-collision upright protectors are installed at column bottoms and passageway sides, fixed to the ground with expansion bolts to absorb forklift impact, preventing column deformation and cargo collision damage.

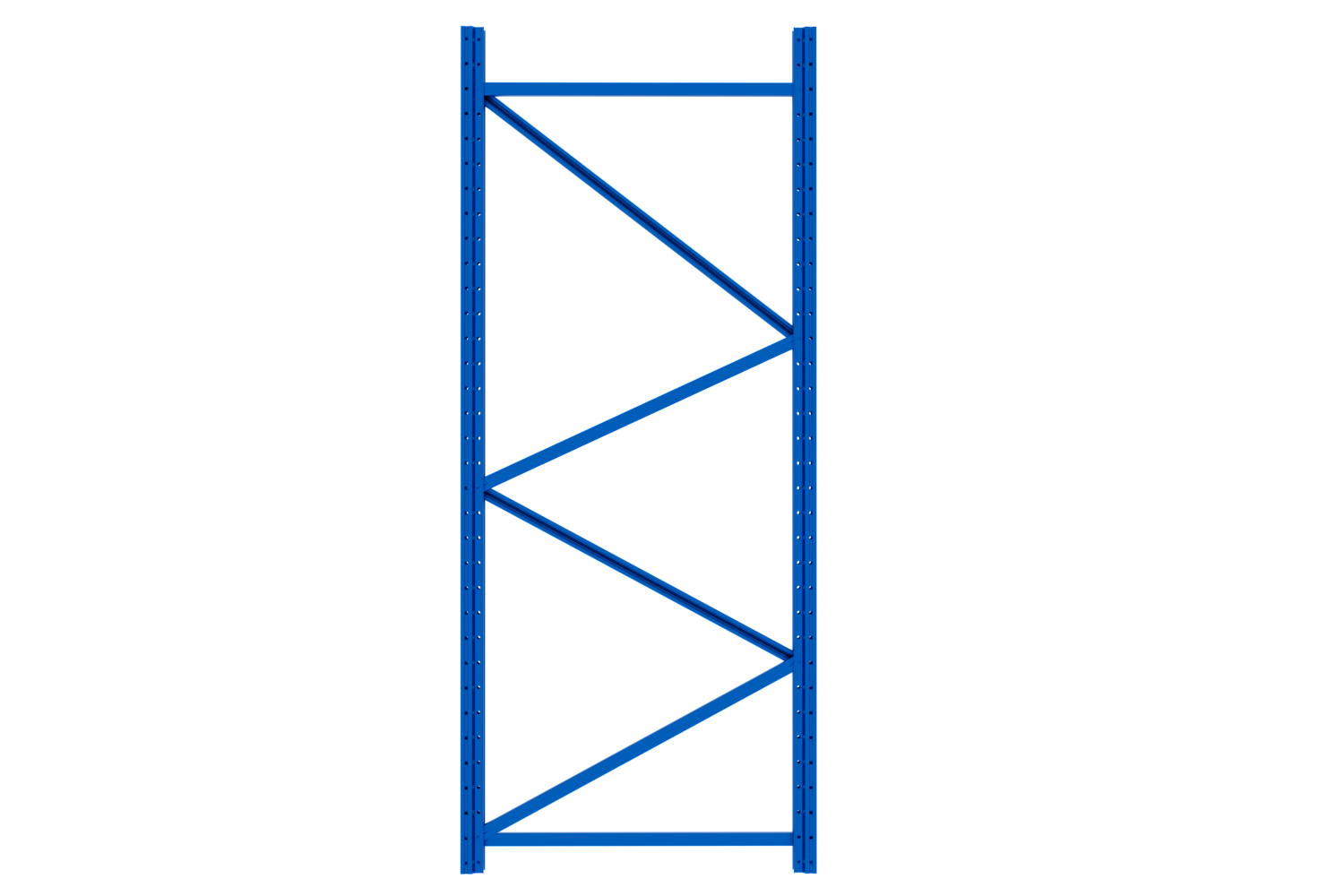

Stabilization & Reinforcement
Horizontal supports and diagonal braces are installed every 2-3 layers of uprights, forming a triangular stability structure to prevent the shelving from tipping over.

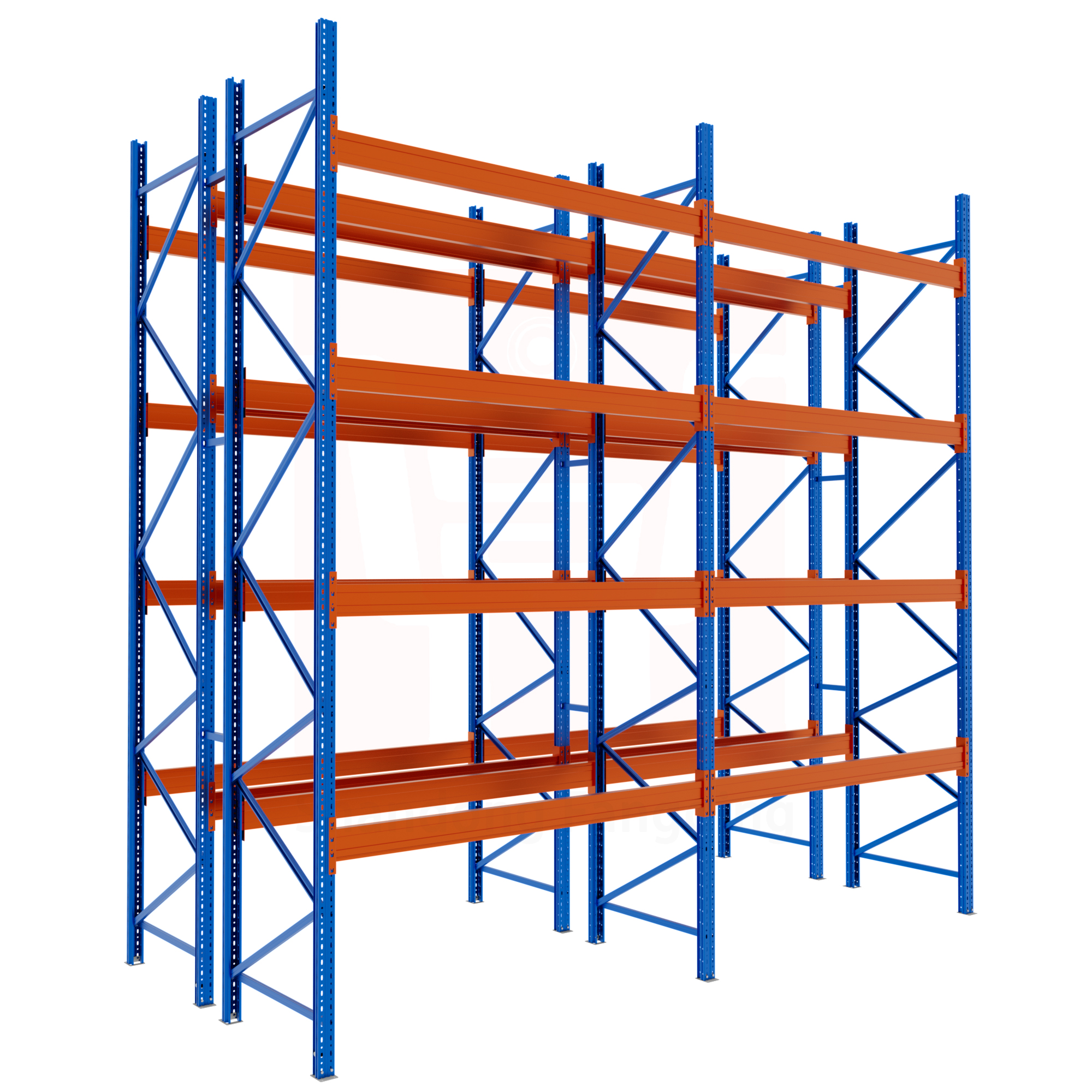

Advantages of Warehouse Pallet Rack
- Heavy-duty pallet racking systems are the simplest, lowest-cost, and most popular storage rack globally.
- Pallet racks can be customized to meet customer needs and can support goods of various weights and sizes.
- Suitable for palletized goods and packaging of any shape. Maximizes vertical storage utilization, saving warehouse space.
- All pallets can be directly accessed, ensuring efficient and convenient storage and retrieval. The floor-mounted pallet design further reduces overall structural costs.

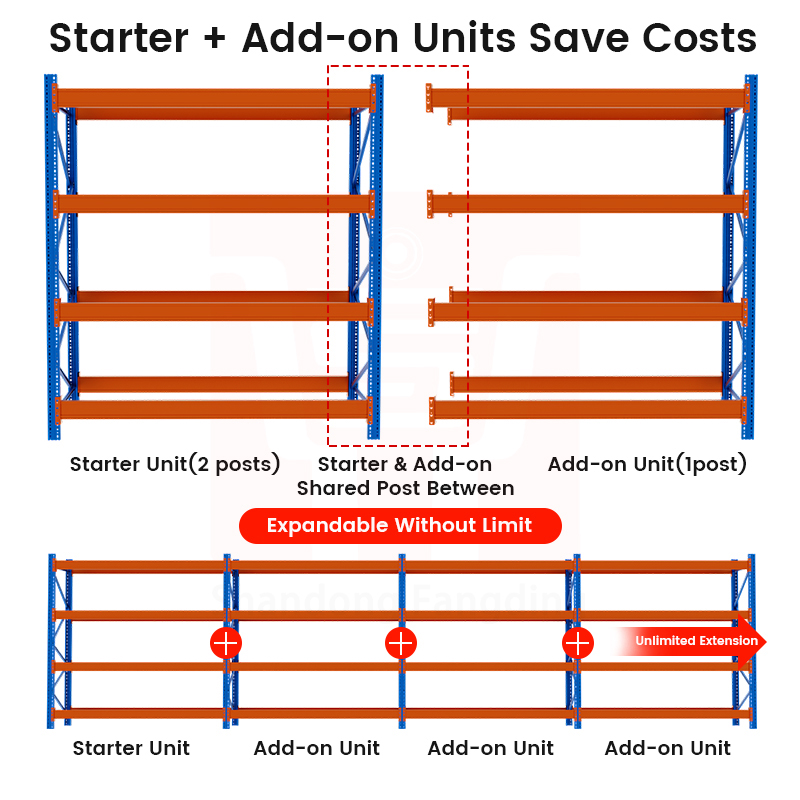

- Modular upright and beam structure, allowing for quick and easy assembly with a hammer or mallet.
- Compatible with various material handling equipment, such as forklifts, stacker cranes, and reach trucks, supporting FIFO/any-access.
- Can meet the storage needs of multiple industries and product categories, such as industrial and automotive, and has a wide range of applications.
- Stackable pallet racks can also be used with various accessories such as metal mesh and support bars.
- Metal Pallet Shelf is highly versatile; it can be used to build mezzanine racking, automated warehouse racking, and even specialized oil drum racking.
Product Parameters
| Type | Heavy-Duty Selective Pallet Rack |
| Material | Q235B Steel, Cold Rolled Steel |
| Certifications | CE, ISO9001, GOST |
| Color | Blue, Orange, Customizable |
| Beam Length | Customizable, Typically 2,000mm(79in) to 3,500mm(138in), adjustable for pallet sizes and weight. |
| Rack Depth | Customizable, 1,000mm(40in) to 1,500mm(60in), depending on pallet dimensions and load weight. |
| Rack Height | Customizable, typically 2000mm to 12000mm or more, depending on warehouse space. |

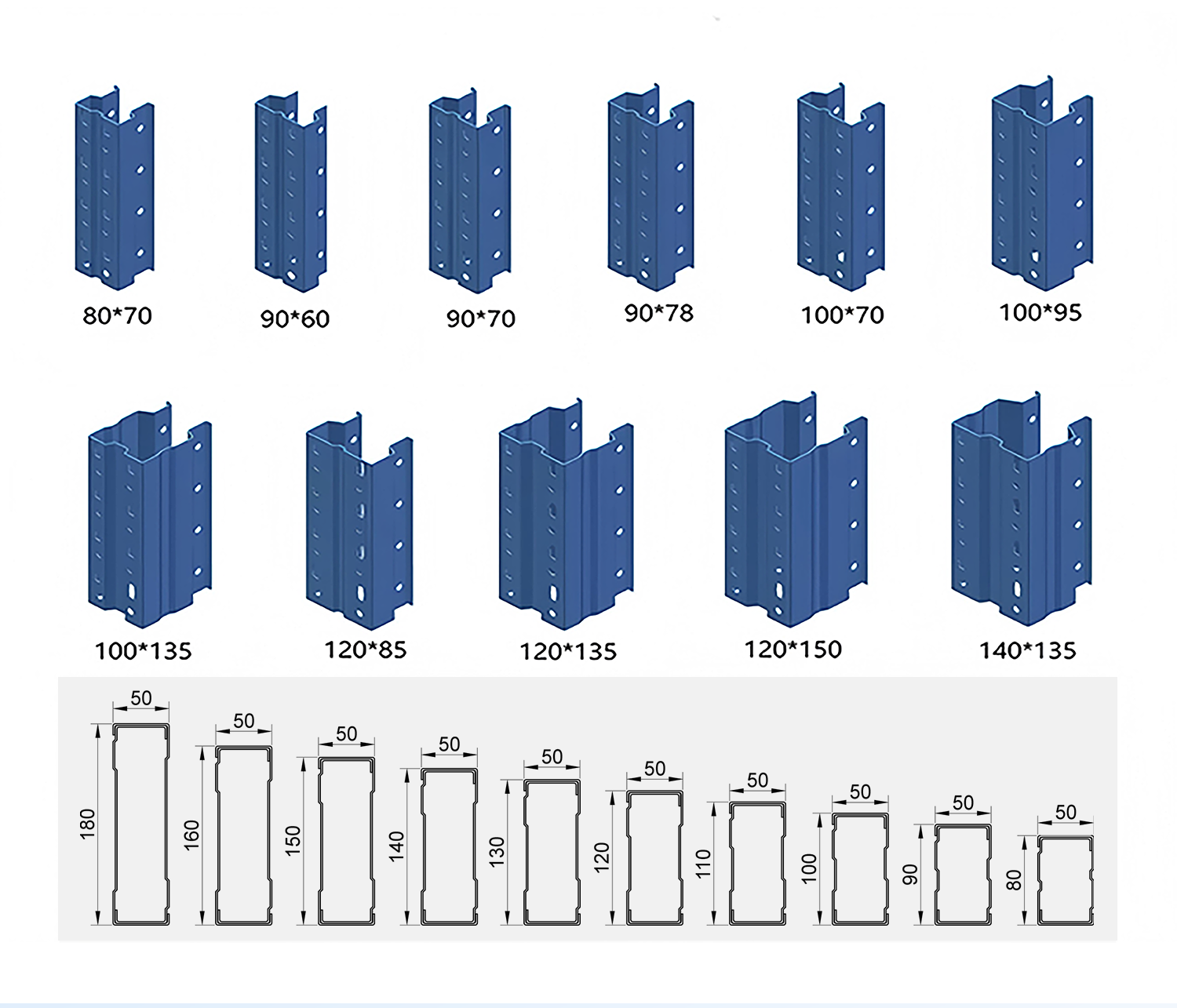

| Column Size | Customizable, Typically 100mm*70mm, 90*80mm, 90mm*70mm, 55mm*47mm, based on load requirements. |
| Aisle Width | Typically 2.5m to 3.5m |
| Adjustability | Beams are adjustable in 50mm/75mm increments for flexibility. |
| Environmental Suitability | Normal Temperature or Cold Room (Max -40C) |
Success Stories

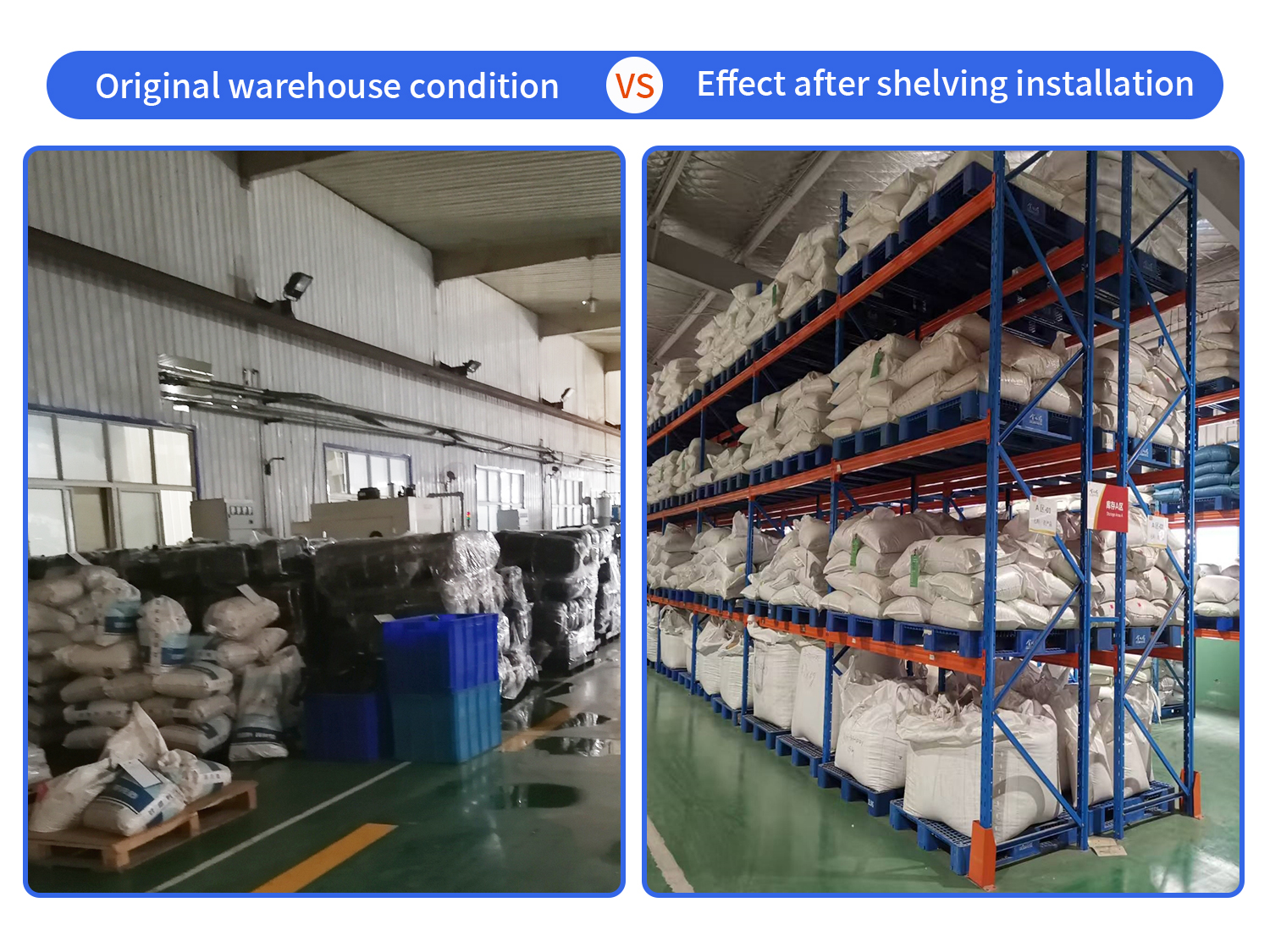

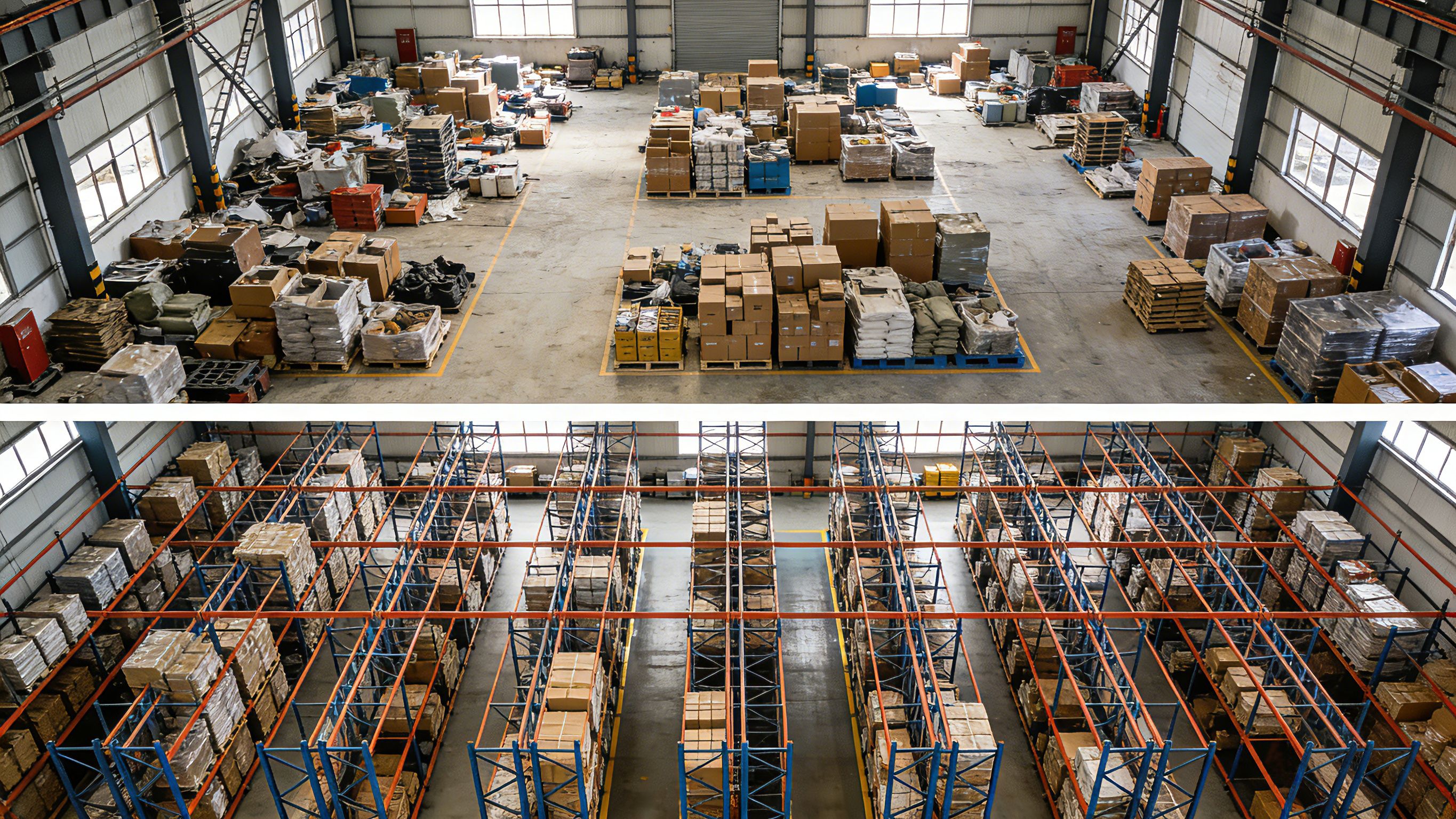

Comparison of warehouse capacity improvement before and after

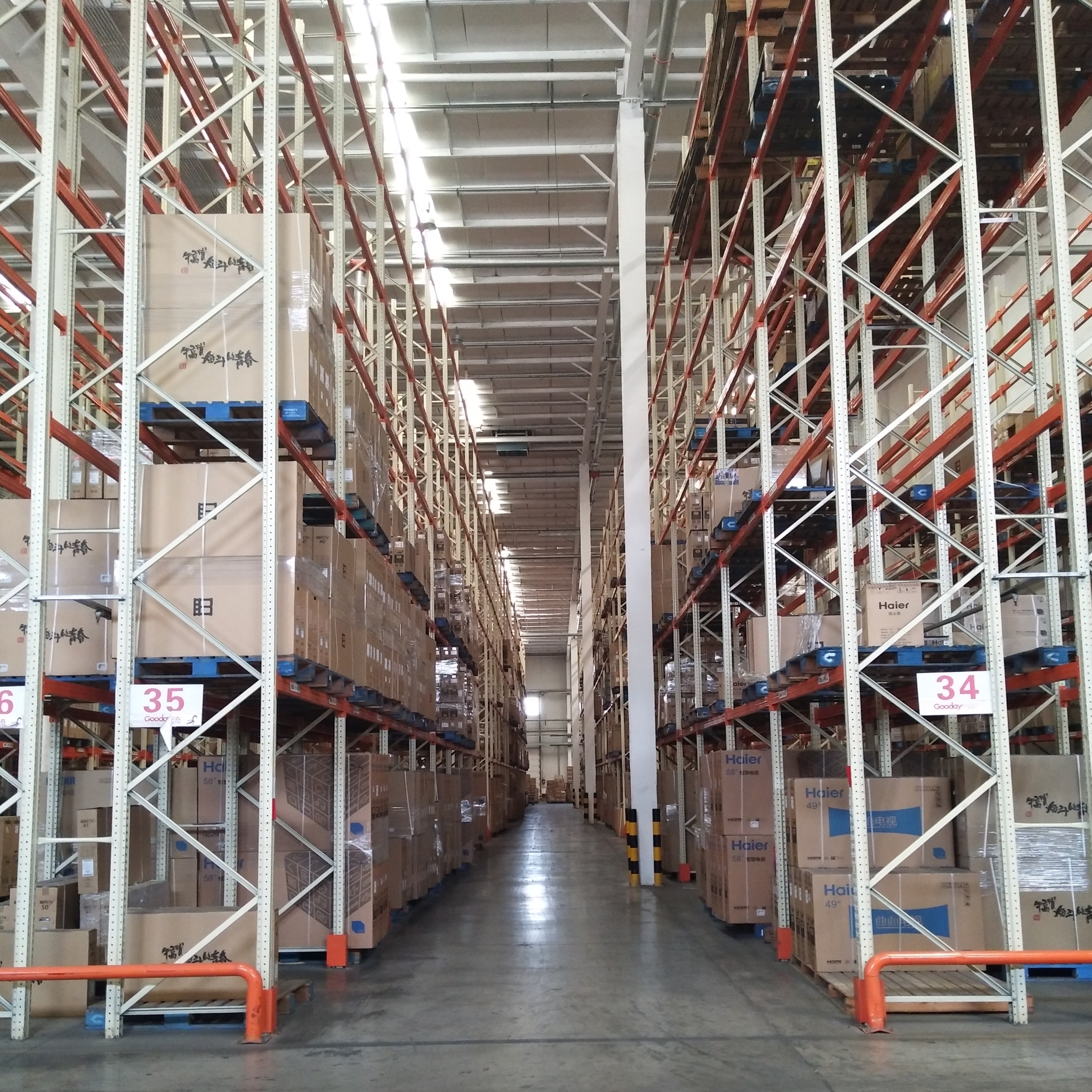

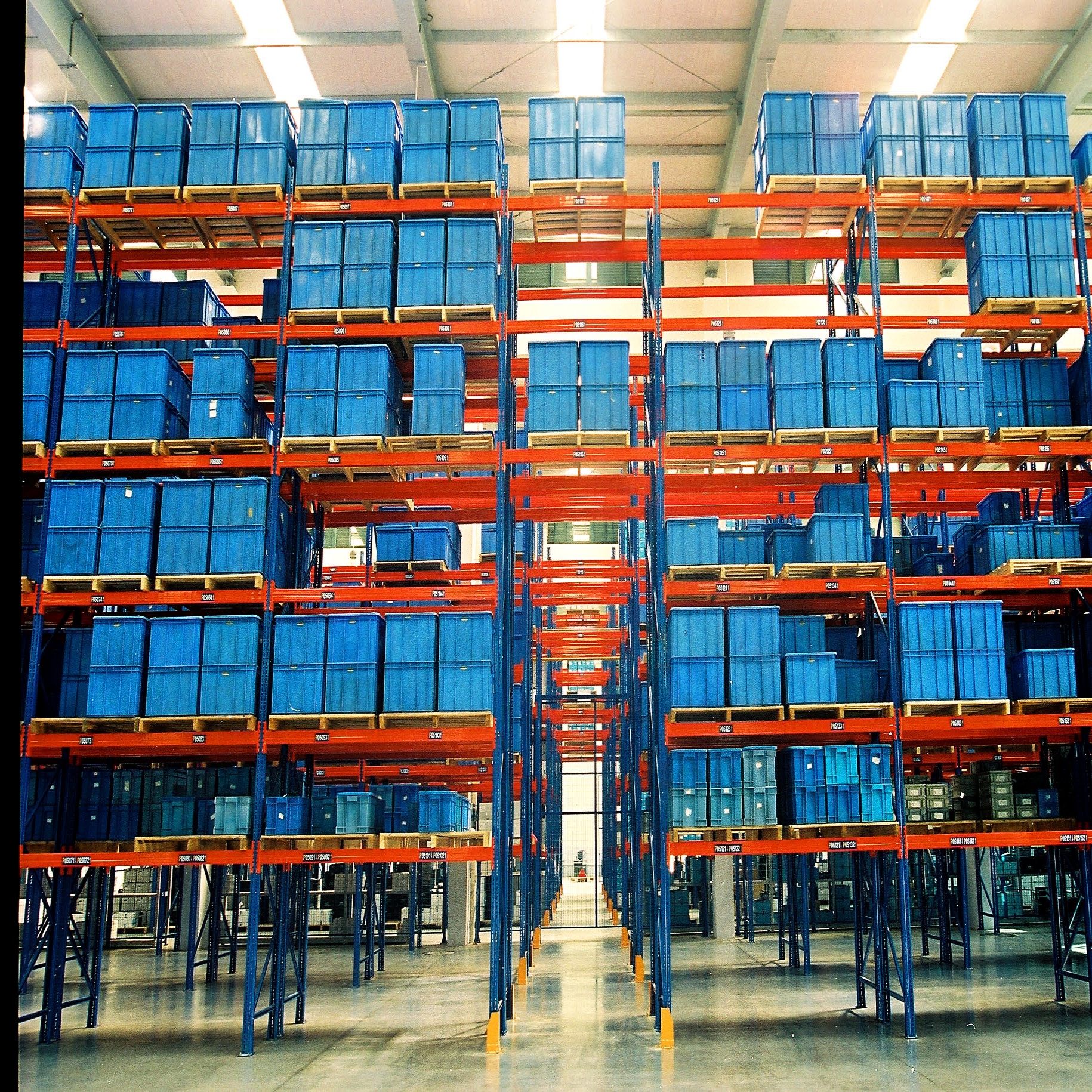

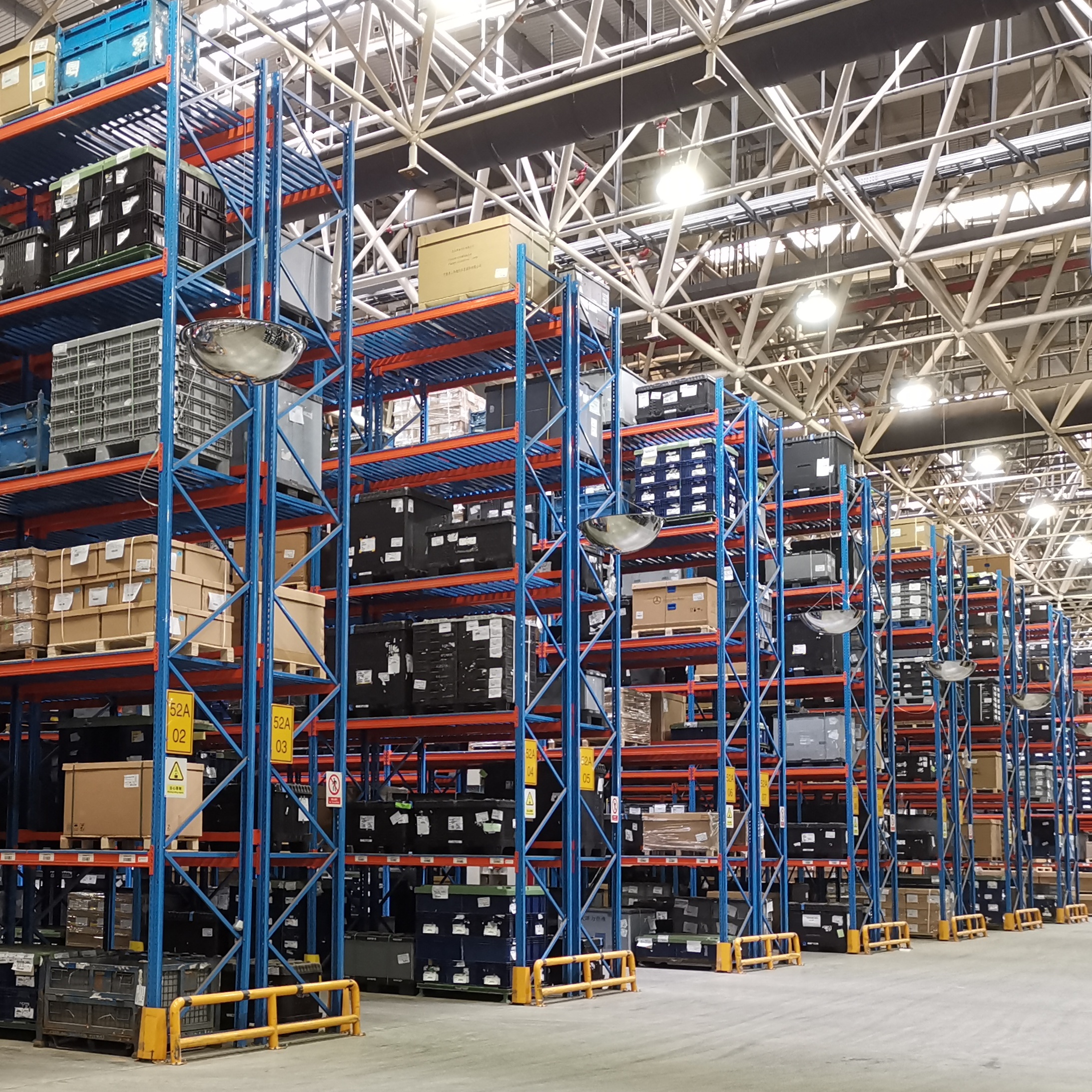

Application Scenarios of Heavy-duty Pallet Rack

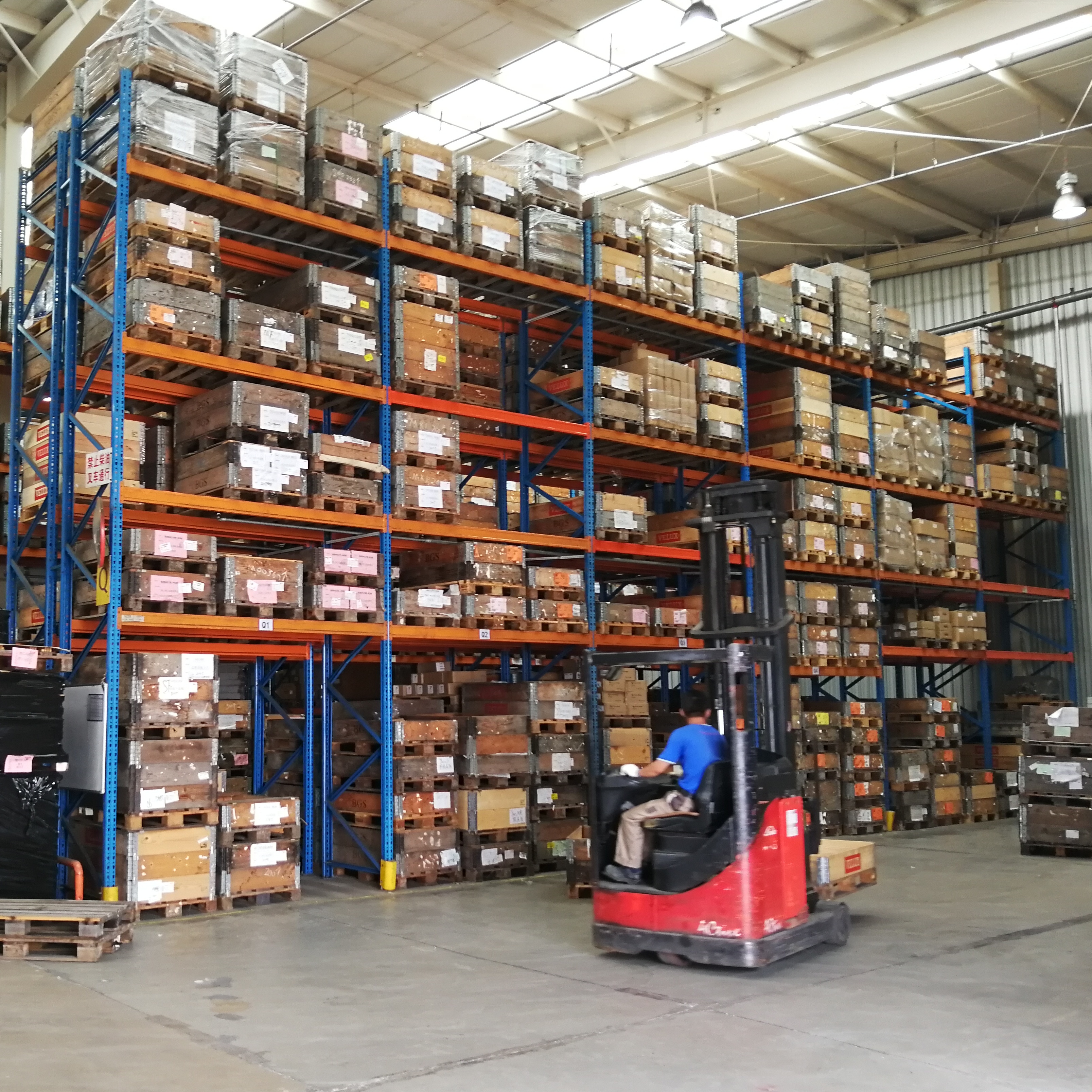

Heavy-Duty Steel Racks have a wide range of applications, suitable for manufacturing warehouses, e-commerce fulfillment centers, third-party logistics (3PL) distribution centers, cold storage warehouses, food and beverage warehouses, hardware and building materials storage, auto parts storage facilities, pharmaceutical warehouses, etc., meeting the storage needs of multi-SKU small-batch or low-SKU bulk palletized goods.

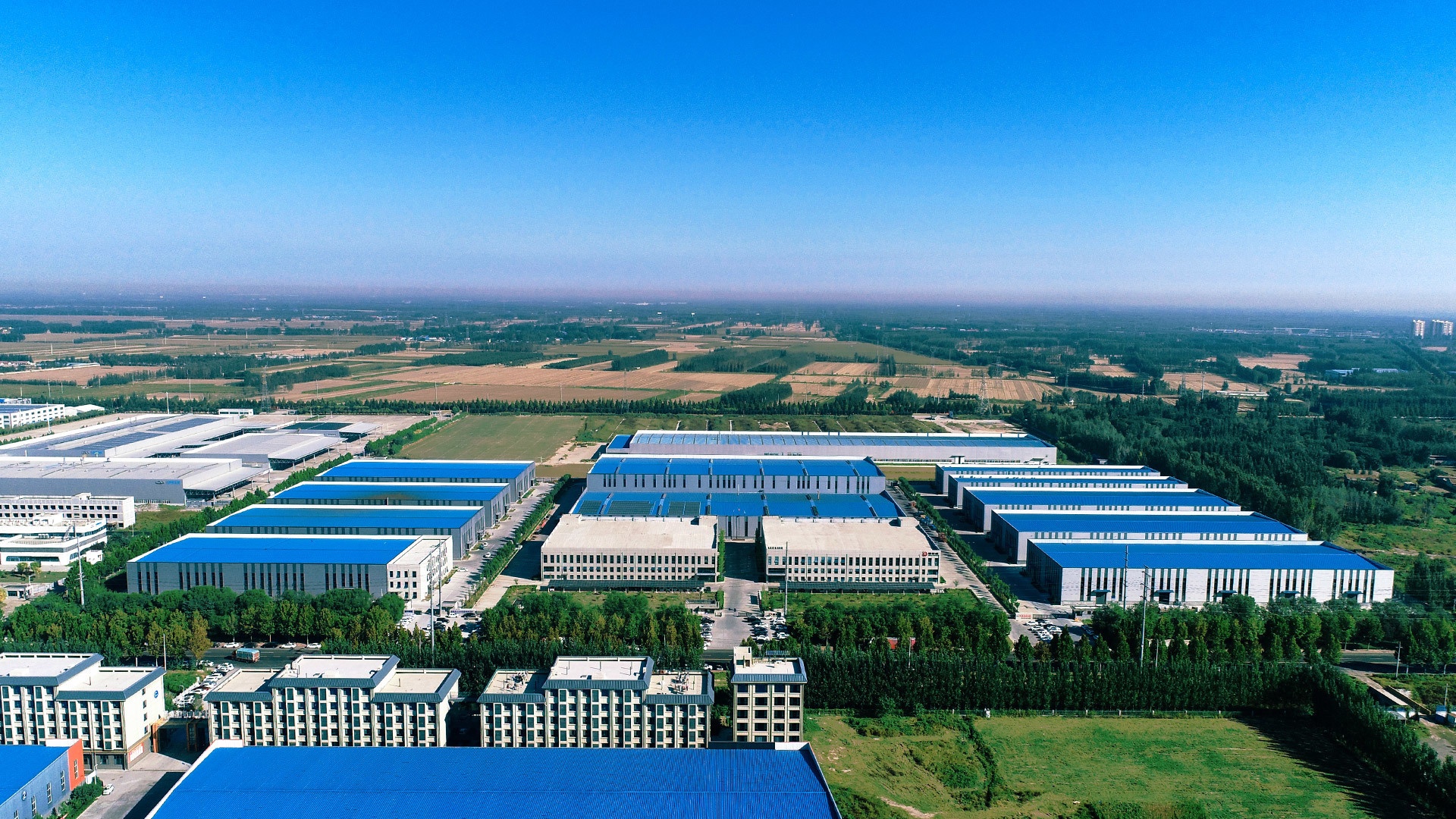

Company Profile
SDFD has been deeply involved in the warehouse racking manufacturing industry for 17 years.
Since its inception, it has provided professional warehousing solutions to over 12,000+ users worldwide, helping them solve warehousing challenges and maximize inbound and outbound efficiency and space utilization. Currently, the company's products are sold to Europe, South America, Japan, South Korea, Saudi Arabia, and the Middle East, earning the trust and recognition of users globally.
We consistently focus on our customers' core needs
Taking it as our mission to empower our partners and enhance the market competitiveness of our products, helping customers achieve strategic upgrades in the logistics and warehousing field. In the future, we will continue to drive industry transformation through innovation, deeply cultivate space optimization technology, bring change and innovation to the global logistics and warehousing industry, and save and utilize every inch of space on Earth.
Why Choose Us
- With a monthly production capacity of up to 3,000 tons, we are the ideal choice for clients with large-scale projects and strict delivery requirements.
- Our professional technical team can quickly provide you with the optimal solution, providing drawings, on-site measurements, and installation guidance.
- We offer customized services. With a variety of materials, we can meet diverse specifications and load-bearing requirements based on your warehouse size and pallet conditions.
Please feel free to contact our sales engineers!
- Our sales engineers have extensive export experience and professional product knowledge, and can quickly confirm customer needs and arrange shipment. This truly provides one-stop service.
- We hold SGS, ISO9001, and grinding test certifications, as well as numerous patents. FANGDING is a fully-fledged factory with strong R&D capabilities.
- Our principles are sustainable development, integrity management, and safety first.
- Our product quality, delivery time, and service have been recognized by customers worldwide.

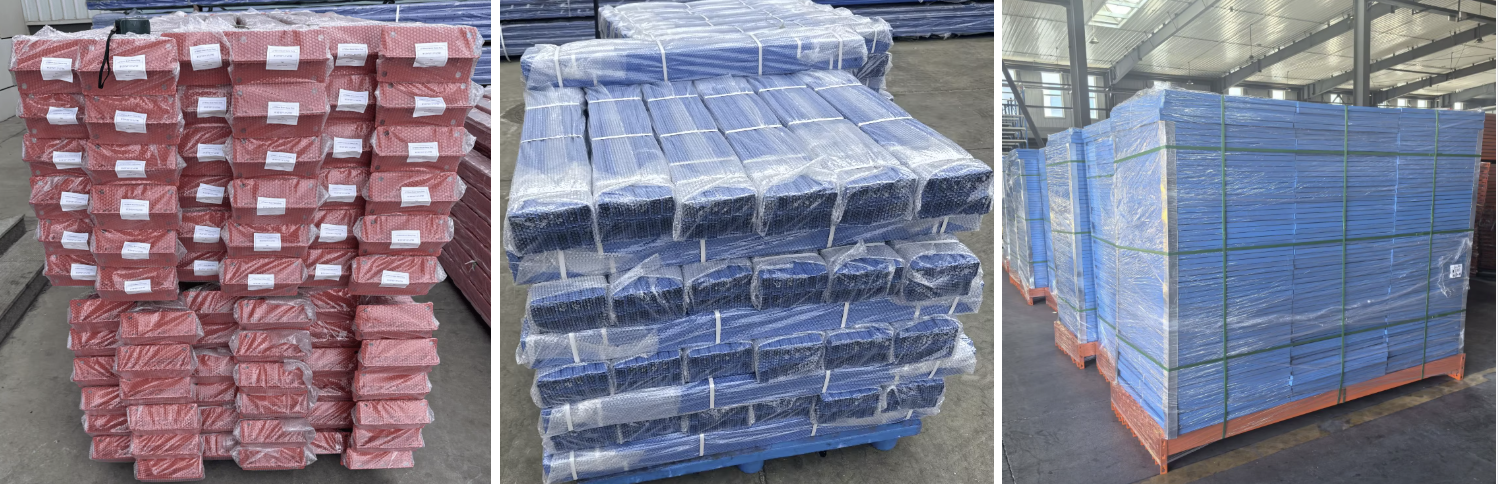

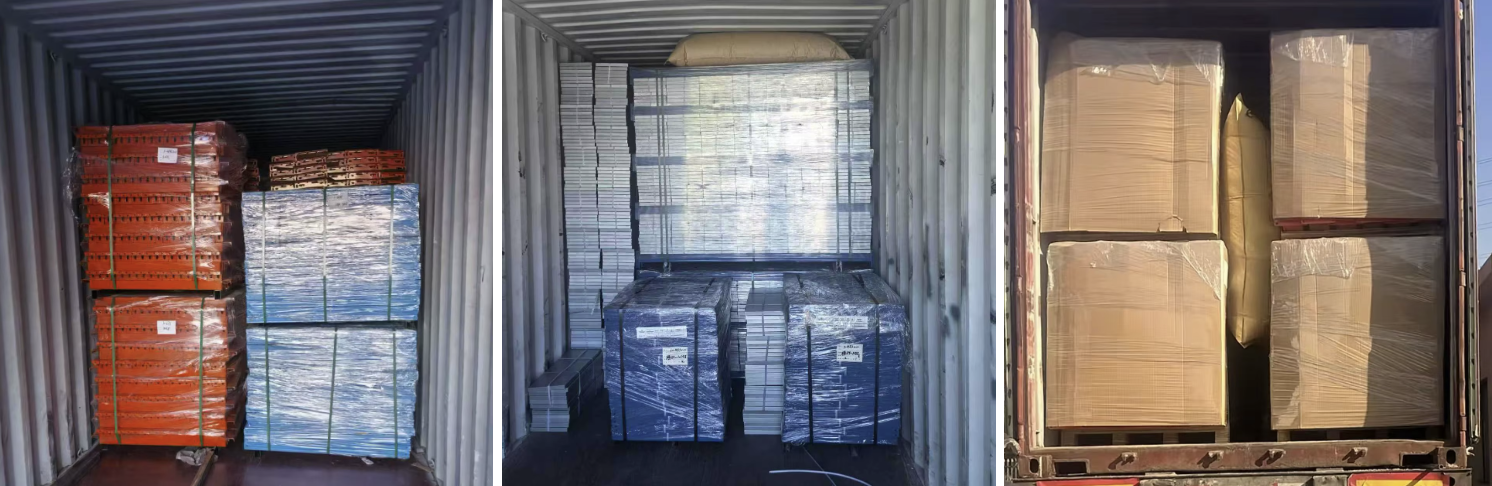

Product Packaging
Our products are packaged in the following ways
- Project packaging: Palletized and stacked for projects that can be directly unpacked and installed.
- Trader packaging: Four uprights are packaged separately, four crossbeams are packaged separately, and then the entire pallet is packed.
- Customized packaging: Customized according to your needs, such as bubble wrap, cartons, wooden crates, and other packaging methods.
Frequently Asked Questions
Q1: Are you a real factory?
A: Yes, we are a real factory located in Dezhou City, Guangdong Province, China. Since 2009, we have focused on the development and production of warehouse racks and mezzanines, serving clients worldwide with annual sales exceeding 200 million RMB.
Q2: What is the raw material of your products?
A: The standard raw material for normal temperature warehouses is high-grade carbon steel Q235B. For cold storage at -18°C or lower, we adopt Q345D steel. Custom steel grades are also available upon request.
Q3: Do you have a MOQ (Minimum Order Quantity) limitation?
A: For most warehouse racking, we do not set a strict MOQ. However, ordering a consolidated quantity is recommended to maximize shipping cost-efficiency and ensure optimal transit protection given the volume and weight of the steel components.
Q4: Do you have racks in stock, and how long does delivery take?
A: Products are bespoke to each customer's specific spatial requirements, so ready-made stock is not kept. Operating 15 advanced production lines, our typical lead time is 15 to 18 days depending on total order volume and technical specifications.
Q5: What is the standard selective pallet racking size?
A: L2500*D800*H4500mm is a common baseline size. Pallet rack dimensions are typically custom-tailored to regional pallet standards (e.g., 1200*800mm in Europe, 1200*1000mm in the US, 1100*1100mm in Asia) and individual warehouse clear heights.
Q6: How much does selective pallet racking cost?
A: Selective pallet racking systems mainly consist of upright frames, beams, and row spacers. Cost is primarily determined by current raw steel material specifications and processing requirements. Contact our sales engineering team for an accurate, tailored quotation.
