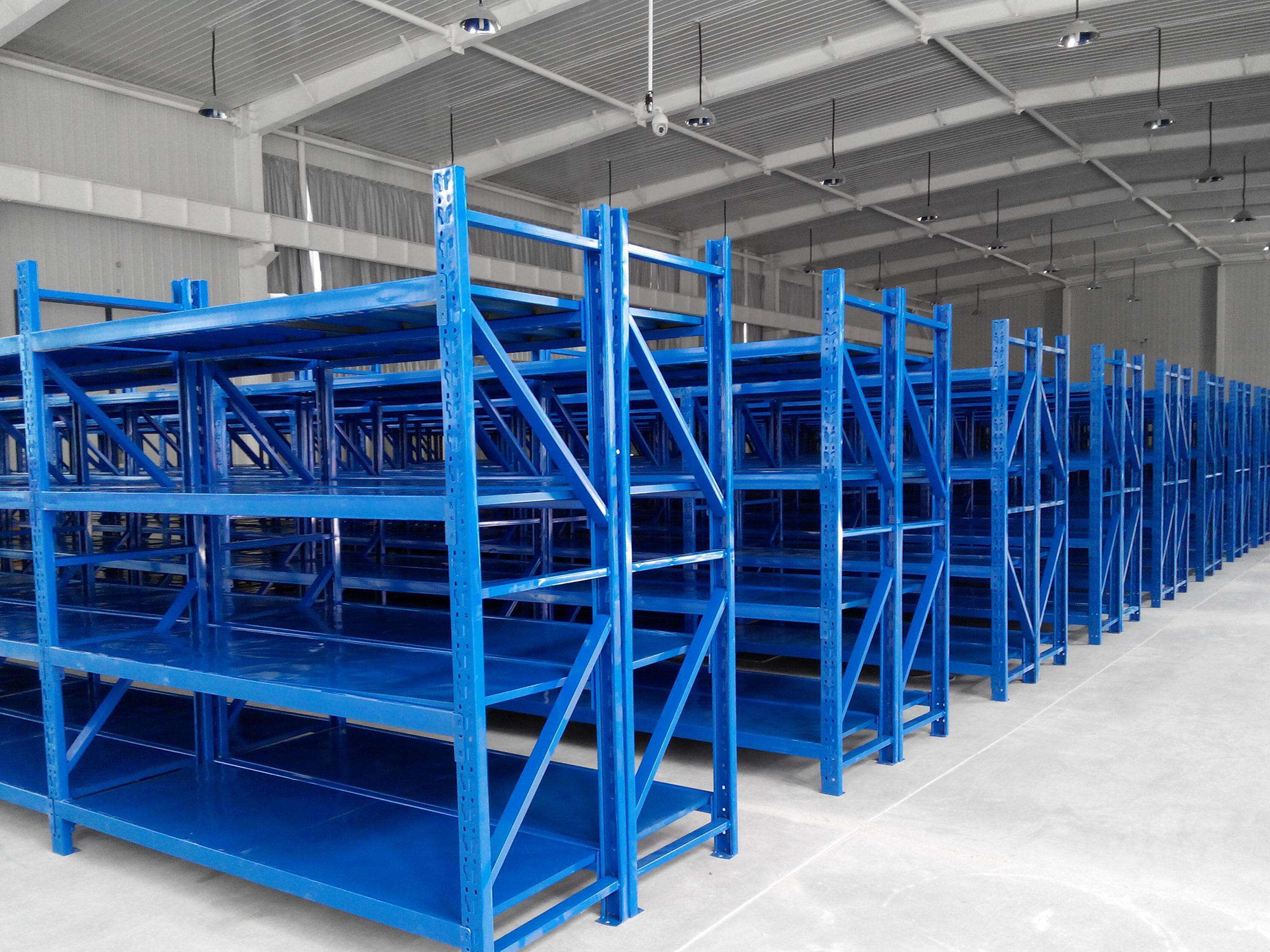

Mracking Warehouse Shelf Storage Rack 200KG Loading Bearing Metal Storage Shelves Units
Product Description
Product Description

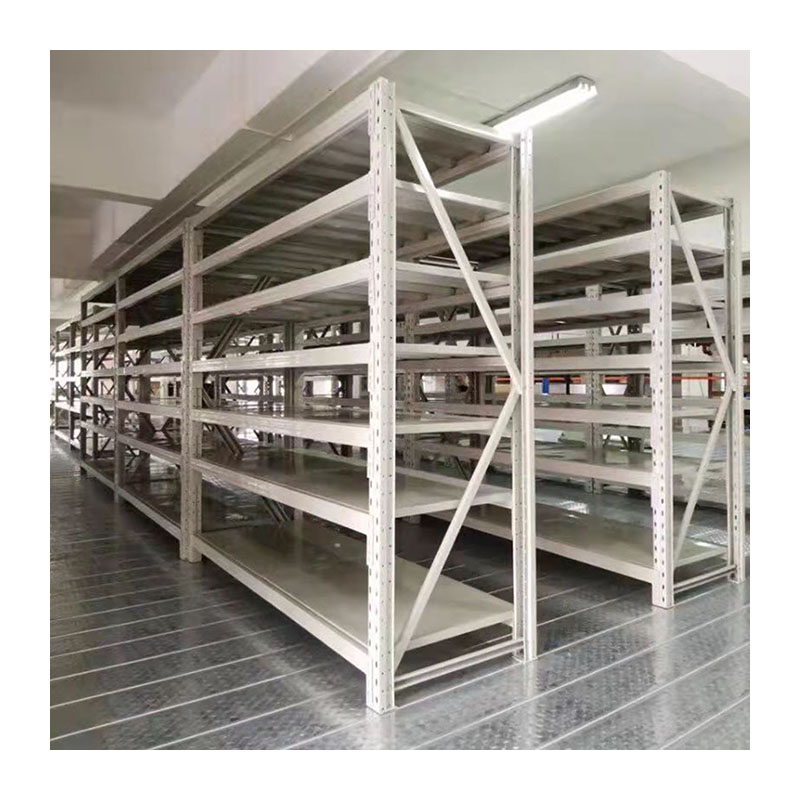

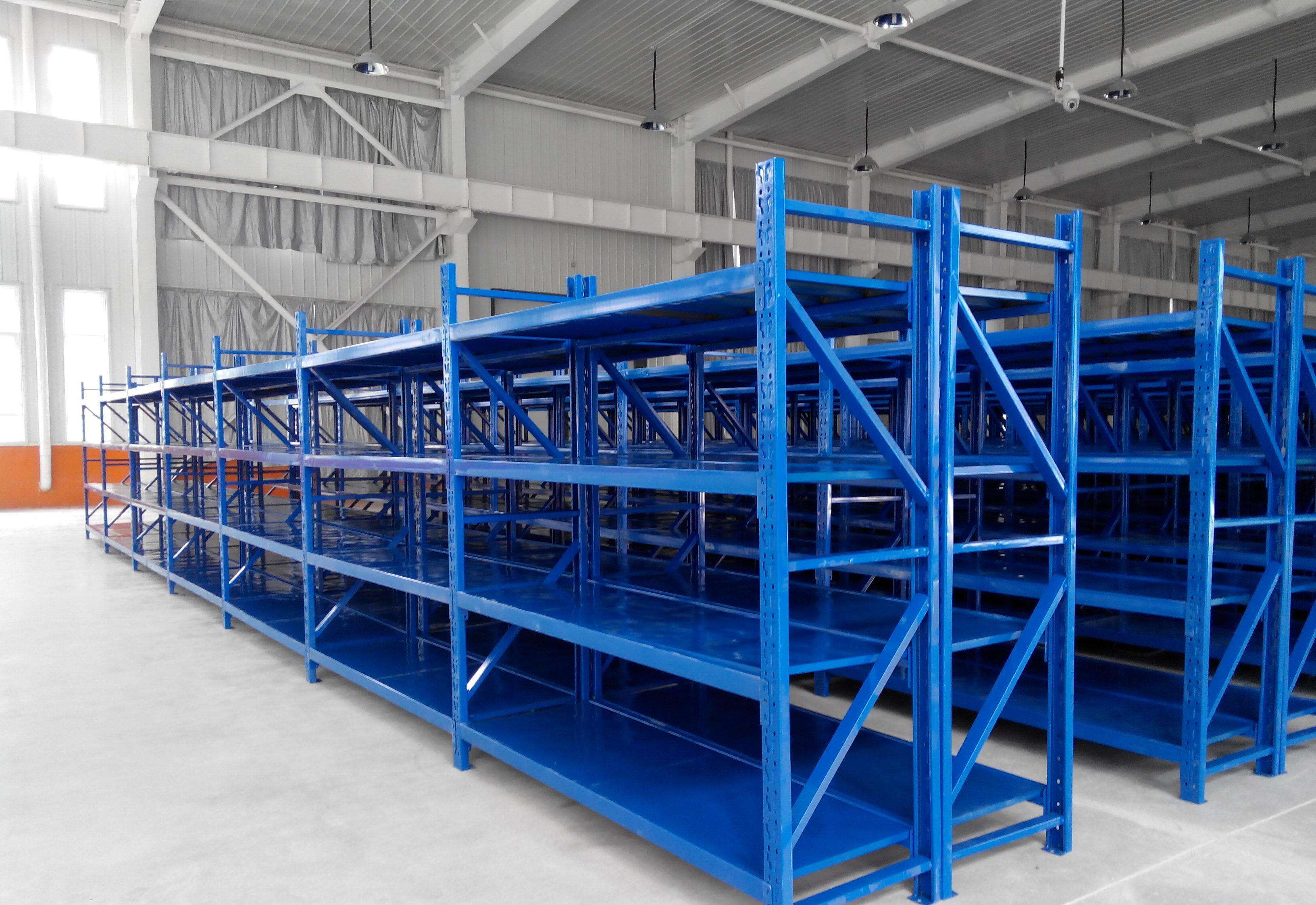

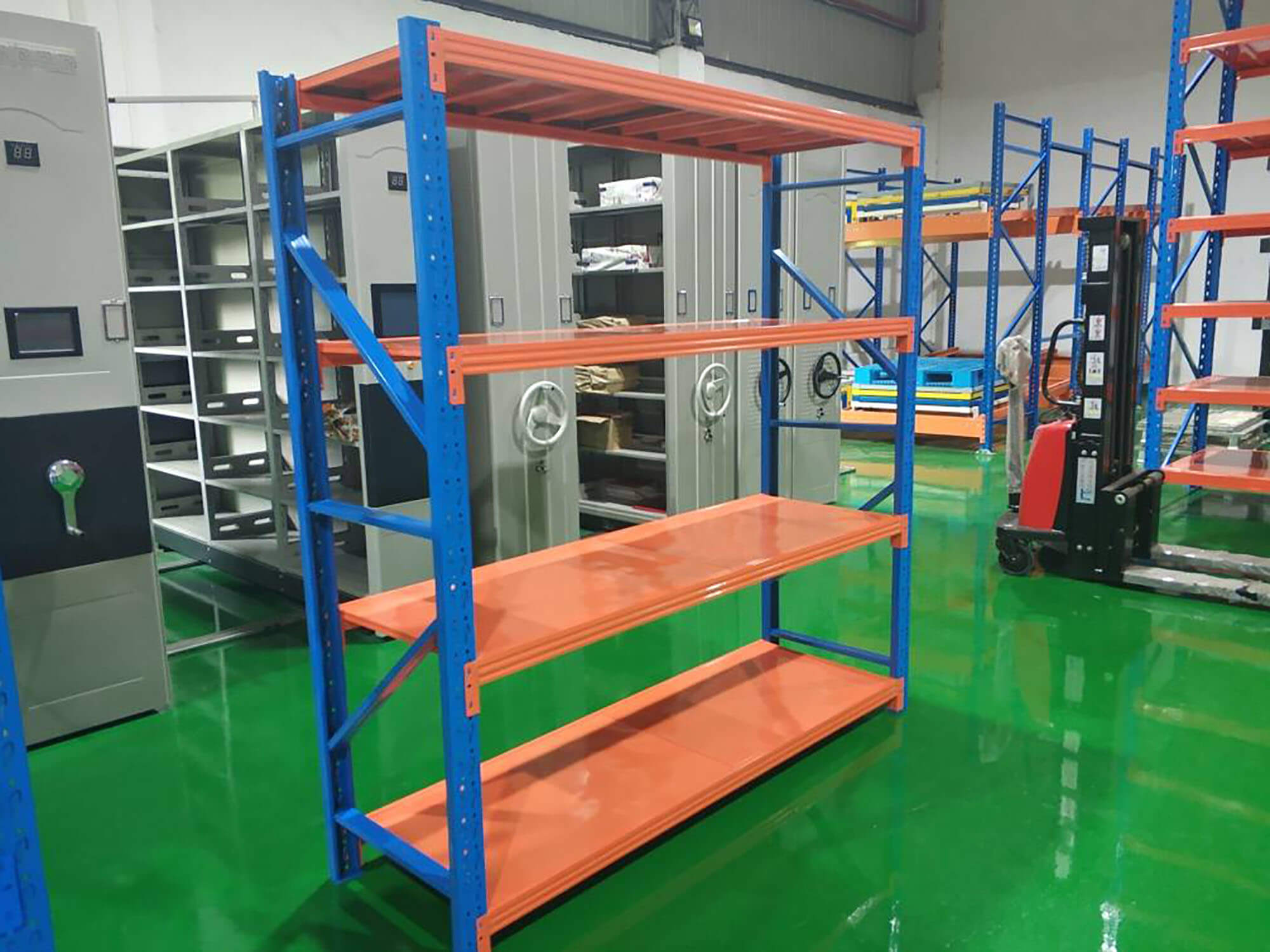

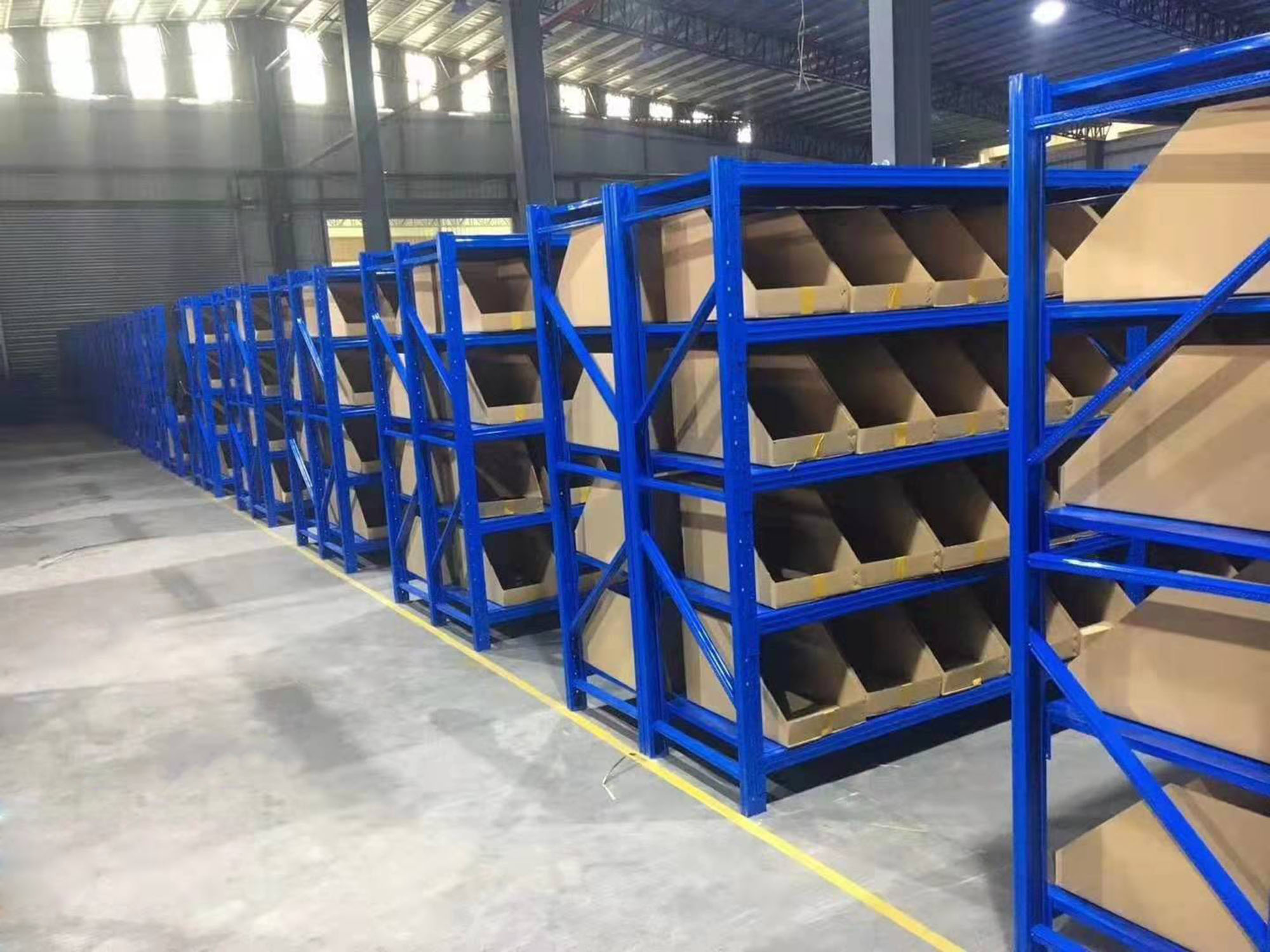

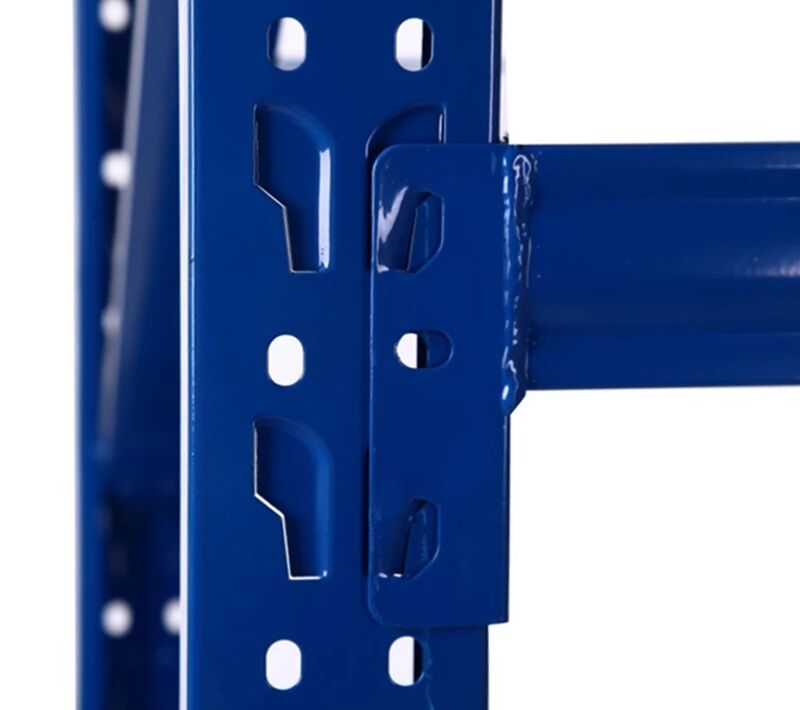

Medium Duty Rack / Shelf: Medium duty rack/shelf belongs to warehouse storage racking systems. It can be adjusted by each 50mm, and the load capacity can reach 200~500kg. The beam is "P" type beam, whose height matches with that of the layer board.
| Product Name | Medium Duty Rack/Shelf |
| Material | Q235 Cold rolled Steel |

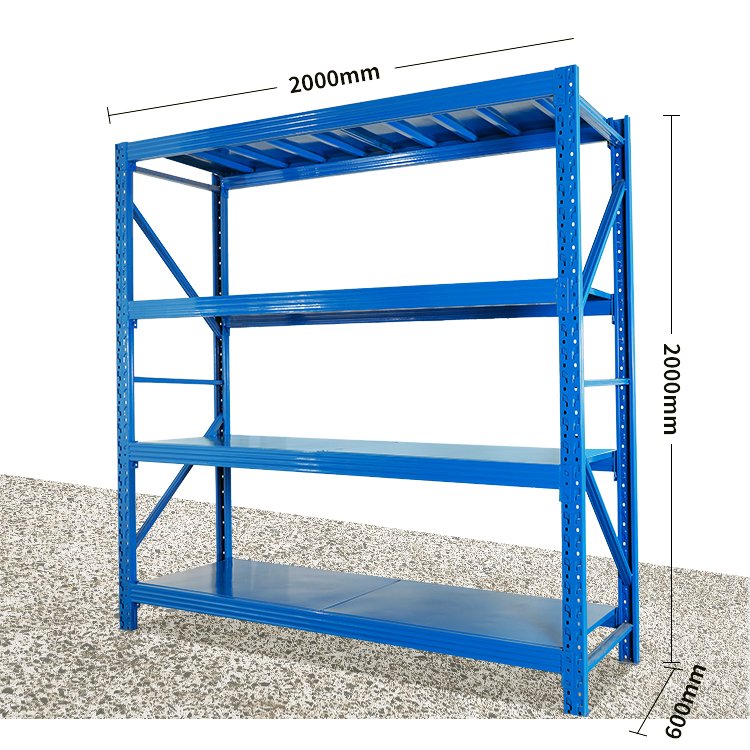

| Standard size | L2000*D600*H2000mm |
| Loading Capacity | 200kg/layer |

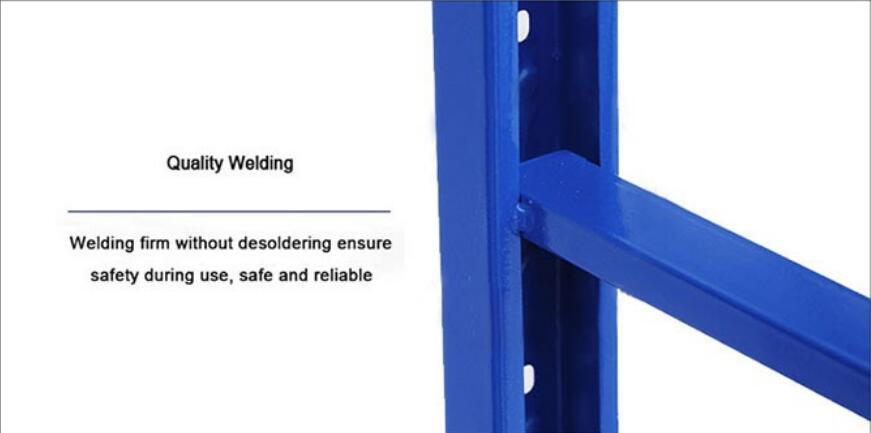

| Thickness | Upright: 75*35*0.6mm; Beam: 60*40*0.6mm; Steel panel: 0.3mm |
| Color | Blue / Grey white / Orange |
| Surface Treatment | Powder Coating |
| Packing Term | Air bubble, Carton, Wooden Case |
| MOQ | 10 sets |
| Payment Terms | T/T ; L/C |
| Delivery Time | 10-15 workday upon receipt of the deposit |
| Certification | SGS / ISO 9001 |
| Service | OEM & ODM |
| Medium Duty Rack/Shelf (XINMIAO STORAGE) | ||||
|---|---|---|---|---|
| Type | Size L*W*H (mm) | Layer | Loading Capacity (kg/layer) | Remark |
| XM-2021 | 2000*600*2000 | 4 | 200kg, 300kg, 500kg |
Color: blue, white and orange red; Container Load: 20GP can be loaded about 75 set main racks; 40HQ can be loaded about 195 set main rack. |
| XM-2025 | 2000*500*2000 | 4 | 200kg, 300kg, 500kg | |
| XM-2027 | 2000*600*2500 | 4 | 200kg, 300kg, 500kg | |
| XM-2031 | 1500*500*2000 | 4 | 200kg, 300kg, 500kg | |
| XM-2040 | 1200*500*2000 | 4 | 200kg, 300kg, 500kg | |
Packaging & Shipping
| Specification Information As Follow | |||||
|---|---|---|---|---|---|
|
- Oversize: L2000(Outside length)*D600*H2000 - Layers: 4 layers, Weight capacity: 200kg/layer |
|||||
| Bay Type | Component | Dimensions | Qty | Unit | Remark |
| Start-bay (1 Set) | Upright Frame | H2000*D600*75*35*0.6 | 2 | pcs |
Packaging term: Upright is air bubble, beam and steel board is carton. Color: Blue, gray and orange red. |
| Beam | L1830*60*40*0.6 | 8 | pcs | ||

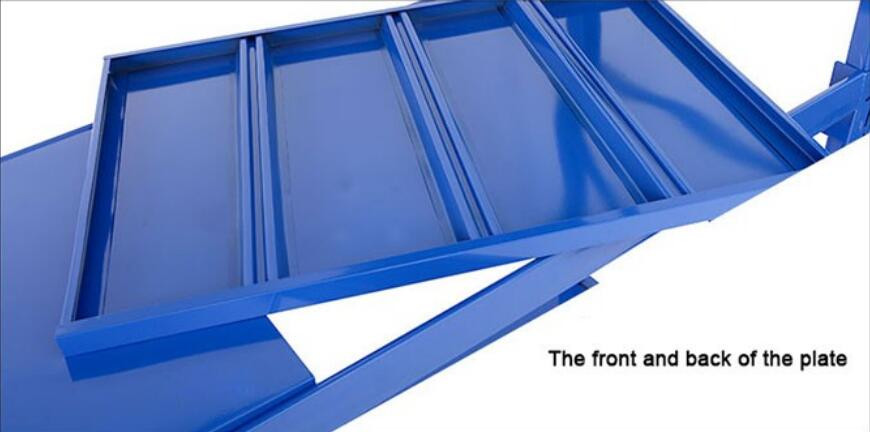

| Steel Board | L915*D560*0.3 | 8 | pcs | ||
| Add-bay (1 Set) | Upright Frame | H2000*D600*75*35*0.6 | 1 | pcs | |
| Beam | L1830*60*40*0.6 | 8 | pcs | ||
| Steel Board | L915*D560*0.3 | 8 | pcs | ||
| Steel Board | L915*D560*0.3 | 8 | pcs | ||
Company Information
Frequently Asked Questions
Q1 Are you a manufacturer or trading company?
We are a professional racking manufacturer located in Dongguan, Guangdong.
Q2 What is the material of the rack?
Our material is high-quality Q235B cold rolled steel.
Q3 What is the delivery time?
Less than 15 workdays in general. It also depends on the order quantity and shelving design.
Q4 What is the term of payment?
30% T/T down payment and 70% T/T balance before delivery.
Q5 How can I get a quick quotation on my racking project?
For a quick quotation, please provide the following project specifications:
- The size of rack: Length * Depth * Height.
- Layers per set.
- Load capacity per beam layer.
- Total racking quantity required.
Q6 Are samples available?
Yes, we can send you free samples with freight collect.
