Q235b Steel Single Deep Double Side Selectivo Slective Pallet Storage Rack Warehouse Equipment
Product Description
Key Specifications
| Upright Frame | 80*60 to 120*95mm (many sizes available; thickness: 2.0 / 2.3 / 2.5 / 3.0mm) |
| Beams | 80*50 to 180*50 (many sizes available; thickness: 1.5 / 2.0mm) |
| Famous Colors | RAL 2004 / 5005 / 5015 / 7035 / 1003 |
| Surface Treatment | Powder Coating |
| We offer free design with instant quotation | |
Company Information
Established in 1999, Jiangsu Xin Zhong Ya Racking Manufacturing Co. Ltd., devotes itself to the design and manufacture of storage equipment. We are specialised in producing various pallet racking, longspan shelving, drive in racking, cantilever racking, mezzanine and steel platform, Steel/Plastic Pallet, Storage Cage and other related storage equipment.
It provides 100 percent accessibility and good stock rotation. It is fully adjustable and easily installed. Equipment and capital investment for such a system is also the most economical.
It is designed to meet almost all pallet sizes or weight and suitable to be used with all types of lift trucks. A wide range of protection accessories is available, such as corner guards, column protector, back mesh, pallet support bar, etc. making storing a lot more safer.
Advantages: Versatility & Flexibility to Meet Any Storage Needs
- Pallets can be located, accessed and moved individually.
- Infinitely adjustable and offering a wide range of options and components.
- Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
- Strength and rigidity prevents compression damage to goods.
- Bottom level of pallets can be stored on the floor, lowering structure costs.
- Quality Guarantee: 3 years quality guarantee.
- Fast Delivery: More than 300 workers enable us to guarantee the delivery time, normal orders within 20 days.
Features & Load Range
Loading Capacity
<4000 Kg / Level
Whole Rack <13500 Kg
Height
3,000 - 11,850 mm
Depth
838 - 1,200 mm
Length
1,500 - 3,300 mm
Special sizes are also available to meet specific storage needs.
Customized Solutions
Please inform us the following information, we can provide the solutions as your requirement, thanks!
- 1) Size of the warehouse
- 2) Width, depth and height for each unit of rack
- 3) How many levels for each unit of rack
- 4) Loading capacity for each pallet or for each level of beams
- 5) Color preference
Product Design & Specifications

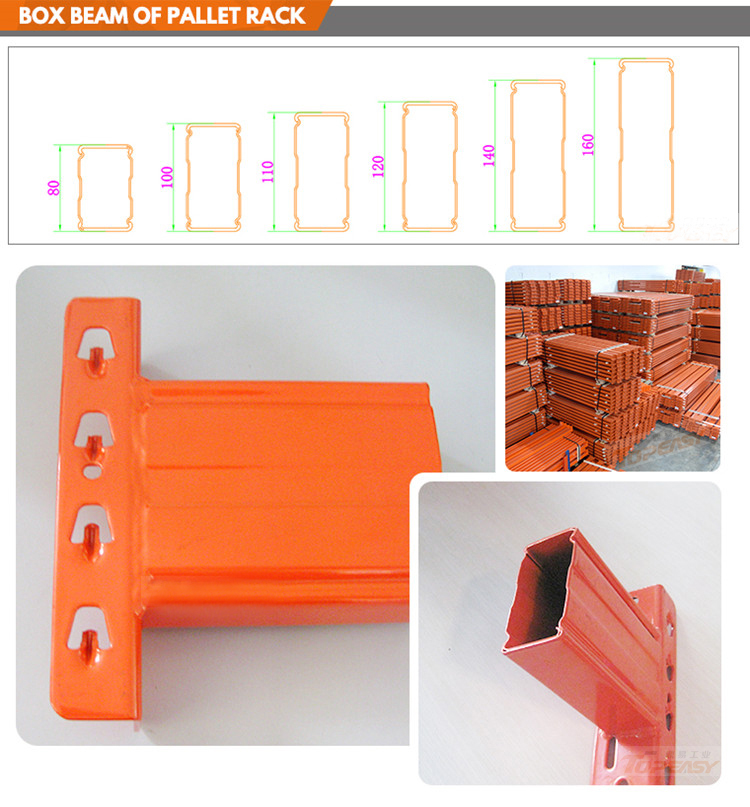

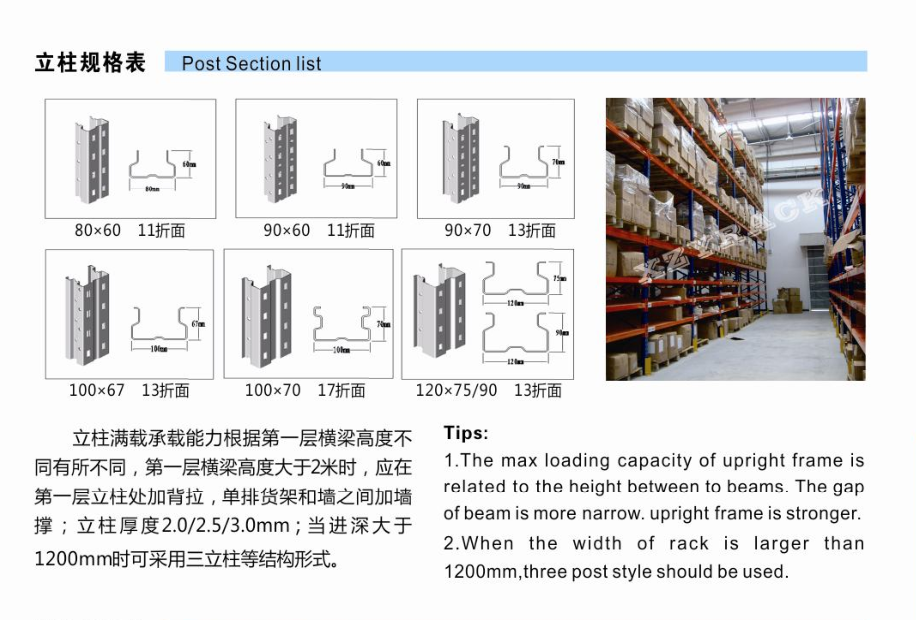

Post and Beam (Section Size)

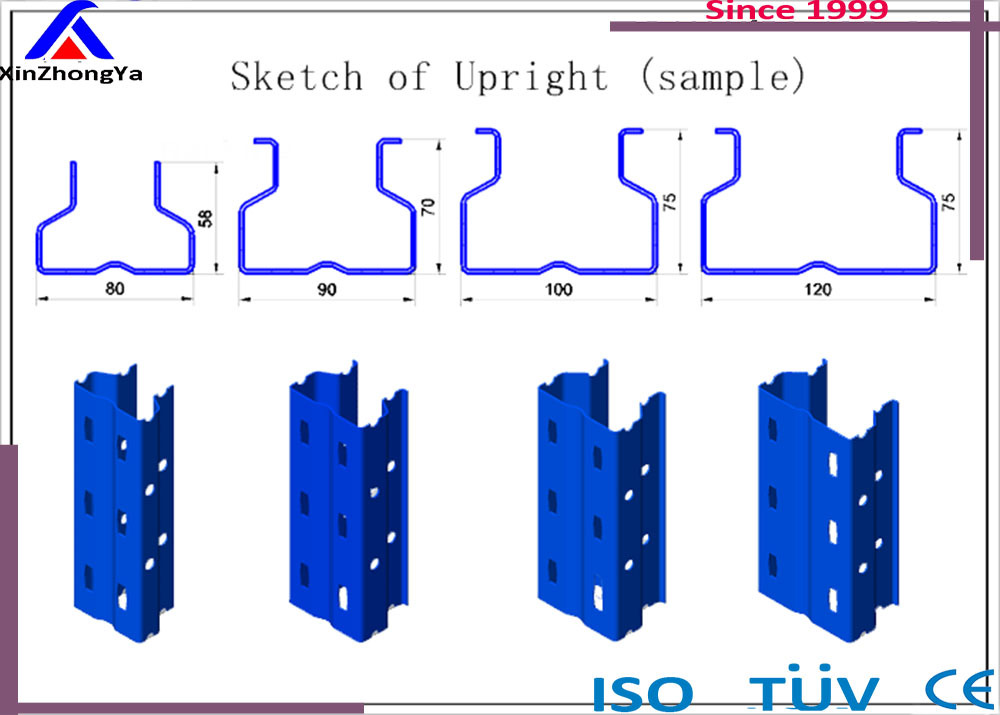

Storage Rack Design
Structure Details

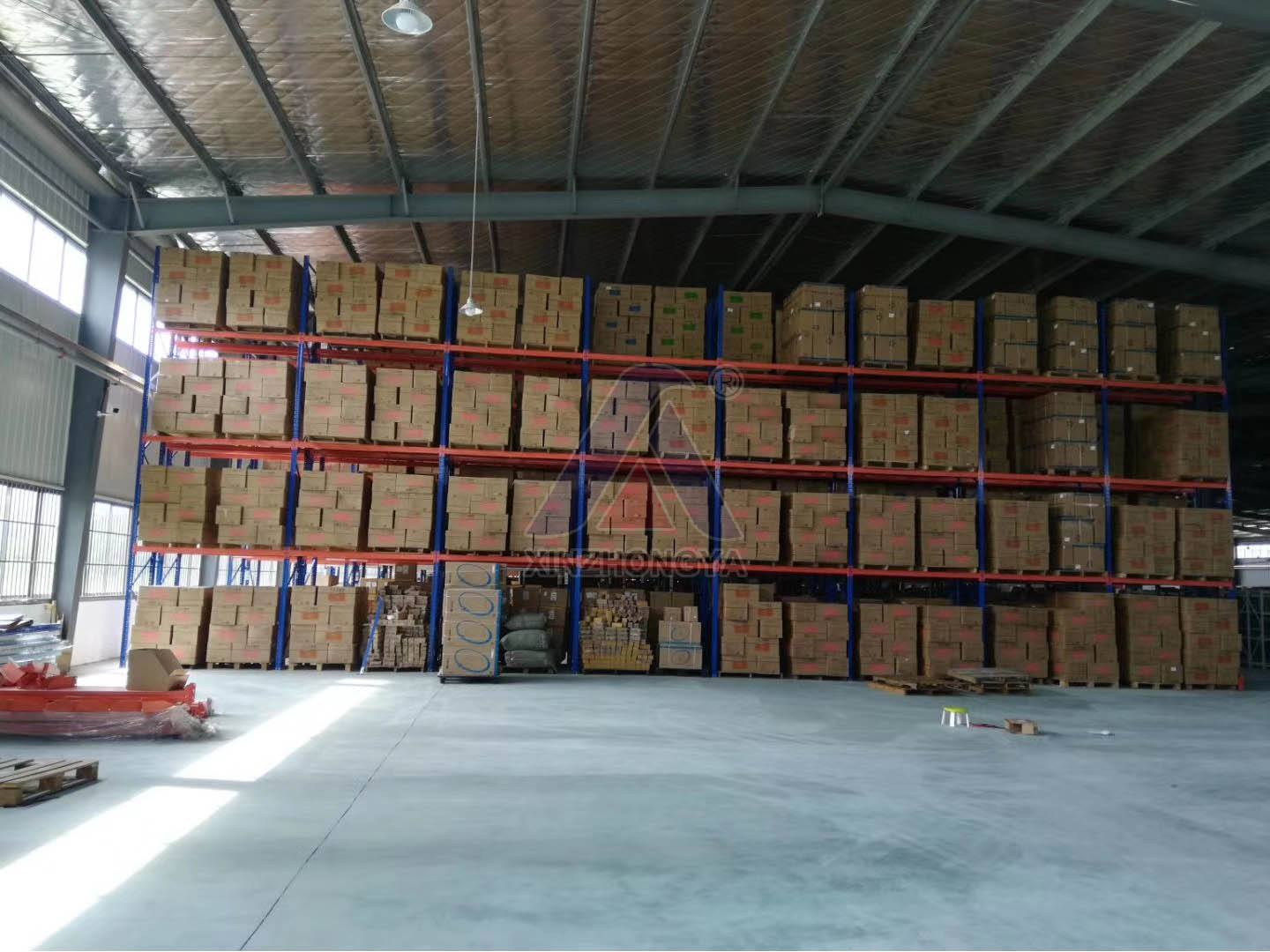

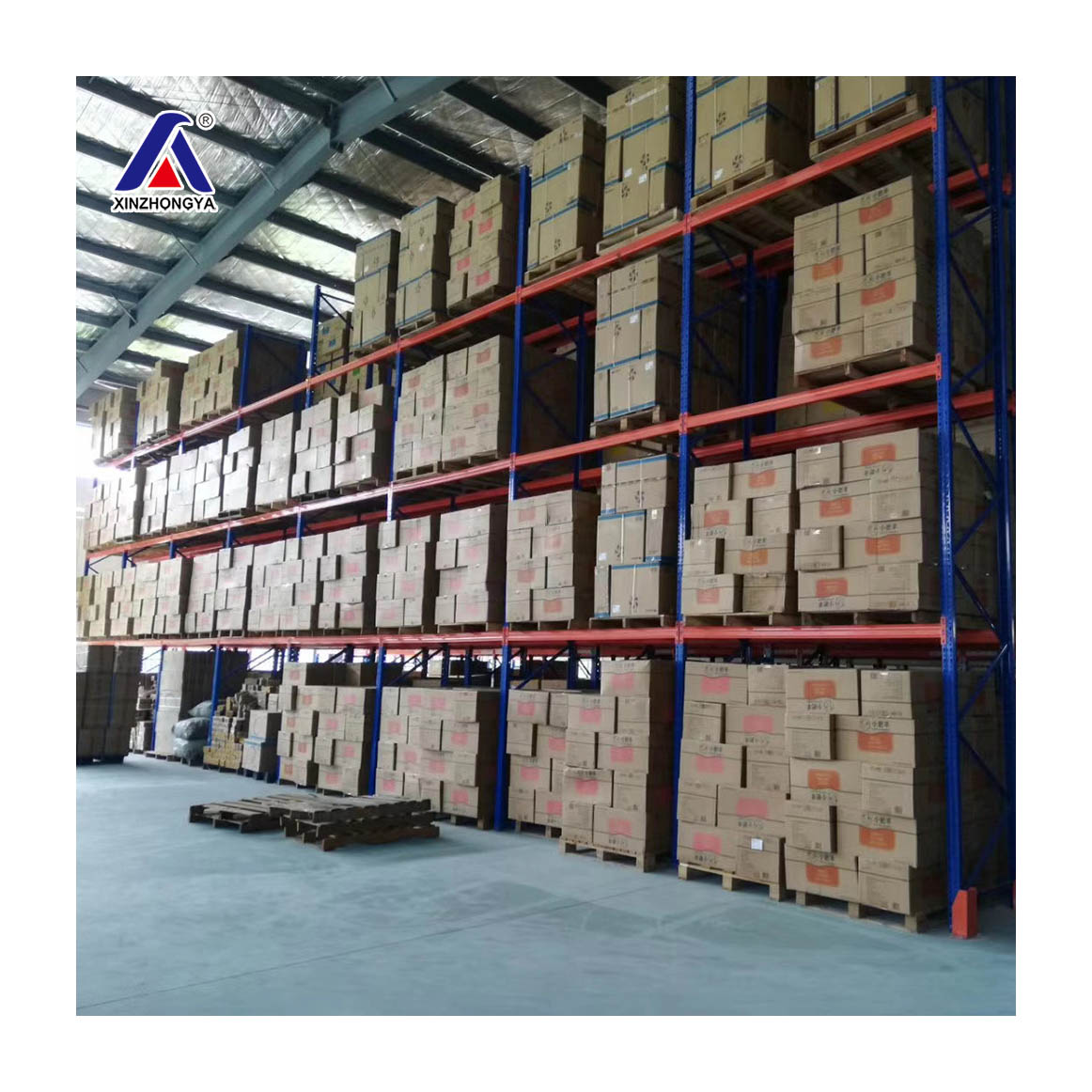

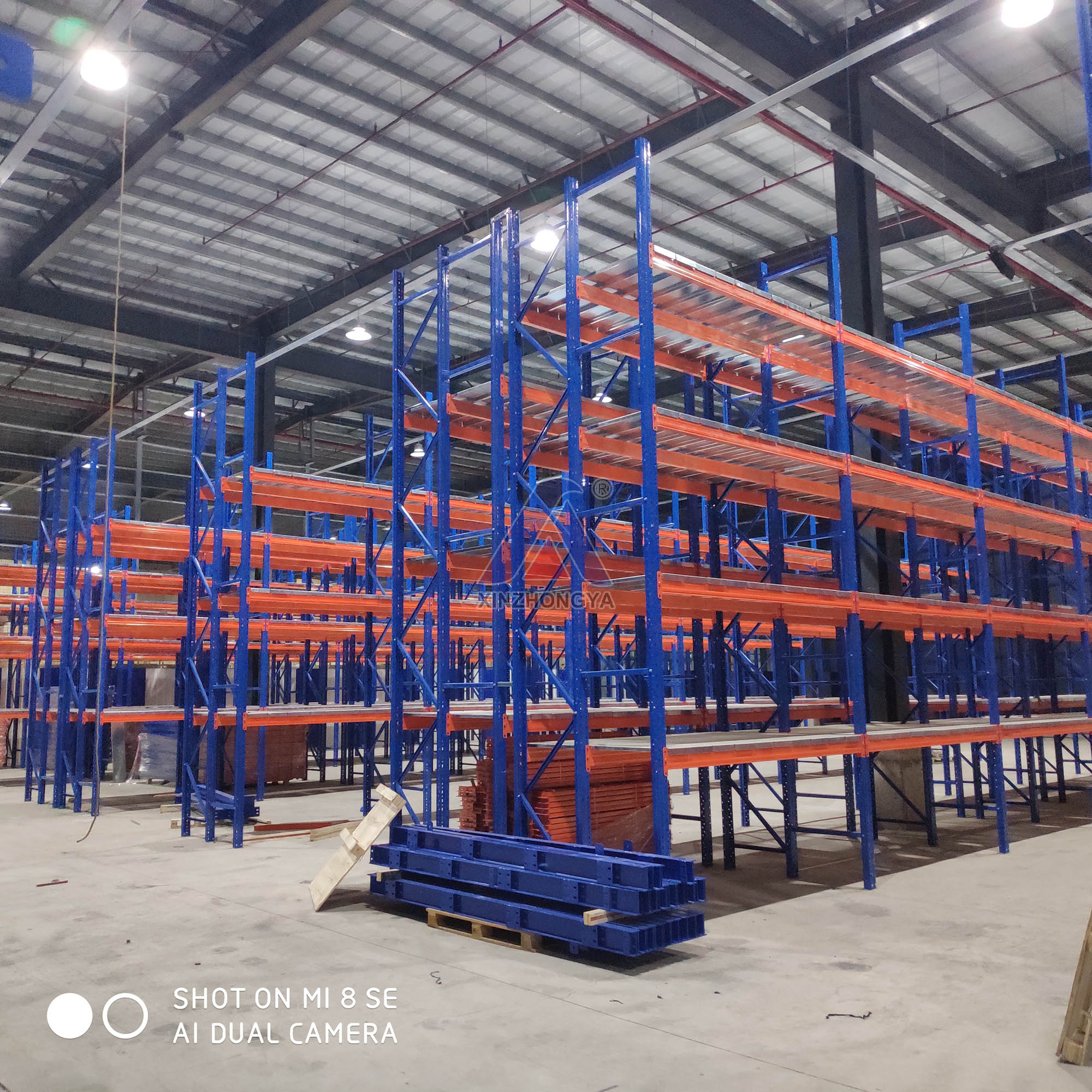

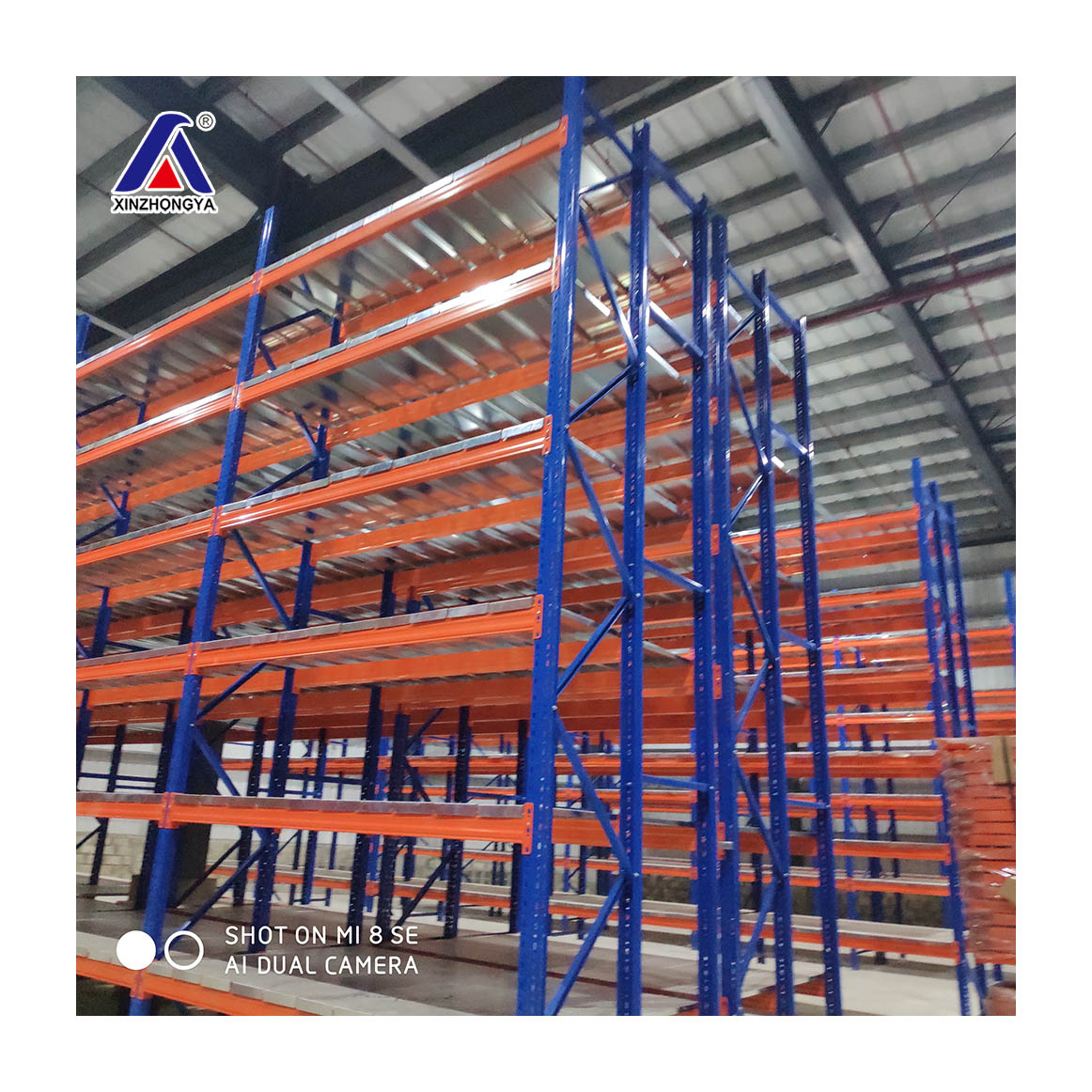

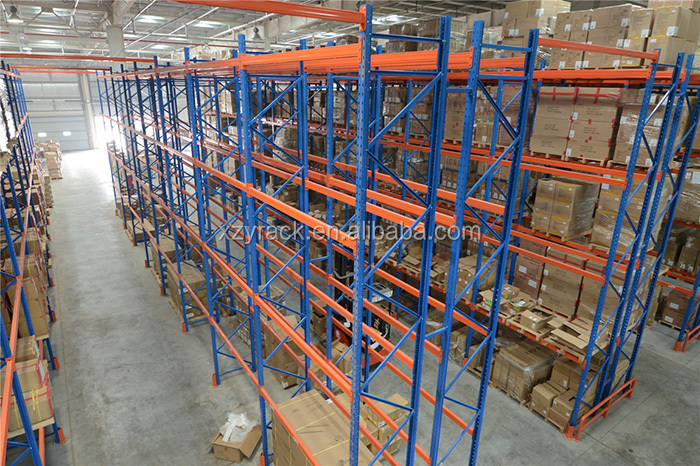

Storage Rack Gallery

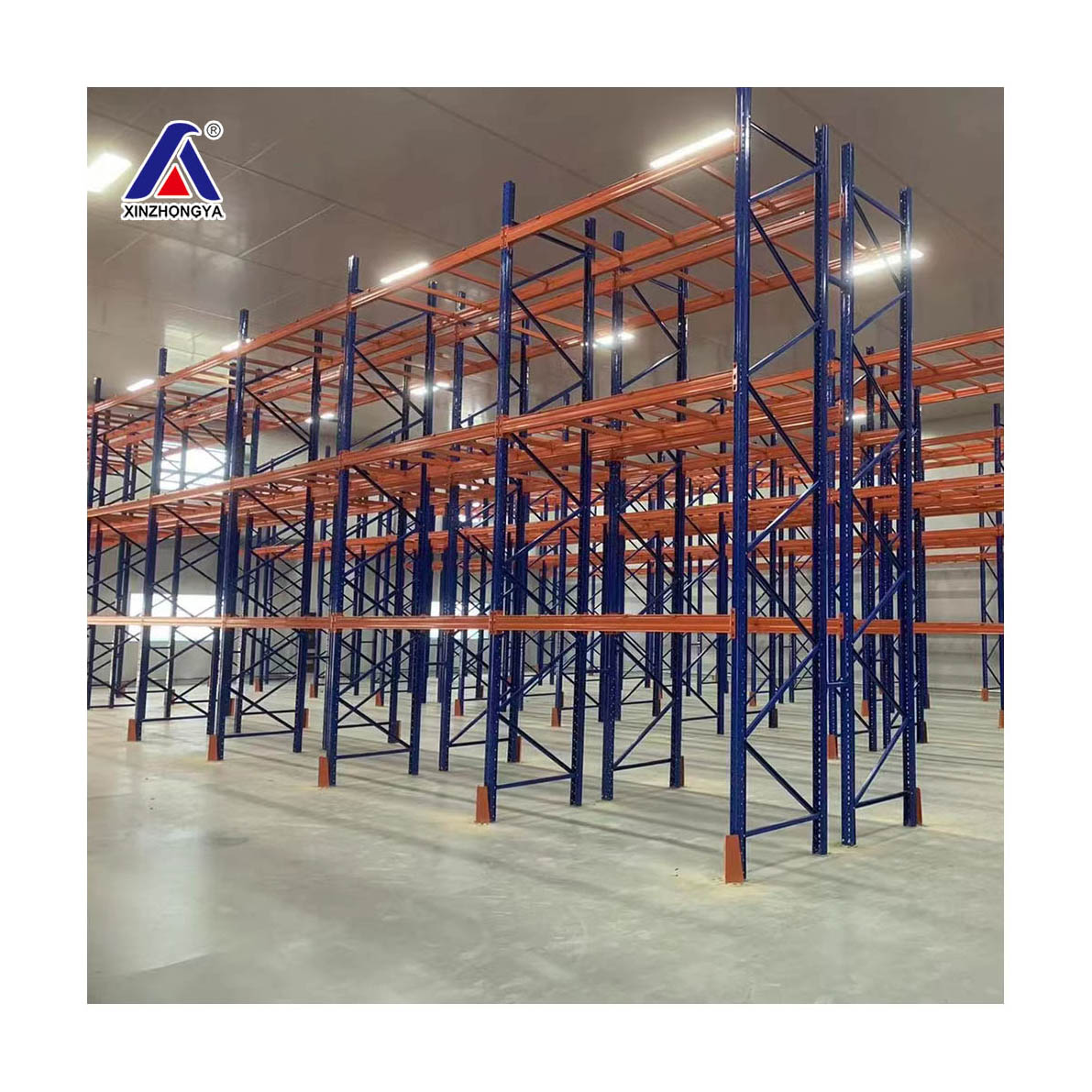

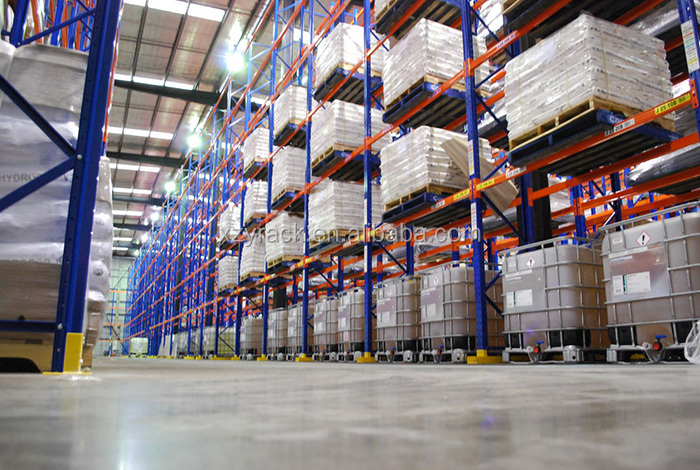

Storage Rack System
Storage Rack Layout
Protection & Connection Components

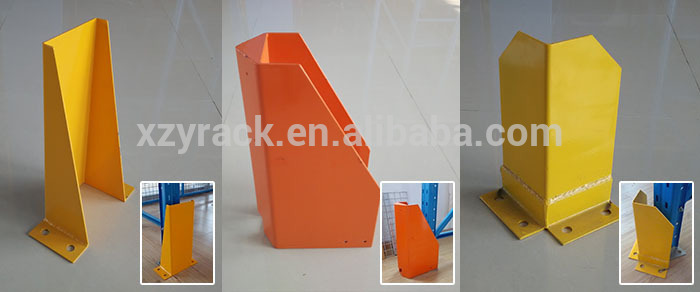

Post Protector

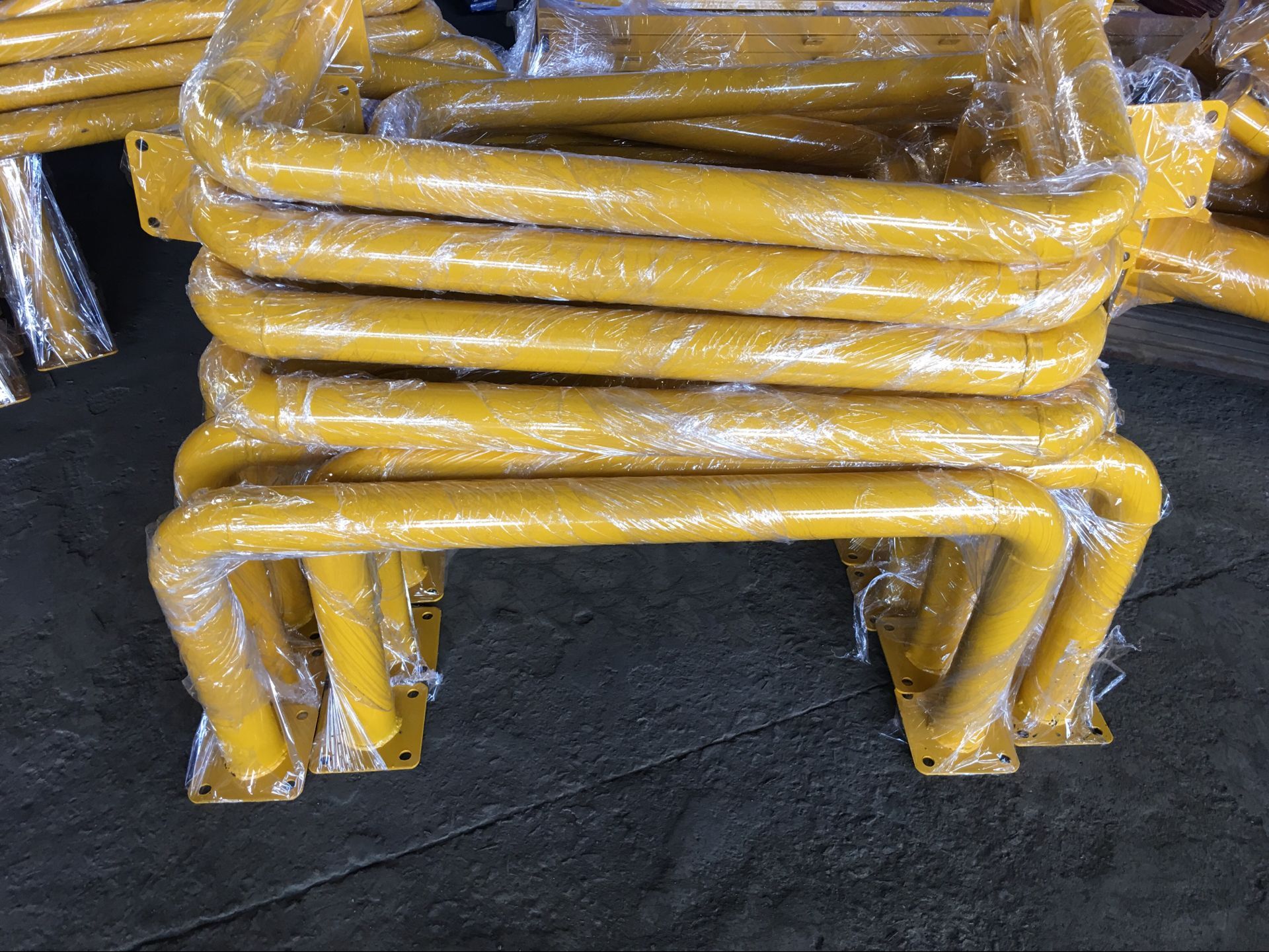

Frame Protector

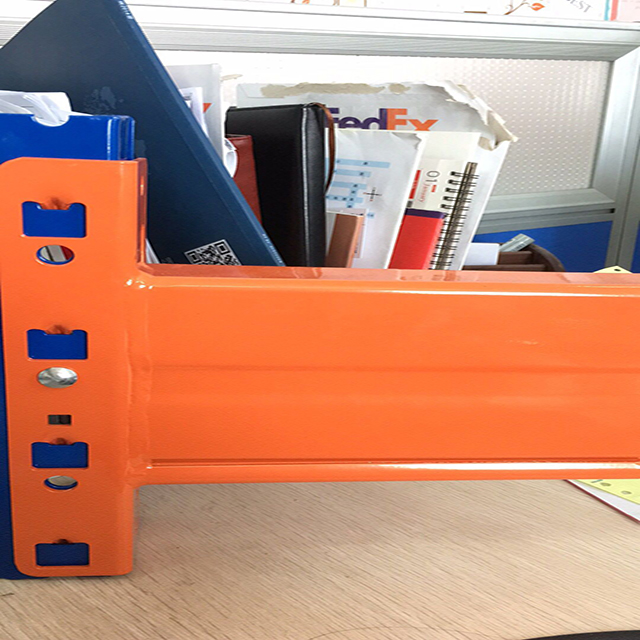

Post and Beam Connection

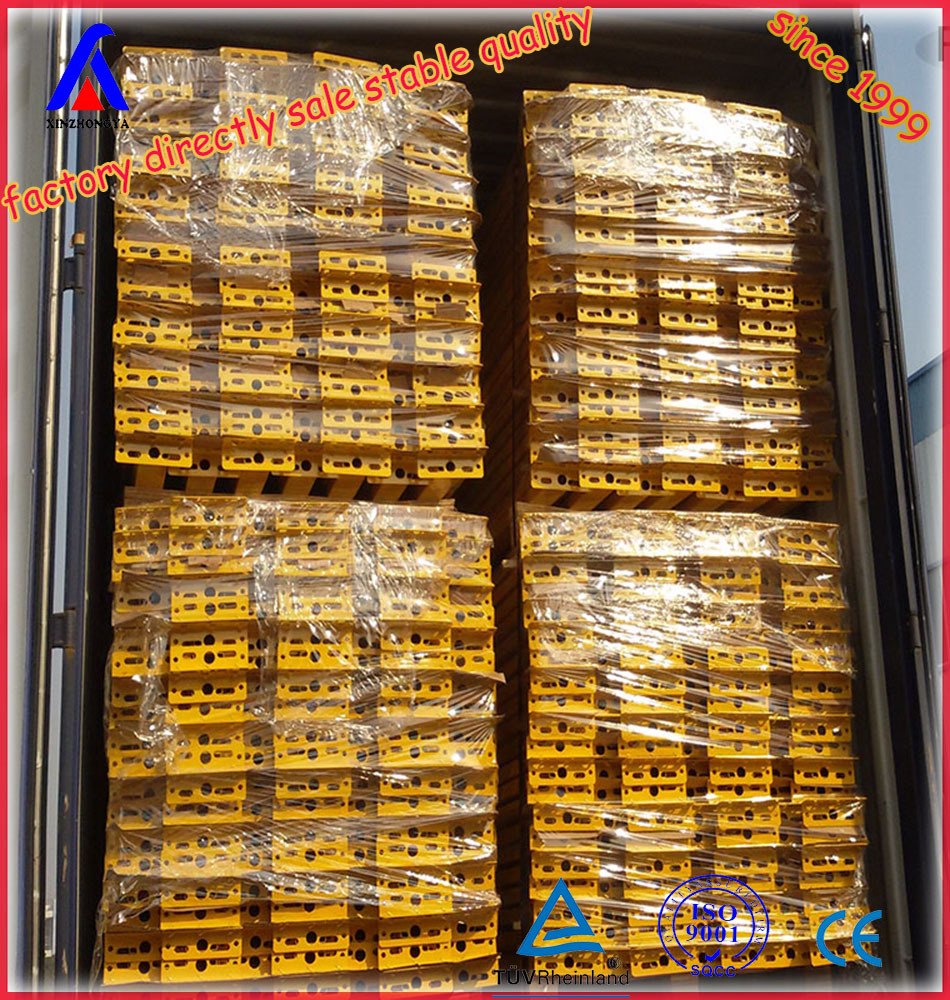

Packaging & Loading

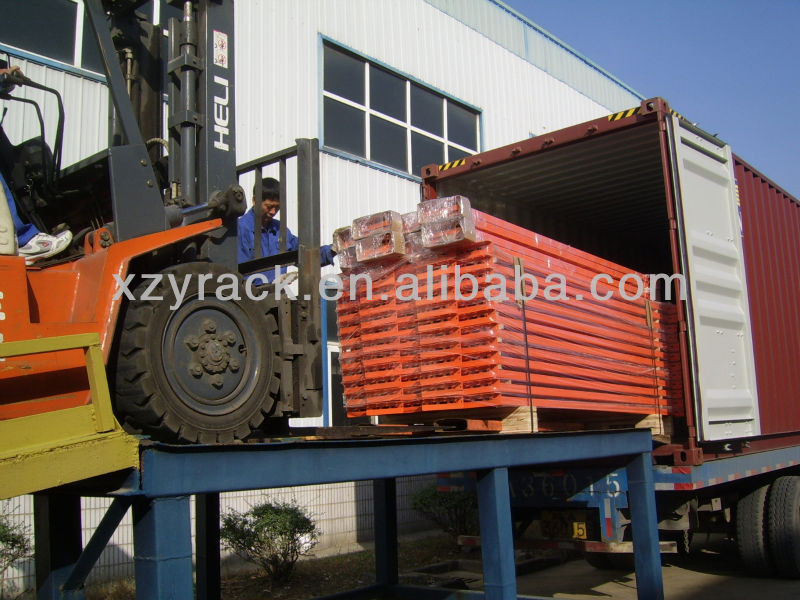

Package / Loading View 1
Package / Loading View 2

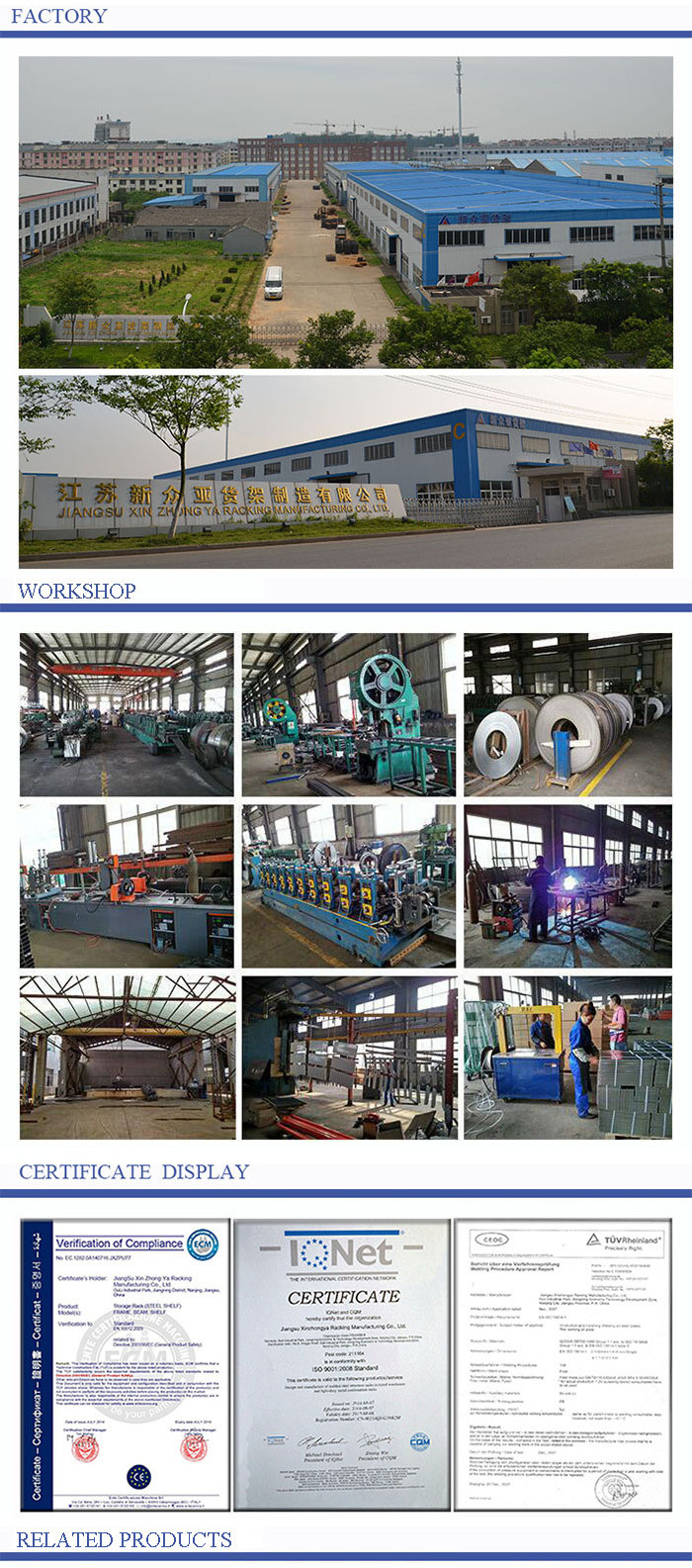

Factory Overview

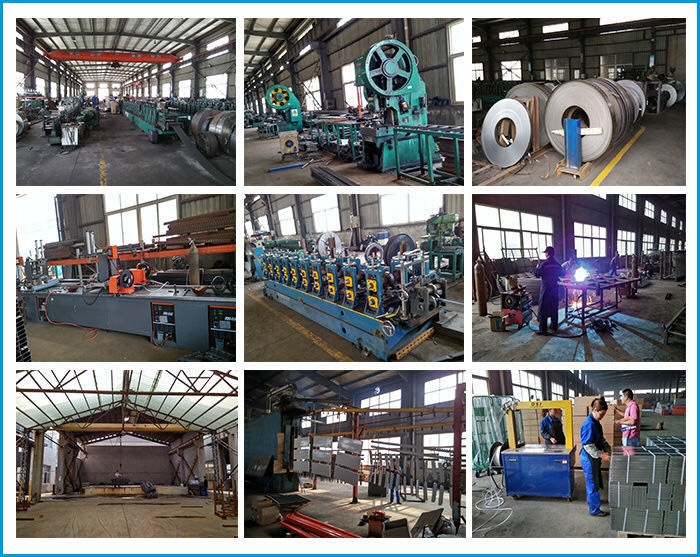

(1) Workshop Inside View
(2) Outside View
Frequently Asked Questions (FAQ)
What is the loading capacity of this steel pallet storage rack?
The system supports a loading capacity of less than 4,000 kg per beam level, with the maximum capacity for an entire rack reaching up to 13,500 kg.
What upright frame and beam dimensions are available?
Upright frames range from 80*60mm to 120*95mm with thicknesses of 2.0mm, 2.3mm, 2.5mm, and 3.0mm. Beams range from 80*50mm to 180*50mm with thicknesses of 1.5mm and 2.0mm. Special custom dimensions can also be manufactured.
What information is required to receive a customized design and quotation?
To get a free design and instant quotation, please provide your warehouse dimensions, individual unit dimensions (width, depth, height), required beam levels, load capacity per pallet/level, and desired RAL color code.
What is the delivery lead time and quality guarantee?
With over 300 skilled workers in our factory, standard orders are delivered within 20 days. All steel pallet storage racks come with a 3-year quality guarantee.
Which protective accessories can be equipped with the pallet racks?
A comprehensive range of warehouse safety accessories is available, including corner guards, post/column protectors, frame protectors, back mesh, and pallet support bars.
What surface finishes and colors are available?
The surface undergoes high-durability electrostatic powder coating. Popular colors include RAL 2004, RAL 5005, RAL 5015, RAL 7035, and RAL 1003.
