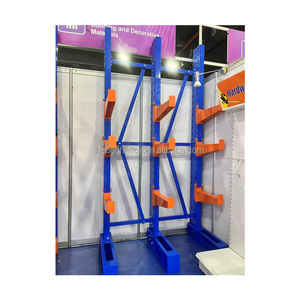

Wholesale Storage Double Sided Heavy Duty Cantilever Racking System
Obstacle-free linear loading for lumber, steel pipes, extruded aluminum, and oversized panels. Available in single and double-sided layouts.
High Quality Shelves Regale Medium Duty Shelving System Multi-Tier Deck
Optimized for e-commerce picking and carton operations. Serves as foundational upright support for multi-tier catwalk and mezzanine installations.
Mracking Light Duty Customized Boltless Warehouse Rack Storage System
Tool-free quick snap interlocking profile. Ideal for retail backrooms, high-turnover manual order fulfillment stations, and archive depots.
Heavy Duty Pallet Racking System Carrier Pallet Racks in Cold Warehouse
High-density deep lane pallet shuttle carrier system for blast freezers and cold storage facilities, delivering continuous high-throughput logistics.
Multi-Tier Pallet Racking Architecture: Volumetric Density & Safety Engineering
In modern supply chain architecture, vertical cubic space utilization is the single most decisive factor determining industrial operational efficiency and land ROI. As one of China's premier manufacturers and OEM/ODM suppliers of industrial storage infrastructure, we engineer multi-tier pallet racking systems and rack-supported mezzanines that transform dead vertical volume into productive operational tiers, effectively multiplying ground-floor capacity by 200% to 300% without structural civil building modifications.
A multi-tier pallet racking system functions as a dynamic hybrid: heavy-duty cold-formed structural steel upright columns carry primary palletized goods at lower elevations while simultaneously serving as vertical load-bearing pillars supporting integrated intermediate catwalk floors, secondary automated picking platforms, staircases, dynamic chutes, and vertical reciprocating conveyors (VRCs). Structural integrity hinges on precise finite element modeling (FEM) adhering to FEM 10.2.02, EN 15512, and American RMI (ANSI MH16.1) specifications.
Upright Profile Roll-Forming
Fabricated with 11-13 fold continuous cold roll-forming profiles. The complex geometry creates superior torsional stiffness and high moment of inertia against lateral seismic buckling.
Load Safety Factor & Deflection
Every structural member is calculated with an ultimate limit state safety factor ≥ 1.5. Beam deflection is strictly throttled to L/200 under maximal design working payload to prevent floor instability.
Passivated Powder Finish
Automated 9-stage alkaline wash, acid pickling, phosphating passivation, and 80-120μm electrostatic thermosetting epoxy coating ensure zero corrosion even in coastal humidity or sub-zero environments.
Structural Engineering & Mechanical Performance Matrix
| System Classification | Structural Profile Spec | Standard Payload Range | Floor Planks & Decking | Primary Sector Applications |
|---|---|---|---|---|
| Rack-Supported Mezzanine | Upright 90/100/120mm × 2.0-3.0mm Q355B | 300 - 1,200 kg/m² Uniform (UDL) | Perforated steel / Galvanized grating | E-commerce fulfillment, 3PL hubs, auto parts |
| Multi-Tier Selective Racking | Heavy box beam 80-160mm × 50mm welded | 1,000 - 4,500 kg/pallet position | Wire mesh decking / Steel cross ties | Industrial manufacturing, wholesale distributors |
| Cold-Storage Drive-In System | Corrosion-proof Q235B / Hot-Dip Galvanized | 1,000 - 2,500 kg/pallet lane | Continuously formed guide rails | Refrigerated perishables, seafood, blast cold hubs |
| Radio Shuttle High-Bay Density | Specialized CNC notched rolling tracks | 500 - 2,000 kg/pallet unit | High-precision carrier guidance tracks | Beverage bottling, pharmaceutical staging, FMCG |
Why Tier-1 Global Procurement Directs to Guangzhou Heda Shelves
Founded in 2001, Guangzhou Heda Shelves Co., Ltd. has grown to become a benchmark manufacturer and direct global exporter of custom warehouse storage systems. Operating from our self-owned 30,000 m² digitalized production facility, we manage end-to-end quality control from raw steel coil unrolling to continuous automated punch profiling, robotized MIG welding, and computerized powder-coating lines.
We eliminate the markup and communication lag of intermediate trading companies. Our dedicated team of 300+ structural engineers, precision machinists, and foreign trade logistics coordinators deliver free 3D layout designs, structural load safety certifications, and sea-freight container packing optimization within 24 hours of technical brief submission.
-
30,000 Tons Monthly Capacity
Scalable continuous manufacturing guarantees tight lead times on large projects.
-
Free 3D CAD & Load Calcs
Complete structural FEA simulations and clearance blueprints before manufacturing begins.
-
Container Optimization
Component nesting cuts wasted container volume, saving up to 35% on ocean freight.
-
Complete Global Compliance
Official CE Certification (2435-CPR-8605159), ISO 9001:2015, and verified RoHS standards.
10-Stage Precision Heavy Industrial Manufacturing Process
Every beam, column, connector clip, and floor decking plank passes through rigorous dimensional verification and load testing across 10 in-house manufacturing stages.
Technological Innovations & Procurement Trajectories in Multi-Tier Racking
The global warehousing landscape is experiencing a paradigm shift driven by rising industrial real estate costs, urban logistics densification, and the need for higher energy efficiency. Understanding these emerging technological and supply chain procurement trends gives enterprise facility directors and EPC supply chain contractors an unmatched competitive edge.
1. Hybrid Automation & AMR Integration
Multi-tier racking systems increasingly incorporate automated mobile robots (AMRs) and autonomous vertical reciprocating lifts on upper deck tiers. Modern procurement emphasizes engineered floor flatness (DIN 18202 Group 3 or ASTM E1155 FF/FL standards) on mezzanine steel decking to support continuous robotic wheel friction without deflection.
2. Micro-Alloyed High-Yield Steels
The historical reliance on heavy, thick mild steel is yielding to cold-formed micro-alloyed structural steels like Q355B and high-yield cold-rolled coils. Advanced roll-forming with multi-stiffener corner ribs achieves higher structural moment capacity while reducing overall deadweight by 12-18%, directly decreasing container ocean shipping freight and seismic mass loads.
3. Decarbonization & Circular LCA
Global procurement teams prioritize life-cycle assessments (LCA) and zero-VOC manufacturing. By utilizing low-energy nanoceramic pre-treatments instead of conventional heavy phosphates, and lead-free thermosetting powders with recovery efficiencies surpassing 98%, Heda Shelves delivers racking with verifiable carbon footprints required for LEED and BREEAM certifications.
International Compliance & Structural Safety Accreditations
Independent third-party laboratory verification confirms our structural calculation models, weld penetrations, and material yield tolerances meet or exceed global engineering codes.
Frequently Asked Engineering & Sourcing Questions
Crucial technical considerations when sizing, importing, and installing multi-tier warehouse pallet racking from China.
Q1 What warehouse slab specifications are required for multi-tier pallet racking?
A multi-tier system exerts concentrated point loads through baseplates to the concrete floor slab. Typically, a reinforced concrete slab of 200mm - 250mm thickness with a compressive strength of ≥ 25-30 MPa (C25/C30 or 3,500-4,000 PSI) is recommended. Our engineering team calculates exact baseplate dimensions and anchor bolt embedment depths to ensure load distribution complies with your structural engineering foundation limits.
Q2 How does a rack-supported mezzanine compare with a structural steel mezzanine?
Rack-supported mezzanines utilize the upright columns of pallet racking or heavy shelving as vertical building columns, which significantly reduces structural steel weight and lowers project cost by 30-40%. However, structural steel mezzanines provide wider column spans (6m - 10m grid openings) beneath the deck, which is preferable for open manufacturing or forklift staging areas.
Q3 How is surface corrosion prevented during maritime shipping and in humid tropical sites?
All Heda Shelves steel profiles undergo a continuous chemical pre-treatment process comprising hot-alkaline degreasing, clean water rinses, acid pickling, and micro-crystalline zinc phosphating. This forms an insoluble protective barrier before electrostatic thermosetting epoxy powder application (80-120μm). For humid coastal ports or cold-chain freezers, hot-dip galvanizing (HDG) per ISO 1461 is also available.
Q4 How do multi-tier systems ensure fire sprinkler and life-safety compliance?
Multi-tier installations must adhere to NFPA 13 or local fire regulations. We supply heavy-gauge perforated steel planks with 35% - 50% open area or wire mesh decking that allows overhead sprinkler water to penetrate to the ground level unimpeded. Additionally, integrated escape stairwells, self-closing safety gates, continuous base kickplates, and emergency lighting cable trays are engineered into every layout.
Q5 What project parameters are required to generate an accurate 3D CAD design and quotation?
To produce an engineering CAD layout within 24 hours, we require: (1) Warehouse architectural drawings indicating clear ceiling height, building column grids, and access doors; (2) Pallet specifications (width × depth × height, including cargo overhang); (3) Maximum weight per pallet; (4) Forklift model, turning radius, and maximum mast reach; (5) Required stock turnover model (FIFO or LIFO).
Q6 How do you support on-site installation for overseas projects?
Components are pre-punched, pre-notched, and shipped knock-down with color-coded assembly tags and 3D step-by-step assembly drawings. For international projects, our engineering department provides remote video instruction, live CAD review sessions, and on-site certified installation supervisors upon request to guide local contractor teams safely through to commissioning.
