Mracking Light Duty Warehouse Selective Shelf Metal Steel Customized Warehouse Rack Warehouse Storage System Boltless Racking
Product Description
Product Description

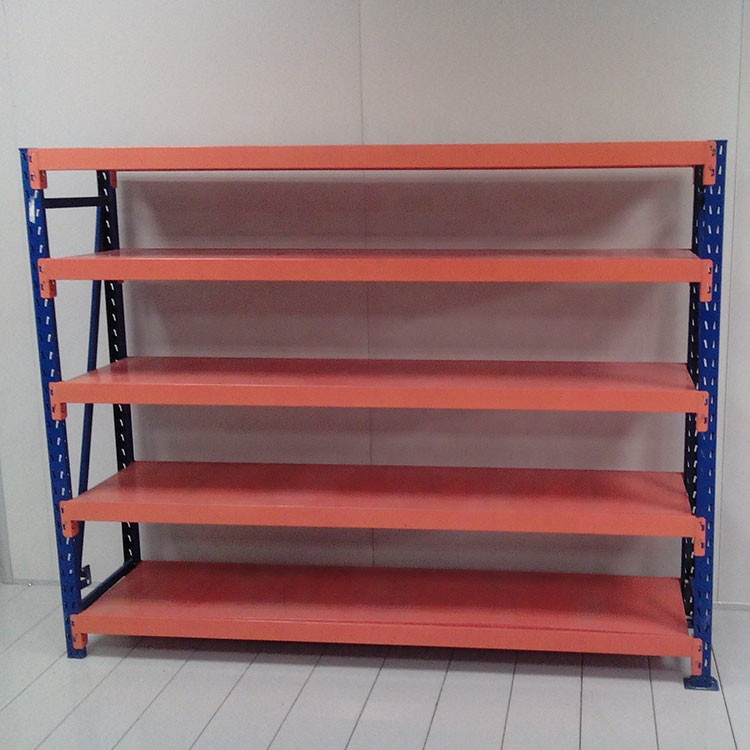

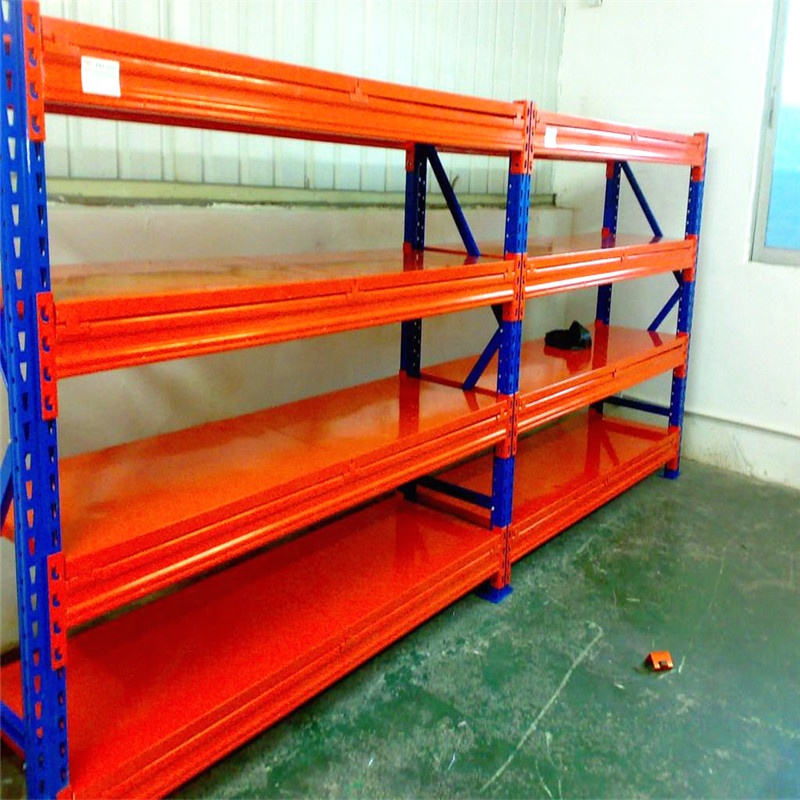

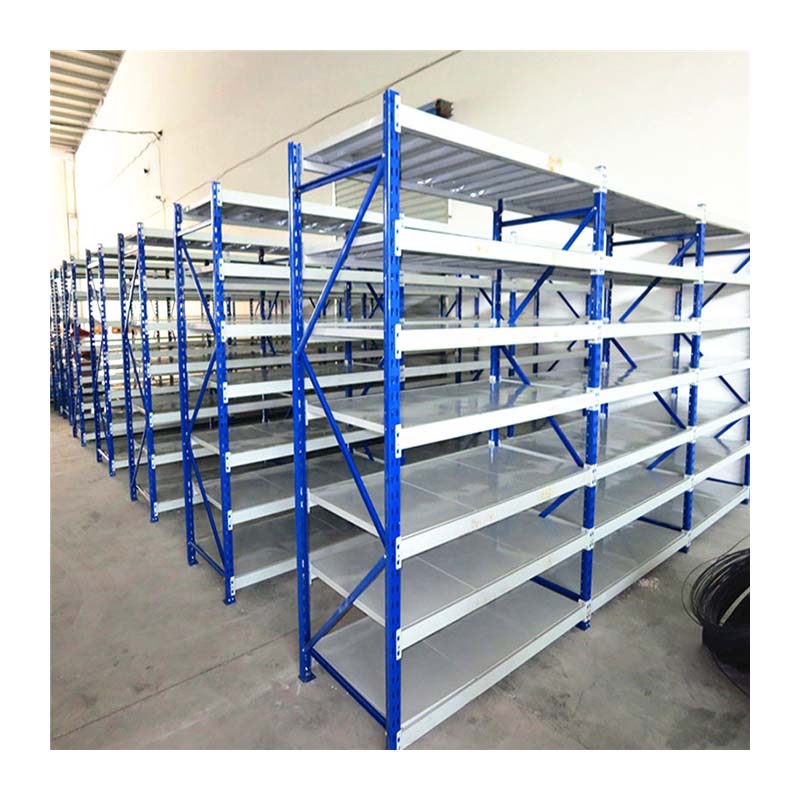

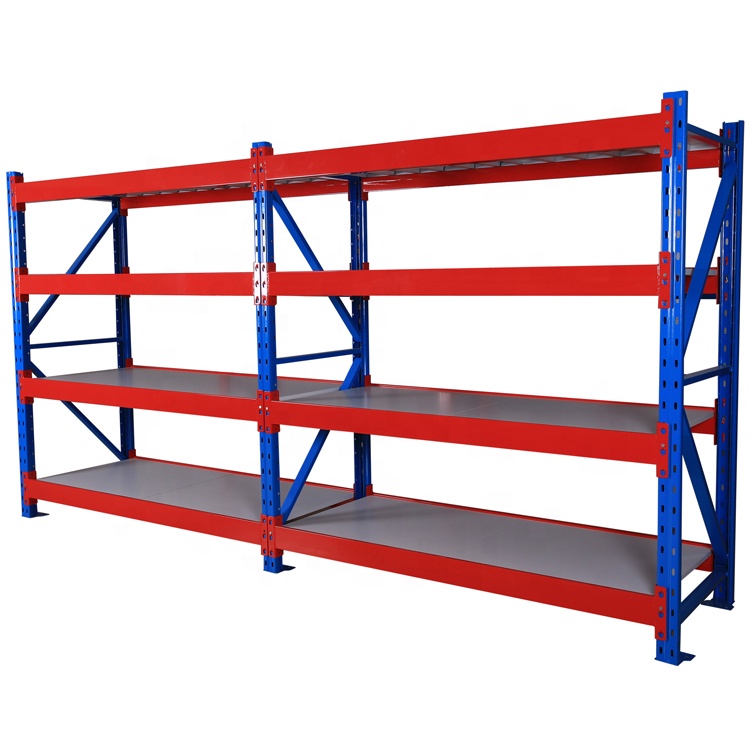

Medium Duty Rack:
Medium duty rack belongs to warehouse storage racking systems. It can be adjusted by each 50mm, and the load capacity can reach 200~500kg. The beam is "P" type beam, whose height matches with that of the layer board.
Medium duty rack belongs to warehouse storage racking systems. It can be adjusted by each 50mm, and the load capacity can reach 200~500kg. The beam is "P" type beam, whose height matches with that of the layer board.
| Standards Size | Layer | Loading Weight | Beam (mm) | Upright (mm) | Thickness of Board (mm) |
|---|---|---|---|---|---|
| L2000*D600*H2000 | 4 | 200~300kg/layer | 60*40*1.2 | 60*50*1.2 | 0.5 |
| L2000*D600*H2000 | 4 | 400~500kg/layer | 60*40*1.5 | 60*50*1.5 | 0.7 |
| Product Name | Medium Duty Rack/Shelf |
| Material | High-Quality Q235 Cold-Rolled Steel |
| Loading Capacity | 200~500kgs/level |
| Thickness | Upright: 60*40*1.0, 1.2, 1.5mm | Beam: 60*40 / 80*40*1.0, 1.2, 1.5mm | Steel: 0.5, 0.6, 0.7mm |
| Color | Upright: blue, Beam: Orange, Steel: Gray white (Can be customized to any color) |
| Surface Treatment | Electrostatic Spray Surface |
| Packing Term | Air bubble, Carton, Wooden Case |
| Warranty | 10 Years |
| Certification | SGS |
|

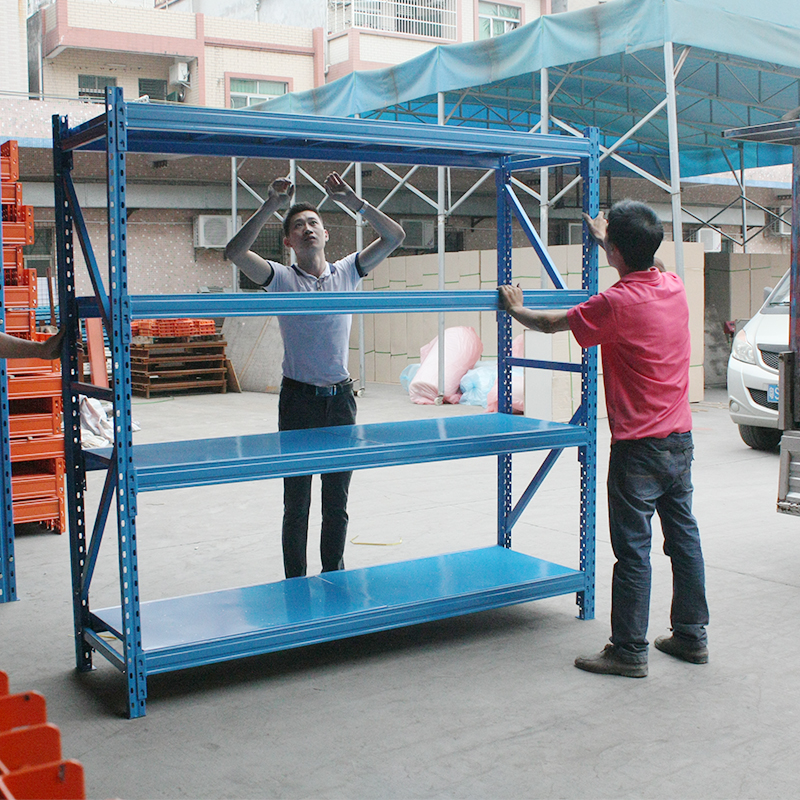

1. Long span shelving rack is very convenient for installation.

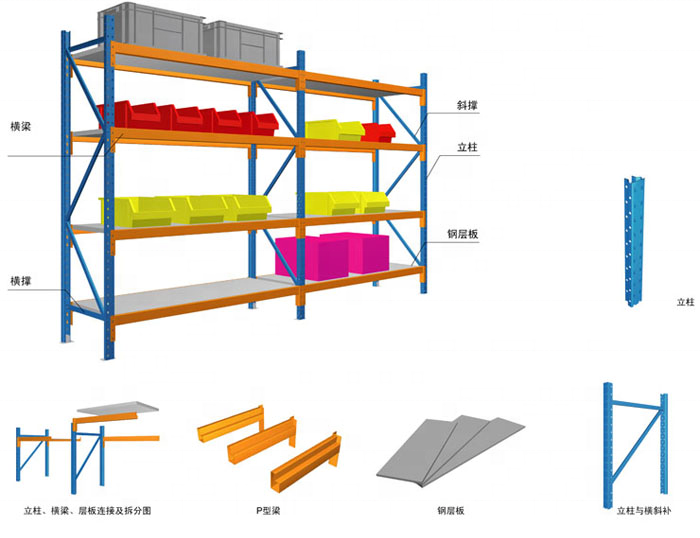

2. The adjustment distance of steel layers is 50mm for multiple usages. It consists of vertical columns, layer plates, corner pieces, pins, special bolts, and plastic footing.
3. The surface is electrostatic sprayed and the color is selectable. It has good corrosion protection and rust protection abilities.

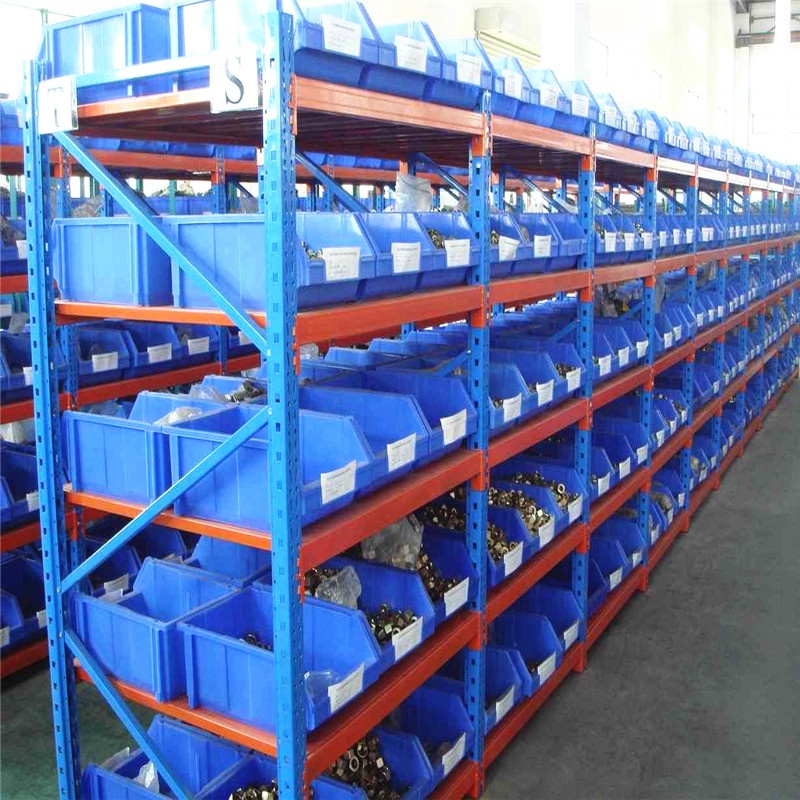

4. It is widely used in families, stores, supermarkets, company storages, and public institutions. It is the most updated product design.
|
|
Beam Loading Capacity & Size
Detailed Images

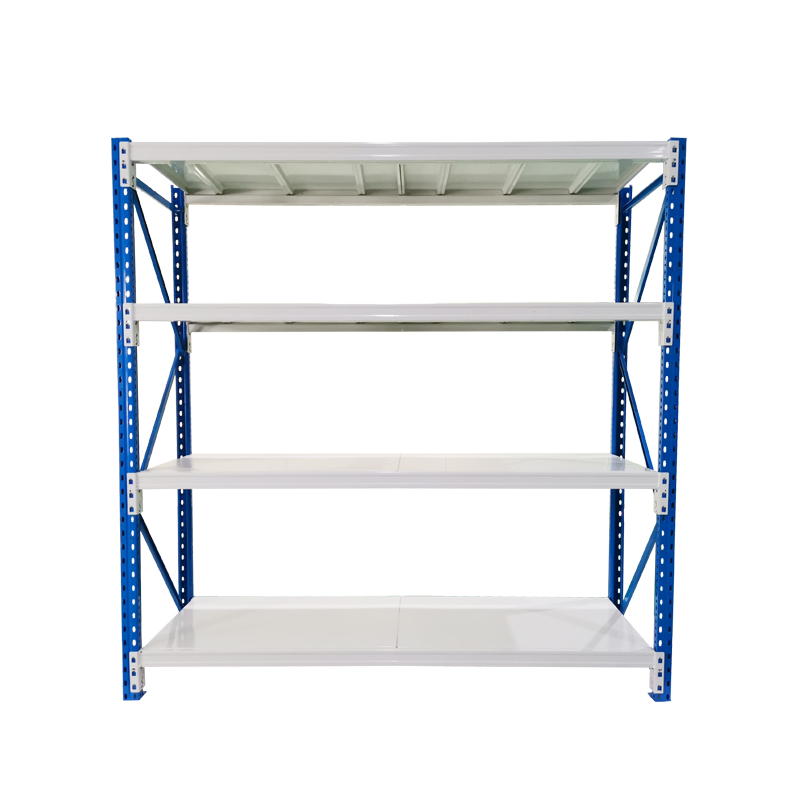

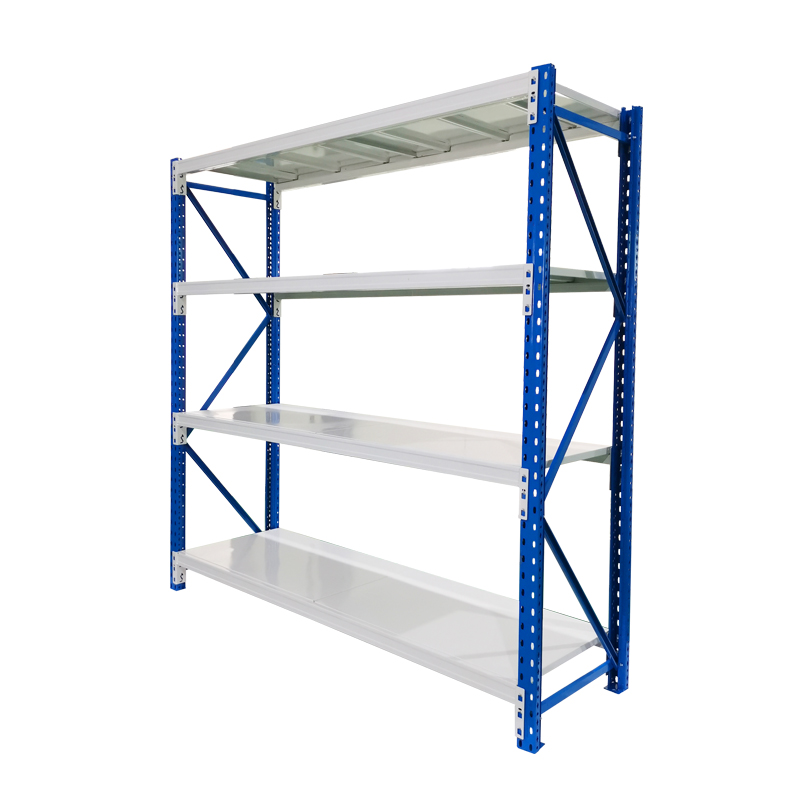

| Medium Duty Rack Specifications | |
|---|---|
| Size | L2000*D600*H2000mm, Loading: 300kg/layer, Layer: 4 levels |
| Material | Upright: 60*50*1.0, Beam: 60*40*1.2, Steel: 0.5mm |
| Color | Upright is blue, beam and steel is gray white |
| Packaging Term | Air bubble |
| Surface treatment | Powder Coating |

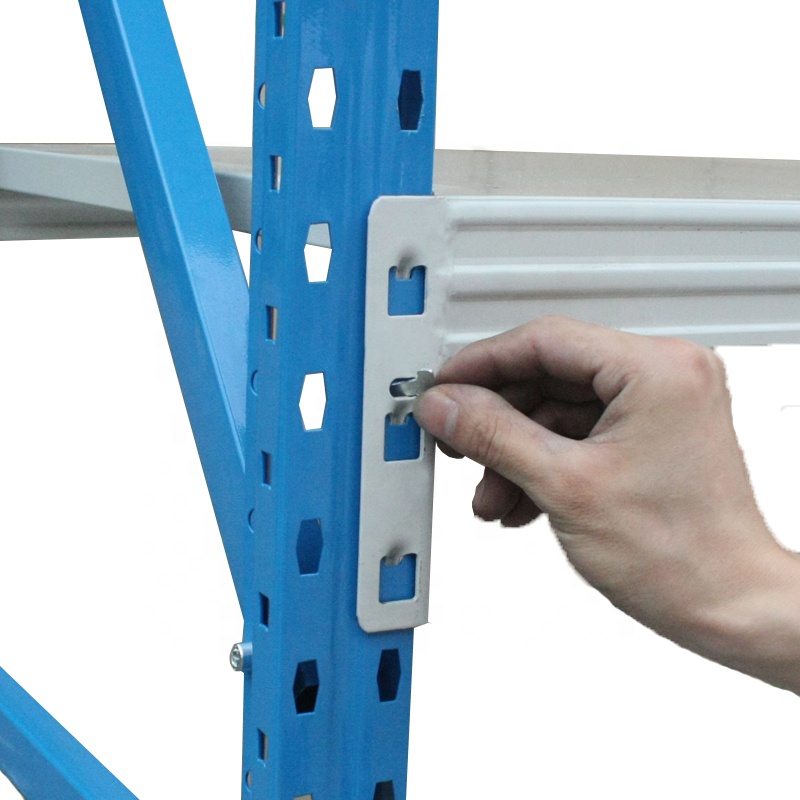

Beam & Upright Connect
Diagonal & Horizontal Bracing Installed
Steel Board Section
Product Overviews
Hot Sale
Heavy Duty Pallet Racking
Medium Duty Rack
Mould Rack
Cantilever Rack
Mezzanine Floor
Wire Mesh Container
Frequently Asked Questions
Are you a manufacture or trading company?
We are a professional racking manufacturer in Dongguan, Guangdong.
What's the material of the rack?
Our material is high-quality Q235B cold rolled steel.
What is the delivery time?
Less than 15 workdays in general. It also depends on the order quantity and shelving design.
What is the term of payment?
30% T/T down payment and 70% T/T before delivery.
How can I get a quick quotation on my racking project?
For a quick quotation, please provide the following information: 1) The size of rack: Length * Depth * Height; 2) Layers per set; 3) Load capacity per beam layer; 4) Racking quantity.
Are samples available?
We accept sending you free samples with freight collect.
