Engineering Structural Integrity: Chinese Single Pallet Racking Metallurgy & Standards

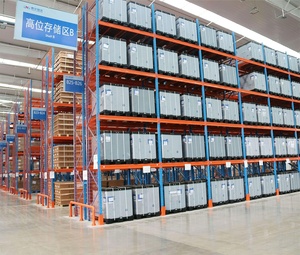

Single pallet racking—universally referred to in structural logistics engineering as Selective Pallet Racking—remains the fundamental backbone of global supply chains. By establishing direct, unhindered mechanical access to 100% of discrete pallet locations (Unit Loads), single pallet systems eliminate the double-handling delays, SKU honeycombing, and selective blindness inherent to high-density bulk-stacking. However, for B2B procurement directors, engineering consultants, and distribution facility planners, selecting a tier-1 manufacturing partner in China requires looking past exterior paint into cold-formed structural metallurgy, finite element mechanical analysis (FEA), and dynamic seismic resistance calculations.

1. Steel Chemistry, Yield Mechanics, and Cold-Formed Section Modulus

The structural reliability of an industrial pallet rack frame is governed by the quality of its primary hot-rolled steel strip coils. Premier Chinese pallet racking manufacturers source directly from national Tier-1 integrated mills (such as Baosteel, Shougang, and Ansteel), utilizing certified Q235B and Q355B structural carbon steels.

• Grade Q235B (ASTM A36 / European S235JR Equivalent): Exhibits a minimum nominal yield strength ($f_y$) of 235 MPa and ultimate tensile strength ($f_u$) between 370–500 MPa. Its high ductility (elongation $\ge 26\%$) makes it optimal for multi-bend profile roll-forming where micro-cracking along bend radii must be prevented during automated manufacturing.
• Grade Q355B (ASTM A572 Grade 50 / European S355JR Equivalent): Features a yield strength of $\ge 355$ MPa, delivering an exceptional strength-to-weight ratio. Top Chinese factories specify Q355B for high-bay upright columns exceeding 9 to 15 meters, seismic-rated upright posts, and heavy-duty load beams carrying upwards of 4,000 kg per pair, cutting dead load without degrading static deflection thresholds.

In selective single pallet racks, the upright profile is cold-roll formed through 11 to 13 continuous progressive tooling stations into a multi-ribbed "Omega" ($\Omega$) cross-section. The presence of multiple stiffening lips, return flanges, and deliberate cold work hardening along the corners dramatically elevates the profile's section modulus ($Z_x, Z_y$) and torsional rigidity ($J$). This geometric design directly counteracts global flexural buckling and local torsional-flexural buckling modes under full rated vertical loads.

2. Comparative System Analysis: Selective Single Pallet Racking vs. Alternative Storage Typologies

Before allocating capital expenditure (CapEx), industrial warehouse planners must benchmark single pallet racking against other pallet-handling configurations to balance accessibility, pallet density, and material handling equipment (MHE) fleet costs.

The Importance of Stages 8 & 9: Anti-Corrosion Longevity

A critical differentiator separating top-tier Chinese rack factories from budget fabricators is the surface pretreatment line. Low-grade suppliers apply powder paint directly over untreated hot-rolled mill scale or lightly wiped steel, leading to under-film oxidation, blistering, and delamination within 12–24 months—particularly when shipped through humid ocean lanes or deployed in coastal import zones.

At HEDA Shelves, all uprights, beams, and bracing undergo an automated 10-stage chemical immersion sequence: alkaline degreasing, industrial acid pickling to eliminate all iron oxides and rust, double water rinsing, and a dense nano-crystalline zirconium/iron phosphating conversion wash. This creates an chemically inert conversion layer that anchors the electrostatic epoxy-polyester powder coating (cured at 180°C to 200°C for 25 minutes). The finished coating delivers a film thickness of 60 to 80 microns ($\mu$m), passing 500-hour neutral salt spray (ASTM B117) and cross-hatch adhesion tests (ISO 2409 Class 0).

Future Procurement Trends: Where Industrial Single Pallet Racking Is Heading

The global warehousing landscape is experiencing profound structural transformations driven by escalating land acquisition costs, rising cold chain demands, labor automation, and tighter international ESG mandates. Procurement officers and supply chain executives sourcing from China must adapt to four pivotal engineering trends shaping future contracts.

Optimizing Total Landed Cost (TLC) When Sourcing from China

Purchasing warehouse racking directly from Chinese manufacturing facilities yields massive factory-gate price savings (frequently 30% to 50% lower than domestic European or North American fabricators). However, an inexperienced procurement process can forfeit these margins through inefficient ocean shipping container stuffing, customs re-classifications, and site damage.

Container Volumetric Stuffing Optimization (40ft High Cube)

Industrial pallet racking is inherently bulky and heavy. An optimized 40HQ container balance must hit both the maximum payload weight (approx. 26 to 28 metric tons depending on shipping line/port limits) and maximum volumetric cube (approx. 68 to 72 m³ of usable space). Tier-1 Chinese exporters utilize 3D container packing simulation software (such as MagicLogic / Cube-IQ) to design nested bundles:

• Nested Upright Frames: Fully assembled upright frames take up immense volume. Premium factories knock down uprights into flat bundles of posts, horizontal braces, and diagonal braces with custom nested steel strapping and timber dunnage, increasing container capacity from 450 pallet positions to over 1,200 pallet positions per 40HQ container.
• Interlocking Beam Packs: Load beams are layered in staggered male-female orientations with corrugated cardboard and PE protective foam inserts preventing metal-on-metal abrasion, eliminating transit paint damage that causes jobsite corrosion rejections.
• Hardware Consolidation: All high-tensile anchor bolts (Grade 8.8), leveling shims, safety pins, and frame column protectors are packed in clearly labeled, waterproof reinforced wooden crates with center-of-gravity lift indicators.
