Do you supply warehouse racking to African countries?

Yes. We supply pallet racking, shelving and mezzanine systems to buyers in West, East, Southern and North Africa. Components are knock-down packed for 20GP and 40HQ containers and shipped by sea to major ports such as Lagos, Tema, Mombasa, Dar es Salaam, Durban and Alexandria under FOB, CFR or CIF terms.

What information do you need to design my warehouse racking layout?

Send the building length, width and clear height, column and door positions, pallet size and maximum load, forklift type and lift height, number of SKUs and daily throughput. Our engineers return a CAD layout, 3D rendering and load calculation free of charge.

How is racking protected against humidity and corrosion in coastal African climates?

Steel components go through pickling and phosphating pretreatment before electrostatic powder coating, which improves adhesion and corrosion resistance. Galvanized finishes can be specified for cold rooms, humid coastal warehouses and semi-outdoor yards.

Which racking systems work without electricity during power outages?

Selective, double deep, drive-in, push back, gravity flow and cantilever racking are fully mechanical and keep working during grid outages. Radio shuttle racking uses rechargeable battery carriers, so we size spare batteries to match generator or solar charging schedules.

Can you support racking installation in Africa?

Every order ships with numbered components, installation drawings and manuals. Our team provides remote video guidance, and on-site installation supervision can be arranged for larger projects.

What certifications does HEDA Shelves hold?

Guangzhou Heda Shelves Co., Ltd. holds CE certification No. 2435-CPR-8605159, ISO 9001:2015 certification No. 18624Q00169R0M valid until June 2027, and RoHS compliance.

Custom OEM Single Pallet Rack Factory & Suppliers

Industrial Application Matrix: Selecting the Optimum OEM Single Pallet Rack

In high-throughput modern intralogistics, single-depth pallet racking serves as the baseline structural standard for operations demanding uninhibited, 100% SKU selectivity. As a certified custom OEM manufacturer, Guangzhou Heda Shelves Co., Ltd. analyzes spatial geometry, floor slab load-bearing capacities, material handling equipment (MHE) kinematic profiles, and dynamic dead/live load factors to engineer application-specific single pallet racks.

Engineering Benchmark: Selecting between conventional single selective, dynamic gravity flow, and heavy-duty cantilever racks depends on unit-load dimensions, turnover frequencies (FIFO vs. LIFO), and building slab deflection limits under static seismic loads.

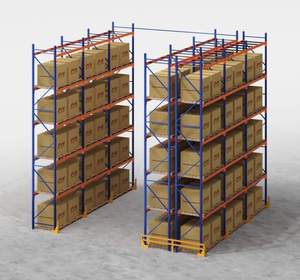

Selective Single-Deep Systems

Engineered for high-SKU distribution, third-party logistics (3PL), and FMCG fulfillment. Delivers zero-interference crane and forklift access to every single pallet position without staging delays.

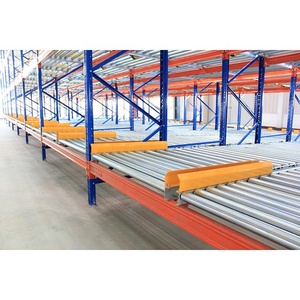

Gravity Flow Single-Lane Systems

Integrates precision roller tracks with speed-braking governors. Operates by natural gravity without auxiliary power consumption, ensuring automated FIFO rotation for perishable goods.

Corrosion-Resistant SS304 Racking

Sanitary vertical frame architecture designed for extreme pharmaceutical, cleanroom, and cold-chain environments, mitigating microbial contamination and resisting caustic chemical washdowns.

Future Procurement Trends: Total Landed Cost (TLC) & Resilient Sourcing

Enterprise procurement strategies for warehouse racking systems have shifted from basic nominal steel unit pricing toward lifetime Total Landed Cost (TLC), modular interchangeability, and localized compliance. Procurement executives now assess lifecycle degradation risks, factory-level automation, and supply chain contingencies.

Container Volumetric Efficiency

Soaring ocean and intermodal freight rates dictate knock-down nesting designs. Precision cold-bent upright profiles and modular horizontal bracing reduce dead freight volume by up to 35% in 40HQ containers.

Lifecycle Coating Resilience

Procurement teams demand certified chemical pickling, non-toxic phosphating, and electrostatic epoxy-polyester coatings (>75μm thickness) to prevent corrosive failures in extreme relative humidity.

Digital Layout & Pre-Assembly Verification

Modern tenders demand verified CAD integration, BIM structural models, and factory dry-fitting trials before shipping, eliminating on-site misalignment and shortening commissioning windows.

Structural Dynamics & Manufacturing Advancements

The manufacturing of single pallet racks has transitioned from basic structural framing into precision cold-formed engineering. Using continuous CNC roll-forming lines, automated punch presses, and robotic MIG welding stations, our facility achieves dimensional tolerances within fractions of a millimeter across 12-meter continuous vertical columns.

Advanced high-yield micro-alloyed steels (such as Q235B and Q355B grades) allow for reduced deadweight while simultaneously elevating buckling resistance. Upright profiles feature optimized omega-style folds that redistribute local axial loads away from punch perforations, preventing stress concentrations under cyclic forklift impact loads. Simultaneously, automated interlocking connectors with heavy-duty safety pins eliminate human assembly error and secure beam-to-frame integrity under high dynamic moments.

Guangzhou HEDA Shelves: Manufacturing Authority & Production Control

Operating a primary 30,000 square meter integrated industrial complex with 300+ certified fabrication technicians, structural engineers, and logistics specialists, Guangzhou Heda Shelves Co., Ltd. oversees every stage of racking production from raw steel coil processing to container departure.

Full-Cycle Manufacturing Continuous uncoiling, automatic laser punching, profile roll-forming, robotic welding, and automated powder lines in one facility.

Certified Compliance Verified CE Certificate (No. 2435-CPR-8605159), ISO 9001:2015 Management Systems, and complete RoHS non-hazardous material certifications.

Engineering Authority In-house technical teams provide full static/dynamic structural calculations, 3D spatial renders, and structural BIM/CAD designs within 24 hours.

Worldwide Project Footprint Supplied over 10,000 enterprise facilities across 120+ countries, spanning Africa, Southeast Asia, Europe, and the Middle East.

Unlike trading intermediaries, our factory implements a stringent 10-stage quality inspection system: starting from raw material tensile testing and ultrasonic weld flaw detection, to automated pickling/phosphating, electrostatic powder coating, and dry-fit container bundling. This ensures that every shipped frame, beam, and connector integrates without on-site re-fabrication.

Knowledge Base

Frequently Asked Technical & Procurement Questions

Direct technical answers from our senior warehouse engineering and international export logistics team.

What parameters are required to calculate beam deflection and upright frame capacity?

To engineer safe structural configurations, our engineering team requires: (1) Pallet footprint dimensions including load overhang (Width × Depth × Height); (2) Maximum gross weight per loaded pallet; (3) Number of beam levels per bay; (4) Clear warehouse height and floor slab specification (slab thickness, concrete compressive strength, and rebar details); (5) MHE kinematic data including mast height, turning radius, and lift capacity; and (6) Local seismic acceleration and wind exposure ratings.

How does HEDA ensure corrosion resistance in humid, tropical, and cold-storage environments?

All carbon steel components undergo continuous acid pickling and multi-stage immersion phosphating to remove scale and rust before entering our automated electrostatic powder-coating line. This process deposits high-adhesion thermosetting epoxy-polyester powder baked at 180°C–200°C, producing a resilient 70–90 micron protective shell. For marine port storage, blast freezers (-30°C), and chemical warehouses, we supply hot-dip galvanized steel (ASTM A123) or structural 304/316 stainless steel assemblies.

Can custom OEM colors, proprietary hole punches, and private-label packaging be accommodated?

Yes. As an OEM/ODM direct fabricator, we support custom structural profiles including proprietary teardrop, diamond, or hex hole patterns compatible with your existing equipment fleet. We offer precision custom RAL powder formulations to match your corporate branding, alongside private-label embossed component labeling, custom barcode tagging, and container pack schemes suited for distributor resale.

Which systems are recommended for regions prone to power interruptions?

In facilities where electrical grid reliability fluctuates, we recommend mechanical storage architectures such as Conventional Selective Single Pallet Racks, Inclined Push-Back Carts, and Gravity Flow Racks. These systems operate via gravitational kinetics and standard diesel/LPG forklift fleets without requiring automated wiring or continuous utility power. For semi-automated shuttle systems, we integrate dual industrial battery packages compatible with solar array rechargers.

How are export shipments packed to prevent transport damage and expedite on-site assembly?

Upright frames are banded using heavy-gauge PET strapping with corner protection channels, while box beams and shelf tiers are packed into rigid steel-collared pallets. Fasteners and hardware are categorized in marked, moisture-sealed containers corresponding directly to CAD piece-mark maps. Each shipment contains a comprehensive assembly manual, exploded-view structural drawings, and installation videos to ensure fast, mistake-proof local installation.

Plan Your Custom OEM Single Pallet Rack Configuration

Connect with our technical design division for complete warehouse load analyses, architectural CAD layouts, and direct container factory quotations.
