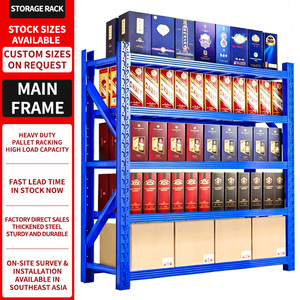

300kg Per Layer Medium Duty Industrial Steel Storage Multilayer Shelving Racking
European Standard Selective Pallet Racking System Heavy Duty Warehouse Storage Solution
High Density 5 Layer Heavy Duty Push Back Warehouse Rack Industrial Storage System
Warehouse Shelving Heavy Duty Shelves Multi Level Pallet Rack Factory Industrial Systems
High Efficiency Heavy Duty Adjustable 5-Layer Carton Gravity Flow Rack CE Certified
Commercial Storage Steel Warehouse Heavy Duty Rack Shelf Support Framework
Industrial Procurement White Paper
Engineering Tall Warehouse Shelving: Global Supplier Landscape & Technical Benchmarks
A structural evaluation of upright buckling dynamics, finite element analysis (FEA), and total cost of ownership across major manufacturing hubs.
The Paradigm Shift in Vertical Warehousing: Beyond Floor Area Optimization
Modern industrial supply chains face unprecedented pressure driven by soaring industrial real estate valuations, rapid e-commerce throughput expectations, and urban land constraints. Consequently, warehouse engineering has migrated definitively from horizontal expansion to vertical cubic volume optimization. Constructing tall warehouse shelving systems—ranging from high-bay selective setups exceeding 12 meters to automated rack-clad structures rising over 30 meters—demands rigorous structural design parameters that standard light-duty racking cannot satisfy.
Engineering tall upright structures requires an intimate understanding of secondary effects under load, specifically second-order P-Delta (Δ) effects, column torsional buckling, and seismic base dissipation. Premium manufacturers deploy structural structural steel conforming to Q235B, Q355B, or European S355JR standards, cold-formed using multi-stage rolling stations to create complex, multi-flange upright cross-sections. These complex geometric profiles dramatically raise the radius of gyration, maintaining elasticity under catastrophic shear forces while preventing long-column buckling.
Procuring tall racking is not merely a transactional purchase of steel per kilogram; it represents a mission-critical infrastructural investment. A single engineering oversight regarding aisle deflection tolerance or baseplate anchor shear capacity can lead to progressive structural collapse, downtime, and immense corporate liability. This evaluation benchmarks leading global engineering practices to equip supply chain directors, industrial architects, and technical procurement officers with decisive analytical data.
| Storage Architecture | Typical Height Ceiling | Footprint Utilization | Direct Selectivity | Handling Machinery Requirement |
|---|---|---|---|---|
| Standard Selective Racking | Up to 12.0 Meters | 35% - 40% | 100% Direct Access | Counterbalance / Reach Truck |
| Very Narrow Aisle (VNA) | Up to 18.0 Meters | 55% - 65% | 100% Direct Access | Wire/Rail Guided VNA Turret Truck |

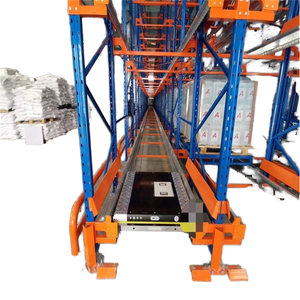

| Radio Shuttle System | Up to 16.0 Meters | 75% - 85% | Channel Selectivity (FIFO/LIFO) | Standard Reach Truck + AGV Carrier |
| Rack-Supported Mezzanine | Up to 15.0 Meters (3-5 Tiers) | 180% - 300% (Usable Deck) | 100% Piece/Bin Access | Vertical Reciprocating Conveyor (VRC) |
| ASRS High-Bay Rack-Clad | Up to 40.0 Meters | 85% - 95% | Dynamic Computer Selectivity | Automated Stacker Crane (SRM) |
Market Intelligence
Future Procurement Trends in Industrial Storage Systems (2026–2032)
Critical engineering considerations shaping capital expenditures in international manufacturing and logistics infrastructure.
1. Micro-Fulfillment & Dense Urban Stacking
Rapid delivery SLAs require distribution centers to move inward to suburban and urban fringes where ceiling heights reach 14 to 18 meters. Procurement is shifting rapidly toward narrow-gauge multi-tier mezzanine floors and modular boltless racking that maximize each cubic meter without requiring structural modifications to host buildings.
2. Automation-Ready Engineering Tolerances
Procuring static tall shelving is being superseded by "Automation-Ready" installations. Forward-thinking operators specify tight deflection ratios (L/300 or L/500 under full load) so that static beam tiers can effortlessly integrate Autonomous Mobile Robots (AMRs), Automated Guided Vehicles (AGVs), and robotic shuttle carriers without structural retooling.
3. Harsh-Environment Surface Protections
Supply chains spanning tropical zones, high-humidity coastal ports, and cold-chain refrigeration facilities demand advanced anti-corrosion chemistry. Standard solvent paint is obsolete. Modern tenders specify automated 9-stage pickling and phosphating followed by thermoset electrostatic powder coatings or continuous hot-dip galvanization.
4. Container-Optimized Demountable Design
Ocean freight volatility heavily impacts landed racking costs. Advanced suppliers engineer completely demountable, modular components engineered specifically to pack densely into standard 40-foot High Cube (40HQ) maritime shipping containers, driving cubic freight utilization upwards of 92% and cutting shipping expenses per pallet position.
Factory Metallurgy
Manufacturing Evolution: The Anatomy of a High-Tier Racking Line
Precision cold roll forming and automated surface passivation define world-class racking production lines.
Structural Engineering Verification: Finite Element Analysis (FEA) & Cold-Rolling Precision
A key difference between generic workshop fabricators and Tier-1 tall warehouse shelving factories lies in design verification and manufacturing automation. In tall warehouse shelving, material strength alone does not prevent catastrophic twist. Structural stability relies on precision profile geometry created by continuous cold roll-forming lines operating across 20 to 26 consecutive roll stands. Each gradual pass forms the cold-rolled steel strip without introducing micro-fractures along bend radii, maximizing the load-bearing integrity of upright sections.
Leading factories verify upright profiles via Finite Element Analysis (FEA), calculating yield strength thresholds, beam connector lock security, and wind/seismic shear loads. Automated multi-punch stations ensure that teardrop or hexagonal connection holes remain aligned within ±0.1mm tolerances along a 16-meter continuous column. This level of physical precision is what prevents lean-out and deflection throughout decades of constant warehouse operations.
01. Certified Steel Coil
02. Slitting & Precision Sizing
03. CNC Punching
04. Multi-Stage Cold Forming
05. Pickling & Phosphating
OEM & Project Competence
Guangzhou Heda Shelves Co., Ltd.: Global Manufacturing & Engineering Authority
Direct-from-factory production, European CE certification, and turnkey design support spanning 10,000+ logistics projects.
30,000 m² Integrated Manufacturing Base
Operating out of Guangzhou, China since 2001, Heda Shelves houses full vertical production under one roof: automated rolling mills, robotic laser cutting, CNC punching, welding, and high-efficiency electrostatic powder coating lines with a monthly output exceeding 30,000 tons.
Free 3D Architectural CAD & Load Engineering
Our senior warehouse engineers deliver structural layout design within 24 hours. Buyers receive complete CAD floor layouts, photorealistic 3D warehouse simulations, and beam-deflection load calculations tailored to their specific forklift and pallet parameters.
Verified CE, ISO 9001:2015 & RoHS Accreditations
All load-bearing members are manufactured under certified ISO 9001:2015 quality management systems (Certificate No. 18624Q00169R0M) and carry official European CE certification (No. 2435-CPR-8605159), ensuring frictionless compliance sign-off for global projects.
Global Logistics & Installation Supervision
Serving buyers across 120+ countries throughout Europe, the Middle East, Southeast Asia, the Americas, and Africa. Every order features bundle labeling, knock-down packaging for maximum container payload, and comprehensive installation manuals with optional on-site engineer supervision.
Procurement Knowledge Base
Frequently Asked Questions: Technical Sourcing of Tall Shelving
Direct engineering answers addressing load ratings, seismic requirements, and international shipping protocols.
What parameters are critical when engineering tall shelving (exceeding 8m) compared to standard racks?
Tall warehouse racking systems are governed by stringent structural considerations beyond vertical gravity loads. Engineers calculate the slenderness ratio of uprights, dynamic wind/seismic shear forces, and floor slab load-bearing capacities. Critical requirements include installing heavy-duty baseplates with multi-point chemical anchoring, top-tie bracing frameworks, row spacers, and rear vertical diagonal bracing to suppress cumulative frame sway and second-order P-Delta deformation.
How do factory engineers verify the deflection limits and safe working loads of storage beams?
Beam deflection verification adheres to EN 15512 and RMI standards. Under maximum uniformly distributed load (UDL), the maximum vertical deflection must not exceed L/200 (for standard selective setups) or L/300 to L/500 (for systems supporting precision AGVs, VNA trucks, or automated shuttles). Structural testing includes static physical load-cell testing, connector weld-yield cycle tests, and Finite Element Method (FEM) software simulations.
How is tall industrial shelving protected against corrosion in humid or cold environments?
Surface preparation dictates long-term anti-rust resilience. Heda Shelves applies an industrial 9-stage chemical pretreatment incorporating immersion degreasing, ultrasonic pickling to strip surface oxides, and zinc phosphating to establish an inert crystalline bonding foundation. This is sealed with an automated electrostatic thermoset powder coat cured at 200°C. For deep-freeze chambers (-30°C) or open-air coastal yards, continuous hot-dip galvanization (HDG) is specified.
Can standard forklifts operate safely in tall warehouse shelving environments?
Standard counterbalance forklifts typically top out at lifting heights of 4.5 to 6.0 meters. Operating tall shelving systems above 7 to 12 meters requires reach trucks or double-deep reach trucks. For configurations between 10 and 18 meters, Very Narrow Aisle (VNA) man-up or man-down turret trucks are deployed within guided aisles (inductive wire guidance or mechanical steel guide rails). Systems reaching beyond 18 meters are integrated into automated storage and retrieval system (ASRS) stacker cranes.
How are components packaged for long-distance maritime freight to prevent damage?
Racking components are engineered for modular knockdown flat-packing. Upright frames are stacked with protective corrugated buffer sheets, plastic wrap, and heavy-duty steel strapping. Beams are bundled with integrated lifting lugs for rapid container de-stuffing. Small parts, footplates, safety pins, and anchor bolts are crated in export-grade fumigated wooden cases. This layout maximizes shipping container space (over 90% space utilization in 40HQ containers), mitigating shipping costs per pallet position.
What documentation is required to ensure building safety and municipal fire compliance?
For code compliance and insurance sign-off, Heda Shelves furnishes complete stamped architectural drawings (CAD plan, section views, and elevation profiles), full load-capacity rating plates for every aisle bay, mill test certificates for the raw steel coil, ISO 9001:2015 quality certificates, and CE declaration of conformity documents (EN 15512). Additionally, designs account for early suppression fast response (ESFR) in-rack sprinkler pipe clearance.
