Do you supply warehouse racking to African countries?

Yes. We supply pallet racking, shelving and mezzanine systems to buyers in West, East, Southern and North Africa. Components are knock-down packed for 20GP and 40HQ containers and shipped by sea to major ports such as Lagos, Tema, Mombasa, Dar es Salaam, Durban and Alexandria under FOB, CFR or CIF terms.

What information do you need to design my warehouse racking layout?

Send the building length, width and clear height, column and door positions, pallet size and maximum load, forklift type and lift height, number of SKUs and daily throughput. Our engineers return a CAD layout, 3D rendering and load calculation free of charge.

How is racking protected against humidity and corrosion in coastal African climates?

Steel components go through pickling and phosphating pretreatment before electrostatic powder coating, which improves adhesion and corrosion resistance. Galvanized finishes can be specified for cold rooms, humid coastal warehouses and semi-outdoor yards.

Which racking systems work without electricity during power outages?

Selective, double deep, drive-in, push back, gravity flow and cantilever racking are fully mechanical and keep working during grid outages. Radio shuttle racking uses rechargeable battery carriers, so we size spare batteries to match generator or solar charging schedules.

Can you support racking installation in Africa?

Every order ships with numbered components, installation drawings and manuals. Our team provides remote video guidance, and on-site installation supervision can be arranged for larger projects.

What certifications does HEDA Shelves hold?

Guangzhou Heda Shelves Co., Ltd. holds CE certification No. 2435-CPR-8605159, ISO 9001:2015 certification No. 18624Q00169R0M valid until June 2027, and RoHS compliance.

Mracking High Quality Heavy Duty Euro Pallet Warehouse Storage Rack System Heavy Duty Pallet Rack for Sale Steel Customized

1 / 5

Mracking High Quality Heavy Duty Euro Pallet Warehouse Storage Rack System Heavy Duty Pallet Rack for Sale Steel Customized

Send Inquiry

Product Description

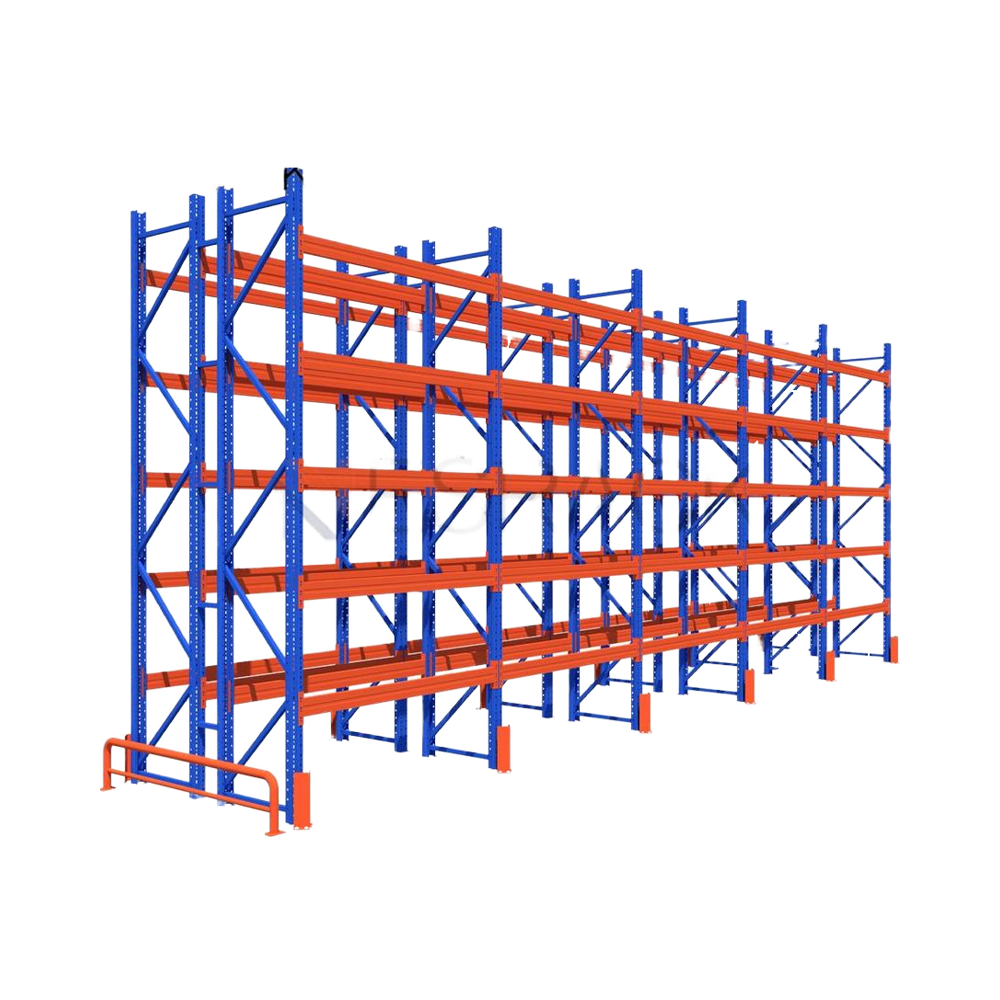

Heavy Duty Rack

Heavy duty rack is hooking structured, easy to dismount and install. It can be adjusted by each 75mm based on the goods height, and can load 800-3000kg/layer. Steel plate, wood plate, and MDF can be chosen as the layer board. This kind of rack is an ideal storage rack for small and medium-sized warehouses due to its advantages of appropriate height and convenience in accessing goods.

Brand	XINMIAO
Raw-Material	High-Quality Q235 Cold rolled steel
Color	Upright frame is blue, Beam is orange, can be customized
Standard Size	L2300D1000H4500 (size can be customized according to your requirement)
Height	1500-8000mm or Customized
Width / Depth	400-1500mm or Customized
Length	1500-3200mm or Customized
Upright-Section	80601.5/1.8/2.0mm, 90651.5/1.8/2.0mm, 100702.0/2.5mm, 120952.0/2.5mm etc.
Loading Capacity	1000~6000kgs or 2200~13200lbs
Beam-Section	8045mm, 10045mm, 12045mm, 14045mm, 16045mm, 18045mm etc.
Surface Treatment	Powder coated
Packing Term	Air bubble, Wooden Case, etc.
