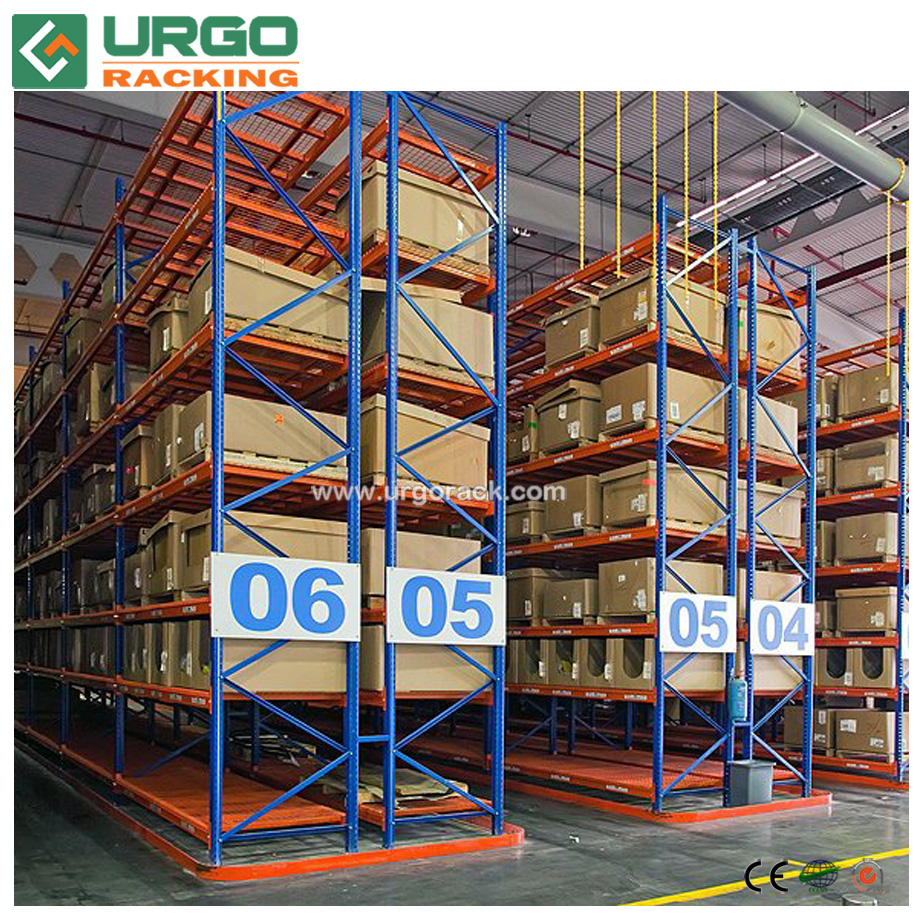

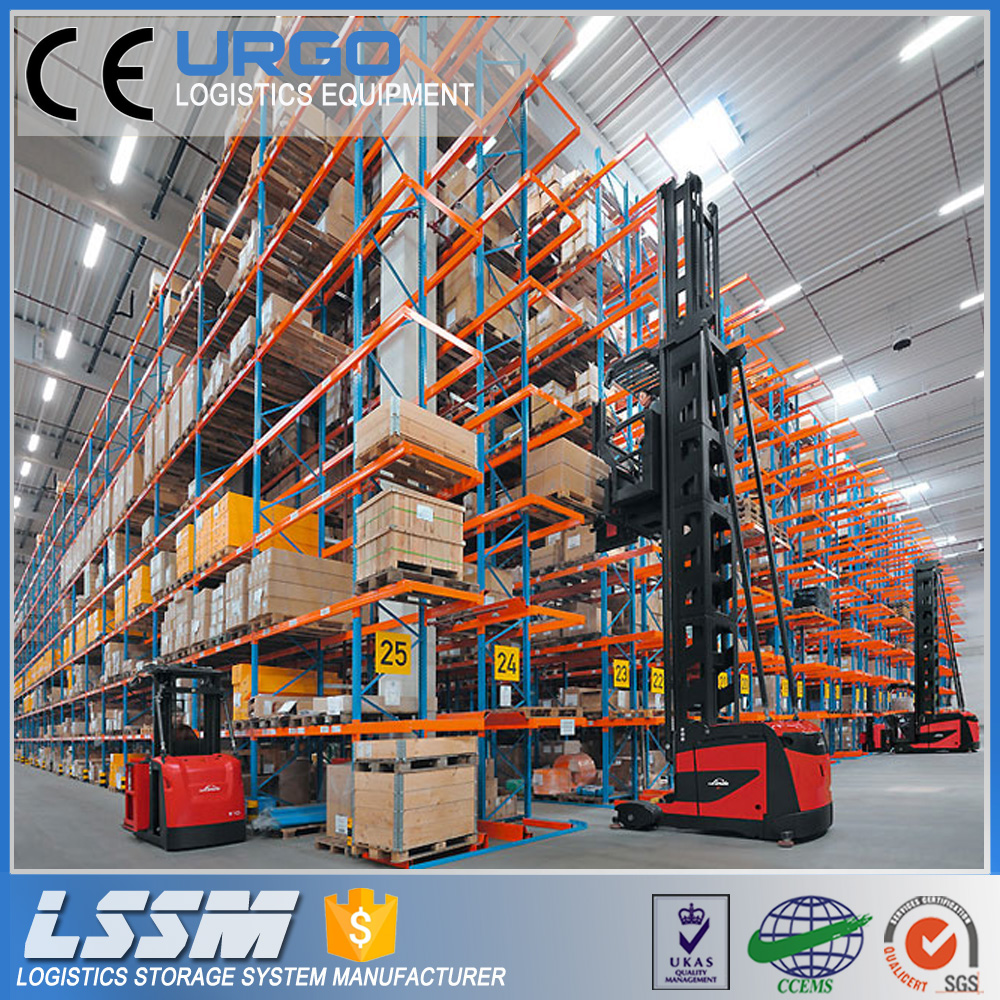

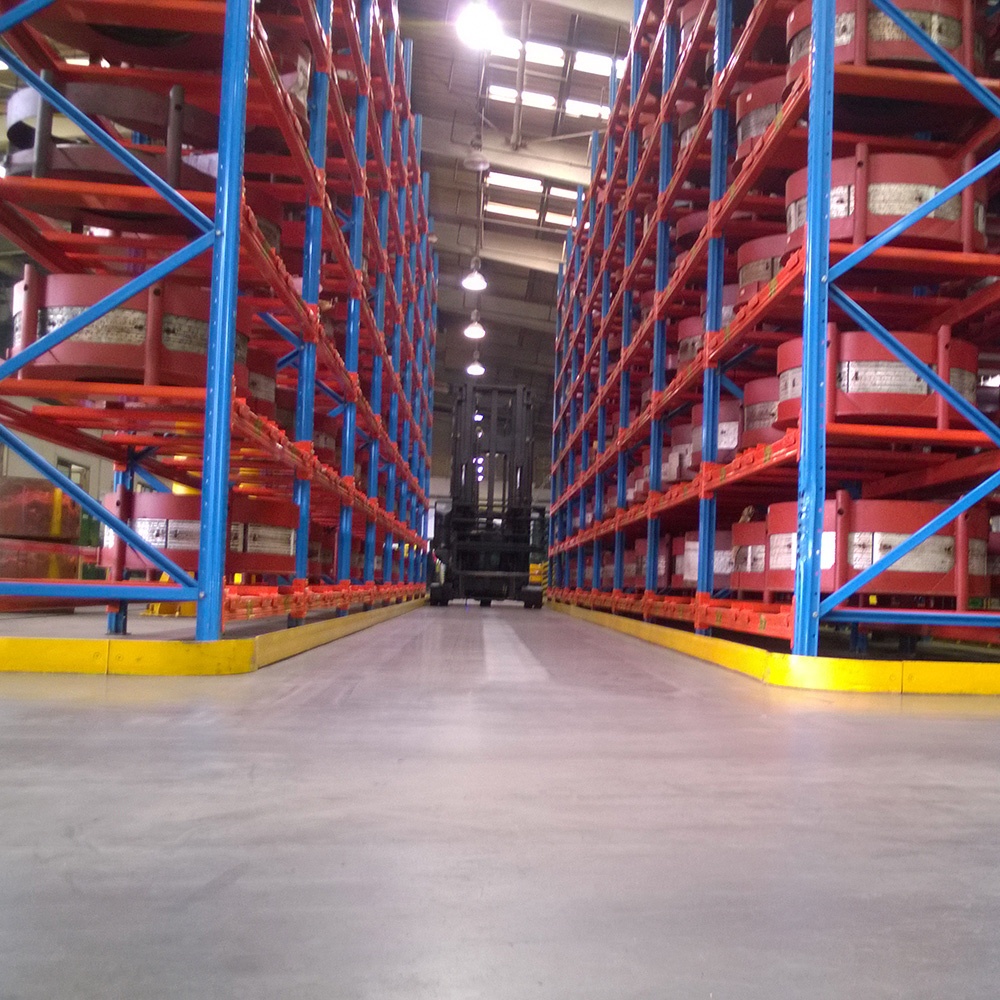

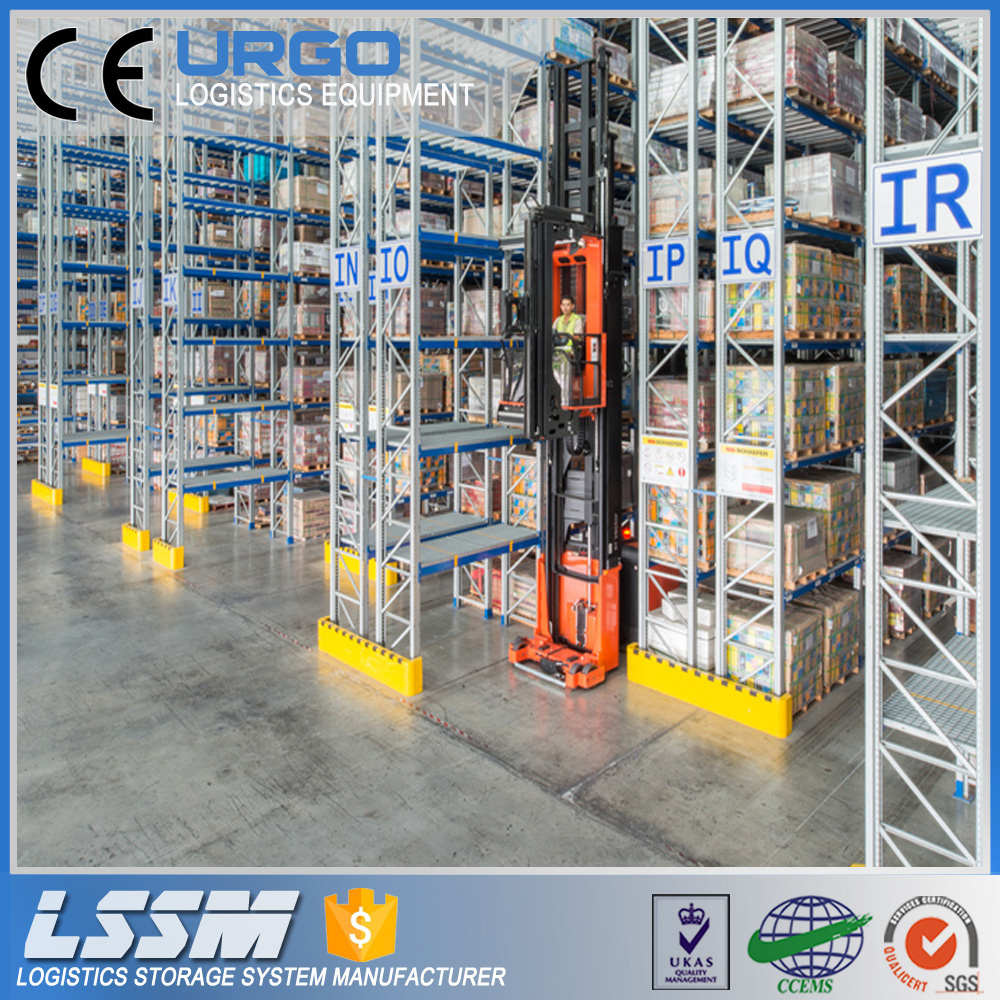

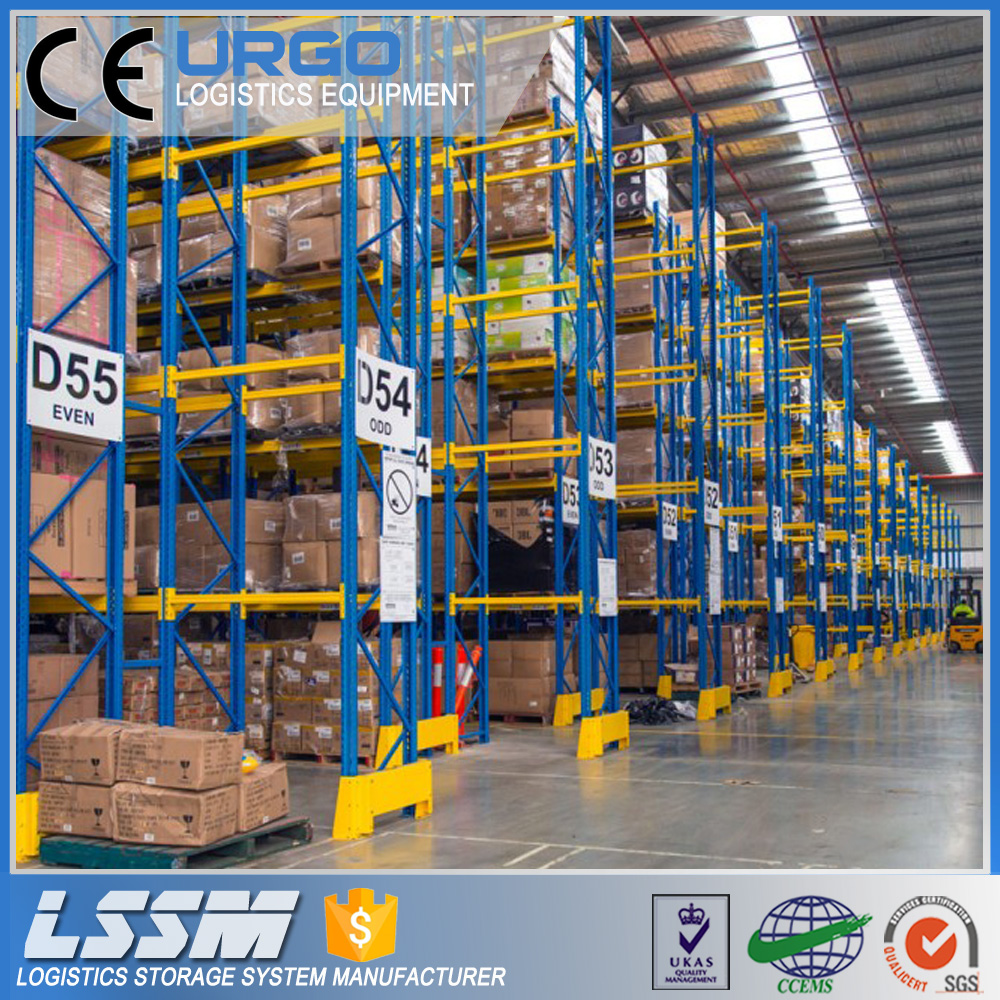

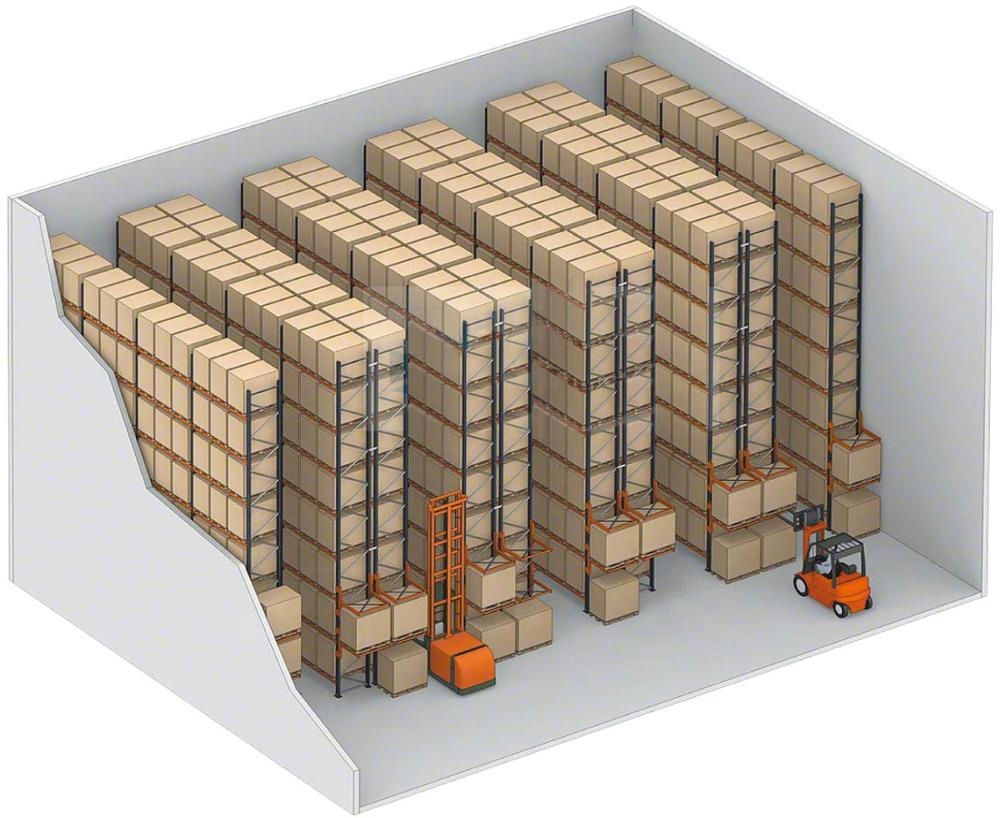

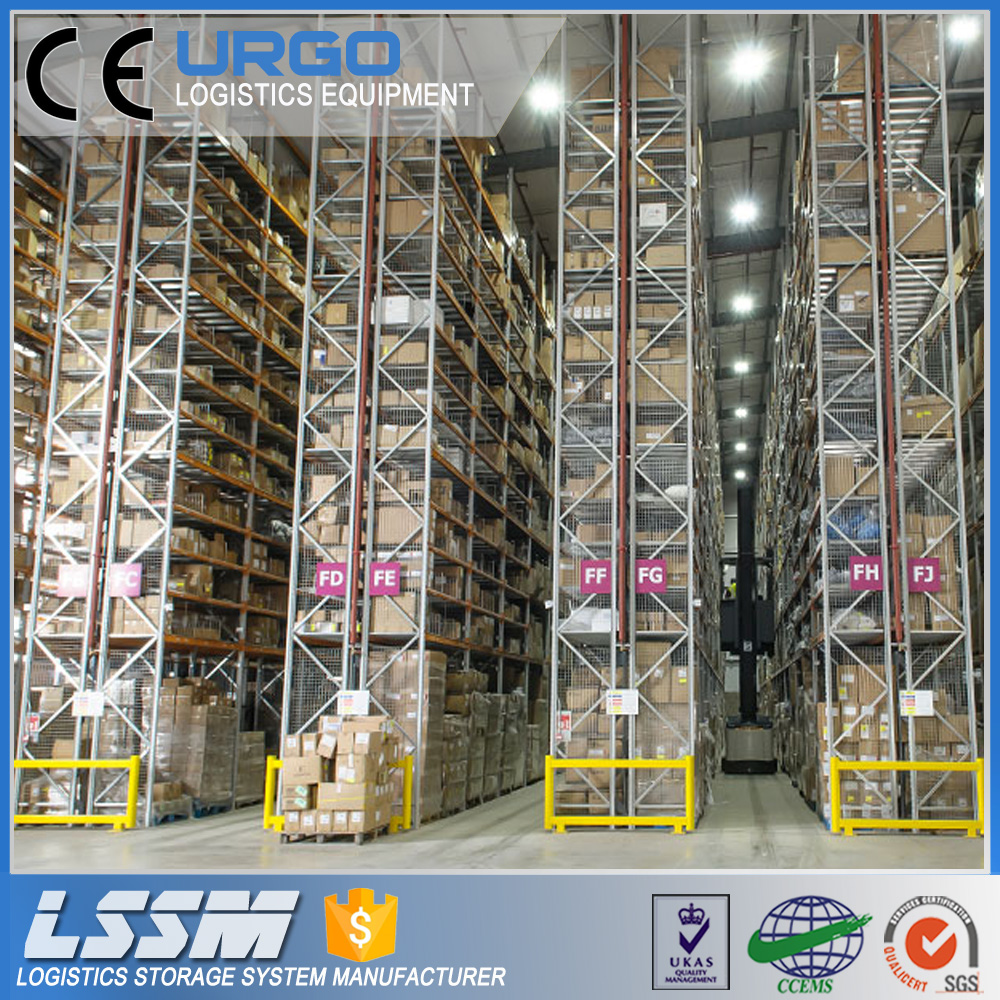

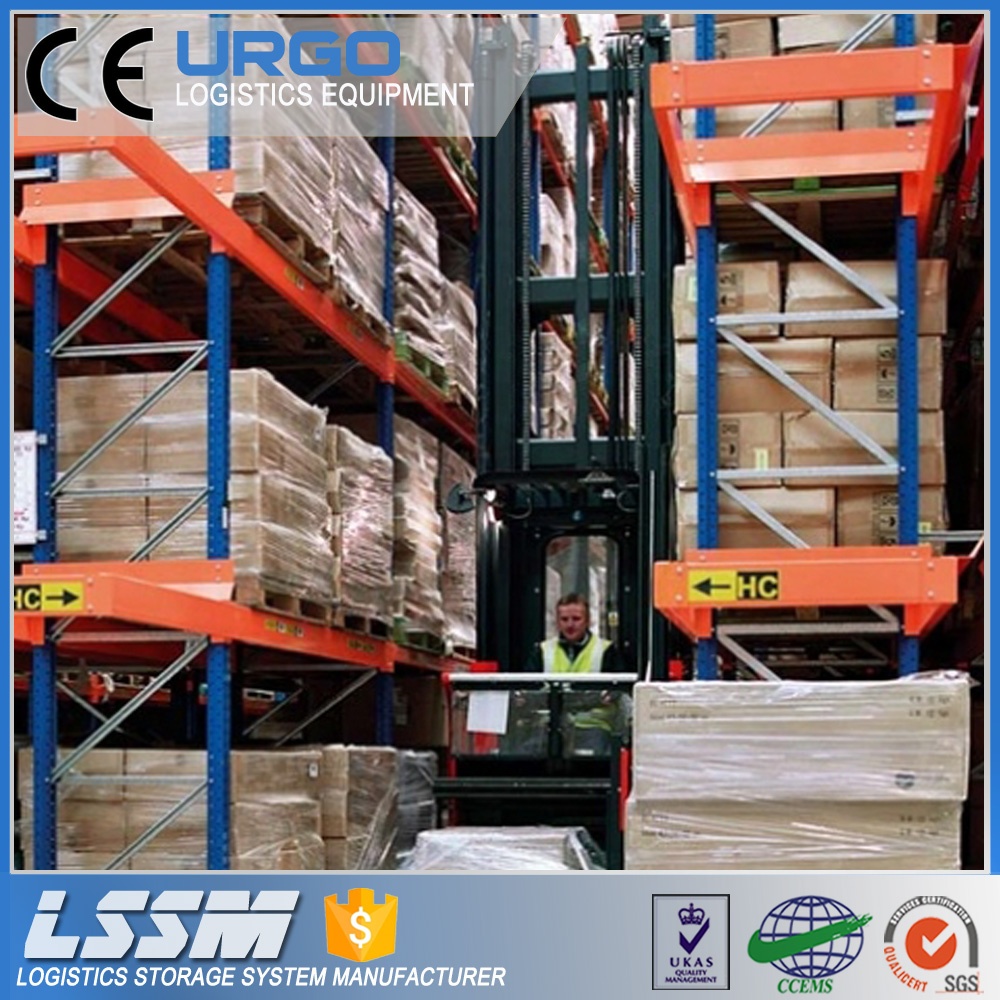

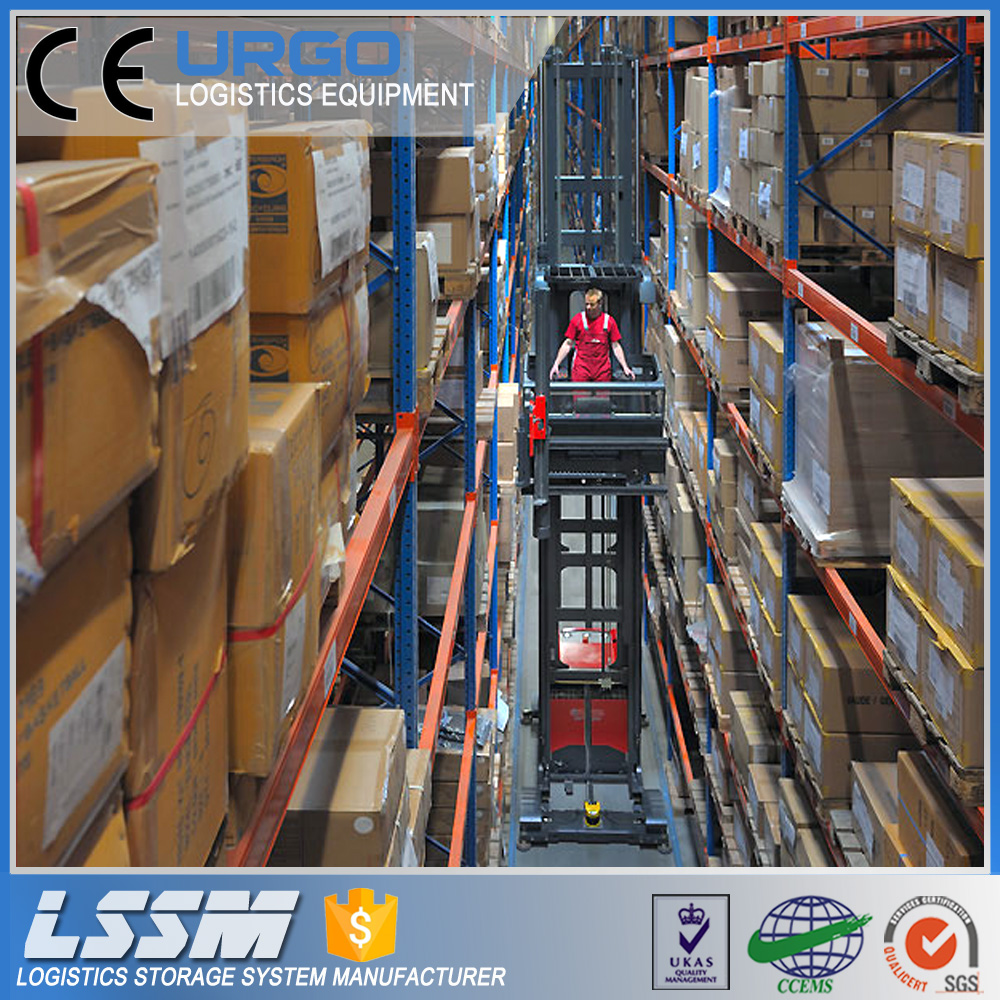

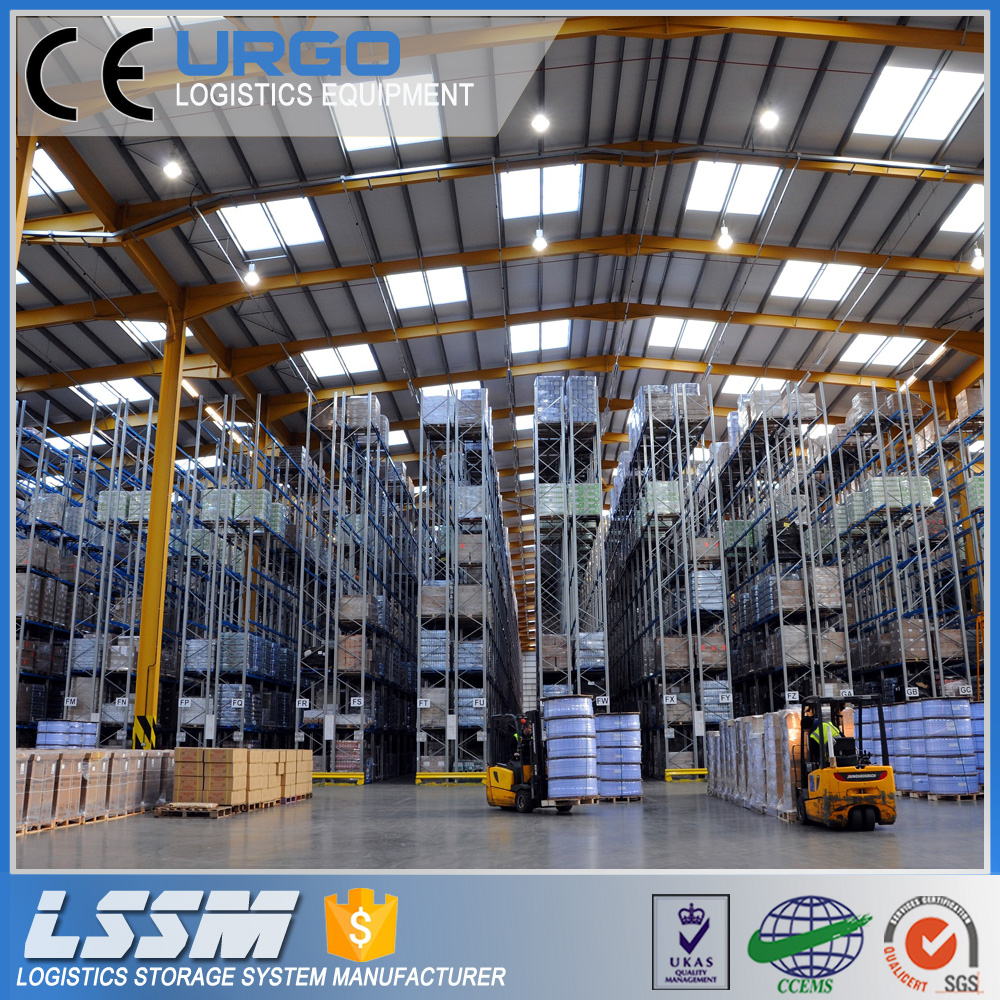

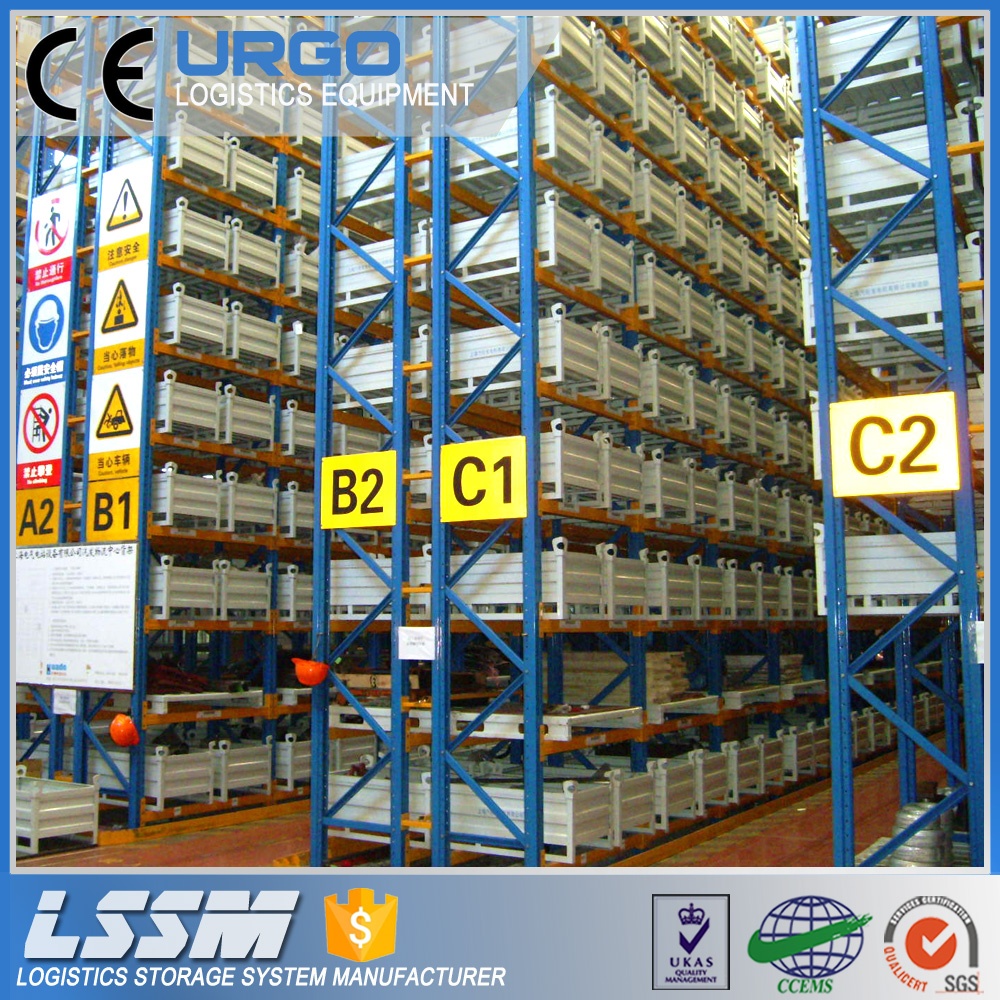

URGO Very Narrow Aisle Pallet Rack / VNA Racking System
Product Description

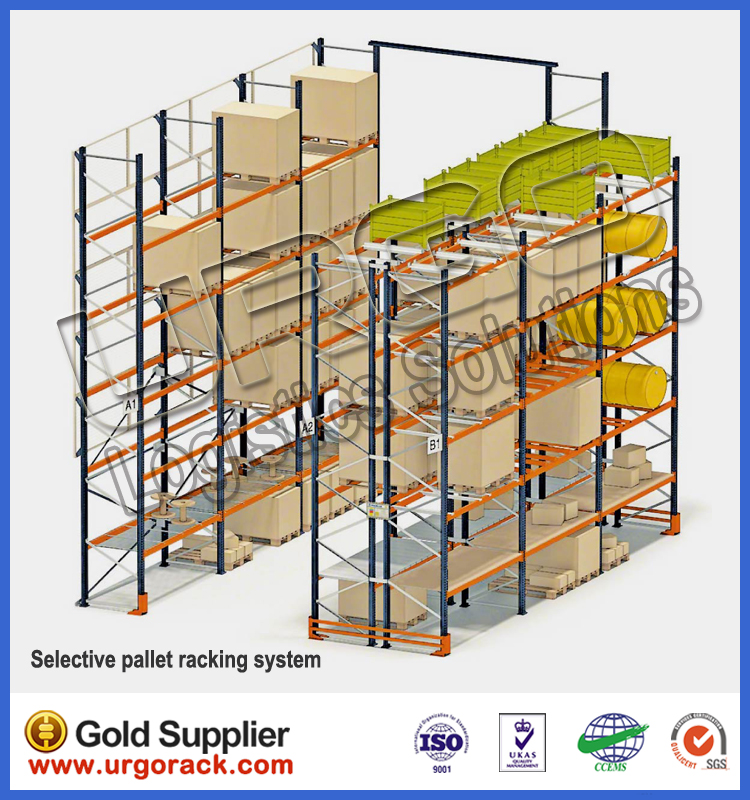

Product Structure
The structure of URGO heavy duty pallet rack includes uprights and beams, According to the customer's actual pallet load capacity and warehouse size, select the column and beam specifications, as well as increasing racking accessories.

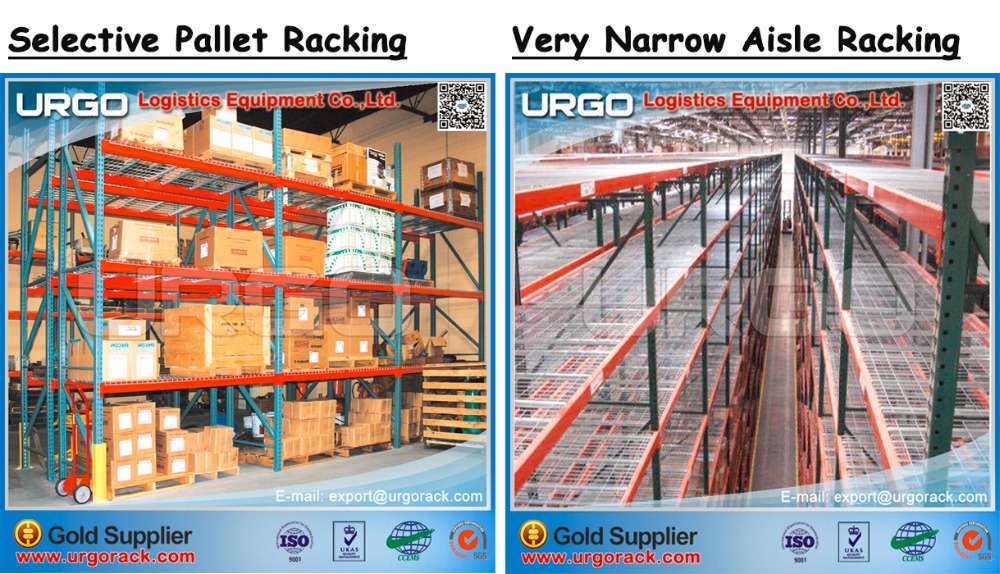

Warehouse Rack Use and customized Width drive in pallet racking
| Features |
1. 90% picking efficiency, and appropriate for picking heavy goods by pallet. 2. Surface finishing with araldite static powder coating. 3. High Strength and durability, easy for complete installation. 4. Pallets can be located, accessed and moved individually. 5. Rapid handling of almost all types of palletised goods. 6. Bottom level of pallets can be stored on the floor, lowering structure costs. 7. Strength and rigidity prevents compression damage to goods. 8. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs. 9. Maximizes space use in any warehouse configuration while retaining optimum product accessibility. |
| Beam & Frame |
1. Frame depth normally from 800-1000mm, height is limited by handling equipment of approximate 11mm. 2. Beam length from 1000-3300mm depends on requirement or design. 3. Operation aisle is from 2200-3800mm depends on operating truck |
| Main Parts Specs |
1. Upright section: 80*60*2.0, 90*70*2.0, 100*70*2.0, 120*95*2.0-2.5mm, etc. 2. Box beams section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm, etc. 3. Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components. |
| Load Capacity & Dimension |
1. Loading capacity: 500-4,000 kgs UDL/beam level. 2. Height: 1,000-11,000mm 3. Depth: 400-1,500mm 4. Length: 1,500-3,300mm 5. Specail sizes also avaiable to specific storage needs. |
| Delivery Time | Within 25 days for ordinary order quantity. Big production capacity allows us in a position to make quick delivery. |
Upright Specifications:
High load capacity up to 21000kg.
Frames include all the elements needed for assembly: bracing, feet and nuts & bolts.
Blue epoxy coated (RAL 5012/5015/5017).
Standard heights : From 2 to 11.5m.
Adjusted by 50/75mm pitch.

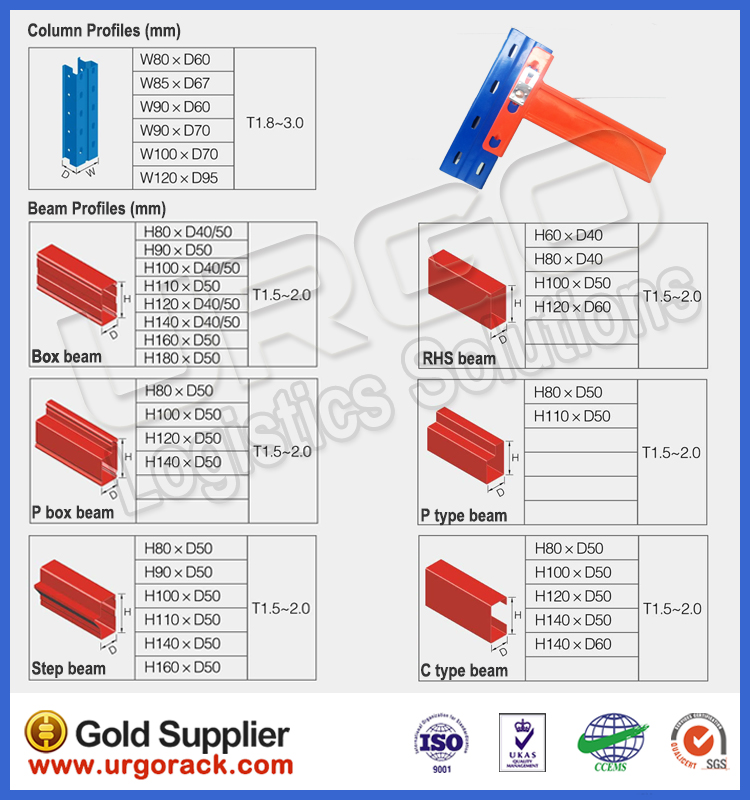

Column Profiles:
| Column Specification (mm) | Thickness (mm) | Upright Loading (kg) |
|---|---|---|
| W80 x D60 | 1.8-2.0 | 4000-6000 KG |
| W85 x D67 | 1.8-2.3 | 7500-12500 KG |
| W90 x D60 | 1.8-2.5 | 8000-10000 KG |
| W90 x D70 | 1.8-2.5 | 10000-12000 KG |
| W100 x D70 | 2.0-2.5 | 11000-14000 KG |
| W120 x D95 | 2.3-3.0 | 17000-21000KG |
Beam Specifications:
High load capacity up to 5000kg.
Manufactured with the highest quality steel Q235.
Orange epoxy coated (RAL 2004).
Lengths available: 1500/2000/2300/2700/3000/3300/3600/3900mm
Boltless connection with 3/ 4/ 5 connector hooks.
A security pins per beam to prevent accidental dislodgement.
Powder coating finish
Beam Profiles (Box Beam):
| Loading (kg) Specification (mm) |
The Length of Box Beam (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
| 80 x 50 x 1.5 | 3000 | 1740 | 1340 | 1160 | 1010 | - | - | - | - |
| 90 x 50 x 1.5 | 4080 | 2350 | 1800 | 1645 | 1345 | 1010 | 850 | - | - |
| 100 x 50 1.5 | - | 2960 | 2260 | 1930 | 1680 | 1380 | 1040 | - | - |
| 110 x 50 x 1.5 | - | - | 2640 | 2250 | 1950 | 1600 | 1340 | 1140 | - |
| 120 x 50 x 1.5 | - | - | 3200 | 2730 | 2358 | 1930 | 1518 | 1379 | - |
| 140 x 50 x 1.5 | - | - | - | 3868 | 3330 | 2720 | 2370 | 2020 | - |
| 160 x 50 x 1.5 | - | - | - | - | 4220 | 3690 | 2970 | 2600 | 2340 |
| 160 x 50 x 1.8 | - | - | - | - | - | 4400 | 3420 | 3020 | 2590 |
| 160 x 50 x 2.0 | - | - | - | - | - | 4130 | 4170 | 3320 | 2840 |
Beam Profiles (P Box Beam):
| Loading (kg) Specification (mm) |
The Length of P Box Beam (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| 1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
| 100 x 50 x 1.5 | 4470 | 2512 | 1900 | 1610 | 1380 | 1120 | 920 | - | - |
| 110 x 50 x 1.5 | 5484 | 3085 | 2332 | 1974 | 1693 | 1371 | 1133 | 952 | - |
| 120 x 50 x 1.5 | - | 3910 | 2957 | 2503 | 2146 | 1738 | 1436 | 1207 | 1030 |
| 140 x 50 x 1.5 | - | 5722 | 4330 | 3662 | 3140 | 2543 | 2102 | 1766 | 1505 |

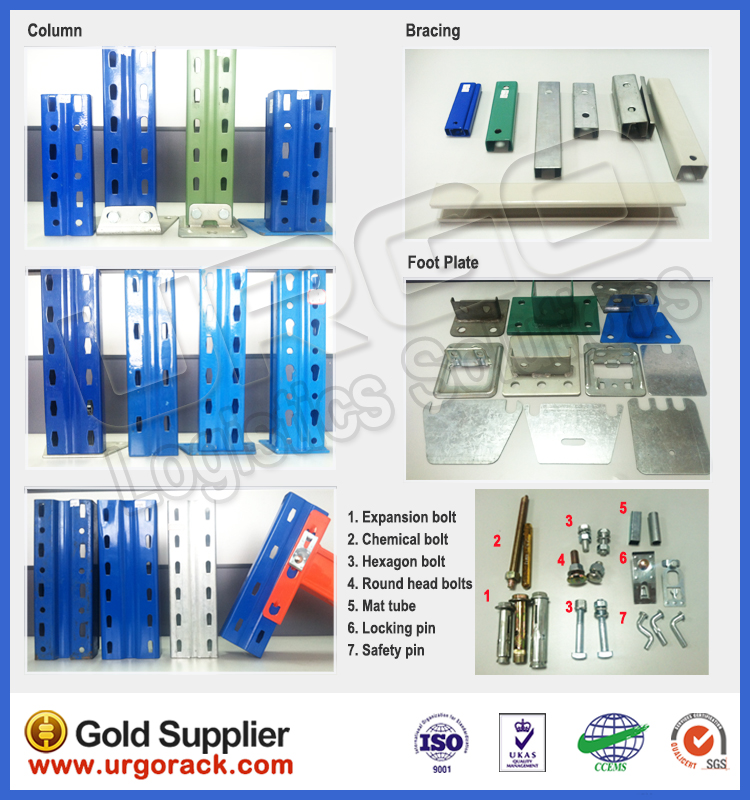

Main Spare Parts Profiles:
Optional Accessories

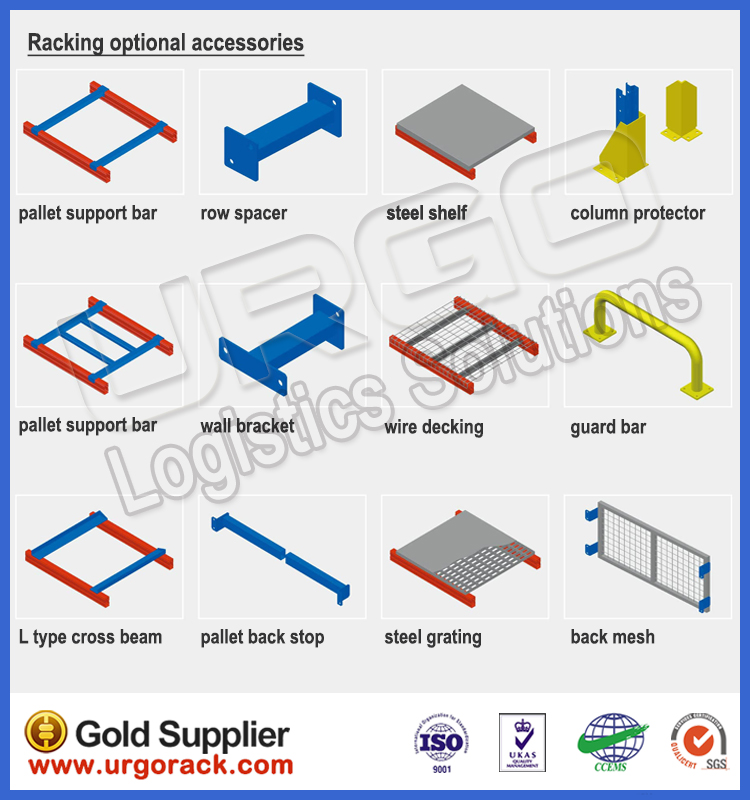

Urgo heavy weight pallet rack conventional accessories include: cross beam, back brake beam, back mesh, side mesh, steel plate, grid plate, wood plate, column protector, guard bar etc.

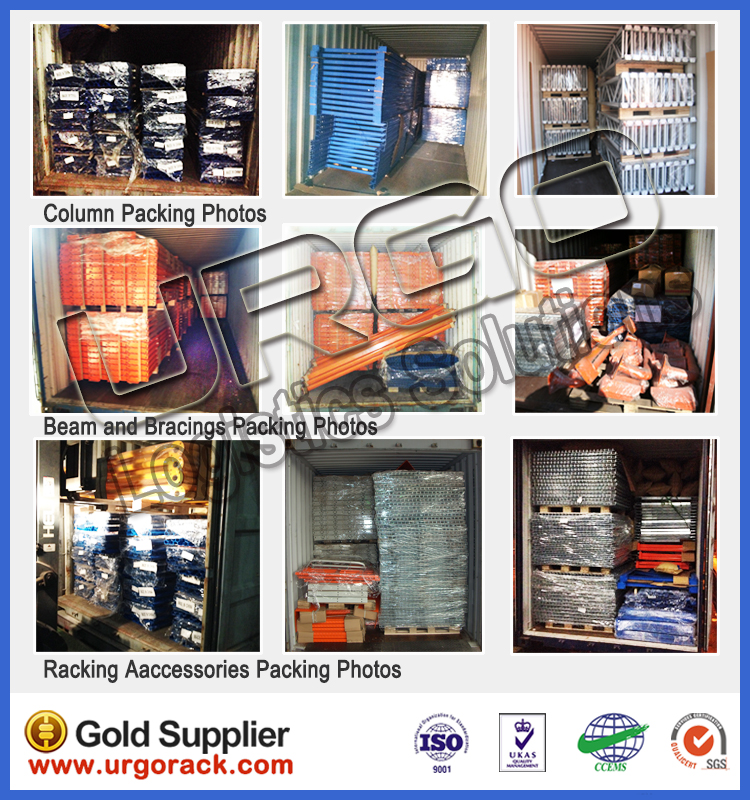

Packaging & Shipping
URGO Packaging and Shipping Are Your Cargo’s Safeguard.
We owns a professional logistics team. First-class packaging technique meets your customized packing plan. Every step of logistics progress is thoroughly under our strictly control. We ensure your order received safely within the agreed duration. On-time delivery is our supreme promise.

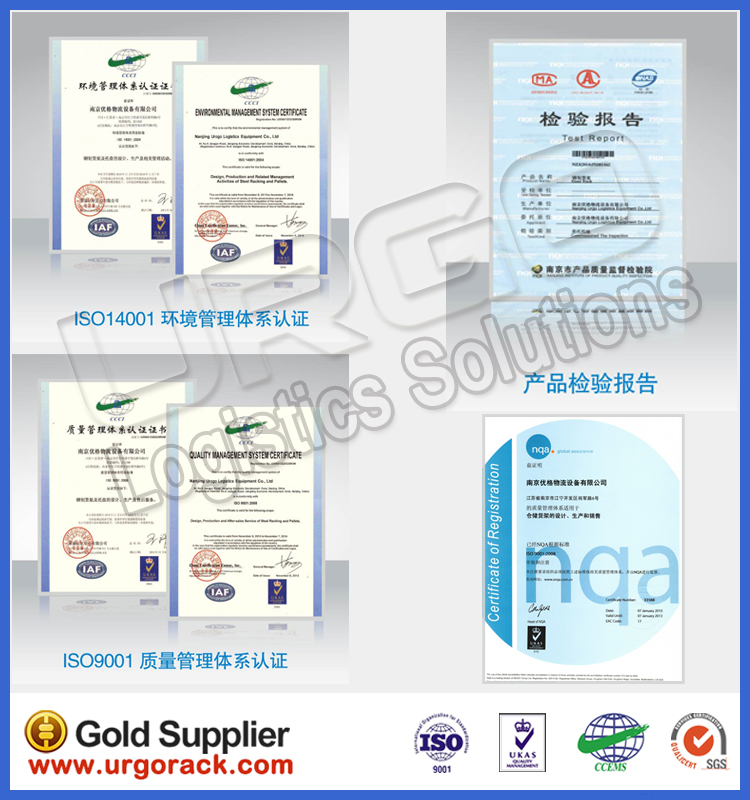

Company Honor
Other Main Products
Frequently Asked Questions
1. What makes you different with other suppliers?
1) Our excellent service: For a quick, no hassle quote just send email to us. We promise to reply with a price within 12 hours.
2) Our quick manufacturing time: For selective pallet racking orders, we will promise to produce within 15 days. As a manufactory we can ensure the delivery time according to the formal contract.
3) Our special export design: We pay very much attention to the export packages. We have plastic clips on the beams to protect the beams from surface damage in the transportation, We have got the whole uprights wrapped with transparent plastic film.
4) Our warranty time: The high standards in the design and manufacturing ensure us to support the products with a 10 years warranty time for your normal use, it is the longest manufacturer's warranty!
2. What is delivery times?
This depends on the product type. Typically standard products are delivered within 15days. The delivery time of the special products is according to the time of setting up of the tooling.
3. What is the term of payment?
1) As general, 30% T/T down payment and balance before shipping.
2) 100% LC at sight.
2) 100% LC at sight.
4. May I know the status of my order and are samples available?
Yes. We will send you information and photos at different production stage of your order. You will get the latest information in time. Samples are also available: we can send some sections of samples for your reference by express.
5. Which port will be used as loading port and is Galvanised Finish available?
Nanjing port is the closest port to us, is recommended strongly as loading port. Shanghai port is also available, but not recommended because of much higher in-land trucking transportation costs from our factory. Galvanised finish is available: pallet racking posts and bracings are available with galvanized finish.
