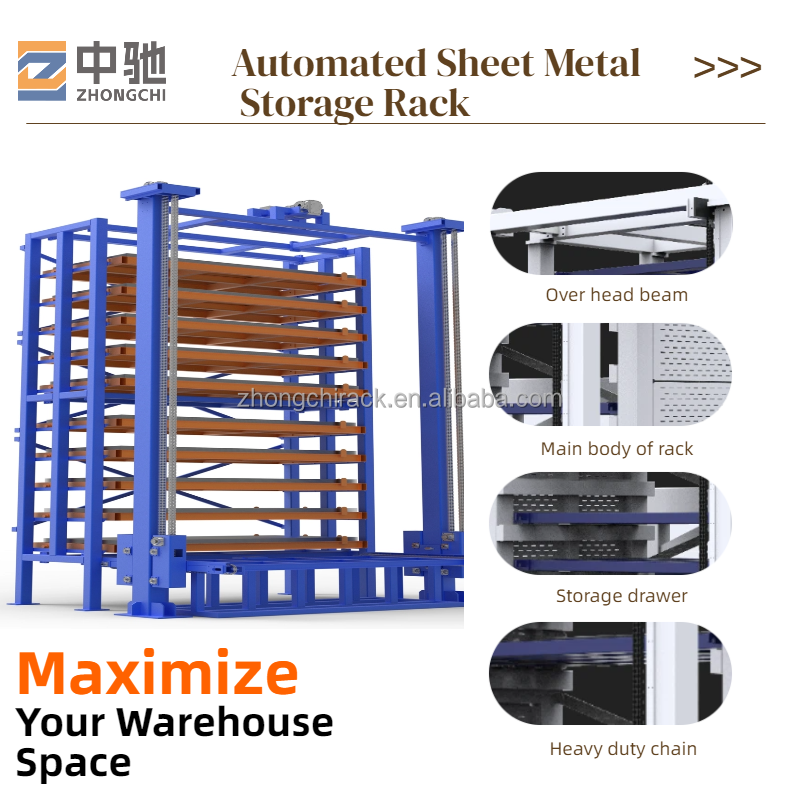

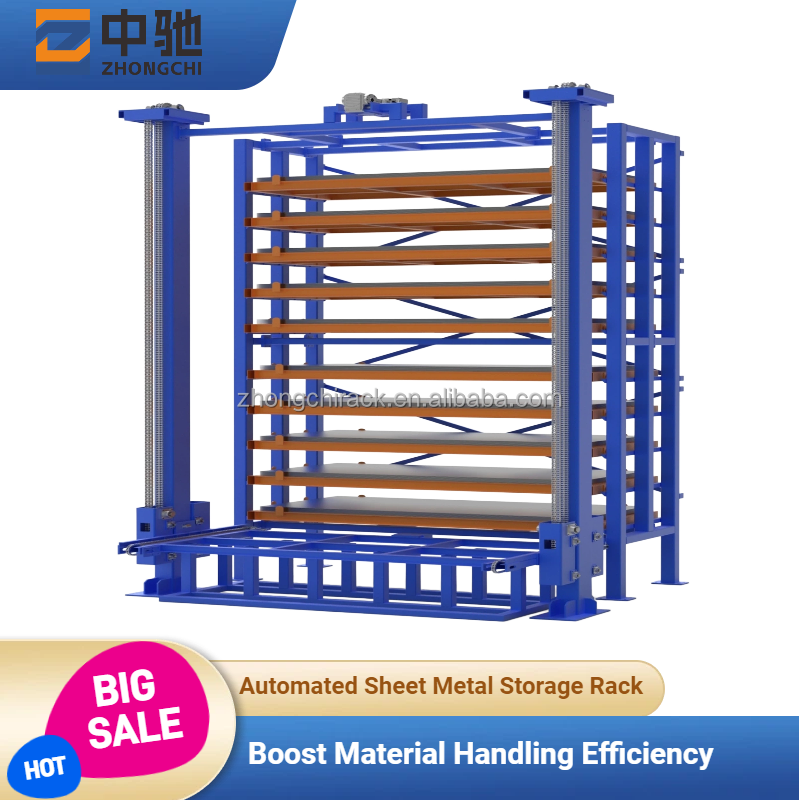

High Density 8-Layer Steel Automated Warehouse Rack System for Sheet Metal Storage Heavy Duty Anti-Rust Industrial Structure
Product Description
Product Highlights
Heavy-duty design: Engineered to withstand harsh industrial environments.
Rust-proof materials: Ensure durability and reliability of the storage system.
Automated warehousing: Simplify material handling and boost working efficiency.
Modular structure: Easy to customize to fit diverse storage requirements.
Industrial heavy load performance: Ideal for heavy-duty sheet metal storage solutions.
Technical Specifications
| Project Name | Automated Warehouse | Power Supply Voltage | 380V / 50Hz |
| Project No. | ZC-AP3015 | Safety Protection Level | IP54 |
| Rack Height | 8m | Stack height | ≤80mm |
| Max. Load per Location | 2000kg | Main Pillar | 140*140*8mm square tube |
| Control System | PLC + WMS/WCS | Pallet frame | 16# I-beam |

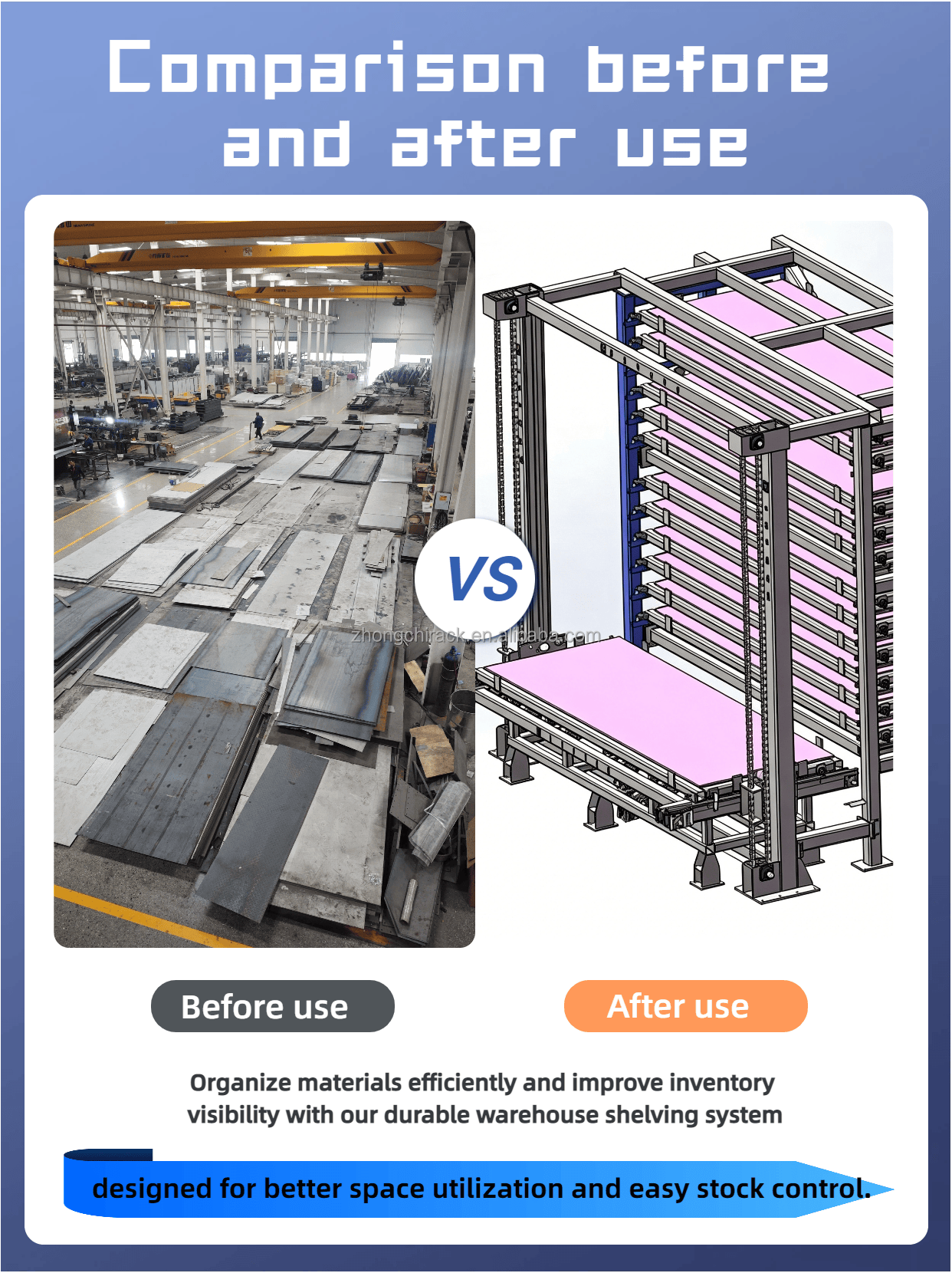

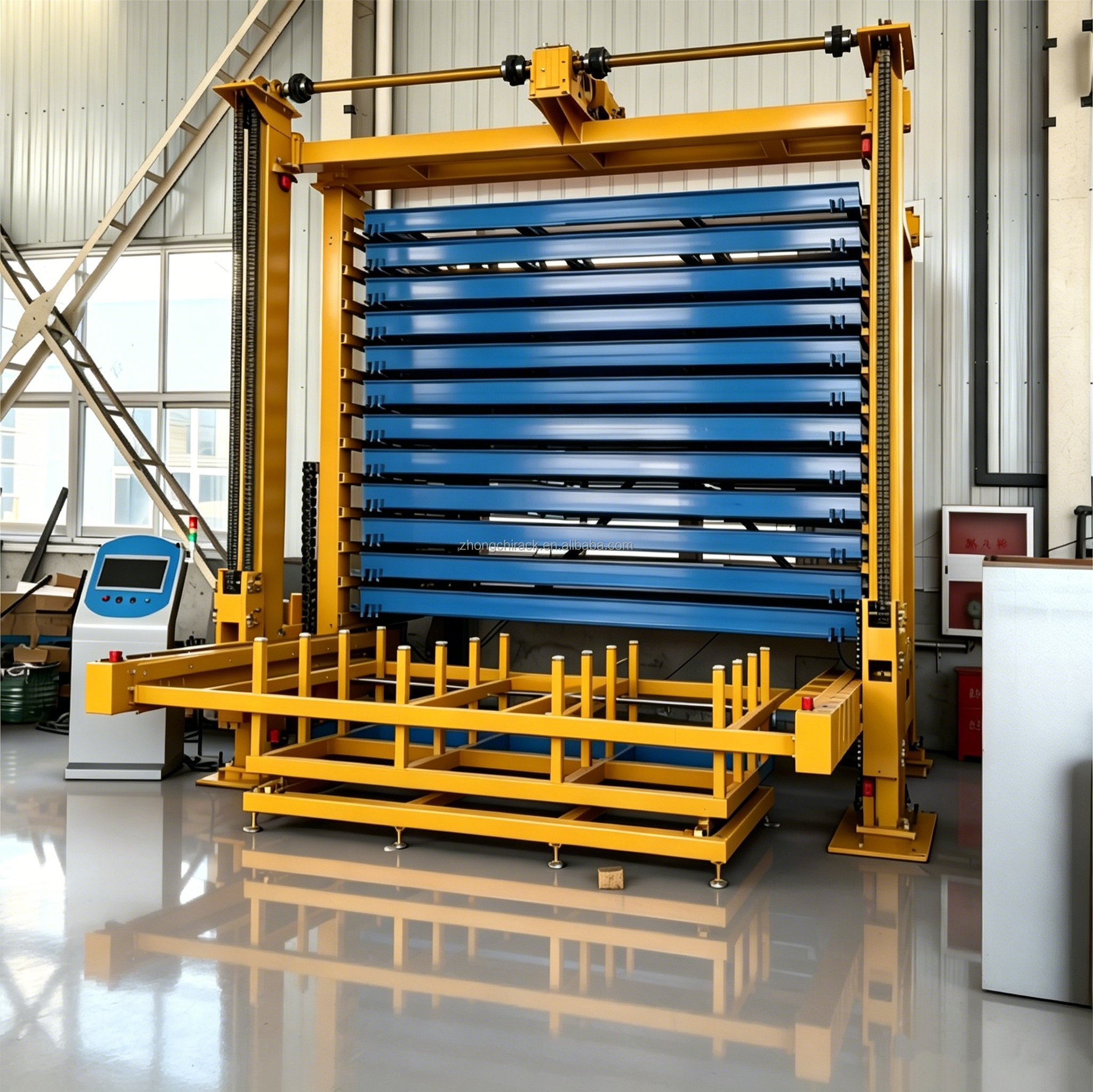

Scene Image

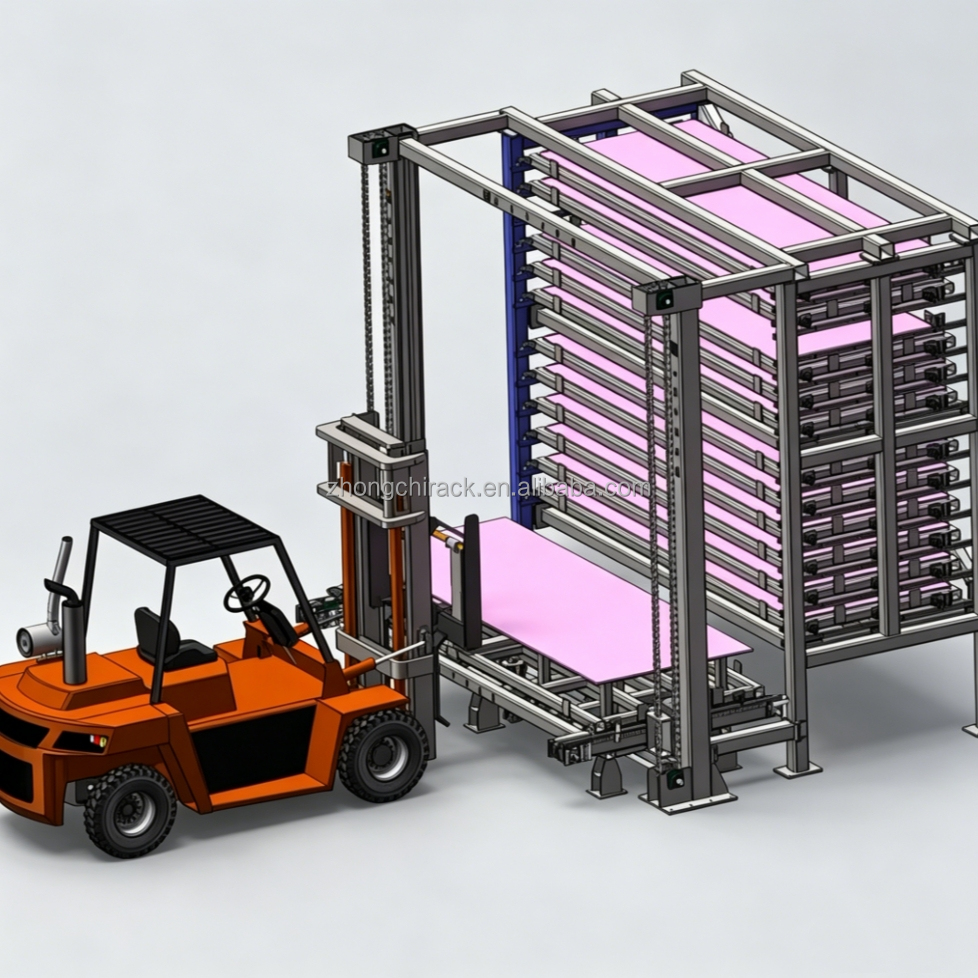

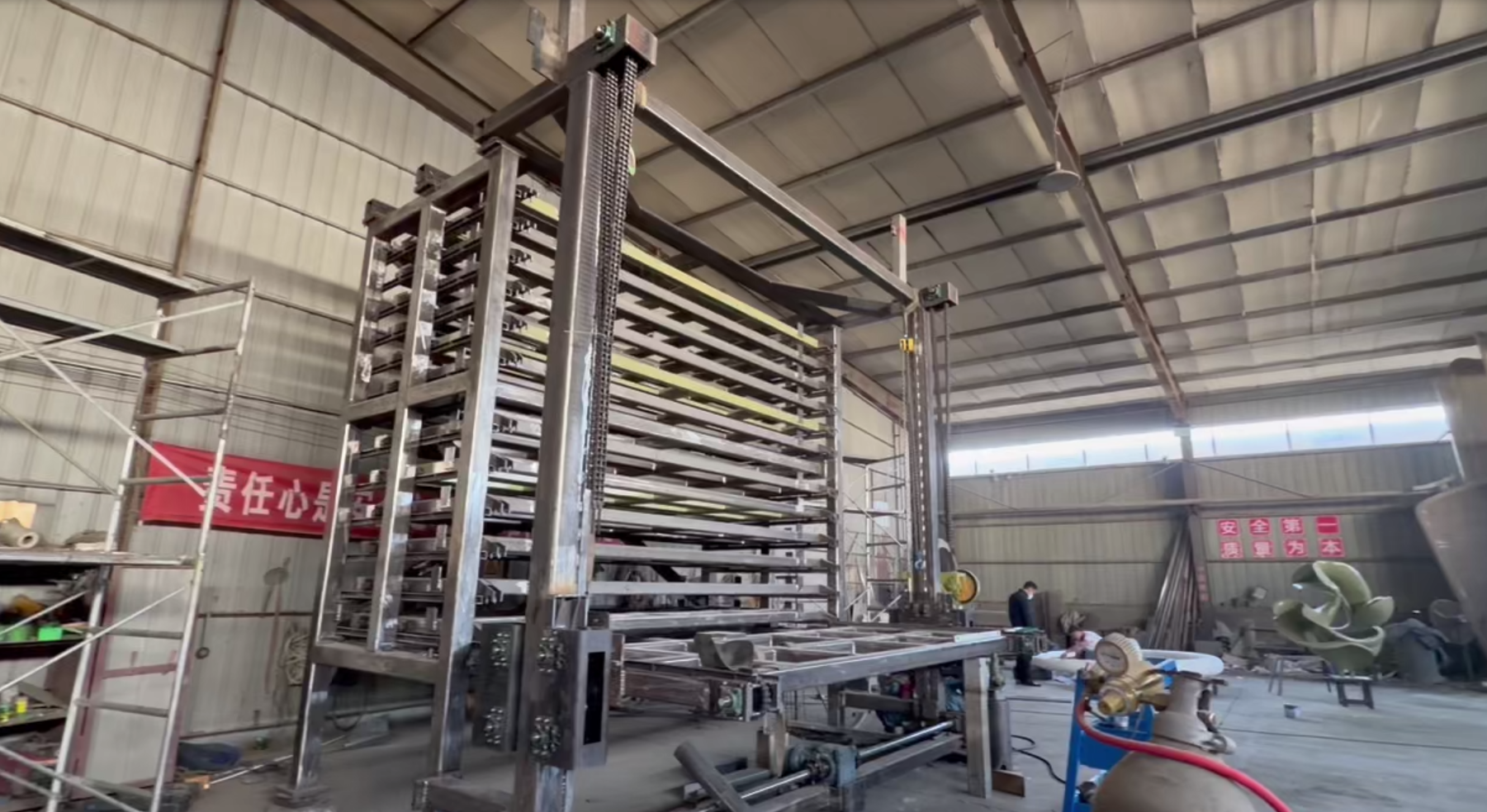

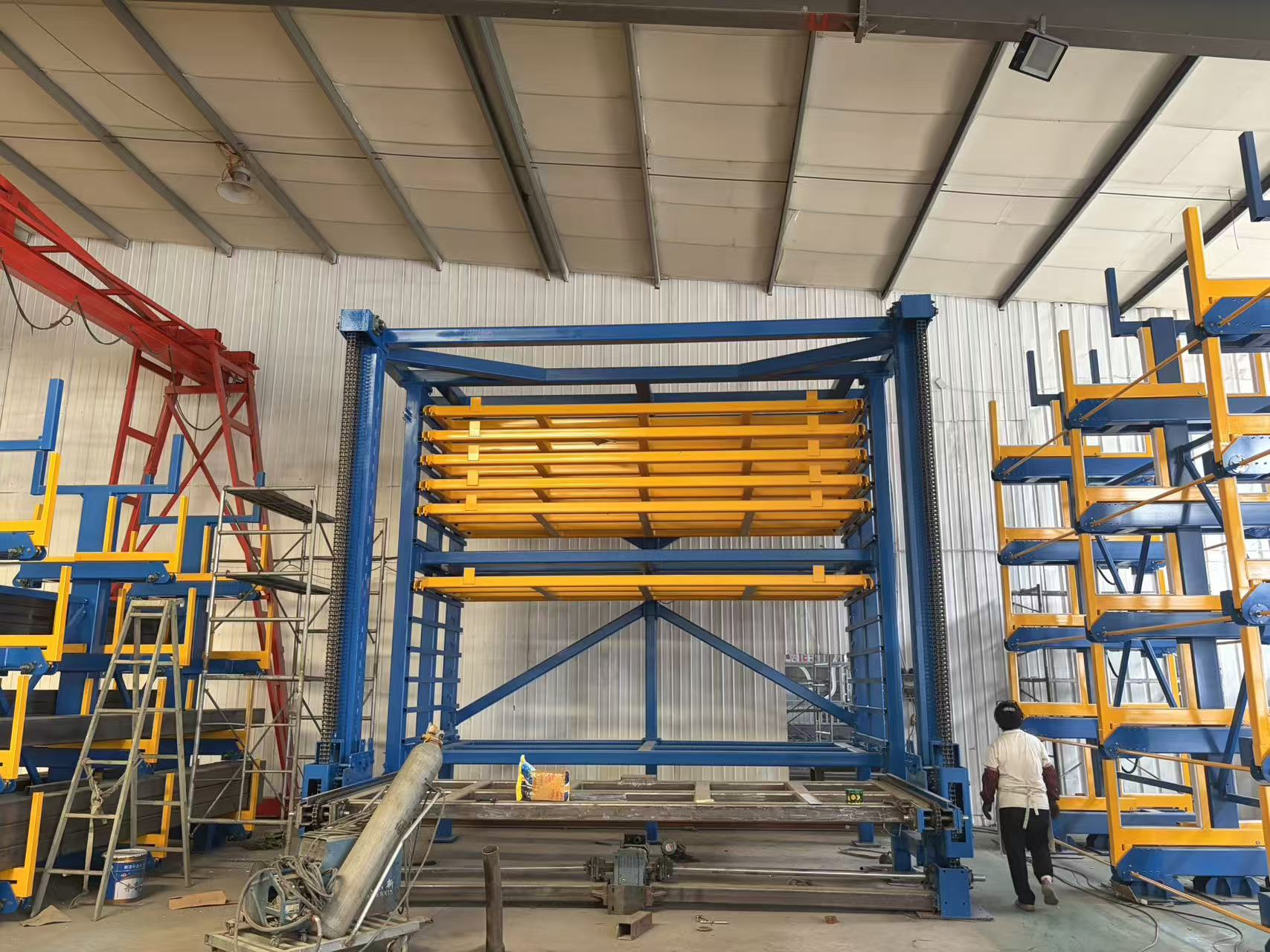

Detail Shot

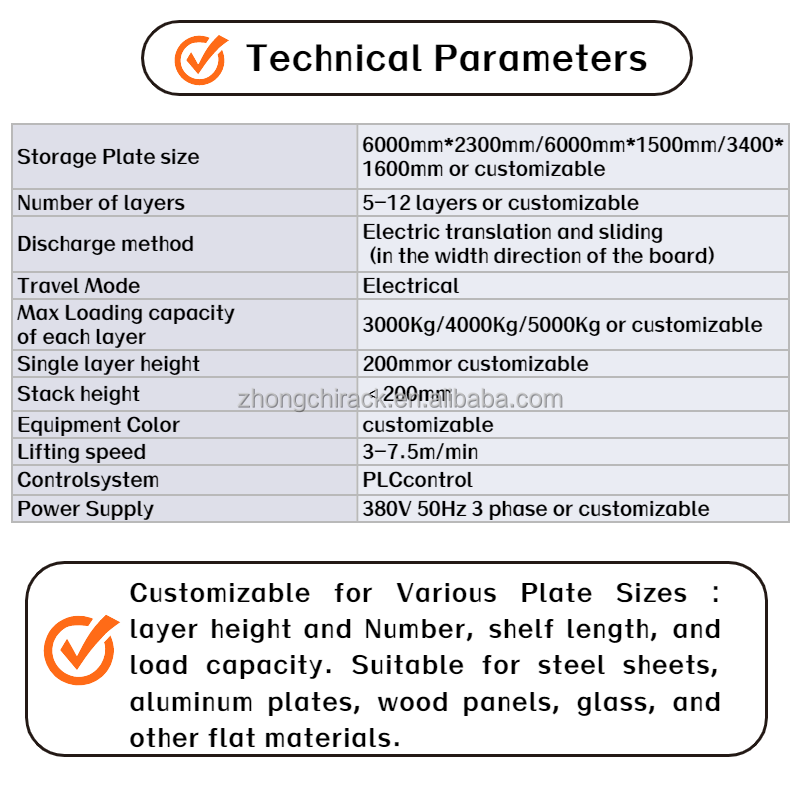

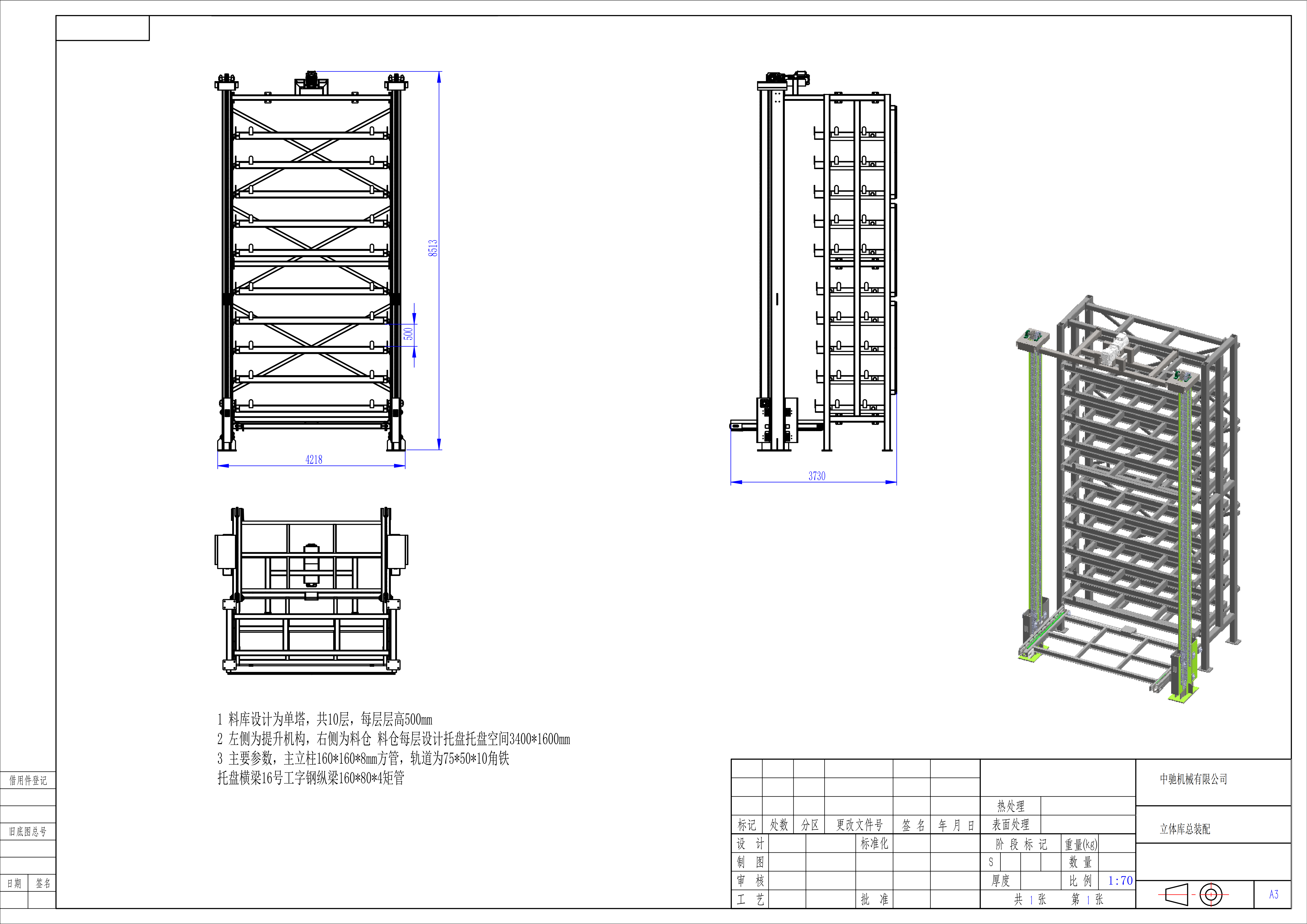

Specifications
About the Supplier
Manufacturer Background
Zhongchi Machinery is a professional heavy-duty storage rack manufacturer based in Jinan, Shandong Province. We integrate independent R&D, mass production and customized sales into one complete business system.
Main Product Range
We focus on industrial raw material storage equipment. Our core products include telescopic cantilever racks, drawer sheet racks, beam pallet racks and intelligent automated stereoscopic warehouse systems.
Production Strength
Our factory owns standardized large workshops and fully automatic production lines. We have powerful production capacity and offer flexible one-stop customization solutions for various warehouse storage needs.
Strict Quality Control
All racks are made of national standard thickened Q235 steel. Each product goes through multi-rigorous inspections, electrostatic anti-corrosion spraying and professional load-bearing tests to guarantee stable and long service life.
Global Supply Service
We provide direct factory supply for warehouse clients from domestic market and all over the world, with reliable product quality and comprehensive after-sales support.
Company Overview

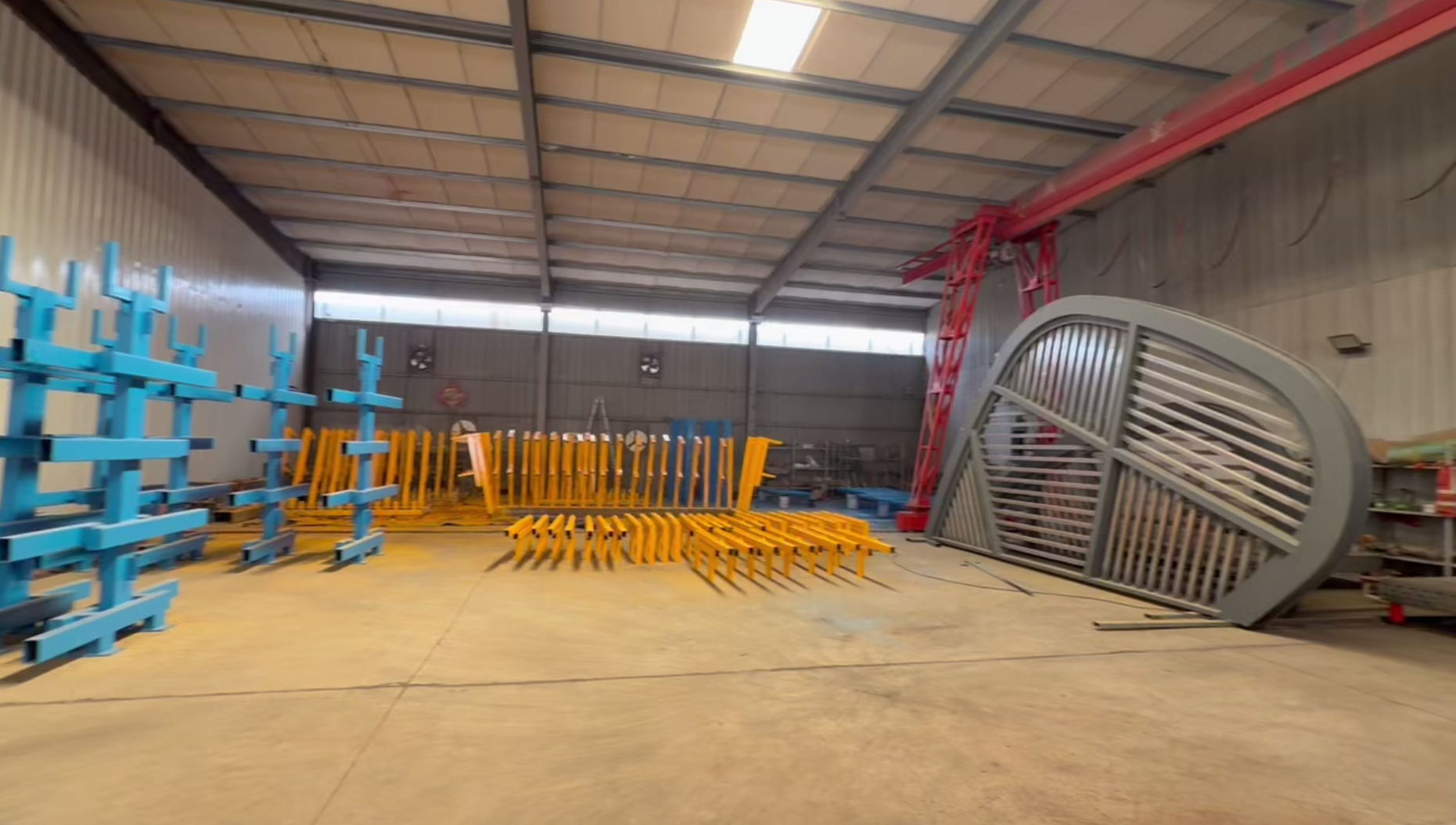

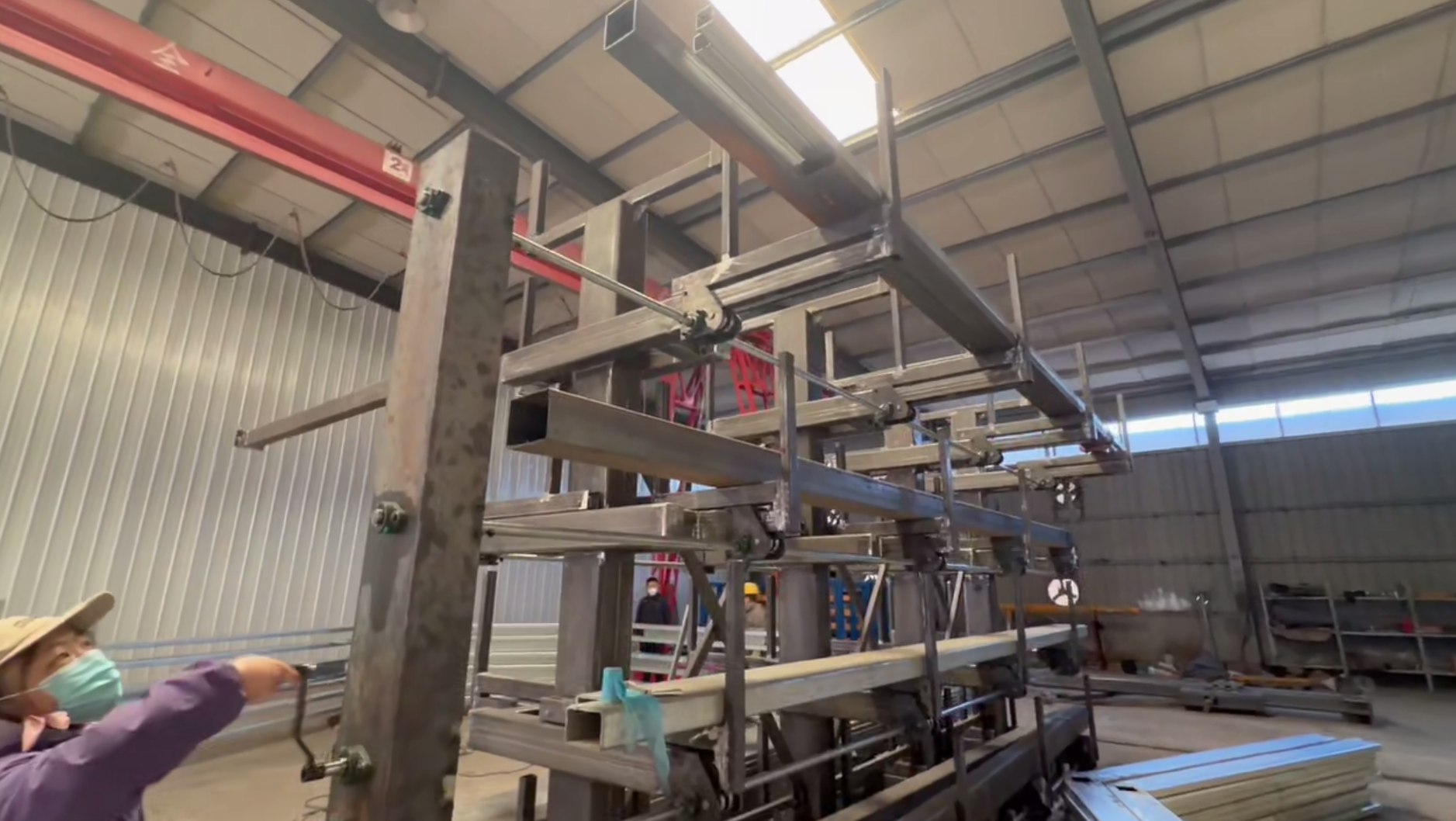

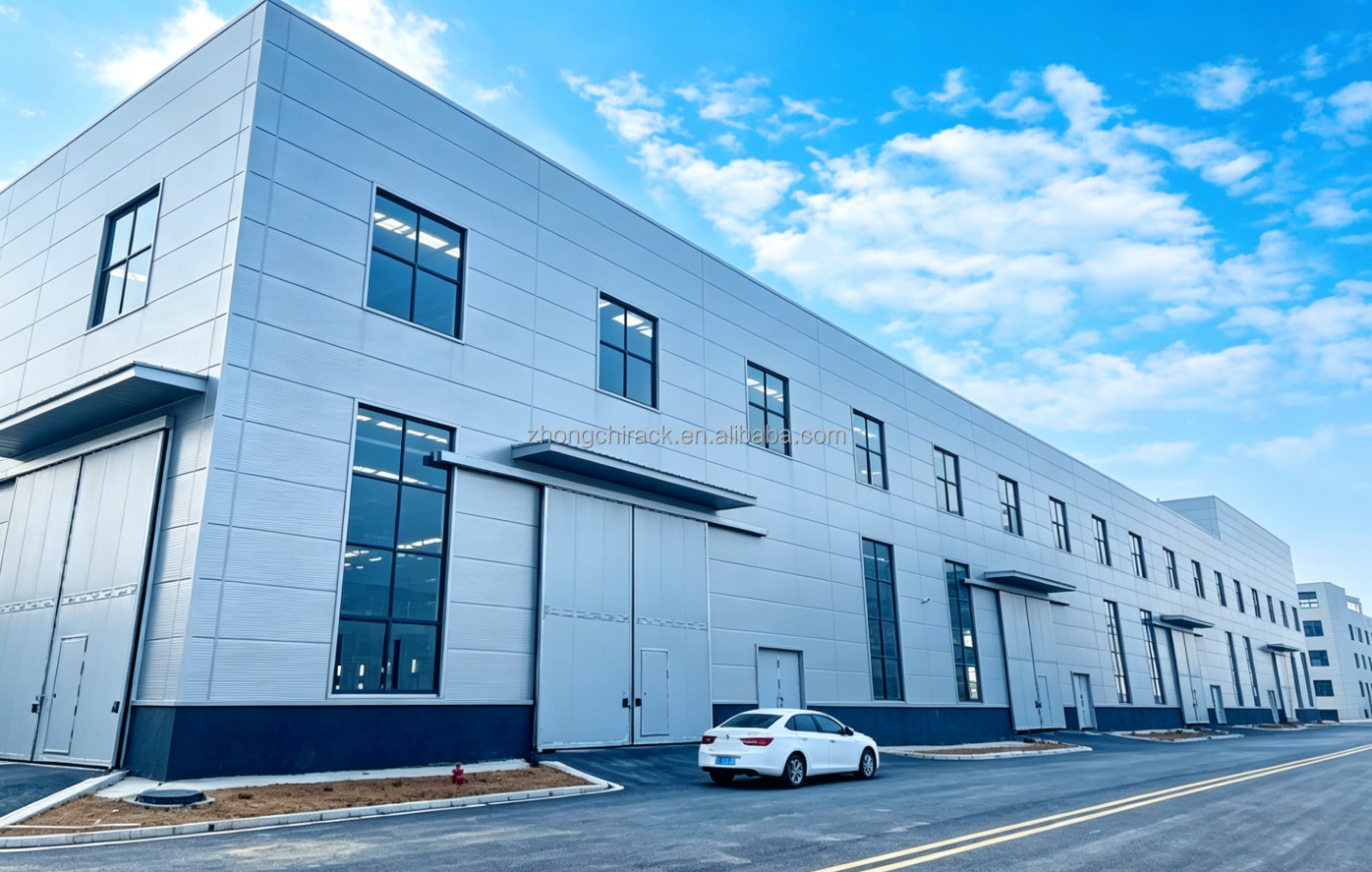

Factory Profile

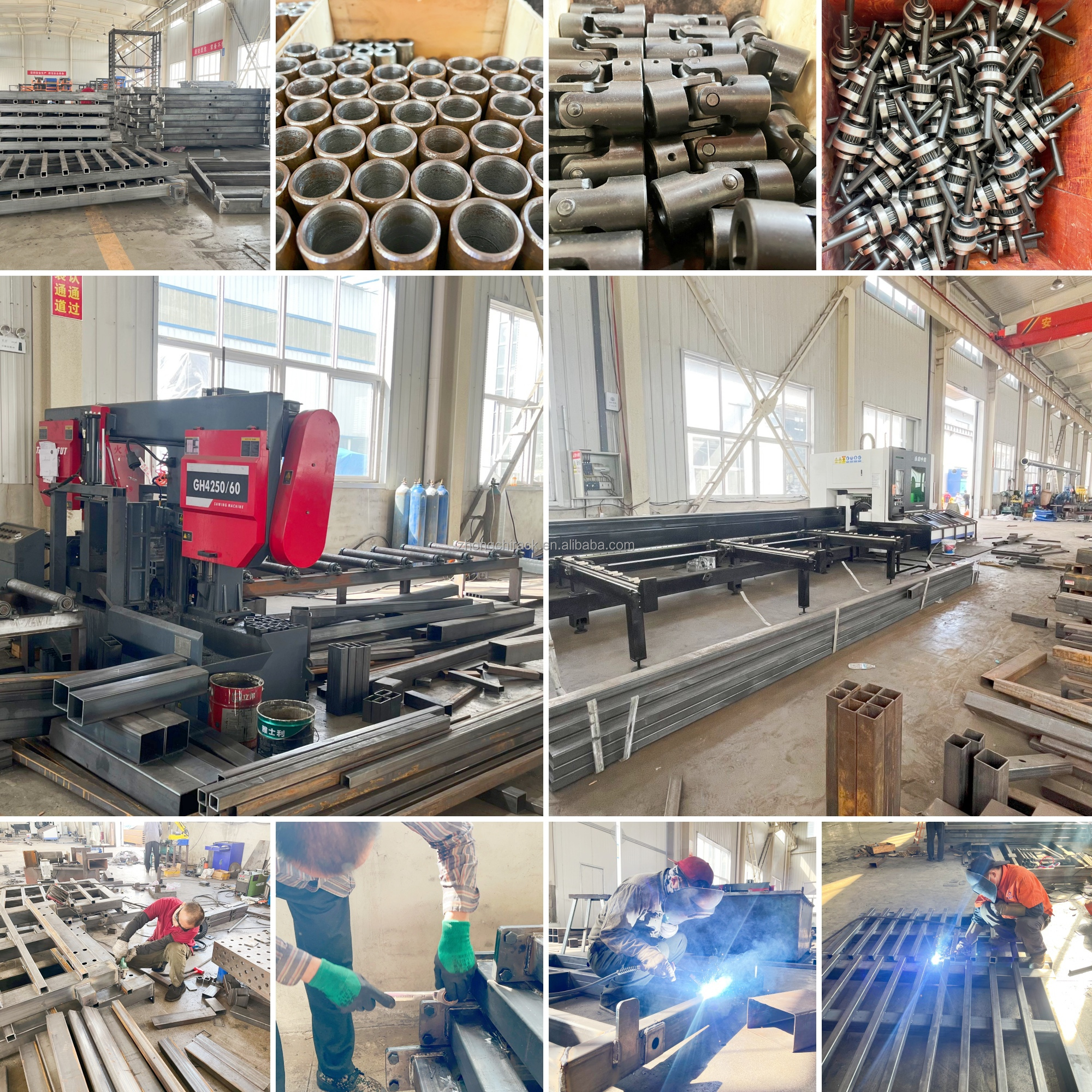

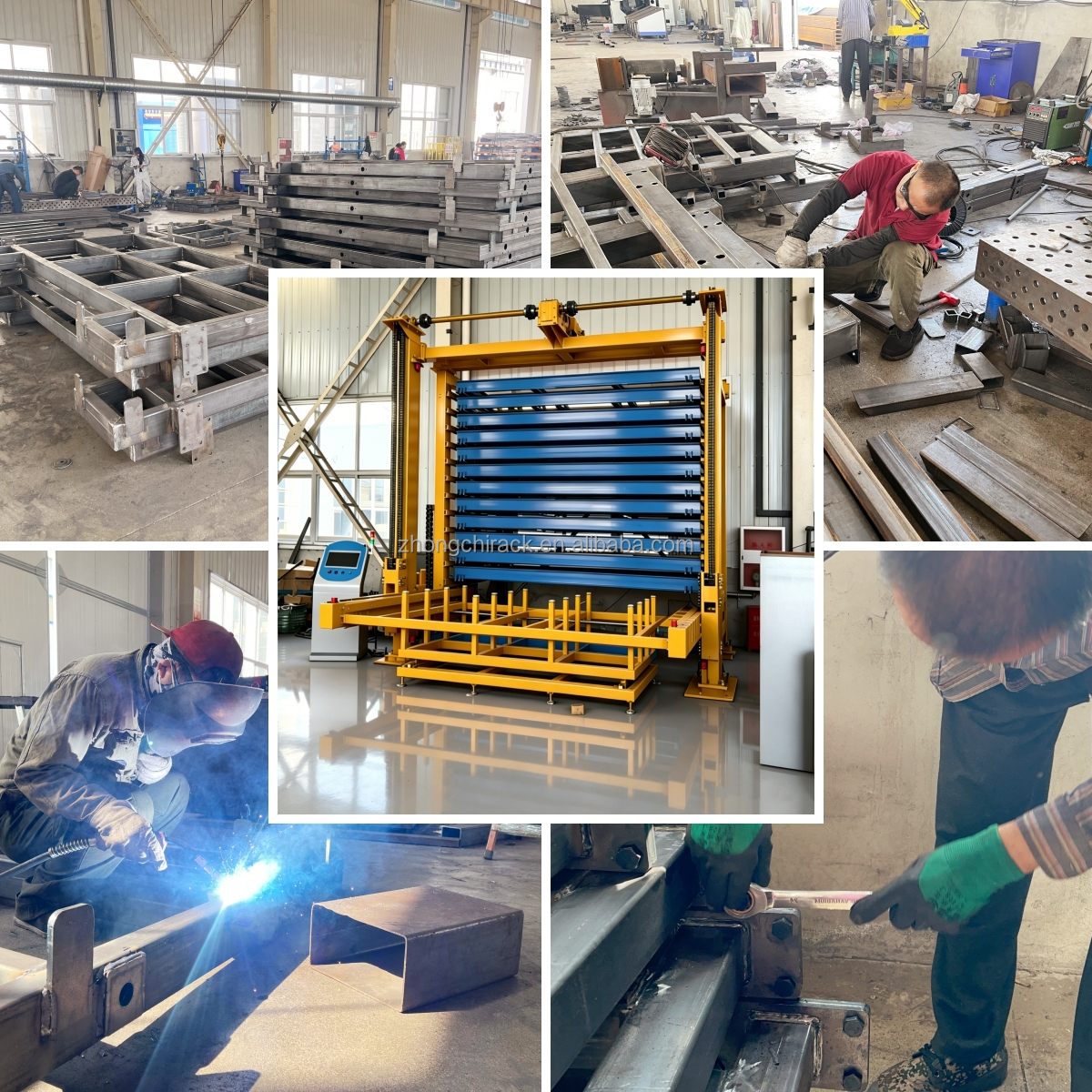

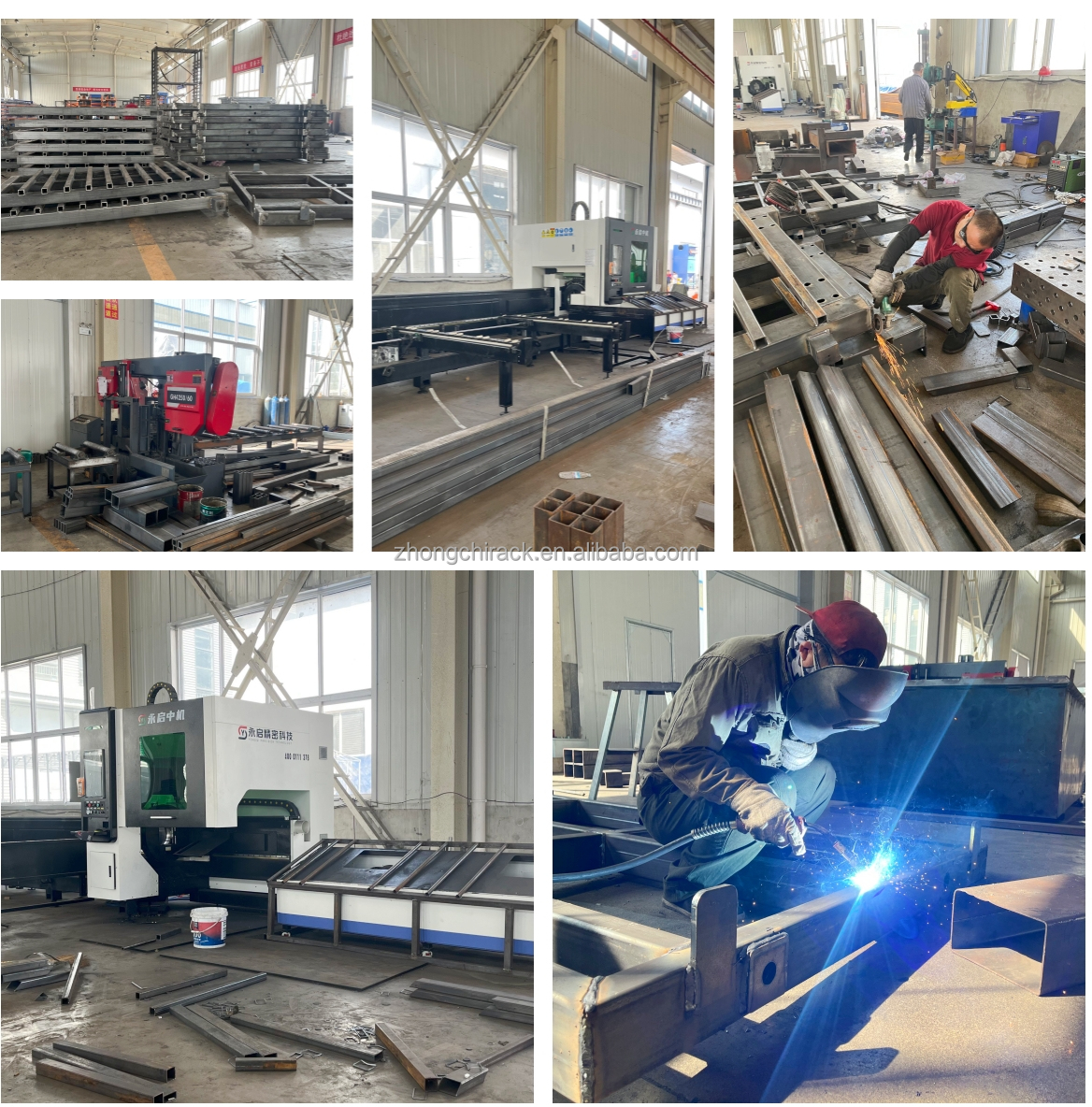

Production Workflow
Frequently Asked Questions
Q1
What materials can this automated vertical sheet warehouse store?
It stores full-size flat sheets such as steel, aluminum, stainless steel and stone slabs, suitable for sheet metal & door factories, not for coils or small scraps.
Q2
What advantages does it have over electric drawer racks?
Equipped with automatic stacker crane for unmanned access, higher vertical storage density, connectable to manipulators and production lines for mass continuous processing.
Q3
Can single location load and max sheet size be customized?
Single location load optional 2T/3T/5T, fits standard 1220*2440/1500*3000mm sheets; sheet size and warehouse height are fully customizable.
Q4
What safety protections does the stacker have? How to retrieve sheets when malfunctioning?
Standard limit stop, photoelectric anti-collision, emergency stop and overload protection. Manual emergency mode enables sheet retrieval during power failure or breakdown.
Q5
Can the control system connect with factory ERP and cutting lines?
Compatible with industrial communication ports to link ERP, MES, vacuum lifters and cutters, auto-sync inventory data for digital unmanned workshop management.
Q6
What is the warranty period? What delivery and on-site services are included?
5-year warranty for steel frame, 2-year warranty for motors & electrical parts. Single set customizable, standard lead time 20-30 days; on-site survey, installation, commissioning and staff training provided.
