Mracking Medium Duty Warehouse Rack Adjustable Storage Racks and Shelves Selective Pallet Steel Rack Wholesale Sale
Product Description
📋Product Description

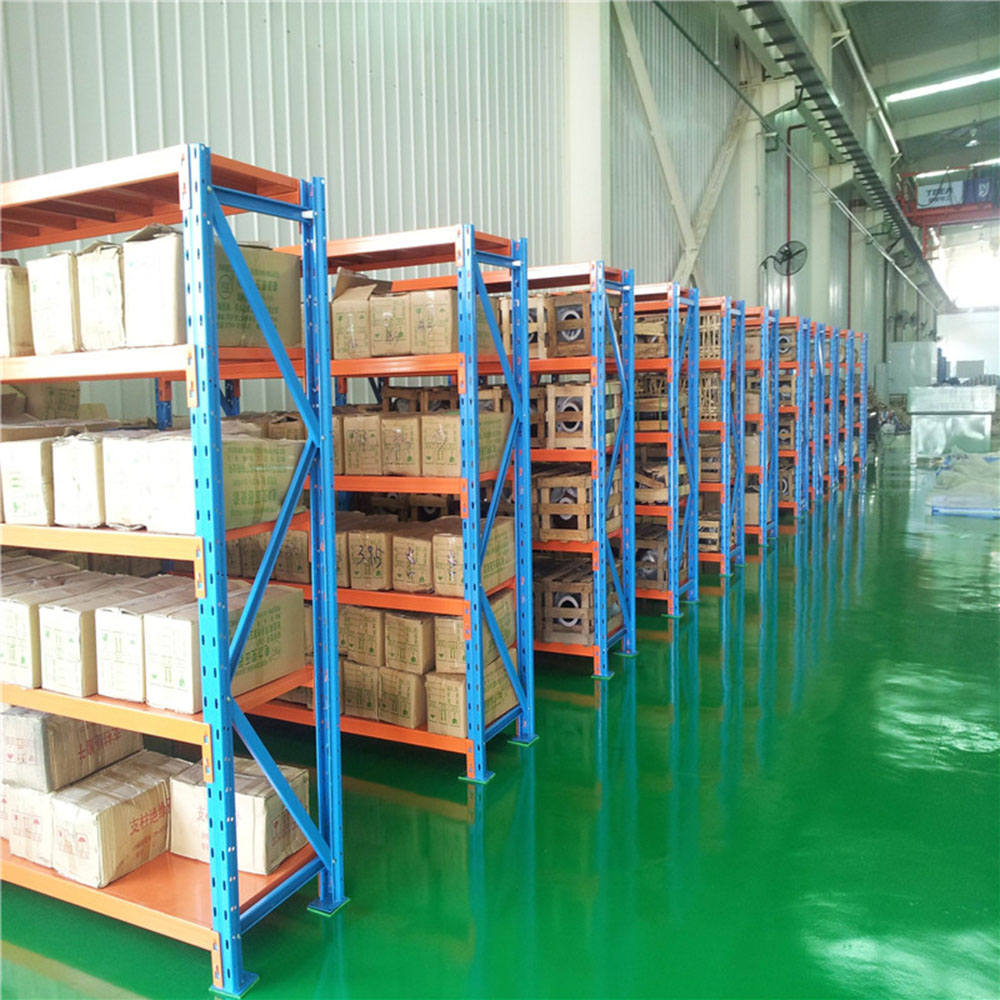

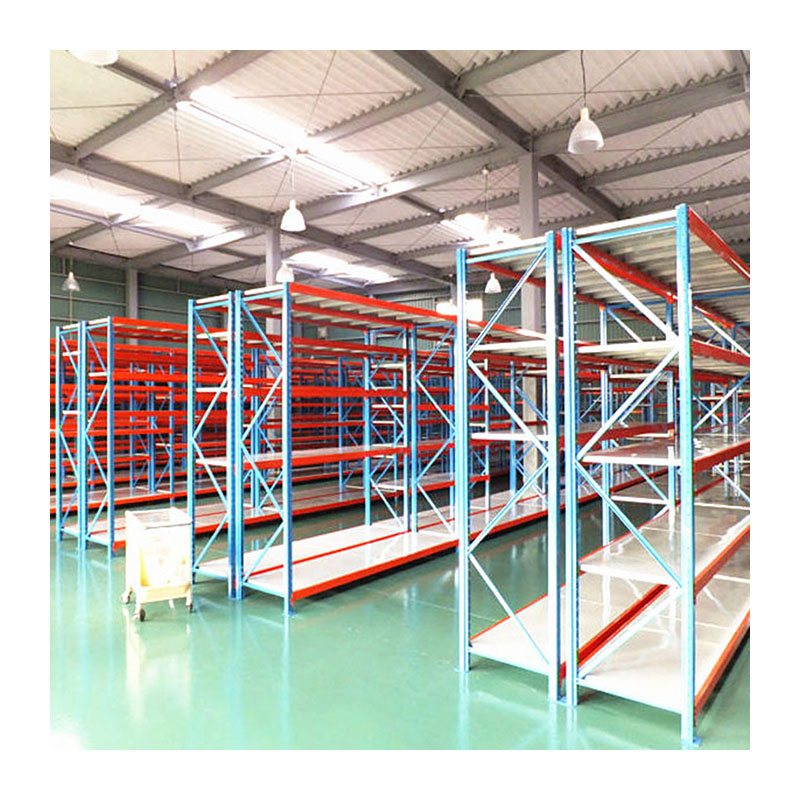

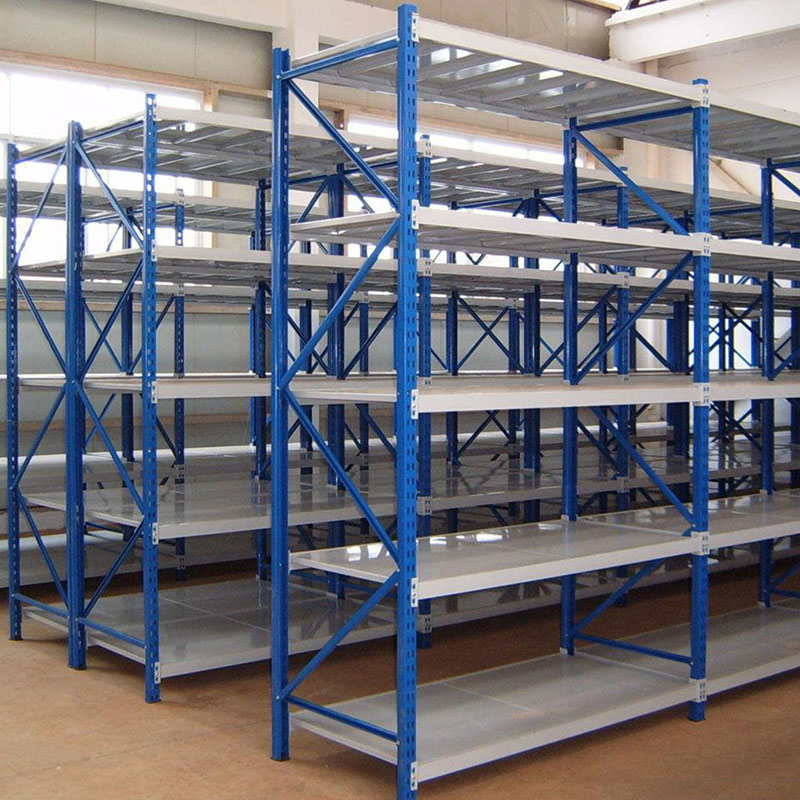

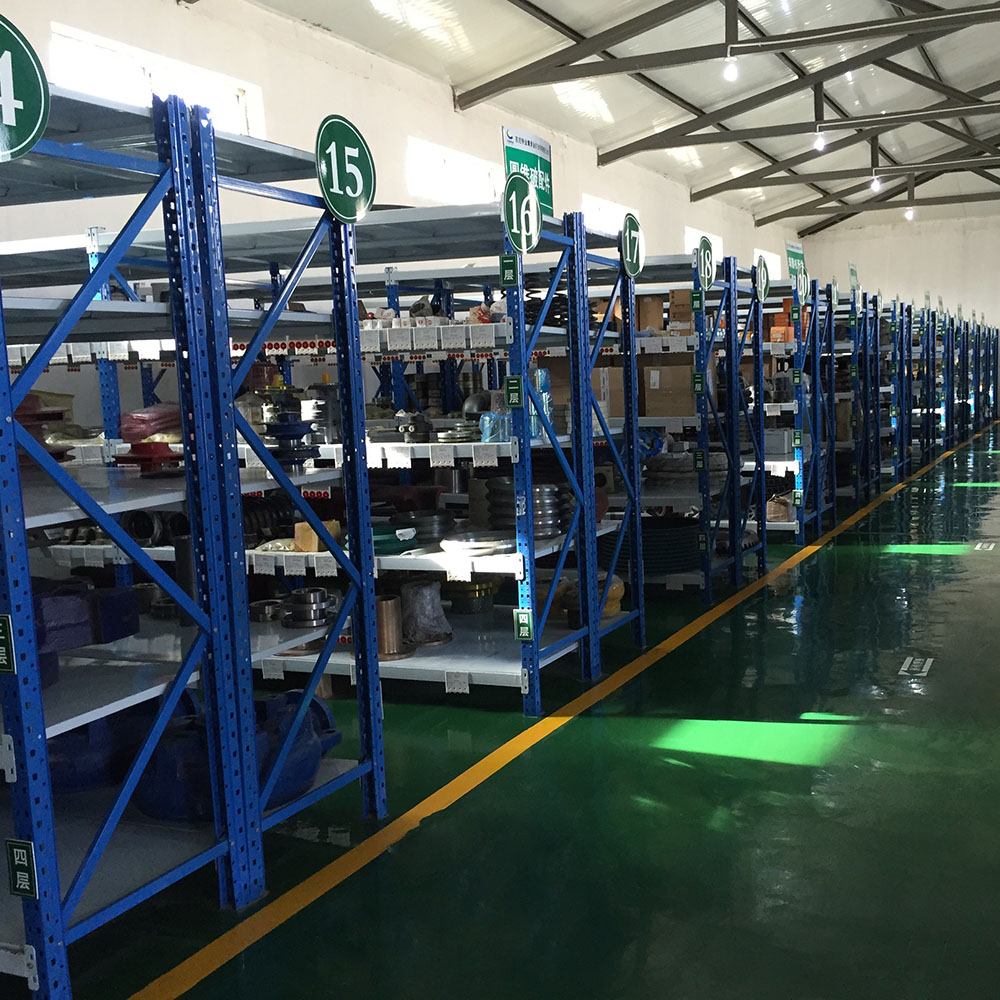

Medium Duty Rack: Medium duty rack belongs to warehouse storage racking systems. It can be adjusted by each 50mm, and the load capacity can reach 200~500kg. The beam is a "P" type beam, whose height matches with that of the layer board.
| Standards Size | Layer | Loading Weight | Beam (mm) | Upright (mm) | Thickness of Board (mm) |
|---|---|---|---|---|---|
| L2000*D600*H2000 | 4 | 200~300kg/layer | 60*40*1.2 | 60*50*1.2 | 0.5 |
| L2000*D600*H2000 | 4 | 400~500kg/layer | 60*40*1.5 | 60*50*1.5 | 0.7 |
| Product Name | Medium Duty Rack/Shelf |
|---|---|
| Material | High-Quality Q235 Colded-Coll Steel |
| Loading Capacity | 200~500kgs/level |
| Thickness | Upright: 60*40*1.0, 1.2, 1.5mm | Beam: 60*40 / 80*40*1.0, 1.2, 1.5mm | Steel: 0.5, 0.6, 0.7mm |
| Color | Upright: Blue, Beam: Orange, Steel: Gray white. It can be customized to any color. |
| Surface Treatment | Electrostatic Spray Surface |
| Packing Term | Air bubble, Carton, Wooden Case |
| Warranty | 10 Years |
| Certification | SGS |
- ✔ Long span shelving rack is very convenient for installation.
- ✔ The adjustment distance of steel layers is 50mm for multiple usages. It consists of vertical columns, layer plates, corner pieces, pins, special bolts, and plastic footings.
- ✔ The surface is electrostatic sprayed and the color is selectable. It provides superior corrosion and rust protection.
- ✔ Widely used in families, stores, supermarkets, company storage facilities, and public institutions. It is an optimized modern storage solution.
Beam Loading Capacity & Size
🔍Detailed Images
| Medium Duty Rack Specifications | |
|---|---|
| Size | L2000*D600*H2000mm, Loading: 300kg/layer, Layer: 4 levels |
| Material | Upright: 60*50*1.0, Beam: 60*40*1.2, Steel: 0.5mm |
| Color | Upright is blue, beam and steel are gray white |
| Packaging Term | Air bubble |
| Surface Treatment | Powder Coating |
Beam & Upright Connect
Diagonal & Horizontal Bracing Installed
Steel Board Section
🏭Product Overviews
🔥Hot Sale
Heavy Duty Pallet Racking
Medium Duty Rack
Mould Rack
Cantilever Rack
Mezzanine Floor
Wire Mesh Container
❓Frequently Asked Questions
Q1: Are you a manufacture or trading company?
A: We are a professional racking manufacturer located in Dongguan, Guangdong.
Q2: What material is used for the racks?
A: Our standard production material is high-quality Q235B cold rolled steel.
Q3: What is the delivery time?
A: Generally, production takes less than 15 workdays. Lead time also depends on the specific order quantity and shelving design.
Q4: What are the accepted terms of payment?
A: Our payment terms are 30% T/T down payment and 70% T/T balance before delivery.
Q5: How can I receive a quick quotation for my project?
A: For an accurate quote, please provide rack dimensions (Length * Depth * Height), required layers per unit, load capacity per beam layer, and the total racking quantity.
Q6: How does your facility ensure quality control?
A: Quality is our top priority. Our operations are strictly certified according to ISO 9001:2001 and verified by SGS standards.
