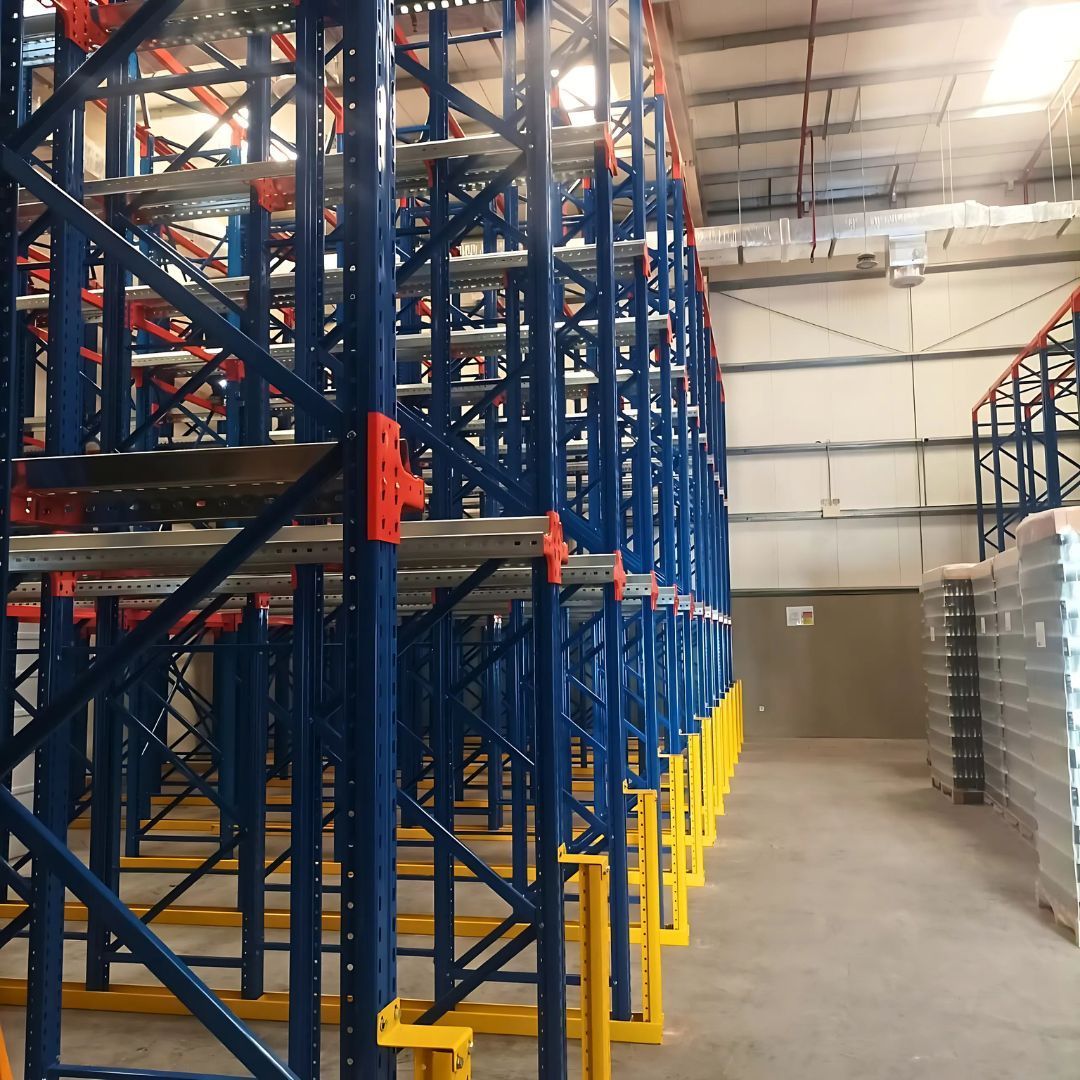

Industrial Metal Warehouse Racking System Drive Pallet Storage Drive-In Pallet Rack Shelves for Industrial
Product Description

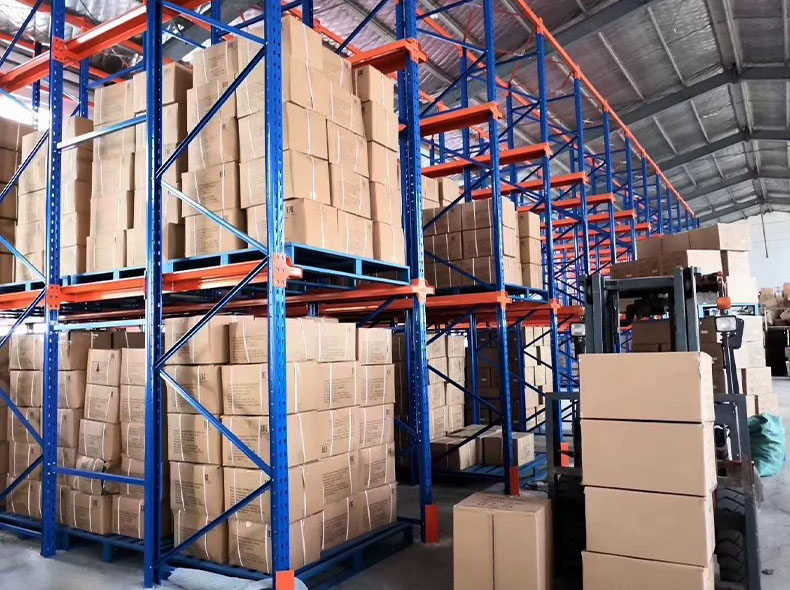

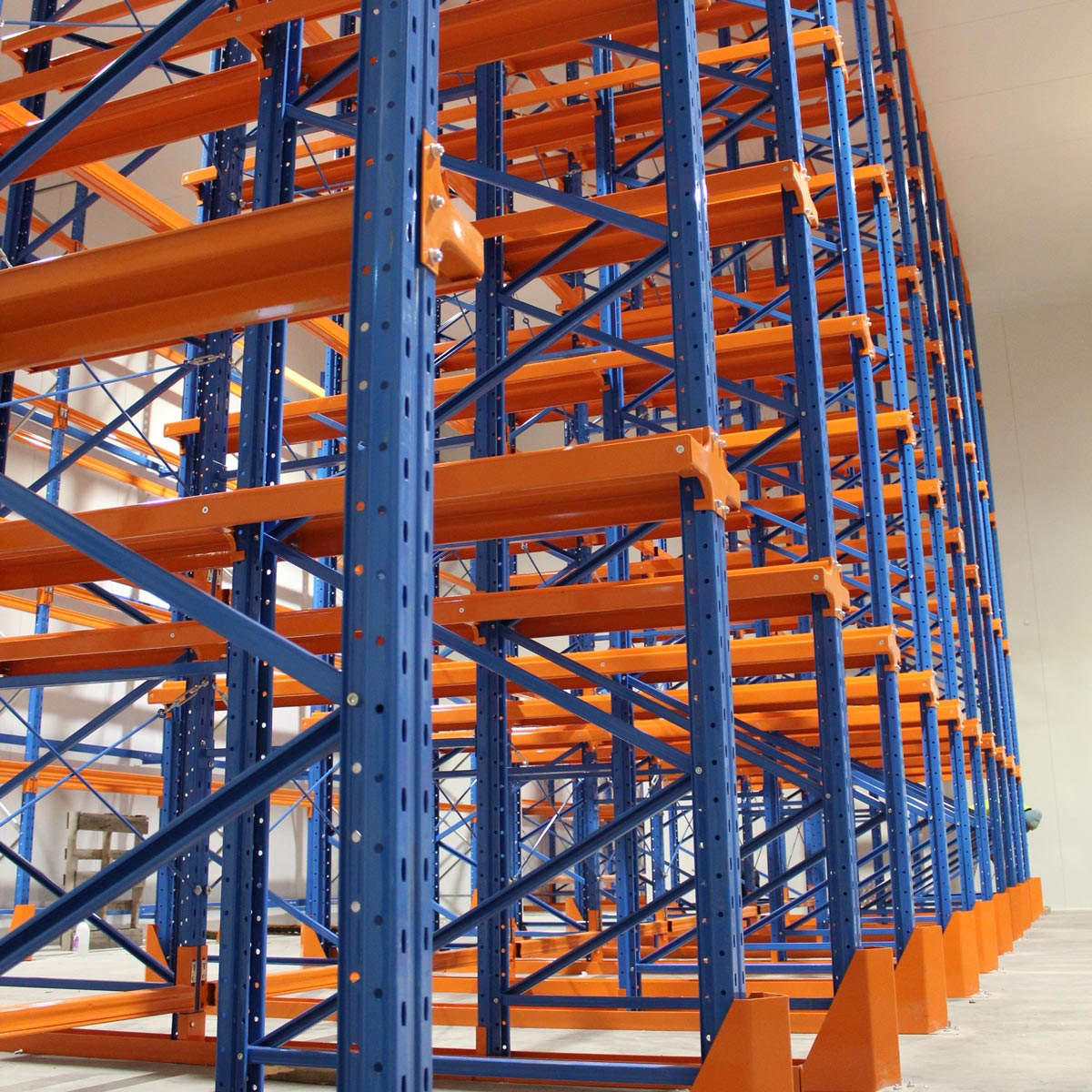

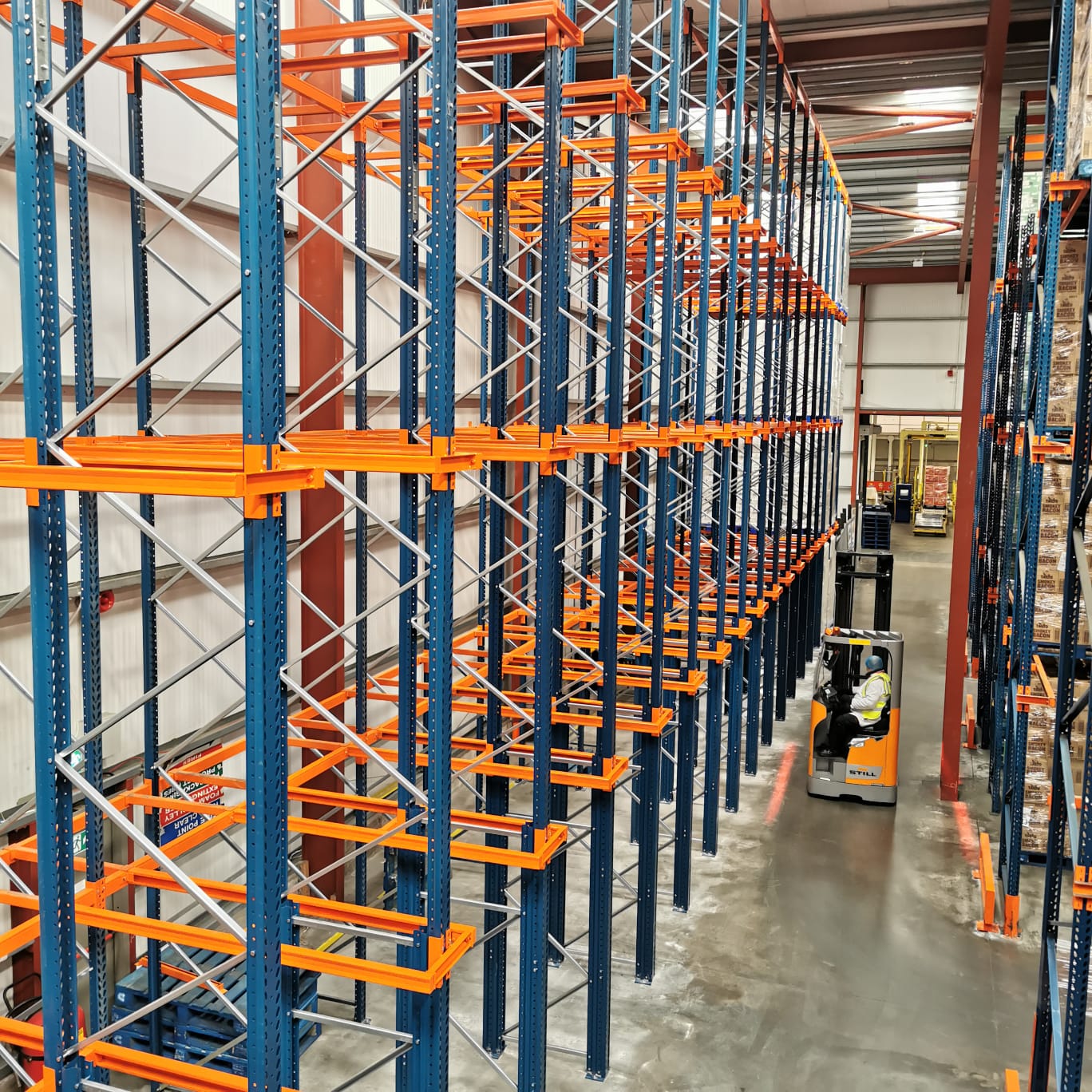

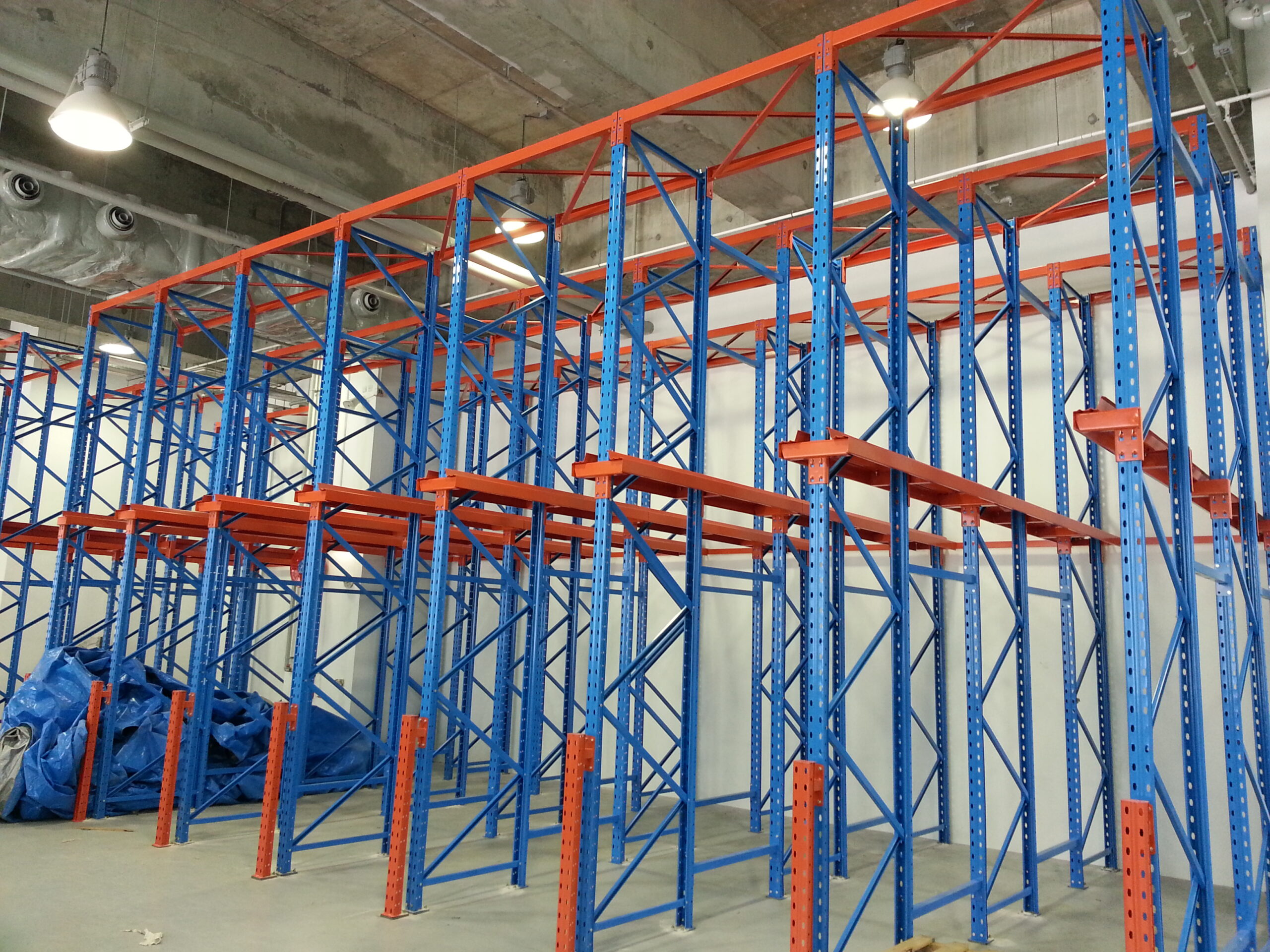

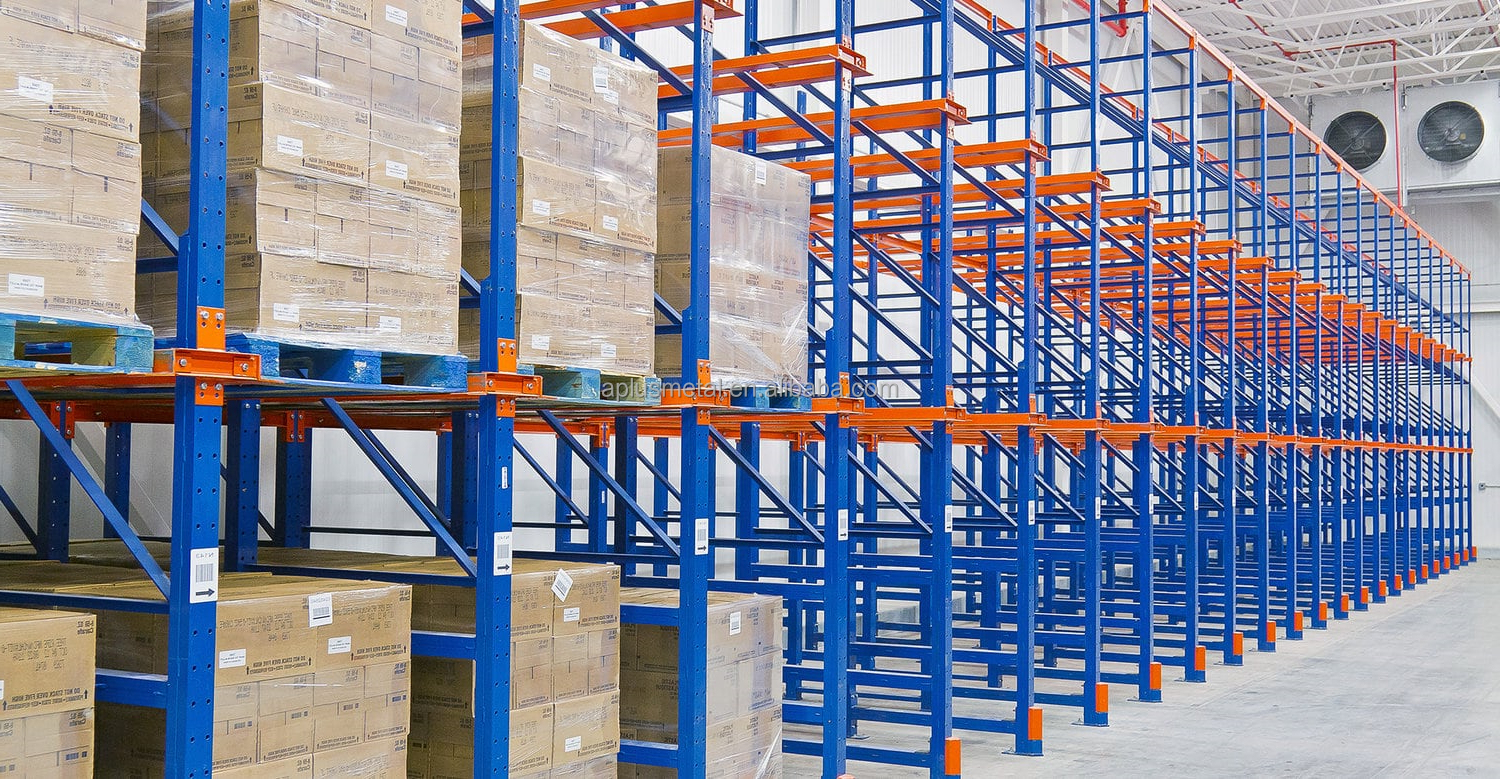

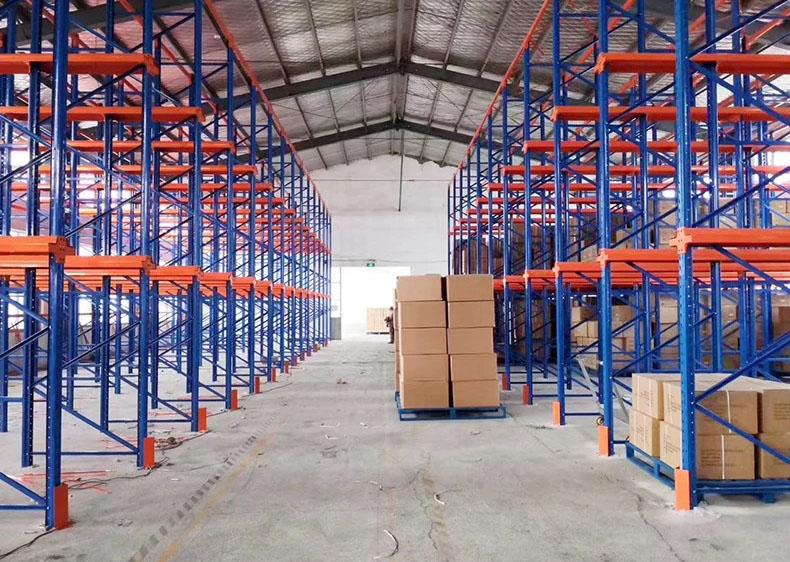

Drive-in Rack
It is suitable for storing large quantity of goods with less types, goods of batched working and small range of selection. The goods are stored on the support guide rail with the pallet one after another in the direction of depth, increasing the storage density and space availability. It is quite convenient for fork truck drives into lane directly to store or take out the goods.
Specification
| Loading Weight | 800~1000kg/pallet |
|---|---|
| Dimensions | Height: 1500-8000mm, Wide/Depth: 1000-1500mm, Length: 1500-3200mm Special size also available to specific storage needs. |
| Main Parts Specs |

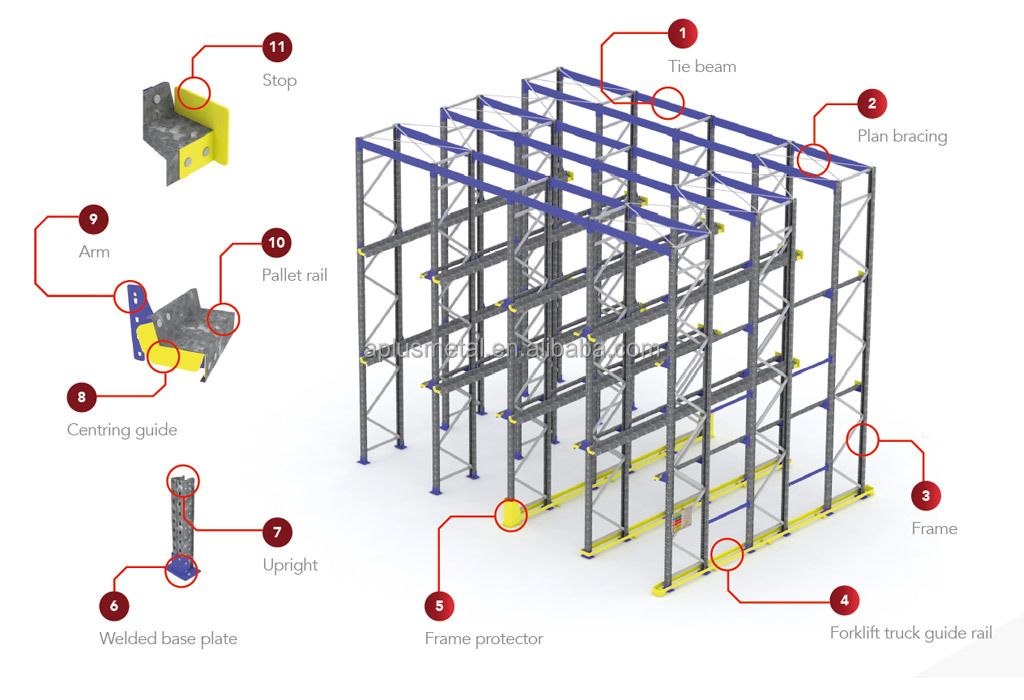

Upright section: 90*65, 120*65, 1.5, 2.0mm Beam Section: box beam 80*45/100*45/120*45/140*45/160*45, etc., Thickness: 1.0/1.2/1.5mm, etc. Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components. |
| Material | High-quality cold rolled steel, Q235 |
| Package Term | Air bubble pack, PE stretch film for keeping free from scratch |
Company Profile
Customer Photos
Our Advantages
Packing & Delivery
Frequently Asked Questions
What type of inventory is Drive-in Racking best suited for?
Drive-in racking is ideal for storing large quantities of goods with relatively few SKU types. It is designed for batched operations where products are stored on continuous support rails along depth lanes, significantly increasing storage density and maximizing space utilization.
What is the standard loading capacity per pallet?
The standard loading weight capacity is typically between 800 kg and 1000 kg per pallet position, engineered to maintain full structural safety under intensive forklift operations.
What steel material and components are used in the system?
The system is constructed with high-quality cold-rolled Q235 steel. Structural components include uprights (90*65mm, 120*65mm; 1.5mm/2.0mm thickness), box beams (80*45mm up to 160*45mm; 1.0mm to 1.5mm thickness), horizontal & diagonal braces, base footplates, safety locking pins, bolts, and floor anchors.
Are custom dimensions available for specific storage facilities?
Yes. While standard heights range from 1500 to 8000mm, widths/depths from 1000 to 1500mm, and lengths from 1500 to 3200mm, customized sizes are fully supported to match your warehouse layout and operational demands.
How are the rack components packaged for safe international delivery?
All parts are professionally packed using air bubble wrap and industrial PE stretch film. This multi-layer wrapping prevents surface friction, abrasion, and moisture damage throughout transit and unloading.
